pointpillar（OpenPCDet）原创改进1——引入SE通道注意力机制

本代码将SE模块融入pointpillar骨干网络中，使得每一个卷卷积过后都经过一个SE模块再进行上采样。

1. 完成OpenPCDet安装与环境配置(我的环境为ubuntu22.04、python3.7、pytorch11.3)

安装、测试和训练OpenPCDet：一篇详尽的指南_openpcdet 安装-优快云博客​blog.youkuaiyun.com/laukal/article/details/139395806

2.修改代码

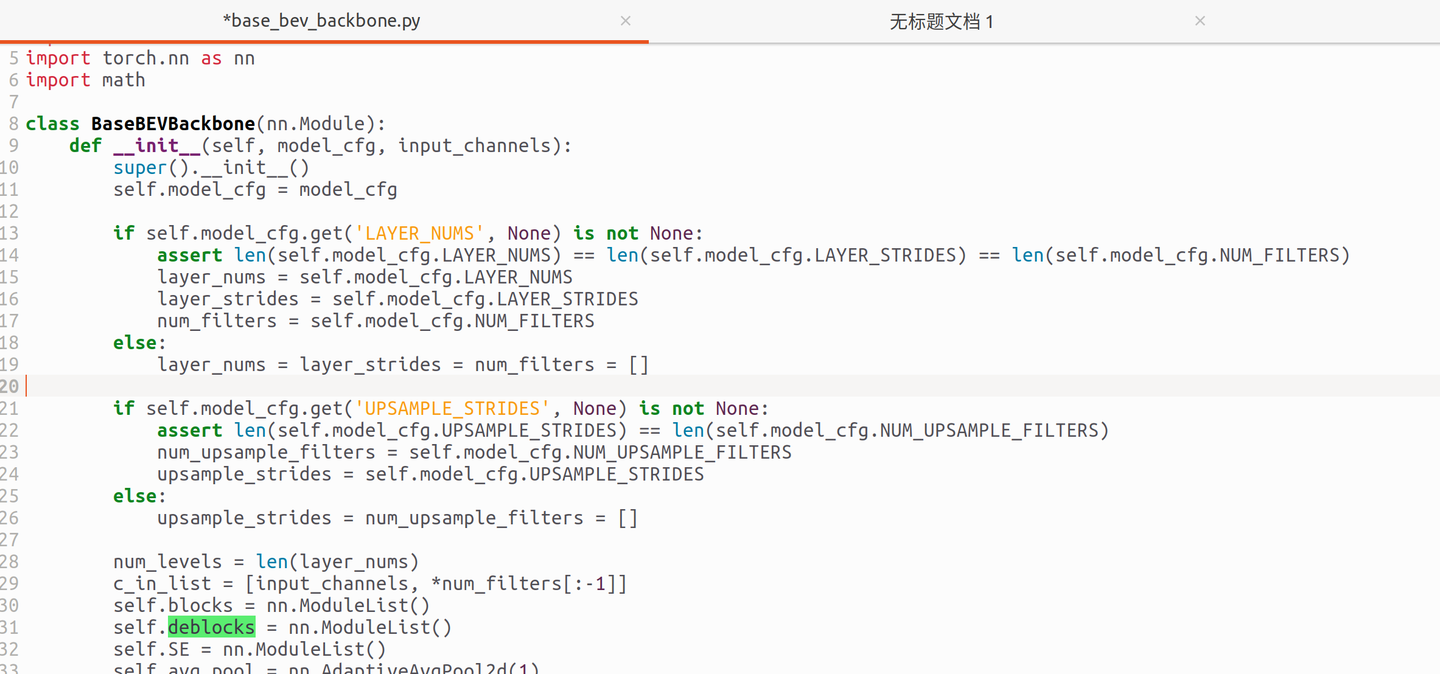

• 找到路径OpenPCDet/pcdet/models/backbones_2d中的base_bev_backbone.py文件打开

• 找到代码第8行



• 将该类替换为以下代码：

class BaseBEVBackbone(nn.Module):
    def __init__(self, model_cfg, input_channels):
        super().__init__()
        self.model_cfg = model_cfg

        if self.model_cfg.get('LAYER_NUMS', None) is not None:
            assert len(self.model_cfg.LAYER_NUMS) == len(self.model_cfg.LAYER_STRIDES) == len(self.model_cfg.NUM_FILTERS)
            layer_nums = self.model_cfg.LAYER_NUMS
            layer_strides = self.model_cfg.LAYER_STRIDES
            num_filters = self.model_cfg.NUM_FILTERS
        else:
            layer_nums = layer_strides = num_filters = []

        if self.model_cfg.get('UPSAMPLE_STRIDES', None) is not None:
            assert len(self.model_cfg.UPSAMPLE_STRIDES) == len(self.model_cfg.NUM_UPSAMPLE_FILTERS)
            num_upsample_filters = self.model_cfg.NUM_UPSAMPLE_FILTERS
            upsample_strides = self.model_cfg.UPSAMPLE_STRIDES
        else:
            upsample_strides = num_upsample_filters = []

        num_levels = len(layer_nums)
        c_in_list = [input_channels, *num_filters[:-1]]
        self.blocks = nn.ModuleList()
        self.deblocks = nn.ModuleList()
        self.SE = nn.ModuleList()
        self.avg_pool = nn.AdaptiveAvgPool2d(1)
        for idx in range(num_levels):
            cur_layers = [
                nn.ZeroPad2d(1),
                nn.Conv2d(
                    c_in_list[idx], num_filters[idx], kernel_size=3,
                    stride=layer_strides[idx], padding=0, bias=False
                ),
                nn.BatchNorm2d(num_filters[idx], eps=1e-3, momentum=0.01),
                nn.ReLU()
            ]
            for k in range(layer_nums[idx]):
                cur_layers.extend([
                    nn.Conv2d(num_filters[idx], num_filters[idx], kernel_size=3, padding=1, bias=False),
                    nn.BatchNorm2d(num_filters[idx], eps=1e-3, momentum=0.01),
                    nn.ReLU()
                ])
            self.blocks.append(nn.Sequential(*cur_layers))
            self.SE.append(nn.Sequential(
	         nn.Linear(num_filters[idx], num_filters[idx] //4,bias=False),
	                                             nn.ReLU(inplace=True),nn.Linear(num_filters[idx]// 4, num_filters[idx], bias=False),
	                                             nn.Sigmoid()))
            if len(upsample_strides) > 0:
                stride = upsample_strides[idx]
                if stride > 1 or (stride == 1 and not self.model_cfg.get('USE_CONV_FOR_NO_STRIDE', False)):
                    self.deblocks.append(nn.Sequential(
                        nn.ConvTranspose2d(
                            num_filters[idx], num_upsample_filters[idx],
                            upsample_strides[idx],
                            stride=upsample_strides[idx], bias=False
                        ),
                        nn.BatchNorm2d(num_upsample_filters[idx], eps=1e-3, momentum=0.01),
                        nn.ReLU()
                    ))
                else:
                    stride = np.round(1 / stride).astype(np.int)
                    self.deblocks.append(nn.Sequential(
                        nn.Conv2d(
                            num_filters[idx], num_upsample_filters[idx],
                            stride,
                            stride=stride, bias=False
                        ),
                        nn.BatchNorm2d(num_upsample_filters[idx], eps=1e-3, momentum=0.01),
                        nn.ReLU()
                    ))

        c_in = sum(num_upsample_filters)
        if len(upsample_strides) > num_levels:
            self.deblocks.append(nn.Sequential(
                nn.ConvTranspose2d(c_in, c_in, upsample_strides[-1], stride=upsample_strides[-1], bias=False),
                nn.BatchNorm2d(c_in, eps=1e-3, momentum=0.01),
                nn.ReLU(),
            ))

        self.num_bev_features = c_in

    def forward(self, data_dict):
        """
        Args:
            data_dict:
                spatial_features
        Returns:
        """
        spatial_features = data_dict['spatial_features']
        ups = []
        ret_dict = {}
        x = spatial_features
        for i in range(len(self.blocks)):
            x = self.blocks[i](x)

            stride = int(spatial_features.shape[2] / x.shape[2])
            ret_dict['spatial_features_%dx' % stride] = x
            if len(self.deblocks) > 0:
                ups.append(self.deblocks[i](x))
            else:
                ups.append(x)
            b, c, _, _ = x.size()
            y = self.avg_pool(x).view(b, c)
            y = self.SE[i](y).view(b, c, 1, 1)
            x = x*y
        if len(ups) > 1:
            x = torch.cat(ups, dim=1)
        elif len(ups) == 1:
            x = ups[0]

        if len(self.deblocks) > len(self.blocks):
            x = self.deblocks[-1](x)

        data_dict['spatial_features_2d'] = x

        return data_dict

3. 开始训练

//演示文件
python demo.py --cfg_file cfgs/kitti_models/pointpillar.yaml --ckpt ../output/kitti_models/pointpillar/default/ckpt/latest_model.pth --data_path ../data/kitti/testing/velodyne/000034.bin
//测试文件
cd tools
python test.py --cfg_file cfgs/kitti_models/pointpillar.yaml --batch_size 4 --ckpt ../output/kitti_models/pointpillar/default/ckpt/latest_model.pth
//训练文件
cd tools
python train.py --cfg_file ./cfgs/kitti_models/pointpillar.yaml

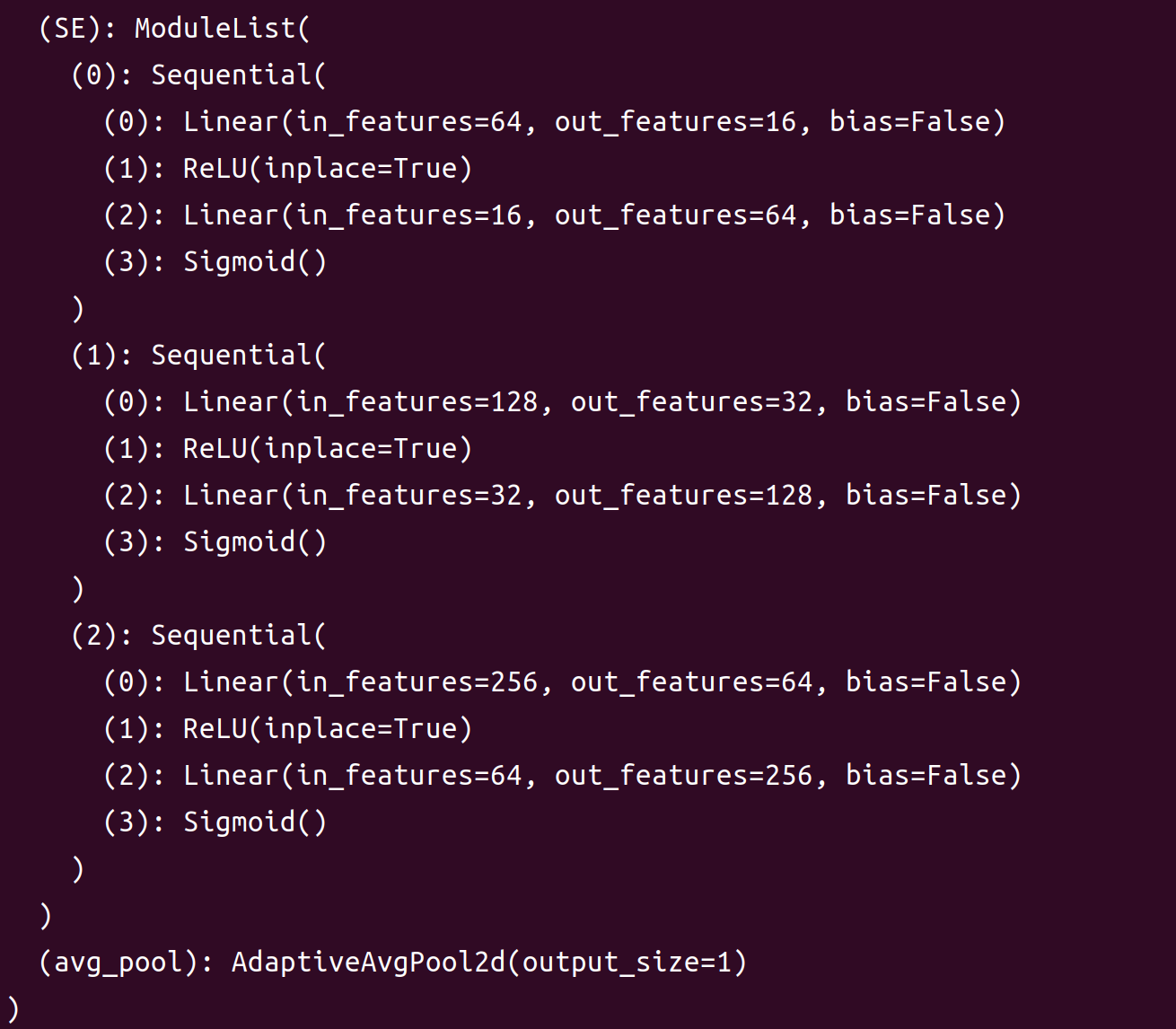

4. 模型中SE模块已经被加载

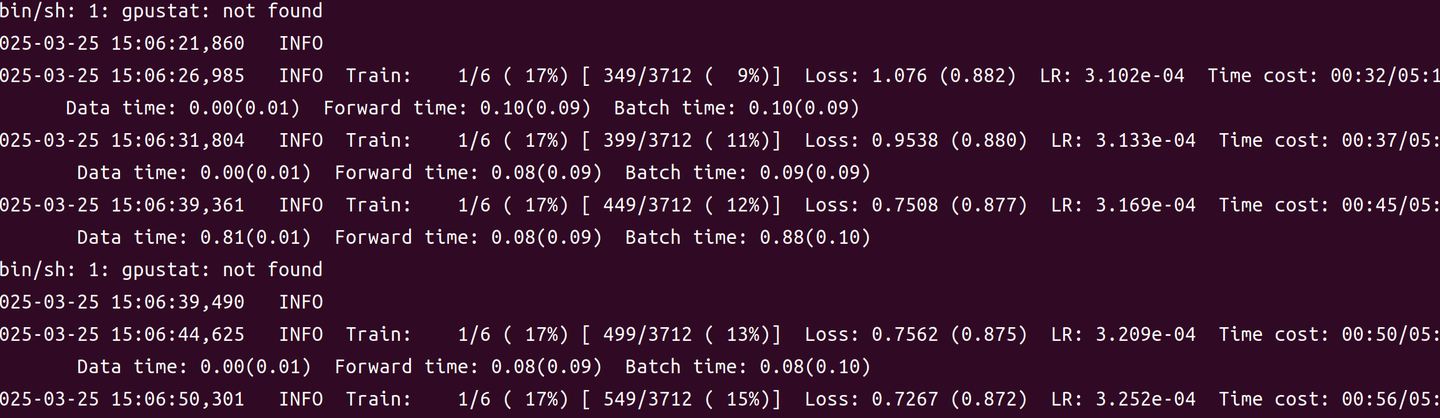

5.训练开始
