ansible部署

ansible是什么

ansible是自动化运维工具，基于Python开发，集合了众多运维工具（puppet、cfengine、chef、func、fabric、saltstack）的优点，实现了批量系统配置、批量程序部署、批量运行命令等功能。

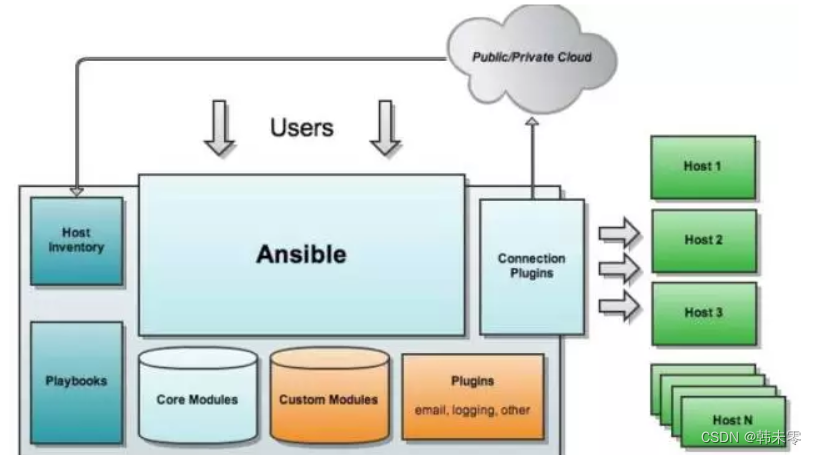

ansible架构

ansible组成

1.host inventory   主机清单 --》可以控制的其他的电脑的名单。

2.playbook   剧本（配置文件） --》让主机清单里的主机去批量完成的任务 --》脚本

3.module  模块  实现一个个功能的程序。

4.plugins  插件 ：依附于ansible的一个小软件，实现某个小功能。

ansible特点

1.ansible不需要单独安装客户端，也不需要启动任何服务。

2.ansible是python中的一套完整的自动化执行任务模块。

3.ansible playbook 采用yaml配置，对于自动化任务执行过一目了然。

安装部署

准备3台linux服务器

ip	系统	主机名	描述
192.168.102.135	CentOS Linux release 7.6.1810	ansible	master
192.168.102.139	CentOS Linux release 7.6.1810	web-2	node
192.168.102.140	CentOS Linux release 7.6.1810	web-1	node

一台做管理节点（安装 ansible），另外2台做远程节点（不需要安装ansible，但是需要安装openssh软件，默认情况下centos的系统都安装openssh）。

管理节点和远程节点之间需要配置免密通道。

配置无密码登录（基于密钥连接）

1.在ansible主机上生成密钥对

[root@ansible ~]# ssh-keygen -t ecdsa
Generating public/private ecdsa key pair.
Enter file in which to save the key (/root/.ssh/id_ecdsa):
Created directory '/root/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_ecdsa.
Your public key has been saved in /root/.ssh/id_ecdsa.pub.
The key fingerprint is:
SHA256:JkGmVS3sb5gdH7YchnpxJTzm29Fq35hkxERIsOL4Th8 root@ansible
The key's randomart image is:
+---[ECDSA 256]---+
|      +o...+.o.  |
|     =  o ..* o  |
|    . .....+ * . |
|       +..+ B + .|
|      o S* O B o |
|       ++ = = *  |
|        ooE  + +.|
|       o . .  o o|
|        . .      |
+----[SHA256]-----+

[root@ansible ~]# cd /root/.ssh/
[root@ansible .ssh]# ls
id_ecdsa  id_ecdsa.pub

2.上传公钥到node1和node2节点服务器的root用户家目录下，同步到到两台node上

2个节点服务器上开启ssh服务 ，开放22号端口，允许root用户登录，检查黑白名单是否拒绝登录，是否防火墙开启，进行了限制上传公钥到节点服务器。

[root@ansible .ssh]# ssh-copy-id -i id_ecdsa.pub root@192.168.102.139
/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "id_ecdsa.pub"
The authenticity of host '192.168.102.139 (192.168.102.139)' can't be established.
ECDSA key fingerprint is SHA256:GJLkvon/6JIxY0thYpMWcSIQBVdWFjwOZah+sPUmZ6E.
ECDSA key fingerprint is MD5:cb:bf:d9:ec:3d:33:6c:a4:5c:3c:e2:ce:b8:60:b8:33.
Are you sure you want to continue connecting (yes/no)? yes
/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@192.168.102.139's password:

Number of key(s) added: 1

Now try logging into the machine, with:   "ssh 'root@192.168.102.139'"
and check to make sure that only the key(s) you wanted were added.

[root@ansible .ssh]# ssh-copy-id -i id_ecdsa.pub root@192.168.102.140
/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "id_ecdsa.pub"
The authenticity of host '192.168.102.140 (192.168.102.140)' can't be established.
ECDSA key fingerprint is SHA256:GJLkvon/6JIxY0thYpMWcSIQBVdWFjwOZah+sPUmZ6E.
ECDSA key fingerprint is MD5:cb:bf:d9:ec:3d:33:6c:a4:5c:3c:e2:ce:b8:60:b8:33.
Please type 'yes' or 'no': yes
/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@192.168.102.140's password:

Number of key(s) added: 1

Now try logging into the machine, with:   "ssh 'root@192.168.102.140'"
and check to make sure that only the key(s) you wanted were added.

验证是否实现免密码密钥认证。

[root@ansible .ssh]# ssh root@192.168.102.139
Last login: Sun Apr  9 18:43:35 2023 from 192.168.102.1
[root@web-2 ~]# exit
登出
Connection to 192.168.102.139 closed.

[root@ansible .ssh]# ssh root@192.168.102.140
Last login: Sun Apr  9 18:43:36 2023 from 192.168.102.1
[root@web-1 ~]#

3、安装ansible，在管理节点上

目前,只要机器上安装了 Python 2.6 或 Python 2.7 (windows系统不可以做控制主机)，都可以运行Ansible。

[root@ansible .ssh]# yum install epel-release -y

[root@ansible .ssh]# yum  install ansible -y

查看ansible的帮助文档

[root@ansible .ssh]# ansible -h
usage: ansible [-h] [--version] [-v] [-b] [--become-method BECOME_METHOD]
               [--become-user BECOME_USER] [-K] [-i INVENTORY] [--list-hosts]
               [-l SUBSET] [-P POLL_INTERVAL] [-B SECONDS] [-o] [-t TREE] [-k]
               [--private-key PRIVATE_KEY_FILE] [-u REMOTE_USER]
               [-c CONNECTION] [-T TIMEOUT]
               [--ssh-common-args SSH_COMMON_ARGS]
               [--sftp-extra-args SFTP_EXTRA_ARGS]
               [--scp-extra-args SCP_EXTRA_ARGS]
               [--ssh-extra-args SSH_EXTRA_ARGS] [-C] [--syntax-check] [-D]
               [-e EXTRA_VARS] [--vault-id VAULT_IDS]
               [--ask-vault-pass | --vault-password-file VAULT_PASSWORD_FILES]
               [-f FORKS] [-M MODULE_PATH] [--playbook-dir BASEDIR]
               [-a MODULE_ARGS] [-m MODULE_NAME]
               pattern

Define and run a single task 'playbook' against a set of hosts

positional arguments:
  pattern               host pattern

optional arguments:
  --ask-vault-pass      ask for vault password
  --list-hosts          outputs a list of matching hosts; does not execute
                        anything else
  --playbook-dir BASEDIR
                        Since this tool does not use playbooks, use this as a
                        substitute playbook directory.This sets the relative
                        path for many features including roles/ group_vars/
                        etc.
  --syntax-check        perform a syntax check on the playbook, but do not
                        execute it
  --vault-id VAULT_IDS  the vault identity to use
  --vault-password-file VAULT_PASSWORD_FILES
                        vault password file
  --version             show program's version number, config file location,
                        configured module search path, module location,
                        executable location and exit
  -B SECONDS, --background SECONDS
                        run asynchronously, failing after X seconds
                        (default=N/A)
  -C, --check           don't make any changes; instead, try to predict some
                        of the changes that may occur
  -D, --diff            when changing (small) files and templates, show the
                        differences in those files; works great with --check
  -M MODULE_PATH, --module-path MODULE_PATH
                        prepend colon-separated path(s) to module library (def
                        ault=~/.ansible/plugins/modules:/usr/share/ansible/plu
                        gins/modules)
  -P POLL_INTERVAL, --poll POLL_INTERVAL
                        set the poll interval if using -B (default=15)
  -a MODULE_ARGS, --args MODULE_ARGS
                        module arguments
  -e EXTRA_VARS, --extra-vars EXTRA_VARS
                        set additional variables as key=value or YAML/JSON, if
                        filename prepend with @
  -f FORKS, --forks FORKS
                        specify number of parallel processes to use
                        (default=5)
  -h, --help            show this help message and exit
  -i INVENTORY, --inventory INVENTORY, --inventory-file INVENTORY
                        specify inventory host path or comma separated host
                        list. --inventory-file is deprecated
  -l SUBSET, --limit SUBSET
                        further limit selected hosts to an additional pattern
  -m MODULE_NAME, --module-name MODULE_NAME
                        module name to execute (default=command)
  -o, --one-line        condense output
  -t TREE, --tree TREE  log output to this directory
  -v, --verbose         verbose mode (-vvv for more, -vvvv to enable
                        connection debugging)

Privilege Escalation Options:
  control how and which user you become as on target hosts

  --become-method BECOME_METHOD
                        privilege escalation method to use (default=sudo), use
                        `ansible-doc -t become -l` to list valid choices.
  --become-user BECOME_USER
                        run operations as this user (default=root)
  -K, --ask-become-pass
                        ask for privilege escalation password
  -b, --become          run operations with become (does not imply password
                        prompting)

Connection Options:
  control as whom and how to connect to hosts

  --private-key PRIVATE_KEY_FILE, --key-file PRIVATE_KEY_FILE
                        use this file to authenticate the connection
  --scp-extra-args SCP_EXTRA_ARGS
                        specify extra arguments to pass to scp only (e.g. -l)
  --sftp-extra-args SFTP_EXTRA_ARGS
                        specify extra arguments to pass to sftp only (e.g. -f,
                        -l)
  --ssh-common-args SSH_COMMON_ARGS
                        specify common arguments to pass to sftp/scp/ssh (e.g.
                        ProxyCommand)
  --ssh-extra-args SSH_EXTRA_ARGS
                        specify extra arguments to pass to ssh only (e.g. -R)
  -T TIMEOUT, --timeout TIMEOUT
                        override the connection timeout in seconds
                        (default=10)
  -c CONNECTION, --connection CONNECTION
                        connection type to use (default=smart)
  -k, --ask-pass        ask for connection password
  -u REMOTE_USER, --user REMOTE_USER
                        connect as this user (default=None)

Some modules do not make sense in Ad-Hoc (include, meta, etc)

4.使用ansible

[root@ansible ~]# cd /etc/ansible
[root@ansible ansible]# ls
ansible.cfg  hosts  roles

[root@ansible ansible]# vim hosts
## 192.168.1.100
## 192.168.1.110
[web]
192.168.102.140
192.168.102.139

[root@ansible ansible]# ansible all -m shell -a "ip add"
192.168.102.139 | CHANGED | rc=0 >>
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:0c:29:76:f7:50 brd ff:ff:ff:ff:ff:ff
    inet 192.168.102.139/24 brd 192.168.102.255 scope global noprefixroute dynamic ens33
       valid_lft 1764sec preferred_lft 1764sec
    inet6 fe80::cb26:250d:bed5:7336/64 scope link tentative noprefixroute dadfailed
       valid_lft forever preferred_lft forever
    inet6 fe80::bbf5:76fa:b1b6:d5cd/64 scope link tentative noprefixroute dadfailed
       valid_lft forever preferred_lft forever
    inet6 fe80::c722:692f:64d2:42e7/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
192.168.102.140 | CHANGED | rc=0 >>
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:0c:29:82:3e:f1 brd ff:ff:ff:ff:ff:ff
    inet 192.168.102.140/24 brd 192.168.102.255 scope global noprefixroute dynamic ens33
       valid_lft 1688sec preferred_lft 1688sec
    inet6 fe80::cb26:250d:bed5:7336/64 scope link tentative noprefixroute dadfailed
       valid_lft forever preferred_lft forever
    inet6 fe80::bbf5:76fa:b1b6:d5cd/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

[root@ansible ansible]# ansible all -m shell -a "mkdir /root/sc"
[WARNING]: Consider using the file module with state=directory rather than running 'mkdir'.
If you need to use command because file is insufficient you can add 'warn: false' to this
command task or set 'command_warnings=False' in ansible.cfg to get rid of this message.
192.168.102.139 | CHANGED | rc=0 >>

192.168.102.140 | CHANGED | rc=0 >>

[root@ansible ansible]# ansible all -m shell -a "ls /root/"
192.168.102.139 | CHANGED | rc=0 >>
anaconda-ks.cfg
sc
192.168.102.140 | CHANGED | rc=0 >>
anaconda-ks.cfg
sc

基于密码连接

[root@ansible ~]# vim /etc/ansible/hosts
[web]
192.168.102.140 ansible_ssh_port=22 ansible_ssh_user=root ansible_ssh_pass="123456"
192.168.102.139 ansible_ssh_port=22 ansible_ssh_user=root ansible_ssh_pass="123456"
