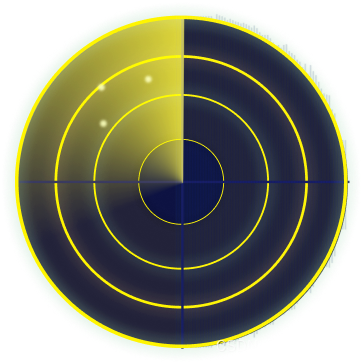

这段代码展示了如何使用CSS实现一个动态的雷达扫描效果。主要依赖于径向渐变、线性渐变以及关键帧动画来创建背景和光束的移动效果。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

templete代码：

<div class="radar"></div>

style代码：

.radar {
  background: -webkit-radial-gradient(center, transparent, transparent),
  -webkit-repeating-radial-gradient(rgba(32, 255, 77, 0) 0, rgba(32, 255, 77, 0) 17%, #fff50c 17.6%, rgba(32, 255, 77, 0) 18%),
  -webkit-linear-gradient(90deg, rgba(32, 255, 77, 0) 49.5%, #161d67 50%, #161d67 50%, rgba(32, 255, 77, 0) 50.2%),
  -webkit-linear-gradient(0deg, rgba(32, 255, 77, 0) 49.5%, #161d67 50%, #161d67 50%, rgba(32, 255, 77, 0) 50.2%);
  width: 254px;
  height: 254px;
  position: relative;
  left: 50%;
  top: 50%;
  transform: translate(-50%, -50%);
  border-radius: 50%;
  border: 0.2rem solid #fff50c;
  overflow: hidden;
  margin-top: 20px;
}

.radar:before {
  content: ' ';
  display: block;
  position: absolute;
  width: 100%;
  height: 100%;
  border-radius: 50%;
  animation: blips 15s infinite;
  animation-timing-function: linear;
  animation-delay: 1.4s;
}

.radar:after {
  content: ' ';
  display: block;
  background-image: linear-gradient(44deg, rgba(0, 255, 51, 0) 50%, #fff50c 100%);
  width: 50%;
  height: 50%;
  position: absolute;
  top: 0;
  left: 0;
  animation: radar-beam 15s infinite;
  animation-timing-function: linear;
  transform-origin: bottom right;
  border-radius: 100% 0 0 0;
}

@keyframes radar-beam {
  0% {
    transform: rotate(0deg);
  }
  100% {
    transform: rotate(360deg);
  }
}

@keyframes blips {
  0% {
    background: radial-gradient(0.5vmin circle at 53% 45%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
  5.6% {
    background: radial-gradient(0.5vmin circle at 56% 46%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
  12.2% {
    background: radial-gradient(0.5vmin circle at 58% 48%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
  18.8% {
    background: radial-gradient(0.5vmin circle at 56% 52%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
  25.4% {
    background: radial-gradient(0.5vmin circle at 56.3% 53%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
  32% {
    background: radial-gradient(0.5vmin circle at 56% 55.3%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
  38.6% {
    background: radial-gradient(0.5vmin circle at 53.5% 61%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
  45.2% {
    background: radial-gradient(0.5vmin circle at 46% 65%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
  51.8% {
    background: radial-gradient(0.5vmin circle at 37% 66.5%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
  58.4% {
    background: radial-gradient(0.5vmin circle at 24% 65%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
  65% {
    background: radial-gradient(0.5vmin circle at 19% 54%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
  71.7% {
    background: radial-gradient(0.5vmin circle at 15% 41%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
  78.3% {
    background: radial-gradient(0.5vmin circle at 21% 28%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
  84.9% {
    background: radial-gradient(0.5vmin circle at 25% 11%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
  92.2% {
    background: radial-gradient(0.5vmin circle at 50% 26%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
  98.8% {
    background: radial-gradient(0.5vmin circle at 53% 45%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
  100% {
    background: radial-gradient(0.5vmin circle at 53% 45%, #ffffff 10%, rgba(255, 255, 255, 0) 100%);
    opacity: 1;
  }
}
