LeNet实现

LeNet网络的代码实现pytroch



import torch
import torchvision
from torch import nn
from torch.utils.data import DataLoader
import torch.nn.functional as F
from torch.utils.tensorboard import SummaryWriter

transform=torchvision.transforms.Compose(
    [torchvision.transforms.ToTensor(),torchvision.transforms.Normalize((0.5,0.5,0.5),(0.5,0.5,0.5))])
#训练数据集
train_dataset=torchvision.datasets.CIFAR10("dataset",train=True,transform=transform,download=True)
train_loader=DataLoader(train_dataset,batch_size=100,shuffle=True,num_workers=0)

#测试数据集
testset=torchvision.datasets.CIFAR10("dataset",train=False,transform=transform,download=True)
testloader=DataLoader(testset,batch_size=10000,shuffle=True,num_workers=0)

test_data_iter=iter(testloader)
test_image,test_label=test_data_iter.__next__()

class LeNet(nn.Module):
    def __init__(self):
        super(LeNet,self).__init__()
        self.conv1=nn.Conv2d(3,16,5)
        self.pool1=nn.MaxPool2d(2,2)
        self.conv2=nn.Conv2d(16,32,5)
        self.pool2=nn.MaxPool2d(2,2)
        self.linear1=nn.Linear(32*5*5,120)
        self.linear2=nn.Linear(120,84)
        self.linear3=nn.Linear(84,10)

    def forward(self,x):
        x=F.relu(self.conv1(x))
        x=self.pool1(x)
        x=F.relu(self.conv2(x))
        x=self.pool2(x)
        x=x.view(-1,32*5*5)
        x=F.relu(self.linear1(x))
        x=F.relu(self.linear2(x))
        x=self.linear3(x)
        return x
net=LeNet().cuda()
loss_function= nn.CrossEntropyLoss().cuda()
optimizer=torch.optim.Adam(net.parameters(),lr=0.001)
writer=SummaryWriter("keshihua")

step=0
#开始训练
for epoch in range(10):
    running_loss=0.0
    for dataloader in train_loader:
        inputs,labels=dataloader
        inputs=inputs.cuda()
        labels=labels.cuda()

        optimizer.zero_grad()
        outputs=net(inputs)
        loss = loss_function(outputs,labels)
        loss.backward()
        optimizer.step()
        running_loss+=loss.item()
        writer.add_scalar("train_loss",loss,step)
        if step %500==0:
            with torch.no_grad():
                test_image=test_image.cuda()
                outputs=net(test_image)
                outputs=outputs.cuda()
                predict_y=torch.max(outputs,dim=1)[1]
                predict_y=predict_y.cuda()
                test_label=test_label.cuda()
                accuracy= (predict_y==test_label).sum().item()/test_label.size(0)
                print("step={0},train_loss={1},test_accuracy={2}".format(step+1,running_loss,accuracy))
                writer.add_scalar("test_accuracy",accuracy, step)
        step+=1

writer.close()
print("训练完成")
save_path='LeNet.pth'
torch.save(net.state_dict(),save_path)

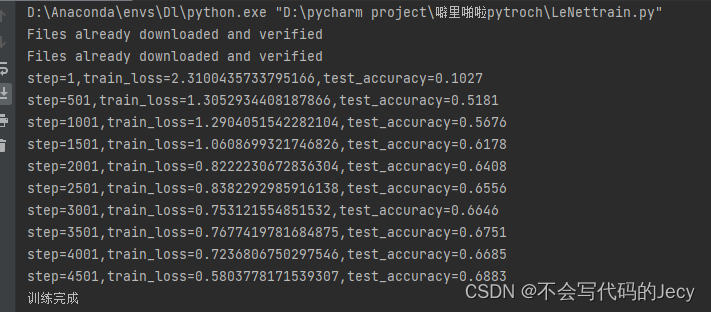

 训练误差以及测试集的精度(数据集比较老，b站博主泡跑也是68的精确率)

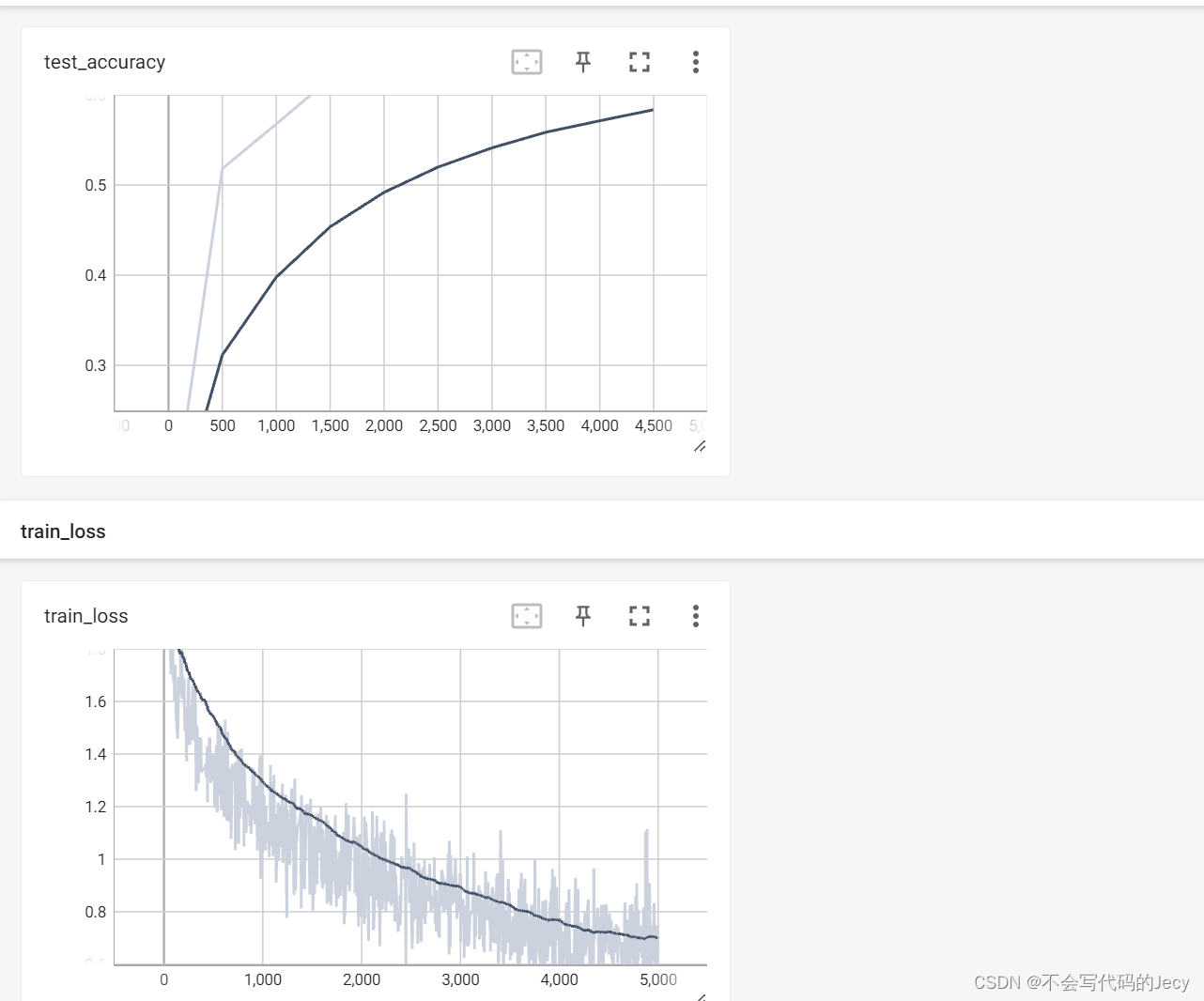

tensorboard可视化误差和精度
