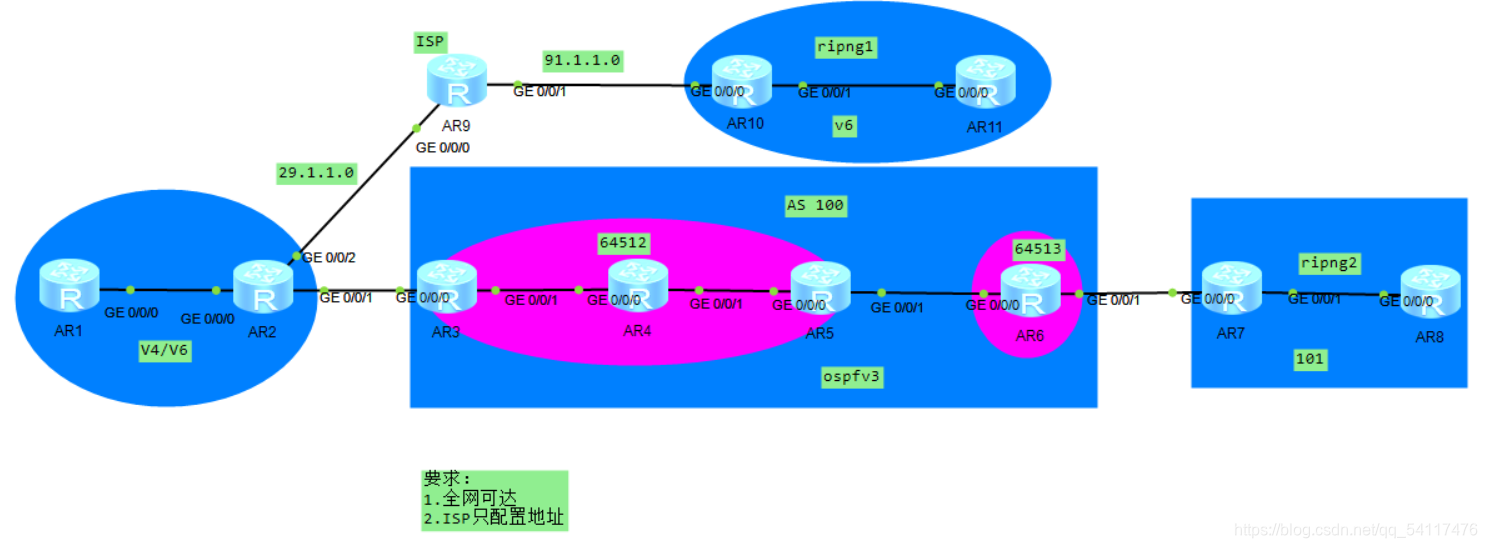

1.合理规划地址

R10和R11使用91.1.1.1化成IPV6网段2002:5b01:0101::/48使用

ipv4地址29.1.1.1化成ipv6网段2002:1D01:0101:: /48使用

2.R1R2R9R10R11互通

R1配置
#
interface GigabitEthernet0/0/0
 ipv6 enable
 ip address 12.1.1.1 255.255.255.0
 ipv6 address 2002:1D01:101:1::1/64
#
interface LoopBack0
 ip address 1.1.1.1 255.255.255.255
#
interface LoopBack1
 ipv6 enable
 ipv6 address 1::1/64
#
ip route-static 0.0.0.0 0.0.0.0 12.1.1.2
#
ipv6 route-static :: 0 2002:1D01:101:1::2
#

R2配置
acl number 2000
 rule 5 permit
#
#
interface GigabitEthernet0/0/0
 ipv6 enable
 ip address 12.1.1.2 255.255.255.0
 ipv6 address 2002:1D01:101:1::2/64
#
interface GigabitEthernet0/0/1
 ipv6 enable
 ipv6 address 2002:1D01:101:2::1/64
#
interface GigabitEthernet0/0/2
 ip address 29.1.1.1 255.255.255.0
 nat outbound 2000
#
interface
