JetpackCompose 之状态学习

原创

已于 2024-07-15 18:13:32 修改 · 791 阅读

6 ·

CC 4.0 BY-SA版权

文章标签：

#android

于 2024-01-28 16:44:40 首次发布

该博客围绕Android开发展开，介绍了无状态组件，包括导入依赖和数据类相关内容，还涉及重组、MutableState、软键盘、输入框背景、编辑模式以及状态恢复等方面，提及了相关的文件和开发要点，如使用parcelize需插件。

1.无状态组件

1.1导入依赖

    implementation("androidx.core:core-ktx:1.9.0")
    implementation("androidx.lifecycle:lifecycle-runtime-ktx:2.6.1")
    implementation("androidx.activity:activity-compose:1.7.0")
    implementation(platform("androidx.compose:compose-bom:2023.03.00"))
    implementation("androidx.compose.ui:ui")
    implementation("androidx.compose.ui:ui-graphics")
    implementation("androidx.compose.ui:ui-tooling-preview")
    implementation("androidx.compose.material3:material3")

    implementation("com.google.android.material:material:1.11.0")
    implementation("androidx.compose.material:material-icons-extended:1.5.4")
    implementation("androidx.compose.runtime:runtime-livedata:1.5.4")
    implementation("androidx.compose.runtime:runtime:1.5.4")



    testImplementation("junit:junit:4.13.2")
    androidTestImplementation("androidx.test.ext:junit:1.1.5")
    androidTestImplementation("androidx.test.espresso:espresso-core:3.5.1")
    androidTestImplementation(platform("androidx.compose:compose-bom:2023.03.00"))
    androidTestImplementation("androidx.compose.ui:ui-test-junit4")
    debugImplementation("androidx.compose.ui:ui-tooling")
    debugImplementation("androidx.compose.ui:ui-test-manifest")

strings.xml

<resources>
    <string name="app_name">JetpackComposeState</string>
    <string name="cd_expand">Expand</string>
    <string name="cd_collapse">Collapse</string>
    <string name="cd_crop_square">Crop</string>
    <string name="cd_done">Done</string>
    <string name="cd_event">Event</string>
    <string name="cd_privacy">Privacy</string>
    <string name="cd_restore">Restore</string>d
</resources>

themes.xml

<?xml version="1.0" encoding="utf-8"?>
<resources>

    <style name="Theme.JetpackComposeState" parent="android:Theme.Material.Light.NoActionBar" />
    <style name="Theme.JetpackComposeState.NoActionBar">
        <item name="android:windowActionBar">false</item>
        <item name="android:windowNoTitle">true</item>

    </style>
</resources>

1.2 数据类

package com.jetpackcomposestate.todo

import androidx.annotation.StringRes
import androidx.compose.material.icons.Icons
import androidx.compose.material.icons.filled.CropSquare
import androidx.compose.material.icons.filled.Done
import androidx.compose.material.icons.filled.Event
import androidx.compose.material.icons.filled.PrivacyTip
import androidx.compose.material.icons.filled.RestoreFromTrash
import androidx.compose.material.icons.filled.Square
import androidx.compose.ui.graphics.vector.ImageVector
import com.tiger.jetpackcomposestate.R
import java.util.UUID

data class TodoItem(val task:String,val icon:TodoIcon = TodoIcon.Default,val id:UUID=UUID.randomUUID())


enum class TodoIcon(
    val imageVector: ImageVector,
    @StringRes val contentDescription: Int
){
    //使用了 Material Design 的图标
    Square(Icons.Default.CropSquare, R.string.cd_expand),
    Done(Icons.Default.Done, R.string.cd_done),
    Event(Icons.Default.Event, R.string.cd_event),
    Privacy(Icons.Default.PrivacyTip, R.string.cd_privacy),
    Trash(Icons.Default.RestoreFromTrash, R.string.cd_restore);

    companion object {
        val Default = Square
    }


}

package com.jetpackcomposestate.todo.one

import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.PaddingValues
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.padding
import androidx.compose.foundation.lazy.LazyColumn
import androidx.compose.foundation.lazy.items
import androidx.compose.material3.Button
import androidx.compose.material3.Icon
import androidx.compose.material3.Text
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.compose.ui.res.stringResource
import androidx.compose.ui.unit.dp
import com.tiger.jetpackcomposestate.todo.TodoItem

@Composable
fun TodoScreen(
    items:List<TodoItem>
){

    Column() {
        LazyColumn(
            modifier = Modifier.weight(1f),//优先修饰 列表的布局
            contentPadding = PaddingValues(top = 8.dp)

        ){
            items(items){
                TodoRow(todo = it, modifier = Modifier.fillParentMaxWidth())
            }
        }
        Button(onClick = {

        },
            modifier = Modifier
                .padding(16.dp)
                .fillMaxWidth()

        ) {
        Text(text = "Add random item" )

        }
    }

}


@Composable
fun TodoRow(
    todo: TodoItem,
    modifier: Modifier = Modifier
){

    Row(
        modifier = modifier
            .padding(horizontal = 16.dp, vertical = 8.dp),
        horizontalArrangement = Arrangement.SpaceBetween  //子元素水平均匀分布
    ) {
        Text(text = todo.task)
        Icon(imageVector = todo.icon.imageVector
            ,contentDescription = stringResource(id = todo.icon.contentDescription))//stringResource去到strings.xml文件里去找到对应的字符串 描述
    }



}

package com.jetpackcomposestate.todo.one

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.compose.runtime.Composable
import com.tiger.jetpackcomposestate.todo.TodoIcon
import com.tiger.jetpackcomposestate.todo.TodoItem
import com.tiger.jetpackcomposestate.ui.theme.JetpackComposeStateTheme

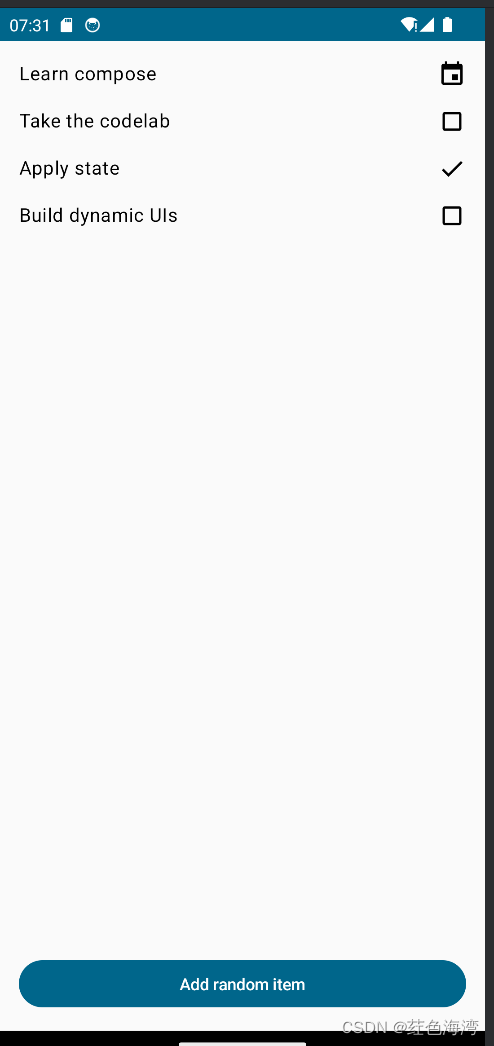

class TodoActivity : ComponentActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContent {
            JetpackComposeStateTheme {

                TodoActivityScreen()
            }
        }
    }

    @Composable
    private fun TodoActivityScreen() {
        val items = listOf(
            TodoItem(task = "Learn compose", icon = TodoIcon.Event),
            TodoItem(task = "Take the codelab"),
            TodoItem(task = "Apply state", icon = TodoIcon.Done),
            TodoItem(task = "Build dynamic UIs", icon = TodoIcon.Square),
        )

        TodoScreen(items)
    }
}

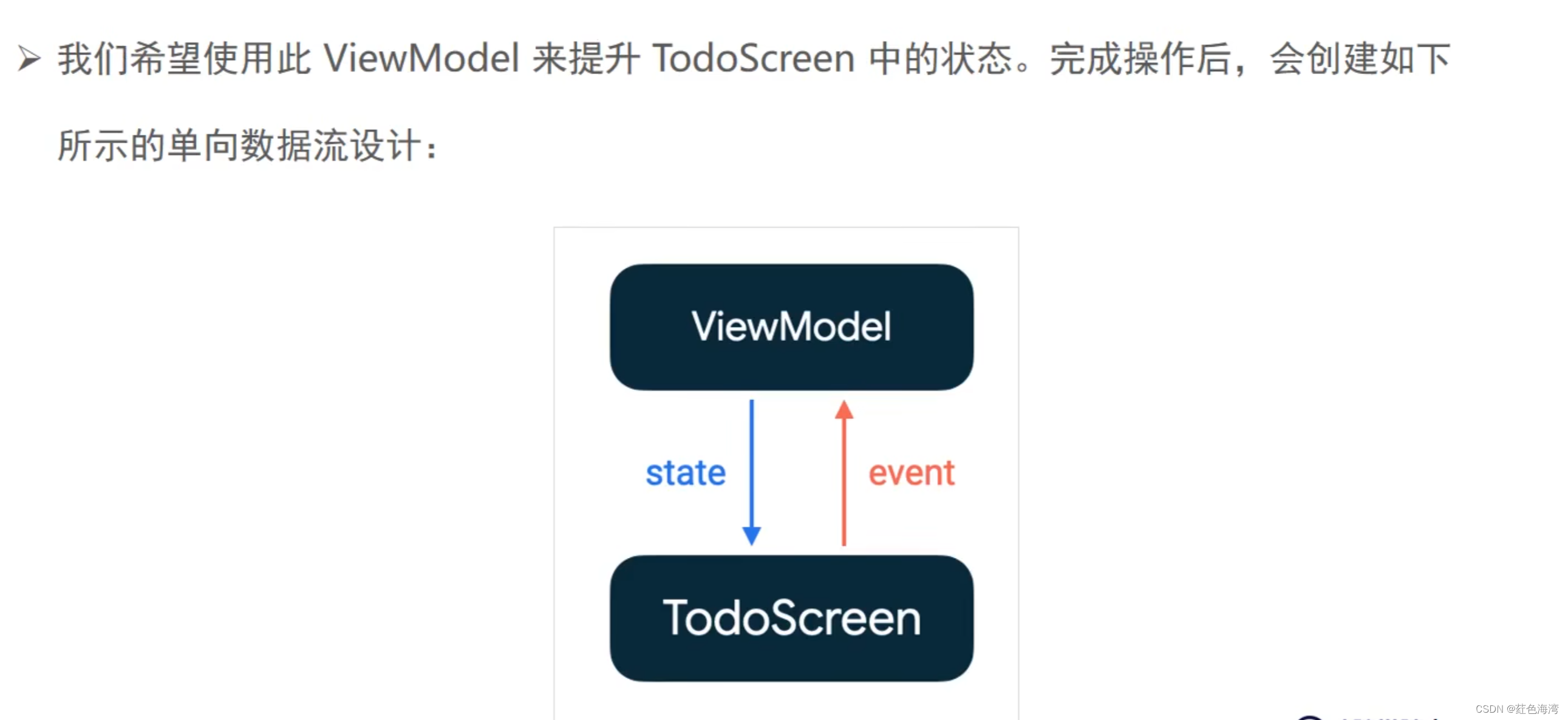

TodoViewModel.kt

package com.jmj.jetpackcomposestate.todo.one

import androidx.lifecycle.LiveData
import androidx.lifecycle.MutableLiveData
import androidx.lifecycle.ViewModel
import com.jmj.jetpackcomposestate.todo.TodoItem

class TodoViewModel:ViewModel(){

    private var _todoItems = MutableLiveData(listOf<TodoItem>())  //这是一个状态

    val  todoItems:LiveData<List<TodoItem>> = _todoItems

    fun addItem(item:TodoItem){
        //添加
        _todoItems.value = _todoItems.value!! + listOf(item)
    }


    fun removeItem(item:TodoItem){
        //删除
        _todoItems.value =_todoItems.value!!.toMutableList().also {
            it.remove(item)
        }

    }
}

TodoScreen.kt

package com.jmj.jetpackcomposestate.todo.one

import androidx.compose.foundation.clickable
import com.jmj.jetpackcomposestate.todo.TodoItem


import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.PaddingValues
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.padding
import androidx.compose.foundation.lazy.LazyColumn
import androidx.compose.foundation.lazy.items
import androidx.compose.material3.Button
import androidx.compose.material3.Icon
import androidx.compose.material3.Text
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.compose.ui.res.stringResource
import androidx.compose.ui.unit.dp
import com.jmj.jetpackcomposestate.util.generateRandomTodoItem


@Composable

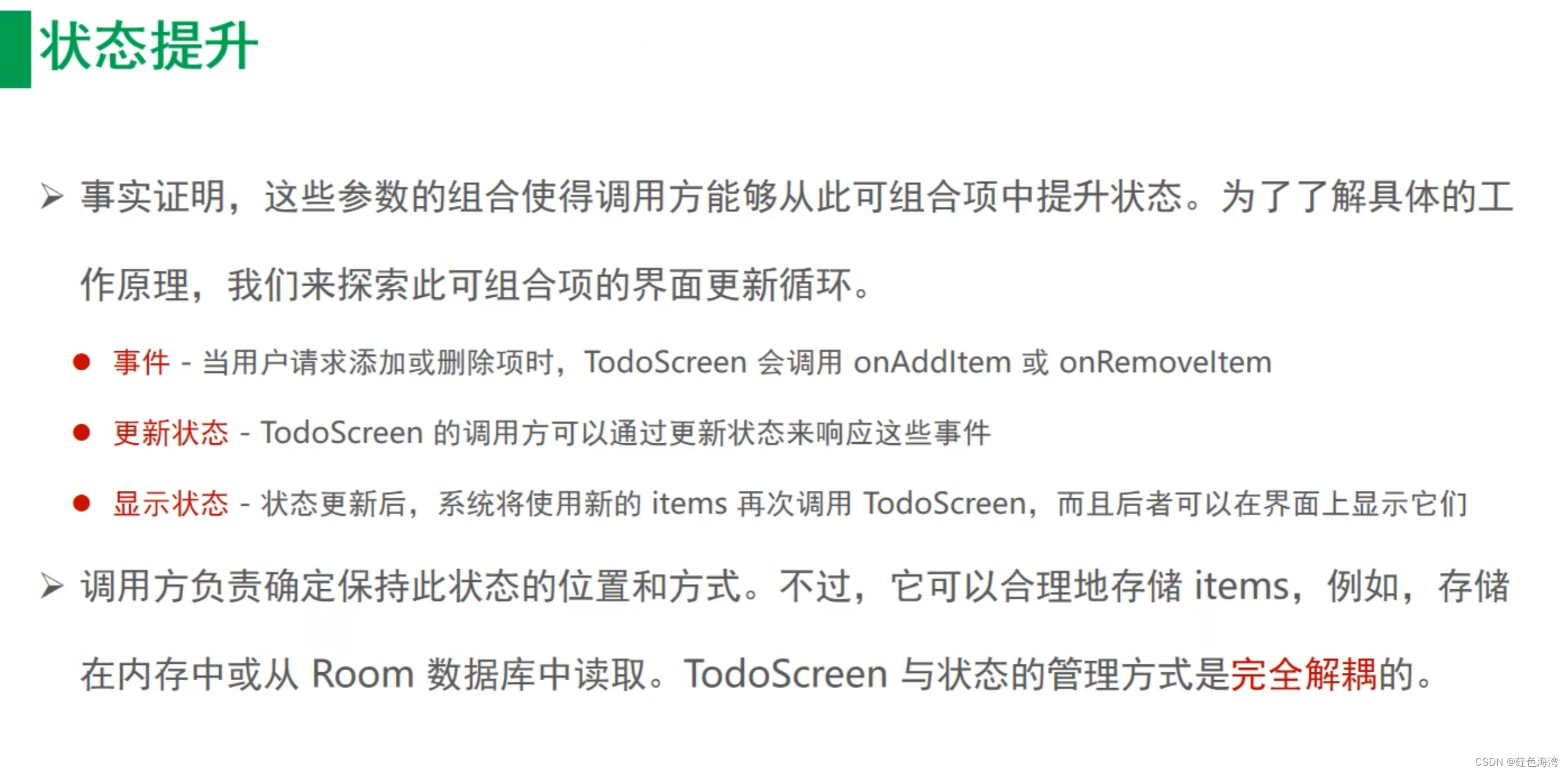

fun TodoScreen(
    items:List<TodoItem>,
    onAddItem: (TodoItem) ->Unit,
    onRemoveItem: (TodoItem) ->Unit
){

    Column() {
        LazyColumn(
            modifier = Modifier.weight(1f),//优先修饰 列表的布局
            contentPadding = PaddingValues(top = 8.dp)

        ){
            items(items){
                TodoRow(todo = it, modifier = Modifier.fillParentMaxWidth(), onItemClicked = {onRemoveItem(it)})
            }
        }
        Button(onClick = {
                onAddItem(generateRandomTodoItem())
        },
            modifier = Modifier
                .padding(16.dp)
                .fillMaxWidth()

        ) {
            Text(text = "Add random item" )

        }
    }

}


@Composable
fun TodoRow(
    todo: TodoItem,
    onItemClicked:(TodoItem) -> Unit,
    modifier: Modifier = Modifier,

){

    Row(
        modifier = modifier
            .clickable{
                onItemClicked(todo)
            }
            .padding(horizontal = 16.dp, vertical = 8.dp),
        horizontalArrangement = Arrangement.SpaceBetween  //子元素水平均匀分布
    ) {
        Text(text = todo.task)
        Icon(imageVector = todo.icon.imageVector
            ,contentDescription = stringResource(id = todo.icon.contentDescription))//stringResource去到strings.xml文件里去找到对应的字符串 描述
    }



}

TodoAcitivity.kt

package com.jmj.jetpackcomposestate.todo.one

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.activity.viewModels
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.runtime.livedata.observeAsState
import com.jmj.jetpackcomposestate.todo.TodoIcon
import com.jmj.jetpackcomposestate.todo.TodoItem
import com.jmj.jetpackcomposestate.ui.theme.JetpackComposeStateTheme

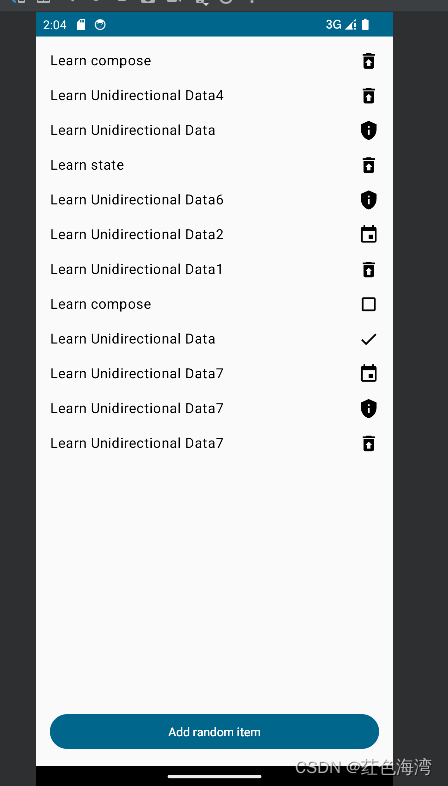

class TodoActivity : ComponentActivity() {

    private val todoViewModel by viewModels<TodoViewModel>()

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContent {
            JetpackComposeStateTheme {

                TodoActivityScreen()
            }
        }
    }

    @Composable
    private fun TodoActivityScreen() {
//        val items = listOf(
//            TodoItem(task = "Learn compose", icon = TodoIcon.Event),
//            TodoItem(task = "Take the codelab"),
//            TodoItem(task = "Apply state", icon = TodoIcon.Done),
//            TodoItem(task = "Build dynamic UIs", icon = TodoIcon.Square),
//        )
//
//        TodoScreen(items)
        val items:List<TodoItem> by todoViewModel.todoItems.observeAsState(initial = listOf())



        TodoScreen(
            items=items,
            onAddItem = {  todoViewModel.addItem(it) },
            onRemoveItem = {todoViewModel.removeItem(it)}
            )

    }
}

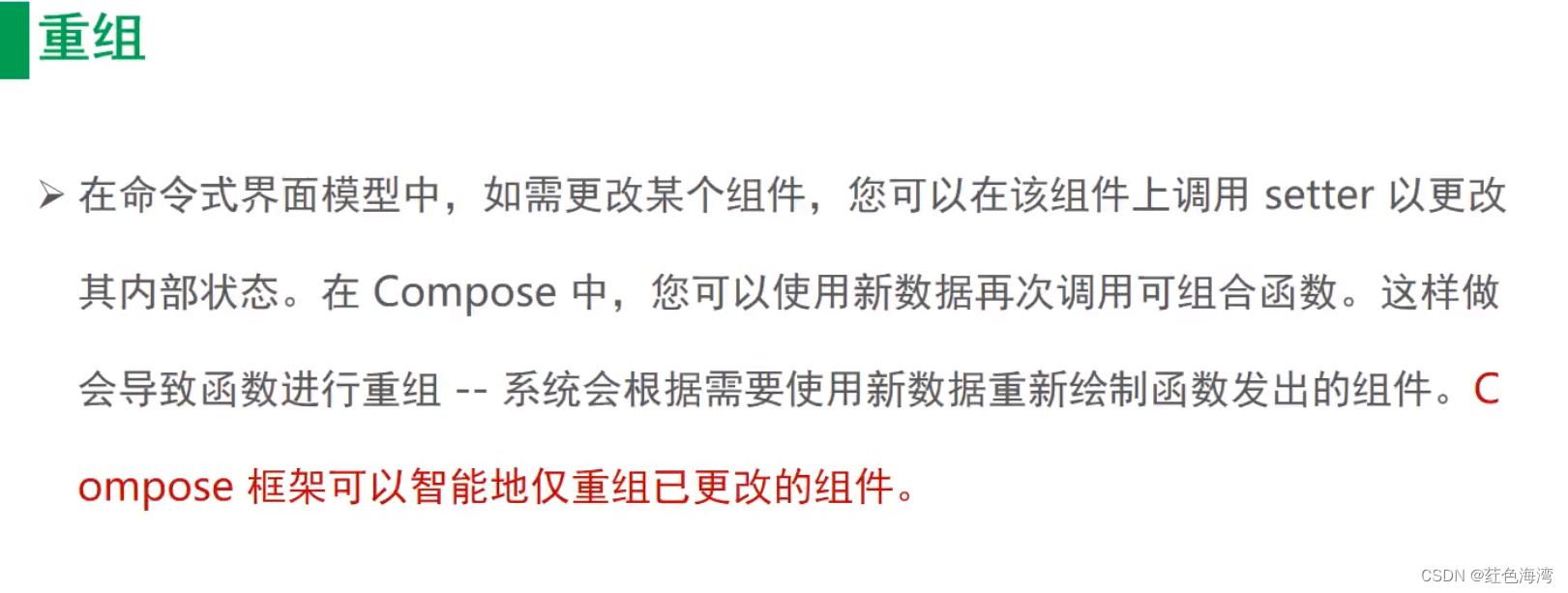

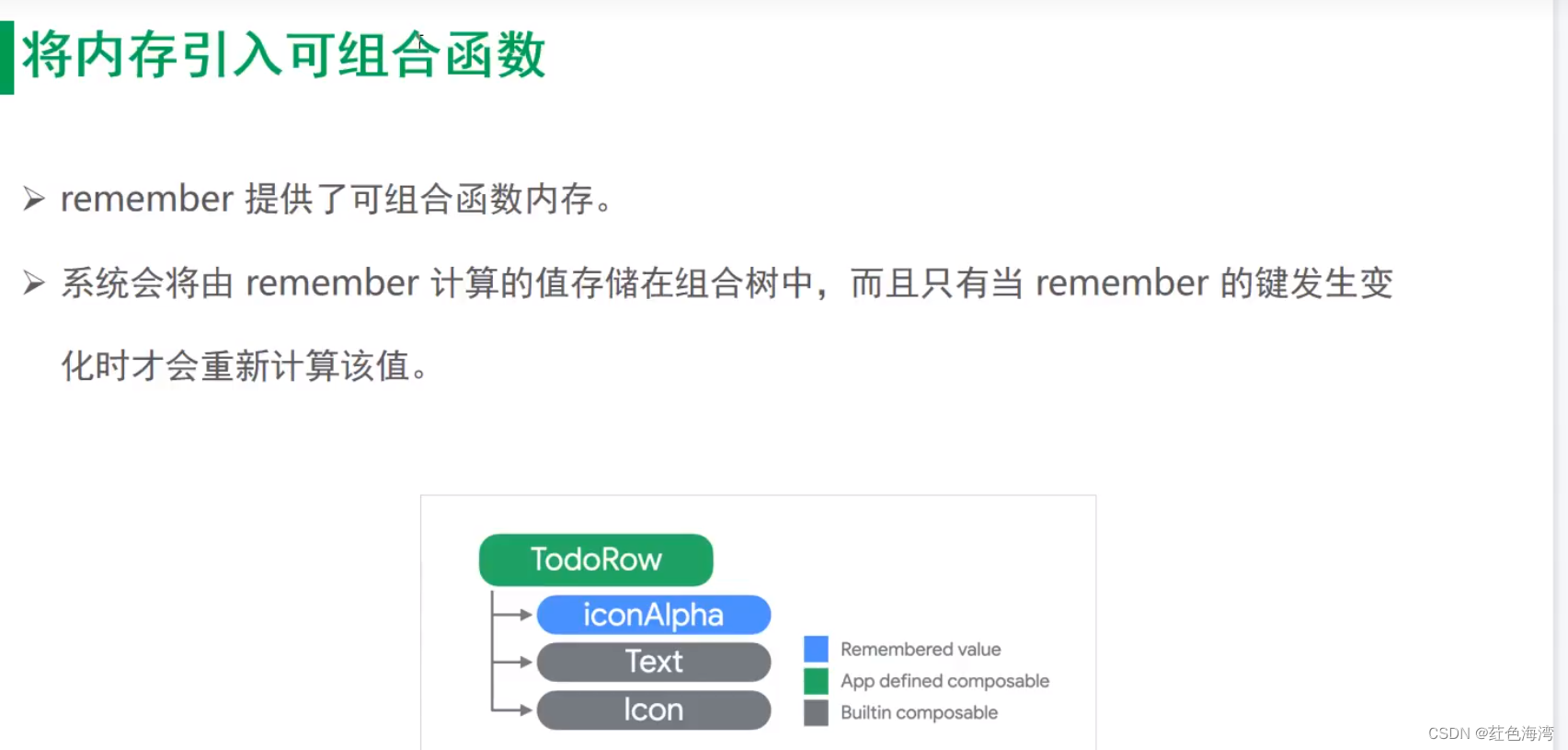

2.重组

package com.jmj.jetpackcomposestate.todo.one


import androidx.compose.foundation.clickable
import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.PaddingValues
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.padding
import androidx.compose.foundation.layout.size
import androidx.compose.foundation.lazy.LazyColumn
import androidx.compose.foundation.lazy.items
import androidx.compose.foundation.shape.RoundedCornerShape
import androidx.compose.material3.Button
import androidx.co
