BGP的工作原理

最新推荐文章于 2024-04-21 19:41:46 发布

原创最新推荐文章于 2024-04-21 19:41:46 发布 · 317 阅读

0 ·

CC 4.0 BY-SA版权

本文详细介绍了如何在路由器R1与R2上进行网络参数配置，包括设置系统名称、接口地址、开启OSPF及BGP路由协议，并进行网络宣告，最后检查BGP邻居状态和路由表。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

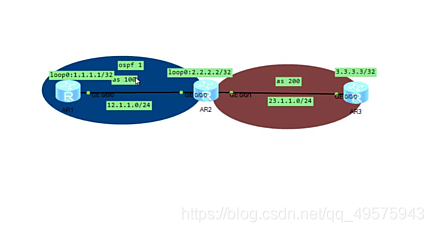

在这里插入图片描述

undo terminal monitor
Info: Current terminal monitor is off.
sys
system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname R1
[R1]user-interface console 0
[R1-ui-console0]int g0/0/0
[R1-GigabitEthernet0/0/0]ip add 12.1.1.1 24
[R1-GigabitEthernet0/0/0]undo shut
Info: Interface GigabitEthernet0/0/0 is not shutdown.
[R1-GigabitEthernet0/0/0]int loop 0
[R1-LoopBack0]ip add 1.1.1.1 32
[R1-LoopBack0]quit
[R1]ospf
[R1-ospf-1]ar
[R1-ospf-1]area 0
[R1-ospf-1-area-0.0.0.0]ne
[R1-ospf-1-area-0.0.0.0]network 1.1.1.1 0.0.0.0
[R1-ospf-1-area-0.0.0.0]NET
[R1-ospf-1-area-0.0.0.0]network 12.1.1.0 0.0.0.255
[R1]bgp 100
[R1-bgp]rou
[R1-bgp]router-id 1.1.1.1
[R1-bgp]peer 12.1.1.2 as-number 100
[R1]display bgp peer
[R1]bgp 100
[R1-bgp]display bgp routing-table
[R1-bgp]net
[R1-bgp]network 1.1.1.1 32
[R1-bgp]net
[R1-bgp]network 12.1.1.0 24

undo terminal monitor
Info: Current terminal monitor is off.
sys
system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname R2
[R2]user-interface console 0
[R2-ui-console0][R2]int g0/0/0
[R2-GigabitEthernet0/0/0]ip add 12.1.1.2 24
[R2-GigabitEthernet0/0/0]undo shut
[R2-GigabitEthernet0/0/0]int g0/0/1
[R2-GigabitEthernet0/0/1]ip add 23.1.1.2 24
[R2-GigabitEthernet0/0/1]undo shut
Info: Interface GigabitEthernet0/0/1 is not shutdown.
[R2-GigabitEthernet0/0/1]int loop 0
[R2-LoopBack0]ip add 2.2.2.2 32
[R2-LoopBack0]quit
[R2]ospf 1
[R2-ospf-1]area 0
[R2-ospf-1-area-0.0.0.0]network 12.1.1.0
[R2-ospf-1-area-0.0.0.0]network 2.2.2.2 0.0.0.0
[R2-ospf-1-area-0.0.0.0]quit
[R2-ospf-1]quit
[R2]bgp 100
[R2-bgp]router
[R2-bgp]router-id 2.2.2.2
[R2-bgp]peer 12.1.1.1 as-number 100
[R2-bgp]peer 23.1.1.3 as-number 200
[R2]display bgp peer
[R2]bgp 100
[R2-bgp]netw
[R2-bgp]network 12.1.1.0 24
[R2-bgp]netw
[R2-bgp]network 23.1.1.0 24
