一起学习双向循环链表(●‘◡‘●)

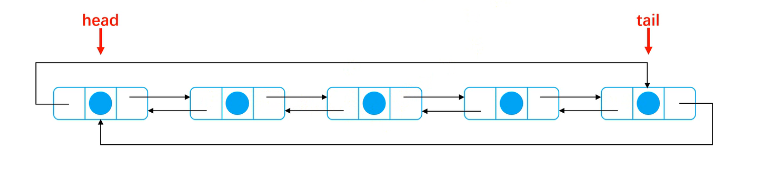

双向循环链表

​ 双向链表也叫双链表，是链表的一种，它的每个数据结点中都有两个指针，分别指向直接后继和直接前驱。所以，从双向链表中的任意一个结点开始， 都可以很方便地访问它的前驱结点和后继结点。一般我们都构造双向循环链表。

实现的接口List，Deque，Stack

List接口：

import java.util.Comparator;
public interface List<E> extends Iterable<E> {
    public void add(E element);

    public void add(int index, E element);

    public void remove(E element);

    public E remove(int index);

    public E get(int index);

    public E set(int index, E element);

    public int size();

    public int indexOf(E element);

    public boolean isEmpty();

    public boolean contains(E element);

    public void clear();

    public void sort(Comparator<E> c);

    public List<E> subList(int fromIndex, int toIndex);
}

Deque接口：

public interface Deque<E> extends Queue<E> {
    public void addFirst(E element);

    public void addLast(E element);

    public E removeFirst();

    public E removeLast();

    public E getLast();

    public E getFirst();

    public int size();

    public boolean isEmpty();

    public void clear();
}

public interface Queue<E> extends Iterable<E> {
    public int size();

    public boolean isEmpty();

    public void offer(E element);//入队

    public E poll();//出队

    public E element();//队首元素

    public void clear();

}

Stack接口：

public interface Stack<E> extends Iterable<E> {
    public int size();

    public boolean isEmpty();

    public void push(E element);

    public E pop();

    public E peek();

    public void clear();
}

LinkedList实现类(有亿点小多)：

package 动态链表;


import 接口.Deque;
import 接口.List;
import 接口.Stack;

import java.util.Comparator;
import java.util.Iterator;
//双向循环链表
public class LinkedList<E> implements List<E> , Deque<E> , Stack<E> {
    private class Node {
        E data;
        Node pre;//指向直接前驱的指针
        Node next;//指向直接后继的指针

        public Node() {

        }

        public Node(E data) {
            this(data, null, null);
        }

        public Node(E data, Node pre, Node next) {
            this.data = data;
            this.pre = pre;
            this.next = next;
        }


        @Override
        public String toString() {
            return "Node{" +
                    "data=" + data +
                    ", pre=" + pre +
                    ", next=" + next +
                    '}';
        }
    }


    private Node head;//头指针
    private Node tail;//尾指针
    private int size;//有效元素个数

    public LinkedList() {
        head = null;
        tail = null;
        size = 0;
    }

    public LinkedList(E[] arr) {
        for (E e : arr) {
            add(e);
        }
    }

    /**
     * 默认向表尾添加元素
     *
     * @param element
     */
    @Override
    public void add(E element) {
        add(size, element);
    }

    /**
     * 在指定角标处添加元素
     *
     * @param index
     * @param element
     */
    @Override
    public void add(int index, E element) {
        /*
         * 在表头插入一个元素
         * 1.把head的上一跳 给 新节点的 上一跳
         * 2.新结点的下一跳 指向head
         * 3.head的上一跳 指向新结点
         * 4.更新head 让head指向新结点
         * 5.更新tail 让tail的下一跳 重新指向 head*/
        /*
         * 在表尾插入一个元素
         * 1.把tail的下一跳 给 新结点的下一跳
         * 2.tail的下一跳 指向 新结点
         * 3.新结点的上一跳 指向 tail
         * 4.tail重新指向新结点
         * 5.head的上一跳 重新指向tail
         * */
        if (index < 0 || index > size) {
            throw new ArrayIndexOutOfBoundsException("add index out of bounds");
        }
        Node node = new Node(element);
        if (isEmpty()) {
            head = node;
            tail = node;
            tail.next = head;
            head.pre = tail;
        } else if (index == 0) {
            node.pre = head.pre;
            node.next = head;
            head.pre = node;
            head = node;
            tail.next = head;
        } else if (index == size) {
            node.next = tail.next;
            tail.next = node;
            node.pre = tail;
            tail = node;
            head.pre = tail;
        } else {
            Node p, q;

            if (index <= size / 2) {
                //在size / 2 之前從头结点开始
                p = head;
                for (int i = 0; i < index - 1; i++) {
                    p = p.next;
                }
                q = p.next;
                p.next = node;
                node.pre = p;
                q.pre = node;
                node.next = q;
            } else {
                p = tail;
                for (int i = size - 1; i > index; i--) {
                    p = p.pre;
                }
                q = p.pre;
                q.next = node;
                node.pre = q;
                node.next = p;
            }
        }
        size++;
    }
    @Override
    public void remove(E element) {
        int index = indexOf(element);
        if (index != -1) {
            remove(index);
        }
    }
    @Override
    public E remove(int index) {
        if (index < 0 || index >= size) {
            throw new IndexOutOfBoundsException("remove index out of bounds");
        }
        E ret = null;
        Node node;
        if (size == 1) {
            ret = head.data;
            head = null;
            tail = null;
        } else if (index == 0) {
            /*
             * 删除头结点
             * 1.node为head.next 最终node是新的结点
             * 2.head的下一跳 置空
             * 3.head的上一跳 给 node的上一跳 ，head的上一跳置空
             * 4.head重新指向node
             * 5.tail的下一跳重新指向head */
            ret = head.data;
            node = head.next;
            head.next = null;
            node.pre = head.pre;
            head.pre = null;
            head = node;
            tail.next = head;
        } else if (index == size - 1) {
            /*
             * 删除尾结点
             * 1.node为tail.pre 最终node 是新的尾结点
             * 2.tail的上一跳置空
             * 3.tail的下一跳 给node的下一跳 tail的下一跳置空
             * 4.tail重新指向node
             * 5.head的上一跳重新指向tail */
            ret = tail.data;
            node = tail.pre;
            tail.pre = null;
            node.next = tail.next;
            tail.next = null;
            tail = node;
            head.pre = tail;
        } else {
            Node p, q, r;
            if (index <= size / 2) {
                p = head;
                for (int i = 0; i < index - 1; i++) {
                    p = p.next;
                }
                q = p.next;
                ret = q.data;
                r = q.next;
                p.next = r;
                r.pre = p;
                q.next = null;
                p.pre = null;
            } else {
                p = tail;
                for (int i = index - 1; i > index + 1; i++) {
                    p = p.pre;
                }
                q = p.pre;
                ret = q.data;
                r = q.pre;
                r.next = p;
                p.pre = r;
                q.next = null;
                q.pre = null;
            }
        }
        return ret;
    }

    @Override
    public E get(int index) {
        if (index < 0 || index >= size) {
            throw new ArrayIndexOutOfBoundsException("get index out of bounds");
        }

        if (index == 0) {
            //获取头
            return head.data;
        } else if (index == size - 1) {
            //获取尾
            return tail.data;
        } else {
            //获取中间
            Node p = head;
            for (int i = 0; i < index; i++) {
                //获取它的本身
                p = p.next;
            }
            return p.data;
        }
    }

    @Override
    public E set(int index, E element) {
        if (index < 0 || index >= size) {
            throw new ArrayIndexOutOfBoundsException("set index out of bounds");
        }
        E ret = null;
        if (index == 0) {
            //修改头
            ret = head.data;
            head.data = element;
        } else if (index == size - 1) {
            //修改尾
            ret = tail.data;
            tail.data = element;
        } else {
            //修改中间某一个元素
            Node p = head;
            for (int i = 0; i < index; i++) {
                p = p.next;
            }
            ret = p.data;
            p.data = element;
        }
        return ret;
    }

    //双端队列start
    @Override
    public void addFirst(E element) {
        add(0,element);
    }

    @Override
    public void addLast(E element) {
        add(size ,element);
    }

    @Override
    public E removeFirst() {
        return remove(0);
    }

    @Override
    public E removeLast() {
        return remove(size - 1);
    }

    @Override
    public E getLast() {
        return get(size - 1);
    }

    @Override
    public E getFirst() {
        return get(0);
    }

    @Override
    public void offer(E element) {
        addLast(element);
    }

    @Override
    public E poll() {
        return removeFirst();
    }

    @Override
    public E element() {
        return getFirst();
    }
    //双端队列end

    @Override
    public int size() {
        return size;
    }

    @Override
    public int indexOf(E element) {
        Node p = head;
        int index = 0;
        while (!p.data.equals(element)) {
            p = p.next;
            index++;
            if (p == head) {//change code
                return -1;
            }
        }
        return index;
    }

    @Override
    public boolean isEmpty() {
        return size == 0 && head == null && tail == null;
    }
    //栈start
    @Override
    public void push(E element) {
        addLast(element);
    }

    @Override
    public E pop() {
        return removeLast();
    }

    @Override
    public E peek() {
        return getLast();
    }
    //栈end

    @Override
    public boolean contains(E element) {
        return indexOf(element) != -1;
    }

    @Override
    public void clear() {
        head = null;
        tail = null;
        size = 0;
    }

    @Override
    public void sort(Comparator<E> c) {
        if (c == null) {
            throw new IllegalArgumentException("comparator can not be null");
        }
        //选择排序
        if (size == 0 || size == 1) {
            return;
        }
        Node nodeA = head;
        Node nodeB = nodeA.next;
        while (true) {
            while (true) {
                if (c.compare(nodeA.data, nodeB.data) > 0) {
                    swap(nodeA, nodeB);
                }
                if (nodeB == tail) {
                    break;
                }
                nodeB = nodeB.next;
            }
            if (nodeA.next == tail) {
                break;
            }
            nodeA = nodeA.next;
            nodeB = nodeA.next;
        }
    }

    private void swap(Node nodeA, Node nodeB) {
        E temp = nodeA.data;
        nodeA.data = nodeB.data;
        nodeB.data = temp;
    }

    @Override
    public List<E> subList(int fromIndex, int toIndex) {
        if (fromIndex < 0) {
            throw new IndexOutOfBoundsException("fromIndex must >= 0");
        }
        if (toIndex >= size) {
            throw new IndexOutOfBoundsException("toIndex must < size");
        }
        /*if (fromIndex > toIndex) {
            throw new IndexOutOfBoundsException("formIndex must <= toIndex");
        }*/
        LinkedList<E> subList = new LinkedList<>();
        //改进
        Node nodeA = head;
        for (int i = 0; i < fromIndex; i++) {
            nodeA = nodeA.next;
        }
        Node nodeB = head;
        for (int i = 0; i < toIndex; i++) {
            nodeB = nodeB.next;
        }
        Node p = nodeA;
        while (true) {
            subList.add(p.data);
            if (p == nodeB) {
                break;
            }
            p = p.next;
        }
        return subList;
    }

    @Override
    public String toString() {
        StringBuilder sb = new StringBuilder(String.format("LinkedList:%d [", size));
        if (isEmpty()) {
            sb.append(']');
        } else {
            Node p = head;
            while (true) {
                sb.append(p.data);
                if (p == tail) {
                    sb.append(']');
                    break;
                }
                sb.append(',');
                p = p.next;
            }
        }
        return sb.toString();
    }

    @Override
    public Iterator<E> iterator() {
        return new LinkedListIterator();
    }

    class LinkedListIterator implements Iterator<E> {
        private Node cur = head;
        private boolean flag = true;//表示可以继续（还在一圈内）

        @Override
        public boolean hasNext() {
            if (isEmpty()) {
                return false;
            }
            return flag;
        }

        @Override
        public E next() {
            E ret = cur.data;
            cur = cur.next;
            if (cur == head) {
                flag = false;//表示不可以继续（跑完一圈了）
            }
            return ret;
        }
    }
}

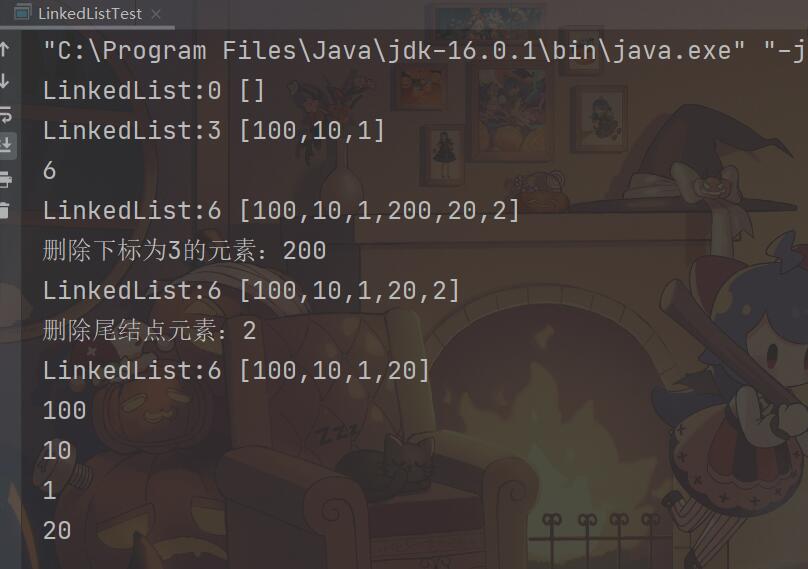

测试1：

public class LinkedListTest {
    public static void main(String[] args) {
        LinkedList<Integer> list = new LinkedList<>();
        System.out.println(list);
        //头结点添加元素
        list.add(0, 1);
        list.add(0, 10);
        list.add(0, 100);
        System.out.println(list);
        //尾结点添加元素
        list.add(list.size(), 200);
        list.add(list.size(), 20);
        list.add(list.size(), 2);
        System.out.println(list.size());
        System.out.println(list);
        //删除元素
        System.out.println(list.remove(3));
        System.out.println(list);
        System.out.println(list.remove(list.size() - 1));
        System.out.println(list);
        //使用迭代器
        for (Integer i : list) {
            System.out.println(i);
        }
    }
}

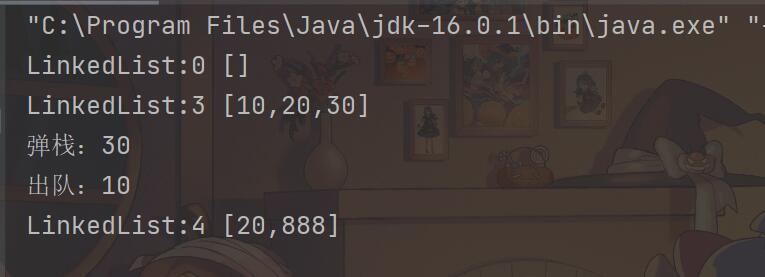

测试2：

public class LinkedListTest {
    public static void main(String[] args) {
        LinkedList<Integer> list = new LinkedList<>();
        System.out.println(list);
        //当成栈来看
        list.push(10);
        list.push(20);
        list.push(30);
        System.out.println(list);
        System.out.println("弹栈：" + list.pop());

        //当成队列来看
        System.out.println("出队：" + list.poll());
        list.offer(888);//入队
        System.out.println(list);
    }
}
