这篇博客展示了如何使用HTML5的Canvas API来创建一个动态时钟，包括绘制表盘、秒刻度、分刻度、时刻度、数字以及秒、分、时指针。代码详细解释了每个部分的实现，实现了一个实时更新时间的功能。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

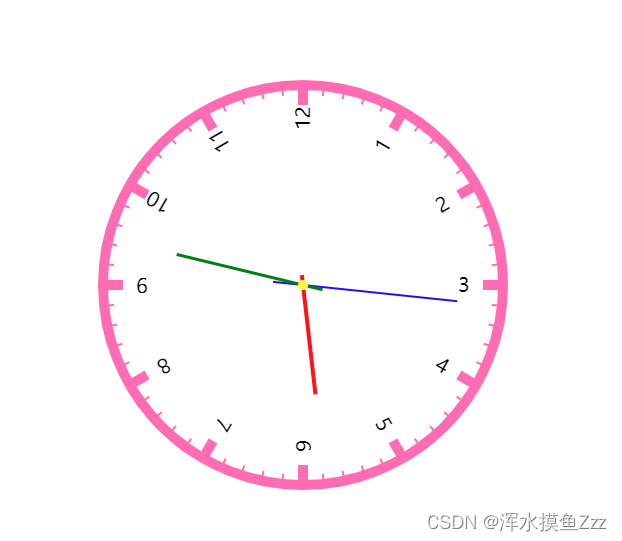

时钟样式

在这里插入图片描述
代码如下：

    <canvas id="canvas" width="600" height="600"></canvas>
    <script>
        var canvas = document.querySelector("#canvas")
        var cxt = canvas.getContext('2d')

        function renderClock(){
            cxt.clearRect(0,0,600,600)
            cxt.save()
            // 将中心坐标移到中点
            cxt.translate(300,300)
            cxt.rotate(-2*Math.PI/4)
            // 绘制表盘
            cxt.save()
            cxt.beginPath()
            cxt.arc(0,0,200,0,2*Math.PI)
            cxt.strokeStyle = "hotpink"
            cxt.lineWidth = 10
            cxt.stroke()
            cxt.closePath()
            // 绘制秒刻度
            for (let i = 0; i < 60; i++) {
                cxt.rotate(Math.PI/30)
                cxt.beginPath()
                cxt.moveTo(190,0)
                cxt.lineTo(200,0)
                cxt.lineWidth = 2
                cxt.stroke()
                cxt.closePath()
            }

            // 绘制刻度
            for (let i = 0; i < 12; i++) {
                cxt.rotate(Math.PI/6)
                cxt.beginPath()
                cxt.moveTo(180,0)
                cxt.lineTo(200,0)
                cxt.lineWidth = 10
                cxt.stroke()
                cxt.closePath()
            }

            // 绘制刻度盘数字
            cxt.restore()
            cxt.save()

            for (let i = 0; i < 12; i++) {
                cxt.beginPath()
                cxt.rotate(Math.PI/6)
                cxt.font = "20px 微软雅黑";
                cxt.fillText(i+1,155,7)
                cxt.closePath()
            }

            cxt.restore()
            cxt.save()
            var time = new Date()
            var hour = time.getHours()
            var min = time.getMinutes()
            var sec = time.getSeconds()
            var hour = hour % 12

            cxt.restore()
            cxt.save()

            // 绘制秒针
            cxt.beginPath()
            cxt.rotate(2*Math.PI/60*sec)
            cxt.moveTo(-30,0)
            cxt.lineTo(155,0)
            cxt.strokeStyle = "blue"
            cxt.lineWidth = 2
            cxt.stroke()
            cxt.closePath()

            cxt.restore()
            cxt.save()
            // 绘制分针
            cxt.beginPath()
            cxt.rotate(2*Math.PI/60*min+2*Math.PI/3600*sec)
            cxt.moveTo(-20,0)
            cxt.lineTo(130,0)
            cxt.strokeStyle = "green"
            cxt.lineWidth = 3
            cxt.stroke()
            cxt.closePath()

            cxt.restore()
            cxt.save()
            // 绘制时针
            cxt.beginPath()
            cxt.rotate(2*Math.PI/12*hour+2*Math.PI/60/12*min)
            cxt.moveTo(-10,0)
            cxt.lineTo(110,0)
            cxt.strokeStyle = "red"
            cxt.lineWidth = 4
            cxt.stroke()
            cxt.closePath()

            // 中心小圆点
            cxt.beginPath()
            cxt.arc(0,0,5,0,2*Math.PI)
            cxt.fillStyle = "yellow"
            cxt.fill()
            cxt.closePath()
            cxt.restore()
            cxt.restore()
        }

        setInterval(()=>{
            renderClock()
        },1000)
    </script>
