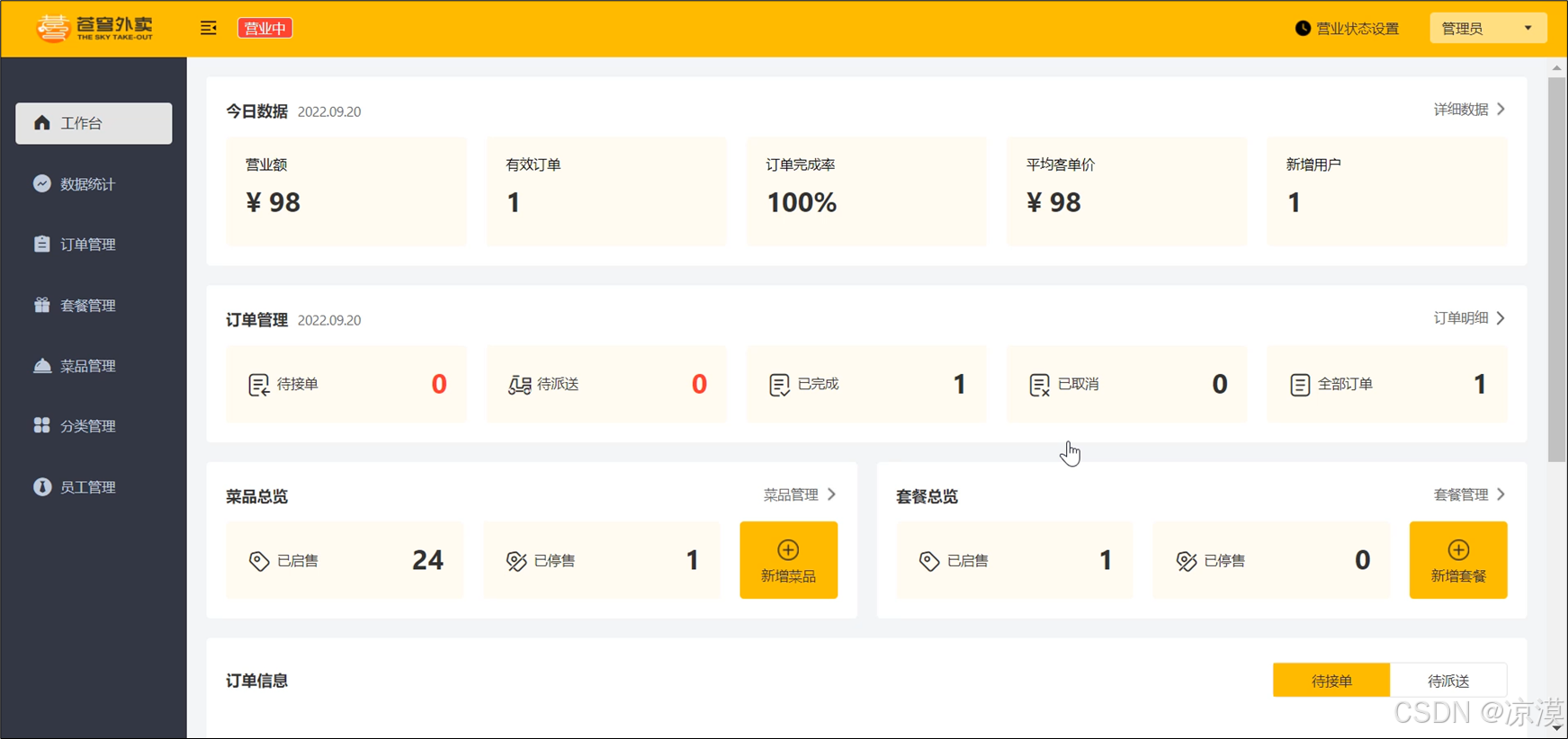

工作台

需求分析和设计

工作台是系统运营的数据看板，并提供快捷操作入口，可以有效提高商家的工作效率。

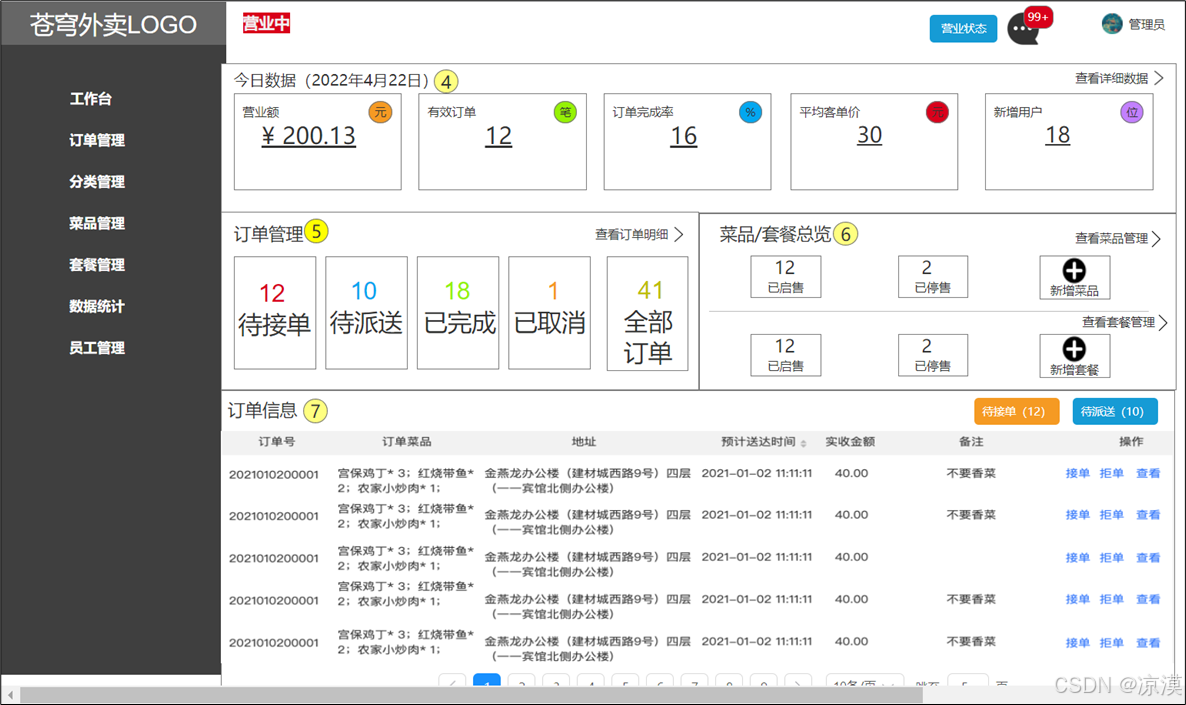

工作台展示的数据：

•今日数据

•订单管理

•菜品总览

•套餐总览

•订单信息

名词解释：

• 营业额：已完成订单的总金额

• 有效订单：已完成订单的数量

• 订单完成率：有效订单数 / 总订单数 * 100%

• 平均客单价：营业额 / 有效订单数

• 新增用户：新增用户的数量

接口设计：

• 今日数据接口

• 订单管理接口

• 菜品总览接口

• 套餐总览接口

• 订单搜索（已完成）

• 各个状态的订单数量统计（已完成）

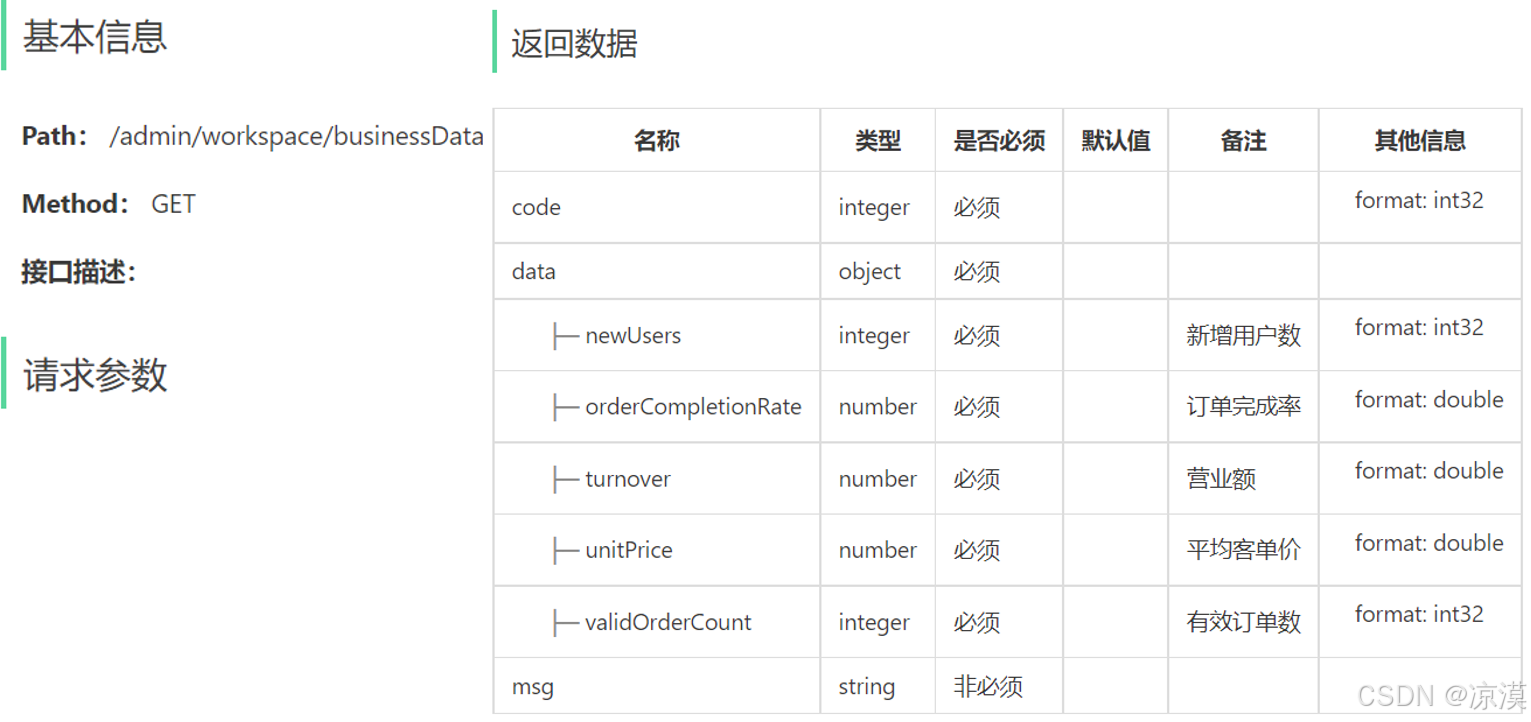

1、今日数据接口

今日数据的接口设计：

代码设计

1、admin/WorkSpaceController

package com.sky.controller.admin;

import com.sky.result.Result;
import com.sky.service.WorkspaceService;
import com.sky.vo.BusinessDataVO;
import com.sky.vo.DishOverViewVO;
import com.sky.vo.OrderOverViewVO;
import com.sky.vo.SetmealOverViewVO;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import java.time.LocalDateTime;
import java.time.LocalTime;

/**
 * 工作台
 */
@RestController
@RequestMapping("/admin/workspace")
@Slf4j
@Api(tags = "工作台相关接口")
public class WorkSpaceController {

    @Autowired
    private WorkspaceService workspaceService;

    /**
     * 工作台今日数据查询
     * @return
     */
    @GetMapping("/businessData")
    @ApiOperation("工作台今日数据查询")
    public Result<BusinessDataVO> businessData(){
        //获得当天的开始时间
        LocalDateTime begin = LocalDateTime.now().with(LocalTime.MIN);
        //获得当天的结束时间
        LocalDateTime end = LocalDateTime.now().with(LocalTime.MAX);

        BusinessDataVO businessDataVO = workspaceService.getBusinessData(begin, end);
        return Result.success(businessDataVO);
    }
}

1、WorkspaceService

/**
     * 根据时间段统计营业数据
     * @param begin
     * @param end
     * @return
     */
    BusinessDataVO getBusinessData(LocalDateTime begin, LocalDateTime end);

1、WorkspaceServiceImpl

package com.sky.service.impl;

import com.sky.constant.StatusConstant;
import com.sky.entity.Orders;
import com.sky.mapper.DishMapper;
import com.sky.mapper.OrderMapper;
import com.sky.mapper.SetmealMapper;
import com.sky.mapper.UserMapper;
import com.sky.service.WorkspaceService;
import com.sky.vo.BusinessDataVO;
import com.sky.vo.DishOverViewVO;
import com.sky.vo.OrderOverViewVO;
import com.sky.vo.SetmealOverViewVO;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.time.LocalDateTime;
import java.time.LocalTime;
import java.util.HashMap;
import java.util.Map;

@Service
@Slf4j
public class WorkspaceServiceImpl implements WorkspaceService {

    @Autowired
    private OrderMapper orderMapper;
    @Autowired
    private UserMapper userMapper;
    @Autowired
    private DishMapper dishMapper;
    @Autowired
    private SetmealMapper setmealMapper;

    /**
     * 根据时间段统计营业数据
     * @param begin
     * @param end
     * @return
     */
    public BusinessDataVO getBusinessData(LocalDateTime begin, LocalDateTime end) {
        /**
         * 营业额：当日已完成订单的总金额
         * 有效订单：当日已完成订单的数量
         * 订单完成率：有效订单数 / 总订单数
         * 平均客单价：营业额 / 有效订单数
         * 新增用户：当日新增用户的数量
         */

        Map map = new HashMap();
        map.put("begin",begin);
        map.put("end",end);

        //查询总订单数
        Integer totalOrderCount = orderMapper.countByMap(map);

        map.put("status", Orders.COMPLETED);
        //营业额
        Double turnover = orderMapper.sumByMap(map);
        turnover = turnover == null? 0.0 : turnover;

        //有效订单数
        Integer validOrderCount = orderMapper.countByMap(map);

        Double unitPrice = 0.0;

        Double orderCompletionRate = 0.0;
        if(totalOrderCount != 0 && validOrderCount != 0){
            //订单完成率
            orderCompletionRate = validOrderCount.doubleValue() / totalOrderCount;
            //平均客单价
            unitPrice = turnover / validOrderCount;
        }

        //新增用户数
        Integer newUsers = userMapper.countByMap(map);

        return BusinessDataVO.builder()
                .turnover(turnover)
                .validOrderCount(validOrderCount)
                .orderCompletionRate(orderCompletionRate)
                .unitPrice(unitPrice)
                .newUsers(newUsers)
                .build();
    }

}

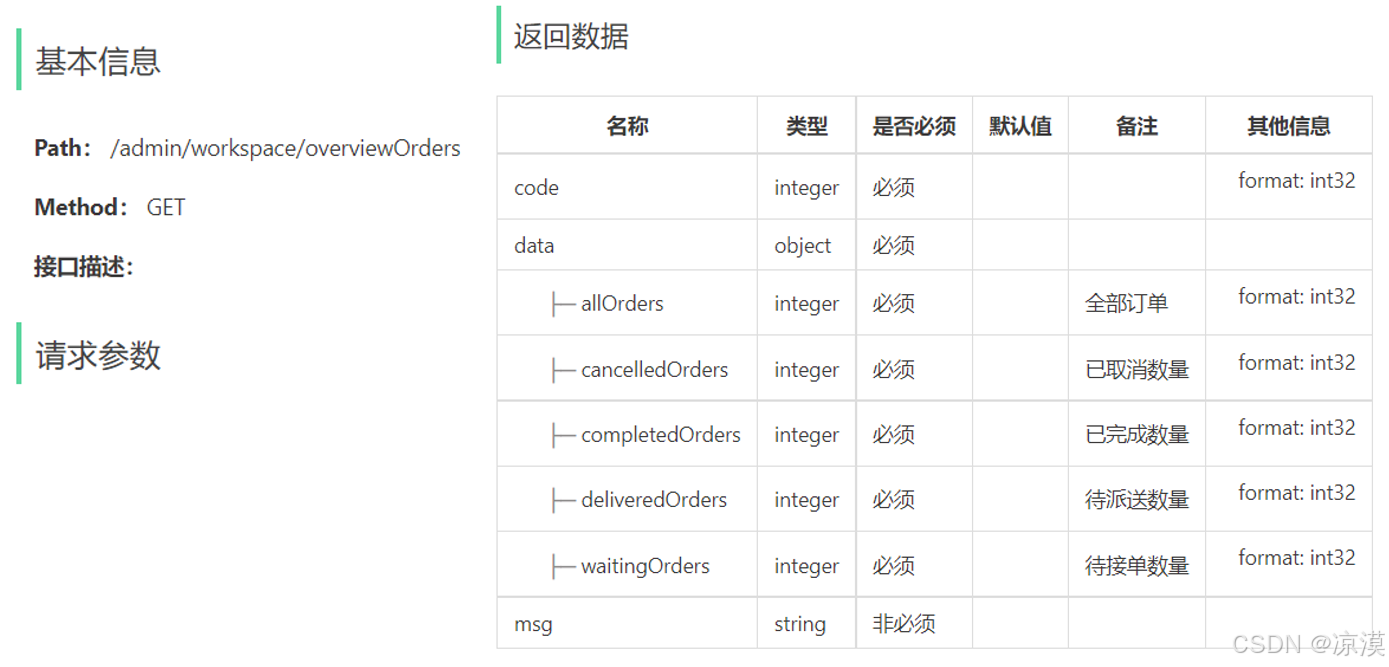

2、订单管理接口

订单管理的接口设计：

代码设计

2、admin/WorkSpaceController

/**
     * 查询订单管理数据
     * @return
     */
    @GetMapping("/overviewOrders")
    @ApiOperation("查询订单管理数据")
    public Result<OrderOverViewVO> orderOverView(){

        return Result.success(workspaceService.getOrderOverView());
    }

2、WorkspaceService

/**
     * 查询订单管理数据
     * @return
     */
    OrderOverViewVO getOrderOverView();

2、WorkspaceServiceImpl

/**
     * 查询订单管理数据
     *
     * @return
     */
    public OrderOverViewVO getOrderOverView() {
        Map map = new HashMap();
        map.put("begin", LocalDateTime.now().with(LocalTime.MIN));
        map.put("status", Orders.TO_BE_CONFIRMED);

        //待接单
        Integer waitingOrders = orderMapper.countByMap(map);

        //待派送
        map.put("status", Orders.CONFIRMED);
        Integer deliveredOrders = orderMapper.countByMap(map);

        //已完成
        map.put("status", Orders.COMPLETED);
        Integer completedOrders = orderMapper.countByMap(map);

        //已取消
        map.put("status", Orders.CANCELLED);
        Integer cancelledOrders = orderMapper.countByMap(map);

        //全部订单
        map.put("status", null);
        Integer allOrders = orderMapper.countByMap(map);

        return OrderOverViewVO.builder()
                .waitingOrders(waitingOrders)
                .deliveredOrders(deliveredOrders)
                .completedOrders(completedOrders)
                .cancelledOrders(cancelledOrders)
                .allOrders(allOrders)
                .build();
    }

2、OrderMapper

/**
     * 根据动态条件统计订单数量
     * @param map
     */
    Integer countByMap(Map map);

2、 OrderMapper.xml

<select id="countByMap" resultType="java.lang.Integer">
        select count(id) from orders
        <where>
            <if test="status != null">
                and status = #{status}
            </if>
            <if test="begin != null">
                and order_time &gt;= #{begin}
            </if>
            <if test="end != null">
                and order_time &lt;= #{end}
            </if>
        </where>
    </select>

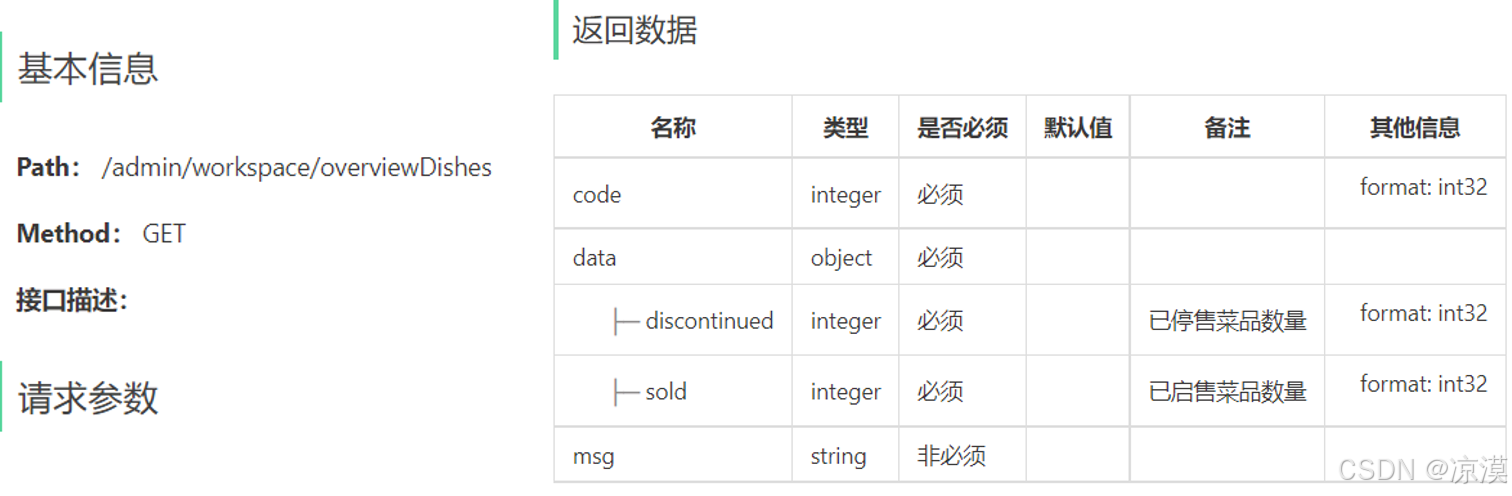

3、菜品总览接口

代码设计

3、admin/WorkSpaceController

/**
     * 查询菜品总览
     * @return
     */
    @GetMapping("/overviewDishes")
    @ApiOperation("查询菜品总览")
    public Result<DishOverViewVO> dishOverView(){

        return Result.success(workspaceService.getDishOverView());
    }

3、WorkspaceService

/**
     * 查询菜品总览
     * @return
     */
    DishOverViewVO getDishOverView();

3、WorkspaceServiceImpl

 /**
     * 查询菜品总览
     *
     * @return
     */
    public DishOverViewVO getDishOverView() {
        Map map = new HashMap();
        map.put("status", StatusConstant.ENABLE);
        Integer sold = dishMapper.countByMap(map);

        map.put("status", StatusConstant.DISABLE);
        Integer discontinued = dishMapper.countByMap(map);

        return DishOverViewVO.builder()
                .sold(sold)
                .discontinued(discontinued)
                .build();
    }

3、DishMapper

/**
     * 根据条件统计菜品数量
     * @param map
     * @return
     */
    Integer countByMap(Map map);

3、 DishMapper.xml

<select id="countByMap" resultType="java.lang.Integer">
        select count(id) from dish
        <where>
            <if test="status != null"> and status = #{status} </if>
            <if test="categoryId != null"> and category_id = #{categoryId} </if>
        </where>
    </select>

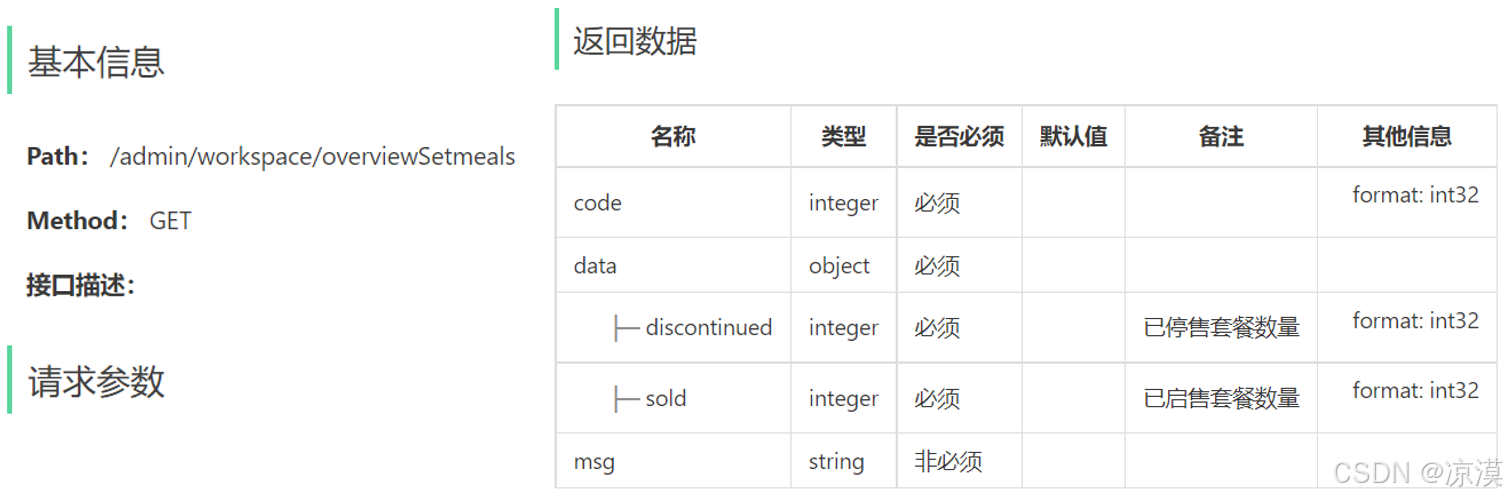

4、套餐总览接口

代码设计

4、admin/WorkSpaceController

/**
     * 查询套餐总览
     * @return
     */
    @GetMapping("/overviewSetmeals")
    @ApiOperation("查询套餐总览")
    public Result<SetmealOverViewVO> setmealOverView(){

        return Result.success(workspaceService.getSetmealOverView());
    }

4、WorkspaceService

/**
     * 查询套餐总览
     * @return
     */
    SetmealOverViewVO getSetmealOverView();

4、WorkspaceServiceImpl

/**
     * 查询套餐总览
     *
     * @return
     */
    public SetmealOverViewVO getSetmealOverView() {
        Map map = new HashMap();
        map.put("status", StatusConstant.ENABLE);
        Integer sold = setmealMapper.countByMap(map);

        map.put("status", StatusConstant.DISABLE);
        Integer discontinued = setmealMapper.countByMap(map);

        return SetmealOverViewVO.builder()
                .sold(sold)
                .discontinued(discontinued)
                .build();
    }

4、SetmealMapper

/**
     * 根据条件统计套餐数量
     * @param map
     * @return
     */
    Integer countByMap(Map map);

4、SetmealMapper.java

<select id="countByMap" resultType="java.lang.Integer">
        select count(id) from setmeal
        <where>
            <if test="status != null"> and status = #{status} </if>
            <if test="categoryId != null"> and category_id = #{categoryId} </if>
        </where>
    </select>
