朋友圈简单实现

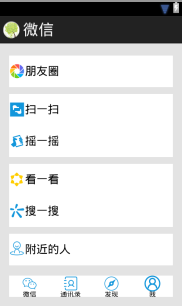

效果图
具体如下图所示：
在这里插入图片描述

朋友圈界面布局文件

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context=".MainActivity"
    android:background="#e3e3e3"
    android:orientation="vertical"
    >

      <Button
        android:id="@+id/one"
        android:layout_width="fill_parent"
        android:layout_height="55sp"
        android:text="@string/pengyouquan"
        android:background="#ffffff"
        android:drawableLeft="@drawable/pengyouquan"
        android:gravity="left|center"
        android:textSize="20sp"
        android:layout_marginTop="5dp"/>

     <Button
        android:id="@+id/two"
        android:layout_width="fill_parent"
        android:layout_height="55sp"
        android:text="@string/saoyisao"
        android:background="#ffffff"
        android:drawableLeft="@drawable/saoyisao"
        android:gravity="left|center"
        android:textSize="20sp"
        android:layout_marginTop="12dp"/>
     <Button
        android:id="@+id/three"
        android:layout_width="fill_parent"
        android:layout_height="55sp"
        android:text="@string/yaoyiyao"
        android:background="#ffffff"
        android:drawableLeft="@drawable/yaoyiyao_1"
        android:gravity="left|center"
        android:textSize="20sp"
        android:layout_marginTop="0dp"/>


     <Button
        android:id="@+id/four"
        android:layout_width="fill_parent"
        android:layout_height="55sp"
        android:text="@string/kanyikan"
        android:background="#ffffff"
        android:drawableLeft="@drawable/kanyikan_1"
        android:gravity="left|center"
        android:textSize="20sp"
        android:layout_marginTop="12dp"
        />
     <Button
        android:id="@+id/five"
        android:layout_width="fill_parent"
        android:layout_height="55sp"
        android:text="@string/souyisou"
        android:background="#ffffff"
        android:drawableLeft="@drawable/search"
        android:gravity="left|center"
        android:textSize="20sp"
 android:layout_marginTop="0dp"
        />
     <Button
        android:id="@+id/six"
        android:layout_width="fill_parent"
        android:layout_height="55sp"
        android:text="@string/fujinderen"
        android:background="#ffffff"
        android:drawableLeft="@drawable/fujinderen"
        android:gravity="left|center"
        android:textSize="20sp"
        android:layout_marginTop="12dp"/>
    <LinearLayout
        android:layout_width="fill_parent"
        android:layout_height="40sp"
        android:layout_marginTop="18dp"
        android:orientation="horizontal"
       >
     <Button
        android:id="@+id/bone"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:text="@string/weixin"
        android:background="#ffffff"
        android:drawableTop="@drawable/weixin_1"
        android:gravity="bottom|center"
        android:textSize="12sp"
        android:layout_weight="1"/>
     <Button
        android:id="@+id/btwo"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:text="@string/tongxunlu"
        android:background="#ffffff"
        android:drawableTop="@drawable/tongxunlu_1"
        android:gravity="bottom|center"
        android:textSize="12sp"
        android:layout_weight="1"/>
     <Button
        android:id="@+id/bthree"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:text="@string/faxian"
        android:background="#ffffff"
        android:drawableTop="@drawable/faxian"
        android:gravity="bottom|center"
        android:textSize="12sp"
        android:layout_weight="1"/>
     <Button
        android:id="@+id/bfour"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:text="@string/wo"
        android:background="#ffffff"
        android:drawableTop="@drawable/wo"
        android:gravity="bottom|center"
        android:textSize="12sp"
      android:layout_weight="1"/>
   </LinearLayout>
</LinearLayout>

评论页布局文件

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical" >

  <ImageButton
    android:layout_width="320dp"
    android:layout_height="160dp"
    android:src="@drawable/tutwo"
    android:contentDescription="@string/desc"/>
  <RelativeLayout
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_margin="15dp"
    >
     <ImageView
            android:id="@+id/touxiangone"
            android:layout_width="45dp"
            android:layout_height="45dp"
            android:layout_alignParentLeft="true"
            android:layout_margin="10dp"
            android:src="@drawable/touxiangone"
            android:contentDescription="@string/desc"/>
     <TextView
            android:id="@+id/wangmingone"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginTop="10dp"
            android:layout_toRightOf="@+id/touxiangone"
            android:text="@string/wangmingone"
            android:textColor="#576B95"
            android:textSize="20sp" />
     <TextView
            android:id="@+id/contentone"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_below="@+id/wangmingone"
            android:layout_marginTop="5dp"
            android:layout_toRightOf="@+id/touxiangone"
            android:minLines="2"
            android:text="@string/contentone" />
      <TextView
            android:id="@+id/timeone"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_below="@+id/touxiangone"
            android:layout_marginTop="3dp"
            android:text="@string/timeone"
            android:textColor="#9A9A9A"
            android:textSize="18sp"
            android:layout_margin="3dp"/>
      <Button
           android:id="@+id/pinglun"
           android:text="@string/pinglun"
           android:layout_width="wrap_content"
           android:layout_height="wrap_content"
           android:layout_alignParentRight="true"
           android:layout_below="@+id/contentone"
           android:textSize="15sp"
           android:background="#f8f8ff"/>
   </RelativeLayout>
   <RelativeLayout
           android:layout_width="match_parent"
           android:layout_height="wrap_content"
           android:background="#f0f8ff"
           android:layout_marginLeft="15dp"
           android:layout_marginRight="15dp">
      <Button
        android:id="@+id/btnone"
        android:text="@string/wangmingtwo"
        android:layout_width="wrap_content"
	    android:layout_height="wrap_content"
	    android:background="#f8f8ff"/>
	  <ImageView
	        android:id="@+id/tupiancommentone"
	        android:layout_width="wrap_content"
	        android:layout_height="wrap_content"
	        android:src="@drawable/comment"
	        android:layout_margin="2dp"
	        android:layout_toRightOf="@+id/btnone"
	        android:contentDescription="@string/desc"/>
	 <Button
        android:id="@+id/btntwo"
        android:text="@string/wangmingthree"
        android:background="#f8f8ff"
        android:layout_width="wrap_content"
	    android:layout_height="wrap_content"
	    android:layout_below="@+id/tupiancommentone"/>
	 <TextView
	        android:id="@+id/wenzicommenttwo"
	        android:layout_width="wrap_content"
	        android:layout_height="wrap_content"
	        android:text="@string/comment"
	        android:layout_margin="2dp"
	        android:minLines="2"
	        android:layout_below="@+id/tupiancommentone"
	        android:layout_toRightOf="@+id/btntwo"/>
   </RelativeLayout>
</LinearLayout>

评论具体实现界面

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="@drawable/background" >
    <TextView
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:text="@string/pinglunneirong"
        android:textSize="32sp"
        android:textColor="#c1d1c1"
        android:layout_marginTop="130sp"
        android:layout_marginLeft="15sp"
        android:layout_marginRight="15sp"/>
    <EditText
        android:id="@+id/edittext"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:inputType="text"
        android:hint="@string/shuru"
        android:background="#f0f8ff"
        android:textSize="40sp"
        android:layout_marginLeft="15sp"
        android:layout_marginRight="15sp"
        android:layout_marginTop="15sp"/>
    <Button
        android:id="@+id/btntijiao"
        android:text="@string/tijiao"
        android:layout_width="70sp"
        android:layout_height="wrap_content"
        android:layout_gravity="right"
        android:layout_marginLeft="15sp"
        android:layout_marginRight="30sp"
        android:layout_marginTop="15sp"
        />
</LinearLayout>

资源文件

<?xml version="1.0" encoding="utf-8"?>
<resources>

    <string name="app_name">微信</string>
    <string name="action_settings">Settings</string>
    <string name="hello_world">Hello world!</string>
    <string name="pengyouquan">朋友圈</string>
    <string name="faxian">发现</string>
    <string name="saoyisao">扫一扫</string>
    <string name="yaoyiyao">摇一摇</string>
    <string name="kanyikan">看一看</string>
    <string name="souyisou">搜一搜</string>
    <string name="fujinderen">附近的人</string>
    <string name="weixin">微信</string>
    <string name="tongxunlu">通讯录</string>
    <string name="wo">我</string>
    <string name="wangmingone">生如夏花</string>
    <string name="contentone">上善若水，水善利万物而不争，处众人之所恶，故几于道。</string>
    <string name="timeone">昨天</string>
    <string name="wangmingtwo">岁月静好：</string>
    <string name="wangmingthree">随遇而安：</string>
    <string name="comment">居善地，心善渊，与善仁，言善信，正善治，事善能，动善时。</string>
    <string name="pinglun">评论</string>
    <string name="desc">desc</string>
    <string name="FriendActivity">发现</string>
    <string name="pinglunneirong">请输入评论内容:</string>
    <string name="shuru">输入：</string>
    <string name="tijiao">提交</string>
    <string name="PinglunActivity">评论</string>
    <string name="tixing">提醒内容</string>
</resources>

主配置文件

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.weixin"
    android:versionCode="1"
    android:versionName="1.0" >

    <uses-sdk
        android:minSdkVersion="8"
        android:targetSdkVersion="17" />

    <application
        android:allowBackup="true"
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name"
        android:theme="@style/AppTheme" >
        <activity
            android:name="com.example.weixin.MainActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
        <activity
            android:name="FriendActivity"
            android:label="@string/FriendActivity" >
        </activity>
        <activity
            android:name="PinglunActivity"
            android:label="@string/PinglunActivity" >
        </activity>
        <activity android:name=".InternalDataWriteActivity"/>
        <activity android:name=".InternalDataReadActivity"/>
    </application>
</manifest>

朋友圈到评论页跳转实现（点击朋友圈跳转）

package com.example.weixin;
import android.os.Bundle;
import android.app.Activity;
import android.content.Intent;
import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        Button btnButton=(Button) findViewById(R.id.one);
        btnButton.setOnClickListener(listener);
    }
    private OnClickListener listener=new OnClickListener(){
    	@Override
    	public void onClick(View v){
    		Intent intent=new Intent();
    		intent.setClass(MainActivity.this,FriendActivity.class);
    		startActivity(intent);
    	}
    };

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }

}

评论页到具体进行评论跳转（点击评论按钮跳转）

package com.example.weixin;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;

public class FriendActivity extends Activity {
	protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.pinglunye);
        Button btnButton=(Button) findViewById(R.id.pinglun);
        btnButton.setOnClickListener(listener);
    }
    private OnClickListener listener=new OnClickListener(){
    	@Override
    	public void onClick(View v){
    		Intent intent=new Intent();
    		intent.setClass(FriendActivity.this,PinglunActivity.class);
    		startActivity(intent);
    	}
    };
}

点击提交按钮回到评论页


package com.example.weixin;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.Toast;

public class PinglunActivity extends Activity {
	protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.xiangxiye);
        Button btnButton=(Button) findViewById(R.id.btntijiao);
        btnButton.setOnClickListener(listener);
    }
    private OnClickListener listener=new OnClickListener(){
    	@Override
    	public void onClick(View v){
    		Intent intent=new Intent();
    		intent.setClass(PinglunActivity.this,FriendActivity.class);
    		startActivity(intent);
    		Toast.makeText(PinglunActivity.this, "亲，你有一条新的评论", Toast.LENGTH_LONG).show();
    	}
	};
}
