一、前期准备
import tensorflow as tf
import matplotlib.pyplot as plt
gpus = tf.config.list_physical_devices("GPU")
if gpus:
tf.config.experimental.set_memory_growth(gpus[0], True) #设置GPU显存用量按需使用
tf.config.set_visible_devices([gpus[0]],"GPU")
# 打印显卡信息，确认GPU可用
print(gpus
2.导入数据
import matplotlib.pyplot as plt
# 支持中文
plt.rcParams['font.sans-serif'] = ['SimHei'] # 用来正常显示中文标签
plt.rcParams['axes.unicode_minus'] = False # 用来正常显示负号
import os,PIL,pathlib
#隐藏警告
import warnings
warnings.filterwarnings('ignore')
data_dir = "./365-7-data"
data_dir = pathlib.Path(data_dir)
image_count = len(list(data_dir.glob('*/*')))
print("图片总数为：",image_count)
3400
二、数据预处理
1.加载数据
batch_size = 8
img_height = 224
img_width = 224
train_ds = tf.keras.preprocessing.image_dataset_from_directory(dir_path,
batch_size=batch_size,
image_size=(img_height,img_width),
seed=12,
shuffle=True,
validation_split=0.2,
subset="training")
val_ds = tf.keras.preprocessing.image_dataset_from_directory(dir_path,
batch_size=batch_size,
image_size=(img_height,img_width),
seed=12,
shuffle=True,
validation_split=0.2,
subset="validation")
class_names = train_ds.class_names
class_names
[‘cat’, ‘dog’]
2.再次检查数据
for image_batch, labels_batch in train_ds:
print(image_batch.shape)
print(labels_batch.shape)
break
(8, 224, 224, 3)
(8,)
3. 配置数据集
from tensorflow.keras import models,layers
import numpy as np
AUTOTUNE = tf.data.experimental.AUTOTUNE
def preprocess_image(image,label):
return (image/255.0,label)
# 归一化处理
train_ds = train_ds.map(preprocess_image, num_parallel_calls=AUTOTUNE)
val_ds = val_ds.map(preprocess_image, num_parallel_calls=AUTOTUNE)
train_ds = train_ds.cache().shuffle(1000).prefetch(buffer_size=AUTOTUNE)
val_ds = val_ds.cache().prefetch(buffer_size=AUTOTUNE)

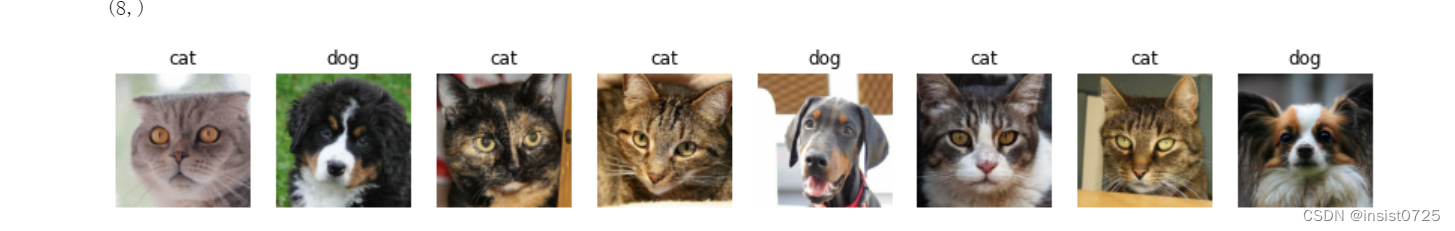

4.查看图片
from tensorflow.keras import models,layers
import numpy as np
AUTOTUNE = tf.data.experimental.AUTOTUNE
def preprocess_image(image,label):
return (image/255.0,label)
# 归一化处理
train_ds = train_ds.map(preprocess_image, num_parallel_calls=AUTOTUNE)
val_ds = val_ds.map(preprocess_image, num_parallel_calls=AUTOTUNE)
train_ds = train_ds.cache().shuffle(1000).prefetch(buffer_size=AUTOTUNE)
val_ds = val_ds.cache().prefetch(buffer_size=AUTOTUNE)
三、设置网络模型
from tensorflow.keras import layers, models, Input
from tensorflow.keras.models import Model
from tensorflow.keras.layers import Conv2D, MaxPooling2D, Dense, Flatten, Dropout
def VGG16(nb_classes, input_shape):
input_tensor = Input(shape=input_shape)
# 1st block
x = Conv2D(64, (3,3), activation='relu', padding='same',name='block1_conv1')(input_tensor)
x = Conv2D(64, (3,3), activation='relu', padding='same',name='block1_conv2')(x)
x = MaxPooling2D((2,2), strides=(2,2), name = 'block1_pool')(x)
# 2nd block
x = Conv2D(128, (3,3), activation='relu', padding='same',name='block2_conv1')(x)
x = Conv2D(128, (3,3), activation='relu', padding='same',name='block2_conv2')(x)
x = MaxPooling2D((2,2), strides=(2,2), name = 'block2_pool')(x)
# 3rd block
x = Conv2D(256, (3,3), activation='relu', padding='same',name='block3_conv1')(x)
x = Conv2D(256, (3,3), activation='relu', padding='same',name='block3_conv2')(x)
x = Conv2D(256, (3,3), activation='relu', padding='same',name='block3_conv3')(x)
x = MaxPooling2D((2,2), strides=(2,2), name = 'block3_pool')(x)
# 4th block
x = Conv2D(512, (3,3), activation='relu', padding='same',name='block4_conv1')(x)
x = Conv2D(512, (3,3), activation='relu', padding='same',name='block4_conv2')(x)
x = Conv2D(512, (3,3), activation='relu', padding='same',name='block4_conv3')(x)
x = MaxPooling2D((2,2), strides=(2,2), name = 'block4_pool')(x)
# 5th block
x = Conv2D(512, (3,3), activation='relu', padding='same',name='block5_conv1')(x)
x = Conv2D(512, (3,3), activation='relu', padding='same',name='block5_conv2')(x)
x = Conv2D(512, (3,3), activation='relu', padding='same',name='block5_conv3')(x)
x = MaxPooling2D((2,2), strides=(2,2), name = 'block5_pool')(x)
# full connection
x = Flatten()(x)
x = Dense(1024, activation='relu', name='fc1')(x)
x = Dense(128, activation='relu', name='fc2')(x)
output_tensor = Dense(nb_classes, activation='softmax', name='predictions')(x)
model = Model(input_tensor, output_tensor)
return model
model=VGG16(len(class_names), (img_width, img_height, 3))# 1000改为2
model.summary()
Model: "model"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_1 (InputLayer) [(None, 224, 224, 3)] 0
_________________________________________________________________
block1_conv1 (Conv2D) (None, 224, 224, 64) 1792
_________________________________________________________________
block1_conv2 (Conv2D) (None, 224, 224, 64) 36928
_________________________________________________________________
block1_pool (MaxPooling2D) (None, 112, 112, 64) 0
_________________________________________________________________
block2_conv1 (Conv2D) (None, 112, 112, 128) 73856
_________________________________________________________________
block2_conv2 (Conv2D) (None, 112, 112, 128) 147584
_________________________________________________________________
block2_pool (MaxPooling2D) (None, 56, 56, 128) 0
_________________________________________________________________
block3_conv1 (Conv2D) (None, 56, 56, 256) 295168
_________________________________________________________________
block3_conv2 (Conv2D) (None, 56, 56, 256) 590080
_________________________________________________________________
block3_conv3 (Conv2D) (None, 56, 56, 256) 590080
_________________________________________________________________
block3_pool (MaxPooling2D) (None, 28, 28, 256) 0
_________________________________________________________________
block4_conv1 (Conv2D) (None, 28, 28, 512) 1180160
_________________________________________________________________
block4_conv2 (Conv2D) (None, 28, 28, 512) 2359808
_________________________________________________________________
block4_conv3 (Conv2D) (None, 28, 28, 512) 2359808
_________________________________________________________________
block4_pool (MaxPooling2D) (None, 14, 14, 512) 0
_________________________________________________________________
block5_conv1 (Conv2D) (None, 14, 14, 512) 2359808
_________________________________________________________________
block5_conv2 (Conv2D) (None, 14, 14, 512) 2359808
_________________________________________________________________
block5_conv3 (Conv2D) (None, 14, 14, 512) 2359808
_________________________________________________________________
block5_pool (MaxPooling2D) (None, 7, 7, 512) 0
_________________________________________________________________
flatten (Flatten) (None, 25088) 0
_________________________________________________________________
fc1 (Dense) (None, 1024) 25691136
_________________________________________________________________
fc2 (Dense) (None, 128) 131200
_________________________________________________________________
predictions (Dense) (None, 2) 258
=================================================================
Total params: 40,537,282
Trainable params: 40,537,282
Non-trainable params: 0
_________________________________________________________________
四、模型训练
新知识点
tqdm参数
class tqdm(object):
“”"
Decorate an iterable object, returning an iterator which acts exactly
like the original iterable, but prints a dynamically updating
progressbar every time a value is requested.
“”"
def init(self, iterable=None, desc=None, total=None, leave=False,
file=sys.stderr, ncols=None, mininterval=0.1,
maxinterval=10.0, miniters=None, ascii=None,
disable=False, unit=‘it’, unit_scale=False,
dynamic_ncols=False, smoothing=0.3, nested=False,
bar_format=None, initial=0, gui=False):
iterable: 可迭代的对象, 在手动更新时不需要进行设置
desc: 字符串, 左边进度条描述文字
total: 总的项目数
leave: bool值, 迭代完成后是否保留进度条
file: 输出指向位置, 默认是终端, 一般不需要设置
ncols: 调整进度条宽度, 默认是根据环境自动调节长度, 如果设置为0, 就没有进度条, 只有输出的信息
unit: 描述处理项目的文字, 默认是’it’, 例如: 100 it/s, 处理照片的话设置为’img’ ,则为 100 img/s
unit_scale: 自动根据国际标准进行项目处理速度单位的换算, 例如 100000 it/s >> 100k it/s
colour: 进度条颜色，例如：‘green’, ‘#00ff00’。支持的颜色：“BLACK, RED, GREEN, YELLOW, BLUE, MAGENTA, CYAN, WHITE”
train_on_batch函数原型
y_pred = Model.train_on_batch(
x,
y=None,
sample_weight=None,
class_weight=None,
reset_metrics=True,
return_dict=False,
)
参数详解：
x：模型输入，单输入就是一个 numpy 数组， 多输入就是 numpy 数组的列表
y：标签，单输出模型就是一个 numpy 数组， 多输出模型就是 numpy 数组列表
sample_weight：mini-batch 中每个样本对应的权重，形状为 (batch_size)
class_weight：类别权重，作用于损失函数，为各个类别的损失添加权重，主要用于类别不平衡的情况， 形状为 (num_classes)
reset_metrics：默认True，返回的metrics只针对这个mini-batch, 如果False，metrics 会跨批次累积
return_dict：默认 False, y_pred 为一个列表，如果 True 则 y_pred 是一个字典
优点
● 更精细自定义训练过程，更精准的收集 loss 和 metrics
● 分步训练模型-GAN的实现
● 多GPU训练保存模型更加方便
● 更多样的数据加载方式
tf.keras.backend
keras后端API
定义python操作时使用的上下文管理器
…backend.set_value函数
从Numpy数组设置变量的值。
参数：
x：要设置为新值的Tensor。
value：将张量设置为Numpy数组（具有相同形状）的值。
tf.keras.backend.get_value（x）返回一个变量的值
from tqdm import tqdm
import tensorflow.keras.backend as K
epochs = 12
lr = 1e-4
#记录训练数据，方便后续分析
history_train_loss = []
history_train_accuracy = []
history_val_loss = []
history_val_accuracy = []
for epoch in range(epochs):
train_total = len(train_ds)
val_total = len(val_ds)
"""
total：预期的迭代数目
ncols：控制进度条宽度
mininterval：进度更新最小间隔，以秒为单位（默认值：0.1）
"""
with tqdm(total=train_total,desc=f'Epoch {epoch+1}/{epochs}',mininterval=1,ncols=100) as pbar:
lr = lr*0.9 #随epoch减小学习率
K.set_value(model.optimizer.lr,lr) ##通过K.set_value对原模型的学习率进行更新
for image,label in train_ds:
history = model.train_on_batch(image,label) #输入数据与对应标签
train_loss = history[0] #这里我们是既有loss也由metrics的单输出模型
train_accuracy = history[1]
pbar.set_postfix({"loss": "%.4f"%train_loss,
"accuracy":"%.4f"%train_accuracy,
"lr": K.get_value(model.optimizer.lr)})
pbar.update(1)
history_train_loss.append(train_loss)
history_train_accuracy.append(train_accuracy)
print('开始验证！')
with tqdm(total=val_total,desc=f'Epoch {epoch + 1}/{epochs}',mininterval=0.5,ncols=100) as pbar:
for image,label in val_ds:
history = model.test_on_batch(image,label)
val_loss = history[0]
val_accuracy = history[1]
pbar.set_postfix({"loss": "%.4f"%val_loss,
"accuracy":"%.4f"%val_accuracy})
pbar.update(1)
history_val_loss.append(val_loss)
history_val_accuracy.append(val_accuracy)
print('结束验证！')
print("验证loss为：%.4f"%val_loss)
print("验证准确率为：%.4f"%val_accuracy)
Epoch 1/12: 100%|██████████| 340/340 [00:46<00:00, 7.35it/s, loss=0.6920, accuracy=0.8750, lr=9e-5]
Epoch 1/12: 0%| | 0/85 [00:00<?, ?it/s, loss=0.6908, accuracy=0.6250]
开始验证！
Epoch 1/12: 100%|█████████████████████| 85/85 [00:04<00:00, 21.21it/s, loss=0.6910, accuracy=0.6250]
结束验证！
验证loss为：0.6910
验证准确率为：0.6250
…
Epoch 12/12: 100%|██████| 340/340 [00:45<00:00, 7.42it/s, loss=0.0017, accuracy=1.0000, lr=2.82e-5]
开始验证！
Epoch 12/12: 100%|████████████████████| 85/85 [00:03<00:00, 21.90it/s, loss=0.0010, accuracy=1.0000]
结束验证！
验证loss为：0.0010
验证准确率为：1.0000
五、模型评估
epochs_range = range(epochs)
plt.figure(figsize=(12, 4))
plt.subplot(1, 2, 1)
plt.plot(epochs_range, history_train_accuracy, label='Training Accuracy')
plt.plot(epochs_range, history_val_accuracy, label='Validation Accuracy')
plt.legend(loc='lower right')
plt.title('Training and Validation Accuracy')
plt.subplot(1, 2, 2)
plt.plot(epochs_range, history_train_loss, label='Training Loss')
plt.plot(epochs_range, history_val_loss, label='Validation Loss')
plt.legend(loc='upper right')
plt.title('Training and Validation Loss')
plt.show()
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
