最小外接矩形

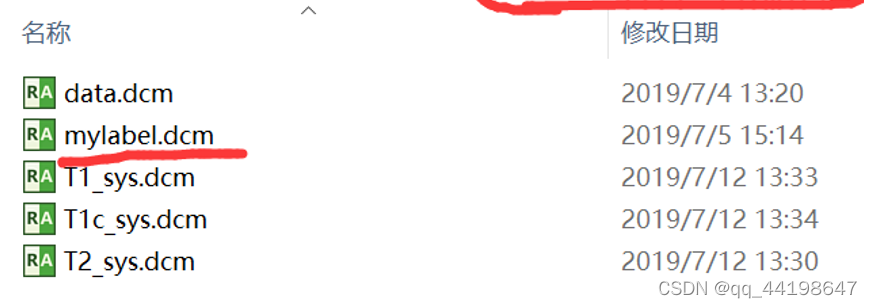

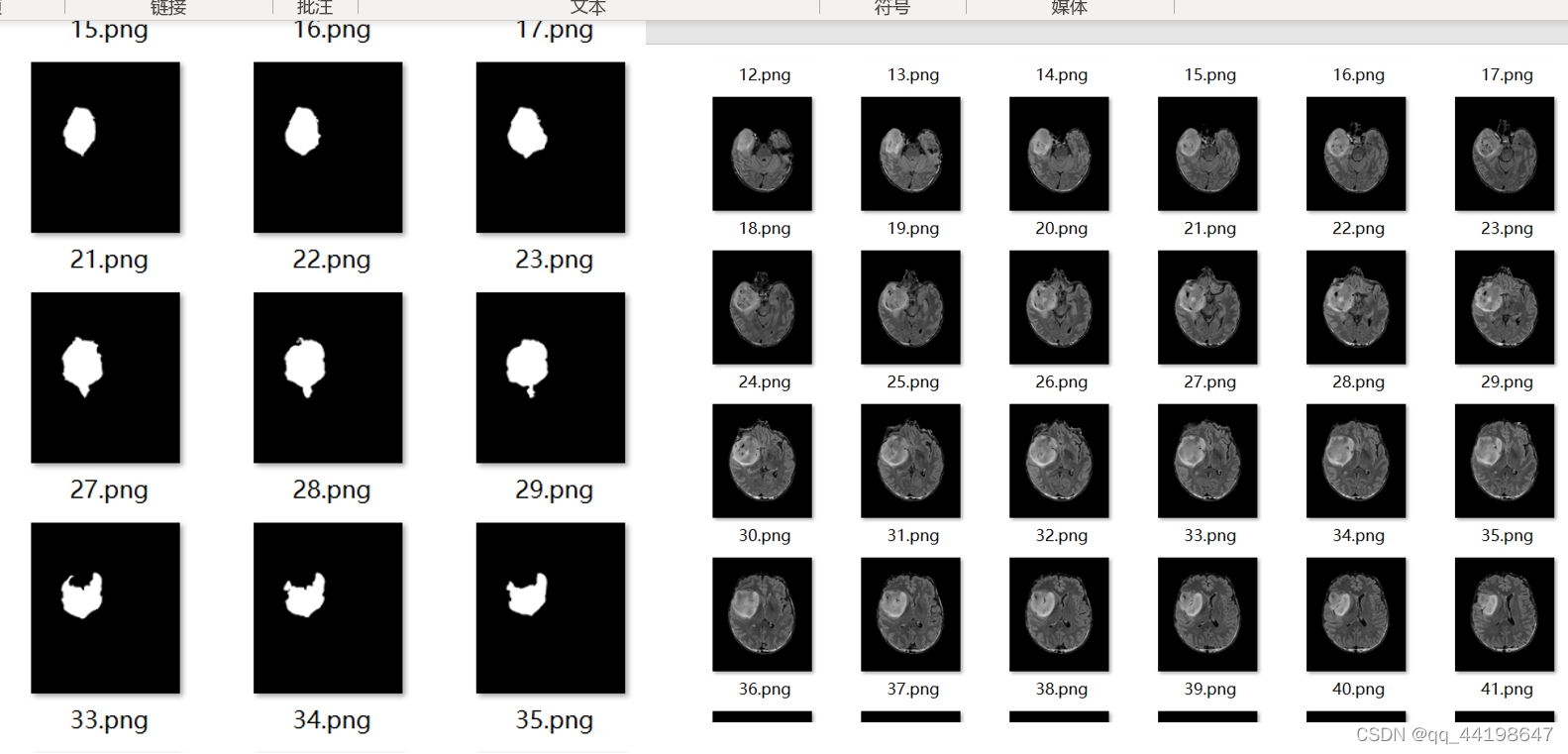

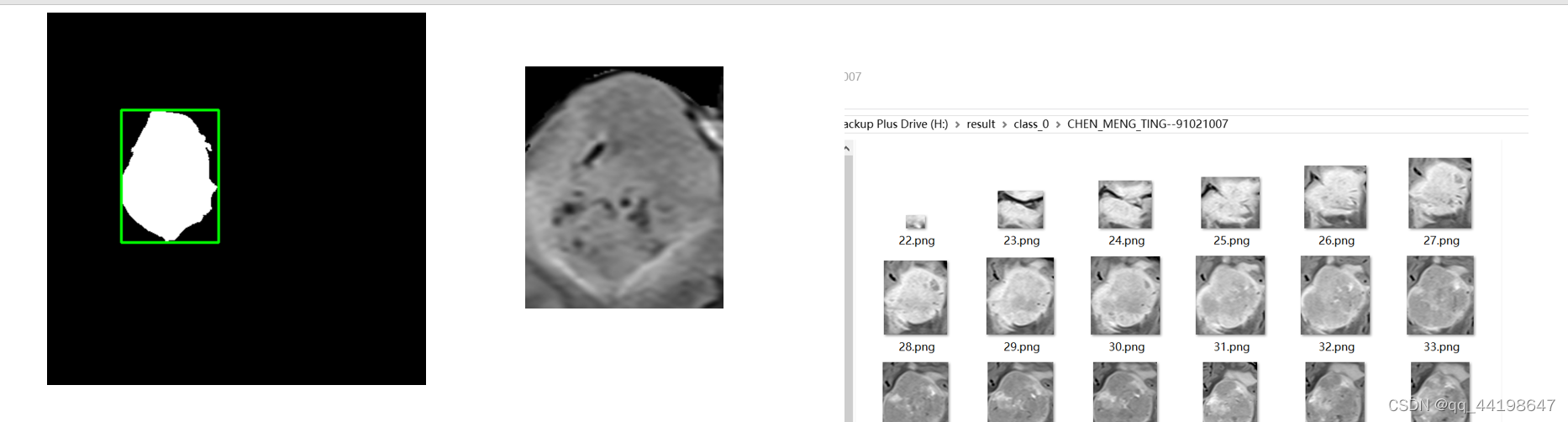

输入：输出



完整代码：

import os
import pydicom
import matplotlib.pyplot as plt
import scipy.misc
import os
import pandas as pd
import SimpleITK as sitk
import pydicom
import numpy as np
import cv2
import time
import imageio
from PIL import Image
from  skimage import img_as_ubyte,io
import imageio

#-----------------------------------------------------#
#    label最小外接矩形 映射到data.dcm， 在小新电脑上运行没问题
#-----------------------------------------------------#

shape_question=[]
path=r"H:\good1"
save_path=r"H:\acquire"
for file in os.listdir(path):
    save_middle = os.path.join(save_path, file)
    if not os.path.exists(save_middle):
        os.makedirs(save_middle)
    path1=os.path.join(path,file)#"E:\good1\AN_MEI--91059740"


    for file1 in os.listdir(path1):#file1=[data.dcm,segmentation_results.dcm]
        if file1 =="segmentation_results.dcm":
            path_label=os.path.join(path1,file1)#"E:\good1\AN_MEI--91059740\segmentation_results.dcm"
        elif file1 == "data.dcm":
            path_data = os.path.join(path1, file1)  # "E:\good1\AN_MEI--91059740\segmentation_results.dcm"


    for img_label,img_data in zip(os.listdir(path_label),os.listdir(path_data)):
        img_label_path=os.path.join(path_label,img_label)
        img_data_path = os.path.join(path_data, img_data)

        label0 = Image.open(img_label_path)
        label0 = np.array(label0)

        data0 = Image.open(img_data_path)
        data0 = np.array(data0)
        if label0.shape!= data0.shape:
             shape_question.append(file)
        if np.max(label0) == True and np.max(data0) != 0 and img_label_path and img_data_path:
            im = cv2.imread(img_label_path)
            print('img_label_path',img_label_path)
            imgray = cv2.cvtColor(im, cv2.COLOR_BGR2GRAY)
            ret, thresh = cv2.threshold(imgray, 0, 255, cv2.THRESH_BINARY + cv2.THRESH_OTSU)  # 大津阈值
            contours = cv2.findContours(thresh, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)  # cv2.RETR_EXTERNAL 定义只检测外围轮廓
            cnts = contours[0]

            for cnt in cnts:
                # 外接矩形框，没有方向角
                x, y, w, h = cv2.boundingRect(cnt)
                cv2.rectangle(im, (x, y), (x + w, y + h), (0, 255, 0), 2)
            pic = cv2.imread(img_data_path)  # 读取mask对应的图片
            print('img_data_path',img_data_path)
            print('h=',h)
            ge = pic[y:y + h, x:x + w]  # 根据内接矩形的顶点切割图片
            print('ge',ge)
            cv2.imwrite("H:/acquire/{0}/{1}".format(file,img_data),ge)
            print(1)
            img_label_path=None
            img_data_path=None
            label0=None
            data0=None


#
#
# print('---'*20)
# print('shape_question个数',len(set(shape_question)))
# for i in set(shape_question):
#     print(i)
# with open(r'C:\Users\Wu\Desktop\data.txt', mode='a', encoding='utf8') as f:
# # 文件写入
#     for i in set(shape_question):
#         f.write(i)
#         f.write('\n')

im = cv2.imread(r'D:\homeworks---homeworks\AN_MEI--91059740\segmentation_results.dcm\33.png')
imgray = cv2.cvtColor(im, cv2.COLOR_BGR2GRAY)

ret, thresh = cv2.threshold(imgray, 0, 255, cv2.THRESH_BINARY + cv2.THRESH_OTSU)  # 大津阈值
contours = cv2.findContours(thresh, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)  # cv2.RETR_EXTERNAL 定义只检测外围轮廓

# cnts = contours[0] if imutils.is_cv2() else contours[1]  # 用imutils来判断是opencv是2还是2+
cnts= contours[0]

for cnt in cnts:
    # 外接矩形框，没有方向角
    x, y, w, h = cv2.boundingRect(cnt)
    cv2.rectangle(im, (x, y), (x + w, y + h), (0, 255, 0), 2)

pic = cv2.imread(r'D:\homeworks---homeworks\AN_MEI--91059740\data.dcm\33.png')  # 读取mask对应的图片
ge = pic[y:y + h, x:x + w]  # 根据内接矩形的顶点切割图片
cv2.imshow('ge', ge)
cv2.imwrite('./result/ge.jpg', ge)
cv2.waitKey(0)

    # # 最小外接矩形框，有方向角
    # rect = cv2.minAreaRect(cnt)
    # box = cv2.cv.Boxpoints() if imutils.is_cv2() else cv2.boxPoints(rect)
    # box = np.int0(box)
    # cv2.drawContours(im, [box], 0, (0, 0, 255), 2)

    # # 最小外接圆
    # (x, y), radius = cv2.minEnclosingCircle(cnt)
    # center = (int(x), int(y))
    # radius = int(radius)
    # cv2.circle(im, center, radius, (255, 0, 0), 2)
    #
    # # 椭圆拟合
    # ellipse = cv2.fitEllipse(cnt)
    # cv2.ellipse(im, ellipse, (255, 255, 0), 2)
    #
    # # 直线拟合
    # rows, cols = im.shape[:2]
    # [vx, vy, x, y] = cv2.fitLine(cnt, cv2.DIST_L2, 0, 0.01, 0.01)
    # lefty = int((-x * vy / vx) + y)
    # righty = int(((cols - x) * vy / vx) + y)
    # im = cv2.line(im, (cols - 1, righty), (0, lefty), (0, 255, 255), 2)

# cv2.imshow('original', im)
# # cv2.imwrite('./result.jpg', im)
# cv2.waitKey(0)

# # 将最小内接矩形填充为白色
# white = [255, 255, 255]
# for col in range(x, x + w):
#     for row in range(y, y + h):
#         im[row, col] = white
#
# cv2.imshow('label', im)
# # cv2.imwrite('./result.jpg', im)
# cv2.waitKey(0)

# pic = cv2.imread(r'D:\homeworks---homeworks\CAI_JI_YUN--91047991\data.dcm\63.png')  # 读取mask对应的图片
# ge = pic[y:y + h, x:x + w]  # 根据内接矩形的顶点切割图片
# cv2.imshow('ge', ge)
# cv2.imwrite('./result/ge.jpg', ge)
# cv2.waitKey(0)


































#
# def transform(label_path,data_path,subfolder):
#     im = cv2.imread(label_path)
#     imgray = cv2.cvtColor(im, cv2.COLOR_BGR2GRAY)
#     ret, thresh = cv2.threshold(imgray, 0, 255, cv2.THRESH_BINARY + cv2.THRESH_OTSU)  # 大津阈值
#     contours = cv2.findContours(thresh, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)  # cv2.RETR_EXTERNAL 定义只检测外围轮廓
#     cnts= contours[0]
#     for cnt in cnts:
#         # 外接矩形框，没有方向角
#         x, y, w, h = cv2.boundingRect(cnt)
#         cv2.rectangle(im, (x, y), (x + w, y + h), (0, 255, 0), 2)
#
#     # # cv2.imwrite('./result.jpg', im)
#     # 将最小内接矩形填充为白色
#     # white = [255, 255, 255]
#     # for col in range(x, x + w):
#     #     for row in range(y, y + h):
#     #         im[row, col] = white
#     pic = cv2.imread(data_path)  # 读取mask对应的图片
#     ge = pic[y:y + h, x:x + w]  # 根据内接矩形的顶点切割图片
#
#     cv2.imwrite('./result/ge.jpg', ge)
#
#
path1=r'H:\good1\BAO_CONG_LIN--A829551\segmentation_results.dcm\40.png'
path2=r'H:\good1\BAO_CONG_LIN--A829551\data.dcm\40.png'
im = cv2.imread(path1)
imgray = cv2.cvtColor(im, cv2.COLOR_BGR2GRAY)
ret, thresh = cv2.threshold(imgray, 0, 255, cv2.THRESH_BINARY + cv2.THRESH_OTSU)  # 大津阈值
contours = cv2.findContours(thresh, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)  # cv2.RETR_EXTERNAL 定义只检测外围轮廓
cnts = contours[0]

for cnt in cnts:
    # 外接矩形框，没有方向角
    x, y, w, h = cv2.boundingRect(cnt)
    cv2.rectangle(im, (x, y), (x + w, y + h), (0, 255, 0), 2)
pic = cv2.imread(path2)  # 读取mask对应的图片
# print('img_data_path',img_data_path)
# print('h=',h)
ge = pic[y:y + h, x:x + w]  # 根据内接矩形的顶点切割图片
print('ge',ge)
cv2.imwrite("H:/acquire/1.png",ge)
# cv2.imwrite("H:/acquire/{0}/{1}".format(file,img_data),ge)
# print(1)
