SPF

Time Limit: 1000MS		Memory Limit: 10000K
Total Submissions: 10726		Accepted: 4770

Description

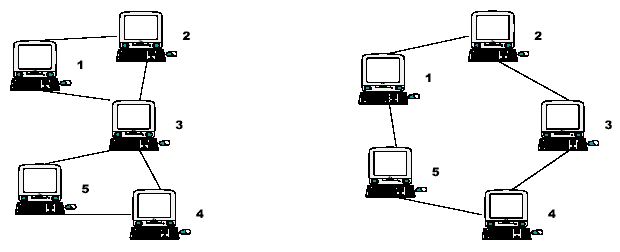

Consider the two networks shown below. Assuming that data moves around these networks only between directly connected nodes on a peer-to-peer basis, a failure of a single node, 3, in the network on the left would prevent some of the still available nodes from communicating with each other. Nodes 1 and 2 could still communicate with each other as could nodes 4 and 5, but communication between any other pairs of nodes would no longer be possible.

Node 3 is therefore a Single Point of Failure (SPF) for this network. Strictly, an SPF will be defined as any node that, if unavailable, would prevent at least one pair of available nodes from being able to communicate on what was previously a fully connected network. Note that the network on the right has no such node; there is no SPF in the network. At least two machines must fail before there are any pairs of available nodes which cannot communicate.

Input

The input will contain the description of several networks. A network description will consist of pairs of integers, one pair per line, that identify connected nodes. Ordering of the pairs is irrelevant; 1 2 and 2 1 specify the same connection. All node numbers will range from 1 to 1000. A line containing a single zero ends the list of connected nodes. An empty network description flags the end of the input. Blank lines in the input file should be ignored.

Output

For each network in the input, you will output its number in the file, followed by a list of any SPF nodes that exist.

The first network in the file should be identified as "Network #1", the second as "Network #2", etc. For each SPF node, output a line, formatted as shown in the examples below, that identifies the node and the number of fully connected subnets that remain when that node fails. If the network has no SPF nodes, simply output the text "No SPF nodes" instead of a list of SPF nodes.

Sample Input

Sample Output

Network #1
  SPF node 3 leaves 2 subnets

Network #2
  No SPF nodes

Network #3
  SPF node 2 leaves 2 subnets
  SPF node 3 leaves 2 subnets

Source

Greater New York 2000

思想：当前节点(cur)搜索访问的顺序num[cur]与后继节点next不通过cur所能访问的最小的节点搜索的值low[next].

$low[cur]=\begin{Bmatrix} min(low[cur],low[next]) & & & next & is & visited & & & & & & & & & & & & \\ min(low[cur],low[next]) & & & next & is &not& visited & & & & & \end{Bmatrix}$

如果 low[cur]>=num[father],即low不能通过father不能到达更小的节点，则father为割点；当cur=root时，判断cur的child>=2,即为割点。

方法一：邻接表DFS，O(N+M);

#include <iostream>
#include <vector>
using namespace std;
#define M 1001
vector<int> e[M];
int num[M],low[M],mark[M];
int large,root,index;
void dfs(int cur,int f){
	int child=0;
	num[cur]=low[cur]=++index;
	for(int j=0;j<e[cur].size();j++){
		int i=e[cur][j];
		if(!num[i]){
			child++;
			dfs(i,cur);
			low[cur]=min(low[cur],low[i]);
			mark[cur]+= cur==1 ? child>1 : low[i]>=num[cur];
		}else if(i!=f){
			low[cur]=min(low[cur],num[i]);
		}
	}
}

int main(int argc, char *argv[]) {
	int a,b,cnt=0,flag=2;
	while(1){
		large=-1,cnt++,index=0;
		cin>>a;
		if(!a)
			break;
		else
			cin>>b;
		for(int i=1;i<=M;i++){
			mark[i]=low[i]=num[i]=0;
			e[i].clear();
		}
		while(1){
			large=max(a,large);
			large=max(large,b);
			e[a].push_back(b);
			e[b].push_back(a);
			cin>>a;
			if(a==0)
				break;
			cin>>b;
		}
		root=1;
		dfs(1,root);
		cout<<"Network #"<<cnt<<endl;
		int has=false;
		for(int i=1;i<=large;i++){
			if(mark[i]){
				cout<<"  SPF node "<<i<<" leaves "<<mark[i]+1<<" subnets"<<endl;
				has=true;
			}
		}
		if(!has)
			cout<<"  No SPF nodes"<<endl;
		cout<<endl;
	}
	return 0;
}

方法二：邻接矩阵，O(n*n);

#include <iostream>
using namespace std;
#define M 1001
int e[M][M],num[M],low[M],mark[M],large,root,index;
void dfs(int cur,int f){
	int child=0;
	num[cur]=low[cur]=++index;
	for(int i=1;i<=large;i++){
		if(e[cur][i]){
			if(!num[i]){
				child++;
				dfs(i,cur);
				low[cur]=min(low[cur],low[i]);
				//cur点已经深度更新low，判断low
				mark[cur]+= cur==1 ? child>1 : low[i]>=num[cur];
			//不通过父节点所直接到达的index
			}else if(i!=f){
				low[cur]=min(low[cur],num[i]);
			}
		}
	}
}

int main(int argc, char *argv[]) {
	int a,b,cnt=0,flag=2;
	while(1){
		large=-1,index=0;
		cnt++;
		cin>>a;
		if(!a)
			break;
		else
			cin>>b;
		for(int i=1;i<=M;i++){
			mark[i]=low[i]=num[i]=0;
			for(int j=1;j<M;j++)
				e[i][j]=0;
		}
		while(1){
			large=max(a,large);
			large=max(large,b);
			e[a][b]=e[b][a]=1;
			cin>>a;
			if(a==0)
				break;
			cin>>b;
		}
		root=1;
		dfs(1,root);
		cout<<"Network #"<<cnt<<endl;
		bool has=false;
		for(int i=1;i<=large;i++){
			if(mark[i]){
				cout<<"  SPF node "<<i<<" leaves "<<mark[i]+1<<" subnets"<<endl;
				has=true;
			}
		}
		if(!has)
			cout<<"  No SPF nodes"<<endl;
        //每个例子之间有空行！！！！
		cout<<endl;
	}
	return 0;
}
