输入序列：一个长度为T的输入序列 $x=x^{(1)},x^{(2)},\dots,x^{(T)}$
输出序列：长度为T的输出序列 $y=y^{(1)},y^{(2)},\dots,y^{(T)}$
$x^{(t)}$ 和 $y^{(t)}$ 是one-hot向量，用于表示句子中第t个单词的索引号

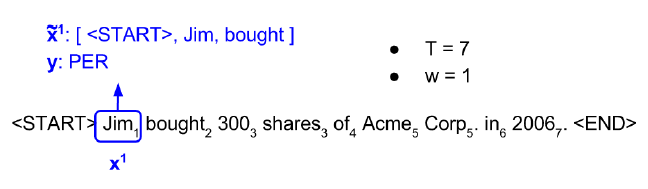

$\widetilde x^{(t)}=\lbrack x^{(t-\omega)},\dots,x^{(t)},\dots,x^{(t+\omega)}\rbrack$ ：将 $x^{(t)}$ 周围 $\omega$ 个标记连接到 $x^{(t)}$ 的左侧和右侧构造输入
通过在句首尾部加<start>和<end>，每个输入和输出具有统一的长度（ $\omega$ 和1），我们使用简单的前馈神经网络从 $\widetilde x^{(t)}$ 预测 $y^{(t)}$

作为从每个窗口预测标签的简单有效模型

我们使用具有ReLU激活的单个隐藏层，softmax处理输出，采用交叉熵作损失

$\begin{array}{l}e^{(t)}=\lbrack x^{(t-\omega)}L,\dots,x^{(t)}L,\dots,x^{(t+\omega)}L\rbrack\\h^{(t)}=\mathrm{ReLU}(e^{(t)}W+b_1)\\\widehat y^{(t)}=\mathrm{softmax}(h^{(t)}U+b_2)\\J=CE(y^{(t)},\widehat y^{(t)})\\CE(y^{(t)},\widehat y^{(t)})=-\sum_iy_i^{(t)}\log(\widehat y_i^{(t)})\\\end{array}$

(a) i. 提供2个包含具有不明确类型的命名实体的句子示例

"Spokesperson for Levis, Bill Murray, said . . . "：Levis既可以表示人也可以是组织
"Heartbreak is a new virus,"：Heartbreak既可以是明明命名实体（病毒名）也可以是一个名词

ii. 通常命名实体可能是罕见单词，使用用例等特征有助于系统概括

iii. 用例和词性特征有助于预测一个单词是否是命名实体的一部分

(b) i. 维数： $e^{(t)}\in R^{1\times(2\omega+1)D},W\in R^{(2\omega+1)D\times H},U\in R^{H\times C}$

ii. 计算复杂性 $O((2\omega+1)DHT+HCT)$

$e^{(t)}$ 的时间复杂度： $O((2\omega+1)D)$
$h^{(t)}$ 的时间复杂度： $O((2\omega+1)DH+H)$
$y^{(t)}$ 的时间复杂度： $O(HC+C)$

i. 在make_windowed_data函数中将一批输入序列转换为一批窗口输入-输出对

def make_windowed_data(data,start,end,window_size=1):
    windowed_data=[]
    for sentence,labels in data:
        orig_n=len(sentence)
        # extend sentence
        sentence=[start]*window_size+sentence+[end]*window_size
        l=0 # index labels
        # loop over the original sentence
        for i in range(window_size,orig_n+window_size):
            temp_feats=[]
            # loop over the window for feature in original sentence
            for j in range(i-window_size,i+window_size+1):
                temp_feats.extend(sentence[j])

            # put token features together with label
            temp_f_l=(temp_feats,labels[l])
            # put into windowed data:
            windowed_data.append(temp_f_l)
            # iterate our labels index
            l+=1
    return windowed_data

ii. 在WindowModel实现前馈模型

class WindowModel(NERModel):
    def add_placeholders(self):
        ### YOUR CODE HERE (~3-5 lines)
        self.input_placeholder=tf.placeholder(tf.int32,[None,self.config.n_window_features])
        self.labels_placeholder=tf.placeholder(tf.int32,[None,])
        self.dropout_placeholder=tf.placeholder(tf.float32)
        ### END YOUR CODE

    def create_feed_dict(self, inputs_batch, labels_batch=None,dropout=1):
        ### YOUR CODE HERE (~5-10 lines)
        feed_dict={self.input_placeholder:inputs_batch,\
                   self.dropout_placeholder:dropout}
        if labels_batch is not None:
            feed_dict[self.labels_placeholder]=labels_batch
        ### END YOUR CODE
        return feed_dict

    def add_embedding(self):
        embedded=tf.Variable(self.pretrained_embeddings)
        embeddings=tf.nn.embedding_lookup(embedded,self.input_placeholder)
        embeddings=tf.reshape(embeddings,[-1,self.config.n_window_features*self.config.embed_size])
        return embeddings

    def add_prediction_op(self):
        """Adds the 1-hidden-layer NN:
            h = Relu(xW + b1)
            h_drop = Dropout(h, dropout_rate)
            pred = h_dropU + b2"""
        x=self.add_embedding()
        dropout_rate=self.dropout_placeholder
        ### YOUR CODE HERE (~10-20 lines)
        b1=tf.get_variable(name='b1',shape=[self.config.hidden_size,],\
                           initializer=tf.contrib.layers.xavier_initializer(seed=1))
        b2=tf.get_variable(name='b2',shape=[self.config.n_classes],\
                           initializer=tf.contrib.layers.xavier_initializer(seed=2))

        W=tf.get_variable(name='W',shape=[self.config.n_window_features*self.config.embed_size,self.config.hidden_size],\
                          initializer=tf.contrib.layers.xavier_initializer(seed=3))

        U=tf.get_variable(name='U',shape=[self.config.hidden_size,self.config.n_classes],\
                          initializer=tf.contrib.layers.xavier_initializer(seed=4))

        z1=tf.matmul(x,W)+b1
        h=tf.nn.relu(z1)
        h_drop=tf.nn.dropout(h,dropout_rate)
        pred=tf.matmul(h_drop,U)+b2
        ### END YOUR CODE
        return pred

    def add_loss_op(self, pred):
        ### YOUR CODE HERE (~2-5 lines)
        loss=tf.nn.sparse_softmax_cross_entropy_with_logits(logits=pred,labels=self.labels_placeholder)
        loss=tf.reduce_mean(loss)
        ### END YOUR CODE
        return loss

    def add_training_op(self, loss):
        ### YOUR CODE HERE (~1-2 lines)
        adam_optim=tf.train.AdamOptimizer(self.config.lr)
        train_op=adam_optim.minimize(loss)
        ### END YOUR CODE
        return train_op

    def preprocess_sequence_data(self, examples):
        return make_windowed_data(examples,start=self.helper.START,end=self.helper.END,
                                  window_size=self.config.window_size)

    def consolidate_predictions(self, examples_raw, examples, preds):
        ret=[]
        i=0
        for sentence,labels in examples_raw:
            labels_=preds[i:i+len(sentence)]
            i+=len(sentence)
            ret.append([sentence,labels,labels_])
        return ret

    def predict_on_batch(self, sess, inputs_batch):
        feed=self.create_feed_dict(inputs_batch)
        predictions=sess.run(tf.argmax(self.pred,axis=1),feed_dict=feed)
        return predictions

    def train_on_batch(self, sess, inputs_batch, labels_batch):
        feed=self.create_feed_dict(inputs_batch,labels_batch=labels_batch,
                                   dropout=self.config.dropout)
        _,loss=sess.run([self.train_op,self.loss],feed_dict=feed)
        return loss

    def __init__(self,helper,config,pretrained_embeddings,report=None):
        super(WindowModel,self).__init__(helper,config,report)
        self.pretrained_embeddings=pretrained_embeddings

        # Defining placeholders
        self.input_placeholder=None
        self.labels_placeholder=None
        self.dropout_placeholder=None

        self.build()

利用以下主函数可以在pycharm中直接执行

python中的argparse模块(参数解析)

if __name__ == '__main__':
    parser=argparse.ArgumentParser(description='Trains and tests an NER model')
    parser.add_argument('-dt', '--data-train', type=argparse.FileType('r'), default="data/tiny.conll",
                  help="Training data")
    parser.add_argument('-dd', '--data-dev', type=argparse.FileType('r'), default='data/tiny.conll',
                                help="Dev data")
    parser.add_argument('-v', '--vocab', type=argparse.FileType('r'), default="data/vocab.txt",
                                help="Path to word vectors file")
    parser.add_argument('-vv', '--vectors', type=argparse.FileType('r'), default="data/wordVectors.txt",
                                help="Path to worod vectors file")
    args=parser.parse_args()
    parser.set_defaults(func=do_test2)
    logger.info("Testing implementation of WindowModel")
    config = Config()
    helper, train, dev, train_raw, dev_raw = load_and_preprocess_data(args)
    embeddings = load_embeddings(args, helper)
    config.embed_size = embeddings.shape[1]

    with tf.Graph().as_default():
        logger.info("Building model...", )
        start = time.time()
        model = WindowModel(helper, config, embeddings)
        logger.info("took %.2f seconds", time.time() - start)

        init = tf.global_variables_initializer()
        saver = None

        with tf.Session() as session:
            session.run(init)
            model.fit(session, saver, train, dev)

    logger.info("Model did not crash!")
    logger.info("Passed!")
