WPF之创建自定义按钮CustButton

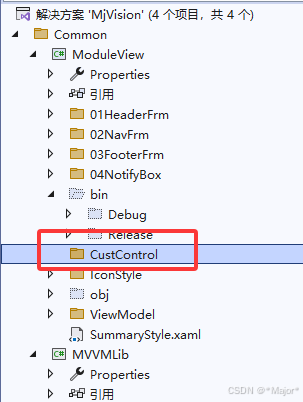

创建自定义控件文件夹-CustControl

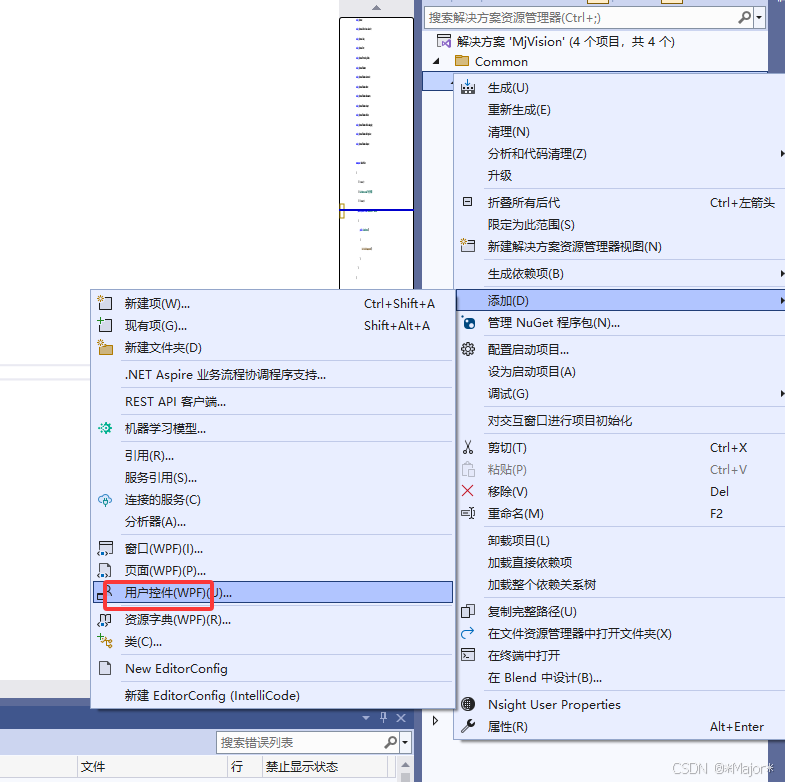

创建用户控件-CustButton

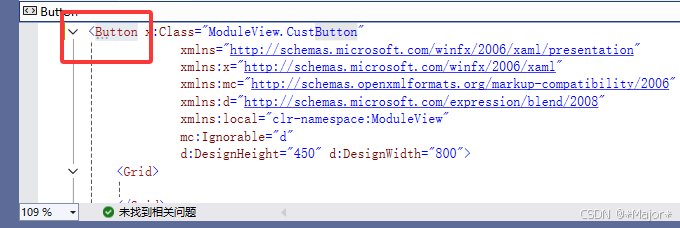

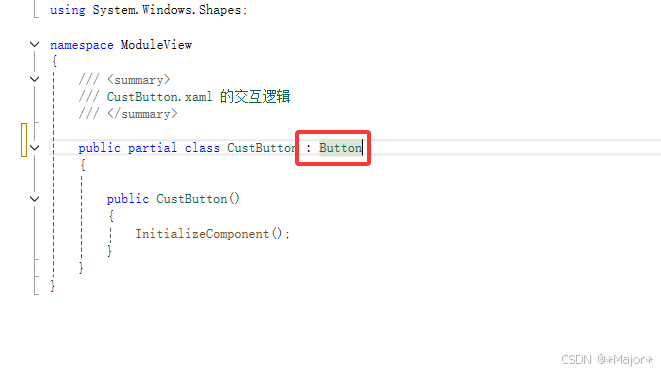

再改Button

<Button.Resources>
    <ResourceDictionary Source="pack://application:,,,/ModuleView;component/SummaryStyle.xaml"/>
</Button.Resources>

UI

   <Button.Template>
       <ControlTemplate TargetType="Button">
           <Grid ClipToBounds="True" MouseLeftButtonDown="Grid_MouseLeftButtonDown">
               <Border Name="back" Style="{StaticResource borderStyle}"  CornerRadius="6">
                   <ContentPresenter
                           HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"
                           VerticalAlignment="{TemplateBinding VerticalContentAlignment}"
                           Content="{TemplateBinding Content}"/>
               </Border>
               <Path Fill="White" x:Name="MyPath">
                   <Path.Data>
                       <EllipseGeometry x:Name="MyEllipse" RadiusX="0" RadiusY="{Binding RelativeSource={RelativeSource Mode=Self},Path=RadiusX}"/>
                   </Path.Data>
               </Path>
           </Grid>
           <ControlTemplate.Triggers>
               <Trigger Property="IsMouseOver" Value="True">
                   <Setter TargetName="back" Property="Visibility" Value="Visible"/>
                   <Setter TargetName="back" Property="Background" Value="Gray"/>
               </Trigger>
               <Trigger Property="IsEnabled" Value="false">
                   <Setter TargetName="back" Property="Background" Value="#44FFFFFF"/>
               </Trigger>
           </ControlTemplate.Triggers>
       </ControlTemplate>
   </Button.Template>
   <Border>

   </Border>

事件

     private void Grid_MouseLeftButtonDown(object sender, MouseButtonEventArgs e)
     {
         var target = Template.FindName("MyEllipse", this) as EllipseGeometry;
         target.Center = Mouse.GetPosition(this);
         var animation = new DoubleAnimation()
         {
             From = 0,
             To = 150,
             Duration = new Duration(TimeSpan.FromSeconds(1)),
         };

         target.BeginAnimation(EllipseGeometry.RadiusXProperty, animation);

         var animation2 = new DoubleAnimation()
         {
             From = 0.3,
             To = 0,
             Duration = new Duration(TimeSpan.FromSeconds(1)),
         };

         var target2 = Template.FindName("MyPath", this) as Path;

         target2.BeginAnimation(Path.OpacityProperty, animation2);

     }

使用

       <local:CustButton
        Background="Transparent"
        Grid.Column="1"
        Width="80" Height="32"
        FontSize="13"
        Foreground="White"
        Content="取消"
        Command="{Binding CancelFrm}"
        CommandParameter="{Binding ElementName=CreatePrj}"/>
