Unity 扩展Hierarchy面板右键菜单之查找引用当前物体的物体

在做项目时遇到了个问题,所以有了下面的内容。
问题:已经修改了某个零件模型,想重新替换原零件模型,但原零件模型在场景中被部分不同的脚本引用了,一个个找??会死人的。所以就想到了把引用了该零件的脚本遍历输出它的名字就好了呀喂。

不知道还有什么方式,欢迎评论了喂。

FindSpecifiedEditor.cs
using UnityEngine;
using UnityEditor;

public class FindSpecifiedEditor
{
    private static GameObject targetObj;

    //扩展Hierarchy面板右键弹出菜单
    [MenuItem("GameObject/我的/找茬", priority = 0)]
    static void CheckQuoteCurrentObj()
    {
        Debug.Log("正在查找");
        FindSpecifiedGameObj.BeginCheck(targetObj);
    }

    [MenuItem("GameObject/我的/其他测试", priority = 0)]
    static void Test()
    {
        Debug.Log("其他测试");
    }

    [InitializeOnLoadMethod]
    static void StartInitializeOnLoadMethod()
    {
        EditorApplication.hierarchyWindowItemOnGUI += OnHierarchyGUI;
    }

    static void OnHierarchyGUI(int instanceID, Rect selectionRect)
    {
        if (Event.current != null && selectionRect.Contains(Event.current.mousePosition)
            && Event.current.button == 1 && Event.current.type == EventType.MouseUp)
        {
            GameObject selectedGameObject = EditorUtility.InstanceIDToObject(instanceID) as GameObject;
            if (selectedGameObject)
            {
                targetObj = selectedGameObject;
            }
        }
    }
}

FindSpecifiedGameObj.cs
using System.Collections;
using System.Collections.Generic;
using System.Linq;
using System.Reflection;
using UnityEditor;
using UnityEngine;

public class FindSpecifiedGameObj
{
    //要查找的物体
    private static GameObject targetObj;

    public static void BeginCheck(GameObject _targetObj)
    {
        targetObj = _targetObj;

        List<GameObject> roots = GetAllSceneObjectsWithInactive();
        Dictionary<string, GameObject> dic = new Dictionary<string, GameObject>();
        foreach (GameObject item in roots)
        {
            GetCompent(item);
        }
    }

    private static void GetCompent(GameObject gameObject)
    {
        Component[] components = gameObject.GetComponentsInChildren<Component>();
        foreach (var item in components)
        {
            GetPropertiesInCompent(item);
        }
    }

    private static void GetPropertiesInCompent(Component item)
    {
        if (item.gameObject == targetObj)
        {
            return;
        }
        List<PropertyInfo> properties = item.GetType().GetProperties().Where(p => p.PropertyType.IsPublic
        && !p.PropertyType.IsValueType && p.PropertyType != typeof(Component)).ToList<PropertyInfo>();
        foreach (var propertyItem in properties)
        {
            var value = propertyItem.GetValue(item, null);
            if (value != null)
            {
                if (value == (object)targetObj)
                {
                    Debug.Log("找到名称为下列的物体");
                    Debug.Log(item.gameObject.name);
                }
            }

        }

        GetFieldsInCompent(item);
    }

    private static void GetFieldsInCompent(Component item)
    {
        List<FieldInfo> fields = item.GetType().GetFields().Where(p => p.FieldType.IsPublic && !p.FieldType.IsValueType).ToList<FieldInfo>();
        foreach (var fieldItem in fields)
        {

            var value = fieldItem.GetValue(item);
            if (value != null)
            {
                if (value == (object)targetObj)
                {
                    Debug.Log("找到名称为下列的物体:");
                    Debug.Log(item.gameObject.name);
                }
            }
        }
    }

    //查找所有Hierarchy面板中的物体(包括禁用的)
    private static List<GameObject> GetAllSceneObjectsWithInactive()
    {
        var allTransforms = Resources.FindObjectsOfTypeAll(typeof(Transform));
        var previousSelection = Selection.objects;
        Selection.objects = allTransforms.Cast<Transform>()
            .Where(x => x != null)
            .Select(x => x.gameObject)
            //如果你只想获取所有在Hierarchy中被禁用的物体,反注释下面代码
            //.Where(x => x != null && !x.activeInHierarchy)
            .Cast<UnityEngine.Object>().ToArray();

        var selectedTransforms = Selection.GetTransforms(SelectionMode.Editable | SelectionMode.ExcludePrefab);
        Selection.objects = previousSelection;

        return selectedTransforms.Select(tr => tr.gameObject).ToList();
    }
}

效果:

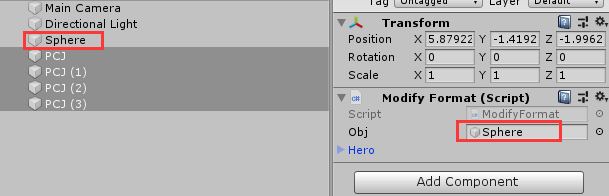

被多物体引用混球:
在这里插入图片描述

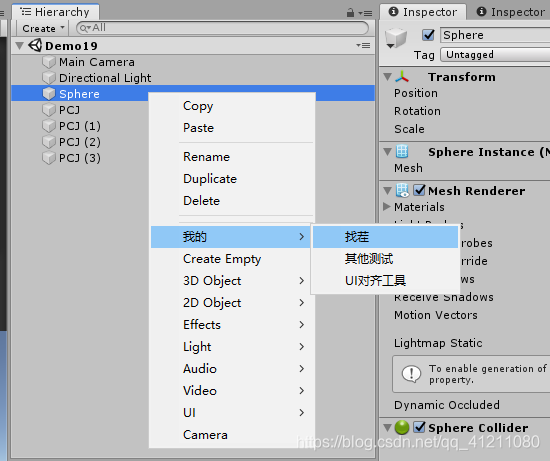

在混球上鼠标右键选择找茬:
在这里插入图片描述

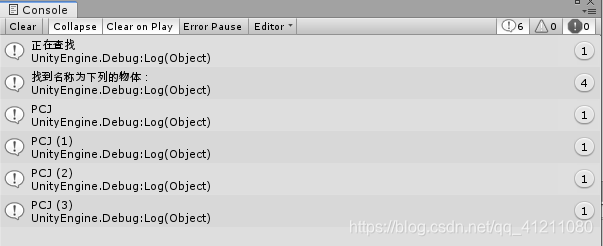

输出:
在这里插入图片描述
