SSH地图功能（一）调用高德地图，绘制图形

本文链接：https://blog.youkuaiyun.com/qq_41039426/article/details/80976526

本文介绍了使用SSH框架结合高德地图API开发的WEB端地图模板项目，实现了地图上图形的绘制、属性设置、查询、保存、修改和删除功能。目前主要展示了前端操作，后端数据库存储等功能的实现仍在研究中。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

实验室老师要求做一个采用高德或者百度或者天地图API开发的WEB端地图模板，能在地图页面上进行绘图，设置属性，查询属性，保存，修改图形，删除图形。由于刚看了SSH框架的知识，就着SSH框架进行开发

SSH框架的搭建优快云上已经有很多了，就不做复述

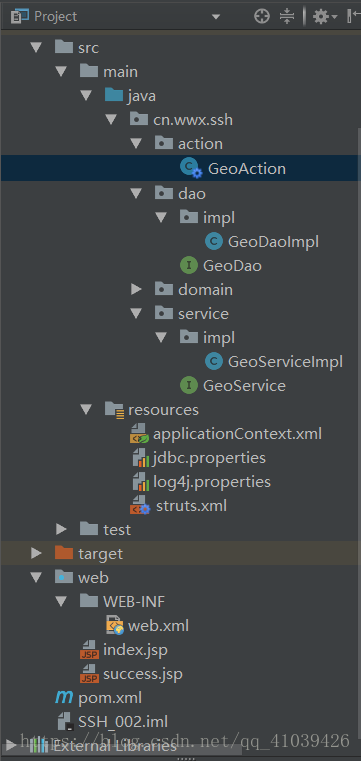

以下是项目结构

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>learing</groupId>
    <artifactId>SSH_002</artifactId>
    <version>1.0-SNAPSHOT</version>
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <spring.version>3.1.1.RELEASE</spring.version>
        <hibernate.version>3.6.5.Final</hibernate.version>
        <struts2.version>2.3.1</struts2.version>
    </properties>

    <dependencies>
        <!-- junit -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>3.8.1</version>
            <scope>test</scope>
        </dependency>

        <!-- spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-expression</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-orm</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>cglib</groupId>
            <artifactId>cglib-nodep</artifactId>
            <version>2.1_3</version>
        </dependency>


        <!-- hibernate -->
        <dependency>
            <groupId>org.hibernate</groupId>
            <artifactId>hibernate-core</artifactId>
            <version>${hibernate.version}</version>
        </dependency>

        <!-- struts2 -->
        <dependency>
            <groupId>org.apache.struts</groupId>
            <artifactId>struts2-core</artifactId>
            <version>${struts2.version}</version>
        </dependency>
        <!--config-browser-plugin插件，使用了这个插件之后，就可以很方便的浏览项目中的所有action及其与 jsp view的映射 -->
        <dependency>
            <groupId>org.apache.struts</groupId>
            <artifactId>struts2-junit-plugin</artifactId>
            <version>${struts2.version}</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.apache.struts</groupId>
            <artifactId>struts2-spring-plugin</artifactId>
            <version>${struts2.
