文章目录
1 cuda basic
cudaDeviceSynchronize用于阻塞进程,防止提前退出,因为device kernel与host是异步关系。
add<<<N, 1>>>();
这是指kernel启动时，启动N个线程块（N份此代码）， 每个线程块含负责1个元素，称之为parallel blocks, 还可以是parallel threads.
add<<<1, N>>>();
cuda 使用的host pointer，不支持共享指针等，cuda memcpy涉及总线传输，当支持任意大小的向量时，线程数量非待处理长度N的整数倍，此时使用
int index = threadIdx.x + blockIdx.x * blockDim.x;
if(index < N)
{
...
}
上面用if的方式非常常见。
in host
add<<<(N+block_size-1) / block_size, block_size>>>
2 optimization part 1
2.1 stencil的索引方式
int idx = threadIdx.x + blockDim.x * blockIdx.x;
int idx = blockDim.X + 2 * radius // RADIUS / 2
__shared__ int temp[BLOCK_SIZE + 2 * RADIUS];
host的调用
add<<<(N + M - 1) / M, M>>>(a,b,c,d)
gidx = threadIdx.x + blockIdx.x * blockDim.x;
lidx = threadIdx.x + RADIUS;
// thread can execute in any order, threads must reach the barier, __syncthread();
int result = 0;
for(int offset=-RADIUS; offset < RADIUS; ++offset)
{
result += temp[lidx + offset];
}
out[gidx] = result;
共享内存的使用
// cooperative group
// shared memory, 48kb or 64kb
// dynamic shared memeory
__global__ dynamic_shared_memory_kernel(..., share_mem_in_bytes)
{
__shared__ int temp[];
}
//
int share_mem_in_bytes = 192;
dynamic_shared_memory_kernel<<<grid, block, share_mem_in_bytes>>>(..., share_mem_in_bytes);
关键思路是 expose parallelism
2.2 cuda硬件特点
cuda 有 kepler/Maxwell/Pascal/Volta等芯片系列，
-
cores is an important specification
-
DP： used for double type data, 64 for kepler
-
LD/ST for 64k registers
-
架构发展先后，geForce->Titan->Tesla
-
issue with a warp, not single thread
-
global memory latency: >100 cycles, 100~400 cycles;
arithmetic latency: < 100 cycles, 5~10 cycles, more easy to hide, launch enough thread to hide latency，so as to get a pipeline. -
intermediate language : SAS
-
GPU是指令按序执行的， more warps, more benefit，64 warp per SM, if my machine has 80 SM, there is 64 ∗ 32 ∗ 80 = 163840 64*32*80 = 163840 64∗32∗80=163840 threads, 2048/1024 thread per block;
-
dual issue: 相临指令如果没有依赖关系，可同时发起
2.3 summary
use enough total threads to keep GPU busy;分析驱动优化（analysis drive optimization）; set block size as multiple of warp size(32); SM at least 16 thread blocks(Maxwell/Pascal/Volta has 32 thread blocks).
3 optimization part 2
- global memory and shared memory,
- local storage,
- optimize code without using profiler.
3.1 global memory throughput
register: managed by compiler; shared memory has very high throughput, > 1TB/s
load granularity is 128 bytes, non-cacheing loads may optimization。
三种访存的利用率，
bus utilizatoin : 50%
int c = a[idx - 2];
幸运的是，50%的利用率只在warp load 的首次出现，后续因为cache
的存在，bus utilization 是100%
bus utilization : 100%
int c = a[rand()%warpSize];
bus utilization: 128 / (N * 128)
int c = a[rand()];
cache load的随机访问模式，应该是性能瓶颈处, non-cache load的随机访问模式，可以找提高bus utilization, 此时不需要一次性加载128byte，(-Xptxas -dlcm=cg).
L1和L2也是优化点。
coalescing:
shared memeory 有32个bank，每个bank有4byte，不同线程访问同样连续索引对应的数据，称为multicast；全局内存的throughput 只取决于DRAM,不会经过PCI/NVlink，线程块太大可能会出现缓存颠簸，缓存阻塞优先考虑L2 cache.
Below is specific domain.
4 Atomics Reductions warp shuffle
4.1 atomic
thread strategy包含如下两种
- transformation : one thead per output point
- reduction : what thread gonna do?
*c+=a[i];
reduction need sync, cuda不会强制控制线程的先后执行顺序，我们需要atomic operation, 在L2处实现有一个协调处理的操作，atomic 支持的类型在不同芯片上各不相同，经典的并行归约使用基于树的方法，也需要同步操作，也称之为全局同步， 另一种方式是decompose into multiple kernels，threadblock是一个接一个退出的，在这里用同步操作，同步操作使用接口
__syncthreads();
求和过程,下面用的扫描索引模式(parallel sweep reduction)
for(unsigned int s = blockDim.x/2; s > 0; s>>=1) // parallel sweep reduction
{
if(tid < s)
{
sdata[tid] += sdata[tid + s];
}
__syncthreads();
}
完整的reduction code，包含grid stride loop + parallel sweep reduction两个主体，
__global__ void reduce_a(float *gdata, float *out)
{
__shared__ float sdata[BLOCK_SIZE];
int tid = threadIdx.x;
sdata[tid] = 0.0f;
size_t idx = threadIdx.x + blockDim.x * blockIdx.x;
/* collect data to a block */
while(idx < N) // grid stride loop
{
sdata[tid] += gdata[idx];
idx += gridDim.x * blockDim.x;
}
/* reduction in one block */
for(unsigned int s = blockDim.x/2; s>0; s>>1) // parallel sweep reduction
{
__syncthreads();
if(tid < s)
{
sdata[tid] += sdata[tid + s];
}
if(tid == 0)
{
atomicAdd(out, sdata[0]); // 原子操作，这样是一个显著的优化，每个线程执行一次原子操作，得到total sum， 应指出的是atomic并不支持双精度浮点运算
// out[blockIdx.x] = sdata[0]; // partial sum
}
}
}
atomic有时会带来性能约束, one warp 32 threads, 他们同时运行。
4.2 warp shuffle
优点：可减少或消除共享内存使用量、减少明确的同步逻辑、单指令与多指令，warp shuffle不需要使用共享内存或其他任何类型的内存，可在一个warp内可相互通信，__shfl_sync()等操作在CUDA 9中引入的特性，需要用到同步后缀和掩码，掩码（mask）指定哪些线程需要参与。
__shared__ float sdata[32];
int lane = threadIdx.x % warpSize; ///< lane是指warp里的第几个线程
int warpID = threadId.x / warpSize; ///< warpID是第几个warp, threadId.x is 0~BLOCK_SIZE-1 in block
if(lane == 0) sdata[warpID] = val; ///< 每个线程束一个结果warp0,warp1,warp2,warp3,...
完整的代码是
__global__ void reduce_ws(float *gdata, float *out)
{
__shared__ float sdata[32]; // 32*32 = 1024, block_size <= 1024
int tid = threadIdx.x;
int idx = threadIdx.x + blockDim.x * blockIdx.x;
float val = 0.0f;
unsigned mask = 0xffffffffU;
int lane = threadIdx.x % warpSize;
int warpID = threadIdx.x / warpSize;
while(idx < N)
{
val += gdata[idx];
idx += gridDim.x * blockDim.x; ///< grid stride loop, 多少个块*每块的线程个数
}
for(int offset = warpSize / 2; offset > 0; offset >>= 1)
{
val += __shfl_down_sync(mask, val, offset); ///< 当前的tid线程在线程束内累加， __shfl_down_sync是一个单指令
}
if(lane == 0)
{
sdata[warpID] = val;
}
__syncthreads(); ///< 等待所有warp的线程和求完，并将val给到shared memory
if(warpID == 0) ///< blockDim.x个数据汇总到了第一个warp，因此现在只有第一个warp下有所有的partial sum
{
/* 第一个warp里的，就读取sdata */
val = (tid < blockDim.x / warpSize) ? sdata[lane] : 0;
/* 最后使用一次__shfl_down_sync接口，以累加warp0内的数据 */
for(int offset = warpSize / 2; offset > 0; offset >>= 1)
{
val += __shfl_down_sync(mask, val, offset);
}
/* 同步所有block的数据 */
if(tid == 0)atomicAdd(out,val);
}
}
warp_shuffle还可用于广播一个值到warp里的其他值，执行原子聚合、cooperative groups。一个SM可支持的warp数为64。
4 managed memory
使用unified memory(UM),接口用
signed char *data;
cudaMallocManaged(&data, N);
// todo something
cudaFree(data);
要注意的时UM并不保序,也不提供数据可见性, kepler/Maxwell没有system-wide atomics;UM大部分情况下不会比手动data movement优秀,主要是能够简化移植。

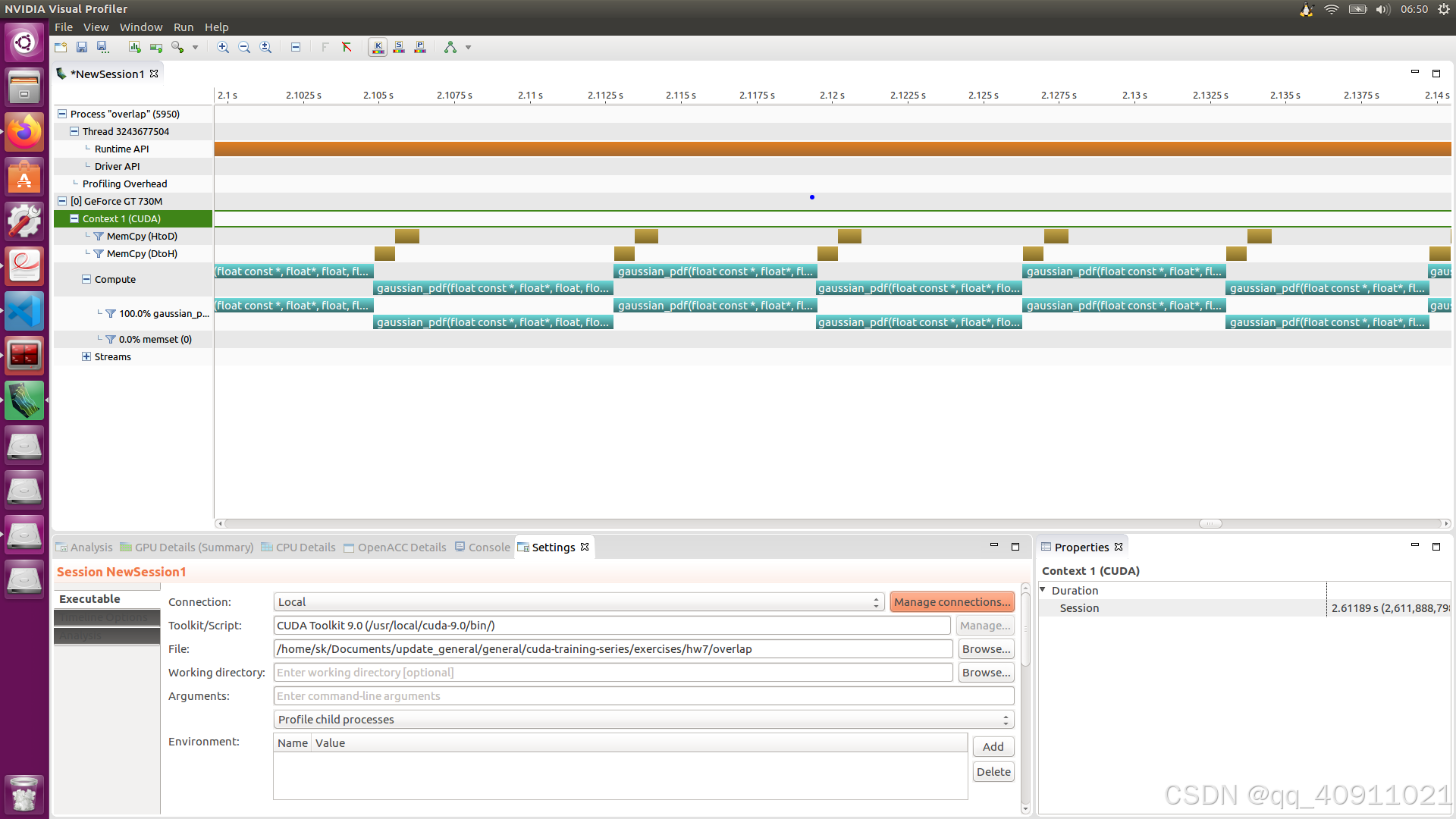

5 concurrency
parallel memory copy and computation.
固定内存(pinned memory), 将提供更块的主从拷贝，主从间异步，
cudaMemcpyAsync
kernel<<<...>>>(...,...);
cudaMemcpyAsync
多GPU设备管理
cudaGetDeviceProperties(cudaDeviceProp *prop, int device)
device之间可进行数据拷贝，device-to-device
cudaDeviceCanAccessPeer(&canPeer, 0, 1),
cudaMemcpyPeerAsync(dst_ptr, 0, src_ptr, 1, size, stream0);
stream具有优先级属性，先高优先级后低优先级（目前仅2个优先级），cuda graph(CUDA 10) 有manual definition method 和capture method.
6 GPU Performance analysis
- memory hierarchy: shared, constant, texture, caches,etc.
- 分析驱动优化：内存受限，计算受限，延迟分析；
- 从第一性原理开始出发，使用率高，那么bound可能在那一部分，SM效率高时延迟问题处理的很好；
- 使用实际吞吐量与峰值吞吐量的对比;
- compute bound: 计算受限，可以优化指令单元，将计算负载迁移为其他类型，GPU具有单精度浮点运算单元、独立的双精度浮点运算单元、专用于整数处理的独立单元。
- latency bound: 单线程增加处理数据量， work per thread,
- occupancy: 主要限制包括每个线程的
寄存器，每个线程块的线程数,共享内存使用率, SM加载了多少资源（例如每个SM可容纳2048个线程）；
更高的占用率是提升性能的重要途径。
nvcc -o t5 t5.cu -arch=sm_70 -lineinfo
lineinfo 是一个编译项，便于代码分析
OMP_NUM_THREAD=32 ./t5 以提高代码运行速度
nsys profile --stat=true ./t5, 获取到.qdrep文件，
nsys-ui ，得到图形文件
ncu --page details -f -o t5.profout ./t5, 获取kernel计算
ncu-ui, 打开nsight compute
issue a instruction 6.6cycle, we want an instruction 1 cycle;
profile 警告示例：
uncoalesced global access(非合并的全局访问)

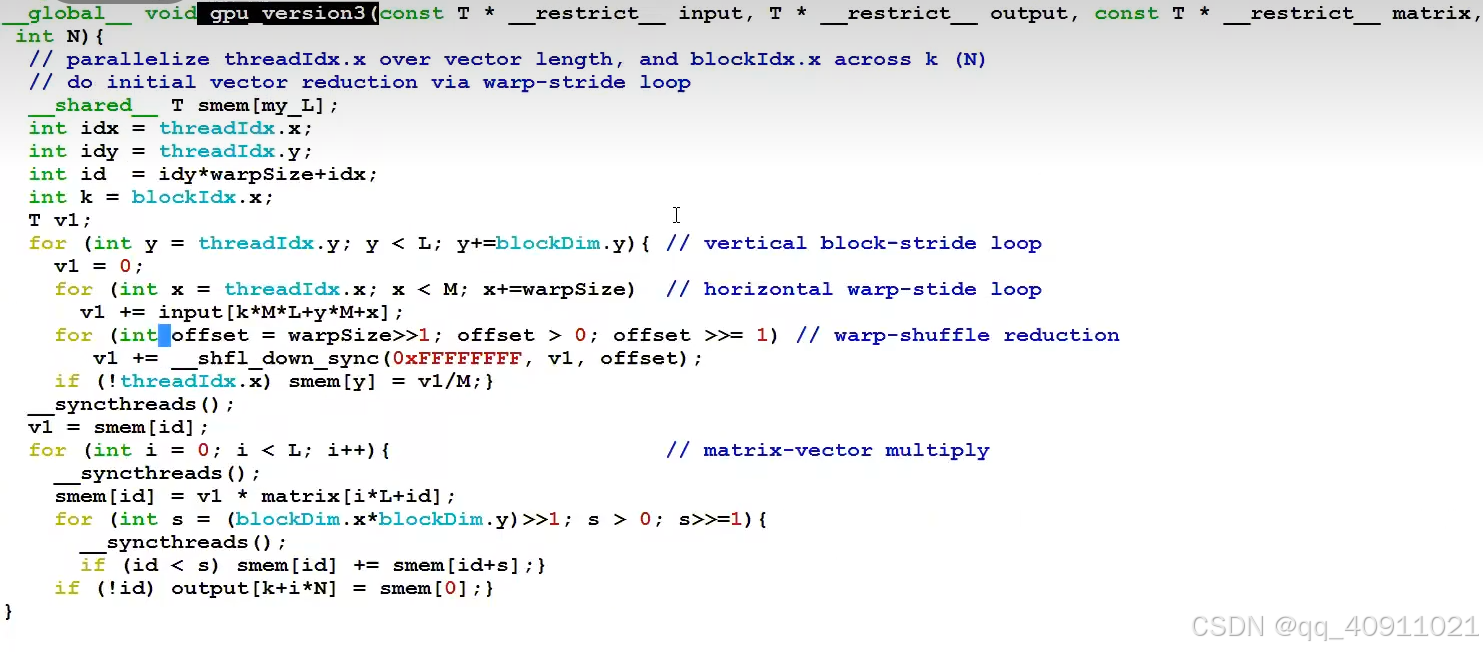

计解过程中优化方式
原使用1个block，现在使用N个block，第一个循环被去除
int L, M;
int idx = threadIdx.x;
int k = blockIdx.x;
for(int i = 0; i < M; i++)
{
vl += input[k * M * L + idx * M + i];
}
7 Cooperative Groups
cuda 9 开始出现Coalesced Group : 合并群组，分析大量线程的同步和通信;
定义分解
thread_block g = this_thread_block();
tiled_partition(g, 32);
关键点
cooperative groups显著收益：grid-wide sync
在前面，已学习
- __syncthreads()是block level
- shared memory, thread level
- warp shuffle, warp level， 不依赖共享内存
multi grid synchronization，对应的命名空间
using namespace cooperative_groups;
decomposition block level
thread_block g = this_thread_block();
tiled_partition(g, threadsPerBlock);
threadsPerBlock的值应为2的幂次(2,4,8,16,32,64,128,256,512,1024,2048,4096),
全局内存之间的sync, g.sync(); 使用this_thread_block和tiled_partition后，shfl可以
不再以warpSize为大小，还可根据需要设计4，8等。
7.1 grid group
grid_group grid = this_grid();
grid.sync();
不再使用<<<>>>发起kernel， 使用前查询是否可用grid group; persistent kernel: queue, gpu pipe, gpu负责不同功能,
coalesced_group active = coalesced_threads();
warp之间的线程同步
g.shfl(prev,0);
shfl自带sync,而且存在隐藏mask;
how to create group, auto g1 = this_thread_block()
how to partition block,tiled_partition(g1,32)
how to use grid-wide sync, gg = this_grid(),
使用auto时，加-std=c++11.
8 concurrency with multithreading
- pre-emptive scheduling: 预先调度;
- cuda stream: 如果两个操作issued into 相同的stream，保序; 如果两个操作issued into 分离的streams，不保序;
- MPI：用于处理节点间通信;
- OpenMP：提代更好的多线程共享内存;
- multithreading + cuda streams 在11.4/R470及之后开始支持；
use -alloc_flags=gpumps : multi-process service; - 默认使用default stream，因此要想并发，先创建stream.
9 CUDA debugging
cudaError_t cudaSetDevice(int device);
有可能在kernel执行期间检测到CUDA error, 为异步error, 也有同步error, 此处，还有sticky errors和non-sticky errors, 对于sticky error,后续的runtime API都返回同样的错误，对于non-sticky error,后续runtime API可正常执行；compute sanitizer：是一个功能纠正检测工具,还可以检查__syncthreads()（同步问题）;
compute-sanitizer --tool racecheck/synccheck ./my_execute
cuda-gdb
-g : debug host code
-G : debug device code
10 hw
10.1 max active block nums
若对于block有，shared_memory_bytes_per_block
register_nums_per_block
warp_nums_per_block
对于每个SM，有
max_shared_memory_bytes,
max_register_nums,
max_warp_nums,
max_active_blocks,
每个最大活跃block数受限于上面的属性和实际block占用
active_block[0] = max_shared_memeory_bytes / shared_memory_bytes_per_block
active_block[1] = max_register_nums / register_nums_per_block
active_block[2] = max_warp_nums / warp_nums_per_block
active_block[3] = max_active_blocks
那么最大活跃block数是min(active_block).
grid下的block数量应该比SM数量 * active_block_SM大几倍。
nvcc --keep # 可用来获取kernel消耗的register, shared mem等
nvidia-smi
10.2 hw2
./matrix_mul
Init took 0.109592 seconds. Begin compute
Done. Compute took 6.545127 seconds
Success!
./matrix_mul_shared
Init took 0.109291 seconds. Begin compute
Done. Compute took 1.938015 seconds
Success!
Q: Fatal error: kernel execution failure or cudaMemcpy H2D failure (an illegal memory access was encountered at
A: 非法访问内存
10.3 hw3
调整block和thread
nvprof --print-gpu-trace --unified-memory-profiling off ./vector_add
method1: 1 block 1 threads, vadd consumed 10.5677s
nvprof --print-gpu-trace --unified-memory-profiling off ./vector_add_t1024_b1 1 1
consumed 875.157000 ms blocks 1 threads 1
==20625== Profiling application: ./vector_add_t1024_b1 1 1
==20625== Profiling result:
Start Duration Grid Size Block Size Regs* SSMem* DSMem* Size Throughput SrcMemType DstMemType Device Context Stream Name
214.40ms 23.485ms - - - - - 128.00MB 5.3226GB/s Pageable Device GeForce GT 730M 1 7 [CUDA memcpy HtoD]
238.01ms 23.446ms - - - - - 128.00MB 5.3314GB/s Pageable Device GeForce GT 730M 1 7 [CUDA memcpy HtoD]
261.62ms 10.5677s (1 1 1) (1 1 1) 10 0B 0B - - - - GeForce GT 730M 1 7 vadd(float const *, float const *, float*, int) [113]
10.8294s 127.78ms - - - - - 128.00MB 0.9782GB/s Device Pageable GeForce GT 730M 1 7 [CUDA memcpy DtoH]
Regs: Number of registers used per CUDA thread. This number includes registers used internally by the CUDA driver and/or tools and can be more than what the compiler shows.
SSMem: Static shared memory allocated per CUDA block.
DSMem: Dynamic shared memory allocated per CUDA block.
SrcMemType: The type of source memory accessed by memory operation/copy
DstMemType: The type of destination memory accessed by memory operation/copy
methon2: 1 block 1024 thread, vadd consumed 29.219ms
consumed 888.046000 ms blocks 1 threads 1024
==20749== Profiling application: ./vector_add_t1024_b1 1 1024
==20749== Profiling result:
Start Duration Grid Size Block Size Regs* SSMem* DSMem* Size Throughput SrcMemType DstMemType Device Context Stream Name
220.11ms 26.485ms - - - - - 128.00MB 4.7196GB/s Pageable Device GeForce GT 730M 1 7 [CUDA memcpy HtoD]
246.73ms 23.499ms - - - - - 128.00MB 5.3194GB/s Pageable Device GeForce GT 730M 1 7 [CUDA memcpy HtoD]
270.43ms 29.219ms (1 1 1) (1024 1 1) 10 0B 0B - - - - GeForce GT 730M 1 7 vadd(float const *, float const *, float*, int) [113]
299.66ms 24.603ms - - - - - 128.00MB 5.0806GB/s Device Pageable GeForce GT 730M 1 7 [CUDA memcpy DtoH]
method3: 160 block 1024 threads, vadd kernel consumed

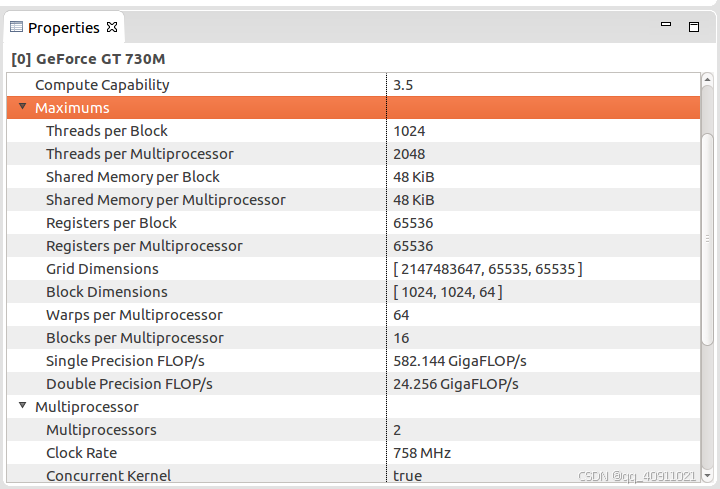

28.353ms; 使用的GeForce GT 730M 只有两个SM
consumed 871.433000 ms blocks 160 threads 1024
==21120== Profiling application: ./vector_add_t1024_b1 160 1024
==21120== Profiling result:
Start Duration Grid Size Block Size Regs* SSMem* DSMem* Size Throughput SrcMemType DstMemType Device Context Stream Name
212.18ms 26.602ms - - - - - 128.00MB 4.6988GB/s Pageable Device GeForce GT 730M 1 7 [CUDA memcpy HtoD]
238.91ms 23.453ms - - - - - 128.00MB 5.3299GB/s Pageable Device GeForce GT 730M 1 7 [CUDA memcpy HtoD]
262.56ms 28.353ms (160 1 1) (1024 1 1) 10 0B 0B - - - - GeForce GT 730M 1 7 vadd(float const *, float const *, float*, int) [113]
290.92ms 24.656ms - - - - - 128.00MB 5.0697GB/s Device Pageable GeForce GT 730M 1 7 [CUDA memcpy DtoH]
10.4 hw4
Q:
Fatal error: cudaMalloc failure (out of memory at matrix_sums.cu:58)
*** FAILED - ABORTING
A: 显存不足
nvprof --metrics all ./matrix_sums
展示如下信息
Invocations Metric Name Metric Description Min Max Avg
Device "GeForce GT 730M (0)"
Kernel: column_sums(float const *, float*, unsigned long)
1 l1_cache_global_hit_rate L1 Global Hit Rate 0.00% 0.00% 0.00%
1 l1_cache_local_hit_rate L1 Local Hit Rate 0.00% 0.00% 0.00%
1 sm_efficiency Multiprocessor Activity 99.39% 99.39% 99.39%
1 ipc Executed IPC 0.421180 0.421180 0.421180
1 achieved_occupancy Achieved Occupancy 0.997211 0.997211 0.997211
1 gld_requested_throughput Requested Global Load Throughput 13.552GB/s 13.552GB/s 13.552GB/s
1 gst_requested_throughput Requested Global Store Throughput 3.3881MB/s 3.3881MB/s 3.3881MB/s
1 sm_efficiency_instance Multiprocessor Activity 99.39% 99.39% 99.39%
1 ipc_instance Executed IPC 0.421180 0.421180 0.421180
1 inst_replay_overhead Instruction Replay Overhead 0.718624 0.718624 0.718624
1 shared_replay_overhead Shared Memory Replay Overhead 0.000000 0.000000 0.000000
1 global_replay_overhead Global Memory Replay Overhead 0.000000 0.000000 0.000000
1 global_cache_replay_overhead Global Memory Cache Replay Overhead 0.000000 0.000000 0.000000
1 tex_cache_hit_rate Texture Cache Hit Rate 0.00% 0.00% 0.00%
1 tex_cache_throughput Texture Cache Throughput 0.00000B/s 0.00000B/s 0.00000B/s
1 dram_read_throughput Device Memory Read Throughput 13.563GB/s 13.563GB/s 13.563GB/s
1 dram_write_throughput Device Memory Write Throughput 3.5006MB/s 3.5006MB/s 3.5006MB/s
1 gst_throughput Global Store Throughput 3.3881MB/s 3.3881MB/s 3.3881MB/s
1 gld_throughput Global Load Throughput 13.552GB/s 13.552GB/s 13.552GB/s
1 local_replay_overhead Local Memory Cache Replay Overhead 0.000000 0.000000 0.000000
1 shared_efficiency Shared Memory Efficiency 0.00% 0.00% 0.00%
1 gld_efficiency Global Memory Load Efficiency 100.00% 100.00% 100.00%
1 gst_efficiency Global Memory Store Efficiency 100.00% 100.00% 100.00%
1 l2_l1_read_hit_rate L2 Hit Rate (L1 Reads) 0.00% 0.00% 0.00%
1 l2_texture_read_hit_rate L2 Hit Rate (Texture Reads) 0.00% 0.00% 0.00%
1 l2_l1_read_throughput L2 Throughput (L1 Reads) 13.552GB/s 13.552GB/s 13.552GB/s
1 l2_texture_read_throughput L2 Throughput (Texture Reads) 0.00000B/s 0.00000B/s 0.00000B/s
1 local_memory_overhead Local Memory Overhead 0.00% 0.00% 0.00%
1 warp_execution_efficiency Warp Execution Efficiency 100.00% 100.00% 100.00%
1 nc_gld_requested_throughput Requested Non-Coherent Global Load Throughput 0.00000B/s 0.00000B/s 0.00000B/s
10.5 hw5
- 3种 reduction: atomic-only reduction, classical parallel reduction with atomic finish, warp shuffle reduction with atomic finish;
- 内存带宽: data size in bytes / execution time, 这个时间可以和bandwidthTest样品代码;
reduction grid stride loop,
int tid = threadIdx.x + blockDim.x * blockIdx.x;
int idx = threadIdx.x + blockDim.x * blockIdx.x;
while(idx < N)
{
sdata[tid] = gdata[idx];
idx += gridDim.x * blockDim.x; // grid stride, idx, idx + 1之间的间隔时gridDim.x * blockDim.x
}
reduction_ws中,
- grid之间进行累加,累加至只剩1个block, grid stride loop
- 在block内按warp累加,直至只剩1个warp, parallel sweep reduction
- warpID==0 一个warp内部求和, warp_shuffle reduction
val += __shfl_down_sync(mask, val, offset);将一个warp内的数据进行累加.
matrix_sum中,包括
- block stride loop
- parallel sweep reduction
block stride loop要求blockDim.x == rows
unsigned int bidx = blockIDx.x;
unsigned int tidx = threadIdx.x;
while(tidx < ds)
{
sdata[threadIdx.x] += A[tidx + blockIdx.x * blockDim.x]; // multiblock to one block, block stride loop
tidx += blockDim.x;
}
parallel sweep reduction
for(int s = blockDim.x; s > 0; s >>= 1)
{
__syncthreads();
if(threadIdx.x < s)
{
sdata[threadIdx.x] += sdata[threadIdx.x + s]; // inner block, self reduction, parallel sweep reduction
}
}
最后的元素是res[blockIdx.x] = sdata[0];
优化后的matrix_sum
Start Duration Grid Size Block Size Regs* SSMem* DSMem* Size Throughput SrcMemType DstMemType Device Context Stream Name
213.57ms 46.387ms - - - - - 256.00MB 5.3894GB/s Pageable Device GeForce GT 730M 1 7 [CUDA memcpy HtoD]
260.12ms 18.304ms (8192 1 1) (256 1 1) 9 1.0000KB 0B - - - - GeForce GT 730M 1 7 row_sums(float const *, float*, unsigned long) [110]
278.43ms 8.8300us - - - - - 32.000KB 3.4561GB/s Device Pageable GeForce GT 730M 1 7 [CUDA memcpy DtoH]
278.51ms 10.975us - - - - - 32.000KB 2.7806GB/s Device - GeForce GT 730M 1 7 [CUDA memset]
278.54ms 17.724ms (32 1 1) (256 1 1) 32 0B 0B - - - - GeForce GT 730M 1 7 column_sums(float const *, float*, unsigned long) [119]
296.27ms 8.8300us - - - - - 32.000KB 3.4561GB/s Device Pageable GeForce GT 730M 1 7 [CUDA memcpy DtoH]
hw4下同规格数据(DSIZE=8192, BLOCK_SIZE = 256), profiling 信息
Start Duration Grid Size Block Size Regs* SSMem* DSMem* Size Throughput SrcMemType DstMemType Device Context Stream Name
212.40ms 46.698ms - - - - - 256.00MB 5.3536GB/s Pageable Device GeForce GT 730M 1 7 [CUDA memcpy HtoD]
259.26ms 98.417ms (32 1 1) (256 1 1) 28 0B 0B - - - - GeForce GT 730M 1 7 row_sums(float const *, float*, unsigned long) [110]
357.68ms 8.7990us - - - - - 32.000KB 3.4683GB/s Device Pageable GeForce GT 730M 1 7 [CUDA memcpy DtoH]
357.77ms 5.7590us - - - - - 32.000KB 5.2991GB/s Device - GeForce GT 730M 1 7 [CUDA memset]
357.81ms 17.724ms (32 1 1) (256 1 1) 32 0B 0B - - - - GeForce GT 730M 1 7 column_sums(float const *, float*, unsigned long) [119]
375.53ms 10.175us - - - - - 32.000KB 2.9993GB/s Device Pageable GeForce GT 730M 1 7 [CUDA memcpy DtoH
可见优化版本的row_sum 耗时为18.324ms，而hw4中的row_sum 耗时为98.417ms。
10.6 hw6
unified memory, no cuda version, skip
cudaMallocManage
10.7 hw7
nvcc -o overlap overlap -DUSE_STREAMS
use stream时加-DUSE_STREAMS
cudaMemcpyAsync(dst, src,size, direction, stream)
kernel<<<grid,block, 0, stream>>>
cudaMemcpyAysnc(...)
cudaDeviceSynchronize()
nvvp overlap so as to visualize schedule
gpu的信息可以获得
only one GPU, cannot do multi-GPU experiment.
在cudaMalloc/cudaMemcpy/kernelCall前都使用cudaSetDevice(i);以配置多个GPU.
nvidia-smi
Sat Mar 29 11:27:44 2025
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 384.130 Driver Version: 384.130 |
|-------------------------------+----------------------+----------------------+
| GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. |
|===============================+======================+======================|
| 0 GeForce GT 730M Off | 00000000:02:00.0 N/A | N/A |
| N/A 54C P0 N/A / N/A | 410MiB / 983MiB | N/A Default |
+-------------------------------+----------------------+----------------------+
+-----------------------------------------------------------------------------+
| Processes: GPU Memory |
| GPU PID Type Process name Usage |
|=============================================================================|
| 0 Not Supported |
+-----------------------------------------------------------------------------+
10.8 hw8
在这一次作业中,task1总是运行失败, 直到重启了系统后,重新编译才解决,这样看来GPU有时会失效或崩溃,以致结果总是不符合预期.
矩阵转秩过程中, 先tile转秩再元素转秩
tileX = blockIdx.x * blockDim.x
tileY = blockIdx.y * blockDim.y
in(tileX + threadIdx.x, tileY + threadIdx.y) -> sdata[threadIdx.x][threadIdx.y]
sdata[threadIdx.y][threadIdx.x] ->
ou(tileY + threadIdx.x, tileX + threadIdx.y) // better, threadIdx.x
sdata[threadIdx.x][threadIdx.y] ->
ou(tileY + threadIdx.y, tileX + threadIdx.x)
使用方式一: sdata[threadIdx.x][threadIdx.y] -> ou(tileY + threadIdx.y, tileX + threadIdx.x)
Matrix size is 4096
==4424== NVPROF is profiling process 4424, command: ./task2
Total memory required per matrix is 134.217728 MB
Total time CPU is 0.285797 sec
Performance is 0.939252 GB/s
Total time GPU is 0.049847 sec
Performance is 5.385138 GB/s
PASS
==4424== Profiling application: ./task2
==4424== Profiling result:
Start Duration Grid Size Block Size Regs* SSMem* DSMem* Size Throughput SrcMemType DstMemType Device Context Stream Name
264.51ms 1.3760us - - - - - 128.00MB 9e+04GB/s Device - GeForce GT 730M 1 7 [CUDA memset]
644.59ms 23.251ms - - - - - 128.00MB 5.3761GB/s Pageable Device GeForce GT 730M 1 7 [CUDA memcpy HtoD]
953.96ms 49.538ms (129 129 1) (32 32 1) 8 8.0000KB 0B - - - - GeForce GT 730M 1 7 smem_cuda_transpose(int, double const *, double*) [116]
1.00362s 1.2480us - - - - - 128.00MB 1e+05GB/s Device - GeForce GT 730M 1 7 [CUDA memset]
1.01262s 27.887ms - - - - - 128.00MB 4.4824GB/s Device Pageable GeForce GT 730M 1 7 [CUDA memcpy DtoH]
Regs: Number of registers used per CUDA thread. This number includes registers used internally by the CUDA driver and/or tools and can be more than what the compiler shows.
SSMem: Static shared memory allocated per CUDA block.
DSMem: Dynamic shared memory allocated per CUDA block.
SrcMemType: The type of source memory accessed by memory operation/copy
DstMemType: The type of destination memory accessed by memory operation/copy
sk@sk:~/Documents/update_general/general/cuda-training-series/exercises/hw8/task2$ nvcc -o task2 task2.cu
使用方式二:sdata[threadIdx.y][threadIdx.x] -> ou(tileY + threadIdx.x, tileX + threadIdx.y)
sk@sk:~/Documents/update_general/general/cuda-training-series/exercises/hw8/task2$ nvprof --print-gpu-trace --unified-memory-profiling off ./task2
Matrix size is 4096
==4484== NVPROF is profiling process 4484, command: ./task2
Total memory required per matrix is 134.217728 MB
Total time CPU is 0.304207 sec
Performance is 0.882411 GB/s
Total time GPU is 0.028356 sec
Performance is 9.466672 GB/s
PASS
==4484== Profiling application: ./task2
==4484== Profiling result:
Start Duration Grid Size Block Size Regs* SSMem* DSMem* Size Throughput SrcMemType DstMemType Device Context Stream Name
255.00ms 1.3760us - - - - - 128.00MB 9e+04GB/s Device - GeForce GT 730M 1 7 [CUDA memset]
600.56ms 26.541ms - - - - - 128.00MB 4.7097GB/s Pageable Device GeForce GT 730M 1 7 [CUDA memcpy HtoD]
931.58ms 27.933ms (129 129 1) (32 32 1) 8 8.0000KB 0B - - - - GeForce GT 730M 1 7 smem_cuda_transpose(int, double const *, double*) [116]
959.80ms 512ns - - - - - 128.00MB 2e+05GB/s Device - GeForce GT 730M 1 7 [CUDA memset]
968.80ms 30.481ms - - - - - 128.00MB 4.1009GB/s Device Pageable GeForce GT 730M 1 7 [CUDA memcpy DtoH]
Regs: Number of registers used per CUDA thread. This number includes registers used internally by the CUDA driver and/or tools and can be more than what the compiler shows.
SSMem: Static shared memory allocated per CUDA block.
DSMem: Dynamic shared memory allocated per CUDA block.
SrcMemType: The type of source memory accessed by memory operation/copy
DstMemType: The type of destination memory accessed by memory operation/copy
可见,方式二将kernel耗时从49.5ms降至27.9ms, 原则是global memory 中 threadIdx.x方向优先.
add a column to the shared memory definition, fix shared memory bank conflicts
task2中的版本
min max avg
shared_load_throughput Shared Memory Load Throughput 6.0826GB/s 6.0826GB/s 6.0826GB/s
shared_store_throughput Shared Memory Store Throughput 204.75GB/s 204.75GB/s 204.75GB/s
shared_efficiency Shared Memory Efficiency 5.77% 5.77% 5.77%
避免bank conflicts, 修改共享内存为 sdata[THREAD_PER_BLOCK_X][THREAD_PER_BLOCK_Y + 1],此时的shared memory throughout
shared_load_throughput Shared Memory Load Throughput 12.724GB/s 12.724GB/s 12.724GB/s
1 shared_store_throughput Shared Memory Store Throughput 13.510GB/s 13.510GB/s 13.510GB/s
shared_efficiency Shared Memory Efficiency 49.27% 49.27% 49.27%
10.9 hw9
this_thread_block(), not support cooperative group in cuda9
key api: g1 = this_thread_block(), tiled_partition(g1,32);
task1.cu(19): error: no suitable conversion function from "cooperative_groups::__v1::thread_block" to "int" exists
task1.cu(20): error: expression must have class type
task1.cu(20): error: expression must have class type
task1.cu(22): error: explicit type is missing ("int" assumed)
task1.cu(22): error: "cooperative_groups::__v1::coalesced_group::coalesced_group(unsigned int)"
/usr/local/cuda-9.0/bin/..//include/cooperative_groups.h(408): here is inaccessible
task1.cu(22): error: no suitable conversion function from "cooperative_groups::__v1::coalesced_group" to "int" exists
task1.cu(24): error: explicit type is missing ("int" assumed)
task1.cu(24): error: "cooperative_groups::__v1::coalesced_group::coalesced_group(unsigned int)"
/usr/local/cuda-9.0/bin/..//include/cooperative_groups.h(408): here is inaccessible
task1.cu(24): error: no suitable conversion function from "cooperative_groups::__v1::coalesced_group" to "int" exists
10.10 hw10
NA
10.11 hw11
NA
10.12 hw12
__syncthreads(); 使用在sharedmem更新后,准备使用新的sharedmem前
compute-sanitizer是cuda11.6开始引入,cuda9中无法使用
.cu(22): error: explicit type is missing ("int" assumed)
task1.cu(22): error: "cooperative_groups::__v1::coalesced_group::coalesced_group(unsigned int)"
/usr/local/cuda-9.0/bin/..//include/cooperative_groups.h(408): here is inaccessible
task1.cu(22): error: no suitable conversion function from "cooperative_groups::__v1::coalesced_group" to "int" exists
task1.cu(24): error: explicit type is missing ("int" assumed)
task1.cu(24): error: "cooperative_groups::__v1::coalesced_group::coalesced_group(unsigned int)"
/usr/local/cuda-9.0/bin/..//include/cooperative_groups.h(408): here is inaccessible
task1.cu(24): error: no suitable conversion function from "cooperative_groups::__v1::coalesced_group" to "int" exists
参考资料
[1] https://www.bilibili.com/video/BV1JJ4m1P7xW?spm_id_from=333.788.player.switch&vd_source=236371aef24d78454cb09583ea8be378&p=3
扫一扫
2万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
