【Matplotlib】三维图及其俯视图+colorbar的位置调整与颜色、刻度细化

前言

图就是门面，高大上的图看着就涨脸

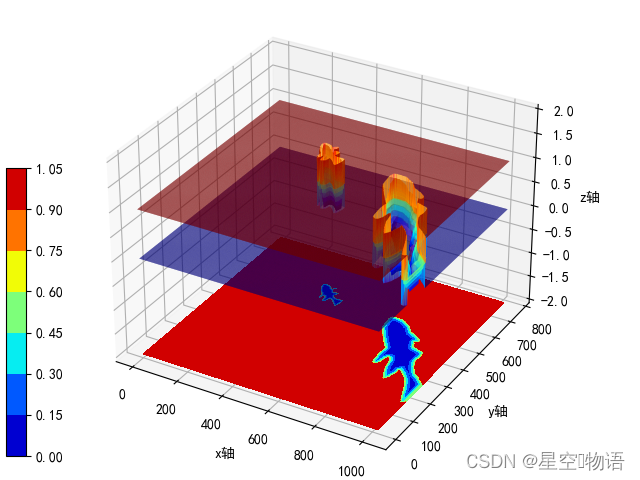

1.调整颜色条位置

def weightShow(gause_masks,name="visWeight{}.png"):
    plt.rcParams['font.sans-serif']=['SimHei'] #显示中文标签
    plt.rcParams['axes.unicode_minus']=False   #这两行需要手动设置
    fig = plt.figure()

    ax = Axes3D(fig)

    w,h = gause_masks[0].shape[0],gause_masks[0].shape[1]
    x = range(w)
    y = range(h)
    # 把x,y数据生成mesh网格状的数据，因为等高线的显示是在网格的基础上添加上高度值
    X, Y = np.meshgrid(y, x)
    for i,gause_mask in enumerate(gause_masks):
        # ax = fig.add_subplot(1,2,i+1, projection='3d')
        Z = gause_mask

        ax.plot_surface(X, Y, Z, rstride = 1,   # row 行步长
                    cstride = 1,           # colum 列步长
                    cmap=plt.cm.jet )      # 渐变颜色
        cf = ax.contourf(X, Y, Z,
                zdir='Z',  # 使用数据方向
                offset=-2, # 填充投影轮廓位置
                cmap=plt.cm.jet)
        ax.set_zlim(-2, 2)
        ax.set_xlabel("x轴")
        ax.set_ylabel("y轴")
        ax.set_zlabel("z轴")
        if i ==1:
            # https://blog.youkuaiyun.com/qq_42471423/article/details/116133697
            # fig.add_axes([left, bottom, width, height])
            cax = fig.add_axes([0.01,0.05,0.03,0.6]) # bar的举行描述（归一化后的尺度
            cb = plt.colorbar(cf,cax=cax)
        plt.savefig(name.format(i))

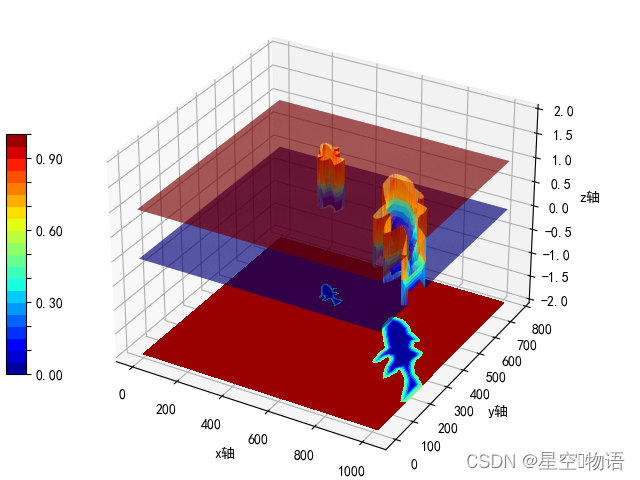

2.细化颜色、刻度

def weightShow(gause_masks,name="visWeight{}.png"):
    plt.rcParams['font.sans-serif']=['SimHei'] #显示中文标签
    plt.rcParams['axes.unicode_minus']=False   #这两行需要手动设置
    fig = plt.figure()

    ax = Axes3D(fig)

    w,h = gause_masks[0].shape[0],gause_masks[0].shape[1]
    x = range(w)
    y = range(h)
    # 把x,y数据生成mesh网格状的数据，因为等高线的显示是在网格的基础上添加上高度值
    X, Y = np.meshgrid(y, x)
    for i,gause_mask in enumerate(gause_masks):
        # ax = fig.add_subplot(1,2,i+1, projection='3d')
        Z = gause_mask

        ax.plot_surface(X, Y, Z, rstride = 1,   # row 行步长
                    cstride = 1,           # colum 列步长
                    cmap=plt.cm.jet )      # 渐变颜色
        levels = np.arange(0,1.05,0.05) # 对颜色进行渐进细致设置
        cf = ax.contourf(X, Y, Z,levels,
                zdir='Z',  # 使用数据方向
                offset=-2, # 填充投影轮廓位置
                cmap=plt.cm.jet)
        ax.set_zlim(-2, 2)
        ax.set_xlabel("x轴")
        ax.set_ylabel("y轴")
        ax.set_zlabel("z轴")
        if i ==1:
            # https://blog.youkuaiyun.com/qq_42471423/article/details/116133697
            # fig.add_axes([left, bottom, width, height])
            cax = fig.add_axes([0.01,0.22,0.03,0.5]) # bar的举行描述（归一化后的尺度
            cb = plt.colorbar(cf,cax=cax)
            #设置颜色条的刻度
            cb.ax.yaxis.set_major_locator(MultipleLocator(0.1))
            # cb.ax.yaxis.set_minor_locator(MultipleLocator(0.02))
        plt.savefig(name.format(i))
