彻底搞懂UI绘制流程，看该系列就够了
前言
在 UI绘制流程分析(前篇)–App与Activity的启动 中我们详细讲解了在UI测量、布局以及绘制之前是要经过Application的创建、启动和Activity的创建和启动的这些流程的，然后就是布局文件xml的节点解析到Activity里的布局上，那么接下来就是对这些组件（View）进行测量、布局和绘制：

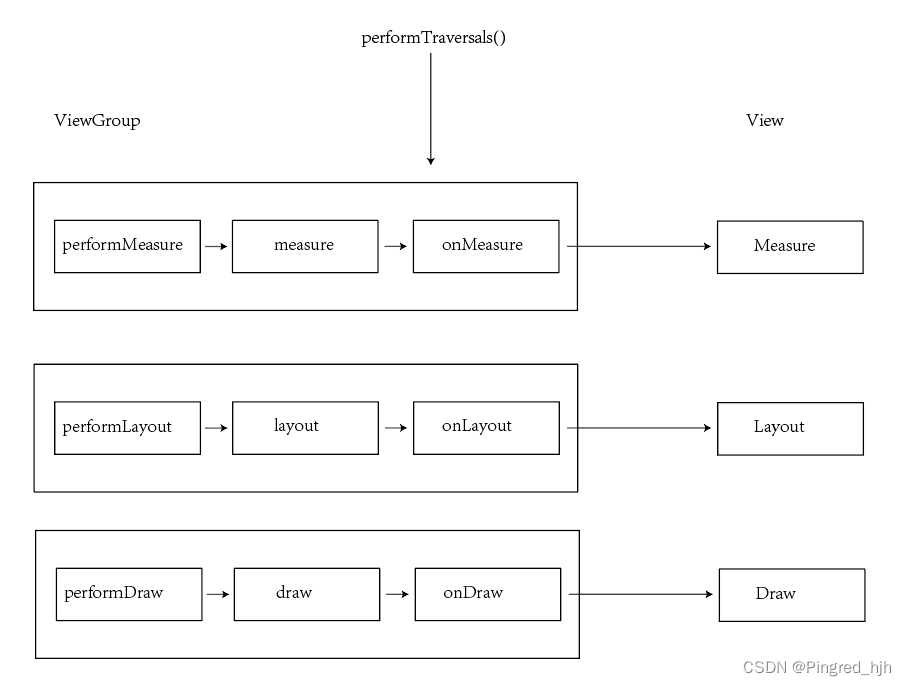

所以这也是接下来要讲解的知识点。
提示：以下是本篇文章正文内容
一、绘制流程
在上篇系列中可以知道，Activity里的组件是在onResume()方法里进行测量、布局和绘制的，所以我们一路跟踪，就在源码里发现测量的开始就是在performTraversals()方法里的performMeasure()方法开始：
private void performTraversals() {
// cache mView since it is used so much below...
final View host = mView;
...
if (host == null || !mAdded)
return;
...
// Ask host how big it wants to be
performMeasure(childWidthMeasureSpec, childHeightMeasureSpec);
// Implementation of weights from WindowManager.LayoutParams
// We just grow the dimensions as needed and re-measure if
// needs be
int width = host.getMeasuredWidth();
int height = host.getMeasuredHeight();
...
那么performMeasure()方法里的参数宽高又是怎么来的呢？一个组件进行performMeasure()方法去测量的时候，传进去的这两个参数肯定是要从它的父容器那里得到的，因为一个字控件的宽高，是要先去参考父容器才能最终决定得了，比如你子控件设置成了match_parent，那这时候肯定就是要取父容器的宽高嘛。所以我们往上找：
...
if (focusChangedDueToTouchMode || mWidth != host.getMeasuredWidth()
|| mHeight != host.getMeasuredHeight() || contentInsetsChanged ||
updatedConfiguration) {
int childWidthMeasureSpec = getRootMeasureSpec(mWidth, lp.width);
int childHeightMeasureSpec = getRootMeasureSpec(mHeight, lp.height);
if (DEBUG_LAYOUT) Log.v(mTag, "Ooops, something changed! mWidth="
+ mWidth + " measuredWidth=" + host.getMeasuredWidth()
+ " mHeight=" + mHeight
+ " measuredHeight=" + host.getMeasuredHeight()
+ " coveredInsetsChanged=" + contentInsetsChanged);
// Ask host how big it wants to be
performMeasure(childWidthMeasureSpec, childHeightMeasureSpec);
// Implementation of weights from WindowManager.LayoutParams
// We just grow the dimensions as needed and re-measure if
// needs be
int width = host.getMeasuredWidth();
int height = host.getMeasuredHeight();
...
可以看到，childWidthMeasureSpec和childHeightMeasureSpec是通过getRootMeasureSpec()方法所得，因为当前是一个Activity第一次启动的情况，也就是当前绘制的是布局DecorView，所以现在getRootMeasureSpec()方法传的mWidth和mHeight其实是整个屏幕的宽高（DecorView的父容器只能是参考整个屏幕的宽高了），lp则是DecorView的layoutParams，所以说控件的 childWidthMeasureSpec是通过屏幕宽（父容器）和控件本身的layoutParams布局参数来确定的。
childWidthMeasureSpec和childHeightMeasureSpec这两个值也要说说，它现在是控件在调用performMeasure()方法时所传进去的宽高规则值，因为我们现在是第一次进行测量，肯定是先从DecorView开始测量，那么也就是说当前控件DecorView在调用performMeasure()方法进行测量，那也就是说现在传进去的childWidthMeasureSpec和childHeightMeasureSpec就是屏幕的宽高规则值，所谓的宽高规则值是什么呢？
这个规则值是一个int类型值，我们都知道一个int等于4个字节，也就是有32位，那么此时这个childWidthMeasureSpec就有32位存储空间，而它的前2位存储的是测量模式，测量模式是什么意思，先来看看这个表：

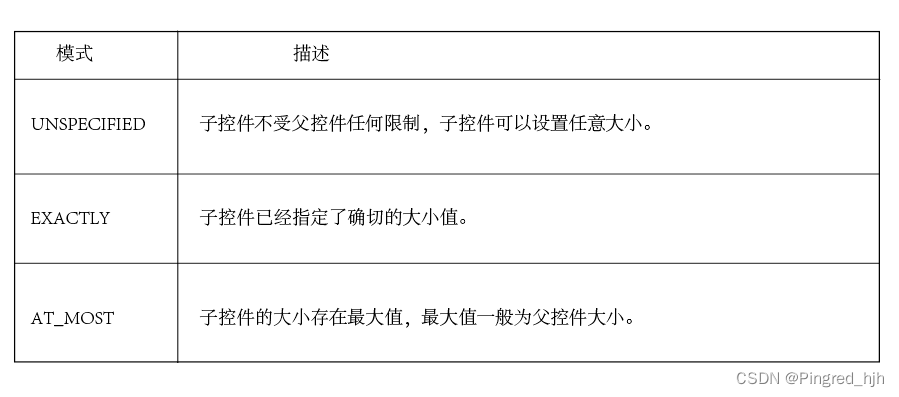

1）UNSPECIFIED，表示未指定模式：表示当前组件大小可以随意大小，不受限制，但这种情况在实际开发中几乎用不上，所以可以不用深究它；
2）EXACTLY，表示精确模式：在这种模式下，尺寸的值是多少，那么这个组件的长或宽就是多少，对应布局文件中设置控件为 MATCH_PARENT 和确定的值。（MATCH_PARENT之所以也是精确模式是因为子控件设置了MATCH_PARENT后，那么它的宽高值就是父控件的宽高值，父控件的宽高值肯定是具体的值，即使是DecorView这种根布局，它的宽高值也是具体的，就是手机屏幕的宽高值）
3）AT_MOST，表示最大模式：也就是控件的宽高是在0和父组件给出的最大值之间，当前组件的长或宽最大只能为这么大，当然也可以比这个小。对应布局文件中设置控件为WRAP_CONETNT。
前2位存储的这个测量模式就是这三种情况值，而后30位则存储测量具体值，如果听不懂没关系，接下来从getRootMeasureSpec()方法里去分析：
private static int getRootMeasureSpec(int windowSize, int rootDimension) {
int measureSpec;
switch (rootDimension) {
case ViewGroup.LayoutParams.MATCH_PARENT:
// Window can't resize. Force root view to be windowSize.
measureSpec = MeasureSpec.makeMeasureSpec(windowSize, MeasureSpec.EXACTLY);
break;
case ViewGroup.LayoutParams.WRAP_CONTENT:
// Window can resize. Set max size for root view.
measureSpec = MeasureSpec.makeMeasureSpec(windowSize, MeasureSpec.AT_MOST);
break;
default:
// Window wants to be an exact size. Force root view to be that size.
measureSpec = MeasureSpec.makeMeasureSpec(rootDimension, MeasureSpec.EXACTLY);
break;
}
return measureSpec;
}
我们还是以当前要测量的控件为DecorView来分析，所以windowSize表示手机屏幕宽高值，而rootDimension则是DecorView设置的模式（UNSPECIFIED、EXACTLY还是AT_MOST），然后根据DecorView设置的是哪种模式来走相应的逻辑，如果是match_parent，则measureSpec（DecorView最终的测量规则值，也就是它调用performMeasure方法时传进去的childWidthMeasureSpec值）为屏幕的值。如果DecorView设置的是wrap_content，则传进去的是屏幕给出的最大值。而其他情况（default）则是精确模式，DecorView自己设置的具体大小值。
那么为了验证我是否说的对，就来看看这个MeasureSpec.makeMeasureSpec()方法，但在此之前，要先讲讲这个MeasureSpec类：
public static class MeasureSpec {
private static final int MODE_SHIFT = 30;
private static final int MODE_MASK = 0x3 << MODE_SHIFT;
/** @hide */
@IntDef({UNSPECIFIED, EXACTLY, AT_MOST})
@Retention(RetentionPolicy.SOURCE)
public @interface MeasureSpecMode {}
public static final int UNSPECIFIED = 0 << MODE_SHIFT;
public static final int EXACTLY = 1 << MODE_SHIFT;
public static final int AT_MOST = 2 << MODE_SHIFT;
...
一开始定义了一个int类型变量MODE_SHIFT为30，还有一个int类型变量MODE_MASK掩码为0x3 << MODE_SHIFT，0x3就是16进制的3，<< MODE_SHIFT则表示向左位移30位，移之前要把0x3（int类型32位大小— 00000000 00000000 00000000 00000011 ）转为二进制的数，那MODE_MASK这个值最后就是11 000000 00000000 00000000 00000000，因为MeaSpec是32位的，所以现在左移30位后，变成前2位有效数字，然后后面30位为0。然后三种模式分别定义为：
...
public static final int UNSPECIFIED = 0 << MODE_SHIFT;
public static final int EXACTLY = 1 << MODE_SHIFT;
public static final int AT_MOST = 2 << MODE_SHIFT;
...
对应的就是上表中描述的未指定模式、精确模式和最大模式。同理，这时候都要先将0、1、2这些十进制的数转成二进制再进行左移30位（因为<<这个符合是位运算，要转成二进制才能进行进制位移）。这里如果对于进制以及位运算不懂的同学可以先去搜搜这些知识点，因为都是计算机的基础知识，不是本文的重点，所以这里就不详细讲了，或者有疑问的欢迎大家一起讨论。
左移之后这三个值分别就是：
00 000000 00000000 00000000 00000000
01 000000 00000000 00000000 00000000
10 000000 00000000 00000000 00000000
那现在再回过头来看MeasureSpec.makeMeasureSpec()方法：
public static int makeMeasureSpec(@IntRange(from = 0, to = (1 << MeasureSpec.MODE_SHIFT) - 1) int size,
@MeasureSpecMode int mode) {
if (sUseBrokenMakeMeasureSpec) {
return size + mode;
} else {
return (size & ~MODE_MASK) | (mode & MODE_MASK);
}
}
重点来看最后一句代码，可以看到，返回的值是用传进来的size（屏幕的宽值）和设置的测量模式作的运算而得，具体是size要跟取反的MODE_MASK掩码做与运算，也就是拿00 111111 11111111 11111111 11111111这个数跟size作与运算，所以此时得到的数是前2位为0，而后30位则是size的值；然后再来看符合为“|”的后半部分运算，是mode（DecorView的测量模式）和掩码MODE_MASK（11 000000 00000000 00000000 00000000）做与运算，得到的数则是前2位是测量模式，后30位的值为0；然后符合为“|”的两个部分得到的值作或运算，因此就能得到一个前2位是模式，后30位是size的32位值，也就是int类型的measureSpec，作为DecorView调用performMeasure测量方法里传进去的childWidthMeasureSpec值，也就是DecorView最终的测量规则值。
也就是说，一个控件在调用performMeasure测量方法时，它所传进去的测量规则值（宽和高）都是先要靠它的父布局的size以及控件本身设置的测量模式值来合成的，然后最终传到控件调用performMeasure测量方法里去。
既然我们能把测量模式和测量具体值通过这种进制运算来合并到，那要从measureSpec里去取出它的测量模式和测量具体值也是可以的，也就是逆运算嘛，所以接着看MeasureSpec，能发现它有getMode()和getSize()方法：
...
@MeasureSpecMode
public static int getMode(int measureSpec) {
//noinspection ResourceType
return (measureSpec & MODE_MASK);
}
public static int getSize(int measureSpec) {
return (measureSpec & ~MODE_MASK);
}
...
逻辑都很好理解，其实就是对(size & ~MODE_MASK) | (mode & MODE_MASK)进行逆运算，如果觉得混乱，可以自己定义一个数字去验证。所以为什么为什么总说基础很重要，因为你如果不懂掩码、与运算、或运算、位移运算、进制这些基础知识，不了解它们的特性，你就没法深入底层去挖掘编程这一行。
分析完MeasureSpec后，我们再次回到performMeasure()方法里的测量逻辑里：
...
if (focusChangedDueToTouchMode || mWidth != host.getMeasuredWidth()
|| mHeight != host.getMeasuredHeight() || contentInsetsChanged ||
updatedConfiguration) {
int childWidthMeasureSpec = getRootMeasureSpec(mWidth, lp.width);
int childHeightMeasureSpec = getRootMeasureSpec(mHeight, lp.height);
if (DEBUG_LAYOUT) Log.v(mTag, "Ooops, something changed! mWidth="
+ mWidth + " measuredWidth=" + host.getMeasuredWidth()
+ " mHeight=" + mHeight
+ " measuredHeight=" + host.getMeasuredHeight()
+ " coveredInsetsChanged=" + contentInsetsChanged);
// Ask host how big it wants to be
performMeasure(childWidthMeasureSpec, childHeightMeasureSpec);
// Implementation of weights from WindowManager.LayoutParams
// We just grow the dimensions as needed and re-measure if
// needs be
int width = host.getMeasuredWidth();
int height = host.getMeasuredHeight();
...
现在通过getRootMeasureSpec()方法得到了DecorView的measureSpec了，childWidthMeasureSpec 和childHeightMeasureSpec ，即DecorView进行测量时传进去的测量规则宽高值，也就是调用performMeasure()，现在来看看该方法得详情：
private void performMeasure(int childWidthMeasureSpec, int childHeightMeasureSpec) {
if (mView == null) {
return;
}
Trace.traceBegin(Trace.TRACE_TAG_VIEW, "measure");
try {
mView.measure(childWidthMeasureSpec, childHeightMeasureSpec);
} finally {
Trace.traceEnd(Trace.TRACE_TAG_VIEW);
}
}
里面调用的是mView的measure()方法，也就是DecorView的measure()方法：
public final void measure(int widthMeasureSpec, int heightMeasureSpec) {
boolean optical = isLayoutModeOptical(this);
if (optical != isLayoutModeOptical(mParent)) {
Insets insets = getOpticalInsets();
int oWidth = insets.left + insets.right;
int oHeight = insets.top + insets.bottom;
widthMeasureSpec = MeasureSpec.adjust(widthMeasureSpec, optical ? -oWidth : oWidth);
heightMeasureSpec = MeasureSpec.adjust(heightMeasureSpec, optical ? -oHeight : oHeight);
}
...
...
}
这里面一开始是判断一些光学边界值，然后得到最终的widthMeasureSpec 和heightMeasureSpec值，然后就是获取测量缓存key：
public final void measure(int widthMeasureSpec, int heightMeasureSpec) {
...
// Suppress sign extension for the low bytes
long key = (long) widthMeasureSpec << 32 | (long) heightMeasureSpec & 0xffffffffL;
if (mMeasureCache == null) mMeasureCache = new LongSparseLongArray(2);
...
}
这个缓存key就是一个long类型64位的值，它是通过上述的位计算之后，变成了一个装载着宽和高（widthMeasureSpec和heightMeasureSpec）的值。这样的话每次测量其实都是先从缓存里取这个measureSpec，这样就不用每次测量都重新测量一次，而是先判断有没有缓存，有就从缓存里取这个测量规则值就好，这样性能就不会耗损。而
取宽或高的时候则逆运算（右移回32位然后强转int也就是砍掉后32位）就可以得到：
public final void measure(int widthMeasureSpec, int heightMeasureSpec) {
...
// Suppress sign extension for the low bytes
long key = (long) widthMeasureSpec << 32 | (long) heightMeasureSpec & 0xffffffffL;
if (mMeasureCache == null) mMeasureCache = new LongSparseLongArray(2);
...
if (forceLayout || needsLayout) {
...
int cacheIndex = forceLayout ? -1 : mMeasureCache.indexOfKey(key);
if (cacheIndex < 0 || sIgnoreMeasureCache) {
// measure ourselves, this should set the measured dimension flag back
onMeasure(widthMeasureSpec, heightMeasureSpec);
mPrivateFlags3 &= ~PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
} else {
long value = mMeasureCache.valueAt(cacheIndex);
// Casting a long to int drops the high 32 bits, no mask needed
setMeasuredDimensionRaw((int) (value >> 32), (int) value);
mPrivateFlags3 |= PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
}
...
}
通过key调用indexOfKey()取出缓存cacheIndex，然后根据cacheIndex判断，有缓存则直接根据cacheIndex取出对应的测量值，也就是通过(int) (value >> 32), (int) value逆运算去取出widthMeasureSpec和heightMeasureSpec，然后调用setMeasuredDimensionRaw()方法确定了组件最终的宽高值：
private void setMeasuredDimensionRaw(int measuredWidth, int measuredHeight) {
mMeasuredWidth = measuredWidth;
mMeasuredHeight = measuredHeight;
mPrivateFlags |= PFLAG_MEASURED_DIMENSION_SET;
}
如果没有缓存则调用onMeasure()方法，看看它的详情：
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
setMeasuredDimension(getDefaultSize(getSuggestedMinimumWidth(), widthMeasureSpec),
getDefaultSize(getSuggestedMinimumHeight(), heightMeasureSpec));
}
先看看getSuggestedMinimumWith()方法：
protected int getSuggestedMinimumWidth() {
return (mBackground == null) ? mMinWidth : max(mMinWidth, mBackground.getMinimumWidth());
}
这里意思其实就是如果该view有设置背景，则以背景宽高值为这个默认值，否则就为0。这个值随后就传到getDefaultSize()方法里执行，接下来看看getDefaultSize()方法：
public static int getDefaultSize(int size, int measureSpec) {
int result = size;
int specMode = MeasureSpec.getMode(measureSpec);
int specSize = MeasureSpec.getSize(measureSpec);
switch (specMode) {
case MeasureSpec.UNSPECIFIED:
result = size;
break;
case MeasureSpec.AT_MOST:
case MeasureSpec.EXACTLY:
result = specSize;
break;
}
return result;
}
这里传进来的参数是刚刚的默认值以及一直以来的控件的measureSpec值。然后就是从measureSpec里取出对应的模式和测量值，根据测量模式的不同来得出最终的size值。
之所以要有这么一个默认值是因为当要测量的这个控件你没有在onMeasure()方法重写时定义你想要的宽高值时，就会走这个默认值逻辑，你此时就想着当DecorView里有子控件，那当它进行测量方法时，那就轮到它的子控件也进行测量，那此时这个子控件不再是一个ViewGroup容器组件了，而是一个View控件，然后你又没有在它的onMeasure()方法里定义处理最终的宽高值，那它走到这里肯定是需要一个具体的（默认）值。
执行完getDefaultSize()得到的值最终传到setMeasuredDimension()方法里：
protected final void setMeasuredDimension(int measuredWidth, int measuredHeight) {
boolean optical = isLayoutModeOptical(this);
if (optical != isLayoutModeOptical(mParent)) {
Insets insets = getOpticalInsets();
int opticalWidth = insets.left + insets.right;
int opticalHeight = insets.top + insets.bottom;
measuredWidth += optical ? opticalWidth : -opticalWidth;
measuredHeight += optical ? opticalHeight : -opticalHeight;
}
setMeasuredDimensionRaw(measuredWidth, measuredHeight);
}
判断是否要算上边界值，然后确定最终的控件的宽高值。
那现在我们就要往回measure()方法继续分析：
public final void measure(int widthMeasureSpec, int heightMeasureSpec) {
...
// Suppress sign extension for the low bytes
long key = (long) widthMeasureSpec << 32 | (long) heightMeasureSpec & 0xffffffffL;
if (mMeasureCache == null) mMeasureCache = new LongSparseLongArray(2);
...
if (forceLayout || needsLayout) {
...
int cacheIndex = forceLayout ? -1 : mMeasureCache.indexOfKey(key);
if (cacheIndex < 0 || sIgnoreMeasureCache) {
// measure ourselves, this should set the measured dimension flag back
onMeasure(widthMeasureSpec, heightMeasureSpec);
mPrivateFlags3 &= ~PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
} else {
long value = mMeasureCache.valueAt(cacheIndex);
// Casting a long to int drops the high 32 bits, no mask needed
setMeasuredDimensionRaw((int) (value >> 32), (int) value);
mPrivateFlags3 |= PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
}
...
}
没有缓存的话，自然就是要执行view的onMeasure()方法，我们是以DecorView为例子的，因此此时就是走DecorView的onMeasure()方法，而由于之前分析过DecorView是一个FrameLayout，所以我们来看看FrameLayout的onMeasure()方法，（如果不是DecorView，而是我们自己平时写自定义View，那此时走的就是我们重写的onMeasure()方法了）：
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
...
int maxHeight = 0;
int maxWidth = 0;
int childState = 0;
for (int i = 0; i < count; i++) {
final View child = getChildAt(i);
if (mMeasureAllChildren || child.getVisibility() != GONE) {
measureChildWithMargins(child, widthMeasureSpec, 0, heightMeasureSpec, 0);
final LayoutParams lp = (LayoutParams) child.getLayoutParams();
maxWidth = Math.max(maxWidth,
child.getMeasuredWidth() + lp.leftMargin + lp.rightMargin);
maxHeight = Math.max(maxHeight,
child.getMeasuredHeight() + lp.topMargin + lp.bottomMargin);
childState = combineMeasuredStates(childState, child.getMeasuredState());
if (measureMatchParentChildren) {
if (lp.width == LayoutParams.MATCH_PARENT ||
lp.height == LayoutParams.MATCH_PARENT) {
mMatchParentChildren.add(child);
}
}
}
}
...
}
相信大家对FrameLayout都不陌生，它的特性是它里面的控件都是从左上角开始布局的，那对FrameLayout进行测量时，肯定就是需要遍历里面的子控件，然后测量每个子控件（调用measureChildWidthMargins()方法），得到子控件的宽高值后再计算margin值，得出每一个子控件的最终宽高值，然后就是在比较它们谁的高最大，然后FrameLayout的高就是这个值，比较它们谁的宽最大，FrameLayout的宽就是这个值。
我们看看子控件的测量方法measureChildWidthMargins()方法，传给它的参数是子控件child，以及父控件（此时是DecorView的MeasureSpec）：
protected void measureChildWithMargins(View child,
int parentWidthMeasureSpec, int widthUsed,
int parentHeightMeasureSpec, int heightUsed) {
final MarginLayoutParams lp = (MarginLayoutParams) child.getLayoutParams();
final int childWidthMeasureSpec = getChildMeasureSpec(parentWidthMeasureSpec,
mPaddingLeft + mPaddingRight + lp.leftMargin + lp.rightMargin
+ widthUsed, lp.width);
final int childHeightMeasureSpec = getChildMeasureSpec(parentHeightMeasureSpec,
mPaddingTop + mPaddingBottom + lp.topMargin + lp.bottomMargin
+ heightUsed, lp.height);
child.measure(childWidthMeasureSpec, childHeightMeasureSpec);
}
可以看到先调用这个子控件的getLayoutParams()得到它自己的LayoutParams，也就是在xml上定义的（match_parent、wrap_content还是具体值），然后就是将LayoutParams相关值传到getChildMeasureSpec()方法里调用，最终得到子控件的measureSpec：
public static int getChildMeasureSpec(int spec, int padding, int childDimension) {
int specMode = MeasureSpec.getMode(spec);
int specSize = MeasureSpec.getSize(spec);
int size = Math.max(0, specSize - padding);
int resultSize = 0;
int resultMode = 0;
switch (specMode) {
// Parent has imposed an exact size on us
case MeasureSpec.EXACTLY:
if (childDimension >= 0) {
resultSize = childDimension;
resultMode = MeasureSpec.EXACTLY;
} else if (childDimension == LayoutParams.MATCH_PARENT) {
// Child wants to be our size. So be it.
resultSize = size;
resultMode = MeasureSpec.EXACTLY;
} else if (childDimension == LayoutParams.WRAP_CONTENT) {
// Child wants to determine its own size. It can't be
// bigger than us.
resultSize = size;
resultMode = MeasureSpec.AT_MOST;
}
break;
// Parent has imposed a maximum size on us
case MeasureSpec.AT_MOST:
if (childDimension >= 0) {
// Child wants a specific size... so be it
resultSize = childDimension;
resultMode = MeasureSpec.EXACTLY;
} else if (childDimension == LayoutParams.MATCH_PARENT) {
// Child wants to be our size, but our size is not fixed.
// Constrain child to not be bigger than us.
resultSize = size;
resultMode = MeasureSpec.AT_MOST;
} else if (childDimension == LayoutParams.WRAP_CONTENT) {
// Child wants to determine its own size. It can't be
// bigger than us.
resultSize = size;
resultMode = MeasureSpec.AT_MOST;
}
break;
// Parent asked to see how big we want to be
case MeasureSpec.UNSPECIFIED:
...
}
//noinspection ResourceType
return MeasureSpec.makeMeasureSpec(resultSize, resultMode);
}
代码很长，但相信你看过前面分析MeasureSpec之后，这个方法会看得懂。
那么现在重新看这个measureChildWithMargins()方法：
protected void measureChildWithMargins(View child,
int parentWidthMeasureSpec, int widthUsed,
int parentHeightMeasureSpec, int heightUsed) {
final MarginLayoutParams lp = (MarginLayoutParams) child.getLayoutParams();
final int childWidthMeasureSpec = getChildMeasureSpec(parentWidthMeasureSpec,
mPaddingLeft + mPaddingRight + lp.leftMargin + lp.rightMargin
+ widthUsed, lp.width);
final int childHeightMeasureSpec = getChildMeasureSpec(parentHeightMeasureSpec,
mPaddingTop + mPaddingBottom + lp.topMargin + lp.bottomMargin
+ heightUsed, lp.height);
child.measure(childWidthMeasureSpec, childHeightMeasureSpec);
}
现在可以知道，我们在写自定义View时，重写onMeasure()方法时的参数widthMeasureSpec和heightMeasureSpec为什么是控件自己本身的MeasureSpec，就是因为measureChildWithMargins()方法里它通过getChildMeasureSpec()方法已经转变了，将父控件传过来的MeasureSpec通过传到getChildMeasureSpec()方法里处理，然后最终得到子控件的MeasureSpec，之后就传到child.measure()方法里：
public final void measure(int widthMeasureSpec, int heightMeasureSpec) {
...
// Suppress sign extension for the low bytes
long key = (long) widthMeasureSpec << 32 | (long) heightMeasureSpec & 0xffffffffL;
if (mMeasureCache == null) mMeasureCache = new LongSparseLongArray(2);
...
if (forceLayout || needsLayout) {
...
int cacheIndex = forceLayout ? -1 : mMeasureCache.indexOfKey(key);
if (cacheIndex < 0 || sIgnoreMeasureCache) {
// measure ourselves, this should set the measured dimension flag back
onMeasure(widthMeasureSpec, heightMeasureSpec);
mPrivateFlags3 &= ~PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
} else {
long value = mMeasureCache.valueAt(cacheIndex);
// Casting a long to int drops the high 32 bits, no mask needed
setMeasuredDimensionRaw((int) (value >> 32), (int) value);
mPrivateFlags3 |= PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
}
...
}
这样我们在调用onMeasure()方法时，这时候的widthMeasureSpec和heightMeasureSpec就是控件自己本身的了。然后就是周而复始，重复之前的步骤，这个子控件又会再一次去测量它自己，然后如果它里面有子控件的话，就又测量它自己：
继续measure—onMeasure—setMeasuredDimension。
最后我们再次回到FrameLayout的onMeasure()方法：
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
...
int maxHeight = 0;
int maxWidth = 0;
int childState = 0;
for (int i = 0; i < count; i++) {
final View child = getChildAt(i);
if (mMeasureAllChildren || child.getVisibility() != GONE) {
measureChildWithMargins(child, widthMeasureSpec, 0, heightMeasureSpec, 0);
final LayoutParams lp = (LayoutParams) child.getLayoutParams();
maxWidth = Math.max(maxWidth,
child.getMeasuredWidth() + lp.leftMargin + lp.rightMargin);
maxHeight = Math.max(maxHeight,
child.getMeasuredHeight() + lp.topMargin + lp.bottomMargin);
childState = combineMeasuredStates(childState, child.getMeasuredState());
if (measureMatchParentChildren) {
if (lp.width == LayoutParams.MATCH_PARENT ||
lp.height == LayoutParams.MATCH_PARENT) {
mMatchParentChildren.add(child);
}
}
}
}
...
setMeasuredDimension(resolveSizeAndState(maxWidth, widthMeasureSpec, childState),
resolveSizeAndState(maxHeight, heightMeasureSpec,
childState << MEASURED_HEIGHT_STATE_SHIFT));
...
}
可以看到，最终调用setMeasuredDimension()设置自己的最终宽高值。
以上是FrameLayout测量时的逻辑，而其他容器布局进行测量的逻辑又是不一样，比如LinearLayout布局的宽和高就是遍历每个子控件时根据设置的不同方向，则决定它们的高或者宽是累加来得到，这里就不作详细述说，大家感兴趣可以自行研究。
二、布局流程
分析完performMeasure()测量流程之后，就是布局流程也就是performLayout()方法：
private void performLayout(WindowManager.LayoutParams lp, int desiredWindowWidth,
int desiredWindowHeight) {
mLayoutRequested = false;
mScrollMayChange = true;
mInLayout = true;
final View host = mView;
if (host == null) {
return;
}
...
Trace.traceBegin(Trace.TRACE_TAG_VIEW, "layout");
try {
host.layout(0, 0, host.getMeasuredWidth(), host.getMeasuredHeight());
mInLayout = false;
...
}
将DecorView对象mView赋值给host后，因为得益于测量后，知道了host的宽高值，这样在布局的时候，根据宽高值就可以计算出top，left，right和bottom四个坐标值（通过getMeasuredWidth()和getMeasuredHeight()直接获取宽高,，然后计算四个点），这样就可以布局我们的控件。所以我们来看看layout()方法详情：
public void layout(int l, int t, int r, int b) {
if ((mPrivateFlags3 & PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT) != 0) {
onMeasure(mOldWidthMeasureSpec, mOldHeightMeasureSpec);
mPrivateFlags3 &= ~PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
}
int oldL = mLeft;
int oldT = mTop;
int oldB = mBottom;
int oldR = mRight;
boolean changed = isLayoutModeOptical(mParent) ?
setOpticalFrame(l, t, r, b) : setFrame(l, t, r, b);
if (changed || (mPrivateFlags & PFLAG_LAYOUT_REQUIRED) == PFLAG_LAYOUT_REQUIRED) {
onLayout(changed, l, t, r, b);
...
...
}
将四个坐标值传到了 onLayout()方法：
protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
}
最终是要看你的容器布局里的真正重写的onLayout()方法，还是以FrameLayout为例，看看它的onLayout()方法：
@Override
protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
layoutChildren(left, top, right, bottom, false /* no force left gravity */);
}
继续跟踪layoutChildren()方法：
void layoutChildren(int left, int top, int right, int bottom, boolean forceLeftGravity) {
final int count = getChildCount();
final int parentLeft = getPaddingLeftWithForeground();
...
for (int i = 0; i < count; i++) {
final View child = getChildAt(i);
if (child.getVisibility() != GONE) {
final LayoutParams lp = (LayoutParams) child.getLayoutParams();
final int width = child.getMeasuredWidth();
final int height = child.getMeasuredHeight();
int childLeft;
int childTop;
...
switch (absoluteGravity & Gravity.HORIZONTAL_GRAVITY_MASK) {
case Gravity.CENTER_HORIZONTAL:
childLeft = parentLeft + (parentRight - parentLeft - width) / 2 +
lp.leftMargin - lp.rightMargin;
break;
case Gravity.RIGHT:
if (!forceLeftGravity) {
childLeft = parentRight - width - lp.rightMargin;
break;
}
case Gravity.LEFT:
default:
childLeft = parentLeft + lp.leftMargin;
}
switch (verticalGravity) {
case Gravity.TOP:
childTop = parentTop + lp.topMargin;
break;
...
}
child.layout(childLeft, childTop, childLeft + width, childTop + height);
}
}
这里面的逻辑并不复杂，结合FrameLayout的特性，我们就知道它是遍历它里面所有子控件，然后得到它们的宽高值（因为它们之前经历过测量这个环节，因此getMeasuredWidth()可得），然后计算出它们的四个点的坐标值，最后根据设置的不同摆放方向Gravity来摆放它们。调用child.layout()重复以上的逻辑，也就是子View如果也是容器布局，那就是又去摆放它里面的子控件…
跟测量一样，其他容器的布局流程又会根据它特性的不一样而不同，这个大家看着源码来分析就好。
三、绘制流程
绘制流程其实也不复杂，来看看performDraw()方法：
private void performDraw() {
if (mAttachInfo.mDisplayState == Display.STATE_OFF && !mReportNextDraw) {
return;
} else if (mView == null) {
return;
}
...
try {
boolean canUseAsync = draw(fullRedrawNeeded);
其实就是调用了draw()方法：
private boolean draw(boolean fullRedrawNeeded) {
Surface surface = mSurface;
if (!surface.isValid()) {
return false;
}
if (DEBUG_FPS) {
trackFPS();
}
...
if (!drawSoftware(surface, mAttachInfo, xOffset, yOffset,
scalingRequired, dirty, surfaceInsets)) {
return false;
}
...
}
绘制第一步首先是要获取到画板Surface，这样才能通过它获取到我们的Canvas，最后就是调用drawSoftware()方法，它就是绘制流程，看看里面的详情：
private boolean drawSoftware(Surface surface, AttachInfo attachInfo, int xoff, int yoff,
boolean scalingRequired, Rect dirty, Rect surfaceInsets) {
// Draw with software renderer.
final Canvas canvas;
...
try {
dirty.offset(-dirtyXOffset, -dirtyYOffset);
final int left = dirty.left;
final int top = dirty.top;
final int right = dirty.right;
final int bottom = dirty.bottom;
canvas = mSurface.lockCanvas(dirty);
...
...
}
调用Surface的lockCanvas()方法去构造画布对象canvas，这样后面就把canvas传到view的draw()方法里：
...
try {
canvas.translate(-xoff, -yoff);
if (mTranslator != null) {
mTranslator.translateCanvas(canvas);
}
canvas.setScreenDensity(scalingRequired ? mNoncompatDensity : 0);
attachInfo.mSetIgnoreDirtyState = false;
mView.draw(canvas);
drawAccessibilityFocusedDrawableIfNeeded(canvas);
}
...
来看看draw()方法详情：
public void draw(Canvas canvas) {
final int privateFlags = mPrivateFlags;
final boolean dirtyOpaque = (privateFlags & PFLAG_DIRTY_MASK) == PFLAG_DIRTY_OPAQUE &&
(mAttachInfo == null || !mAttachInfo.mIgnoreDirtyState);
mPrivateFlags = (privateFlags & ~PFLAG_DIRTY_MASK) | PFLAG_DRAWN;
/*
* Draw traversal performs several drawing steps which must be executed
* in the appropriate order:
*
* 1. Draw the background
* 2. If necessary, save the canvas' layers to prepare for fading
* 3. Draw view's content
* 4. Draw children
* 5. If necessary, draw the fading edges and restore layers
* 6. Draw decorations (scrollbars for instance)
*/
...
}
我们通过注释里的6点说明就可以知道绘制的流程就是这6步：
1）绘制背景
2）如果需要，保存图层
3）绘制View内容
4）绘制子控件
5）如果需要，恢复图层
6）画装饰（滚动条等）
由此可以知道绘制是控件自己本身的事情，而不是由父布局去画它的：
...
// Step 1, draw the background, if needed
int saveCount;
if (!dirtyOpaque) {
drawBackground(canvas);
}
// skip step 2 & 5 if possible (common case)
final int viewFlags = mViewFlags;
boolean horizontalEdges = (viewFlags & FADING_EDGE_HORIZONTAL) != 0;
boolean verticalEdges = (viewFlags & FADING_EDGE_VERTICAL) != 0;
if (!verticalEdges && !horizontalEdges) {
// Step 3, draw the content
if (!dirtyOpaque) onDraw(canvas);
// Step 4, draw the children
dispatchDraw(canvas);
drawAutofilledHighlight(canvas);
// Overlay is part of the content and draws beneath Foreground
if (mOverlay != null && !mOverlay.isEmpty()) {
mOverlay.getOverlayView().dispatchDraw(canvas);
}
// Step 6, draw decorations (foreground, scrollbars)
onDrawForeground(canvas);
// Step 7, draw the default focus highlight
drawDefaultFocusHighlight(canvas);
...
第三步就是View的onDraw()方法:
protected void onDraw(Canvas canvas) {
}
这里值得一提的是容器没有onDraw方法，这点要注意，但绘制背景也是跟View一样，是在第一步进行：
private void drawBackground(Canvas canvas) {
final Drawable background = mBackground;
if (background == null) {
return;
}
setBackgroundBounds();
// Attempt to use a display list if requested.
if (canvas.isHardwareAccelerated() && mAttachInfo != null
&& mAttachInfo.mThreadedRenderer != null) {
mBackgroundRenderNode = getDrawableRenderNode(background, mBackgroundRenderNode);
final RenderNode renderNode = mBackgroundRenderNode;
if (renderNode != null && renderNode.isValid()) {
setBackgroundRenderNodeProperties(renderNode);
((DisplayListCanvas) canvas).drawRenderNode(renderNode);
return;
}
}
final int scrollX = mScrollX;
final int scrollY = mScrollY;
if ((scrollX | scrollY) == 0) {
background.draw(canvas);
} else {
canvas.translate(scrollX, scrollY);
background.draw(canvas);
canvas.translate(-scrollX, -scrollY);
}
}
整个绘制流程还是很清晰的，至于说绘制的底层又是怎样进行的，这就是安卓底层的图形渲染原理，这个涉及到系统底层，以后有机会再讲解，欢迎大家关我公号：Pingred
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
