本文深入剖析了SpringMVC中的DispatcherServlet处理HTTP请求的整个过程，包括请求映射、处理器调用和视图渲染等关键步骤。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

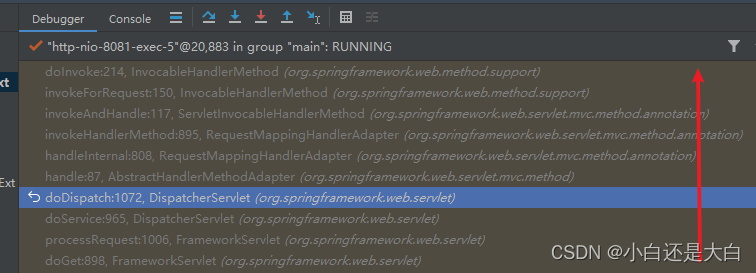

调用栈

DispatcherServlet#doGet（根据请求方式不同进入不同的方法，get:doGet,put:doPut） --> processRequest -->

doService -->

doDispatch -->

AbstractHandlerMethodAdapter#handle -->

RequestMappingHandlerAdapter#handleInternal -->

invokeHandlerMethod -->

invokeAndHandle -->

invokeForRequest获取方法执行结果

核心逻辑

1、首先用户发送请求———>DispatcherServlet，前端控制器收到请求后自己不进行处理，而是委托给其他的解析器进行处理，作为统一的访问点，进行全局的流程控制；
2、DispatcherServlet（mappedHandler = this.getHandler(processedRequest);）———>HandlerMapping，HandlerMapping将会把请求映射为HandlerExecutionChain对象（包含一个Handler处理器（页面控制器）对象、多个HandlerInterceptor拦截器）对象，通过这种策略模式，很容易添加新的映射策略；
3、DispatcherServlet———>HandlerAdapter，HandlerAdapter将会把处理器包装为适配器，从而支持多种类型的处理器，即适配器设计模式的应用，从而很容易支持很多类型的处理器；
4、HandlerAdapter———>处理器功能处理方法的调用，HandlerAdapter将会根据适配的结果调用真正的处理器的功能处理方法，完成功能处理；并返回一个ModelAndView对象（包含模型数据、逻辑视图名）；
5、ModelAndView的逻辑视图名———>ViewRsolver，ViewResolver将把逻辑视图名解析为具体的View，通过这种策略模式，很容易更换其他视图技术；
6、View———>渲染，View会根据传进来的Model模型数据进行渲染，此处的Model实际是一个Map数据结构，因此很容易支持其他视图技术；
7、返回控制权给Dispatcher，由DispatcherServlet返回响应给用户，到此一个流程结束。

源码

protected final void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        this.processRequest(request, response);
    }

protected final void processRequest(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        long startTime = System.currentTimeMillis();
        Throwable failureCause = null;
        LocaleContext previousLocaleContext = LocaleContextHolder.getLocaleContext();
        LocaleContext localeContext = this.buildLocaleContext(request);
        RequestAttributes previousAttributes = RequestContextHolder.getRequestAttributes();
        ServletRequestAttributes requestAttributes = this.buildRequestAttributes(request, response, previousAttributes);
        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
        asyncManager.registerCallableInterceptor(FrameworkServlet.class.getName(), new RequestBindingInterceptor());
        this.initContextHolders(request, localeContext, requestAttributes);

        try {
//
            this.doService(request, response);
        } catch (IOException | ServletException var16) {
            failureCause = var16;
            throw var16;
        } catch (Throwable var17) {
            failureCause = var17;
            throw new NestedServletException("Request processing failed", var17);
        } finally {
            this.resetContextHolders(request, previousLocaleContext, previousAttributes);
            if (requestAttributes != null) {
                requestAttributes.requestCompleted();
            }

            this.logResult(request, response, (Throwable)failureCause, asyncManager);
            this.publishRequestHandledEvent(request, response, startTime, (Throwable)failureCause);
        }

    }

protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
        this.logRequest(request);
        Map<String, Object> attributesSnapshot = null;
        if (WebUtils.isIncludeRequest(request)) {
            attributesSnapshot = new HashMap();
            Enumeration<?> attrNames = request.getAttributeNames();

            label116:
            while(true) {
                String attrName;
                do {
                    if (!attrNames.hasMoreElements()) {
                        break label116;
                    }

                    attrName = (String)attrNames.nextElement();
                } while(!this.cleanupAfterInclude && !attrName.startsWith("org.springframework.web.servlet"));

                attributesSnapshot.put(attrName, request.getAttribute(attrName));
            }
        }

        request.setAttribute(WEB_APPLICATION_CONTEXT_ATTRIBUTE, this.getWebApplicationContext());
        request.setAttribute(LOCALE_RESOLVER_ATTRIBUTE, this.localeResolver);
        request.setAttribute(THEME_RESOLVER_ATTRIBUTE, this.themeResolver);
        request.setAttribute(THEME_SOURCE_ATTRIBUTE, this.getThemeSource());
        if (this.flashMapManager != null) {
            FlashMap inputFlashMap = this.flashMapManager.retrieveAndUpdate(request, response);
            if (inputFlashMap != null) {
                request.setAttribute(INPUT_FLASH_MAP_ATTRIBUTE, Collections.unmodifiableMap(inputFlashMap));
            }

            request.setAttribute(OUTPUT_FLASH_MAP_ATTRIBUTE, new FlashMap());
            request.setAttribute(FLASH_MAP_MANAGER_ATTRIBUTE, this.flashMapManager);
        }

        RequestPath previousRequestPath = null;
        if (this.parseRequestPath) {
            previousRequestPath = (RequestPath)request.getAttribute(ServletRequestPathUtils.PATH_ATTRIBUTE);
            ServletRequestPathUtils.parseAndCache(request);
        }

        try {
//
            this.doDispatch(request, response);
        } finally {
            if (!WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted() && attributesSnapshot != null) {
                this.restoreAttributesAfterInclude(request, attributesSnapshot);
            }

            if (this.parseRequestPath) {
                ServletRequestPathUtils.setParsedRequestPath(previousRequestPath, request);
            }

        }

    }

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
        HttpServletRequest processedRequest = request;
        HandlerExecutionChain mappedHandler = null;
        boolean multipartRequestParsed = false;
        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

        try {
            try {
                ModelAndView mv = null;
                Exception dispatchException = null;

                try {
//检查是否是请求是否是multipart（如文件上传），如果是将通过MultipartResolver解析
                    processedRequest = this.checkMultipart(request);
                    multipartRequestParsed = processedRequest != request;
//步骤2、请求到处理器（页面控制器）的映射，通过HandlerMapping进行映射
                    mappedHandler = this.getHandler(processedRequest);
                    if (mappedHandler == null) {
                        this.noHandlerFound(processedRequest, response);
                        return;
                    }

//步骤3、处理器适配，即将我们的处理器包装成相应的适配器（从而支持多种类型的处理器）
                    HandlerAdapter ha = this.getHandlerAdapter(mappedHandler.getHandler());
                    String method = request.getMethod();
                    boolean isGet = HttpMethod.GET.matches(method);
                    if (isGet || HttpMethod.HEAD.matches(method)) {
                        long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
                        if ((new ServletWebRequest(request, response)).checkNotModified(lastModified) && isGet) {
                            return;
                        }
                    }

// 步骤4、由适配器执行处理器（调用处理器相应功能处理方法）
                    if (!mappedHandler.applyPreHandle(processedRequest, response)) {
                        return;
                    }

//
                    mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
                    if (asyncManager.isConcurrentHandlingStarted()) {
                        return;
                    }

                    this.applyDefaultViewName(processedRequest, mv);
// 执行处理器相关的拦截器的后处理（HandlerInterceptor.postHandle）
                    mappedHandler.applyPostHandle(processedRequest, response, mv);
                } catch (Exception var20) {
                    dispatchException = var20;
                } catch (Throwable var21) {
                    dispatchException = new NestedServletException("Handler dispatch failed", var21);
                }

                this.processDispatchResult(processedRequest, response, mappedHandler, mv, (Exception)dispatchException);
            } catch (Exception var22) {
                this.triggerAfterCompletion(processedRequest, response, mappedHandler, var22);
            } catch (Throwable var23) {
                this.triggerAfterCompletion(processedRequest, response, mappedHandler, new NestedServletException("Handler processing failed", var23));
            }

        } finally {
            if (asyncManager.isConcurrentHandlingStarted()) {
                if (mappedHandler != null) {
                    mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
                }
            } else if (multipartRequestParsed) {
                this.cleanupMultipart(processedRequest);
            }

        }
    }

@Nullable
    public final ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        return this.handleInternal(request, response, (HandlerMethod)handler);
    }

protected ModelAndView handleInternal(HttpServletRequest request, HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
        this.checkRequest(request);
        ModelAndView mav;
        if (this.synchronizeOnSession) {
            HttpSession session = request.getSession(false);
            if (session != null) {
                Object mutex = WebUtils.getSessionMutex(session);
                synchronized(mutex) {
                    mav = this.invokeHandlerMethod(request, response, handlerMethod);
                }
            } else {
                mav = this.invokeHandlerMethod(request, response, handlerMethod);
            }
        } else {
//
            mav = this.invokeHandlerMethod(request, response, handlerMethod);
        }

        if (!response.containsHeader("Cache-Control")) {
            if (this.getSessionAttributesHandler(handlerMethod).hasSessionAttributes()) {
                this.applyCacheSeconds(response, this.cacheSecondsForSessionAttributeHandlers);
            } else {
                this.prepareResponse(response);
            }
        }

        return mav;
    }

@Nullable
    protected ModelAndView invokeHandlerMethod(HttpServletRequest request, HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
        ServletWebRequest webRequest = new ServletWebRequest(request, response);

        Object result;
        try {
            WebDataBinderFactory binderFactory = this.getDataBinderFactory(handlerMethod);
            ModelFactory modelFactory = this.getModelFactory(handlerMethod, binderFactory);
            ServletInvocableHandlerMethod invocableMethod = this.createInvocableHandlerMethod(handlerMethod);
            if (this.argumentResolvers != null) {
                invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
            }

            if (this.returnValueHandlers != null) {
                invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);
            }

            invocableMethod.setDataBinderFactory(binderFactory);
            invocableMethod.setParameterNameDiscoverer(this.parameterNameDiscoverer);
            ModelAndViewContainer mavContainer = new ModelAndViewContainer();
            mavContainer.addAllAttributes(RequestContextUtils.getInputFlashMap(request));
            modelFactory.initModel(webRequest, mavContainer, invocableMethod);
            mavContainer.setIgnoreDefaultModelOnRedirect(this.ignoreDefaultModelOnRedirect);
            AsyncWebRequest asyncWebRequest = WebAsyncUtils.createAsyncWebRequest(request, response);
            asyncWebRequest.setTimeout(this.asyncRequestTimeout);
            WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
            asyncManager.setTaskExecutor(this.taskExecutor);
            asyncManager.setAsyncWebRequest(asyncWebRequest);
            asyncManager.registerCallableInterceptors(this.callableInterceptors);
            asyncManager.registerDeferredResultInterceptors(this.deferredResultInterceptors);
            if (asyncManager.hasConcurrentResult()) {
                result = asyncManager.getConcurrentResult();
                mavContainer = (ModelAndViewContainer)asyncManager.getConcurrentResultContext()[0];
                asyncManager.clearConcurrentResult();
                LogFormatUtils.traceDebug(this.logger, (traceOn) -> {
                    String formatted = LogFormatUtils.formatValue(result, !traceOn);
                    return "Resume with async result [" + formatted + "]";
                });
                invocableMethod = invocableMethod.wrapConcurrentResult(result);
            }

//
            invocableMethod.invokeAndHandle(webRequest, mavContainer, new Object[0]);
            if (!asyncManager.isConcurrentHandlingStarted()) {
                ModelAndView var15 = this.getModelAndView(mavContainer, modelFactory, webRequest);
                return var15;
            }

            result = null;
        } finally {
            webRequest.requestCompleted();
        }

        return (ModelAndView)result;
    }

public void invokeAndHandle(ServletWebRequest webRequest, ModelAndViewContainer mavContainer, Object... providedArgs) throws Exception {
//执行具体方法
        Object returnValue = this.invokeForRequest(webRequest, mavContainer, providedArgs);
        this.setResponseStatus(webRequest);
        if (returnValue == null) {
            if (this.isRequestNotModified(webRequest) || this.getResponseStatus() != null || mavContainer.isRequestHandled()) {
                this.disableContentCachingIfNecessary(webRequest);
                mavContainer.setRequestHandled(true);
                return;
            }
        } else if (StringUtils.hasText(this.getResponseStatusReason())) {
            mavContainer.setRequestHandled(true);
            return;
        }

        mavContainer.setRequestHandled(false);
        Assert.state(this.returnValueHandlers != null, "No return value handlers");

        try {
            this.returnValueHandlers.handleReturnValue(returnValue, this.getReturnValueType(returnValue), mavContainer, webRequest);
        } catch (Exception var6) {
            if (logger.isTraceEnabled()) {
                logger.trace(this.formatErrorForReturnValue(returnValue), var6);
            }

            throw var6;
        }
    }
