误区
错误理解❎：大家潜意识认为：
@Bean 不是在 @Configuration注解下面才能生效
同理@ComponentScan也不是非得在@Configuration注解下面也才能生效
让我们来揭开它神秘面纱
案例
// @Component
@Configuration
public class AppConfig {
@Bean
public TestBean testBean01() {
return new TestBean();
}
@Bean
public TestBean02 testBean02() {
testBean01();//这里也会调用testBean方法。
return new TestBean02();
}
public class TestBean {
public TestBean() {
System.err.println("TestBean.**************");
}
}
public class TestBean02 {
}
}
输出结果
当 @Component 存在时，TestBean.************** 打印一遍
当 @Configuration 存在时，TestBean.************** 打印一遍
分析

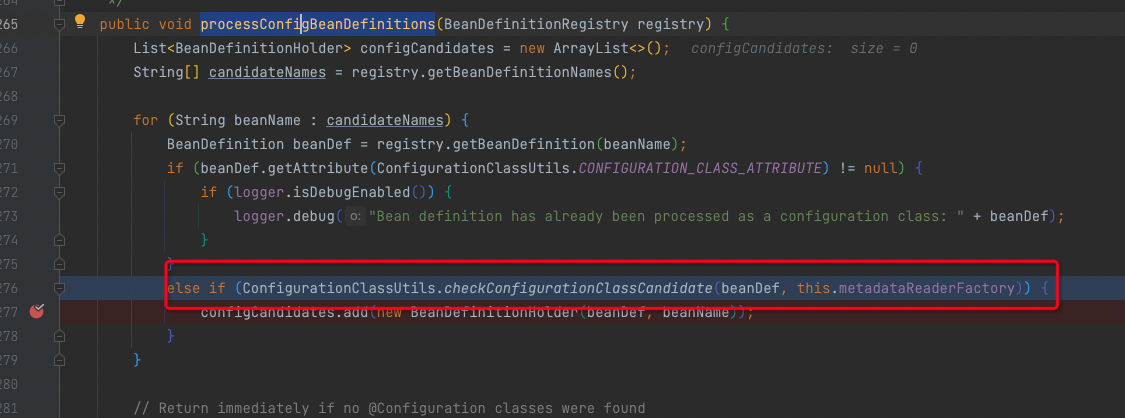

扫描@Configuration注解
org.springframework.context.annotation.ConfigurationClassPostProcessor#processConfigBeanDefinitions
public static boolean checkConfigurationClassCandidate(
BeanDefinition beanDef, MetadataReaderFactory metadataReaderFactory) {
String className = beanDef.getBeanClassName();
if (className == null || beanDef.getFactoryMethodName() != null) {
return false;
}
AnnotationMetadata metadata;
if (beanDef instanceof AnnotatedBeanDefinition &&
className.equals(((AnnotatedBeanDefinition) beanDef).getMetadata().getClassName())) {
// Can reuse the pre-parsed metadata from the given BeanDefinition...
metadata = ((AnnotatedBeanDefinition) beanDef).getMetadata();
}
else if (beanDef instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) beanDef).hasBeanClass()) {
// Check already loaded Class if present...
// since we possibly can't even load the class file for this Class.
Class<?> beanClass = ((AbstractBeanDefinition) beanDef).getBeanClass();
if (BeanFactoryPostProcessor.class.isAssignableFrom(beanClass) ||
BeanPostProcessor.class.isAssignableFrom(beanClass) ||
AopInfrastructureBean.class.isAssignableFrom(beanClass) ||
EventListenerFactory.class.isAssignableFrom(beanClass)) {
return false;
}
metadata = AnnotationMetadata.introspect(beanClass);
}
else {
try {
MetadataReader metadataReader = metadataReaderFactory.getMetadataReader(className);
metadata = metadataReader.getAnnotationMetadata();
}
catch (IOException ex) {
if (logger.isDebugEnabled()) {
logger.debug("Could not find class file for introspecting configuration annotations: " +
className, ex);
}
return false;
}
}
Map<String, Object> config = metadata.getAnnotationAttributes(Configuration.class.getName());
if (config != null && !Boolean.FALSE.equals(config.get("proxyBeanMethods"))) {
// 设置 full
beanDef.setAttribute(CONFIGURATION_CLASS_ATTRIBUTE, CONFIGURATION_CLASS_FULL);
}
else if (config != null || isConfigurationCandidate(metadata)) {
// 设置 lite
beanDef.setAttribute(CONFIGURATION_CLASS_ATTRIBUTE, CONFIGURATION_CLASS_LITE);
}
else {
return false;
}
// It's a full or lite configuration candidate... Let's determine the order value, if any.
Integer order = getOrder(metadata);
if (order != null) {
beanDef.setAttribute(ORDER_ATTRIBUTE, order);
}
return true;
}

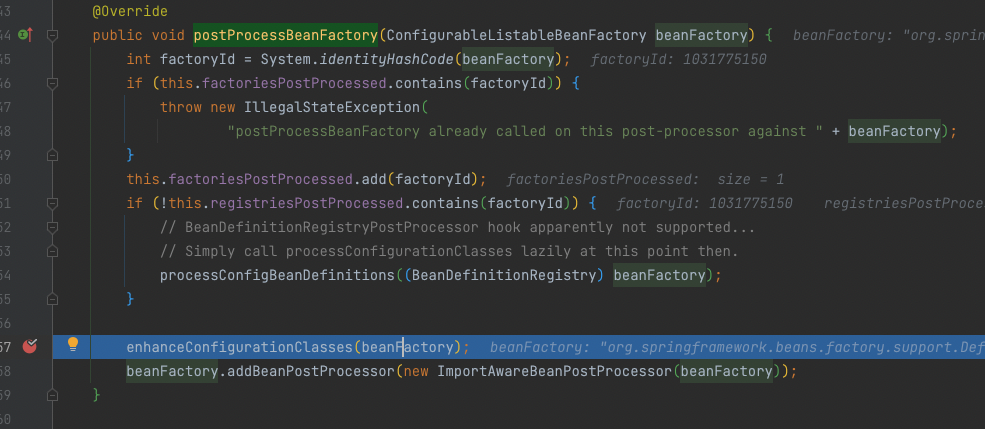

配置@Configuration类代理

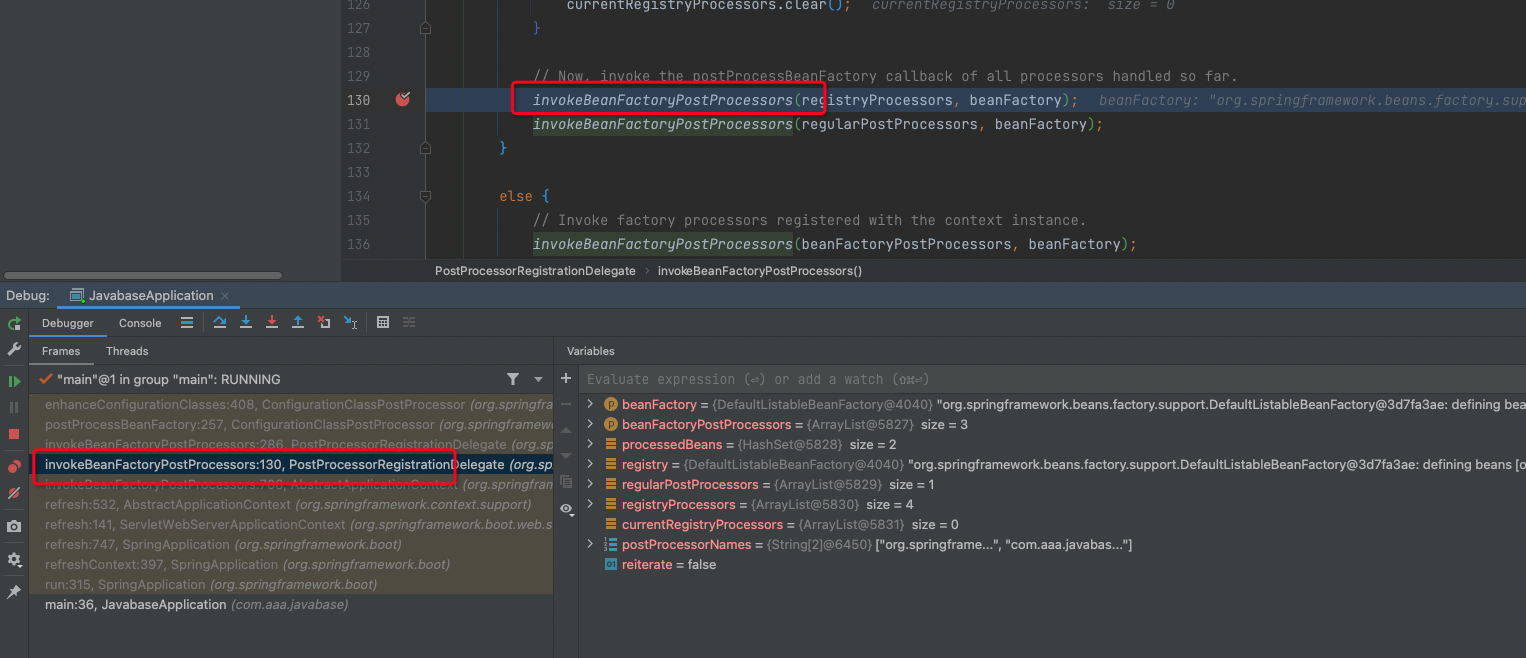

org.springframework.context.support.PostProcessorRegistrationDelegate#invokeBeanFactoryPostProcessors
org.springframework.context.annotation.ConfigurationClassPostProcessor#postProcessBeanFactory
public void enhanceConfigurationClasses(ConfigurableListableBeanFactory beanFactory) {
Map<String, AbstractBeanDefinition> configBeanDefs = new LinkedHashMap<>();
for (String beanName : beanFactory.getBeanDefinitionNames()) {
BeanDefinition beanDef = beanFactory.getBeanDefinition(beanName);
Object configClassAttr = beanDef.getAttribute(ConfigurationClassUtils.CONFIGURATION_CLASS_ATTRIBUTE);
MethodMetadata methodMetadata = null;
if (beanDef instanceof AnnotatedBeanDefinition) {
methodMetadata = ((AnnotatedBeanDefinition) beanDef).getFactoryMethodMetadata();
}
if ((configClassAttr != null || methodMetadata != null) && beanDef instanceof AbstractBeanDefinition) {
// Configuration class (full or lite) or a configuration-derived @Bean method
// -> resolve bean class at this point...
AbstractBeanDefinition abd = (AbstractBeanDefinition) beanDef;
if (!abd.hasBeanClass()) {
try {
abd.resolveBeanClass(this.beanClassLoader);
}
catch (Throwable ex) {
throw new IllegalStateException(
"Cannot load configuration class: " + beanDef.getBeanClassName(), ex);
}
}
}
// 这里判断是否包含 full 字段，跟前面对应起来
if (ConfigurationClassUtils.CONFIGURATION_CLASS_FULL.equals(configClassAttr)) {
if (!(beanDef instanceof AbstractBeanDefinition)) {
throw new BeanDefinitionStoreException("Cannot enhance @Configuration bean definition '" +
beanName + "' since it is not stored in an AbstractBeanDefinition subclass");
}
else if (logger.isInfoEnabled() && beanFactory.containsSingleton(beanName)) {
logger.info("Cannot enhance @Configuration bean definition '" + beanName +
"' since its singleton instance has been created too early. The typical cause " +
"is a non-static @Bean method with a BeanDefinitionRegistryPostProcessor " +
"return type: Consider declaring such methods as 'static'.");
}
configBeanDefs.put(beanName, (AbstractBeanDefinition) beanDef);
}
}
if (configBeanDefs.isEmpty()) {
// nothing to enhance -> return immediately
return;
}
// 给@Configuration 注解的类配置 cglib代理
ConfigurationClassEnhancer enhancer = new ConfigurationClassEnhancer();
for (Map.Entry<String, AbstractBeanDefinition> entry : configBeanDefs.entrySet()) {
AbstractBeanDefinition beanDef = entry.getValue();
// If a @Configuration class gets proxied, always proxy the target class
beanDef.setAttribute(AutoProxyUtils.PRESERVE_TARGET_CLASS_ATTRIBUTE, Boolean.TRUE);
// Set enhanced subclass of the user-specified bean class
Class<?> configClass = beanDef.getBeanClass();
Class<?> enhancedClass = enhancer.enhance(configClass, this.beanClassLoader);
if (configClass != enhancedClass) {
if (logger.isTraceEnabled()) {
logger.trace(String.format("Replacing bean definition '%s' existing class '%s' with " +
"enhanced class '%s'", entry.getKey(), configClass.getName(), enhancedClass.getName()));
}
// 把最终的增强代理类放进BeanClass
beanDef.setBeanClass(enhancedClass);
}
}
}
代理执行
testBean01 实例化
createBeanInstance
doCreateBean 之后实例化对象时是
- beanName = “testBean01” 的代理对象去执行
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#createBeanInstance
protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) {
// Make sure bean class is actually resolved at this point.
Class<?> beanClass = resolveBeanClass(mbd, beanName);
if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Bean class isn't public, and non-public access not allowed: " + beanClass.getName());
}
Supplier<?> instanceSupplier = mbd.getInstanceSupplier();
if (instanceSupplier != null) {
return obtainFromSupplier(instanceSupplier, beanName);
}
// ******注意：@Bean方法的注册的bean FactoryMethodName 是有值得
// 并且直接return
if (mbd.getFactoryMethodName() != null) {
return instantiateUsingFactoryMethod(beanName, mbd, args);
}
// Shortcut when re-creating the same bean...
boolean resolved = false;
boolean autowireNecessary = false;
if (args == null) {
synchronized (mbd.constructorArgumentLock) {
if (mbd.resolvedConstructorOrFactoryMethod != null) {
resolved = true;
autowireNecessary = mbd.constructorArgumentsResolved;
}
}
}
if (resolved) {
if (autowireNecessary) {
return autowireConstructor(beanName, mbd, null, null);
}
else {
return instantiateBean(beanName, mbd);
}
}
// Candidate constructors for autowiring?
Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
if (ctors != null || mbd.getResolvedAutowireMode() == AUTOWIRE_CONSTRUCTOR ||
mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {
return autowireConstructor(beanName, mbd, ctors, args);
}
// Preferred constructors for default construction?
ctors = mbd.getPreferredConstructors();
if (ctors != null) {
return autowireConstructor(beanName, mbd, ctors, null);
}
// No special handling: simply use no-arg constructor.
return instantiateBean(beanName, mbd);
}

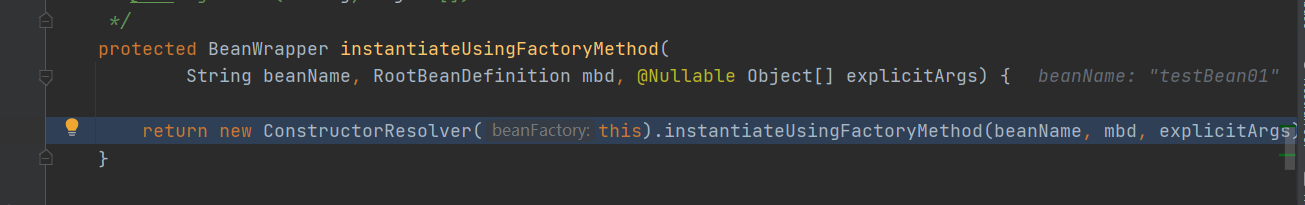

org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#instantiateUsingFactoryMethod
实例化构造方法解析器
org.springframework.beans.factory.support.ConstructorResolver#instantiateUsingFactoryMethod

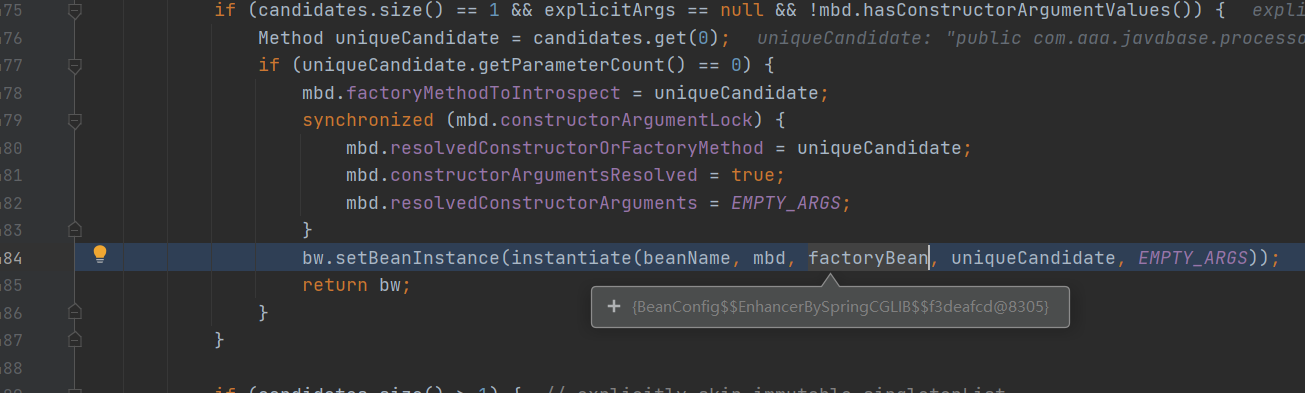

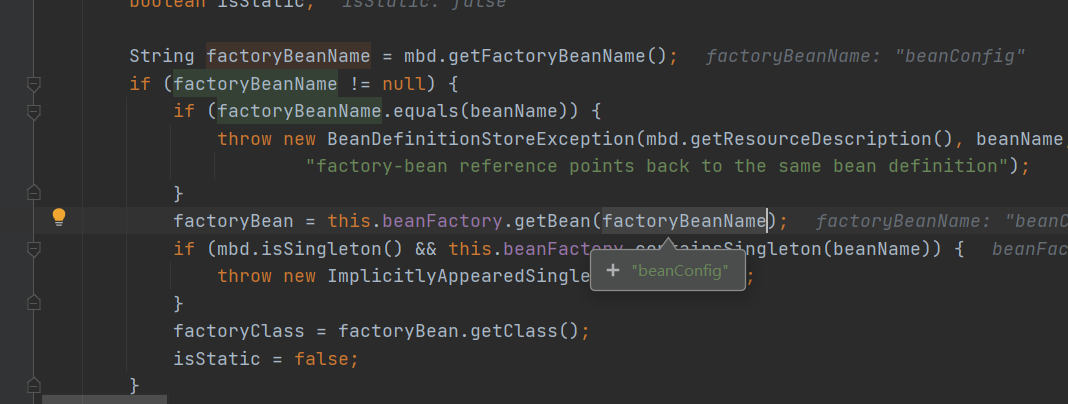

解析出 factoryBean
组装要实例化bean方法的参数
org.springframework.beans.factory.support.ConstructorResolver#instantiate

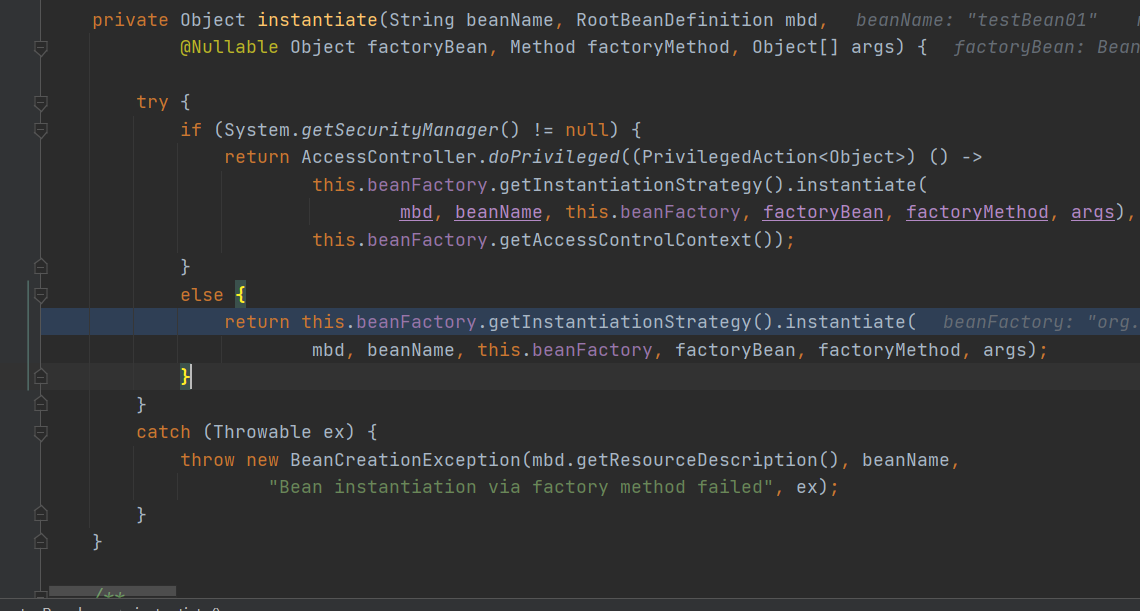

这里的 getInstantiationStrategy()指的是
InstantiationStrategy instantiationStrategy = new CglibSubclassingInstantiationStrategy();
获取cgcib的一个策略执行器
反射执行
public class SimpleInstantiationStrategy implements InstantiationStrategy {
private static final ThreadLocal<Method> currentlyInvokedFactoryMethod = new ThreadLocal<>();
@Override
public Object instantiate(RootBeanDefinition bd, @Nullable String beanName, BeanFactory owner,
@Nullable Object factoryBean, final Method factoryMethod, Object... args) {
try {
if (System.getSecurityManager() != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
ReflectionUtils.makeAccessible(factoryMethod);
return null;
});
}
else {
ReflectionUtils.makeAccessible(factoryMethod);
}
Method priorInvokedFactoryMethod = currentlyInvokedFactoryMethod.get();
try {
// 把当前正在执行的工厂方法扔进 ThreadLocal中，
// 为什么这里要放入ThreadLocal中呢，等会参考 【testBean02 实例化】说明
currentlyInvokedFactoryMethod.set(factoryMethod);
/*
factoryMethod是 要执行的方法：
com.aaa.javabase.processor.BeanConfig#testBean01
factoryBean是待执行方法的类：
com.aaa.javabase.processor.BeanConfig(已经被gcblib代理过)
*/
Object result = factoryMethod.invoke(factoryBean, args);
if (result == null) {
result = new NullBean();
}
return result;
}
finally {
if (priorInvokedFactoryMethod != null) {
currentlyInvokedFactoryMethod.set(priorInvokedFactoryMethod);
}
else {
currentlyInvokedFactoryMethod.remove();
}
}
}
catch (IllegalArgumentException ex) {
throw new BeanInstantiationException(factoryMethod,
"Illegal arguments to factory method '" + factoryMethod.getName() + "'; " +
"args: " + StringUtils.arrayToCommaDelimitedString(args), ex);
}
catch (IllegalAccessException ex) {
throw new BeanInstantiationException(factoryMethod,
"Cannot access factory method '" + factoryMethod.getName() + "'; is it public?", ex);
}
catch (InvocationTargetException ex) {
String msg = "Factory method '" + factoryMethod.getName() + "' threw exception";
if (bd.getFactoryBeanName() != null && owner instanceof ConfigurableBeanFactory &&
((ConfigurableBeanFactory) owner).isCurrentlyInCreation(bd.getFactoryBeanName())) {
msg = "Circular reference involving containing bean '" + bd.getFactoryBeanName() + "' - consider " +
"declaring the factory method as static for independence from its containing instance. " + msg;
}
throw new BeanInstantiationException(factoryMethod, msg, ex.getTargetException());
}
}

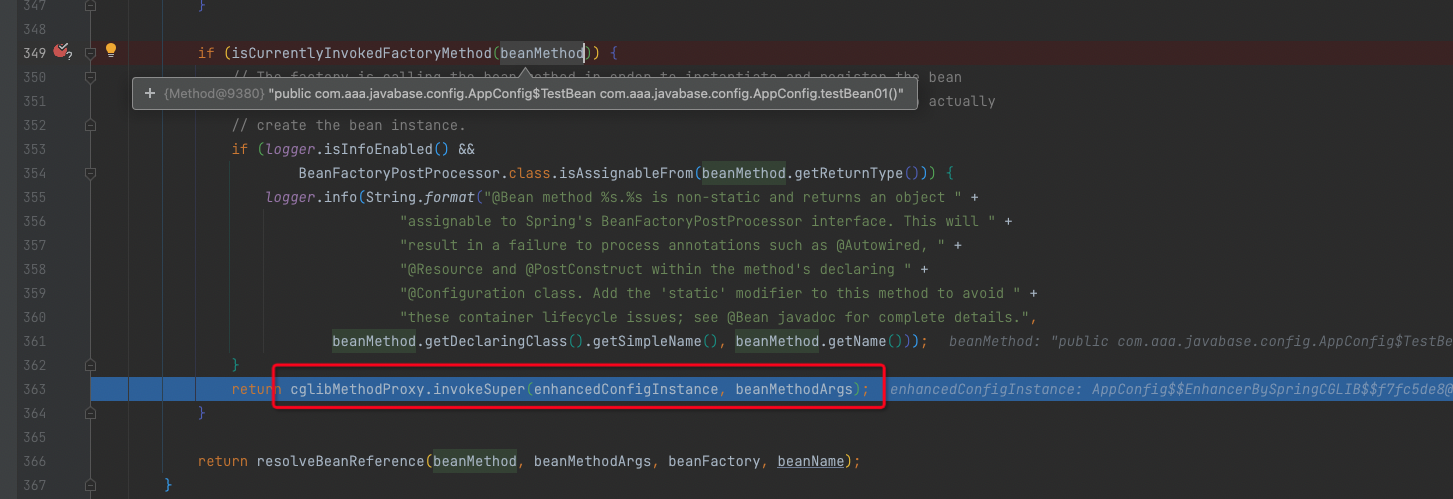

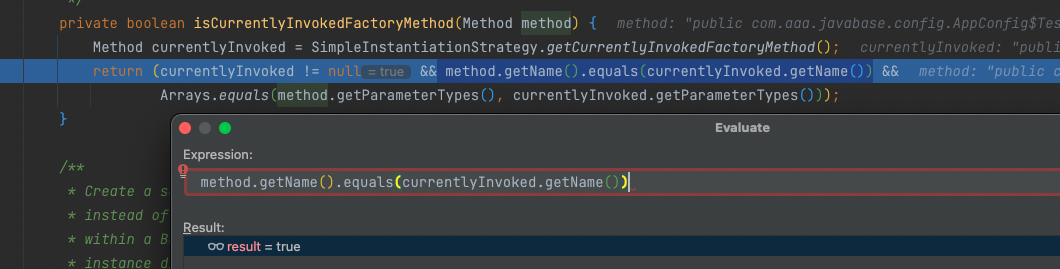

Spring#Cglib#拦截执行
org.springframework.context.annotation.ConfigurationClassEnhancer.BeanMethodInterceptor#intercept

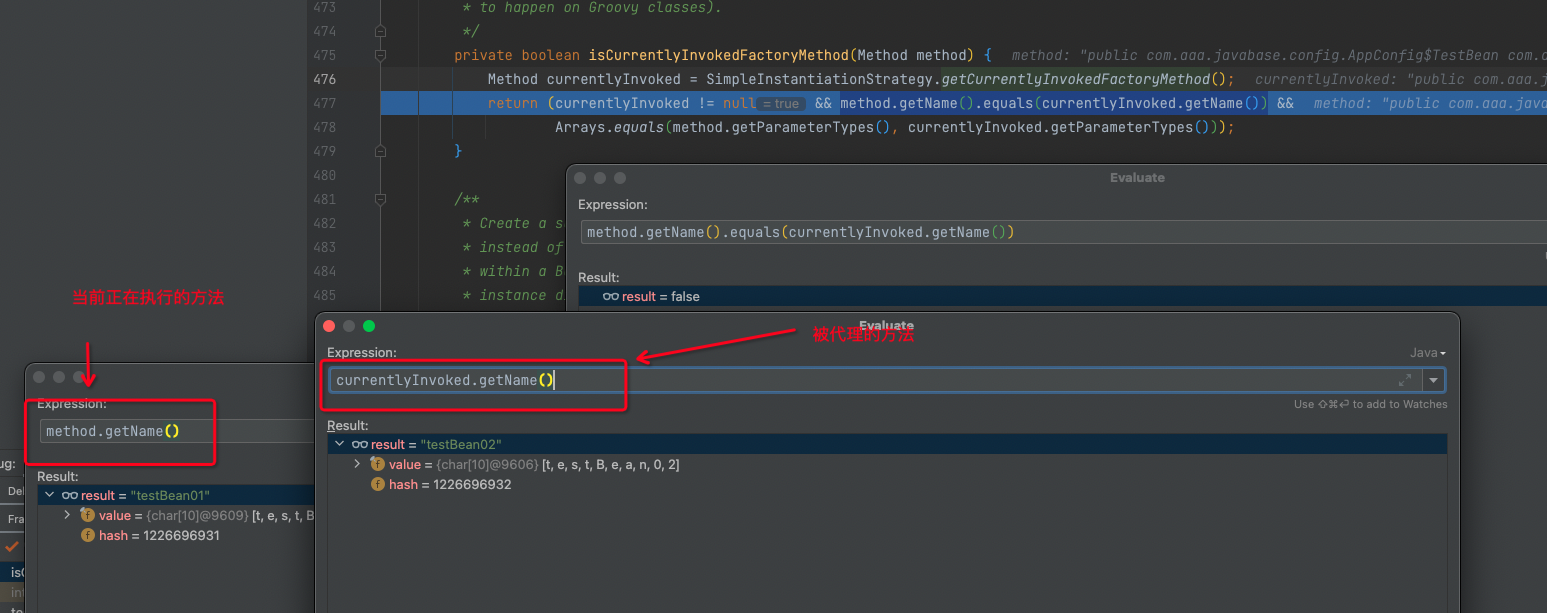

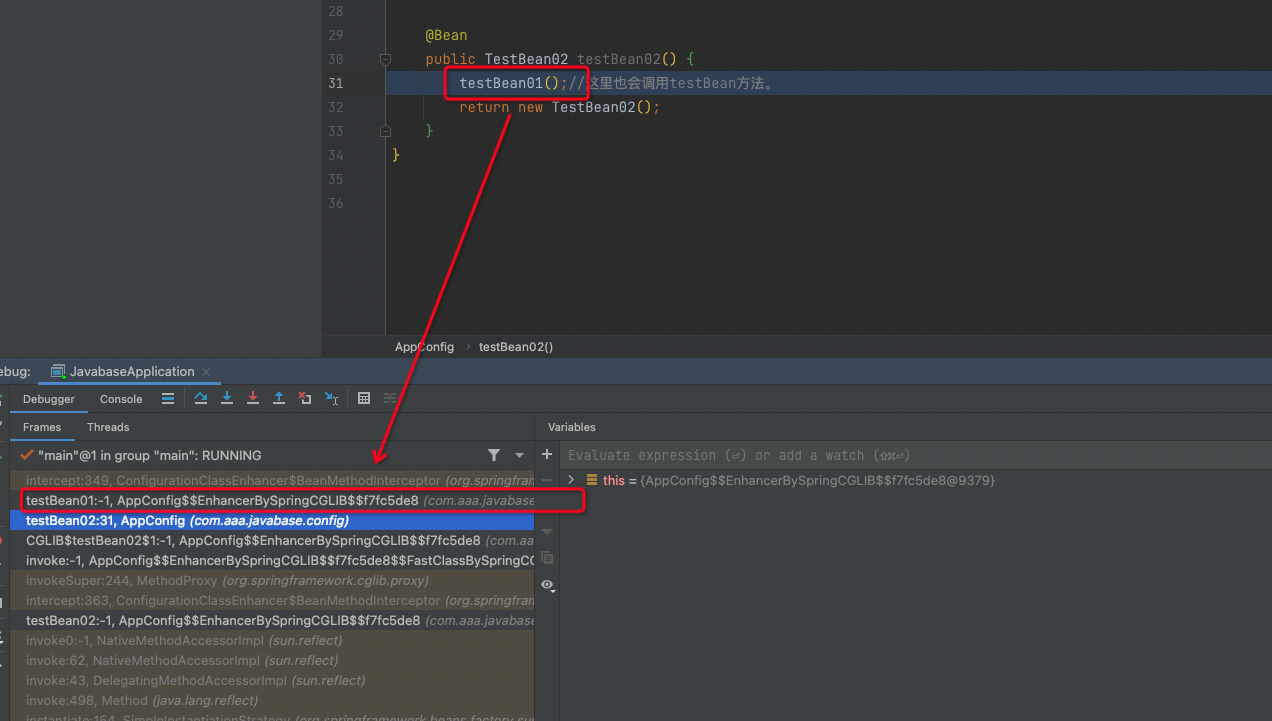

testBean02 实例化
org.springframework.context.annotation.ConfigurationClassEnhancer.BeanMethodInterceptor
private static class BeanMethodInterceptor implements MethodInterceptor, ConditionalCallback {
ConfigurableBeanFactory beanFactory = getBeanFactory(enhancedConfigInstance);
String beanName = BeanAnnotationHelper.determineBeanNameFor(beanMethod);
// Determine whether this bean is a scoped-proxy
if (BeanAnnotationHelper.isScopedProxy(beanMethod)) {
String scopedBeanName = ScopedProxyCreator.getTargetBeanName(beanName);
if (beanFactory.isCurrentlyInCreation(scopedBeanName)) {
beanName = scopedBeanName;
}
// To handle the case of an inter-bean method reference, we must explicitly check the
// container for already cached instances.
// First, check to see if the requested bean is a FactoryBean. If so, create a subclass
// proxy that intercepts calls to getObject() and returns any cached bean instance.
// This ensures that the semantics of calling a FactoryBean from within @Bean methods
// is the same as that of referring to a FactoryBean within XML. See SPR-6602.
if (factoryContainsBean(beanFactory, BeanFactory.FACTORY_BEAN_PREFIX + beanName) &&
factoryContainsBean(beanFactory, beanName)) {
Object factoryBean = beanFactory.getBean(BeanFactory.FACTORY_BEAN_PREFIX + beanName);
if (factoryBean instanceof ScopedProxyFactoryBean) {
// Scoped proxy factory beans are a special case and should not be further proxied
}
else {
// It is a candidate FactoryBean - go ahead with enhancement
return enhanceFactoryBean(factoryBean, beanMethod.getReturnType(), beanFactory, beanName);
}
}
/**
当前线程正在执行的方法是 testbean02()
此方法内部包含 testBean01() 调用，
此时当前线程正好执行testBean01()， 所以此时正在执行方法是testBean01()
*/
if (isCurrentlyInvokedFactoryMethod(beanMethod)) {
// The factory is calling the bean method in order to instantiate and register the bean
// (i.e. via a getBean() call) -> invoke the super implementation of the method to actually
// create the bean instance.
if (logger.isInfoEnabled() &&
BeanFactoryPostProcessor.class.isAssignableFrom(beanMethod.getReturnType())) {
logger.info(String.format("@Bean method %s.%s is non-static and returns an object " +
"assignable to Spring's BeanFactoryPostProcessor interface. This will " +
"result in a failure to process annotations such as @Autowired, " +
"@Resource and @PostConstruct within the method's declaring " +
"@Configuration class. Add the 'static' modifier to this method to avoid " +
"these container lifecycle issues; see @Bean javadoc for complete details.",
beanMethod.getDeclaringClass().getSimpleName(), beanMethod.getName()));
}
return cglibMethodProxy.invokeSuper(enhancedConfigInstance, beanMethodArgs);
}
return resolveBeanReference(beanMethod, beanMethodArgs, beanFactory, beanName);
}
private Object resolveBeanReference(Method beanMethod, Object[] beanMethodArgs,
ConfigurableBeanFactory beanFactory, String beanName) {
// 这里看一下此时的beanName是否是 getSingleton 阶段的bean
// 这里执行的是testBean02里面的调用的testBean01，显然不是
boolean alreadyInCreation = beanFactory.isCurrentlyInCreation(beanName);
try {
if (alreadyInCreation) {
beanFactory.setCurrentlyInCreation(beanName, false);
}
// 解析出@bean方法的构造参数
boolean useArgs = !ObjectUtils.isEmpty(beanMethodArgs);
if (useArgs && beanFactory.isSingleton(beanName)) {
// Stubbed null arguments just for reference purposes,
// expecting them to be autowired for regular singleton references?
// A safe assumption since @Bean singleton arguments cannot be optional...
for (Object arg : beanMethodArgs) {
if (arg == null) {
useArgs = false;
break;
}
}
}
// 这里经过测试，无论@bean方法是否有入参，都可以根据beanName 查到 beanInstance
// 这里返回的是testBean01的实例
Object beanInstance = (useArgs ? beanFactory.getBean(beanName, beanMethodArgs) :
beanFactory.getBean(beanName));
if (!ClassUtils.isAssignableValue(beanMethod.getReturnType(), beanInstance)) {
// Detect package-protected NullBean instance through equals(null) check
if (beanInstance.equals(null)) {
if (logger.isDebugEnabled()) {
logger.debug(String.format("@Bean method %s.%s called as bean reference " +
"for type [%s] returned null bean; resolving to null value.",
beanMethod.getDeclaringClass().getSimpleName(), beanMethod.getName(),
beanMethod.getReturnType().getName()));
}
beanInstance = null;
}
else {
String msg = String.format("@Bean method %s.%s called as bean reference " +
"for type [%s] but overridden by non-compatible bean instance of type [%s].",
beanMethod.getDeclaringClass().getSimpleName(), beanMethod.getName(),
beanMethod.getReturnType().getName(), beanInstance.getClass().getName());
try {
BeanDefinition beanDefinition = beanFactory.getMergedBeanDefinition(beanName);
msg += " Overriding bean of same name declared in: " + beanDefinition.getResourceDescription();
}
catch (NoSuchBeanDefinitionException ex) {
// Ignore - simply no detailed message then.
}
throw new IllegalStateException(msg);
}
}
// 从Threadlocal中拿到当前正在执行的顶级堆栈方法也就是 testBean02
Method currentlyInvoked = SimpleInstantiationStrategy.getCurrentlyInvokedFactoryMethod();
if (currentlyInvoked != null) {
// 从方法中解析出当前beanName=testBean02
String outerBeanName = BeanAnnotationHelper.determineBeanNameFor(currentlyInvoked);
// 写入当前bean的依赖关系
// beanName =testBean01，outerBeanName =testBean02：
beanFactory.registerDependentBean(beanName, outerBeanName);
}
// 返回testbean01
return beanInstance;
}
finally {
if (alreadyInCreation) {
beanFactory.setCurrentlyInCreation(beanName, true);
}
}
}
}
当前调用的工厂方法是testbean02，而当前执行的方法是 testbean01，
做了一层判断：如果当前执行带@Bean方法方法不是当前调用的带@Bean方法，那么不再执行。
SimpleInstantiationStrategy.getCurrentlyInvokedFactoryMethod();
这里取得是Threadlocal里面的内容对齐前面【testBean01 实例化】的过程中set的当前执行的带@Bean方法
结论
- 表明当前类是一个配置类，是方法bean的源
- 将@Configuration配置的AppConfig的beanDefinitioin属性赋值为full类型的，保证AppConfig类型 可以转变为cglib类型
- 将@Configuration配置的AppConfig由普通类型转变为cglib代理类型，后会生成cglib代理对象，通 过代理对象的方法拦截器,
可以解决AppConfig内部方法bean之间发生依赖调用的时候从容器中去获取，避免了多例的出现
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
