Gradle 源码分析

这是一篇Gradle 进阶文章，我假设你已经会 gradle task，自定义plugin 开发。我会带你从源码分析Gradle的整体过程。建议你参照文章 反复阅读源码。文章是基于Gradle 6.7版本

一、 启动Gradle

在构建一个任务的时候，经常是通过这个命令 ./gradlew assembleDebug （AS 的按键 打包，也是通过gradlew 命令完成的），先来看下这个脚本最后执行的命令：

# eval 会先把其中的变量进行解析
# set -- 设置到参数中 ，可通过 $@ 来获取到
eval set -- $DEFAULT_JVM_OPTS $JAVA_OPTS $GRADLE_OPTS "\"-Dorg.gradle.appname=$APP_BASE_NAME\"" -classpath "\"$CLASSPATH\"" org.gradle.wrapper.GradleWrapperMain "$APP_ARGS"

# 执行命令，$JAVACMD 根据本地的java环境变量 来得到该值
exec "$JAVACMD" "$@"

命令内容如下：

java -Xdock:name=Gradle -Xdock:icon=/Users/android/media/gradle.icns -Dorg.gradle.appname=gradlew -classpath /Users/android/gradle/wrapper/gradle-wrapper.jar org.gradle.wrapper.GradleWrapperMain :app:assembleUatDebug

最终是执行了gradle-wrapper.jar 的GradleWrapperMain 类，它主要有两个功能：

1. 下载指定版本的Gradle
2. 启动Gradle流程

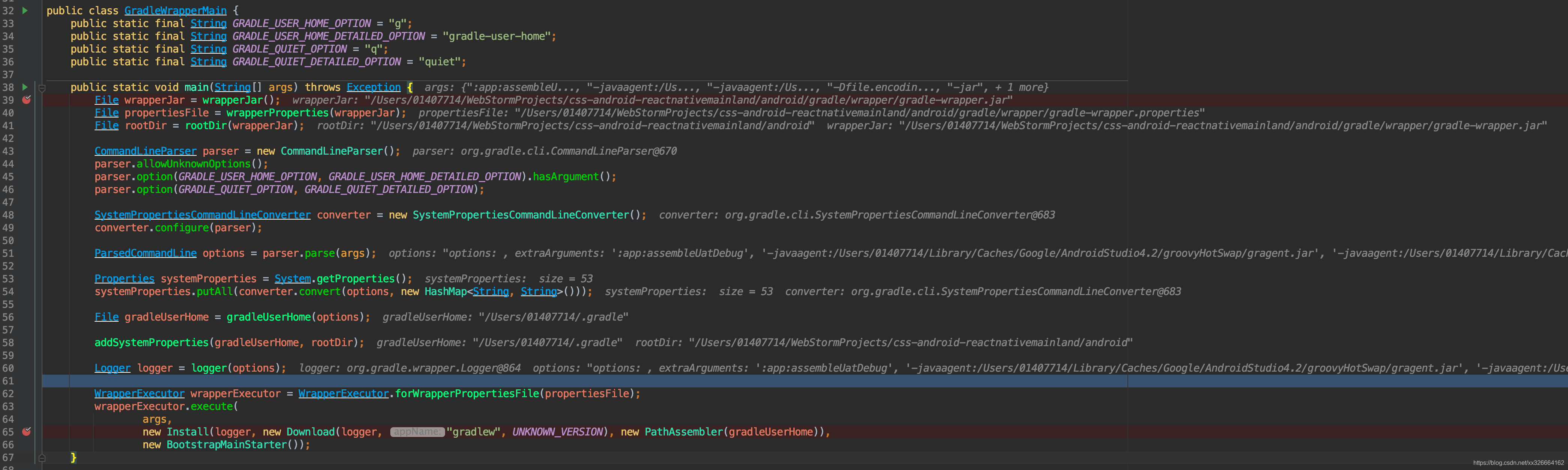

下图是GradleWrapperMain的main函数的断点截图：

• 获取 gradle-wrapper.properties文件的路径 ，在 WrapperExecutor.forWrapperPropertiesFile 解析出gradle-wrapper.properties的信息

• 获取gradleUserHome 的路径，可通过命令行指定，默认是系统当前用户目录下的.gradle

下载指定版本的Gradle

1、从gradle-wrapper.properties 获取下载Gradle的URL

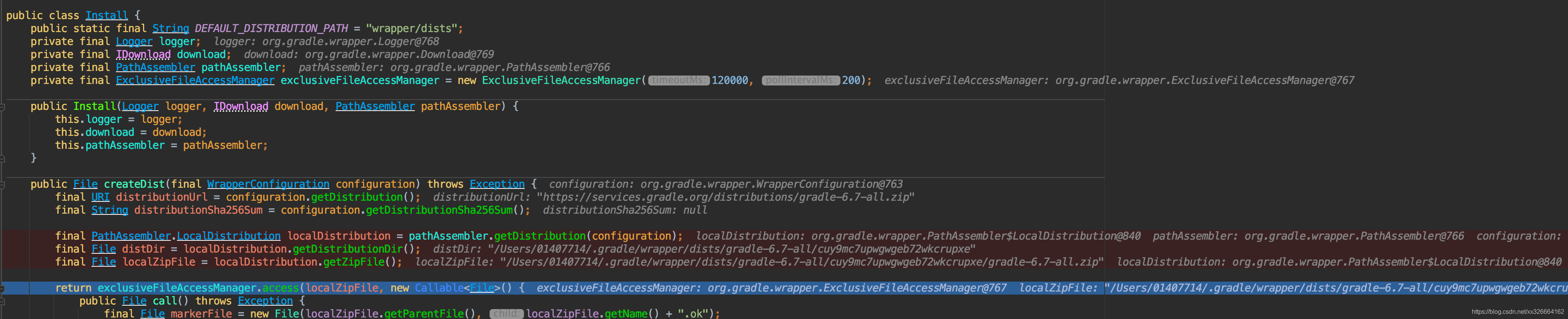

2、获取存储路径

• distDir -> /Users/01407714/.gradle/wrapper/dists/gradle-6.7-all/cuy9mc7upwgwgeb72wkcrupxe
• localZipFile -> /Users/01407714/.gradle/wrapper/dists/gradle-6.7-all/cuy9mc7upwgwgeb72wkcrupxe/gradle-6.7-all.zip

wrapper/dists -> 在 gradle-wrapper.properties中进行配置
gradle-6.7-all 下载文件名
cuy9mc7upwgwgeb72wkcrupxe -> Url 变换后的md5值

如果没有下载过，会下载，到上述文件夹的 临时文件 gradle-6.7-all.zip.part

启动Gradle流程

DefaultBuildOperationExecutor $run (RunnableBuildOperation 或者 CallableBuildOperation)
DefaultBuildOperationRunner run ->execute -> 最终执行上面这两个参数的run

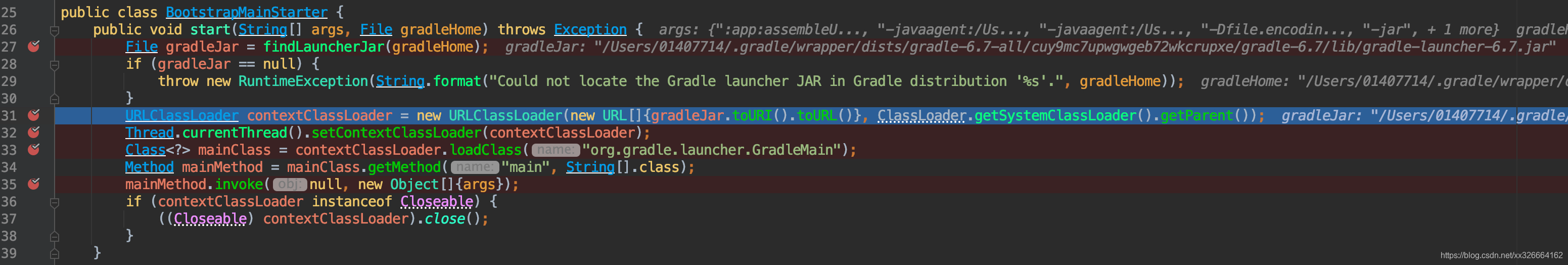

BootstrapMainStarter的start 函数

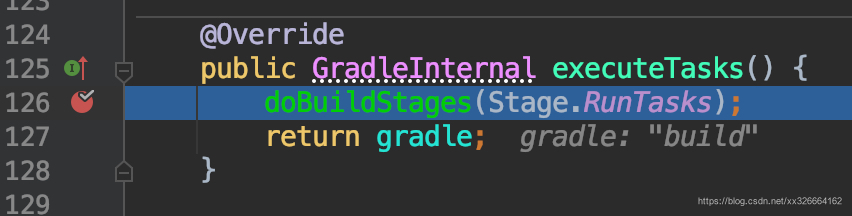

执行到 org.gradle.launcher.GradleMain 会执行到 DefaultGradleLauncher 类的executeTasks函数，Gradle 整体的五个大生命周期，都是从这里开始的，

下面就从这里开始分析

二、 Gradle 的五大流程

以下五大点都是从 org/gradle/initialization/DefaultGradleLauncher.java 类作为起点来分析

2.1 LoadSettings

    private void prepareSettings() {
        if (stage == null) {
            buildListener.buildStarted(gradle);

            settingsPreparer.prepareSettings(gradle);

            stage = Stage.LoadSettings;
        }
    }

主要任务：
1、生命周期接口回调 buildListener.buildStarted(gradle);
2、 执行init.gradle
3、查找setting.gradle 文件位置
4、解析gradle.properties
5、解析setting.gradle文件
6、创建 projectState，用于下一阶段创建Project

2.1.1 、生命周期接口回调

buildListener.buildStarted(gradle);

这个生命周期回调时期很早，所以在dsl 或自定义的plugin、task中都不会被调用，它是gradle内部使用的

2.1.2 、执行init.gradle

调用链

 -> BuildOperationFiringSettingPreparer.prepareSettings
 -> LoadBuild.run
 -> DefaultSettingPreparer.preparerSetting
 -> InitScriptHandler.executeScripts   从参数从获取到脚本名，并读取出文件
 -> DefaultInitScriptProcessor.process 执行脚本

2.1.3 、查找setting.gradle 文件位置

调用链

BuildOperationFiringSettingPreparer.prepareSettings
 -> LoadBuild.run
 -> DefaultSettingPreparer.preparerSetting
 -> CompositeBuildSettingsLoader.findAndLoadSettings
 -> ChildBuildRegisteringSettingsLoader.findAndLoadSettings
 -> CommandLineIncludedBuildSettingsLoader.findAndLoadSettings
 -> SettingsAttachingSettingsLoader.findAndLoadSettings
-> DefaultSettingsLoader.findAndLoadSettings
-> SettingsLocation settingsLocation = buildLayoutFactory.getLayoutFor(new BuildLayoutConfiguration(startParameter));

查找顺序：
1、启动参数中查找是否指定了setting 文件
2、当前目录下查找
3、当前目录的master 下查找
4、往上一层的目录下查找
5、往上一层的目录master下查找

2.1.4 、解析gradle.properties

调用链，接上一小节

-> DefaultSettingsLoader.findAndLoadSettings
-> loadGradlePropertiesFrom
-> DefaultGradlePropertiesController.loadGradlePropertiesFrom
-> NotLoaded.loadGradlePropertiesFrom
-> DefaultGradlePropertiesLoader.loadGradleProperties -> loadProperties

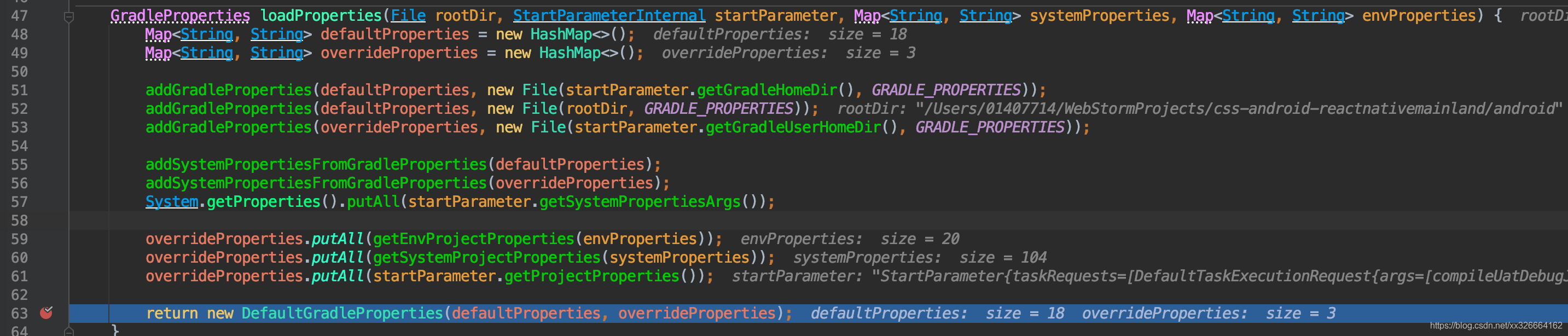

解析gradle.properties 中的值，已map形式保存，赋值给DefaultGradleProperties ,它作为变量，被引用的链路

ScriptEvaluatingSettingProcessor-> DefaultGradlePropertiesController ->State -> DefaultGradleProperties

BuildOperationSettingsProcessor 的代理会引用到ScriptEvaluatingSettingProcessor，下一小节的调用链，可以看到

2.1.5 、解析setting.gradle

调用链，接上一小节

-> DefaultSettingsLoader.findAndLoadSettings
-> SettingsInternal settings = findSettingsAndLoadIfAppropriate(gradle, startParameter, settingsLocation, gradle.getClassLoaderScope());
-> BuildOperationSettingsProcessor.process
->  RootBuildCacheControllerSettingProcessor.process
-> SettingEvaluatedCallbackFiringSettingProcessor.process
-> ScriptEvaluatingSettingProcessor. applySettingsScript   解析出setting.gradle文件,通过ScriptPluginFactorySelector 创建BuildOperationScriptPlugin
->BuildOperationScriptPlugin.apply  编译脚本并执行

    @Override
    public SettingsInternal process(GradleInternal gradle,
                                    SettingsLocation settingsLocation,
                                    ClassLoaderScope baseClassLoaderScope,
                                    StartParameter startParameter) {
        Timer settingsProcessingClock = Time.startTimer();
        Map<String, String> properties = gradleProperties.mergeProperties(emptyMap());
        TextResourceScriptSource settingsScript = new TextResourceScriptSource(textFileResourceLoader.loadFile("settings file", settingsLocation.getSettingsFile()));
        //setting.gradle 文件的信息 保存在SettingsInternal对象，其中包含了gradle.properties的信息
        //此时，setting.gradle的内容还没被的处理
        SettingsInternal settings = settingsFactory.createSettings(gradle, settingsLocation.getSettingsDir(), settingsScript, properties, startParameter, baseClassLoaderScope);

        gradle.getBuildListenerBroadcaster().beforeSettings(settings);
        applySettingsScript(settingsScript, settings);
        LOGGER.debug("Timing: Processing settings took: {}", settingsProcessingClock.getElapsed());
        return settings;
    }

    private void applySettingsScript(TextResourceScriptSource settingsScript, final SettingsInternal settings) {
        ScriptPlugin configurer = configurerFactory.create(settingsScript, settings.getBuildscript(), settings.getClassLoaderScope(), settings.getBaseClassLoaderScope(), true);
        //在这里编译执行脚本，这个函数在后面处理build.gradle 的时候还会遇到，在那里进行分析
        configurer.apply(settings);
    }

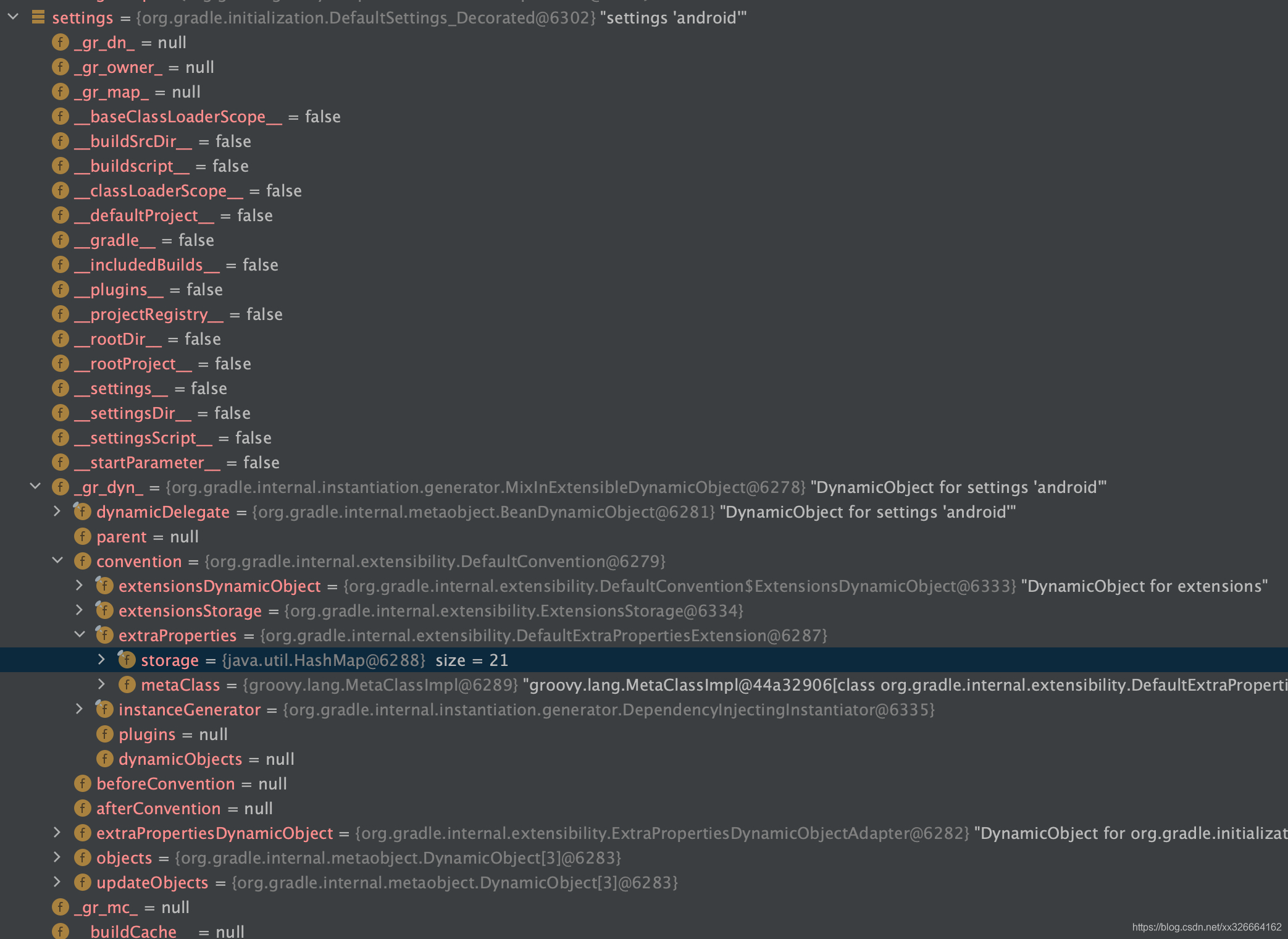

gradle.properties的信息 保存在settings的如下storage位置：

执行完后，会继续执行DefaultSettingsLoader.findAndLoadSettings 的后续代码setDefaultProject(spec, settings); 设置默认Project，它是根据启动Gradle的命令中指定的 项目路径，来决定哪个module 被设置为默认的

2.1.6 、创建 projectState，用于下一阶段创建Project

根据setting.gradle其中的内容添加project

调用链

BuildOperationFiringSettingPreparer.prepareSettings
 -> LoadBuild.run
 -> DefaultSettingPreparer.preparerSetting
 -> CompositeBuildSettingsLoader.findAndLoadSettings
 -> ChildBuildRegisteringSettingsLoader.findAndLoadSettings
 -> CommandLineIncludedBuildSettingsLoader.findAndLoadSettings
 -> SettingsAttachingSettingsLoader.findAndLoadSettings
-> DefaultProjectStateRegistry.registerProjects(gradle.getServices().get(BuildState.class));  到这里settings 已经解析出，工程的项目，项目名称，项目路径等等
-> addProject

一个DefaultProjectDescriptor descriptor ，代表一个module，循环调用addProject ，把这些module，按照path，id，comId，多维度保存起来

    private void addProject(BuildState owner, DefaultProjectDescriptor descriptor) {
        Path projectPath = descriptor.path();
        Path identityPath = owner.getIdentityPathForProject(projectPath);
        ProjectComponentIdentifier projectIdentifier = owner.getIdentifierForProject(projectPath);
        ProjectStateImpl projectState = new ProjectStateImpl(owner, identityPath, projectPath, descriptor.getName(), projectIdentifier);
        projectsByPath.put(identityPath, projectState);
        projectsById.put(projectIdentifier, projectState);
        projectsByCompId.put(Pair.of(owner.getBuildIdentifier(), projectPath), projectState);
    }

2.2、Configure

在网上你肯定看到过，Gradle 分为配置阶段和执行阶段，配置阶段指的就是Configure

    private void prepareProjects() {
        if (stage == Stage.LoadSettings) {
            projectsPreparer.prepareProjects(gradle);
            stage = Stage.Configure;
        }
    }

主要任务：
1、为每个module 创建Project
2、Evaluate
3、处理build.gradle
4、apply Plugin

2.2.1 为每个module 创建Project

注意，这里的Project 和AS 中的Project 不是一个概念

调用链：

BuildOperationFiringProjectsPreparer.prepareProjects
-> ConfigureBuild.run
->BuildTreePreparingProjectsPreparer.prepareProjects ->buildLoader.load(gradle.getSettings(), gradle)
-> NotifyingBuildLoader.load
->  ProjectPropertySettingBuildLoader.load
-> InstantiatingBuildLoader.load -> createProject
     -> ProjectFactory.createProject (根据2.1.5 的ProjectState 来创建)
->attachDefaultProject

下面来看一下，ProjectFactory.createProject 的函数

    private void createProjects(GradleInternal gradle, ProjectDescriptor rootProjectDescriptor) {
        ClassLoaderScope baseProjectClassLoaderScope = gradle.baseProjectClassLoaderScope();
        ClassLoaderScope rootProjectClassLoaderScope = baseProjectClassLoaderScope.createChild("root-project");
        //在这里创建Project，这个project 对应的build.gradle 是根路径的
        ProjectInternal rootProject = projectFactory.createProject(gradle, rootProjectDescriptor, null, rootProjectClassLoaderScope, baseProjectClassLoaderScope);
        //设置根project，
        gradle.setRootProject(rootProject);
         //递归创建，子project
        createChildProjectsRecursively(gradle, rootProject, rootProjectDescriptor, rootProjectClassLoaderScope, baseProjectClassLoaderScope);
    }

    private void createChildProjectsRecursively(GradleInternal gradle, ProjectInternal parentProject, ProjectDescriptor parentProjectDescriptor, ClassLoaderScope parentProjectClassLoaderScope, ClassLoaderScope baseProjectClassLoaderScope) {
        //循环创建Project ，他们是在setting.gradle中声明的module。
        for (ProjectDescriptor childProjectDescriptor : parentProjectDescriptor.getChildren()) {
            ClassLoaderScope childProjectClassLoaderScope = parentProjectClassLoaderScope.createChild("project-" + childProjectDescriptor.getName());
            ProjectInternal childProject = projectFactory.createProject(gradle, childProjectDescriptor, parentProject, childProjectClassLoaderScope, baseProjectClassLoaderScope);

            createChildProjectsRecursively(gradle, childProject, childProjectDescriptor, childProjectClassLoaderScope, baseProjectClassLoaderScope);
        }
    }

下面是创建Project 的代码

    @Override
    public ProjectInternal createProject(GradleInternal gradle, ProjectDescriptor projectDescriptor, @Nullable ProjectInternal parent, ClassLoaderScope selfClassLoaderScope, ClassLoaderScope baseClassLoaderScope) {
        Path projectPath = ((DefaultProjectDescriptor) projectDescriptor).path();
        ProjectState projectContainer = projectStateRegistry.stateFor(owner.getBuildIdentifier(), projectPath);
        //根路径的build.gradle 或是module 下的build.gradle
        File buildFile = projectDescriptor.getBuildFile();
        TextResource resource = textFileResourceLoader.loadFile("build file", buildFile);
        ScriptSource source = new TextResourceScriptSource(resource);
        //创建project，你会看到很多地方都是使用instantiator.newInstance 来创建一个对象
        DefaultProject project = instantiator.newInstance(DefaultProject.class,
            projectDescriptor.getName(),
            parent,
            projectDescriptor.getProjectDir(),
            buildFile,
            source,
            gradle,
            projectContainer,
            gradle.getServiceRegistryFactory(),
            selfClassLoaderScope,
            baseClassLoaderScope
        );
        //评估前，需要执行的代码，下一小节会介绍评估的流程
        project.beforeEvaluate(p -> NameValidator.validate(project.getName(), "project name", DefaultProjectDescriptor.INVALID_NAME_IN_INCLUDE_HINT));

        if (parent != null) {
            parent.addChildProject(project);
        }
        //所有的project 都会被添加到projectRegistry
        projectRegistry.addProject(project);
        projectContainer.attachMutableModel(project);
        return project;
    }

在2.1.5中只是确定了哪个module是默认的，但是它对应的Project 还没有，这里创建Project后，接着会调用InstantiatingBuildLoader.load ->attachDefaultProject 把它加入到GradleInternal中的默认Project中

2.2.2 Evaluate

调用链：

-> DefaultProjectsPreparer.prepareProjects    通过GradleInternal 获取到ProjectInternal
-> TaskPathProjectEvaluator. configureHierarchy    遍历ProjectInternal 中的每个project，解析其中的build.gradle
-> DefaultProject.evaluate.    获取evaluator 默认是LifecycleProjectEvaluator
-> LifecycleProjectEvaluator.evaluate   org/gradle/configuration/project/LifecycleProjectEvaluator.java
-> EvaluateProject.run
-> ConfigureActionsProjectEvaluator.evaluate

EvaluateProject的run函数

        @Override
        public void run(final BuildOperationContext context) {
            project.getMutationState().applyToMutableState(p -> {
                // Note: beforeEvaluate and afterEvaluate ops do not throw, instead mark state as failed
                try {
                    //设置状态
                    state.toBeforeEvaluate();
                    //业务逻辑在NotifyBeforeEvaluate，执行project 的BeforeEvaluate中的代码
                    buildOperationExecutor.run(new NotifyBeforeEvaluate(project, state));

                    if (!state.hasFailure()) {
                        state.toEvaluate();
                        try {
                            //执行到 ConfigureActionsProjectEvaluator.evaluate
                            delegate.evaluate(project, state);
                        } catch (Exception e) {
                            addConfigurationFailure(project, state, e, context);
                        } finally {
                            state.toAfterEvaluate();
                            //业务逻辑在NotifyAfterEvaluate，执行project 的AfterEvaluate中的代码
                            buildOperationExecutor.run(new NotifyAfterEvaluate(project, state));
                        }
                    }

                    if (state.hasFailure()) {
                        state.rethrowFailure();
                    } else {
                        context.setResult(ConfigureProjectBuildOperationType.RESULT);
                    }
                } finally {
                    state.configured();
                }
            });
        }

ConfigureActionsProjectEvaluator.evaluate 中有3次循环，分别调用如下函数

-> ConfigureActionsProjectEvaluator.evaluate
  ->PluginsProjectConfigureActions.execute 第一次循环
    最终会应用这两插件
     ->project.getPluginManager().apply("org.gradle.help-tasks");
     -> project.getPluginManager().apply("org.gradle.build-init");
  ->BuildScriptPeocessor.execute 第二次循环
    -> BuildOperationScriptPlugin.apply    编译脚本并执行，这个在下一小节分析

  ->DelayedConfigurationActions.execute 第三次循环

2.2.3 处理build.gradle

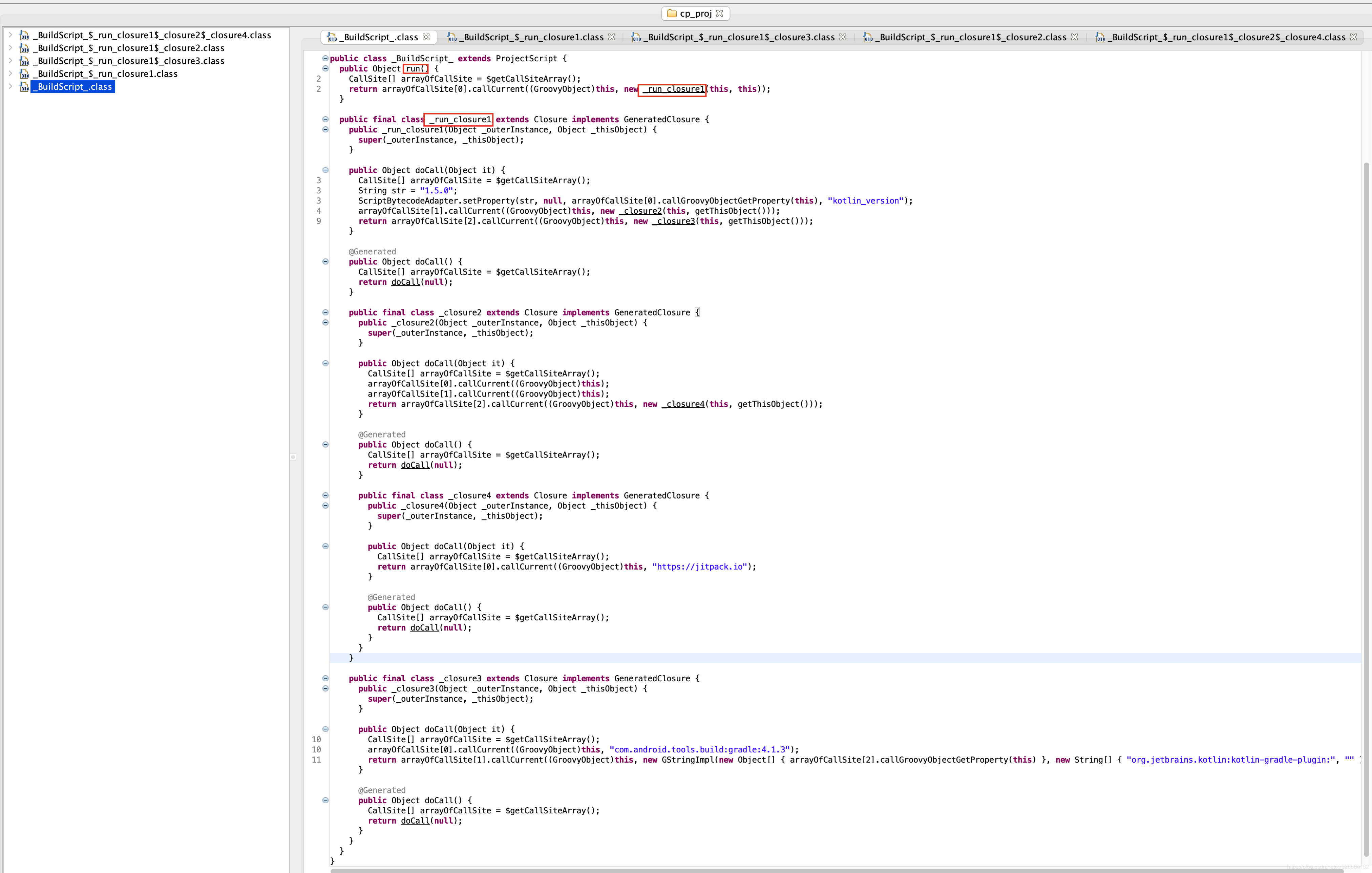

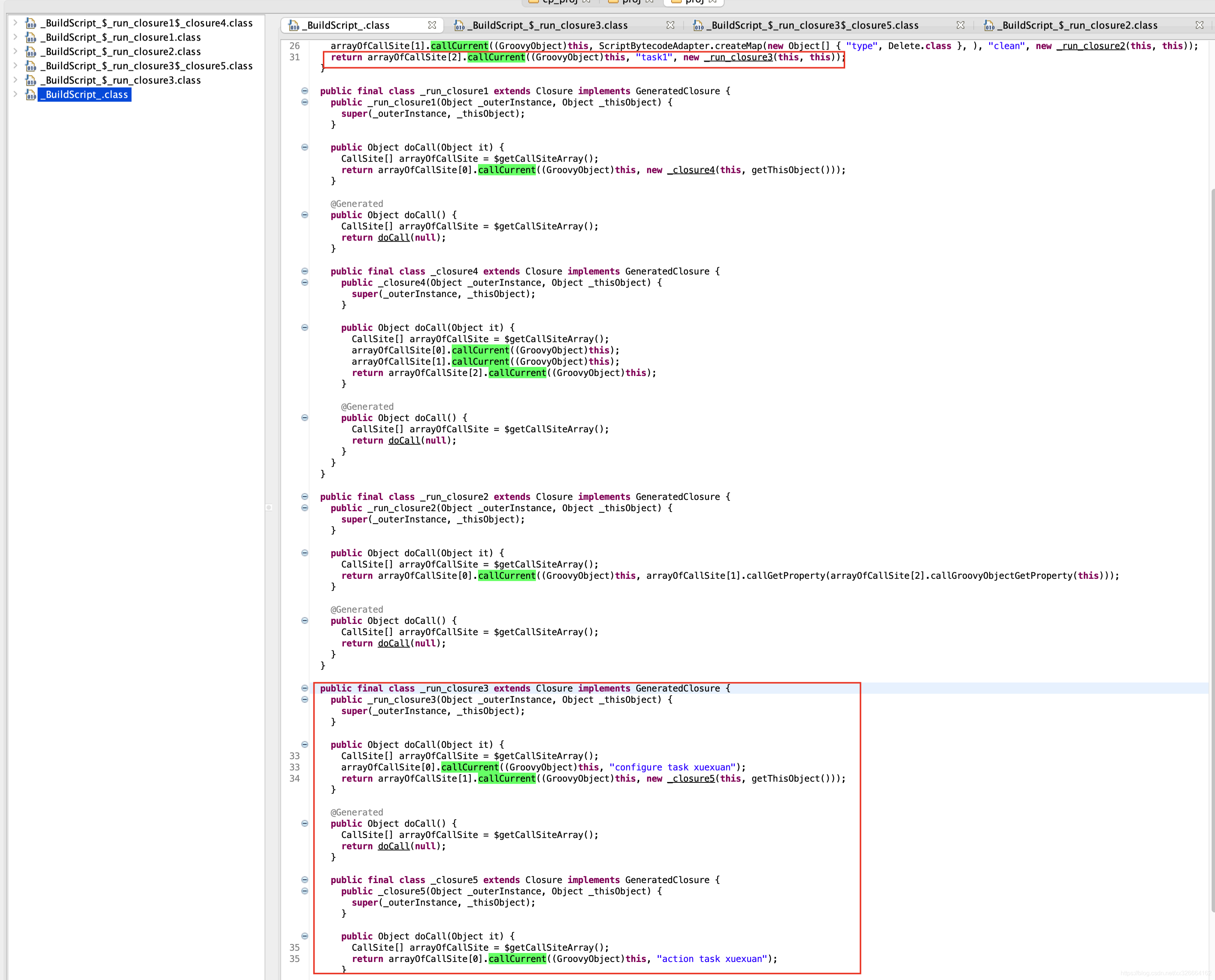

借助这个流程来分析一下，源码中编译脚本和运行的逻辑，还记得上面setting.gradle 文件吗？最后也要经过这个处理

 -> BuildOperationScriptPlugin.apply
->DefaultScriptPluginFactory$ScriptPluginImpl.apply   首先 编译运行buildscript{}，在编译运行其他部分
->DefaultScriptCompilerFactory.compile
->BuildScopeInMemoryCachingScriptClassCompiler.compile  在cachedCompiledScripts缓存中查找，如果找到，就直接返回了
->CrossBuildInMemoryCachingScriptClassCache.compile     根据内容生成缓存key，
->FileCacheBackedScriptClassCompiler.compile   根据脚本内容hash，classLoader hash 、dslId  ，这三个参数生成文件夹名，例如 gjs5brs4utyodezxmxs4ugji，存储编译后的文件，锁文件等

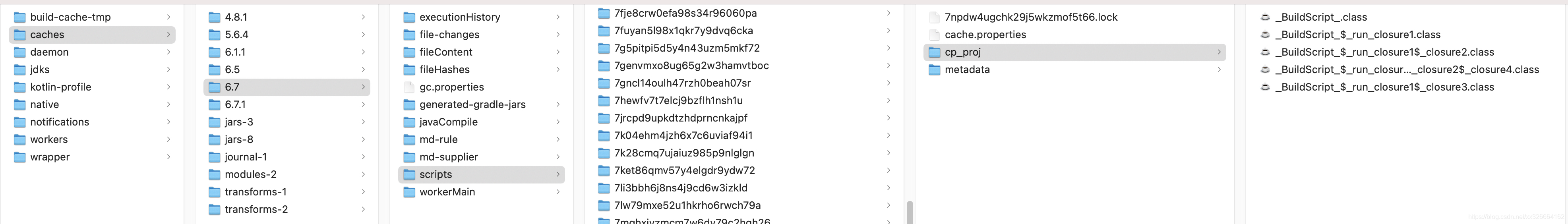

->DefaultCacheRepository.open  获取缓存路径 例如  .gradle/caches/6.7/scripts/gjs5brs4utyodezxmxs4ugji
->DefaultCacheFactory.open.doOpen
->DefaultPeristenDirectoryStore.open
->DefaultCacheAccess.open
->FixedSharedModeCrossProcessCacheAccess -> open  这里根据锁文件，来判断是否需要编译

->DefaultPeristenDirectoryCache.initialize
->FileCacheBackedScriptClassCompiler.execute  在缓存路径下，创建classesDir、metadataDir两个文件夹
->CompileToCrossBuildCacheAction.execute
->BuildOperationBackedScriptCompilationHandler.compileToDir
->DefaultScriptCompilationHandler.compileToDir
   compileScript   参数：待编译资源，classLoader，配置参数，metadataDir，dsl的其他参数（例如：路径、所属项目、类型、id等等）
->GroovyClassLoader.doParseClass  执行编译

编译完后，会在，每个闭包是一个类，紧接着会执行，该阶段不会执行action

        @Override
        public void apply(final Object target) {
            DefaultServiceRegistry services = new DefaultServiceRegistry(scriptServices);
            services.add(ScriptPluginFactory.class, scriptPluginFactory);
            services.add(ClassLoaderScope.class, baseScope);
            services.add(LoggingManagerInternal.class, loggingFactoryManager.create());
            services.add(ScriptHandler.class, scriptHandler);

            final ScriptTarget initialPassScriptTarget = initialPassTarget(target);

            ScriptCompiler compiler = scriptCompilerFactory.createCompiler(scriptSource);

            // Pass 1, extract plugin requests and plugin repositories and execute buildscript {}, ignoring (i.e. not even compiling) anything else
            CompileOperation<?> initialOperation = compileOperationFactory.getPluginsBlockCompileOperation(initialPassScriptTarget);
            Class<? extends BasicScript> scriptType = initialPassScriptTarget.getScriptClass();

            ScriptRunner<? extends BasicScript, ?> initialRunner = compiler.compile(scriptType, initialOperation, baseScope, Actions.doNothing());
            //执行编译后的class文件 的run函数
            initialRunner.run(target, services);
            //获取需要初始化的插件，例如这种引用 plugins { id 'com.android.application'}
            PluginRequests initialPluginRequests = getInitialPluginRequests(initialRunner);
            PluginRequests mergedPluginRequests = autoAppliedPluginHandler.mergeWithAutoAppliedPlugins(initialPluginRequests, target);

            PluginManagerInternal pluginManager = topLevelScript ? initialPassScriptTarget.getPluginManager() : null;
            //调用插件的apply函数，下一小节会分析
            pluginRequestApplicator.applyPlugins(mergedPluginRequests, scriptHandler, pluginManager, targetScope);

            // Pass 2, compile everything except buildscript {}, pluginManagement{}, and plugin requests, then run
            final ScriptTarget scriptTarget = secondPassTarget(target);
            scriptType = scriptTarget.getScriptClass();

            CompileOperation<BuildScriptData> operation = compileOperationFactory.getScriptCompileOperation(scriptSource, scriptTarget);

            final ScriptRunner<? extends BasicScript, BuildScriptData> runner = compiler.compile(scriptType, operation, targetScope, ClosureCreationInterceptingVerifier.INSTANCE);
            if (scriptTarget.getSupportsMethodInheritance() && runner.getHasMethods()) {
                scriptTarget.attachScript(runner.getScript());
            }
            if (!runner.getRunDoesSomething()) {
                return;
            }
             //执行编译后的class文件 的run函数
            Runnable buildScriptRunner = () -> runner.run(target, services);

            boolean hasImperativeStatements = runner.getData().getHasImperativeStatements();

            scriptTarget.addConfiguration(buildScriptRunner, !hasImperativeStatements);
        }

来看一下，根目录下的build.gradle 的编译结果，buildscript 和其他dsl脚本 ，编译后的缓存位置，是不一样的

build.gradle 内容：

// Top-level build file where you can add configuration options common to all sub-projects/modules.
buildscript {
    ext.kotlin_version = "1.5.0"
    repositories {
        google()
        mavenCentral()
        maven { url 'https://jitpack.io' }
    }
    dependencies {
        classpath "com.android.tools.build:gradle:4.1.3"
        classpath "org.jetbrains.kotlin:kotlin-gradle-plugin:$kotlin_version"

        // NOTE: Do not place your application dependencies here; they belong
        // in the individual module build.gradle files
    }
}

allprojects {
    repositories {
        google()
        mavenCentral()
        jcenter() // Warning: this repository is going to shut down soon
    }
}

task clean(type: Delete) {
    delete rootProject.buildDir
}


task task1 {

    println('configure task xuexuan')
    doLast {
        println('action task xuexuan')
    }
}

buildscript 编译后的缓存路径：

buildscript 编译后的class，每个 build.gradle 脚本和其中的 buildscript，对应一个继承了 ProjectScript 的类。每个闭包，对应一个继承自 Closure 的类

build.gradle 编译后的缓存路径：

build.gradle 编译后的class

这里执行了 task1，但是没有执行其中的action（doLast），action在RunTasks 阶段执行

2.2.4 apply 流程

你肯定在build.gradle中看到这样的代码 apply ‘com.android.application’，下面来分析一下它的流程，对你分析Android Gradle Plugin 有帮助。他是在build.gradle 编译后，run 后执行的

ProjectScript.apply    build.gradle 被编译后，会生成一个继承了ProjectScript的类，执行其中的apply 函数就到这里了
-> AbstractPluginAware.apply
-> DefaultObjectConfigurationAction.execute ->
-> DefaultPluginManager.apply (通过plugin id 在DefaultPluginRegistry中的 idMappings 变量中，找到对应的PluginImplementation对象)
-> AddPluginBuildOperation (构造 中传入plugin的信息)
-> 对应plugin的 apply函数，会再次调用到 AbstractPluginAware.apply

-> 添加任务 到 taskcontainer,在 计算TaskGraph的时候，从这里取出任务

当前的this对象是project，例如：project: app

也可以这样引入gradle 插件

plugins {
    id 'com.android.application'
    id 'kotlin-android'
}

这种是在编译运行buildscript{} ，后执行的

接上一小节的流程

-> DefaultScriptPluginFactory.apply
-> DefaultPluginRequestApplicator.applyPlugins
-> DefaultPluginManager.apply -> doApply
-> AddPluginBuildOperation.run
-> DefaultPluginManager.addPlugin
->RuleBasePluginTarget.applyImperative
-> ImperativeOnlyPluginTarget.applyImperative
-> AppPlugin.apply
-> AbstractPluginAware.apply

三、TaskGraph

主要工作：

1、记录需要排除的task
2、添加默认的task，可选的
3、根据传入的task名称，计算依赖关系
3、 记录计算taskGraph的入口Task
4、 计算依赖关系

代码调用链：

DefaultGradleLauncher.prepareTaskExecution
-> BuildOperationFiringTaskExecutionPreparer.prepareTaskExecution
-> CalculateTaskGraph.populateTaskGraph
->DefaultTaskExecutionPreparer.perpareForTaskExecution (计算task的依赖关系，最终可通过getTaskGraph 获取结果)


DefaultTaskExecutionPreparer.perpareForTaskExecution 会调用到如下代码

DefaultTaskExecutionPreparer

    private void configure(final List<BuildConfigurationAction> processingConfigurationActions, final GradleInternal gradle, final int index) {

         //本节中的三个工作，就是processingConfigurationActions 中三个变量来实现的。
        if (index >= processingConfigurationActions.size()) {
            return;
        }
        // 每个工作的入口，在configure
        processingConfigurationActions.get(index).configure(new BuildExecutionContext() {
            @Override
            public GradleInternal getGradle() {
                return gradle;
            }

            @Override
            public void proceed() {
                 //回调本函数，责任链模式
                configure(processingConfigurationActions, gradle, index + 1);
            }

        });
    }

3.1 记录需要排除的task

ExcludedTaskFilteringBuildConfigurationAction.configure

    public void configure(BuildExecutionContext context) {
        GradleInternal gradle = context.getGradle();
        //从启动命令中，获取需要排除的任务名称
        Set<String> excludedTaskNames = gradle.getStartParameter().getExcludedTaskNames();
        if (!excludedTaskNames.isEmpty()) {
            final Set<Spec<Task>> filters = new HashSet<Spec<Task>>();
            for (String taskName : excludedTaskNames) {
                filters.add(taskSelector.getFilter(taskName));
            }
            //加入到taskGraph
            gradle.getTaskGraph().useFilter(Specs.intersect(filters));
        }
        //执行下一个
        context.proceed();
    }

3.2 添加默认的task，可选的

DefaultTasksBuildExecutionAction.configure

    public void configure(BuildExecutionContext context) {
        StartParameter startParameter = context.getGradle().getStartParameter();

        //遍历参数中需要执行的命令，如果没有特殊指定，点击运行app，就只有assembleDebug
        for (TaskExecutionRequest request : startParameter.getTaskRequests()) {
            if (!request.getArgs().isEmpty()) {
                context.proceed();
                return;
            }
        }

        // Gather the default tasks from this first group project
        //在 2.2.1中添加的Default Project
        ProjectInternal project = context.getGradle().getDefaultProject();

        //so that we don't miss out default tasks
        projectConfigurer.configure(project);

        //获取默认task，通过 defaultTasks 指定的
        List<String> defaultTasks = project.getDefaultTasks();
        if (defaultTasks.size() == 0) {
             // 如果在build.gradle 也没有指定默认task，就添加该任务
            defaultTasks = Collections.singletonList(ProjectInternal.HELP_TASK);
            LOGGER.info("No tasks specified. Using default task {}", GUtil.toString(defaultTasks));
        } else {
            LOGGER.info("No tasks specified. Using project default tasks {}", GUtil.toString(defaultTasks));
        }

        startParameter.setTaskNames(defaultTasks);
        context.proceed();
    }

3.3 记录计算taskGraph的入口Task

TaskNameResolvingBuildConfigurationAction.configure

    @Override
    public void configure(BuildExecutionContext context) {
        GradleInternal gradle = context.getGradle();
        TaskExecutionGraphInternal taskGraph = gradle.getTaskGraph();

        List<TaskExecutionRequest> taskParameters = gradle.getStartParameter().getTaskRequests();
        for (TaskExecutionRequest taskParameter : taskParameters) {
            //找出task 对应的project
            List<TaskSelector.TaskSelection> taskSelections = commandLineTaskParser.parseTasks(taskParameter);
            //命令参数中，可能指定了多个Task
            for (TaskSelector.TaskSelection taskSelection : taskSelections) {
                LOGGER.info("Selected primary task '{}' from project {}", taskSelection.getTaskName(), taskSelection.getProjectPath());
                //加入taskGraph 入口，后续会计算依赖关系
                taskGraph.addEntryTasks(taskSelection.getTasks());
            }
        }

        context.proceed();
    }

3.4 计算依赖关系

这里的每个任务都是一个Node 类，单个任务 的前后依赖关系，保存在dependencyPredecessors、dependencySuccessors

DefaultGradleLauncher.prepareTaskExecution
-> BuildOperationFiringTaskExecutionPreparer.prepareTaskExecution
-> taskGraph.populate();
->DefaultTaskExecutionGraph.populated
-> DefaultTaskExecutionGraph.ensurePopulated
-> DefaultExecutionPlan.determineExecutionPlan   从EntryTasks 开始，取出它依赖的task 加入合适的位置，不断循环，直到task 没有依赖其他任务

最后在taskGraph中可以看到，allTask包含了所以到目标task，需要执行的task

四、 RunTasks

主要两个工作：

1、 --dry-run
2、执行action

从DefaultGradleLauncher 开始的调用链：

DefaultGradleLauncher.java -> runWork()
->  buildExecuter.execute
-> BuildOperationFiringBuildWorkerExecutor.execute -> ExecuteTask.run
-> DeprecateUndefindBuildWorkExecutor.execute
-> IncludeBuildLifecycleBuildWorkExecutor.execute
-> DefaultBuildWorkExecutor.execute  分别调用了DryRunBuildExecution 和  SelectedTaskExecutionAction

4.1 --dry-run

接上面的调用链

->DryRunBuildExecution.execute

    public void execute(BuildExecutionContext context, Collection<? super Throwable> taskFailures) {
        GradleInternal gradle = context.getGradle();
        if (gradle.getStartParameter().isDryRun()) {
            //如果是 dry run  只会打印task name ，不会真正去执行
            for (Task task : gradle.getTaskGraph().getAllTasks()) {
                textOutputFactory.create(DryRunBuildExecutionAction.class)
                    .append(((TaskInternal) task).getIdentityPath().getPath())
                    .append(" ")
                    .style(StyledTextOutput.Style.ProgressStatus)
                    .append("SKIPPED")
                    .println();
            }
        } else {
            context.proceed();
        }
    }

4.2 、执行action

接上面的调用链

->SelectedTaskExecutionAction.execute
-> DefaultTaskExecutionGraph.execute
->executeWithServices
->defaultPlanExecutor.process

创建 TaskExecutorWorker 去执行 task

    public void process(ExecutionPlan executionPlan, Collection<? super Throwable> failures, Action<Node> nodeExecutor) {
        ManagedExecutor executor = executorFactory.create("Execution worker for '" + executionPlan.getDisplayName() + "'");
        try {
            WorkerLease parentWorkerLease = workerLeaseService.getCurrentWorkerLease();
            //创建线程，去执行，默认4个线程
            startAdditionalWorkers(executionPlan, nodeExecutor, executor, parentWorkerLease);
            //在当前线程，也开启一个执行，
            new ExecutorWorker(executionPlan, nodeExecutor, parentWorkerLease, cancellationToken, coordinationService).run();
            awaitCompletion(executionPlan, failures);
        } finally {
            executor.stop();
        }
    }

ExecutorWorker 实现了run函数，其中调用到 BuildOperationAwareExecutionAction.execute，等待它返回后，执行下一个

->BuildOperationAwareExecutionAction.execute

任务执行前增加监听  taskListener.beforeExecute(task.getTaskIdentity());   taskExecutionListener.beforeExecute(task); ，相应的在执行后，也有两个回调
 EventFiringTaskExecuter.execute
CatchExceptionTaskExecuter.execute  用 try catch 包裹后续流程
SkipOnlyIfTaskExecuter.execute   可以在这里判断task 是否为想要执行的，通过setOnlyIf 来设置判断条件
SkipTaskWithNoActionsExecuter.execute  跳过没有action的task
ResolveTaskExecutionModeExecuter.execute  处理任务执行的模式，例：RERUN_TASKS_ENABLED 是否使用缓存的task结果，
FinalizePropertiesTaskExecuter.execute
CleanupStaleOutputsExecuter.execute 清除陈旧的输出文件
ExecuteActionsTaskExecuter.execute 真正执行task，

下面来看看，ExecuteActionsTaskExecuter.execute

    private void executeActions(TaskInternal task, @Nullable InputChangesInternal inputChanges) {
        boolean hasTaskListener = listenerManager.hasListeners(TaskActionListener.class) || listenerManager.hasListeners(TaskExecutionListener.class);
        Iterator<InputChangesAwareTaskAction> actions = new ArrayList<>(task.getTaskActions()).iterator();
        while (actions.hasNext()) {
            InputChangesAwareTaskAction action = actions.next();
            task.getState().setDidWork(true);
            task.getStandardOutputCapture().start();
            boolean hasMoreWork = hasTaskListener || actions.hasNext();
            try {
                //这里去执行task 中的action
                executeAction(action.getDisplayName(), task, action, inputChanges, hasMoreWork);
            } catch (StopActionException e) {
                // Ignore
                LOGGER.debug("Action stopped by some action with message: {}", e.getMessage());
            } catch (StopExecutionException e) {
                LOGGER.info("Execution stopped by some action with message: {}", e.getMessage());
                break;
            } finally {
                task.getStandardOutputCapture().stop();
            }
        }
    }


action实现了execute接口， 被TaskActionWrapper 包裹，添加到AbstractTask中。

五、Finished

最后，设置一下状态，对失败的结果进行异常抛出

    private void finishBuild(String action, @Nullable Throwable stageFailure) {
        if (stage == Stage.Finished) {
            return;
        }

        RuntimeException reportableFailure = stageFailure == null ? null : exceptionAnalyser.transform(stageFailure);
        BuildResult buildResult = new BuildResult(action, gradle, reportableFailure);
        List<Throwable> failures = new ArrayList<>();
        //对所有根构建的子版本，调用finishBuild，如果有错，加入到failures
        includedBuildControllers.finishBuild(failures);
        try {
            // 监听回调
            buildListener.buildFinished(buildResult);
            buildFinishedListener.buildFinished((GradleInternal) buildResult.getGradle());
        } catch (Throwable t) {
            failures.add(t);
        }
        //状态设置
        stage = Stage.Finished;

        //处理失败的
        if (failures.isEmpty() && reportableFailure != null) {
            throw reportableFailure;
        }
        if (!failures.isEmpty()) {
            if (stageFailure instanceof MultipleBuildFailures) {
                failures.addAll(0, ((MultipleBuildFailures) stageFailure).getCauses());
            } else if (stageFailure != null) {
                failures.add(0, stageFailure);
            }
            throw exceptionAnalyser.transform(new MultipleBuildFailures(failures));
        }
    }

至此，Gradle 的大致流程就分析完了，过程不是很细，但是对整体理解有一定的帮助，你有任何疑问都可以在评论区告诉我，

最后 请点赞支持一下 谢谢朋友们
