利用packstack部署openstack(all in one的方式)

前言

正式工作了，方向由深度学习转为了云计算。以此来开启职业生涯的第一篇博文。

准备条件：虚拟机（centos7 、内存6g、硬盘40g、处理器4核并开启intel vt-x，网络模式设置为NAT，虚拟机网络一定要设置好，不然有中途掉IP的情况发生）

装好centos虚拟机后，在系统配置界面先配置好固定ip。以下命令均以root用户身份进行

1.换源

我这里使用的是阿里源

mv /etc/yum.repos.d/CentOS-Base.repo /etc/yum.repos.d/CentOS-Base.repo.backup && \
curl -o /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo && \
yum makecache

2.关闭防火墙等设置

systemctl disable firewalld  &&\
systemctl stop firewalld  &&\
systemctl disable NetworkManager &&\
systemctl stop NetworkManager &&\
systemctl enable network &&\
systemctl start network

3.seliunx设置

vi /etc/selinux/config

修改SELINUX=disabled

setenforce 0



4.安装openstack queens版本库

yum install -y centos-release-openstack-queens

yum update -y



5.安装packstack库



yum install -y openstack-packstack



6.开始部署openstack

packstack -d --allinone

如果没有问题，正确的结果如下所示：

Welcome to the Packstack setup utility

The installation log file is available at: /var/tmp/packstack/20200801-142057-L4DQX3/openstack-setup.log
Packstack changed given value  to required value /root/.ssh/id_rsa.pub

Installing:
Clean Up                                             [ DONE ]
Discovering ip protocol version                      [ DONE ]
Setting up ssh keys                                  [ DONE ]
Preparing servers                                    [ DONE ]
Pre installing Puppet and discovering hosts' details [ DONE ]
Preparing pre-install entries                        [ DONE ]
Setting up CACERT                                    [ DONE ]
Preparing AMQP entries                               [ DONE ]
Preparing MariaDB entries                            [ DONE ]
Fixing Keystone LDAP config parameters to be undef if empty[ DONE ]
Preparing Keystone entries                           [ DONE ]
Preparing Glance entries                             [ DONE ]
Checking if the Cinder server has a cinder-volumes vg[ DONE ]
Preparing Cinder entries                             [ DONE ]
Preparing Nova API entries                           [ DONE ]
Creating ssh keys for Nova migration                 [ DONE ]
Gathering ssh host keys for Nova migration           [ DONE ]
Preparing Nova Compute entries                       [ DONE ]
Preparing Nova Scheduler entries                     [ DONE ]
Preparing Nova VNC Proxy entries                     [ DONE ]
Preparing OpenStack Network-related Nova entries     [ DONE ]
Preparing Nova Common entries                        [ DONE ]
Preparing Neutron LBaaS Agent entries                [ DONE ]
Preparing Neutron API entries                        [ DONE ]
Preparing Neutron L3 entries                         [ DONE ]
Preparing Neutron L2 Agent entries                   [ DONE ]
Preparing Neutron DHCP Agent entries                 [ DONE ]
Preparing Neutron Metering Agent entries             [ DONE ]
Checking if NetworkManager is enabled and running    [ DONE ]
Preparing OpenStack Client entries                   [ DONE ]
Preparing Horizon entries                            [ DONE ]
Preparing Swift builder entries                      [ DONE ]
Preparing Swift proxy entries                        [ DONE ]
Preparing Swift storage entries                      [ DONE ]
Preparing Gnocchi entries                            [ DONE ]
Preparing Redis entries                              [ DONE ]
Preparing Ceilometer entries                         [ DONE ]
Preparing Aodh entries                               [ DONE ]
Preparing Puppet manifests                           [ DONE ]
Copying Puppet modules and manifests                 [ DONE ]
Applying 192.168.101.128_controller.pp
192.168.101.128_controller.pp:                       [ DONE ]
Applying 192.168.101.128_network.pp
192.168.101.128_network.pp:                          [ DONE ]
Applying 192.168.101.128_compute.pp
192.168.101.128_compute.pp:                          [ DONE ]
Applying Puppet manifests                            [ DONE ]
Finalizing                                           [ DONE ]

 **** Installation completed successfully ******

Additional information:
 * A new answerfile was created in: /root/packstack-answers-20200801-142058.txt
 * Time synchronization installation was skipped. Please note that unsynchronized time on server instances might be problem for
 some OpenStack components. * File /root/keystonerc_admin has been created on OpenStack client host 192.168.101.128. To use the command line tools you nee
d to source the file. * To access the OpenStack Dashboard browse to http://192.168.101.128/dashboard .
Please, find your login credentials stored in the keystonerc_admin in your home directory.
 * Because of the kernel update the host 192.168.101.128 requires reboot.
 * The installation log file is available at: /var/tmp/packstack/20200801-142057-L4DQX3/openstack-setup.log
 * The generated manifests are available at: /var/tmp/packstack/20200801-142057-L4DQX3/manifests
 * Note temporary directory /var/tmp/packstack/32ea00925ee24993af64f518367d97ae on host 192.168.101.128 was not deleted for deb
ugging purposes.

根据Additional information:

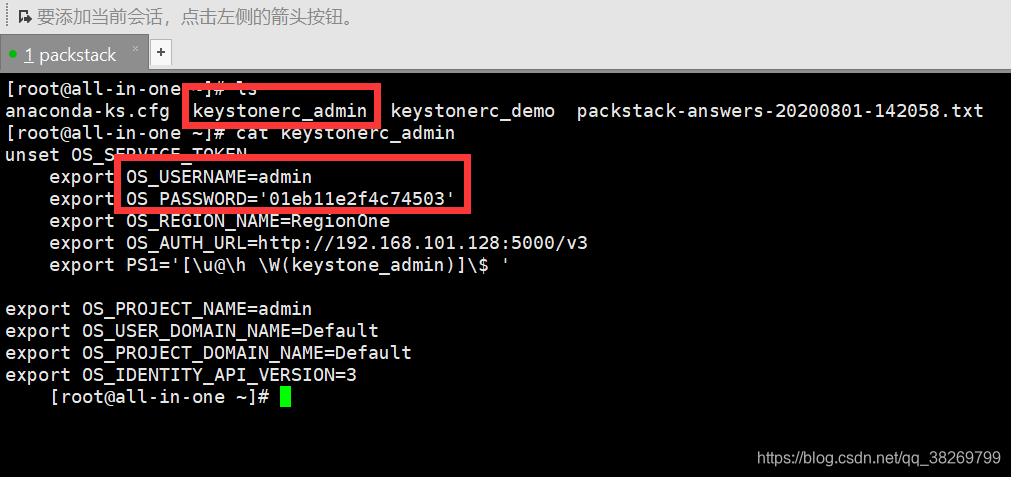

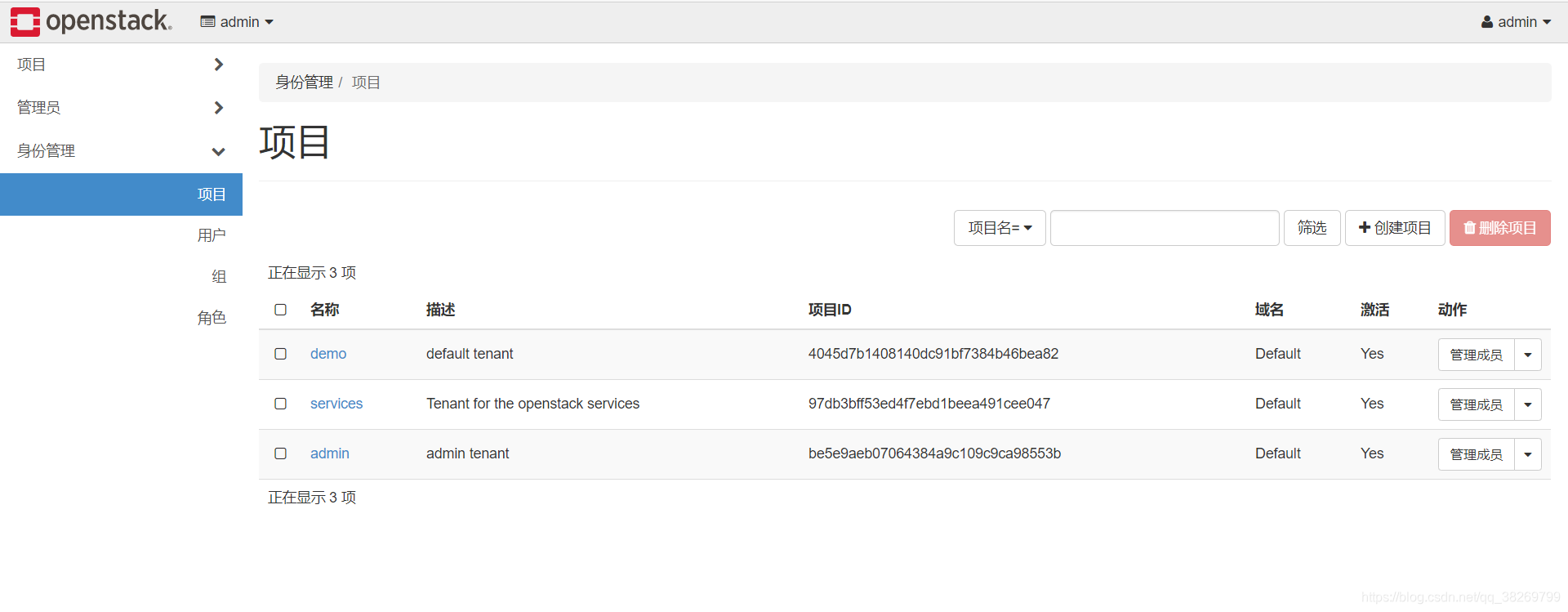

我们可以访问http://192.168.101.128/dashboard 进入OpenStack的管理界面，登录名和密码在用户目录的keystonerc_admin文件中：











在这最后一步中，最容易出问题，先将我碰到的问题总结如下，如有其它问题，大家可以评论区讨论分享：

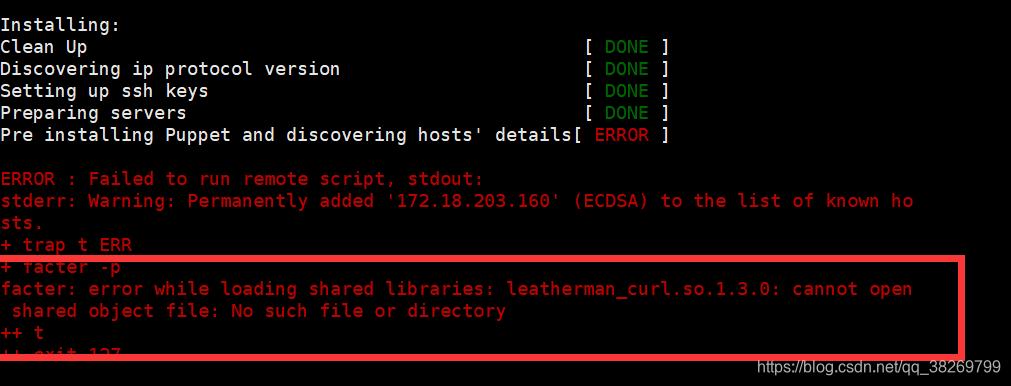

leatherman版本过高

如下图

解决方案：降级leatherman

yum downgrade leatherman

该解决方案来源于：

Packstack安装OpenStack问题：facter: error while loading shared libraries: leatherman_curl.so.1.3.0

执行到如下卡死

Testing if puppet apply is finished: 192.168.101.128_controller.pp  [ \ ]

原因：这一步本身执行的时间就很久，耐心等待，我在这里，电脑放了一个晚上，大概几个小时候结果就出来了。如果还是不行的话，检查是否是自己的虚拟机配置设置得过低

该解决方案来源于

https://developer.aliyun.com/article/227481


参考资料：



https://blog.youkuaiyun.com/weixin_43905458/article/details/104898789

https://developer.aliyun.com/article/227481
