启动时

请求到来

上图就是 Open Feign 的层次和执行流程。

开发的时候我们一般会写一个接口，Spring 在启动的时候会扫描到这个拥有 FeignClient 注解的接口，然后生成jdk动态代理，等启动完成后一个请求发过来，然后路由到某个方法，生成 http 请求，执行请求，获取http响应结果，解码，返回。

@FeignClient(name = "demo-provider")
public interface DemoProviderFeignClient {

    @GetMapping("/echo")
    String echo(@RequestParam("name") String name);

}

启动时

启动类添加 @EnableFeignClients 注解，然后通过 @Import 注入 FeignClientsRegistrar.class

class FeignClientsRegistrar
		implements ImportBeanDefinitionRegistrar, ResourceLoaderAware, EnvironmentAware {
    ...
    @Override
	public void registerBeanDefinitions(AnnotationMetadata metadata,
			BeanDefinitionRegistry registry) {
		registerDefaultConfiguration(metadata, registry);
		registerFeignClients(metadata, registry);
	}
    private void registerFeignClient(BeanDefinitionRegistry registry,
			AnnotationMetadata annotationMetadata, Map<String, Object> attributes) {
		String className = annotationMetadata.getClassName();
		BeanDefinitionBuilder definition = BeanDefinitionBuilder
				.genericBeanDefinition(FeignClientFactoryBean.class);
		validate(attributes);
		definition.addPropertyValue("url", getUrl(attributes));
		definition.addPropertyValue("path", getPath(attributes));
		String name = getName(attributes);
		definition.addPropertyValue("name", name);
		String contextId = getContextId(attributes);
		definition.addPropertyValue("contextId", contextId);
		definition.addPropertyValue("type", className);
		definition.addPropertyValue("decode404", attributes.get("decode404"));
		definition.addPropertyValue("fallback", attributes.get("fallback"));
		definition.addPropertyValue("fallbackFactory", attributes.get("fallbackFactory"));
		definition.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_BY_TYPE);

		String alias = contextId + "FeignClient";
		AbstractBeanDefinition beanDefinition = definition.getBeanDefinition();

		boolean primary = (Boolean) attributes.get("primary"); // has a default, won't be
																// null

		beanDefinition.setPrimary(primary);

		String qualifier = getQualifier(attributes);
		if (StringUtils.hasText(qualifier)) {
			alias = qualifier;
		}

		BeanDefinitionHolder holder = new BeanDefinitionHolder(beanDefinition, className,
				new String[] { alias });
		BeanDefinitionReaderUtils.registerBeanDefinition(holder, registry);
	}
}

在这个方法中，它会扫描项目中所有的 FeignClient 并生成代理类，并注入 FeignClientFactoryBean ，显然 FactoryBean 的 getObject() 方法会具体执行生成 FeignClient 的逻辑。

public abstract class Feign {
    public static class Builder {
        public <T> T target(Target<T> target) {
            return build().newInstance(target);
        }
    }
}

public class ReflectiveFeign extends Feign {
  @Override
  public <T> T newInstance(Target<T> target) {
    Map<String, MethodHandler> nameToHandler = targetToHandlersByName.apply(target);
    Map<Method, MethodHandler> methodToHandler = new LinkedHashMap<Method, MethodHandler>();
    List<DefaultMethodHandler> defaultMethodHandlers = new LinkedList<DefaultMethodHandler>();

    for (Method method : target.type().getMethods()) {
      if (method.getDeclaringClass() == Object.class) {
        continue;
      } else if (Util.isDefault(method)) {
        DefaultMethodHandler handler = new DefaultMethodHandler(method);
        defaultMethodHandlers.add(handler);
        methodToHandler.put(method, handler);
      } else {
        methodToHandler.put(method, nameToHandler.get(Feign.configKey(target.type(), method)));
      }
    }
    InvocationHandler handler = factory.create(target, methodToHandler);
    T proxy = (T) Proxy.newProxyInstance(target.type().getClassLoader(),
        new Class<?>[] {target.type()}, handler);

    for (DefaultMethodHandler defaultMethodHandler : defaultMethodHandlers) {
      defaultMethodHandler.bindTo(proxy);
    }
    return proxy;
  }
}

factory.create(target, methodToHandler) 的具体代码是：

static final class Default implements InvocationHandlerFactory {

    @Override
    public InvocationHandler create(Target target, Map<Method, MethodHandler> dispatch) {
      return new ReflectiveFeign.FeignInvocationHandler(target, dispatch);
    }
  }

它解析完 Contract (契约) 后就把结果Map 包裹起来放到 jdk 动态代理的 proxy 里面。

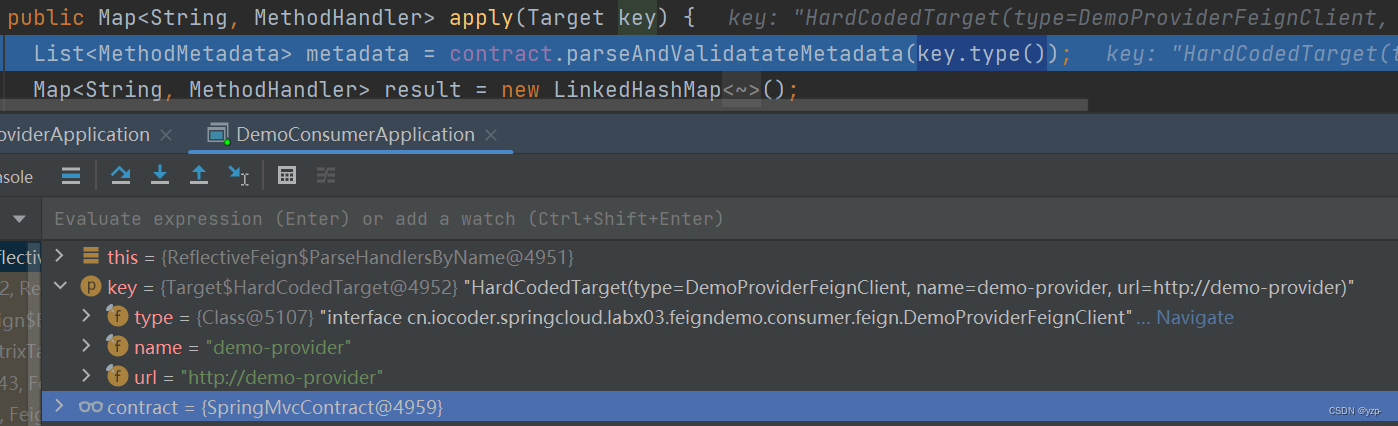

在 apply() 方法中，

List<MethodMetadata> metadata = contract.parseAndValidatateMetadata(key.type());

这段代码是使用 SpringMvcContract 解析 FeignClient 接口里的方法

SpringMvcContract 是 Open Feign 用来解析 @RequestMapping 的，最后生成一个 MethodMetadata ，因为我们几乎只使用 SpringMvcContract ，所以就只分析它，不分析

QueryMap， HeaderMap 这些东西，但它们的作用都是差不多的，是同一个流程里的不同分支细节而已。

public class SpringMvcContract extends Contract.BaseContract
		implements ResourceLoaderAware {
	@Override
	public MethodMetadata parseAndValidateMetadata(Class<?> targetType, Method method) {
		this.processedMethods.put(Feign.configKey(targetType, method), method);
		MethodMetadata md = super.parseAndValidateMetadata(targetType, method);

		RequestMapping classAnnotation = findMergedAnnotation(targetType,
				RequestMapping.class);
		if (classAnnotation != null) {
			// produces - use from class annotation only if method has not specified this
			if (!md.template().headers().containsKey(ACCEPT)) {
				parseProduces(md, method, classAnnotation);
			}

			// consumes -- use from class annotation only if method has not specified this
			if (!md.template().headers().containsKey(CONTENT_TYPE)) {
				parseConsumes(md, method, classAnnotation);
			}

			// headers -- class annotation is inherited to methods, always write these if
			// present
			parseHeaders(md, method, classAnnotation);
		}
		return md;
	}
}

Contract 解析完成后保存到一个 Map 中，value 是SynchronousMethodHandler 类型，它是MethodHandler 类型。

result.put(md.configKey(),
            factory.create(key, md, buildTemplate, options, decoder, errorDecoder));

public MethodHandler create(Target<?> target,
                                MethodMetadata md,
                                RequestTemplate.Factory buildTemplateFromArgs,
                                Options options,
                                Decoder decoder,
                                ErrorDecoder errorDecoder) {
      return new SynchronousMethodHandler(target, client, retryer, requestInterceptors, logger,
          logLevel, md, buildTemplateFromArgs, options, decoder,
          errorDecoder, decode404, closeAfterDecode, propagationPolicy);
    }

启动流程到此为止。

请求到来

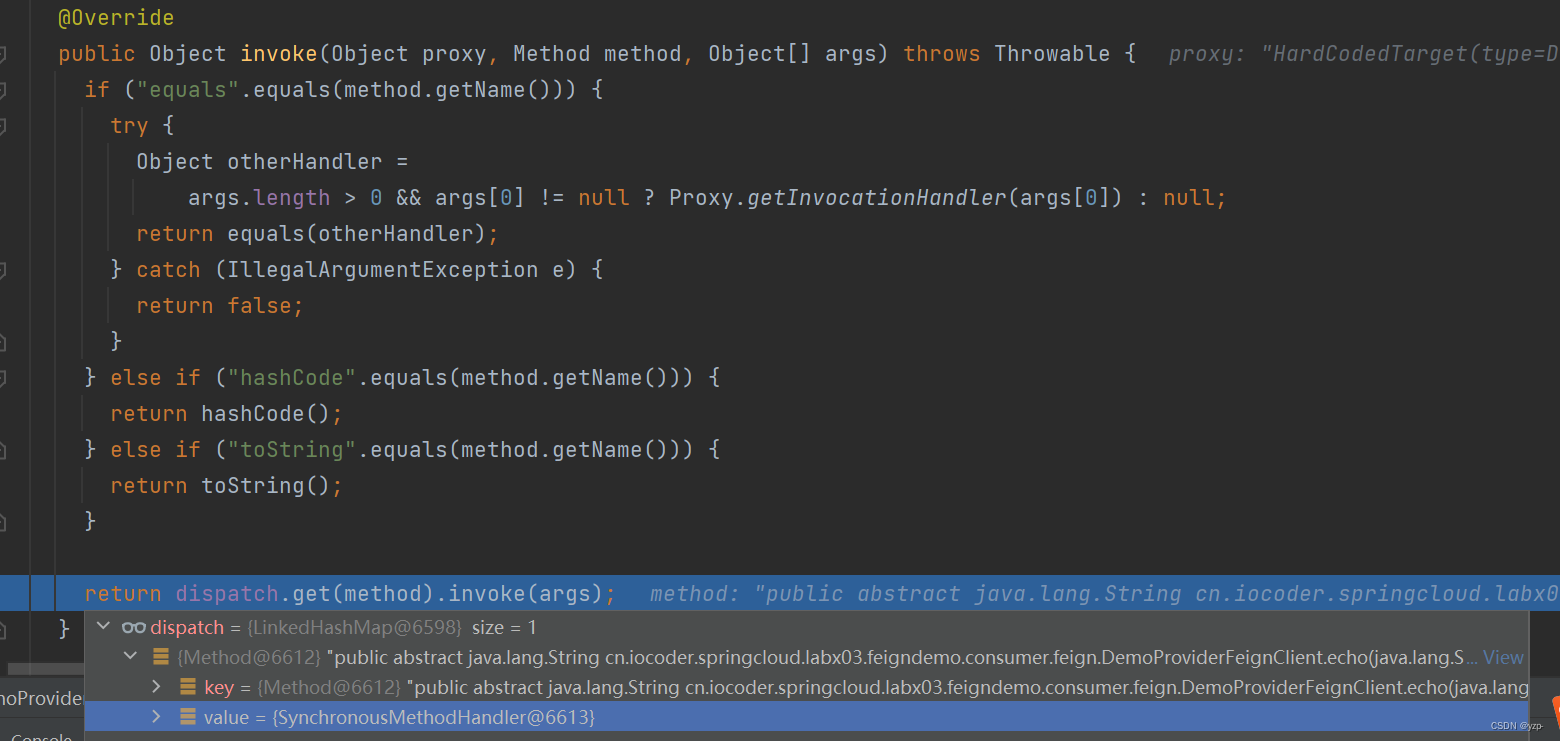

当一个请求过来时，它就会被 proxy 拦截，进入到 FeignInvocationHandler 的 invoke 方法中。

很快就进入 SynchronousMethodHandler 的 invoke 方法，看到了 RequestTemplate

public Object invoke(Object[] argv) throws Throwable {
    RequestTemplate template = buildTemplateFromArgs.create(argv);
    Options options = findOptions(argv);
    Retryer retryer = this.retryer.clone();
    while (true) {
      try {
        return executeAndDecode(template, options);
      } catch (RetryableException e) {
        try {
          retryer.continueOrPropagate(e);
        } catch (RetryableException th) {
          ...
        }
        continue;
      }
    }
  }

我们忽然看到请求有“Binary data”，但它不一定说明请求已经被encode了。
RequestTemplate template = buildTemplateFromArgs.create(argv);
会调用
RequestTemplate resolve(Map<String, ?> variables) 方法，在这个方法中有这样一行代码：
resolved.body(this.body.expand(variables));

public final class Request {

  public static class Body {
      public Request.Body expand(Map<String, ?> variables) {
      if (bodyTemplate == null)
        return this;

        return encoded(bodyTemplate.expand(variables).getBytes(encoding), encoding);
    }
      public static Request.Body encoded(byte[] bodyData, Charset encoding) {
          return new Request.Body(bodyData, encoding, null);
    }
  }
}

虽然有encoded() 方法，但实际上却并没有被执行。
下面这个才是Open Feign 的编码实现，但也并有被执行。

public interface Encoder {
  Type MAP_STRING_WILDCARD = Util.MAP_STRING_WILDCARD;

  void encode(Object object, Type bodyType, RequestTemplate template) throws EncodeException;

  /**
   * Default implementation of {@code Encoder}.
   */
  class Default implements Encoder {

    @Override
    public void encode(Object object, Type bodyType, RequestTemplate template) {
      if (bodyType == String.class) {
        template.body(object.toString());
      } else if (bodyType == byte[].class) {
        template.body((byte[]) object, null);
      } else if (object != null) {
        throw new EncodeException(
            format("%s is not a type supported by this encoder.", object.getClass()));
      }
    }
  }
}

注意：在http传输的时候可以指定 Content-Length,也可以使用 Transfer-Encoding: chunked 来做分块传输编码，动态输出。

if (contentLength != null) {
    connection.setFixedLengthStreamingMode(contentLength);
} else {
    connection.setChunkedStreamingMode(8196);
}

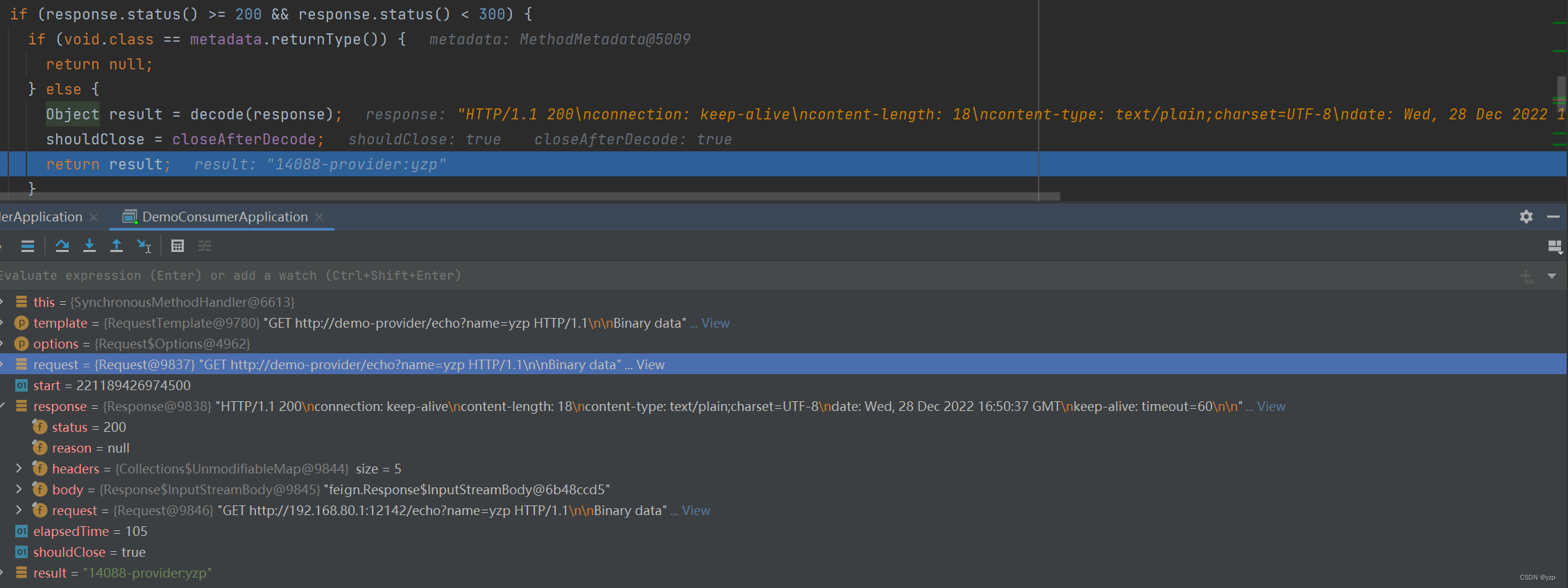

然后进入到 executeAndDecode() 方法，构建请求，使用 httpClient 执行http 请求，接收http响应。

  Object executeAndDecode(RequestTemplate template, Options options) throws Throwable {
    Request request = targetRequest(template);

    if (logLevel != Logger.Level.NONE) {
      logger.logRequest(metadata.configKey(), logLevel, request);
    }

    Response response;
    long start = System.nanoTime();
    try {
      response = client.execute(request, options);
    } catch (IOException e) {
      if (logLevel != Logger.Level.NONE) {
        logger.logIOException(metadata.configKey(), logLevel, e, elapsedTime(start));
      }
      throw errorExecuting(request, e);
    }
    long elapsedTime = TimeUnit.NANOSECONDS.toMillis(System.nanoTime() - start);

    boolean shouldClose = true;
    try {
      if (logLevel != Logger.Level.NONE) {
        response =
            logger.logAndRebufferResponse(metadata.configKey(), logLevel, response, elapsedTime);
      }
      if (Response.class == metadata.returnType()) {
        if (response.body() == null) {
          return response;
        }
        if (response.body().length() == null ||
            response.body().length() > MAX_RESPONSE_BUFFER_SIZE) {
          shouldClose = false;
          return response;
        }
        // Ensure the response body is disconnected
        byte[] bodyData = Util.toByteArray(response.body().asInputStream());
        return response.toBuilder().body(bodyData).build();
      }
      if (response.status() >= 200 && response.status() < 300) {
        if (void.class == metadata.returnType()) {
          return null;
        } else {
          Object result = decode(response);
          shouldClose = closeAfterDecode;
          return result;
        }
      } else if (decode404 && response.status() == 404 && void.class != metadata.returnType()) {
        Object result = decode(response);
        shouldClose = closeAfterDecode;
        return result;
      } else {
        throw errorDecoder.decode(metadata.configKey(), response);
      }
    } catch (IOException e) {
      if (logLevel != Logger.Level.NONE) {
        logger.logIOException(metadata.configKey(), logLevel, e, elapsedTime);
      }
      throw errorReading(request, response, e);
    } finally {
      if (shouldClose) {
        ensureClosed(response.body());
      }
    }
  }

targetRequest(template); 会执行一个请求拦截器链，添加一些请求头参数。

Request targetRequest(RequestTemplate template) {
    for (RequestInterceptor interceptor : requestInterceptors) {
      interceptor.apply(template);
    }
    return target.apply(template);
  }
public interface RequestInterceptor {

  /**
   * Called for every request. Add data using methods on the supplied {@link RequestTemplate}.
   */
  void apply(RequestTemplate template);
}

LoadBalancerFeignClient会使用Ribbon去注册中心获取到一个demo-provider的实例，然后重建http请求。

public class LoadBalancerFeignClient implements Client {
    @Override
	public Response execute(Request request, Request.Options options) throws IOException {
		try {
			URI asUri = URI.create(request.url());
			String clientName = asUri.getHost();
			URI uriWithoutHost = cleanUrl(request.url(), clientName);
			FeignLoadBalancer.RibbonRequest ribbonRequest = new FeignLoadBalancer.RibbonRequest(
					this.delegate, request, uriWithoutHost);

			IClientConfig requestConfig = getClientConfig(options, clientName);
			return lbClient(clientName)
					.executeWithLoadBalancer(ribbonRequest, requestConfig).toResponse();
		}
		catch (ClientException e) {
			...
		}
	}
}

public T executeWithLoadBalancer(final S request, final IClientConfig requestConfig) throws ClientException {
        LoadBalancerCommand<T> command = buildLoadBalancerCommand(request, requestConfig);

        try {
            return command.submit(
                new ServerOperation<T>() {
                    @Override
                    public Observable<T> call(Server server) {
                        URI finalUri = reconstructURIWithServer(server, request.getUri());
                        S requestForServer = (S) request.replaceUri(finalUri);
                        try {
                            return Observable.just(AbstractLoadBalancerAwareClient.this.execute(requestForServer, requestConfig));
                        }
                        catch (Exception e) {
                            return Observable.error(e);
                        }
                    }
                })
                .toBlocking()
                .single();
        }
    ...

    }

最后进入到 Client 执行 execute 方法，如果不走 loadbalance 也会进入到这里，算是殊途同归。

class Default implements Client {
    @Override
    public Response execute(Request request, Options options) throws IOException {
      HttpURLConnection connection = convertAndSend(request, options);
      return convertResponse(connection, request);
    }
}

响应返回后，从输入流中解码，获取结果，open feign 执行完毕。

Open Feign 是使用 SpringDecoder 完成解码的。

public class SpringDecoder implements Decoder {

	private ObjectFactory<HttpMessageConverters> messageConverters;
    @Override
	public Object decode(final Response response, Type type)
			throws IOException, FeignException {
		if (type instanceof Class || type instanceof ParameterizedType
				|| type instanceof WildcardType) {
			@SuppressWarnings({ "unchecked", "rawtypes" })
			HttpMessageConverterExtractor<?> extractor = new HttpMessageConverterExtractor(
					type, this.messageConverters.getObject().getConverters());

			return extractor.extractData(new FeignResponseAdapter(response));
		}
		throw new DecodeException(response.status(),
				"type is not an instance of Class or ParameterizedType: " + type,
				response.request());
	}
}

上图中的变量 extractor 是许多 HttpMessageConverter 的列表，它会选取其中一种合适的转换器完成解析。在这里选取了 StringHttpMessageConverter 。对于 HttpMessageConverter ，Spring Mvc 在处理结果返回数据的时候也是这样使用的。

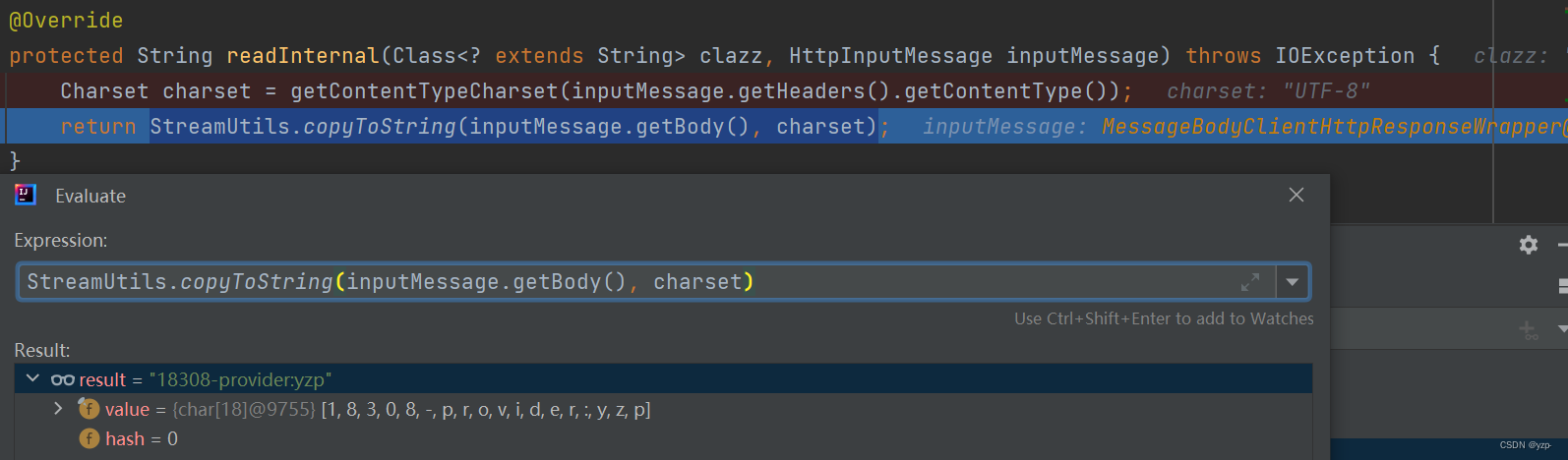

public class StringHttpMessageConverter extends AbstractHttpMessageConverter<String> {
    @Override
	protected String readInternal(Class<? extends String> clazz, HttpInputMessage inputMessage) throws IOException {
		Charset charset = getContentTypeCharset(inputMessage.getHeaders().getContentType());
		return StreamUtils.copyToString(inputMessage.getBody(), charset);
	}
}
