毕设（一）

校园商铺
终于要开始做毕设了，太难了
前提是搭建maven,平台用的是eclipse。
此处可百度看教程。
接下来开始重头戏！!
o2o就当是这个项目的名字吧。

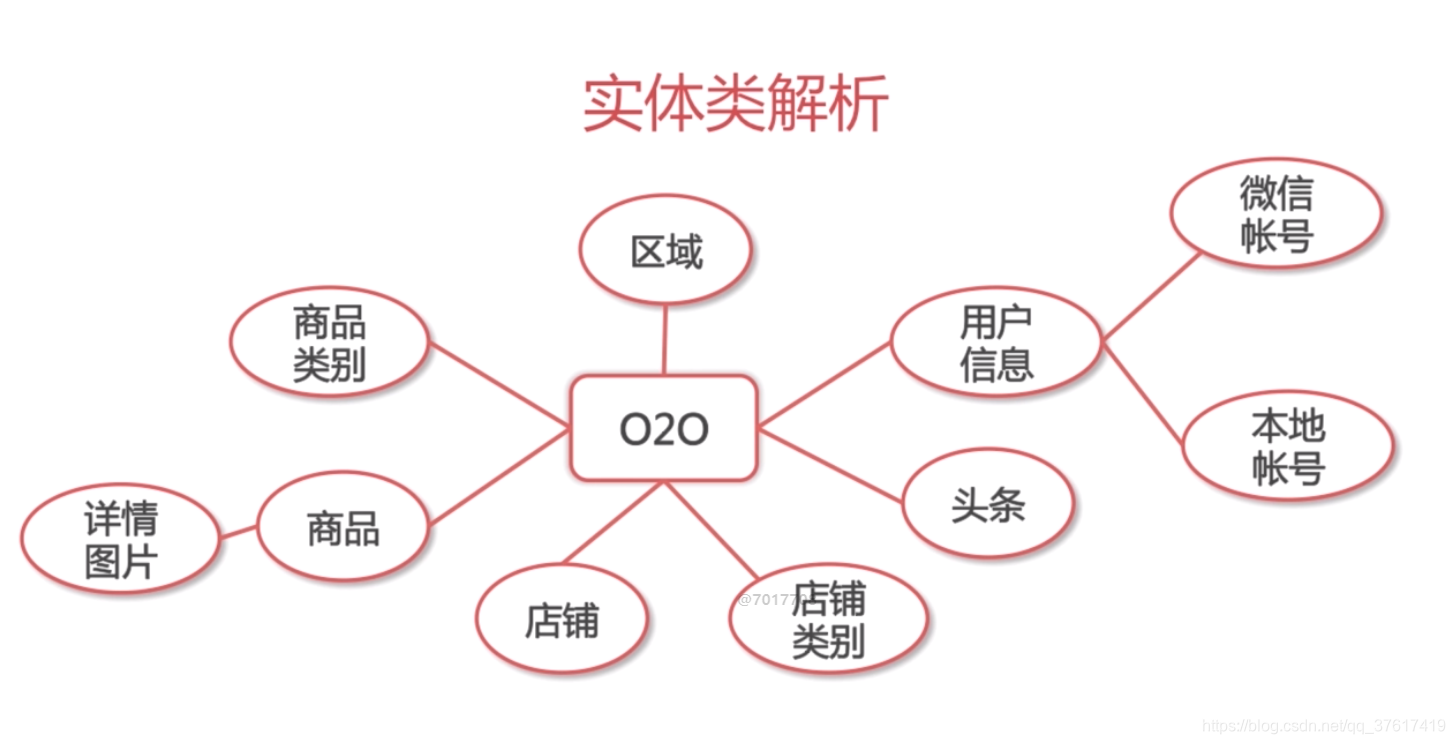

在此之前搞清楚各实体类的联系

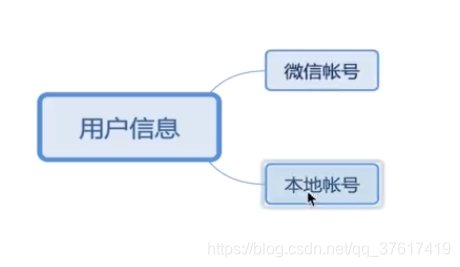

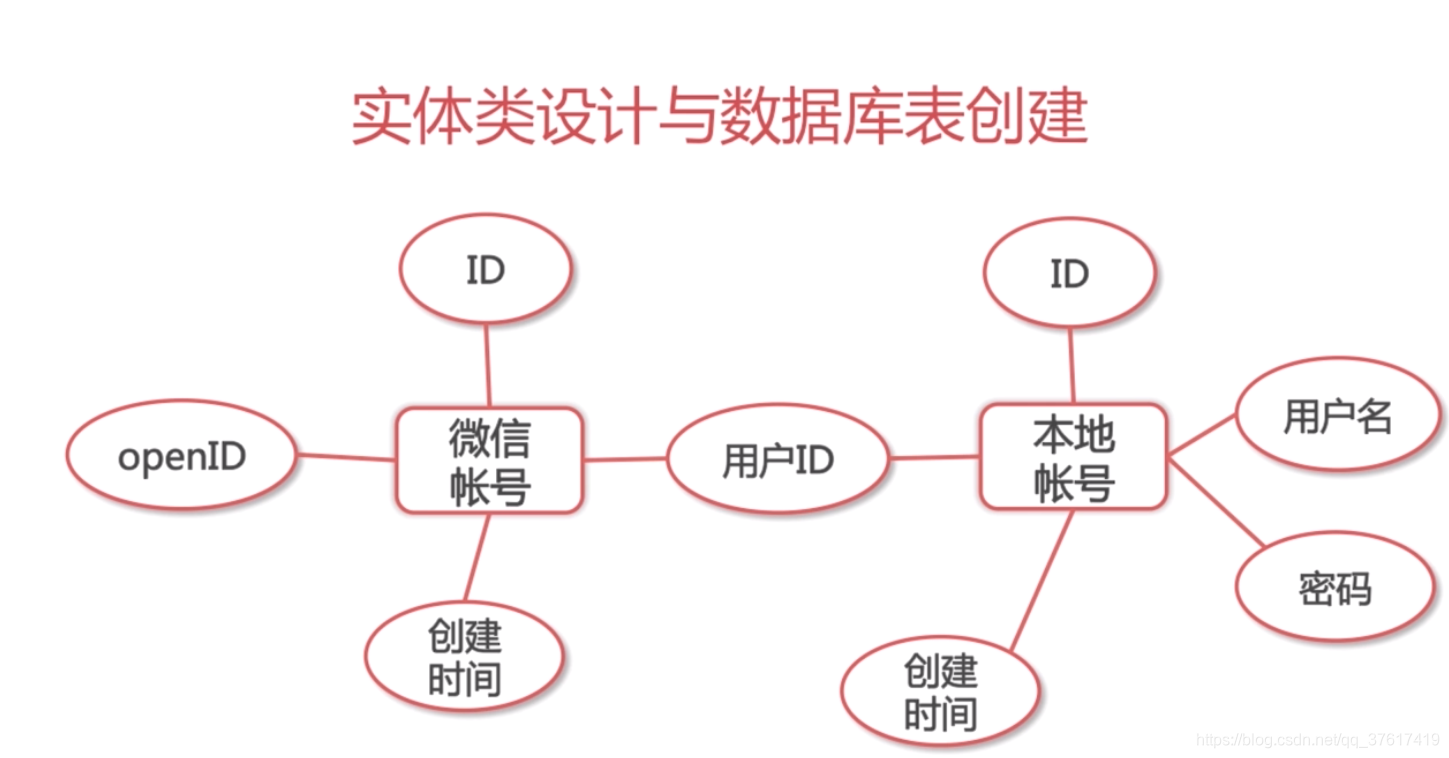

微信账号和本地账号通过用户信息的i联系在一起
在这里插入图片描述

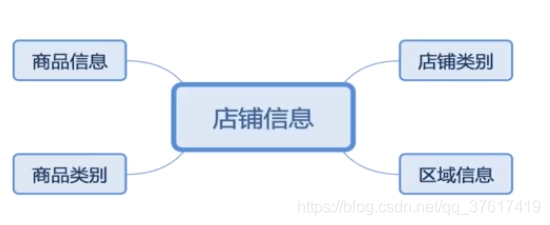

商铺信息和区域信息通过区域id连接
店铺信息的店铺id和店铺类别做关联

在这里插入图片描述

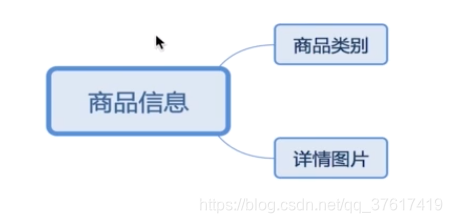

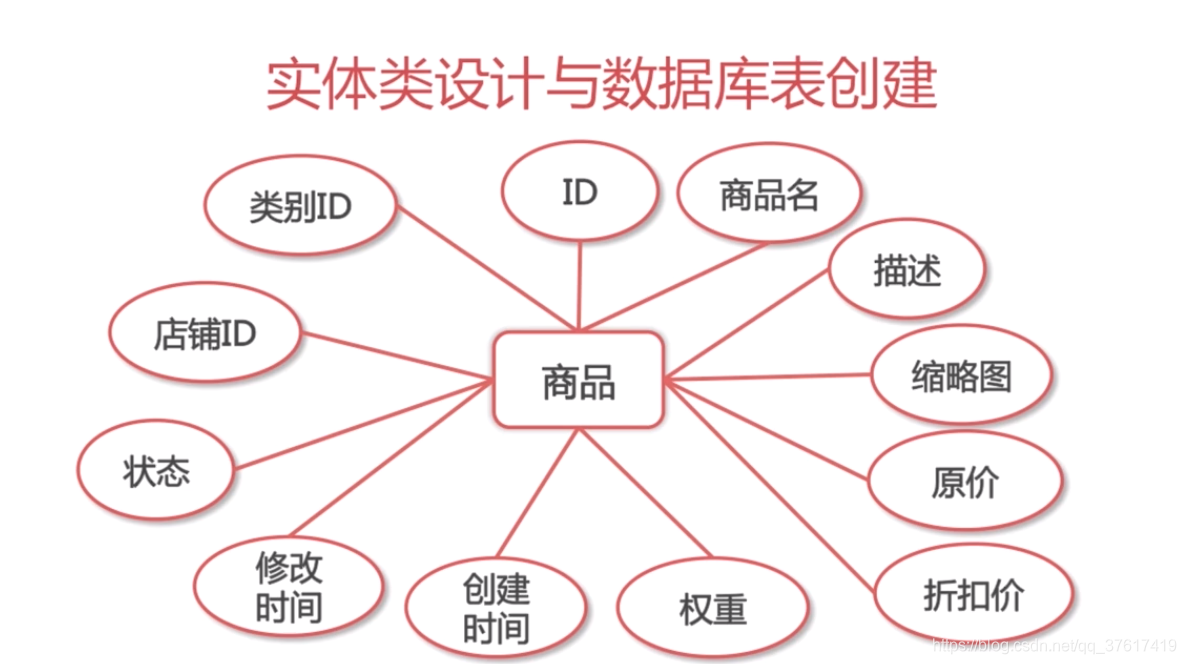

商品信息通过product.id与商品类别相关联

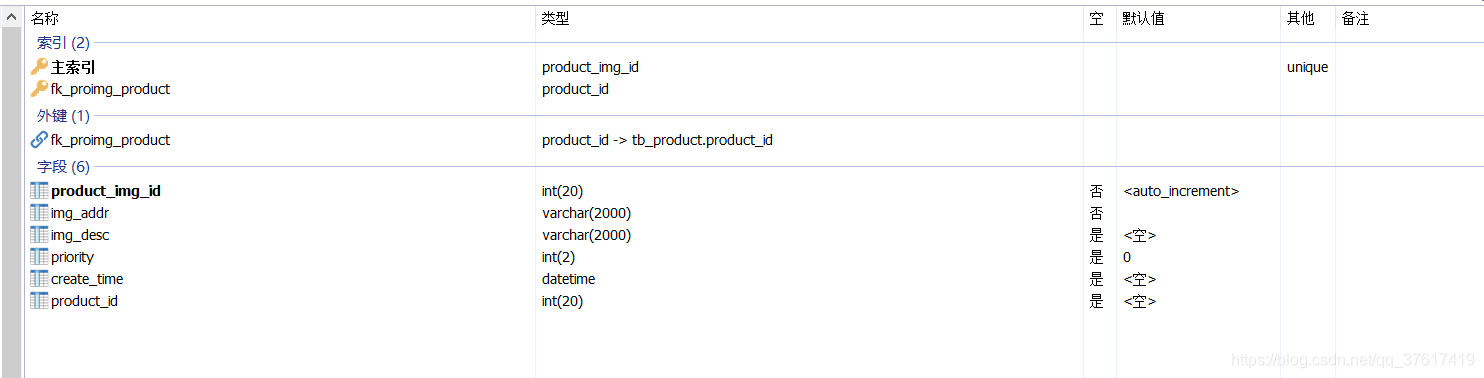

详情图片通过product.id与商品信息相关联

1.实体类设计

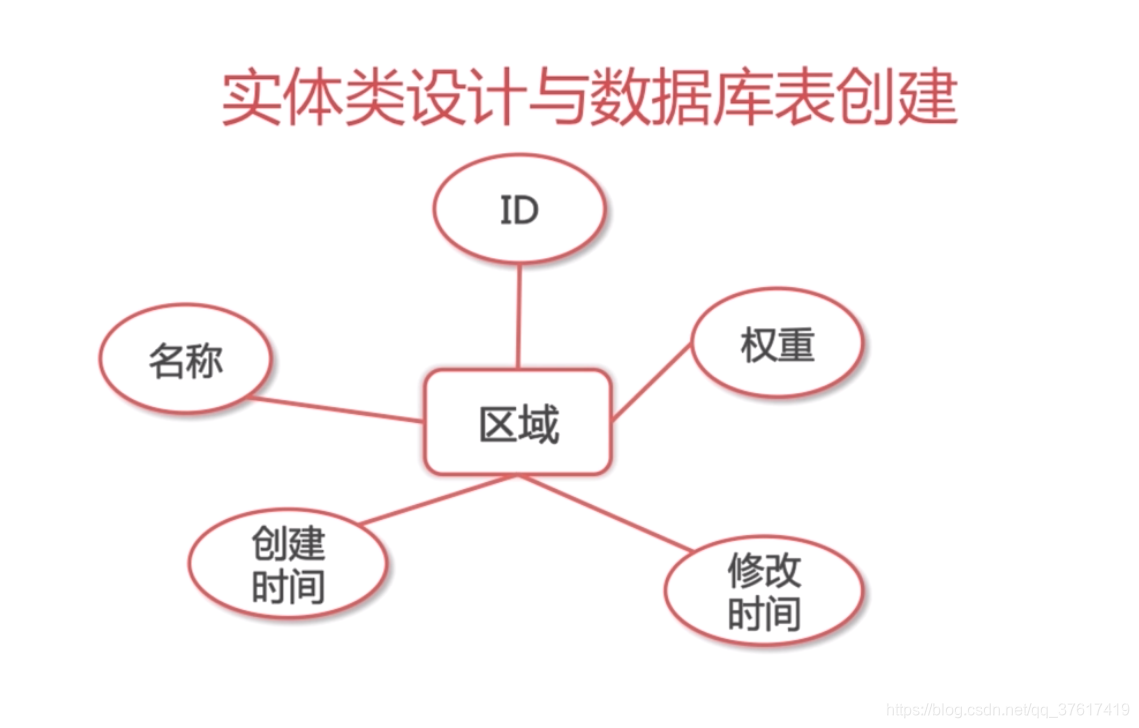

区域设计

区域类代码

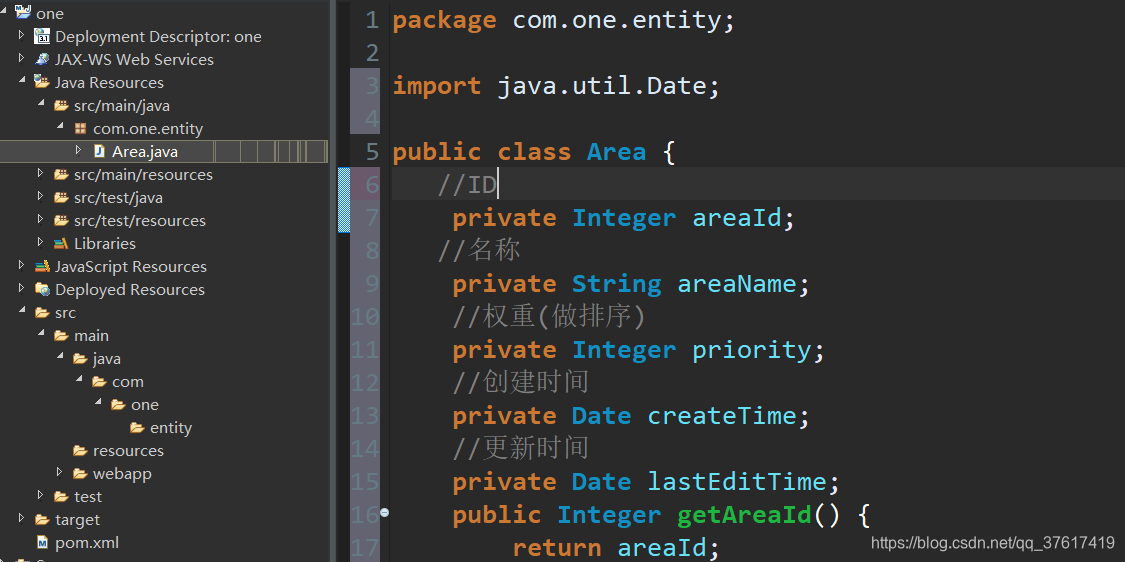

在one这个项目下的Java Resources下的src/main/java创建实体包，名为com.one.entity,在这个包下面创建Area.java
在这里插入图片描述
详细代码如下：

package com.one.entity;

import java.util.Date;

public class Area {
   //ID
	private Integer areaId;
   //名称
    private String areaName;
    //权重(做排序)
    private Integer priority;
    //创建时间
    private Date createTime;
    //更新时间
    private Date lastEditTime;
	public Integer getAreaId() {
		return areaId;
	}
	public void setAreaId(Integer areaId) {
		this.areaId = areaId;
	}
	public String getAreaName() {
		return areaName;
	}
	public void setAreaName(String areaName) {
		this.areaName = areaName;
	}
	public Integer getPriority() {
		return priority;
	}
	public void setPriority(Integer priority) {
		this.priority = priority;
	}
	public Date getCreateTime() {
		return createTime;
	}
	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}
	public Date getLastEditTime() {
		return lastEditTime;
	}
	public void setLastEditTime(Date lastEditTime) {
		this.lastEditTime = lastEditTime;
	}

}

区域类sql语句（在此之前先创建一个名为"one”的数据库）

CREATE TABLE `tb_area` (
`area_id`  int(2) NOT NULL AUTO_INCREMENT ,
`area_name`  varchar(200) NOT NULL ,
`priority`  int(2) NOT NULL DEFAULT '0' ,
`create_time`  datetime  DEFAULT NULL ,
`last_edit_time`  datetime DEFAULT NULL ,
PRIMARY KEY (`area_id`),
unique key `UK_AREA`(`area_name`)
)ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

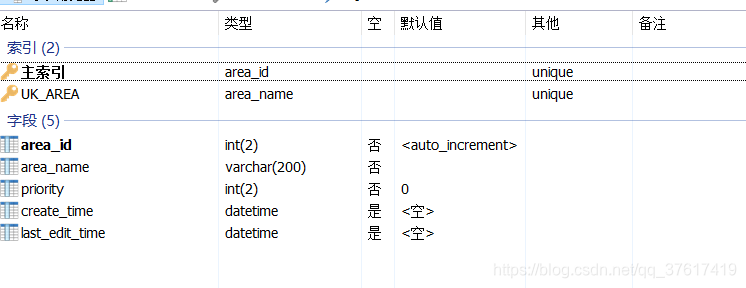

在这里插入图片描述

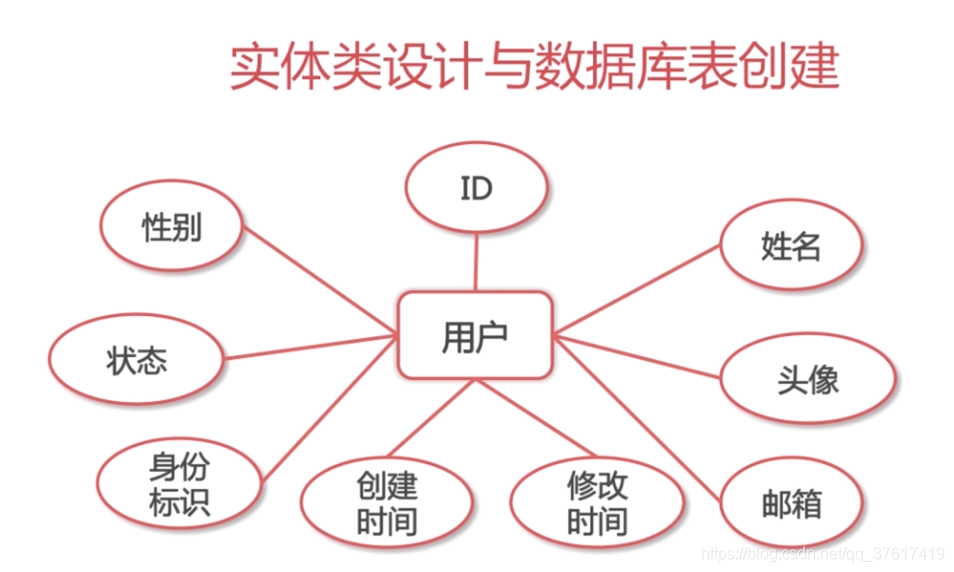

用户设计

在one这个项目下的Java Resources下的src/main/java创建实体包，名为com.one.entity,在这个包下面创建PersonInfo.java

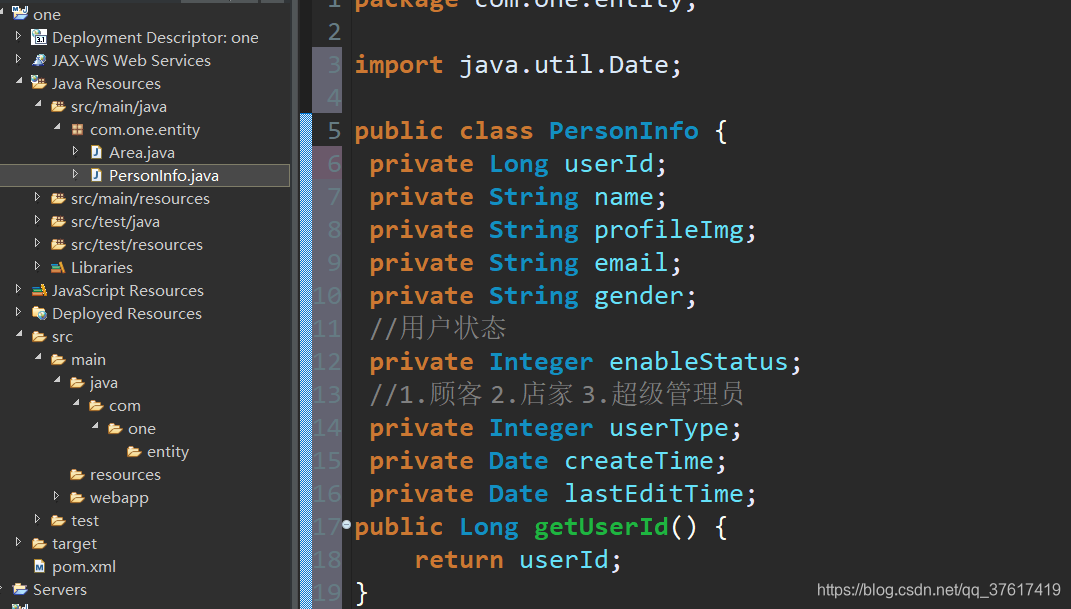

在这里插入图片描述
详细代码如下：

package com.one.entity;

import java.util.Date;

public class PersonInfo {
 private Long userId;
 private String name;
 private String profileImg;
 private String email;
 private String gender;
 //用户状态
 private Integer enableStatus;
 //1.顾客 2.店家 3.超级管理员
 private Integer userType;
 private Date createTime;
 private Date lastEditTime;
public Long getUserId() {
	return userId;
}
public void setUserId(Long userId) {
	this.userId = userId;
}
public String getName() {
	return name;
}
public void setName(String name) {
	this.name = name;
}
public String getProfileImg() {
	return profileImg;
}
public void setProfileImg(String profileImg) {
	this.profileImg = profileImg;
}
public String getEmail() {
	return email;
}
public void setEmail(String email) {
	this.email = email;
}
public String getGender() {
	return gender;
}
public void setGender(String gender) {
	this.gender = gender;
}
public Integer getEnableStatus() {
	return enableStatus;
}
public void setEnableStatus(Integer enableStatus) {
	this.enableStatus = enableStatus;
}
public Integer getUserType() {
	return userType;
}
public void setUserType(Integer userType) {
	this.userType = userType;
}
public Date getCreateTime() {
	return createTime;
}
public void setCreateTime(Date createTime) {
	this.createTime = createTime;
}
public Date getLastEditTime() {
	return lastEditTime;
}
public void setLastEditTime(Date lastEditTime) {
	this.lastEditTime = lastEditTime;
}

}

用户类sql语句

CREATE TABLE `tb_person_info` (
`user_id`  int(10) NOT NULL AUTO_INCREMENT ,
`name`  varchar(32) DEFAULT NULL ,
`profile_img` varchar(1024) DEFAULT NULL ,
`email`  varchar(1024) DEFAULT NULL ,
`gender`  varchar(2) DEFAULT NULL ,
`enable_status`  int(2)NOT NULL DEFAULT '0' COMMENT '0:禁止使用本商城,1:允许使用本商城',
`user_type`  int(2) NOT NULL DEFAULT '1' COMMENT '1:顾客,2:店家,3:超级管理员',
`create_time` datetime DEFAULT NULL,
`last_edit_time`  datetime DEFAULT NULL,
primary key(`user_id`)
)ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8

在这里插入图片描述
账号设计

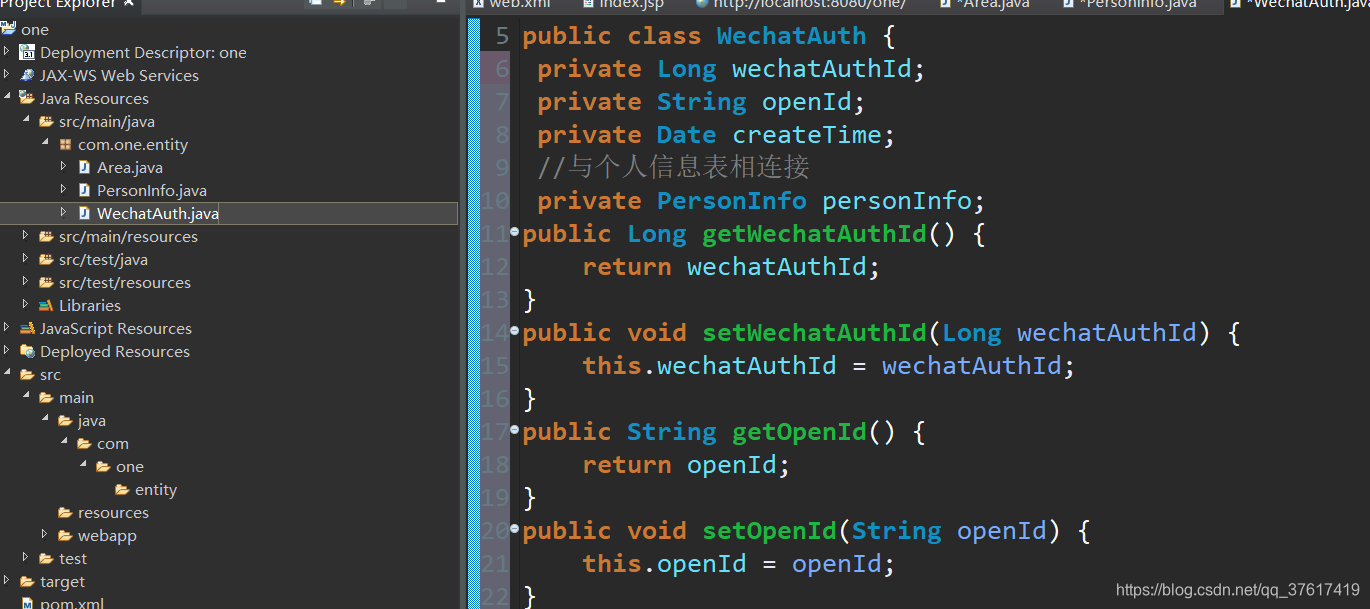

与上边同样的道理，建立WechatAuth.java类

详细代码如下

package com.one.entity;

import java.util.Date;

public class WechatAuth {
 private Long wechatAuthId;
 private String openId;
 private Date createTime;
 //与个人信息表相连接
 private PersonInfo personInfo;
public Long getWechatAuthId() {
	return wechatAuthId;
}
public void setWechatAuthId(Long wechatAuthId) {
	this.wechatAuthId = wechatAuthId;
}
public String getOpenId() {
	return openId;
}
public void setOpenId(String openId) {
	this.openId = openId;
}
public Date getCreateTime() {
	return createTime;
}
public void setCreateTime(Date createTime) {
	this.createTime = createTime;
}
public PersonInfo getPersonInfo() {
	return personInfo;
}
public void setPersonInfo(PersonInfo personInfo) {
	this.personInfo = personInfo;
}

}

对应的sql语句为

CREATE TABLE `tb_wechat_auth` (
`wechat_auth_id`  int(10) NOT NULL AUTO_INCREMENT ,
`user_id`  int(10) NOT NULL ,
`open_id`  varchar(1024) NOT NULL ,
`create_time` datetime DEFAULT NULL,
primary key(`wechat_auth_id`),
constraint `fk_wechatauth_profile` foreign key(`user_id`) references `tb_person_info`(`user_id`)
)ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

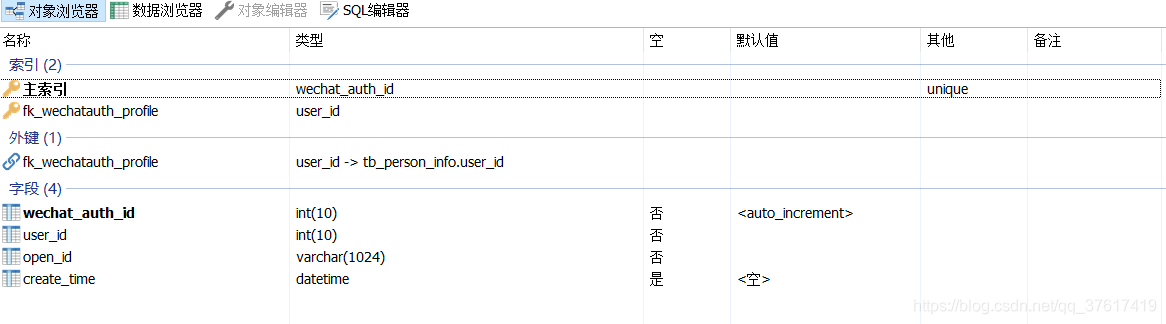

在这里插入图片描述

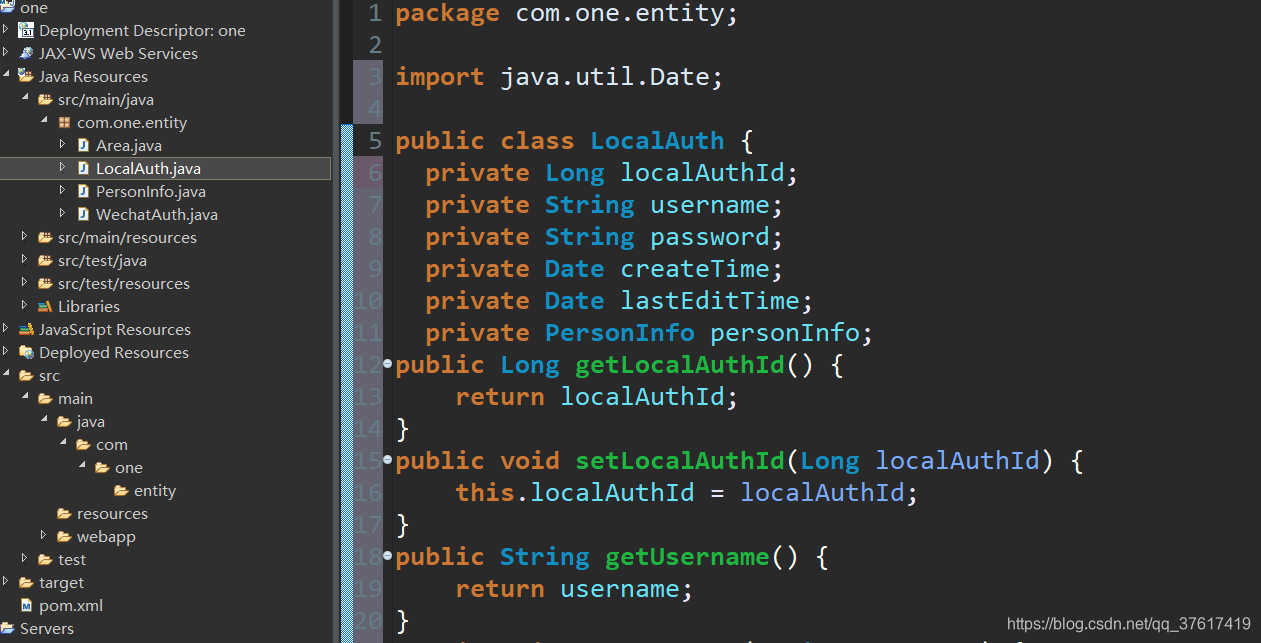

建立LocalAuth.java类

详细代码如下

package com.one.entity;

import java.util.Date;

public class LocalAuth {
  private Long localAuthId;
  private String username;
  private String password;
  private Date createTime;
  private Date lastEditTime;
  private PersonInfo personInfo;
public Long getLocalAuthId() {
	return localAuthId;
}
public void setLocalAuthId(Long localAuthId) {
	this.localAuthId = localAuthId;
}
public String getUsername() {
	return username;
}
public void setUsername(String username) {
	this.username = username;
}
public String getPassword() {
	return password;
}
public void setPassword(String password) {
	this.password = password;
}
public Date getCreateTime() {
	return createTime;
}
public void setCreateTime(Date createTime) {
	this.createTime = createTime;
}
public Date getLastEditTime() {
	return lastEditTime;
}
public void setLastEditTime(Date lastEditTime) {
	this.lastEditTime = lastEditTime;
}
public PersonInfo getPersonInfo() {
	return personInfo;
}
public void setPersonInfo(PersonInfo personInfo) {
	this.personInfo = personInfo;
}

}

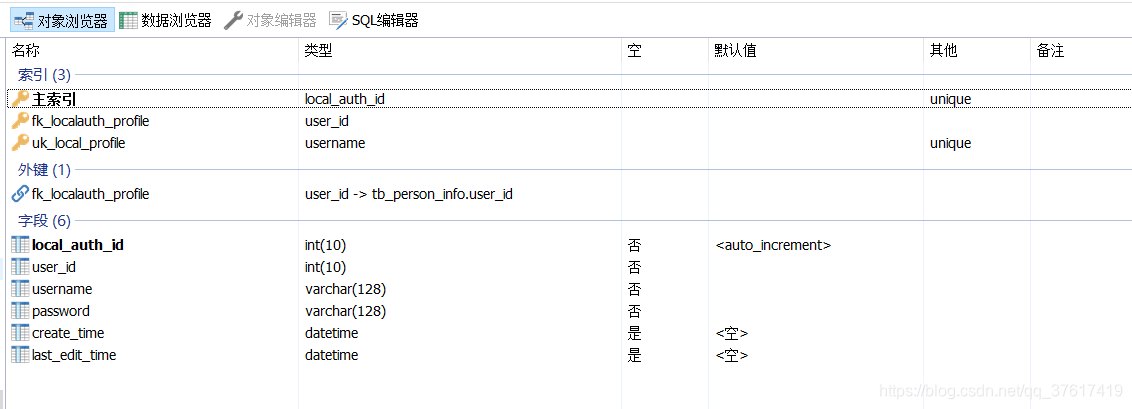

所对应的sql语句如下:

CREATE TABLE `tb_local_auth` (
`local_auth_id`  int(10) NOT NULL AUTO_INCREMENT ,
`user_id`  int(10) NOT NULL ,
`username`  varchar(128) NOT NULL ,
`password`  varchar(128) NOT NULL ,
`create_time` datetime DEFAULT NULL,
`last_edit_time` datetime DEFAULT NULL,
primary key(`local_auth_id`),
UNIQUE KEY `uk_local_profile`(`username`),
constraint `fk_localauth_profile` foreign key(`user_id`) references `tb_person_info`(`user_id`)
)ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

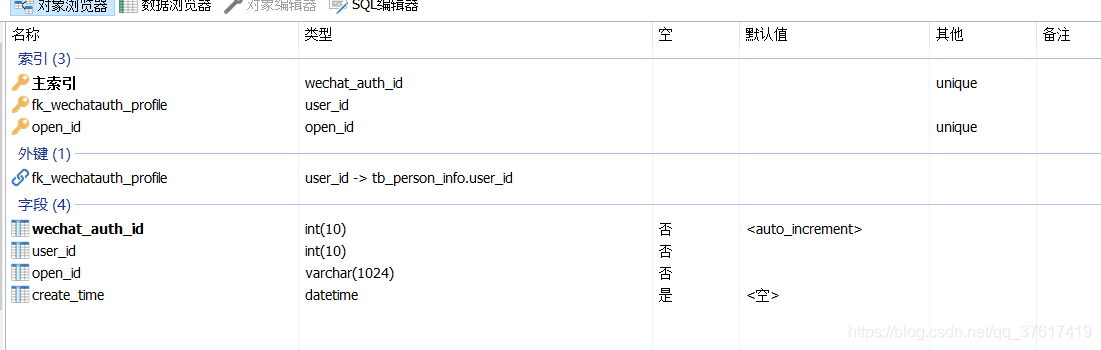

增加唯一索引sql语句：目的在于提升查询效能

alter table tb_wechat_auth add unique index(open_id);

在这里插入图片描述

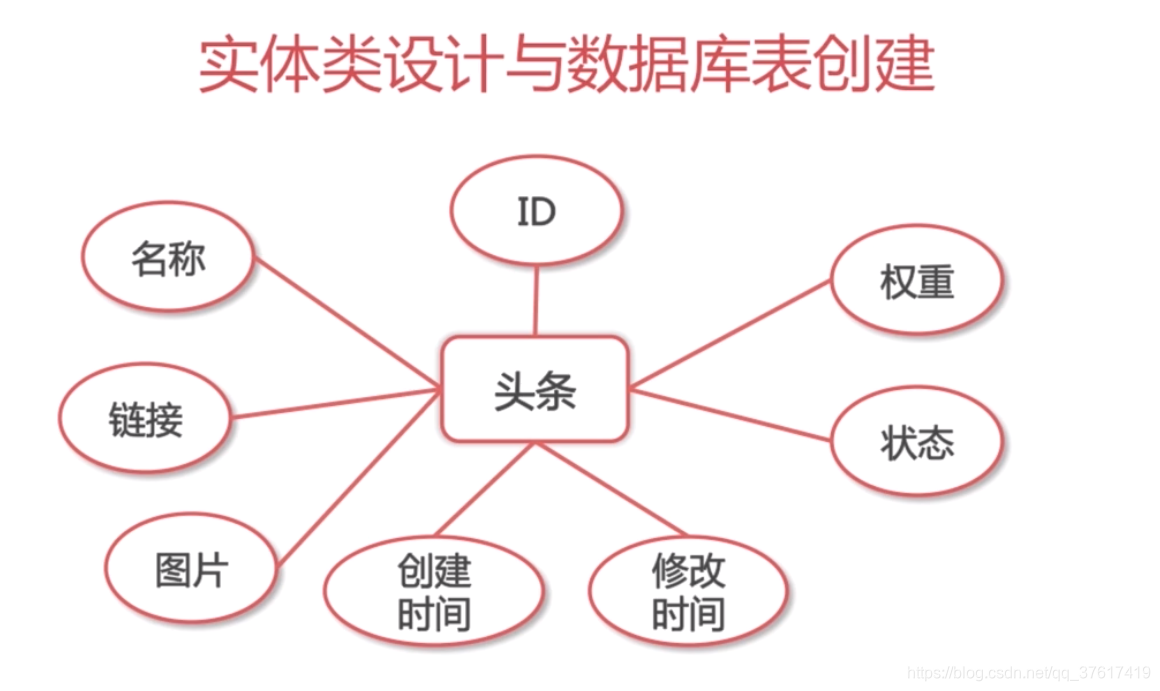

头条类创建

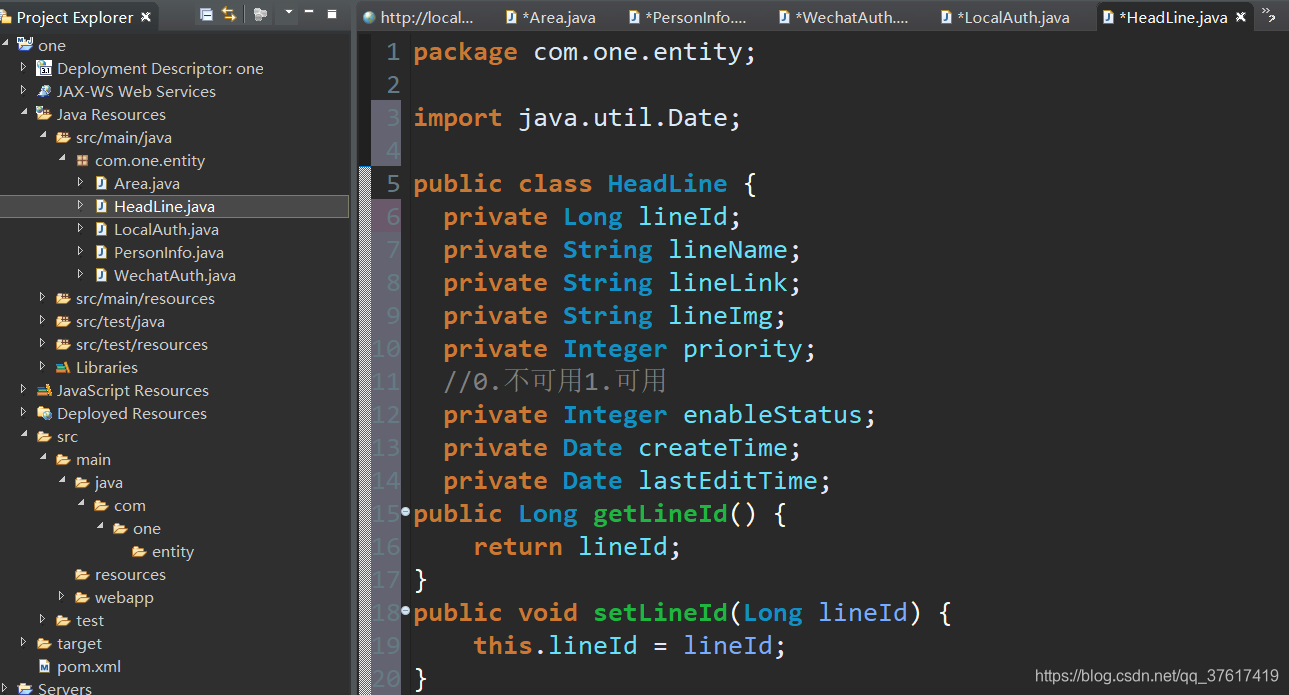

同理创建HeadLine.java

详细代码如下:

package com.one.entity;

import java.util.Date;

public class HeadLine {
  private Long lineId;
  private String lineName;
  private String lineLink;
  private String lineImg;
  private Integer priority;
  //0.不可用1.可用
  private Integer enableStatus;
  private Date createTime;
  private Date lastEditTime;
public Long getLineId() {
	return lineId;
}
public void setLineId(Long lineId) {
	this.lineId = lineId;
}
public String getLineName() {
	return lineName;
}
public void setLineName(String lineName) {
	this.lineName = lineName;
}
public String getLineLink() {
	return lineLink;
}
public void setLineLink(String lineLink) {
	this.lineLink = lineLink;
}
public String getLineImg() {
	return lineImg;
}
public void setLineImg(String lineImg) {
	this.lineImg = lineImg;
}
public Integer getPriority() {
	return priority;
}
public void setPriority(Integer priority) {
	this.priority = priority;
}
public Integer getEnableStatus() {
	return enableStatus;
}
public void setEnableStatus(Integer enableStatus) {
	this.enableStatus = enableStatus;
}
public Date getCreateTime() {
	return createTime;
}
public void setCreateTime(Date createTime) {
	this.createTime = createTime;
}
public Date getLastEditTime() {
	return lastEditTime;
}
public void setLastEditTime(Date lastEditTime) {
	this.lastEditTime = lastEditTime;
}

}

对应sql语句

CREATE TABLE `tb_head_line` (
`line_id`  int(100) NOT NULL AUTO_INCREMENT ,
`line_name`  varchar(100) DEFAULT NULL ,
`line_link`  varchar(2000) NOT NULL ,
`line_img` varchar(2000) NOT NULL,
`priority` int(2) DEFAULT NULL,
`enable_status`int(2) NOT NULL DEFAULT '0',
`create_time` datetime DEFAULT NULL,
`last_edit_time` datetime DEFAULT NULL,
primary key(`line_id`)
)ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8

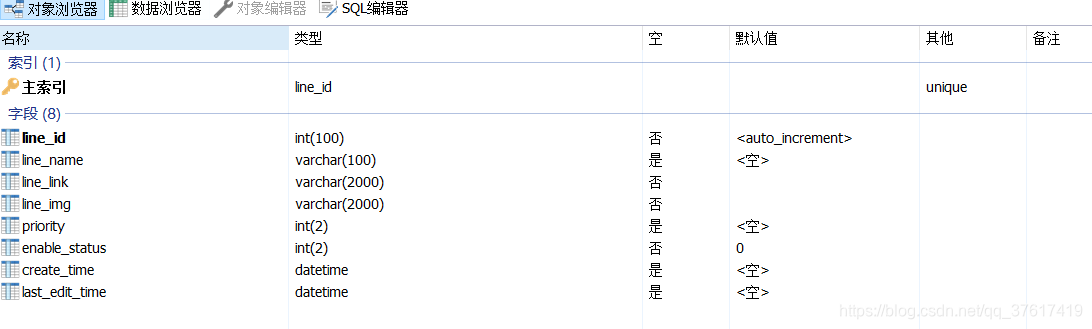

在这里插入图片描述

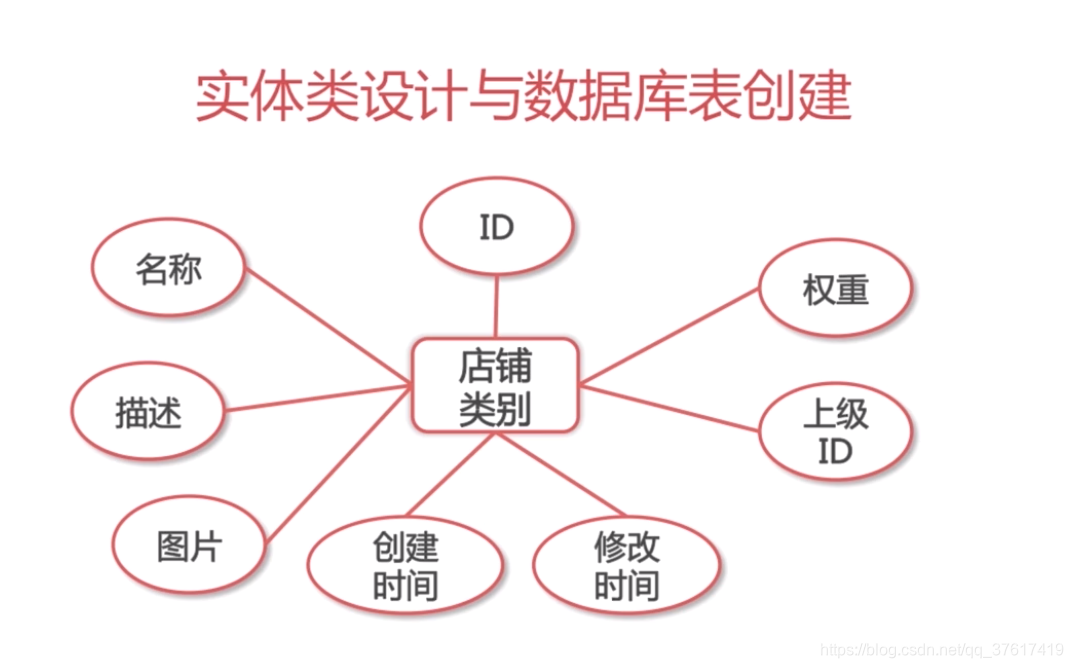

店铺类别

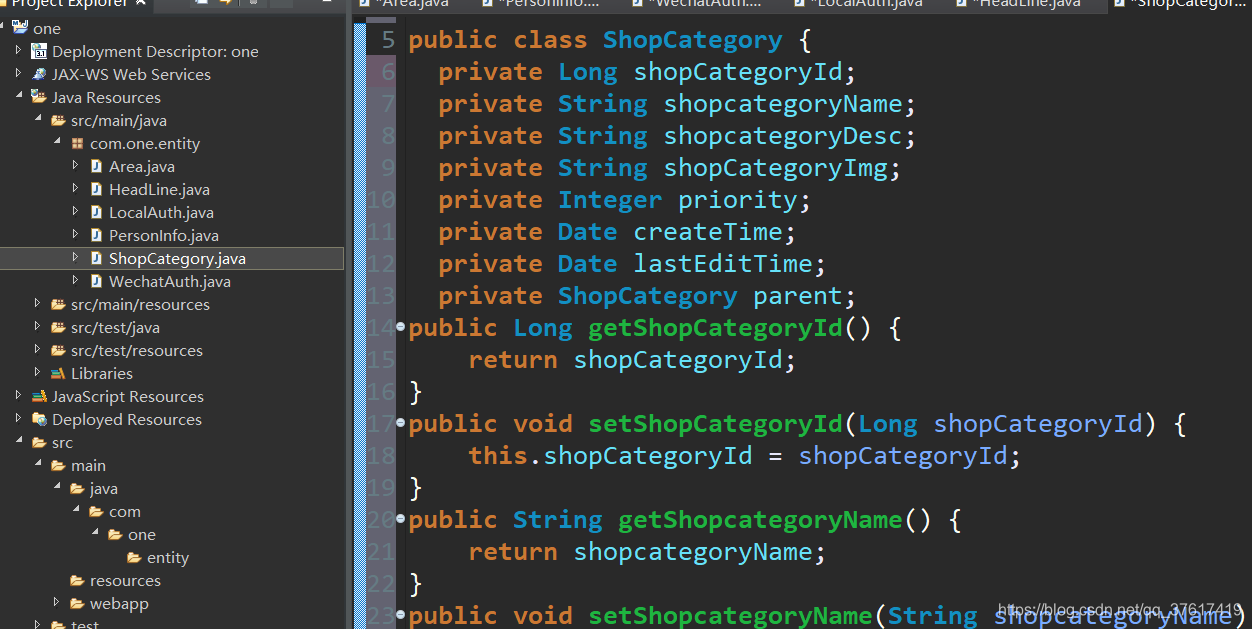

同理，建立ShopCategory.java

详细代码如下：

package com.one.entity;

import java.util.Date;

public class ShopCategory {
  private Long shopCategoryId;
  private String shopcategoryName;
  private String shopcategoryDesc;
  private String shopCategoryImg;
  private Integer priority;
  private Date createTime;
  private Date lastEditTime;
  private ShopCategory parent;
public Long getShopCategoryId() {
	return shopCategoryId;
}
public void setShopCategoryId(Long shopCategoryId) {
	this.shopCategoryId = shopCategoryId;
}
public String getShopcategoryName() {
	return shopcategoryName;
}
public void setShopcategoryName(String shopcategoryName) {
	this.shopcategoryName = shopcategoryName;
}
public String getShopcategoryDesc() {
	return shopcategoryDesc;
}
public void setShopcategoryDesc(String shopcategoryDesc) {
	this.shopcategoryDesc = shopcategoryDesc;
}
public String getShopCategoryImg() {
	return shopCategoryImg;
}
public void setShopCategoryImg(String shopCategoryImg) {
	this.shopCategoryImg = shopCategoryImg;
}
public Integer getPriority() {
	return priority;
}
public void setPriority(Integer priority) {
	this.priority = priority;
}
public Date getCreateTime() {
	return createTime;
}
public void setCreateTime(Date createTime) {
	this.createTime = createTime;
}
public Date getLastEditTime() {
	return lastEditTime;
}
public void setLastEditTime(Date lastEditTime) {
	this.lastEditTime = lastEditTime;
}
public ShopCategory getParent() {
	return parent;
}
public void setParent(ShopCategory parent) {
	this.parent = parent;
}

}

对应sql语句

CREATE TABLE `tb_shop_category` (
`shop_category_id`  int(11) NOT NULL AUTO_INCREMENT ,
`shop_category_name`  varchar(100)NOT NULL DEFAULT '' ,
`shop_category_desc`  varchar(1000) DEFAULT '',
`shop_category_img` varchar(2000) DEFAULT NULL,
`priority` int(2) NOT NULL DEFAULT '0',
`create_time` datetime DEFAULT NULL,
`last_edit_time` datetime DEFAULT NULL,
`parent_id`int(11)  DEFAULT NULL,
primary key(`shop_category_id`),
constraint `fk_shop_category_self` foreign key(`parent_id`) references `tb_shop_category`(`shop_category_id`)
)ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

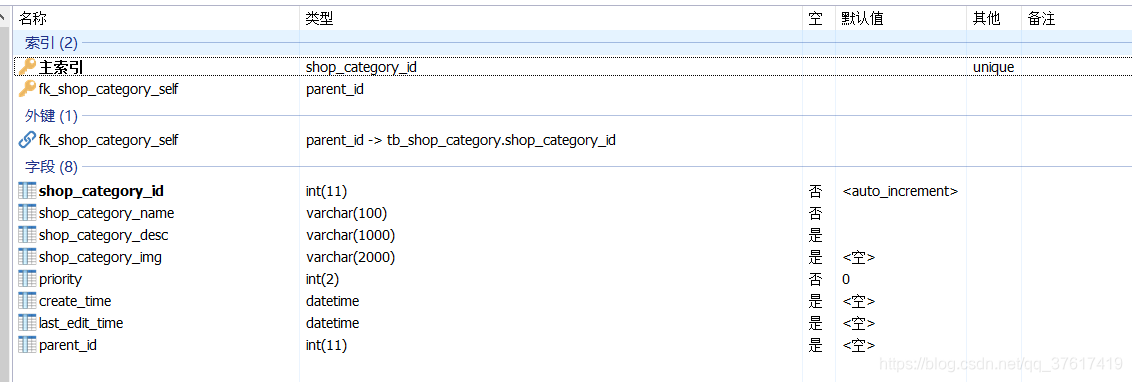

在这里插入图片描述

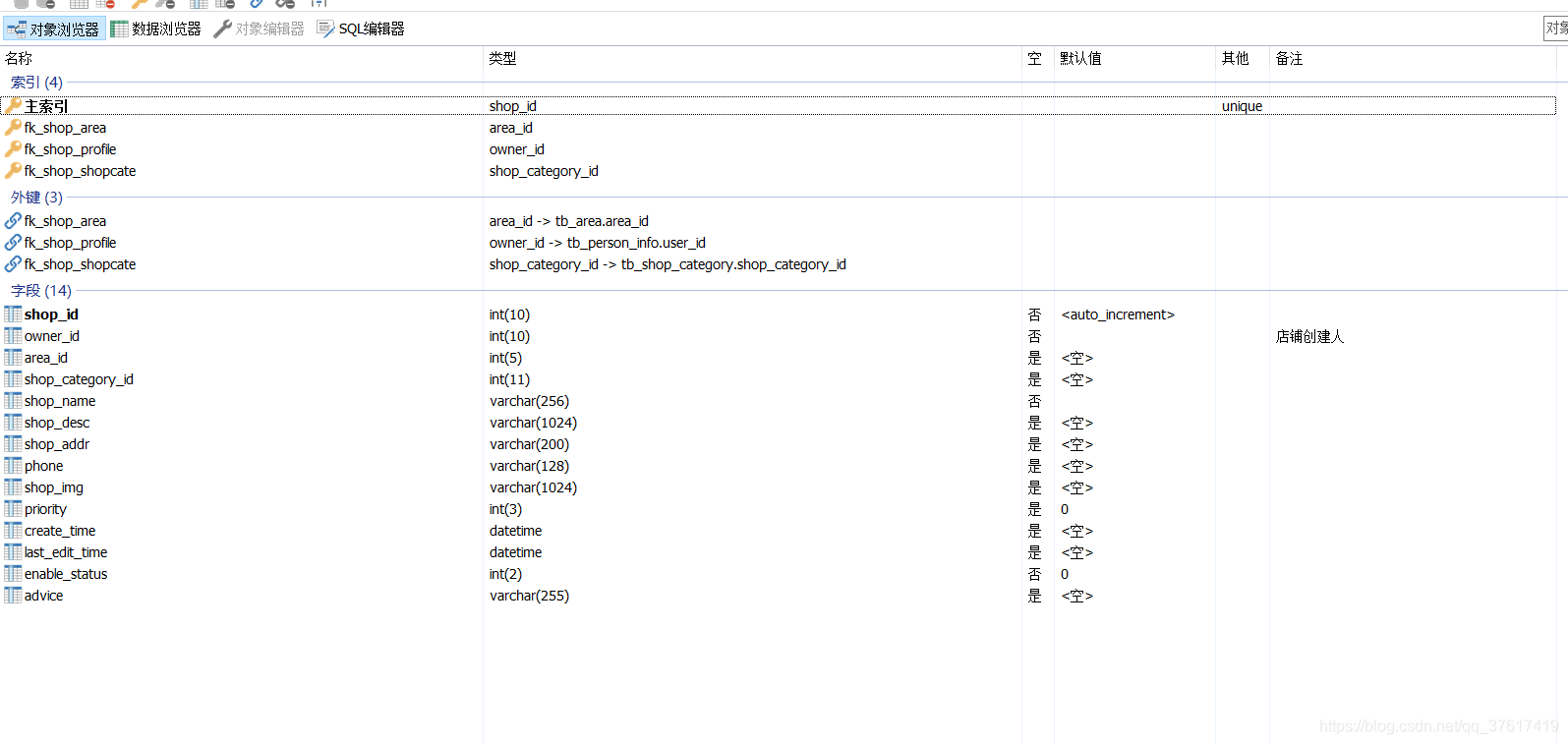

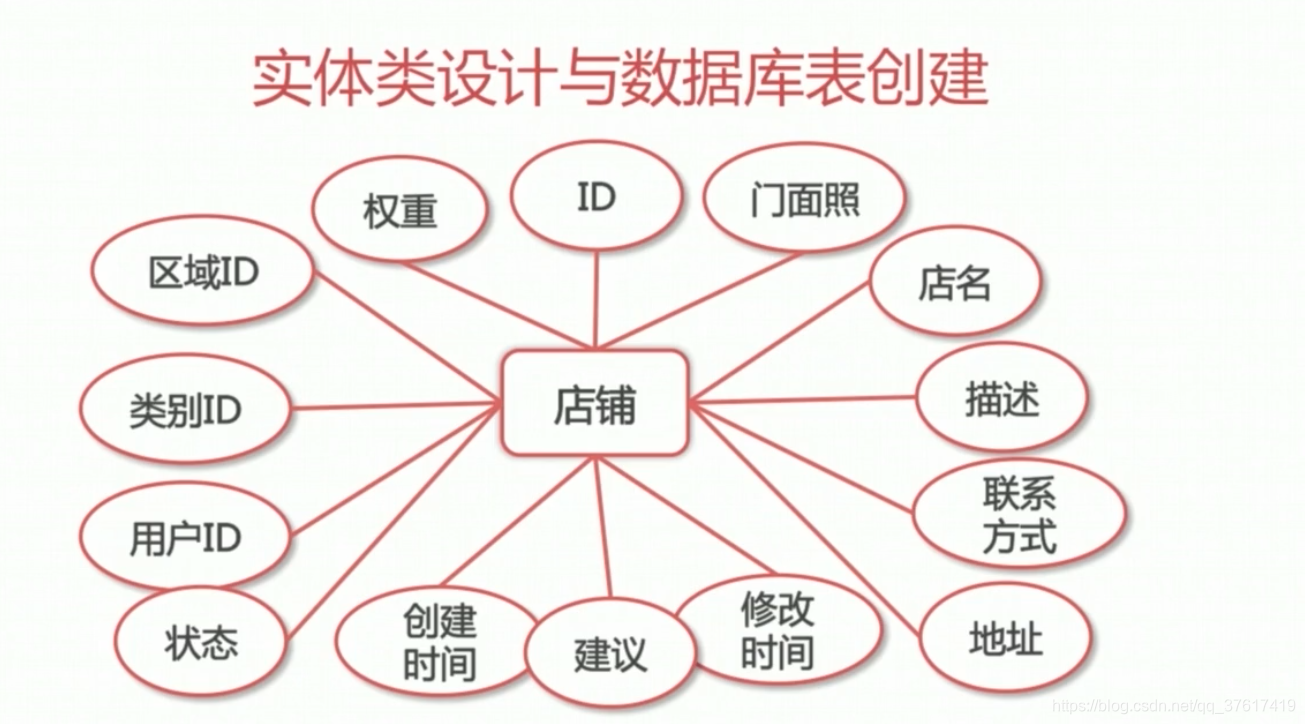

店铺

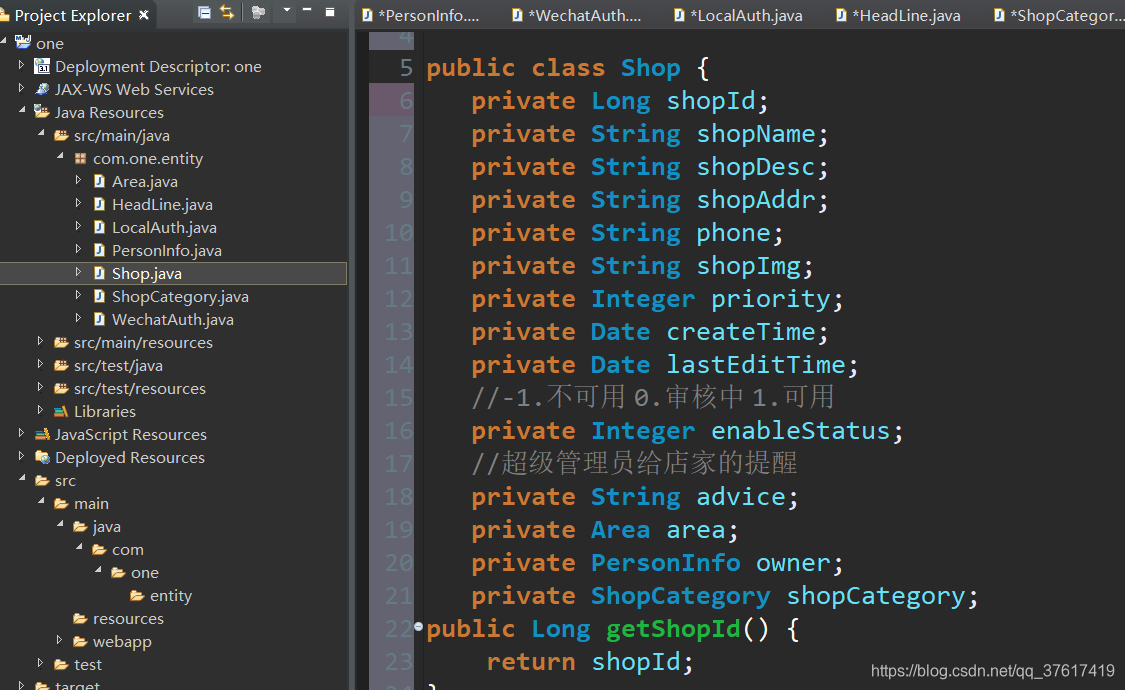

创建Shop.java

详细代码如下：

package com.one.entity;

import java.util.Date;

public class Shop {
   private Long shopId;
   private String shopName;
   private String shopDesc;
   private String shopAddr;
   private String phone;
   private String shopImg;
   private Integer priority;
   private Date createTime;
   private Date lastEditTime;
   //-1.不可用 0.审核中 1.可用
   private Integer enableStatus;
   //超级管理员给店家的提醒
   private String advice;
   private Area area;
   private PersonInfo owner;
   private ShopCategory shopCategory;
public Long getShopId() {
	return shopId;
}
public void setShopId(Long shopId) {
	this.shopId = shopId;
}
public String getShopName() {
	return shopName;
}
public void setShopName(String shopName) {
	this.shopName = shopName;
}
public String getShopDesc() {
	return shopDesc;
}
public void setShopDesc(String shopDesc) {
	this.shopDesc = shopDesc;
}
public String getShopAddr() {
	return shopAddr;
}
public void setShopAddr(String shopAddr) {
	this.shopAddr = shopAddr;
}
public String getPhone() {
	return phone;
}
public void setPhone(String phone) {
	this.phone = phone;
}
public String getShopImg() {
	return shopImg;
}
public void setShopImg(String shopImg) {
	this.shopImg = shopImg;
}
public Integer getPriority() {
	return priority;
}
public void setPriority(Integer priority) {
	this.priority = priority;
}
public Date getCreateTime() {
	return createTime;
}
public void setCreateTime(Date createTime) {
	this.createTime = createTime;
}
public Date getLastEditTime() {
	return lastEditTime;
}
public void setLastEditTime(Date lastEditTime) {
	this.lastEditTime = lastEditTime;
}
public Integer getEnableStatus() {
	return enableStatus;
}
public void setEnableStatus(Integer enableStatus) {
	this.enableStatus = enableStatus;
}
public String getAdvice() {
	return advice;
}
public void setAdvice(String advice) {
	this.advice = advice;
}
public Area getArea() {
	return area;
}
public void setArea(Area area) {
	this.area = area;
}
public PersonInfo getOwner() {
	return owner;
}
public void setOwner(PersonInfo owner) {
	this.owner = owner;
}
public ShopCategory getShopCategory() {
	return shopCategory;
}
public void setShopCategory(ShopCategory shopCategory) {
	this.shopCategory = shopCategory;
}

}

对应SQL语句

CREATE TABLE `tb_shop` (
`shop_id`  int(10) NOT NULL AUTO_INCREMENT ,
`owner_id` int(10) NOT NULL COMMENT '店铺创建人',
`area_id` int(5) DEFAULT NULL  ,
`shop_category_id`int(11) DEFAULT NULL ,
`shop_name`  varchar(256)NOT NULL ,
`shop_desc`  varchar(1024) DEFAULT NULL,
`shop_addr`  varchar(200) DEFAULT NULL,
`phone`  varchar(128) DEFAULT NULL,
`shop_img` varchar(1024) DEFAULT NULL,
`priority` int(3)  DEFAULT '0',
`create_time` datetime DEFAULT NULL,
`last_edit_time` datetime DEFAULT NULL,
`enable_status`int(2) NOT NULL DEFAULT '0',
`advice`  varchar(255) DEFAULT NULL,
primary key(`shop_id`),
constraint `fk_shop_area` foreign key(`area_id`) references `tb_area`(`area_id`),
constraint `fk_shop_profile` foreign key(`owner_id`) references `tb_person_info`(`user_id`),
constraint `fk_shop_shopcate` foreign key(`shop_category_id`) references `tb_shop_category`(`shop_category_id`)
)ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

在这里插入图片描述
商品类别
创建ProductCategory.java

package com.one.entity;

import java.util.Date;

public class ProductCategory {
	// 主键ID
	private Long productCategoryId;
	// 该类别是属于哪个店铺的
	private Long shopId;
	// 类别名
	private String productCategoryName;
	// 权重，越大越排前显示
	private Integer priority;
	// 创建时间
	private Date createTime;

	public Long getProductCategoryId() {
		return productCategoryId;
	}

	public void setProductCategoryId(Long productCategoryId) {
		this.productCategoryId = productCategoryId;
	}

	public Long getShopId() {
		return shopId;
	}

	public void setShopId(Long shopId) {
		this.shopId = shopId;
	}

	public String getProductCategoryName() {
		return productCategoryName;
	}

	public void setProductCategoryName(String productCategoryName) {
		this.productCategoryName = productCategoryName;
	}

	public Integer getPriority() {
		return priority;
	}

	public void setPriority(Integer priority) {
		this.priority = priority;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

}

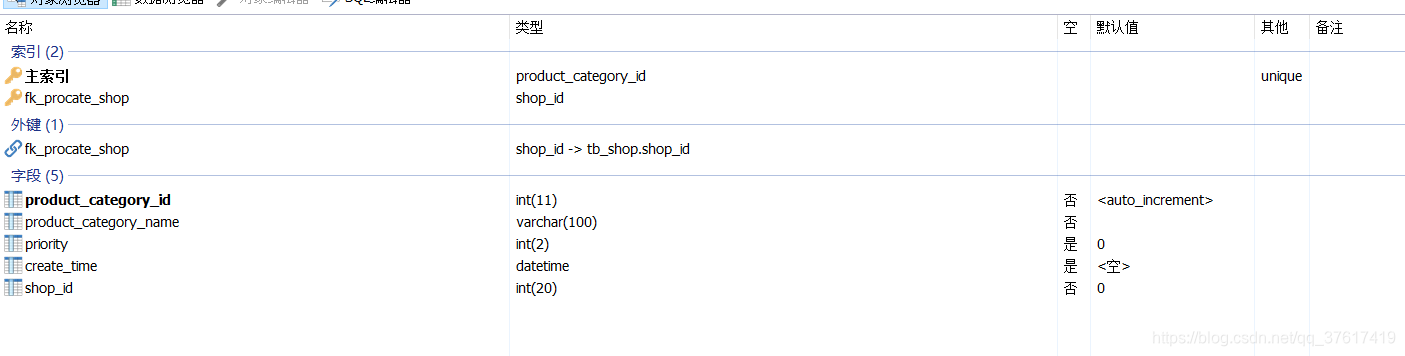

对应sql语句

CREATE TABLE `tb_product_category` (
  `product_category_id` int(11) NOT NULL AUTO_INCREMENT,
  `product_category_name` varchar(100) NOT NULL,
  `priority` int(2) DEFAULT '0',
  `create_time` datetime DEFAULT NULL,
  `shop_id` int(20) NOT NULL DEFAULT '0',
  PRIMARY KEY (`product_category_id`),
  KEY `fk_procate_shop` (`shop_id`),
  CONSTRAINT `fk_procate_shop` FOREIGN KEY (`shop_id`) REFERENCES `tb_shop` (`shop_id`)
) ENGINE=InnoDB AUTO_INCREMENT=32 DEFAULT CHARSET=utf8;

在这里插入图片描述
商品

创建Product.java

package com.one.entity;

import java.util.Date;
import java.util.List;

public class Product {
	// 主键ID
	private Long productId;
	// 商品名
	private String productName;
	// 商品简介
	private String productDesc;
	// 简略图
	private String imgAddr;
	// 原价
	private String normalPrice;
	// 现价(推广价格)
	private String promotionPrice;
	// 权重，越大越排前显示
	private Integer priority;
	// 商品积分
	private Integer point;
	// 创建时间
	private Date createTime;
	// 最近一次的更新时间
	private Date lastEditTime;
	// 0.下架 1.在前端展示系统展示
	private Integer enableStatus;

	// 图片详情图列表，跟商品是多对一的关系
	private List<ProductImg> productImgList;
	// 商品类别，一件商品仅属于一个商品类别
	private ProductCategory productCategory;
	// 店铺实体类，标明商品属于哪个店铺
	private Shop shop;

	public Long getProductId() {
		return productId;
	}

	public void setProductId(Long productId) {
		this.productId = productId;
	}

	public String getProductName() {
		return productName;
	}

	public void setProductName(String productName) {
		this.productName = productName;
	}

	public String getProductDesc() {
		return productDesc;
	}

	public void setProductDesc(String productDesc) {
		this.productDesc = productDesc;
	}

	public String getImgAddr() {
		return imgAddr;
	}

	public void setImgAddr(String imgAddr) {
		this.imgAddr = imgAddr;
	}

	public String getNormalPrice() {
		return normalPrice;
	}

	public void setNormalPrice(String normalPrice) {
		this.normalPrice = normalPrice;
	}

	public String getPromotionPrice() {
		return promotionPrice;
	}

	public void setPromotionPrice(String promotionPrice) {
		this.promotionPrice = promotionPrice;
	}

	public Integer getPriority() {
		return priority;
	}

	public void setPriority(Integer priority) {
		this.priority = priority;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public Date getLastEditTime() {
		return lastEditTime;
	}

	public void setLastEditTime(Date lastEditTime) {
		this.lastEditTime = lastEditTime;
	}

	public Integer getEnableStatus() {
		return enableStatus;
	}

	public void setEnableStatus(Integer enableStatus) {
		this.enableStatus = enableStatus;
	}

	public Integer getPoint() {
		return point;
	}

	public void setPoint(Integer point) {
		this.point = point;
	}

	public List<ProductImg> getProductImgList() {
		return productImgList;
	}

	public void setProductImgList(List<ProductImg> productImgList) {
		this.productImgList = productImgList;
	}

	public ProductCategory getProductCategory() {
		return productCategory;
	}

	public void setProductCategory(ProductCategory productCategory) {
		this.productCategory = productCategory;
	}

	public Shop getShop() {
		return shop;
	}

	public void setShop(Shop shop) {
		this.shop = shop;
	}
}

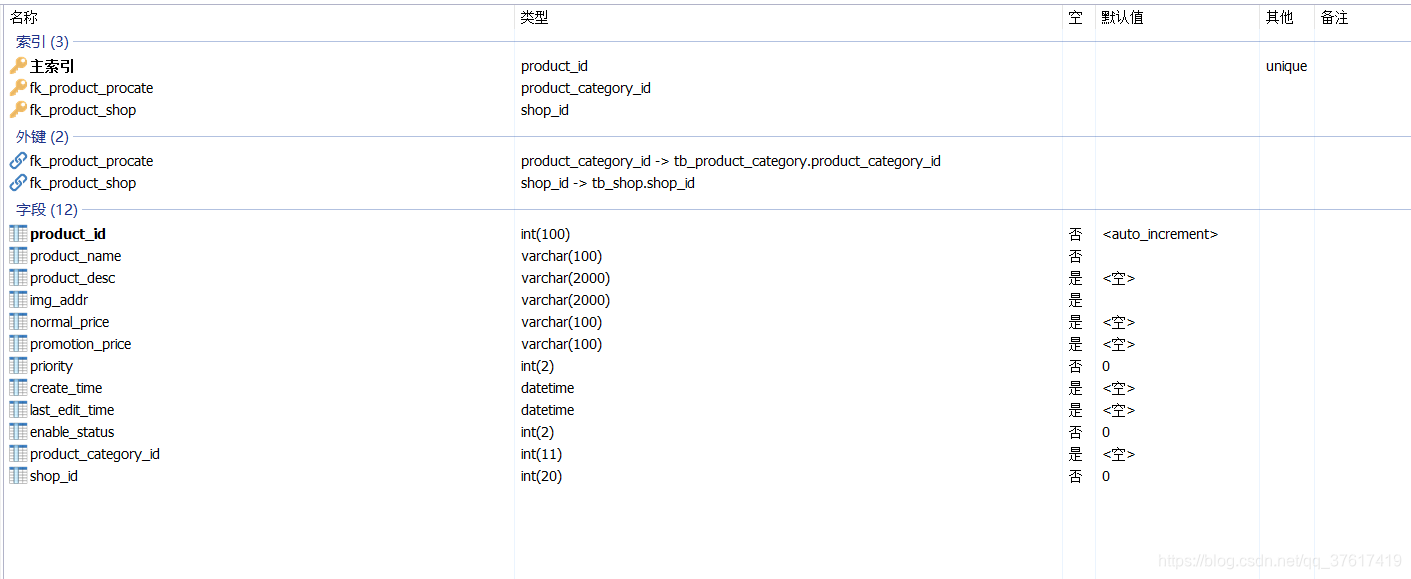

对应的sql语句

CREATE TABLE `tb_product` (
  `product_id` int(100) NOT NULL AUTO_INCREMENT,
  `product_name` varchar(100) NOT NULL,
  `product_desc` varchar(2000) DEFAULT NULL,
  `img_addr` varchar(2000) DEFAULT '',
  `normal_price` varchar(100) DEFAULT NULL,
  `promotion_price` varchar(100) DEFAULT NULL,
  `priority` int(2) NOT NULL DEFAULT '0',
  `create_time` datetime DEFAULT NULL,
  `last_edit_time` datetime DEFAULT NULL,
  `enable_status` int(2) NOT NULL DEFAULT '0',
  `product_category_id` int(11) DEFAULT NULL,
  `shop_id` int(20) NOT NULL DEFAULT '0',
  PRIMARY KEY (`product_id`),
  CONSTRAINT `fk_product_procate` FOREIGN KEY (`product_category_id`) REFERENCES `tb_product_category` (`product_category_id`),
  CONSTRAINT `fk_product_shop` FOREIGN KEY (`shop_id`) REFERENCES `tb_shop` (`shop_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

在这里插入图片描述

详情图片
创建ProductImg.java

package com.one.entity;

import java.util.Date;
public class ProductImg {
	// 主键ID
	private Long productImgId;
	// 图片地址
	private String imgAddr;
	// 图片简介
	private String imgDesc;
	// 权重，越大越排前显示
	private Integer priority;
	// 创建时间
	private Date createTime;
	// 标明是属于哪个商品的图片
	private Long productId;

	public Long getProductImgId() {
		return productImgId;
	}

	public void setProductImgId(Long productImgId) {
		this.productImgId = productImgId;
	}

	public String getImgAddr() {
		return imgAddr;
	}

	public void setImgAddr(String imgAddr) {
		this.imgAddr = imgAddr;
	}

	public String getImgDesc() {
		return imgDesc;
	}

	public void setImgDesc(String imgDesc) {
		this.imgDesc = imgDesc;
	}

	public Integer getPriority() {
		return priority;
	}

	public void setPriority(Integer priority) {
		this.priority = priority;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public Long getProductId() {
		return productId;
	}

	public void setProductId(Long productId) {
		this.productId = productId;
	}

}

对应的SQL语句

CREATE TABLE `tb_product_img` (
  `product_img_id` int(20) NOT NULL AUTO_INCREMENT,
  `img_addr` varchar(2000) NOT NULL,
  `img_desc` varchar(2000) DEFAULT NULL,
  `priority` int(2) DEFAULT '0',
  `create_time` datetime DEFAULT NULL,
  `product_id` int(20) DEFAULT NULL,
  PRIMARY KEY (`product_img_id`),
  CONSTRAINT `fk_proimg_product` FOREIGN KEY (`product_id`) REFERENCES `tb_product` (`product_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

在这里插入图片描述
