Keras入门笔记（2）

下面是一个Mnist手写识别的例子

导入必要的包

from __future__ import print_function
import keras
from keras.datasets import mnist
from keras.models import Sequential
from keras.layers import Dense, Dropout, Flatten
from keras.layers import Conv2D, MaxPooling2D
from keras import backend as K
import numpy as np
from matplotlib import pyplot as plt

如果没有相应的包，请自行导入，我在这里使用的是Anaconda(Python3.6)的环境，如果你在自己的环境下导入不成功，请自行下载Anaconda，网址https://www.anaconda.com/download/#windows。

设置参数

batch_size = 128
num_classes = 10
epochs = 3
img_rows, img_cols = 28, 28

导入数据集

(x_train, y_train), (x_test, y_test) = mnist.load_data2()

得到输入图像的shape

if K.image_data_format() == 'channels_first':
    x_train = x_train.reshape(x_train.shape[0], 1, img_rows, img_cols)
    print(x_train.shape[0], 1, img_rows, img_cols)
    x_test = x_test.reshape(x_test.shape[0], 1, img_rows, img_cols)
    input_shape = (1, img_rows, img_cols)
else:
    x_train = x_train.reshape(x_train.shape[0], img_rows, img_cols, 1)
    x_test = x_test.reshape(x_test.shape[0], img_rows, img_cols, 1)
    input_shape = (img_rows, img_cols, 1)

image_data_format()，返回默认的图像的维度顺序（‘channels_last’或‘channels_first’)，在表示一组彩色图片的问题上，Theano和Caffe使用（样本数，通道数，行或称为高，列或称为宽）通道在前的方式，称为channels_first；而TensorFlow使用（样本数，行或称为高，列或称为宽，通道数）通道在后的方式，称为channels_last。

归一化

x_train /= 255
x_test /= 255

把y向量转化为01矩阵

y_train = keras.utils.to_categorical(y_train, num_classes)
y_test = keras.utils.to_categorical(y_test, num_classes)

比如将[2 1]转化为[[0 0 1 0 0 0 0 0 0 0],[0 1 0 0 0 0 0 0 0 0]]

卷积核心代码

model = Sequential()
model.add(Conv2D(32, kernel_size=(3, 3),
                activation='relu',
                input_shape=input_shape))
model.add(Conv2D(64, (3, 3), activation='relu'))
#为了防止过拟合，我们加上一个最大池化层，再加上一个Dropout层
model.add(MaxPooling2D(pool_size=(2, 2)))
model.add(Dropout(0.25))
#数据转换
model.add(Flatten())
model.add(Dense(128, activation='relu'))
#怕过拟合，就用dropout
model.add(Dropout(0.5))
model.add(Dense(num_classes, activation='softmax'))
#编译模型
model.compile(loss=keras.losses.categorical_crossentropy,
              optimizer=keras.optimizers.Adadelta(),
              metrics=['accuracy'])
#训练模型
history=model.fit(x_train, y_train,
          batch_size=batch_size,
          epochs=epochs,
          verbose=1,
          validation_data=(x_test, y_test))
#评估模型
score = model.evaluate(x_test, y_test, verbose=0)
print('Test loss:', score[0])
print('Test accuracy:', score[1])

模型训练过程可视化

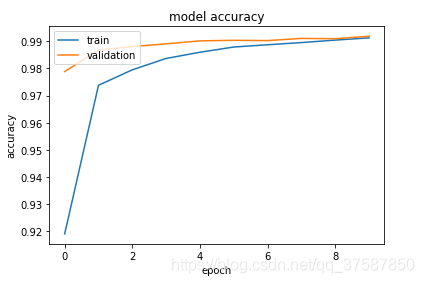

accuracy的历史

plt.plot(history.history['acc'])
plt.plot(history.history['val_acc'])
plt.title('model accuracy')
plt.ylabel('accuracy')
plt.xlabel('epoch')
plt.legend(['train','validation'],loc='upper left')
plt.show()

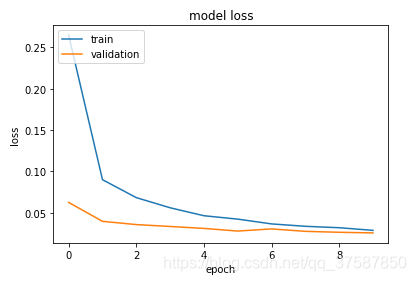

loss的历史

plt.plot(history.history['loss'])
plt.plot(history.history['val_loss'])
plt.title('model loss')
plt.ylabel('loss')
plt.xlabel('epoch')
plt.legend(['train','validation'],loc='upper left')
plt.show()

结果如下：

测试集损失率: 0.025634088496793994
测试集准确率: 0.9918
