android开发 绘制多个黑竖线条

1.写一个LinearLayout的布局,将宽度写成5dp将高度写成match_parent.

2.在写一个类继承LinearLayout,用LayoutInflater实现子布局的在这个LinearLayout类中显示。

3.直接在需要使用的xml文件中调用我们写的这个class,注意路径要写全。


1.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="5dp"
    android:layout_height="match_parent"
    android:background="#000000"
    >

</LinearLayout>

2.

package com.example.lenovo.myfragmentdemo3;

import android.content.Context;
import android.support.annotation.Nullable;
import android.util.AttributeSet;
import android.view.LayoutInflater;
import android.widget.LinearLayout;

import com.example.lenovo.myfragmentdemo3.R;

/**
 * Created by lenovo on 2018/5/7.
 */

public class Linedemo extends LinearLayout {
    public Linedemo(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
        LayoutInflater.from(context).inflate(R.layout.line,this);
    }
}


3.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="horizontal"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="10dp"
    >
    <com.example.lenovo.myfragmentdemo3.Linedemo
        android:layout_width="20dp"
        android:layout_height="match_parent"
        android:layout_marginRight="100dp"/>
    <com.example.lenovo.myfragmentdemo3.Linedemo
        android:layout_width="20dp"
        android:layout_height="match_parent"
        android:layout_marginRight="100dp"/>
    <com.example.lenovo.myfragmentdemo3.Linedemo
        android:layout_width="20dp"
        android:layout_height="match_parent"
        android:layout_marginRight="100dp"/>
    <com.example.lenovo.myfragmentdemo3.Linedemo
        android:layout_width="20dp"
        android:layout_height="match_parent"
        android:layout_marginRight="100dp"/>




</LinearLayout>

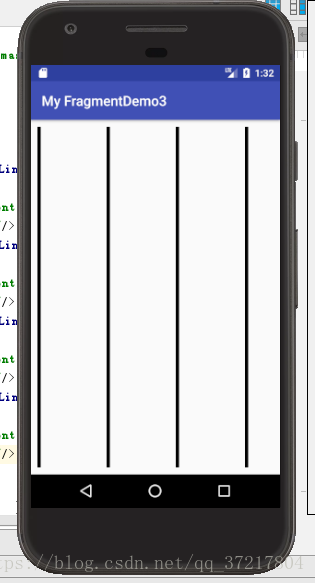

运行效果:
