tabBar
如果小程序是一个多 tab 应用(客户端窗口的底部或顶部有 tab 栏可以切换页面),可以通过 tabBar 配置项指定 tab 栏的表现,以及 tab 切换时显示的对应页面。
属性 | 类型 | 必填 | 默认值 | 描述 | 最低版本 |
---|---|---|---|---|---|
color | HexColor | 是 | tab 上的文字默认颜色,仅支持十六进制颜色 | ||
selectedColor | HexColor | 是 | tab 上的文字选中时的颜色,仅支持十六进制颜色 | ||
backgroundColor | HexColor | 是 | tab 的背景色,仅支持十六进制颜色 | ||
borderStyle | string | 否 | black | tabbar 上边框的颜色, 仅支持 black / white | |
list | Array | 是 | tab 的列表,详见 list 属性说明,最少 2 个、最多 5 个 tab | ||
position | string | 否 | bottom tabBar 的位置,仅支持 bottom / top | ||
custom | boolean | 否 | false | 自定义 tabBar,见详情 2.5.0 |
其中 list 接受一个数组,只能配置最少 2 个、最多 5 个 tab。tab 按数组的顺序排序,每个项都是一个对象,其属性值如下:
属性 | 类型 | 必填 | 说明 |
---|---|---|---|
pagePath | string | 是 | 页面路径,必须在 pages 中先定义 |
text | string | 是 | tab 上按钮文字 |
iconPath | string | 否 | 图片路径,icon 大小限制为 40kb,建议尺寸为 81px * 81px,不支持网络图片。当 position 为 top 时,不显示 icon。 |
selectedIconPath | string | 否 | 选中时的图片路径,icon 大小限制为 40kb,建议尺寸为 81px * 81px,不支持网络图片。当 position 为 top 时,不显示 icon。 |
HexColor(十六进制颜色值),如"#ff00ff"

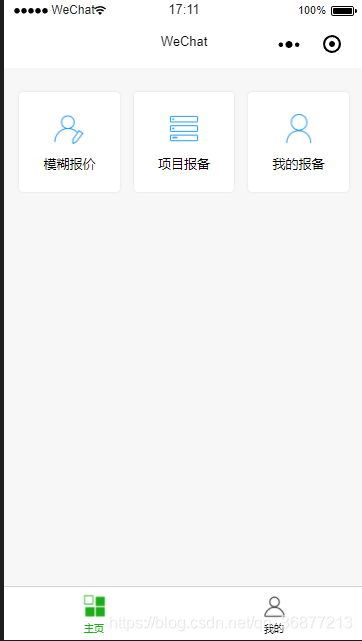

配置示例
{
"pages": [
"pages/index/index",
"pages/logs/index"
],
"window": {
"navigationBarTitleText": "Demo"
},
"tabBar": {
"color":"#000", //文字默认颜色
"selectedColor":"#1ADD19", //文字选中时的颜色
"list": [
{
"pagePath": "pages/index/index",
"iconPath": "images/wxfs.png", //默认图片
"selectedIconPath": "images/wxf.png", //选中图片
"text": "主页"
},
{
"pagePath": "pages/loginUser/loginUser",
"iconPath": "images/wxmys.png",
"selectedIconPath": "images/wxmy.png",
"text": "我的"
}
]
},
"networkTimeout": {
"request": 10000,
"downloadFile": 10000
},
"debug": true,
"navigateToMiniProgramAppIdList": ["wxe5f52902cf4de896"]
}
在list中需要按钮的图片,在小程序中图片直接放在与app.json文件同级即可。
