借助Docker学习大数据：Flink

借助Docker学习大数据：Flink

注意：本博文基于WSL2 & Docker，如无法达到实验效果，请注意环境差异。如果你使用的是Ubuntu、虚拟机等方式，注意下文提到的hostname。

WSL2安装Docker： https://zhuanlan.zhihu.com/p/163763066

本文注重实验，原理可参考： https://blog.youkuaiyun.com/oTengYue/article/details/102689538

一、Flink集群搭建

1.1 镜像下载

首先下载Flink镜像

docker pull flink	# 获取镜像
docker images		# 查看下载的镜像

1.2 集群搭建

我们可以直接运行 JobManager or TaskManager

方式分别如下：

docker run --name flink_jobmanager -d -t flink jobmanager	# JobManager
docker run --name flink_taskmanager -d -t flink taskmanager	# TaskManager

我们这里直接通过Docker Compose的方式运行一个集群：

docker compose 介绍

首先新建一个文件夹用于存放yml文件。这里我在WSL2的home路径新建一个 docker-flink 文件夹，并在该文件夹中新建 docker-compose.yml 文件，内容如下：

version: "2.1"
services:
  jobmanager:
    image: ${FLINK_DOCKER_IMAGE_NAME:-flink}
    expose:
      - "6123"
    ports:
      - "8081:8081"
    command: jobmanager
    environment:
      - JOB_MANAGER_RPC_ADDRESS=jobmanager

  taskmanager:
    image: ${FLINK_DOCKER_IMAGE_NAME:-flink}
    expose:
      - "6121"
      - "6122"
    depends_on:
      - jobmanager
    command: taskmanager
    links:
      - "jobmanager:jobmanager"
    environment:
      - JOB_MANAGER_RPC_ADDRESS=jobmanager

比如我的文件如下：

version: "2.1"
services:
  jobmanager:
    image: flink
    expose:
      - "6123"
    ports:
      - "8081:8081"
    command: jobmanager
    environment:
      - JOB_MANAGER_RPC_ADDRESS=jobmanager

  taskmanager:
    image: flink
    expose:
      - "6121"
      - "6122"
    depends_on:
      - jobmanager
    command: taskmanager
    links:
      - "jobmanager:jobmanager"
    environment:
      - JOB_MANAGER_RPC_ADDRESS=jobmanager

创建完成，直接在该目录运行如下命令启动docker compose 即可：

docker-compose up -d

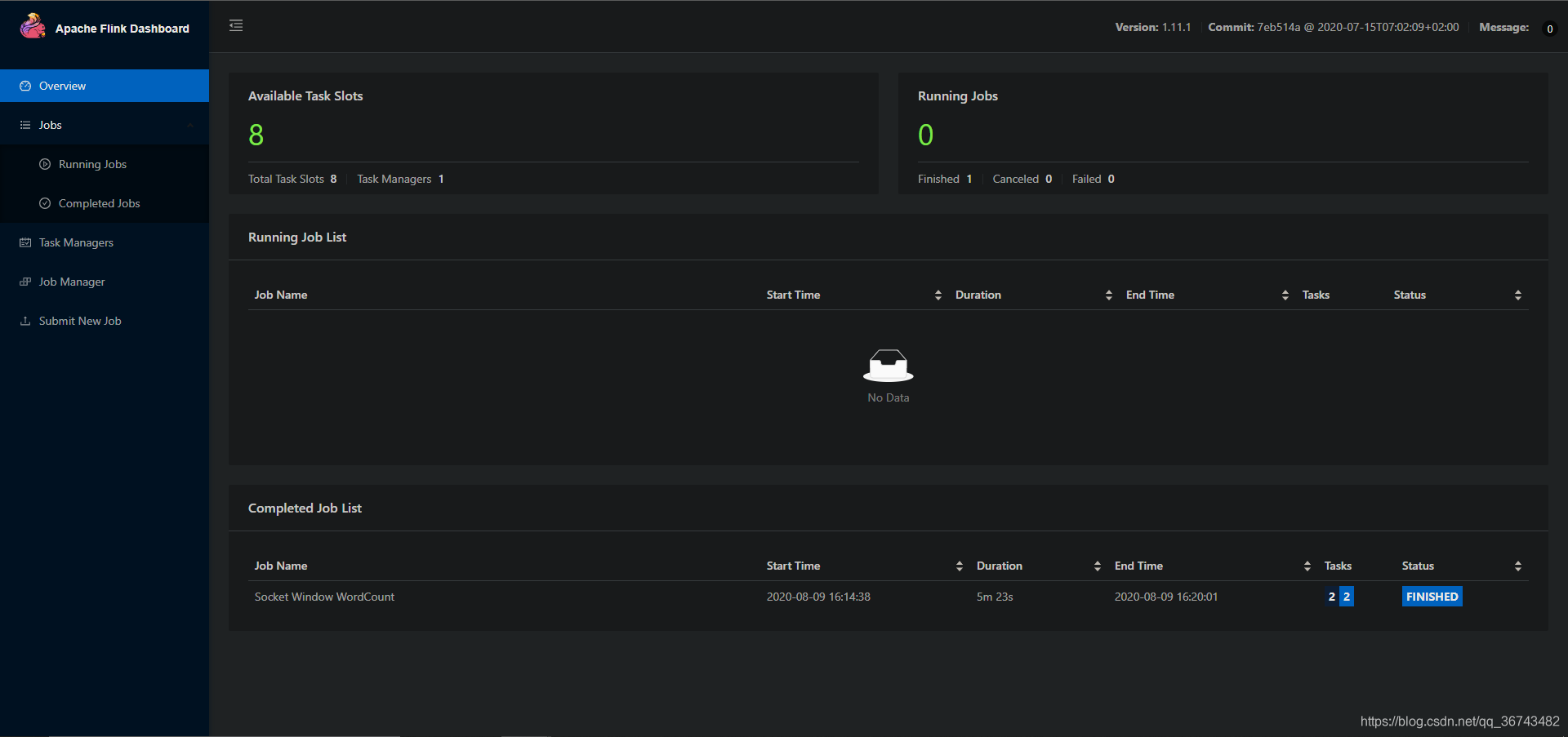

使用浏览器打开 localhost:8081 即可：

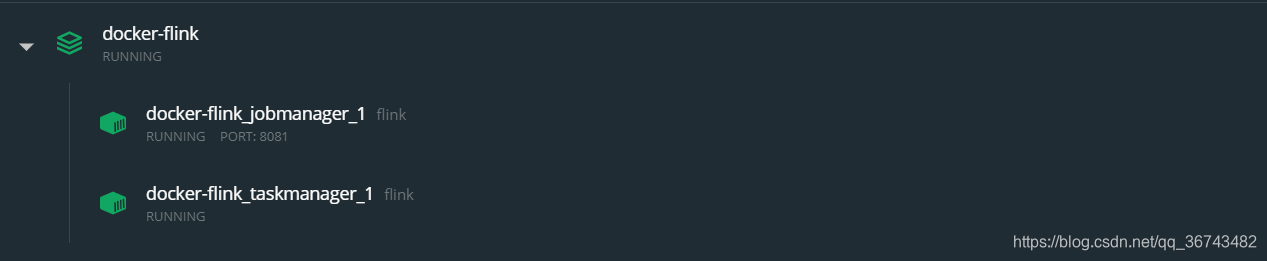

当然我们也可以直接在docker dashboard看到集群的信息，发现是 1 JobManager 1 TaskManager，如果想要扩展可以通过如下命令：

docker-compose scale taskmanager=<N>

二、Java 编程 WordCount

2.1 Maven

    <properties>
        <flink.version>1.11.1</flink.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-streaming-java_2.12</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-java</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-clients -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-clients_2.12</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-core</artifactId>
            <version>${flink.version}</version>
        </dependency>

    </dependencies>

2.2 Java Coding

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.common.functions.ReduceFunction;
import org.apache.flink.api.java.utils.ParameterTool;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.util.Collector;
/**
 * @author Creek
 */
@SuppressWarnings("serial")
public class WordCount {
    public static void main(String[] args) throws Exception {
        // the host and the port to connect to
        final String hostname;
        final int port;
        try {
            final ParameterTool params = ParameterTool.fromArgs(args);
            // 注意：WSL2 的 hostname 不是localhost，可以在WSL2中输入ifconfig获得
//            hostname = params.has("hostname") ? params.get("hostname") : "localhost";
            hostname = params.has("hostname") ? params.get("hostname") : "172.31.61.151";
            port = params.getInt("port");
        } catch (Exception e) {
            System.err.println("No port specified. Please run 'SocketWindowWordCount " +
                    "--hostname <hostname> --port <port>', where hostname (localhost by default) " +
                    "and port is the address of the text server");
            System.err.println("To start a simple text server, run 'netcat -l <port>' and " +
                    "type the input text into the command line");
            return;
        }

        // get the execution environment
        final StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        // get input data by connecting to the socket
        DataStream<String> text = env.socketTextStream(hostname, port, "\n");

        // parse the data, group it, window it, and aggregate the counts
        DataStream<WordWithCount> windowCounts = text

                .flatMap(new FlatMapFunction<String, WordWithCount>() {
                    @Override
                    public void flatMap(String value, Collector<WordWithCount> out) {
                        for (String word : value.split("\\s")) {
                            out.collect(new WordWithCount(word, 1L));
                        }
                    }
                })

                .keyBy("word")
                .timeWindow(Time.seconds(5))

                .reduce(new ReduceFunction<WordWithCount>() {
                    @Override
                    public WordWithCount reduce(WordWithCount a, WordWithCount b) {
                        return new WordWithCount(a.word, a.count + b.count);
                    }
                });

        // print the results with a single thread, rather than in parallel
        windowCounts.print().setParallelism(1);

        env.execute("Socket Window WordCount");

    }

    // ------------------------------------------------------------------------

    /**
     * Data type for words with count.
     */
    public static class WordWithCount {

        public String word;
        public long count;

        public WordWithCount() {
        }

        public WordWithCount(String word, long count) {
            this.word = word;
            this.count = count;
        }

        @Override
        public String toString() {
            return word + " : " + count;
        }
    }
}

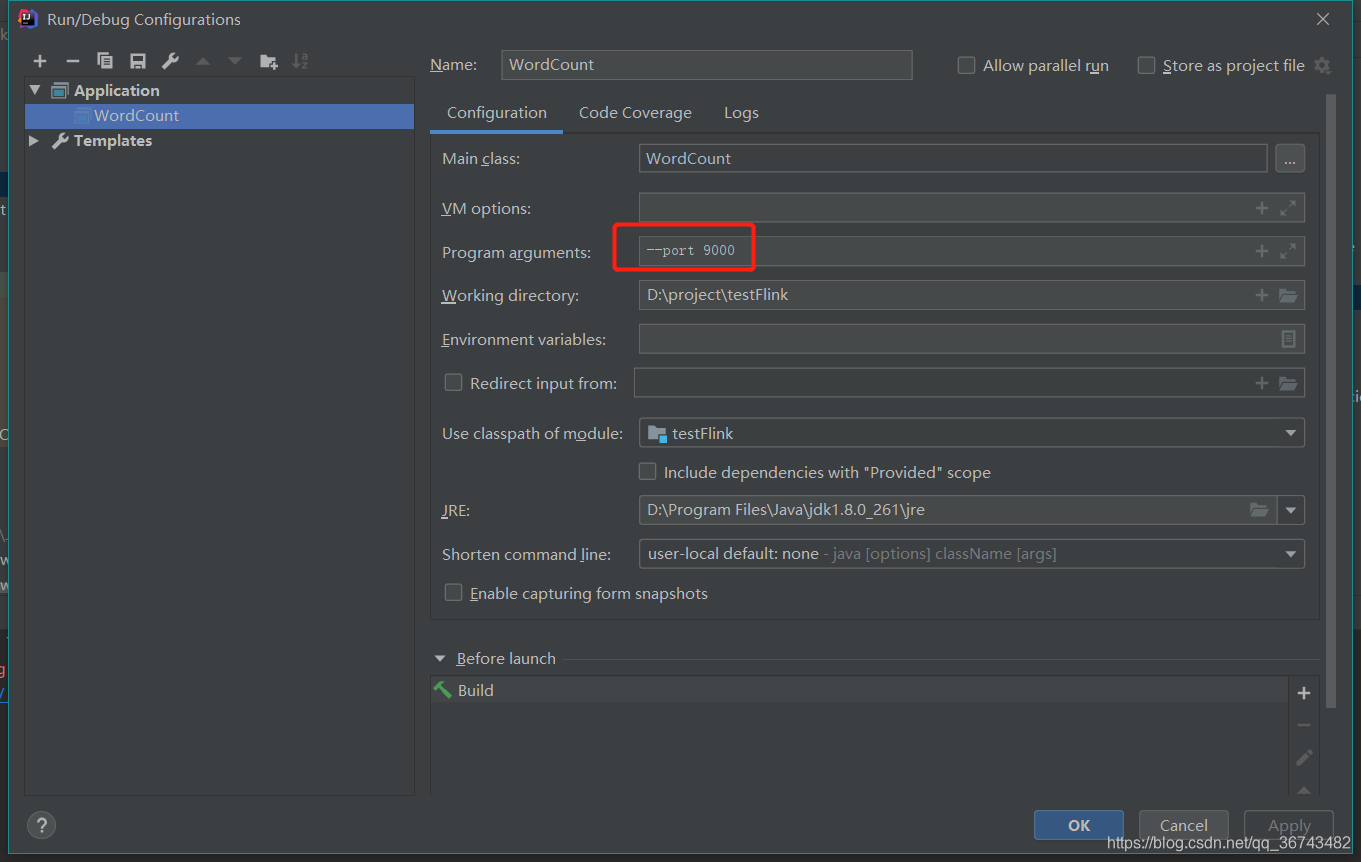

这里我们配置args如下：

2.3 监听9000端口

在WSL2中

netcat -l 9000	# nc -l 9000

运行main函数，在终端随便输入几个单词：

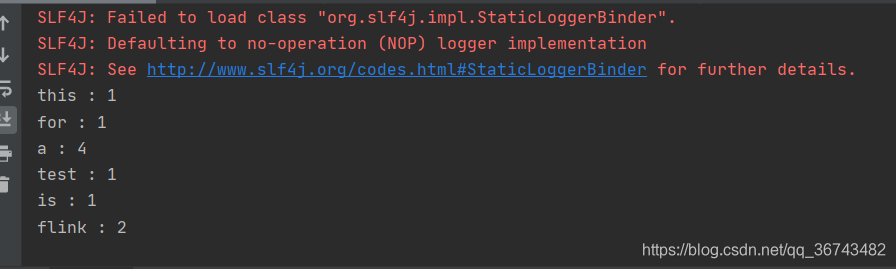

效果如下：

需要指出的是：现在你看到终端有结果，并不是借助flink运行的，如果你把docker运行的flink的集群关掉，仍然可以看到结果。

下面我们把代码打包，放入集群中运行查看效果。

三、打Jar包，提交集群

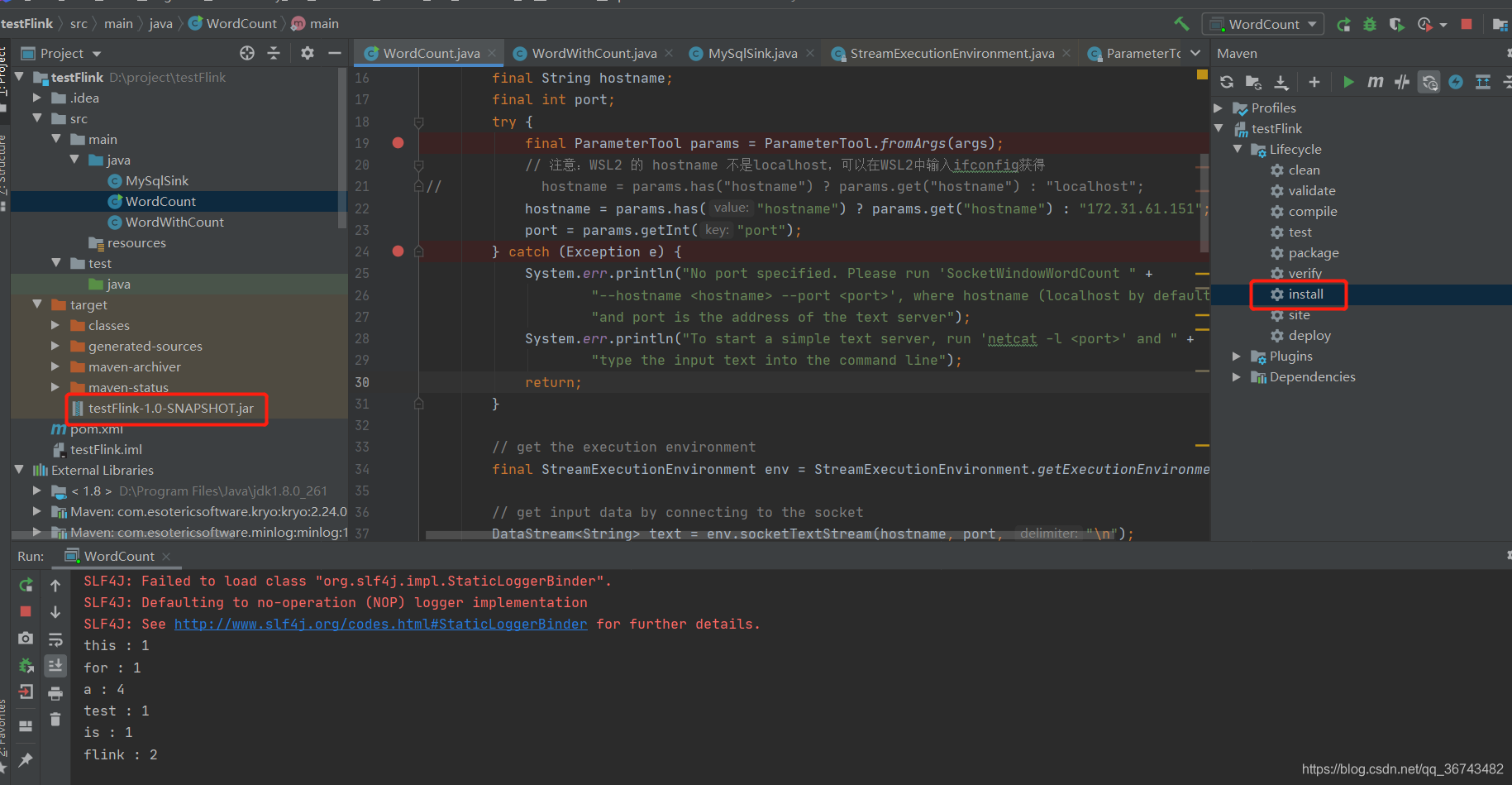

使用IDEA打包，找到jar包，右键打开文件位置

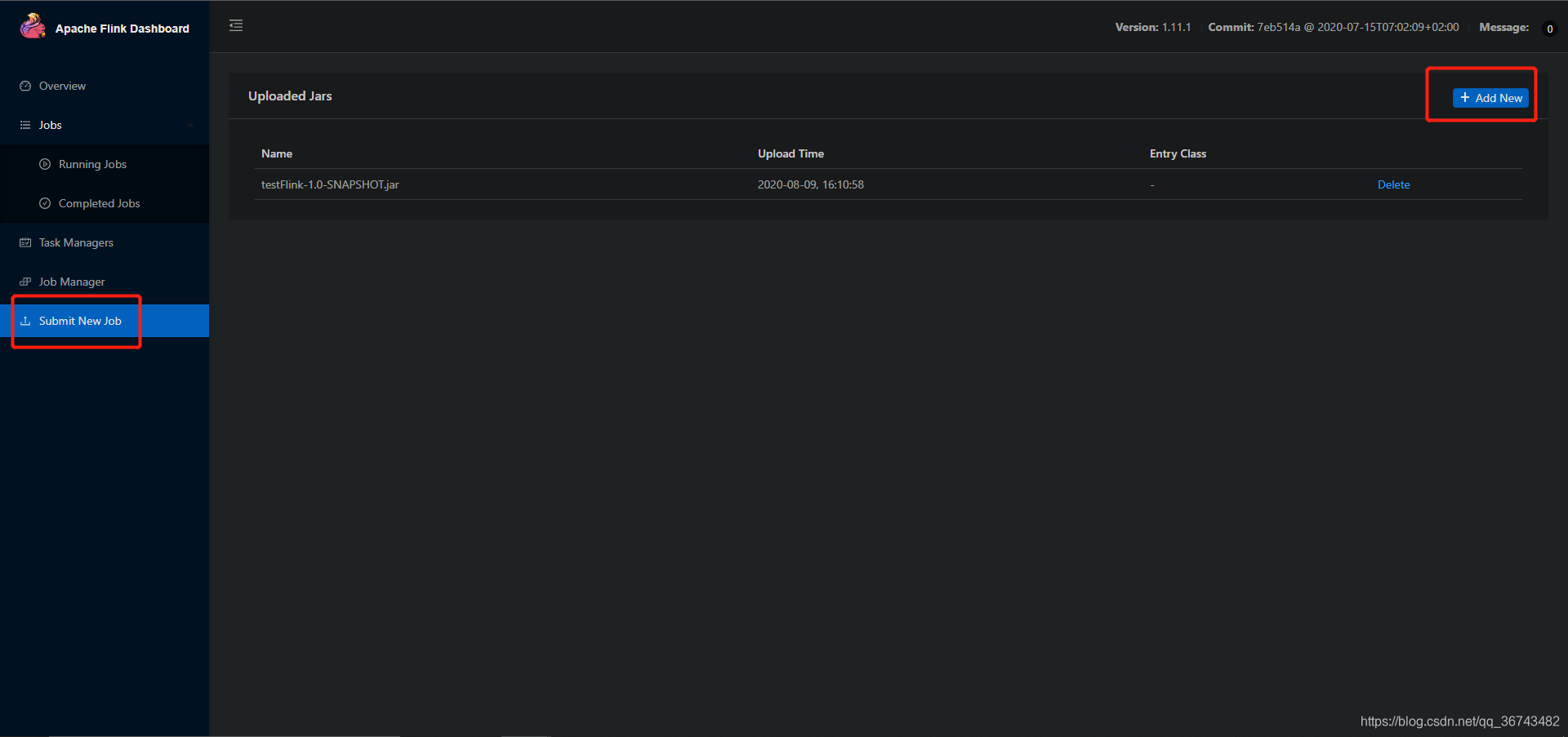

在flink中提交

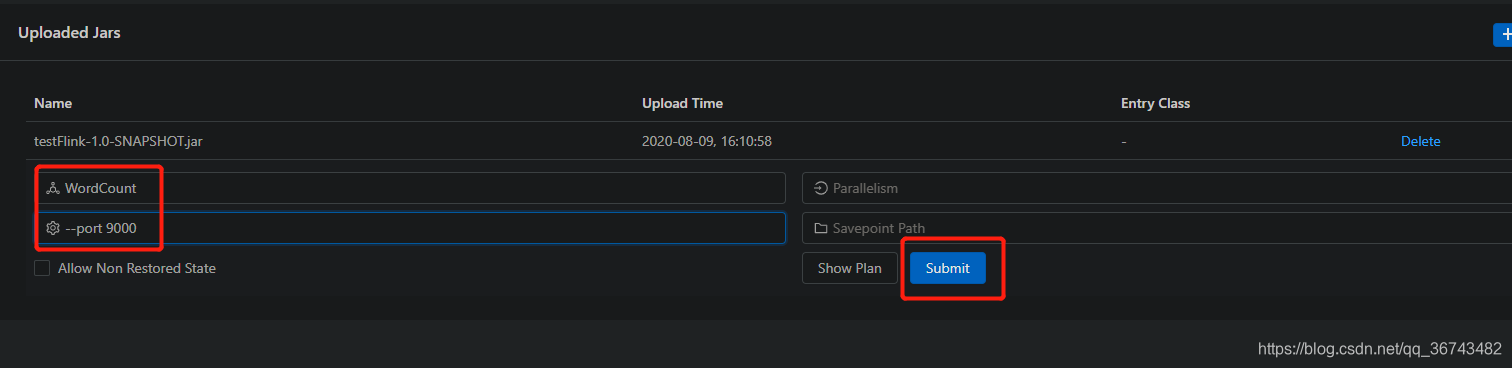

填写主类信息、参数信息，submit

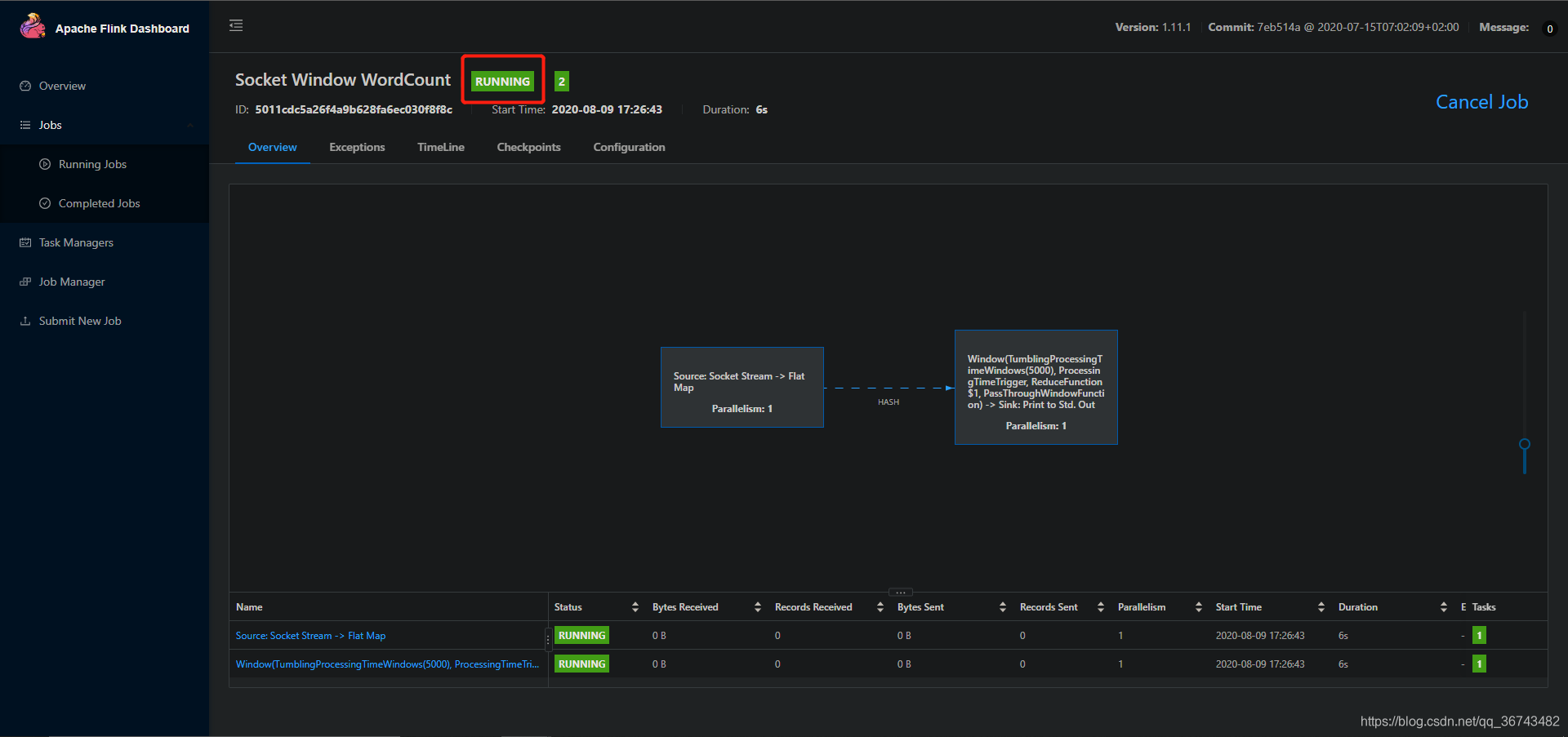

发现正在运行：

---
