版本:

springboot 2.0.3

springcloud Finchley.SR3

首先创建一个filter用于过滤请求，判断灰度条件，给灰度请求添加灰度标识

@Slf4j
public class EcsGrayFilter extends LoadBalancerClientFilter {

    @Autowired
    private SpringClientFactory clientFactory;

    private EcsRibbonLoadBalancerClient loadBalancer;

    public EcsGrayFilter(LoadBalancerClient loadBalancer) {
        super(loadBalancer);
    }

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
        HttpHeaders httpHeaders = exchange.getRequest().getHeaders();
        ServerHttpRequest request = exchange.getRequest();
        //对头信息进行灰度判定 判断当前请求是否进入灰度环境
        boolean isGray = false;
        //此处灰度逻辑
        if (isGray) {
            //给请求头添加灰度标标
            ServerHttpRequest newRequest = request.mutate().header(BaseConstant.ENVIRONMENT,BaseConstant.GRAY).build();
            exchange = exchange.mutate().request(newRequest).build();
        }
        return super.filter(exchange,chain);
    }

    protected ServiceInstance choose(ServerWebExchange exchange) {
        if (loadBalancer == null) {
            loadBalancer = new EcsRibbonLoadBalancerClient(clientFactory);
        }
        return this.loadBalancer.choose(((URI)exchange.getAttribute(ServerWebExchangeUtils.GATEWAY_REQUEST_URL_ATTR)).getHost(), exchange.getRequest().getHeaders());
    }
}

将此过滤器提交给spring容器，即在启动类中增加如下方法：

	@Bean
	public EcsGrayFilter userLoadBalanceClientFilter(LoadBalancerClient client) {
		return new EcsGrayFilter(client);
	}

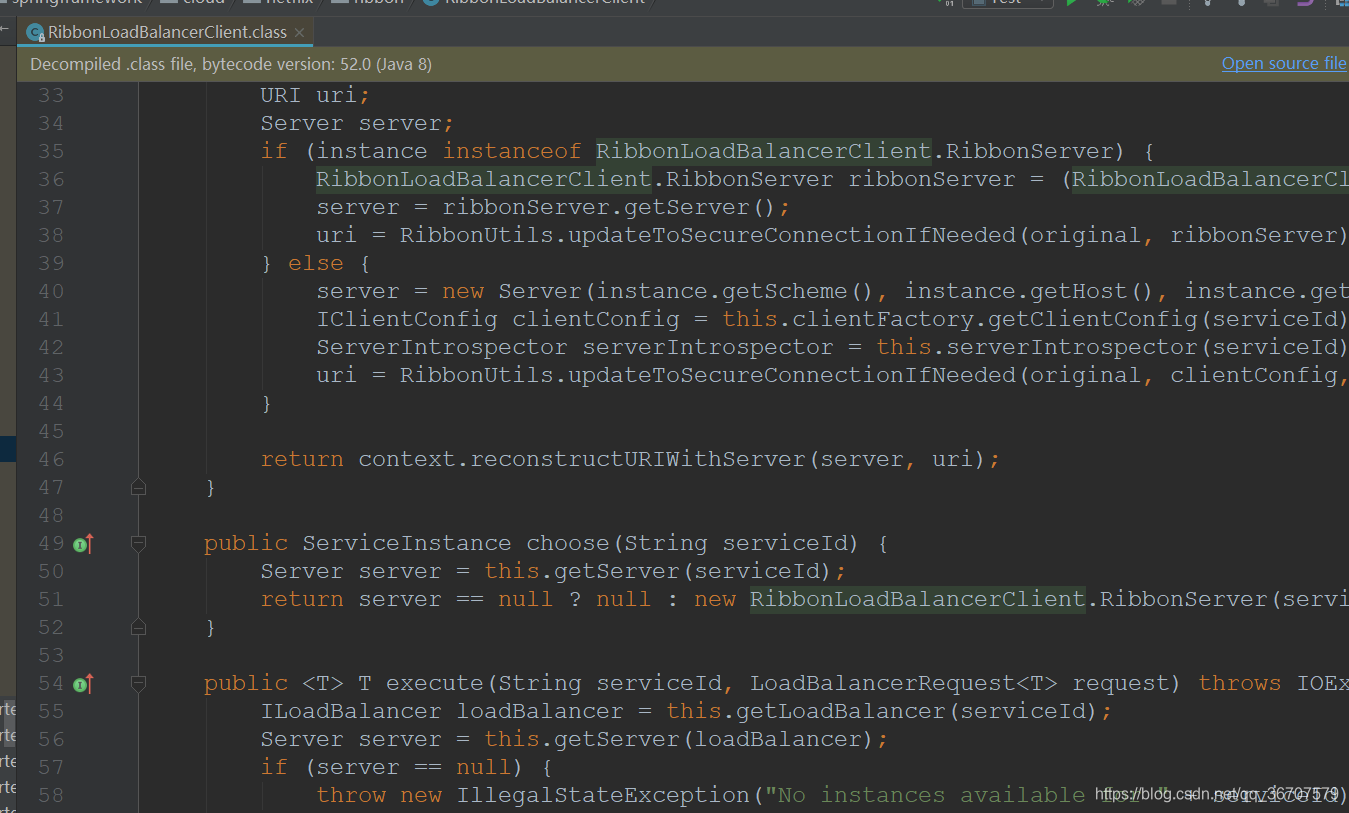

以下是org.springframework.cloud.netflix.ribbon.RibbonLoadBalancerClient

重写choose() 和 getServer()方法

public class EcsRibbonLoadBalancerClient extends RibbonLoadBalancerClient {

    private SpringClientFactory clientFactory;

    public EcsRibbonLoadBalancerClient(SpringClientFactory clientFactory) {
        super(clientFactory);
    }

    private ServerIntrospector serverIntrospector(String serviceId) {
        ServerIntrospector serverIntrospector = this.clientFactory.getInstance(serviceId,
                ServerIntrospector.class);
        if (serverIntrospector == null) {
            serverIntrospector = new DefaultServerIntrospector();
        }
        return serverIntrospector;
    }

    protected Server getServer(ILoadBalancer loadBalancer,HttpHeaders headers) {
        if (loadBalancer == null) {
            return null;
        }
        //获取环境标记
        String loadBalanceKey = headers.getFirst(BaseConstant.ENVIRONMENT);
        return StringUtils.isEmpty(loadBalanceKey) ? loadBalancer.chooseServer(BaseConstant.DEFAULT):loadBalancer.chooseServer(loadBalanceKey);
    }
}

将请头中的灰度标记传递给loadBalancer(负载均衡)

自定义一个负载均衡策略，这里负载均衡算法使用BestAvailableRule的算法，在此算法基础上增加灰度过滤

public class EcsBestAvailableRule extends PredicateBasedRule{
    private LoadBalancerStats loadBalancerStats;
    private ILoadBalancer loadBalancer;
    private AbstractServerPredicate predicate = new EcsDiscoveryEnabledPredicate();
    private RoundRobinRule roundRobinRule; private String appName;
    private String clientName;
    private String eurekaUrls;
    public void setEurekaUrls(String eurekaUrls) {
        this.eurekaUrls = eurekaUrls;
    }

    @Override
    public AbstractServerPredicate getPredicate() {
        return predicate;
    }

    public Server choose(Object key) {
        //此处自定义负载均衡策略
        if (this.loadBalancerStats == null) {
            return super.choose(key);
        } else {
            String keyStr = (String) key;
            if (BaseConstant.GRAY.equals(keyStr)) {
                //灰度使用默认负载
                Server server = super.choose(key);
                //如果灰度此请求没有对应的灰度服务则走在产服务,使用BestAvailableRule负载
                if (server == null) {
                    server = bestAvailableRuleChoose(BaseConstant.DEFAULT);
                }
                return server;
            } else {
                //在产版本使用BestAvailableRule负载
                return bestAvailableRuleChoose(key);
            }
        }
    }

    /**
     * bestAvailableRule
     * 此负载均衡策略：剔除熔断服务后在所有服务中选择连接数最小（负载最小的服务）
     * @param key
     * @return
     */
    Server bestAvailableRuleChoose(Object key){
        //获取所有服务
        List<Server> serverListAll = this.getLoadBalancer().getAllServers();
        //通过断言获取待负载均衡的所有服务
        List<Server> serverList = this.predicate.getEligibleServers(serverListAll,key);
        int minimalConcurrentConnections = 2147483647;
        long currentTime = System.currentTimeMillis();
        Server chosen = null;
        Iterator var7 = serverList.iterator();
        while(var7.hasNext()) {
            Server server = (Server)var7.next();
            ServerStats serverStats = this.loadBalancerStats.getSingleServerStat(server);
            if (!serverStats.isCircuitBreakerTripped(currentTime)) {
                int concurrentConnections = serverStats.getActiveRequestsCount(currentTime);
                if (concurrentConnections < minimalConcurrentConnections) {
                    minimalConcurrentConnections = concurrentConnections;
                    chosen = server;
                }
            }
        }

        if (chosen == null) {
            return super.choose(key);
        } else {
            return chosen;
        }
    }

    public void setLoadBalancer(ILoadBalancer lb) {
        super.setLoadBalancer(lb);
        if (lb instanceof AbstractLoadBalancer) {
            this.loadBalancerStats = ((AbstractLoadBalancer)lb).getLoadBalancerStats();
        }

    }
}

自定义一个断言

public class EcsDiscoveryEnabledPredicate extends AbstractServerPredicate {

    public boolean apply(PredicateKey input) {
        Server server = input.getServer();
        String routTo = (String) input.getLoadBalancerKey();
        if (server instanceof DiscoveryEnabledServer) {
            DiscoveryEnabledServer enabledServer = (DiscoveryEnabledServer) server;
            InstanceInfo instanceInfo = enabledServer.getInstanceInfo();
            //这里获取服务的环境属性，如果服务环境属性
            String serverStatus = instanceInfo.getMetadata().get(BaseConstant.ENVIRONMENT);
            //请求标记判断请求标记与环境是佛一致
            switch (routTo) {
                case BaseConstant.GRAY:
                    return BaseConstant.GRAY.equals(serverStatus);
                case BaseConstant.DEFAULT:
                    if (BaseConstant.GRAY.equals(serverStatus) || StringUtils.isBlank(serverStatus)) {
                        return false;
                    }
                    return true;
                default:
                    return false;
            }
        }
        return false;
    }

    public List<Server> getEligibleServers(List<Server> servers, Object loadBalancerKey) {
        if (loadBalancerKey == null) {
            return ImmutableList.copyOf(Iterables.filter(servers, this.getServerOnlyPredicate()));
        } else {
            List<Server> results = Lists.newArrayList();
            Iterator var4 = servers.iterator();

            while(var4.hasNext()) {
                Server server = (Server)var4.next();
                //这里将所有服务进行过滤，排除掉不符合条件的服务
                if (this.apply(new PredicateKey(loadBalancerKey, server))) {
                    results.add(server);
                }
            }

            return results;
        }
    }
}

对需要进行灰度路由的服务配置自定义的负载均衡策略

yourServiceName:
  ribbon:
    #BestAvailableRule负载均衡策略
    NFLoadBalancerRuleClassName: com.xxx.EcsBestAvailableRule

这里yourServiceName是注册到注册中心的服务名，属性NFLoadBalancerRuleClassName的值为自定义负载均衡类的全路径。

需要进行灰度路由微服务配置文件中增加环境标志，这里是在bootstrap.yml中进行配置，将环境标记增加到metadata-map中（前一步断言处理中获取该属性），profile通过maven控制

eureka:
  instance:
    #eureka客户端需要多长时间发送心跳给eureka服务器，表明他仍然或者，默认30秒
    lease-renewal-interval-in-seconds: 30
    #eureka服务器在接受到实力的最后一次发出的心跳后，需要等待多久才可以将此实力删除
    lease-expiration-duration-in-seconds: 90
    #使用ip注册
    prefer-ip-address: true
    #instance-id 使用IP:PORT
    instance-id: ${spring.cloud.client.ip-address}:${server.port}
    #在metadata-map中增加环境标记
    metadata-map:
      environment: ${maven.profiles.active}
  client:
    #表示eureka client间隔多久去拉取服务器注册信息,默认为30秒
    registry-fetch-interval-seconds: 30
    service-url:
      defaultZone: ${maven.eureka.urls}

其中BaseConstant为自定义的静态变量类

总结：

1.在gateway中创建全局过滤器，对请求头进行灰度判断，对灰度请求打标。

2.重写客户端负载均衡方法（RibbonLoadBalancerClient中的choose()），将灰度标记进行传递。

3.重写负载均衡算法，选择最终要调用的服务。

4.重写断言，剔除不符合条件的服务(这里指的不是的服务灰度环境)。

5.配置自定义负载均衡策略

6.被调用的服务分环境部署，及启动时将环境标记加入服务实例的matedate-map

大概调用流程（省略部分）filter()->RibbonLoadBalancerClient.choose()->BaseLoadBalancer.chooseServer()->EcsBestAvailableRule.choose()->EcsDiscoveryEnabledPredicate.getEligibleServers()->EcsDiscoveryEnabledPredicate.apply()
