Unity美术字体教程--BMFont美术字体的制作流程以及在unity中美术字体的生成

在unity的开发过程中，为了实现更好的表现，经常要使用美术字体，记录下美术字体的制作流程。

首先，美术的同学会给一张制作好的美术字的图片，当然如果能直接给fnt文件就更省事了。

拿到图片后，将图片的spriteMode设置为Multiple，然后Sprite Editor进行图片区域的划分，把图片分成宽度高度一致的小图，

分享一个在unity中使用的图片切割的工具脚本：

/**
* UnityVersion: 2018.3.10f1
* FileName:     ImageSlicer.cs
* Author:       TYQ
* CreateTime:   2019/04/19 00:04:26
* Description:
*/
/*
* Author：
* Date：2019/01/30 10:24:22
* Desc：图集切割器 （针对Multiple格式的图片）
* 操作方式：选中图片，选择编辑器的 Assets/ImageSlicer/Process to Sprites菜单
*/
using UnityEngine;
using System.Collections;
using UnityEditor;
using System.IO;
using System.Collections.Generic;
public static class ImageSlicer
{
    [MenuItem("Assets/ImageSlicer/Process to Sprites")]
    static void ProcessToSprite()
    {
        Texture2D image = Selection.activeObject as Texture2D;//获取旋转的对象
        string rootPath = Path.GetDirectoryName(AssetDatabase.GetAssetPath(image));//获取路径名称
        string path = rootPath + "/" + image.name + ".PNG";//图片路径名称
        TextureImporter texImp = AssetImporter.GetAtPath(path) as TextureImporter;//获取图片入口
        AssetDatabase.CreateFolder(rootPath, image.name);//创建文件夹
        foreach (SpriteMetaData metaData in texImp.spritesheet)//遍历小图集
        {
            Texture2D myimage = new Texture2D((int)metaData.rect.width,  (int)metaData.rect.height);
            //abc_0:(x:2.00, y:400.00, width:103.00, height:112.00)
            for (int y = (int)metaData.rect.y; y < metaData.rect.y + metaData.rect.height;  y++)//Y轴像素
            {
                for (int x = (int)metaData.rect.x; x < metaData.rect.x +  metaData.rect.width; x++)
                    myimage.SetPixel(x - (int)metaData.rect.x, y - (int)metaData.rect.y,  image.GetPixel(x, y));
            }
            //转换纹理到EncodeToPNG兼容格式
            if (myimage.format != TextureFormat.ARGB32 && myimage.format !=  TextureFormat.RGB24)
            {
                Texture2D newTexture = new Texture2D(myimage.width, myimage.height);
                newTexture.SetPixels(myimage.GetPixels(0), 0);
                myimage = newTexture;
            }
            var pngData = myimage.EncodeToPNG();
            //AssetDatabase.CreateAsset(myimage, rootPath + "/" + image.name + "/" +  metaData.name + ".PNG");
            File.WriteAllBytes(rootPath + "/" + image.name + "/" + metaData.name + ".PNG",  pngData);
            // 刷新资源窗口界面
            AssetDatabase.Refresh();
        }
    }
}

然后在同目录就能拿到切割好的小图了，这个图片可以在BMFont字体工具中导出fnt文件。

接下来，下载BMFont，BMFont下载地址：http://www.angelcode.com/products/bmfont/

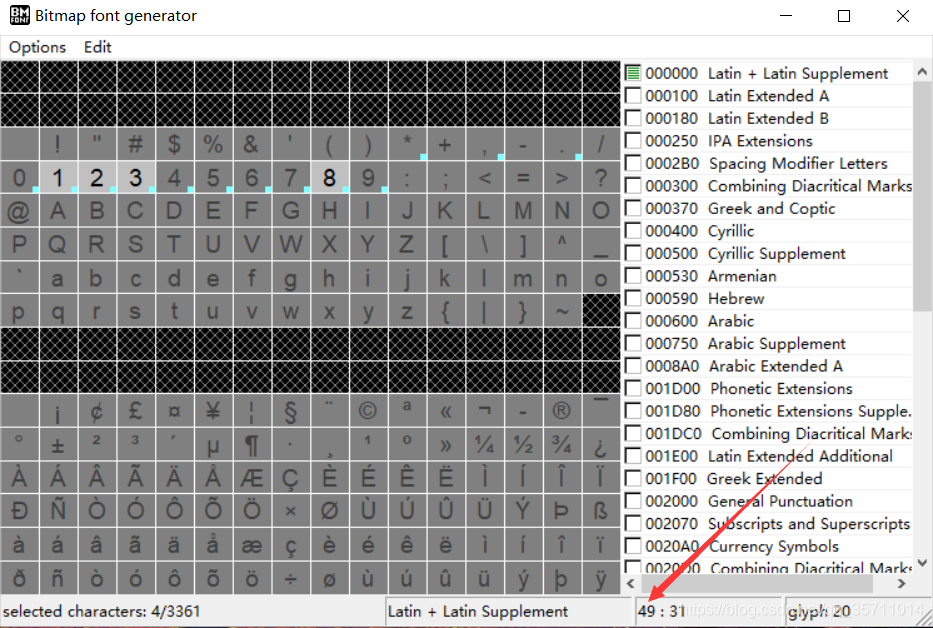

字符ID:选中字符后可以看到字符id

点击Edit/openImage,可以选择导入图片，编辑图片，删除图片等。

字符编码可以直接查询，地址为：http://www.mytju.com/classcode/tools/encode_utf8.asp

在options中可以预览，导出设置，导出字体等，最后可以导出一张图片和一个fnt文件，这个文件在unity中不能直接使用，要转成fontsettings

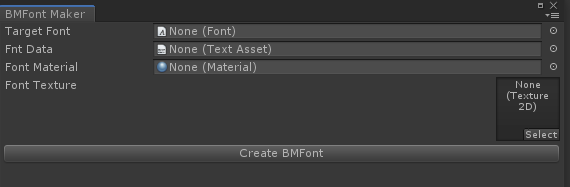

在unity中新建一个CustonFont，新建一个材质，然后使用编辑器导出工具BMFontMaker进行字体的生成

将对应的4个文件填入，点生成字体，美术字就能使用了，这个编辑的拓展的代码如下：

//----------------------------------------------
//            NGUI: Next-Gen UI kit
// Copyright © 2011-2015 Tasharen Entertainment
//----------------------------------------------
using UnityEngine;
using System.Collections.Generic;
using System.Diagnostics;
/// <summary>
/// This improved version of the System.Collections.Generic.List that doesn't release the  buffer on Clear(),
/// resulting in better performance and less garbage collection.
/// PRO: BetterList performs faster than List when you Add and Remove items (although  slower if you remove from the beginning).
/// CON: BetterList performs worse when sorting the list. If your operations involve  sorting, use the standard List instead.
/// </summary>
public class BetterList<T>
{
#if UNITY_FLASH
        List<T> mList = new List<T>();

        /// <summary>
        /// Direct access to the buffer. Note that you should not use its 'Length'  parameter, but instead use BetterList.size.
        /// </summary>

        public T this[int i]
        {
               get { return mList[i]; }
               set { mList[i] = value; }
        }

        /// <summary>
        /// Compatibility with the non-flash syntax.
        /// </summary>

        public List<T> buffer { get { return mList; } }
        /// <summary>
        /// Direct access to the buffer's size. Note that it's only public for speed and  efficiency. You shouldn't modify it.
        /// </summary>
        public int size { get { return mList.Count; } }
        /// <summary>
        /// For 'foreach' functionality.
        /// </summary>
        public IEnumerator<T> GetEnumerator () { return mList.GetEnumerator(); }
        /// <summary>
        /// Clear the array by resetting its size to zero. Note that the memory is not  actually released.
        /// </summary>
        public void Clear () { mList.Clear(); }
        /// <summary>
        /// Clear the array and release the used memory.
        /// </summary>
        public void Release () { mList.Clear(); }
        /// <summary>
        /// Add the specified item to the end of the list.
        /// </summary>
        public void Add (T item) { mList.Add(item); }
        /// <summary>
        /// Insert an item at the specified index, pushing the entries back.
        /// </summary>
        public void Insert (int index, T item)
        {
               if (index > -1 && index < mList.Count) mList.Insert(index, item);
               else mList.Add(item);
        }
        /// <summary>
        /// Returns 'true' if the specified item is within the list.
        /// </summary>
        public bool Contains (T item) { return mList.Contains(item); }
        /// <summary>
        /// Return the index of the specified item.
        /// </summary>
        public int IndexOf (T item) { return mList.IndexOf(item); }
        /// <summary>
        /// Remove the specified item from the list. Note that RemoveAt() is faster and is  advisable if you already know the index.
        /// </summary>
        public bool Remove (T item) { return mList.Remove(item); }
        /// <summary>
        /// Remove an item at the specified index.
        /// </summary>
        public void RemoveAt (int index) { mList.RemoveAt(index); }
        /// <summary>
        /// Remove an item from the end.
        /// </summary>
        public T Pop ()
        {
               if (buffer != null && size != 0)
               {
                       T val = buffer[mList.Count - 1];
                       mList.RemoveAt(mList.Count - 1);
                       return val;
               }
               return default(T);
        }
        /// <summary>
        /// Mimic List's ToArray() functionality, except that in this case the list is  resized to match the current size.
        /// </summary>
        public T[] ToArray () { return mList.ToArray(); }
        /// <summary>
        /// List.Sort equivalent.
        /// </summary>
        public void Sort (System.Comparison<T> comparer) { mList.Sort(comparer); }
#else
        /// <summary>
        /// Direct access to the buffer. Note that you should not use its 'Length'  parameter, but instead use BetterList.size.
        /// </summary>
        public T[] buffer;
        /// <summary>
        /// Direct access to the buffer's size. Note that it's only public for speed and  efficiency. You shouldn't modify it.
        /// </summary>
        public int size = 0;
        /// <summary>
        /// For 'foreach' functionality.
        /// </summary>
        [DebuggerHidden]
        [DebuggerStepThrough]
        public IEnumerator<T> GetEnumerator ()
        {
               if (buffer != null)
               {
                       for (int i = 0; i < size; ++i)
                       {
                              yield return buffer[i];
                       }
               }
        }

        /// <summary>
        /// Convenience function. I recommend using .buffer instead.
        /// </summary>
        [DebuggerHidden]
        public T this[int i]
        {
               get { return buffer[i]; }
               set { buffer[i] = value; }
        }
        /// <summary>
        /// Helper function that expands the size of the array, maintaining the content.
        /// </summary>
        void AllocateMore ()
        {
               T[] newList = (buffer != null) ? new T[Mathf.Max(buffer.Length << 1, 32)] :  new T[32];
               if (buffer != null && size > 0) buf
