1.准备环境

JDK1.8

MySQL

Zookeeper

Kakfa

Maxweill

IDEA

2.实操

2.1开启mysql的binlog

查看binlog 状态，是否开启

show variables like 'log_%'

如果log_bin显示为ON，则代表已开启。如果是OFF 说明还没开启。

[Linux] 编辑 /etc/my.cnf 文件，在[mysqld]后面增加

server-id=1
log-bin=mysql-bin
binlog_format=row
#如果不加此参数，默认所有库开启binlog
binlog-do-db=gmall_20230424

重启mysql 服务

service mysqld restart

再次查看binlog 状态

[Windows] 编辑 mysql安装目录下 my.ini 文件，在[mysqld]后面增加如上 linux 一样

2.2 Zookeeper 、 Kafka

2.2.1启动 ZK

bin/zkServer.sh start

2.2.2启动 Kakfa

#常规模式启动

bin/kafka-server-start.sh config/server.properties

#进程守护模式启动

nohup bin/kafka-server-start.sh config/server.properties >/dev/null 2>&1 &

2.2.3创建 kafka-topic

bin/kafka-topics.sh --bootstrap-server 192.168.221.100:9092 --create --topic flink_test01 --partitions 1 --replication-factor 1

测试kafka-topic

#消费

bin/kafka-console-consumer.sh --bootstrap-server 192.168.221.100:9092 --topic flink_test01 --from-beginning

#生产

bin/kafka-console-producer.sh --broker-list 192.168.221.100:9092 --topic flink_t

2.3配置Maxwell

2.3.1创建Maxwell 所需要的数据库和用户

1）创建数据库

CREATE DATABASE maxwell;

2）调整MySQL数据库密码级别

set global validate_password_policy=0;

set global validate_password_length=4;

3）创建Maxwell用户并赋予其必要权限

CREATE USER 'maxwell'@'%' IDENTIFIED BY 'maxwell';

GRANT ALL ON maxwell.* TO 'maxwell'@'%';

GRANT SELECT, REPLICATION CLIENT, REPLICATION SLAVE ON *.* TO 'maxwell'@'%';

2.3.2配置Maxwell

在Maxwell安装包解压目录下，复制并编辑 config.properties.example

mv config.properties.example config.properties

vim config.properties

producer=kafka

kafka.bootstrap.servers=192.168.221.100:9092

#目标Kafka topic，可静态配置，例如:maxwell，也可动态配置，例如：%{database}_%{table} kafka_topic=flink_test01

# mysql login info host=192.168.221.100

user=maxwell

password=maxwell

2.3.3 启动Maxwell

1）启动Maxwell

bin/maxwell --config config.properties

2）停止Maxwell

ps -ef | grep maxwell | grep -v grep | grep maxwell | awk '{print $2}' | xargs kill -9

2.4测试maxwell、mysql、kafka 正常使用

2.4.1查看Maxwell、kafka、zookeeper 进程

jps

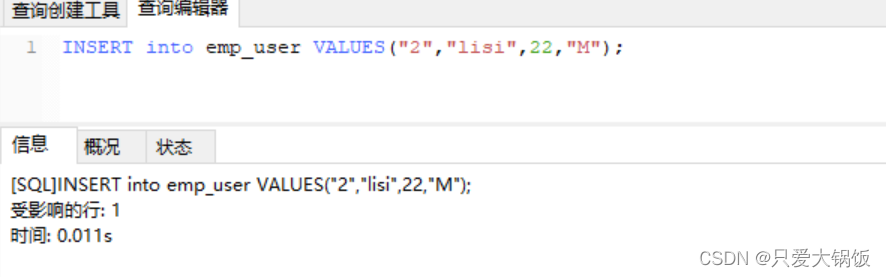

2.4.2 mysql添加、修改、删除数据

查看 kafka 消费者

有消费说明流程是通畅的

2.5 idea 编写程序

2.5.1 idea 创建 maven 项目

2.5.2 pom.xml 依赖

<dependencies>
    <dependency>
        <groupId>org.slf4j</groupId>
        <artifactId>slf4j-api</artifactId>
        <version>1.7.21</version>
    </dependency>
    <dependency>
        <groupId>org.slf4j</groupId>
        <artifactId>slf4j-log4j12</artifactId>
        <version>1.7.21</version>
    </dependency>

    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-streaming-java_2.11</artifactId>
        <version>1.13.0</version>
    </dependency>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-java</artifactId>
        <version>1.13.0</version>
    </dependency>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-clients_2.11</artifactId>
        <version>1.13.0</version>
    </dependency>
    <dependency>
        <groupId>org.apache.hadoop</groupId>
        <artifactId>hadoop-client</artifactId>
        <version>3.1.3</version>
    </dependency>
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>8.0.13</version>
    </dependency>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-table-planner-blink_2.11</artifactId>
        <version>1.13.0</version>
    </dependency>
    <!--mysql cdc -->
    <dependency>
        <groupId>com.ververica</groupId>
        <artifactId>flink-connector-mysql-cdc</artifactId>
        <version>2.2.0</version>
        <!--            <scope>provided</scope>-->
    </dependency>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-connector-kafka_2.12</artifactId>
        <version>1.12.7</version>
    </dependency>

    <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>fastjson</artifactId>
        <version>2.0.29</version>
    </dependency>

    <!--kafka-->
    <dependency>
        <groupId>org.apache.kafka</groupId>
        <artifactId>kafka-clients</artifactId>
        <version>2.1.1</version>
    </dependency>

    <!--本地调试flink ui-->
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-runtime-web_2.11</artifactId>
        <version>1.13.0</version>
        <scope>compile</scope>
    </dependency>

    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-connector-jdbc_2.11</artifactId>
        <version>1.12.0</version>
    </dependency>

    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-jdbc_2.11</artifactId>
        <version>1.9.1</version>
    </dependency>

    <dependency>
        <groupId>org.apache.kafka</groupId>
        <artifactId>kafka-clients</artifactId>
        <version>3.0.0</version>
    </dependency>

    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-table-planner_2.11</artifactId>
        <version>1.10.1</version>
    </dependency>

</dependencies>

2.5.3 编写测试代码

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import com.qiyu.dim.KafkaUtil;
import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.java.io.jdbc.JDBCOutputFormat;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.types.Row;
import org.apache.flink.util.Collector;

/**
 * @Author liujian
 * @Date 2023/4/24 9:40
 * @Version 1.0
 */
public class Flink_kafka {
    public static void main(String[] args) throws Exception {
        // todo 1.获取执行环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        // todo 2.将并行度设为1, （生产环境中，kafka中 topic有几个分区 设为几）
        env.setParallelism(1);
        // todo 3.读取 maxwell kafka 数据流
        DataStream dataStreamSource=
                env.addSource(KafkaUtil.getKafkaConsumer("flink_test01","192.168.221.100:9092"));
        // todo 4.取kafka中的数据流 有效数据，获取 emp_user 表中的 新增、修改、初始化数据 。脏数据直接打印控制台，不处理
        DataStream<JSONObject> data = dataStreamSource.flatMap(new FlatMapFunction<String, JSONObject>() {
            @Override
            public void flatMap(String s, Collector<JSONObject> collector) throws Exception {
                try {
                    // 将 数据流中 类型 转换 String >> JsonObject
                    JSONObject json = JSON.parseObject(s);
                    //取 emp_user 表数据
                    if (json.getString("table").equals("emp_user")) {
                        //取新增、修改数据
                        if (json.getString("type").equals("insert") || json.getString("type").equals("update")) {
                            System.out.println(json.getJSONObject("data"));
                            collector.collect(json.getJSONObject("data"));
                        }
                    }
                } catch (Exception e) {
                    System.out.println("脏数据：" + s);
                }

            }
        });

        // todo 5. 将 有效数据转换 为 Row 类型 。JDBCOutputFormat只能处理Row，而Row是对prepared statement的参数的一个包装类
        DataStream<Row> map = data.map(new MapFunction<JSONObject, Row>() {
            @Override
            public Row map(JSONObject jsonObject) throws Exception {
                Row row = new Row(4);
                row.setField(0, jsonObject.getString("id"));
                row.setField(1, jsonObject.getString("name"));
                row.setField(2, jsonObject.getString("age"));
                row.setField(3, jsonObject.getString("sex"));
                return row;
            }
        });

        // todo 6.  将 数据存储 到 mysql 当中,同主键 数据 就修改, 无 就新增
        String query =
                "INSERT  INTO gmall_20230424.emp_user_copy (id,name,age,sex) " +
                        "VALUES (?, ?,?,?) " +
                        "ON DUPLICATE KEY UPDATE name = VALUES(name) , age = VALUES(age)  , sex = VALUES(sex)";
        JDBCOutputFormat finish = JDBCOutputFormat.buildJDBCOutputFormat()
                .setDrivername("com.mysql.jdbc.Driver")
                .setDBUrl("jdbc:mysql://192.168.221.100:3306/gmall_20230424?user=root&password=000000")
                .setQuery(query)
                .setBatchInterval(1)
                .finish();

        //todo 7.提交存储任务
        map.writeUsingOutputFormat(finish);

        //todo 8.提交flink 任务
        env.execute();

    }
}

2.5.4 启动测试代码

2.5.5 测试

如 2.4.2 一样，在测试表 emp_user 中进行新增、修改

查看是否写入 emp_user_copy表中

INSERT into emp_user VALUES ("1","zhangsan",22,"F");

INSERT into emp_user VALUES ("2","lisi",22,"M");

INSERT into emp_user VALUES ("3","wangwu",22,"F");

INSERT into emp_user VALUES ("4","jia",22,"M");

INSERT into emp_user VALUES ("5","yi",22,"F");

UPDATE emp_user set age=23 where id ="4";

INSERT into emp_user VALUES ("6","666",22,"F");

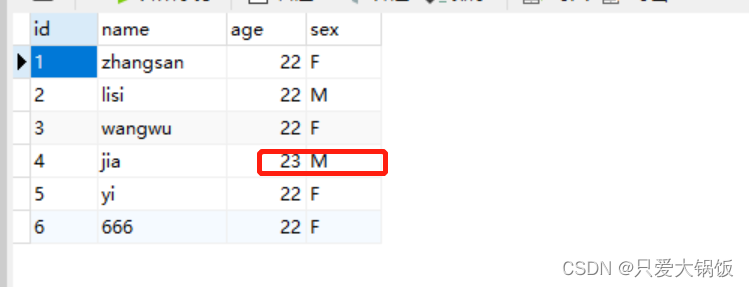

新增 id为 4的数据时：age=22，但后面做了次 update age=23
