验章系统-docker-compose部署

验章系统-docker-compose部署

如果对运维课程感兴趣，可以在b站上、csdn或微信视频号 上搜索我的账号： 运维实战课程，可以关注我，学习更多免费的运维实战技术视频

1.在192.168.171.128上安装基础服务

1)在192.168.171.128上安装docker:

[root@localhost ~]# docker info

Client:

 Debug Mode: false

Server:

 Containers: 0

  Running: 0

  Paused: 0

  Stopped: 0

 Images: 0

 Server Version: 19.03.2

2)将基础服务的相关镜像、配置文件、脚本打包上传到服务器的/data目录,自带了docker-compose安装

[root@localhost data]# ls docker-compose-verify-base.tar.gz

docker-compose-verify-base.tar.gz

[root@localhost data]# tar -zxf docker-compose-verify-base.tar.gz

[root@localhost data]# cd docker-compose-verify-base

[root@localhost docker-compose-verify-base]# ls

conf  images  registry  yaml_base

[root@localhost docker-compose-verify-base]# ls conf/

my.cnf  nginx.conf  redis.conf  server.crt  server.key

[root@localhost docker-compose-verify-base]# ls images/

centos7.2.1511.tar  docker-compose  mongo.tar  mysql5.7.27.tar  nginx1.15.9-0711.tar  redis4.0.10.tar  sealsm2base.tar  zip-3.0-11.el7.x86_64.rpm

[root@localhost docker-compose-verify-base]# ls registry/

Dockerfile  registry-server.jar

[root@localhost docker-compose-verify-base]# ls yaml_base/

base_init.sh  docker-compose.yaml

[root@localhost docker-compose-verify-base]# cat yaml_base/base_init.sh

#!/bin/bash

#2019-12-19

images=/data/docker-compose-verify-base/images

conf=/data/docker-compose-verify-base/conf

rpm -ivh /data/docker-compose-verify-base/images/zip-3.0-11.el7.x86_64.rpm

docker load -i $images/nginx1.15.9-0711.tar

mkdir -p /data/nginx/conf/

mkdir -p /data/nginx/logs

mkdir -p /data/nginx/registry

mkdir -p /data/nginx/users

mkdir -p /data/nginx/ssl

cp $conf/nginx.conf /data/nginx/conf

cp $conf/server.crt /data/nginx/ssl/

cp $conf/server.key /data/nginx/ssl/

docker load -i $images/mysql5.7.27.tar

mkdir -p /data/mysql/conf

mkdir -p /data/mysql/data

mkdir -p /data/mysql/bak

cp $conf/my.cnf /data/mysql/conf/

docker load -i $images/redis4.0.10.tar

mkdir -p /data/redis/conf/

cp $conf/redis.conf /data/redis/conf

docker load -i $images/mongo.tar

mkdir -p /data/mongodb_docker/db

docker load -i $images/sealsm2base.tar

cp $images/docker-compose /usr/bin/

chmod 755 /usr/bin/docker-compose

#cp $images/docker-compose /usr/local/bin/

#chmod 755 /usr/local/bin/docker-compose

[root@localhost docker-compose-verify-base]# cat yaml_base/docker-compose.yaml

version: '3.3'   # compose-file的语法版本

services:    # 定义服务

  nginx:

    image: docker.io/nginx:1.15.9

    ports:

      - "80:80"

      - "443:443"

    container_name: nginx

    restart: always

    network_mode: "host"

    volumes:

      - /data/nginx/conf/nginx.conf:/etc/nginx/nginx.conf:rw

      - /data/nginx/logs:/etc/nginx/logs:rw

      - /data/nginx/registry:/etc/nginx/registry:rw

      - /data/nginx/users:/etc/nginx/users:rw

      - /data/nginx/ssl:/data/ssl:rw

  mysql:

    image: docker.io/mysql:5.7.27

    ports:

      - "3306:3306"

    container_name: mysql

    restart: always

    network_mode: "host"

    command: --default-authentication-plugin=mysql_native_password

    environment:

     MYSQL_ROOT_PASSWORD: Gm02_prd8!

    volumes:

      - /data/mysql/conf/my.cnf:/etc/my.cnf:rw

      - /data/mysql/data:/var/lib/mysql:rw

      - /data/mysql/bak:/data/bak:rw

#上面init目录不但能映射,而且能自动执行映射的初始化sql语句

  redis:

    image: gmprd.baiwang-inner.com/redis:4.0.10

    ports:

      - "6379:6379"

    container_name: redis

    restart: always

    network_mode: "host"

    volumes:

      - /data/redis/conf/redis.conf:/opt/redis/conf/redis.conf:rw

  mongo:

    image: mongo

    ports:

      - "27017:27017"

    container_name: mongo

    restart: always

    network_mode: "host"

    environment:

      MONGO_INITDB_ROOT_USERNAME: admin

      MONGO_INITDB_ROOT_PASSWORD: admin123

    volumes:

      - /data/mongodb_docker/db:/data/db:rw

  registry:

    build: /data/docker-compose-verify-base/registry

    image: registry:latest

    ports:

      - "8889:8889"

    container_name: registry

    restart: always

    network_mode: "host"

    #volumes:

    #  - /data/redis/conf/redis.conf:/opt/redis/conf/redis.conf:rw

[root@localhost docker-compose-verify-base]# cd yaml_base/

[root@localhost yaml_base]# sh base_init.sh #执行脚本初始化

[root@localhost yaml_base]# docker images

REPOSITORY                      TAG                 IMAGE ID            CREATED             SIZE

mysql                           5.7.27              383867b75fd2        6 months ago        373MB

mongo                           latest              ad90ce14b74e        9 months ago        411MB

nginx                           1.15.9              881bd08c0b08        12 months ago       109MB

sealsm2-2/base                  latest              4458abb536ae        12 months ago       527MB

gmprd.baiwang-inner.com/redis   4.0.10              f713a14c7f9b        13 months ago       425MB

[root@localhost yaml_base]# docker-compose up -d    #-d后台启动，停止：docker-compose down

[root@localhost yaml_base]# docker-compose ps

  Name                Command               State   Ports

---------------------------------------------------------

mongo      docker-entrypoint.sh mongod      Up

mysql      docker-entrypoint.sh --def ...   Up

nginx      nginx -g daemon off;             Up

redis      redis-server /opt/redis/co ...   Up

registry   java -Dspring.profiles.act ...   Up

[root@localhost yaml_base]# docker ps

CONTAINER ID        IMAGE                                  COMMAND                  CREATED             STATUS              PORTS               NAMES

65cdd3118b73        mysql:5.7.27                           "docker-entrypoint.s…"   36 seconds ago      Up 33 seconds                           mysql

d484343e4fce        gmprd.baiwang-inner.com/redis:4.0.10   "redis-server /opt/r…"   36 seconds ago      Up 34 seconds                           redis

86ca548428a8        registry:latest                        "java -Dspring.profi…"   36 seconds ago      Up 35 seconds                           registry

1a655b41cb52        nginx:1.15.9                           "nginx -g 'daemon of…"   36 seconds ago      Up 33 seconds                           nginx

4eb4cce833c6        mongo                                  "docker-entrypoint.s…"   36 seconds ago      Up 34 seconds                           mongo

验证服务：

[root@localhost yaml_base]# netstat -anput |grep 80

tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      3352/nginx: master

[root@localhost yaml_base]# netstat -anput |grep 8889

tcp6       0      0 :::8889                 :::*                    LISTEN      3229/java

[root@localhost yaml_base]# docker exec -it mysql mysql -uroot -pGm02_prd8!

mysql> show databases;

+--------------------+

| Database           |

+--------------------+

| information_schema |

| mysql              |

| performance_schema |

| sys                |

+--------------------+

mysql> quit

[root@localhost yaml_base]# docker exec -it redis redis-cli -a GmRes_prd10!

127.0.0.1:6379> KEYS *

127.0.0.1:6379> quit

[root@localhost yaml_base]# docker exec -it mongo mongo -uadmin -padmin123

> show dbs;

admin   0.000GB

config  0.000GB

local   0.000GB

> use webviewer;

switched to db webviewer

> db;

webviewer

> quit()

[root@localhost data]# cd

上传sql数据文件：

[root@localhost ~]# ls all.sql

all.sql

[root@localhost ~]# docker cp all.sql mysql:/opt

[root@localhost ~]# docker exec -it mysql bash

root@localhost:/# ls /opt/

all.sql

root@localhost:/# mysql -uroot -pGm02_prd8!

mysql> source /opt/all.sql;

mysql> show databases;

+---------------------+

| Database            |

+---------------------+

| information_schema  |

| certificate_manager |

| mysql               |

| performance_schema  |

| seal_manager_prd    |

| sys                 |

+---------------------+

mysql> use certificate_manager;

mysql> show tables;

+---------------------------------+

| Tables_in_certificate_manager   |

+---------------------------------+

| apply_main                      |

| authority_info                  |

| ca_apply_info                   |

| certificate_apply               |

| data_dictionary                 |

| ga_data_info                    |

| liu_info                        |

| log_operatetype                 |

| manager_city                    |

| manager_county                  |

| manager_info                    |

| manager_province                |

| operate_log                     |

| platform_sys_asyn_task          |

| platform_sys_asyn_task2         |

| platform_sys_asyn_tasklog       |

| platform_sys_asyn_tasklog2      |

| platform_sys_param              |

| police_record_seal_failure_info |

| police_record_seal_info         |

| police_record_task_info         |

| role_authority_info             |

| role_info                       |

| seal_unique_code_info           |

| sub_system_info                 |

| sys_modules                     |

| userinfo                        |

+---------------------------------+

mysql> use seal_manager_prd;

mysql> show tables;

+----------------------------+

| Tables_in_seal_manager_prd |

+----------------------------+

| act_evt_log                |

| act_ge_bytearray           |

| act_ge_property            |

| act_hi_actinst             |

| act_hi_attachment          |

| act_hi_comment             |

| act_hi_detail              |

| act_hi_identitylink        |

| act_hi_procinst            |

| act_hi_taskinst            |

| act_hi_varinst             |

| act_id_group               |

| act_id_info                |

| act_id_membership          |

| act_id_user                |

| act_procdef_info           |

| act_re_deployment          |

| act_re_model               |

| act_re_procdef             |

| act_ru_event_subscr        |

| act_ru_execution           |

| act_ru_identitylink        |

| act_ru_job                 |

| act_ru_task                |

| act_ru_variable            |

| bs_stamp_cfg               |

| ca_agency                  |

| ca_apply_info              |

| ca_auth_area               |

| ca_history                 |

| dic_useunit_type           |

| operate_log                |

| ps_apply_config            |

| ps_apply_info              |

| ps_area                    |

| ps_business                |

| ps_business_businesstype   |

| ps_business_flow           |

| ps_business_flow_his       |

| ps_business_flow_template  |

| ps_business_link           |

| ps_business_seal           |

| ps_business_temp           |

| ps_business_type           |

| ps_ca_sync                 |

| ps_department              |

| ps_department_log          |

| ps_document                |

| ps_ip_address              |

| ps_manage_log              |

| ps_menu                    |

| ps_menu_permission         |

| ps_parameter               |

| ps_perm_set_rel            |

| ps_permission              |

| ps_police_data             |

| ps_position_dict           |

| ps_privilege_tree          |

| ps_role                    |

| ps_role_menu               |

| ps_role_permission         |

| ps_seal                    |

| ps_seal_dept               |

| ps_seal_import_batch       |

| ps_seal_log                |

| ps_seal_operate_log        |

| ps_seal_permission         |

| ps_seal_privilege          |

| ps_seal_status_sync        |

| ps_seal_template           |

| ps_sign_node               |

| ps_site                    |

| ps_site_api                |

| ps_sync_log                |

| ps_template                |

| ps_template_image          |

| ps_user                    |

| ps_user_area               |

| ps_user_dept               |

| ps_user_ext                |

| ps_user_log                |

| ps_user_permission         |

| ps_user_role               |

+----------------------------+

mysql> quit

mysql> grant all on *.* to 'Use_Prd'@'%' identified by 'GmUse21_Prd10!';

mysql> flush privileges;

root@localhost:/# mysql -uUse_Prd -pGmUse21_Prd10!

mysql> quit

root@localhost:/# exit

3)安装nfs:

[root@localhost ~]# yum -y install nfs-utils  #为了共享nas

[root@localhost ~]# vim /etc/exports

[root@localhost ~]# cat /etc/exports

/data/nas *(rw,no_root_squash)

[root@localhost ~]# mkdir /data/nas

[root@localhost ~]# exportfs -rv

[root@localhost ~]# systemctl start nfs

[root@localhost ~]# systemctl status nfs

● nfs-server.service - NFS server and services

   Loaded: loaded (/usr/lib/systemd/system/nfs-server.service; enabled; vendor preset: disabled)

  Drop-In: /run/systemd/generator/nfs-server.service.d

           └─order-with-mounts.conf

   Active: active (exited) since Wed 2020-03-18 10:03:41 CST; 6s ago

[root@localhost ~]# cd /data/nas/

[root@localhost nas]# rz

上传nas包

[root@localhost nas]# ls esus-verify.tar.gz

esus-verify.tar.gz

[root@localhost nas]# tar -zxf esus-verify.tar.gz

[root@localhost nas]# ls

esus  esus-verify.tar.gz

[root@localhost nas]# rm -f esus-verify.tar.gz

[root@localhost nas]# ls

esus

[root@localhost nas]# ls esus/

api  file  format  imagecode  seal  template  web

2.在192.168.171.129上安装后台服务

1)在192.168.171.129上安装docker:

[root@localhost ~]# docker info

Client:

 Debug Mode: false

Server:

 Containers: 0

  Running: 0

  Paused: 0

  Stopped: 0

 Images: 0

 Server Version: 19.03.2

2)将基础服务的相关镜像、配置文件、脚本打包上传到服务器的/data目录,自带了docker-compose安装

[root@localhost ~]# yum -y install nfs-utils   #为了挂载nas

[root@localhost ~]# cd /data/

[root@localhost data]# ls docker-compose-verify.tar.gz

docker-compose-verify.tar.gz

[root@localhost data]# tar -zxf docker-compose-verify.tar.gz

[root@localhost data]# cd docker-compose-verify

[root@localhost docker-compose-verify]# ls

images  verify-jars  yaml_verify

[root@localhost docker-compose-verify]# ls images/

docker-compose  gm-format3.tar  mongo-jdk0704.tar  sealsm2base.tar  zip-3.0-11.el7.x86_64.rpm

[root@localhost docker-compose-verify]# ls verify-jars/

api  cert-root-manager  format  sealstatus  stamp-gateway  web  webviewer

[root@localhost docker-compose-verify]# ls verify-jars/api/

api.jar  Dockerfile

[root@localhost docker-compose-verify]# ls yaml_verify/

1-verify_init.sh  2-run-docker-compose.sh  3-nas_mount.sh  docker-compose.yaml

[root@localhost docker-compose-verify]# cat /etc/hosts

192.168.171.128 registerserver-pool.gmprd.baiwang.com

192.168.171.128 mysql.gmprd.baiwang.com

192.168.171.128 redis.gmprd.baiwang.com

192.168.171.128 redis-pool.gmprd.baiwang.com

确认各jar包的gmprd配置文件(其中一个时候gmtest和gmdev)连接mysql，redis，registry，mongo等域名，用户名和密码是否正确:

[root@localhost docker-compose-verify]# ls verify-jars/

api  cert-root-manager  format  sealstatus  stamp-gateway  web  webviewer

[root@localhost docker-compose-verify]# vim verify-jars/api/api.jar  ...

[root@localhost docker-compose-verify]# vim verify-jars/...

[root@localhost docker-compose-verify]# cd yaml_verify/

[root@localhost yaml_verify]# ls

1. verify_init.sh  2-run-docker-compose.sh  3-nas_mount.sh  docker-compose.yaml

[root@localhost yaml_verify]# cat docker-compose.yaml

version: '3.3'   # compose-file的语法版本

services:    # 定义服务

  useseal-api:

    build: /data/docker-compose-verify/verify-jars/api

    image: gomain/useseal-api:latest

    ports:

      - "9001:9001"

    container_name: useseal-api

    restart: always

    network_mode: "host"

    volumes:

      - /data/log_verify/useseal-api_log:/mnt/logs:rw

  useseal-sealstatus:

    build: /data/docker-compose-verify/verify-jars/sealstatus

    image: gomain/useseal-sealstatus:latest

    ports:

      - "9007:9007"

    container_name: useseal-sealstatus

    restart: always

    network_mode: "host"

    volumes:

      - /data/log_verify/useseal-sealstatus_log:/mnt/logs:rw

  useseal-stamp-gateway:

    build: /data/docker-compose-verify/verify-jars/stamp-gateway

    image: gomain/useseal-stamp-gateway:latest

    ports:

      - "8780:8780"

    container_name: useseal-stamp-gateway

    restart: always

    network_mode: "host"

    volumes:

      - /data/log_verify/useseal-stamp-gate_log:/mnt/logs:rw

  useseal-webviewer:

    build: /data/docker-compose-verify/verify-jars/webviewer

    image: gomain/useseal-webviewer:latest

    ports:

      - "8086:8086"

    container_name: useseal-webviewer

    restart: always

    network_mode: "host"

    volumes:

      - /data/log_verify/useseal-webviewer_log:/mnt/logs:rw

  cert-root-manager:

    build: /data/docker-compose-verify/verify-jars/cert-root-manager

    image: gomain/cert-root-manager:latest

    ports:

      - "10808:10808"

    container_name: cert-root-manager

    restart: always

    network_mode: "host"

    volumes:

      - /data/log_verify/cert-root-manager_log:/mnt/logs:rw

  useseal-format:

    build: /data/docker-compose-verify/verify-jars/format

    image: gomain/useseal-format:latest

    ports:

      - "9004:9004"

    container_name: useseal-format

    restart: always

    network_mode: "host"

    volumes:

      - /data/log_verify/useseal-format_log:/mnt/logs:rw

  useseal-web:

    build: /data/docker-compose-verify/verify-jars/web

    image: gomain/useseal-web:latest

    ports:

      - "9011:9011"

    container_name: useseal-web

    restart: always

    network_mode: "host"

    volumes:

      - /data/log_verify/useseal-web_log:/mnt/logs:rw

[root@localhost yaml_verify]# cat 1-verify_init.sh

#!/bin/bash

#2020-03-17

rpm -ivh /data/docker-compose-verify/images/zip-3.0-11.el7.x86_64.rpm

images=/data/docker-compose-verify/images

docker load -i $images/sealsm2base.tar

docker load -i $images/gm-format3.tar

docker load -i $images/mongo-jdk0704.tar

mkdir -p /data/log_verify

mkdir -p /data/log_verify/useseal-web_log

mkdir -p /data/log_verify/useseal-format_log

mkdir -p /data/log_verify/cert-root-manager_log

mkdir -p /data/log_verify/useseal-webviewer_log

mkdir -p /data/log_verify/useseal-webviewer_log

mkdir -p /data/log_verify/useseal-stamp-gate_log

mkdir -p /data/log_verify/useseal-sealstatus_log

mkdir -p /data/log_verify/useseal-api_log

cp $images/docker-compose /usr/bin/

chmod 755 /usr/bin/docker-compose

[root@localhost yaml_verify]# cat 2-run-docker-compose.sh

#!/bin/bash

cd /data/docker-compose-verify/yaml_verify/

docker-compose up -d

docker-compose ps

docker ps

[root@localhost yaml_verify]# cat 3-nas_mount.sh

#!/bin/bash

NFS_IP=192.168.171.128

mkdir /data/log_verify/useseal-web_log/nas -p

mkdir /data/log_verify/useseal-format_log/nas -p

mkdir /data/log_verify/useseal-api_log/nas -p

mkdir /data/log_verify/useseal-sealstatus_log/nas -p

mkdir /data/log_verify/useseal-webviewer_log/nas -p

mount -t nfs $NFS_IP:/data/nas /data/log_verify/useseal-web_log/nas

mount -t nfs $NFS_IP:/data/nas /data/log_verify/useseal-format_log/nas

mount -t nfs $NFS_IP:/data/nas /data/log_verify/useseal-api_log/nas

mount -t nfs $NFS_IP:/data/nas /data/log_verify/useseal-sealstatus_log/nas

mount -t nfs $NFS_IP:/data/nas /data/log_verify/useseal-webviewer_log/nas

docker restart useseal-api useseal-webviewer useseal-web useseal-sealstatus useseal-format useseal-stamp-gateway cert-root-manager

[root@localhost yaml_verify]# sh 1-verify_init.sh   #执行脚本初始化

[root@localhost yaml_verify]# ls /data/

docker-compose-verify  docker-compose-verify.tar.gz  log_verify

[root@localhost yaml_verify]# ls /data/log_verify/

cert-root-manager_log  useseal-api_log  useseal-format_log  useseal-sealstatus_log  useseal-stamp-gate_log  useseal-web_log  useseal-webviewer_log

[root@localhost yaml_verify]# docker images

REPOSITORY                                 TAG                 IMAGE ID            CREATED             SIZE

gomain.com.cn/jdk-mongo                    latest              3cd80874b23a        8 months ago        888MB

sealsm2-2/base                             latest              4458abb536ae        12 months ago       527MB

gm-build.baiwang-inner.com/gm-format-sm2   1.0.3               1d6ac48f27fa        14 months ago       929MB

[root@localhost yaml_verify]# sh 2-run-docker-compose.sh   #docker-compose拉取各后端服务

[root@localhost yaml_verify]# docker-compose ps

        Name                       Command               State   Ports

----------------------------------------------------------------------

cert-root-manager       java -Dspring.profiles.act ...   Up

useseal-api             java -Dspring.profiles.act ...   Up

useseal-format          java -Dspring.profiles.act ...   Up

useseal-sealstatus      java -Dspring.profiles.act ...   Up

useseal-stamp-gateway   java -Dspring.profiles.act ...   Up

useseal-web             java -Dspring.profiles.act ...   Up

useseal-webviewer       java -Dspring.profiles.act ...   Up

[root@localhost yaml_verify]# docker ps

CONTAINER ID        IMAGE                                 COMMAND                  CREATED             STATUS              PORTS               NAMES

2927f7378a6f        gomain/useseal-api:latest             "java -Dspring.profi…"   49 seconds ago      Up 46 seconds                           useseal-api

6bf4f7c79c6a        gomain/useseal-format:latest          "java -Dspring.profi…"   49 seconds ago      Up 46 seconds                           useseal-format

f22ff31a76fc        gomain/useseal-sealstatus:latest      "java -Dspring.profi…"   49 seconds ago      Up 46 seconds                           useseal-sealstatus

30185cc89c85        gomain/useseal-web:latest             "java -Dspring.profi…"   49 seconds ago      Up 47 seconds                           useseal-web

21d65528654c        gomain/useseal-stamp-gateway:latest   "java -Dspring.profi…"   49 seconds ago      Up 46 seconds                           useseal-stamp-gateway

7249b788701f        gomain/cert-root-manager:latest       "java -Dspring.profi…"   49 seconds ago      Up 47 seconds                           cert-root-manager

e2624559e9c4        gomain/useseal-webviewer:latest       "java -Dspring.profi…"   49 seconds ago      Up 47 seconds                           useseal-webviewer

[root@localhost yaml_verify]# sh 3-nas_mount.sh    #挂载nas后重启各后台服务

[root@localhost yaml_verify]# docker ps

CONTAINER ID        IMAGE                                 COMMAND                  CREATED             STATUS              PORTS               NAMES

2927f7378a6f        gomain/useseal-api:latest             "java -Dspring.profi…"   2 minutes ago       Up 29 seconds                           useseal-api

6bf4f7c79c6a        gomain/useseal-format:latest          "java -Dspring.profi…"   2 minutes ago       Up 24 seconds                           useseal-format

f22ff31a76fc        gomain/useseal-sealstatus:latest      "java -Dspring.profi…"   2 minutes ago       Up 25 seconds                           useseal-sealstatus

30185cc89c85        gomain/useseal-web:latest             "java -Dspring.profi…"   2 minutes ago       Up 26 seconds                           useseal-web

21d65528654c        gomain/useseal-stamp-gateway:latest   "java -Dspring.profi…"   2 minutes ago       Up 22 seconds                           useseal-stamp-gateway

7249b788701f        gomain/cert-root-manager:latest       "java -Dspring.profi…"   2 minutes ago       Up 20 seconds                           cert-root-manager

e2624559e9c4        gomain/useseal-webviewer:latest       "java -Dspring.profi…"   2 minutes ago       Up 28 seconds                           useseal-webviewer

检查后端服务：

[root@localhost docker-compose-verify]# netstat -anput |grep 9001  #检查api

tcp6       0      0 :::9001                 :::*                    LISTEN      8062/java

[root@localhost docker-compose-verify]# netstat -anput |grep 10808  #检查cert-root-manager

tcp6       0      0 :::10808                :::*                    LISTEN      8552/java

[root@localhost docker-compose-verify]# netstat -anput |grep 9004  #检查format

tcp6       0      0 :::9004                 :::*                    LISTEN      8390/java

[root@localhost docker-compose-verify]# netstat -anput |grep 9007  #检查sealstatus

tcp6       0      0 :::9007                 :::*                    LISTEN      8308/java

[root@localhost docker-compose-verify]# netstat -anput |grep 8780  #检查stamp-gateway

tcp6       0      0 :::8780                 :::*                    LISTEN      8472/java

[root@localhost docker-compose-verify]# netstat -anput |grep 9011  #检查web

tcp6       0      0 :::9011                 :::*                    LISTEN      8226/java

[root@localhost docker-compose-verify]# netstat -anput |grep 8086  #检查webviwer

tcp6       0      0 :::8086                 :::*                    LISTEN      8144/java

[root@localhost docker-compose-verify]# cd

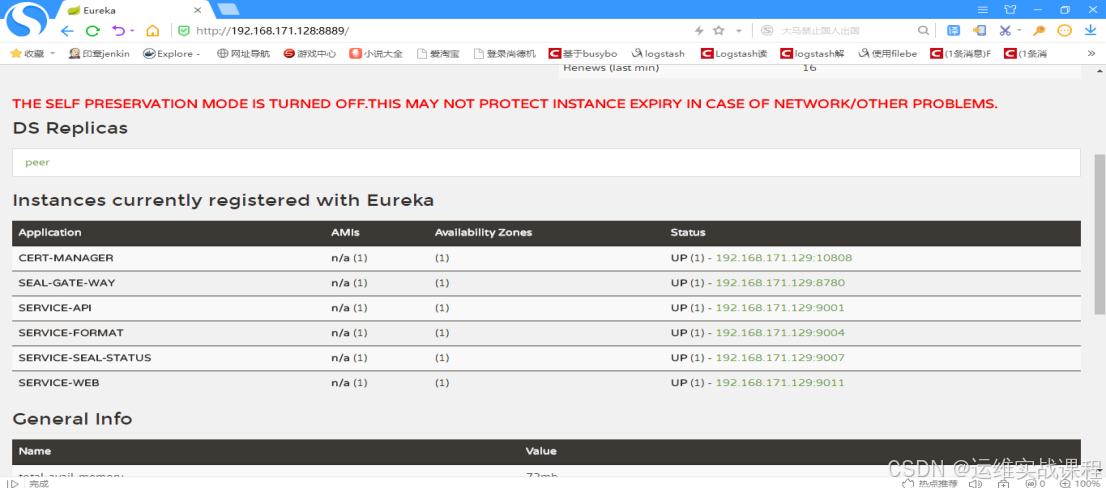

查看注册中心：http://192.168.171.128:8889

3.在192.168.171.128上部署前端包和修改配置：

[root@localhost ~]# cd /data/nginx/

[root@localhost nginx]# ls

conf  logs  registry  ssl  users

[root@localhost nginx]# cd registry/

[root@localhost registry]# rz

上传前端包

[root@localhost registry]# ls

static_root.tar.gz

[root@localhost registry]# tar -zxf static_root.tar.gz

[root@localhost registry]# ls

static_root  static_root.tar.gz

[root@localhost registry]# ls static_root

bak  download  download_bak  frontend  frontend.tar.gz  index.html  static

[root@localhost registry]# ls static_root/static/

css  font  fonts  img  js

[root@localhost registry]# ls static_root/download

bak  linux  system-config.txt  windows

[root@localhost registry]# ls static_root/frontend

config.js  css  doc  script  serverConfig.json  viewer.html  viewer-ie.html  viewer-non-ie.html  webviewer.min.econtract.js

[root@localhost registry]# vim /data/nginx/conf/nginx.conf

user root;

worker_processes  4;

events {

    worker_connections  10240;

}

http {

    include               mime.types;

    default_type          application/octet-stream;

    client_max_body_size  128m;

    sendfile              on;

    keepalive_timeout     65;

    gzip                  on;

    gzip_min_length       1k;

    gzip_buffers          4 16k;

    gzip_comp_level       4;

    gzip_types            text/plain text/javascript application/x-javascript text/css application/xml application/xml+rss;

    ssi                   on;

    server_tokens         off;

   #upstream useRootCert {

    #    server 10.100.4.8:10808;

    #    server 10.100.4.57:10808;

   #}

   upstream webviewer {

        server 192.168.171.129:8086;

   }

  upstream useVerify {

        server 192.168.171.129:8780;

  }

  upstream useFastVerify {

        server 192.168.171.129:8780;

  }

   server {

        listen       80;

        listen      443 ssl;

        error_log  /etc/nginx/logs/error.log;

        access_log /etc/nginx/logs/access.log;

ssl_certificate /data/ssl/server.crt;

        ssl_certificate_key /data/ssl/server.key;

ssl_session_timeout 5m;

        server_name  t2god.efapiao.com;

        location / {

            root        registry/static_root;

            index       index.html index.htm;

            try_files $uri $uri/ /index.html;

        }

        location /download/windows {

            root        registry/static_root;

            index       index.html index.htm;

        }

        location /download/linux {

            root        registry/static_root;

            index       index.html index.htm;

        }

        location /ElectronicVerify/ {

            root        registry/static_root;

            index       index.html index.htm;

        }

# location /verify/ {

#            root        registry/static_root;

#            index       index.html index.htm;

#     proxy_pass  http://useVerify/;

#        }

        location /fastVerify/ {

            root        registry/static_root;

            index       index.html index.htm;

            proxy_pass  http://useFastVerify/;

        }

        location = /404.html {

            root   html;

          index  404.html;

        }

        error_page 500 502 503 504  /50x.html;

        location = /50x.html {

            root   html;

        }

    }

}

[root@localhost registry]# docker restart nginx

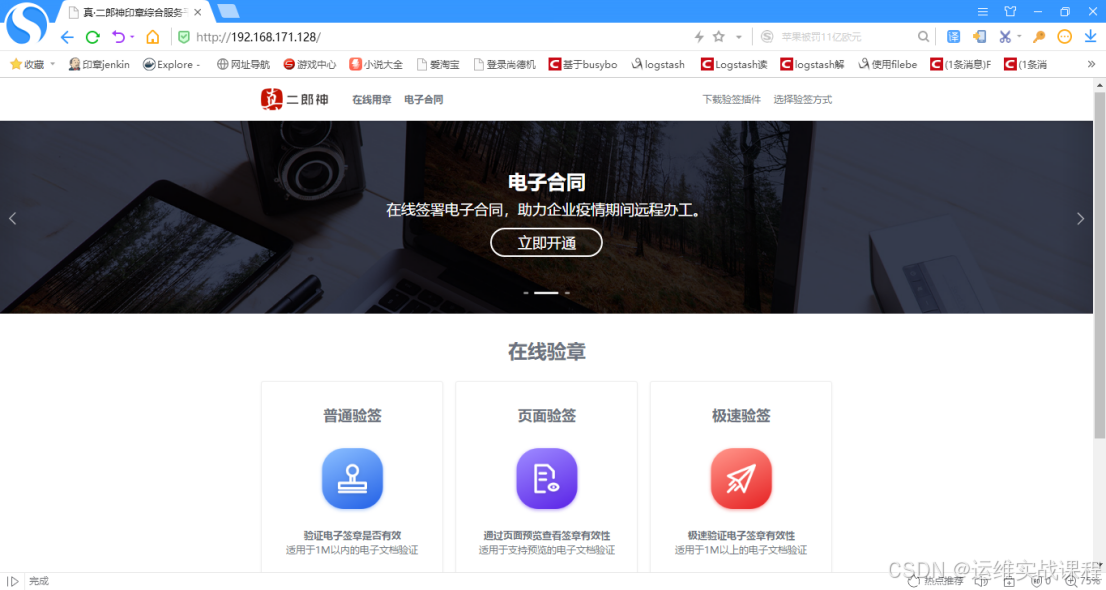

浏览器访问验章系统：http://192.168.171.128/

如果对运维课程感兴趣，可以在b站上、csdn或微信视频号 上搜索我的账号： 运维实战课程，可以关注我，学习更多免费的运维实战技术视频
