Openmetadata集成第三方数据源--Doris

简介

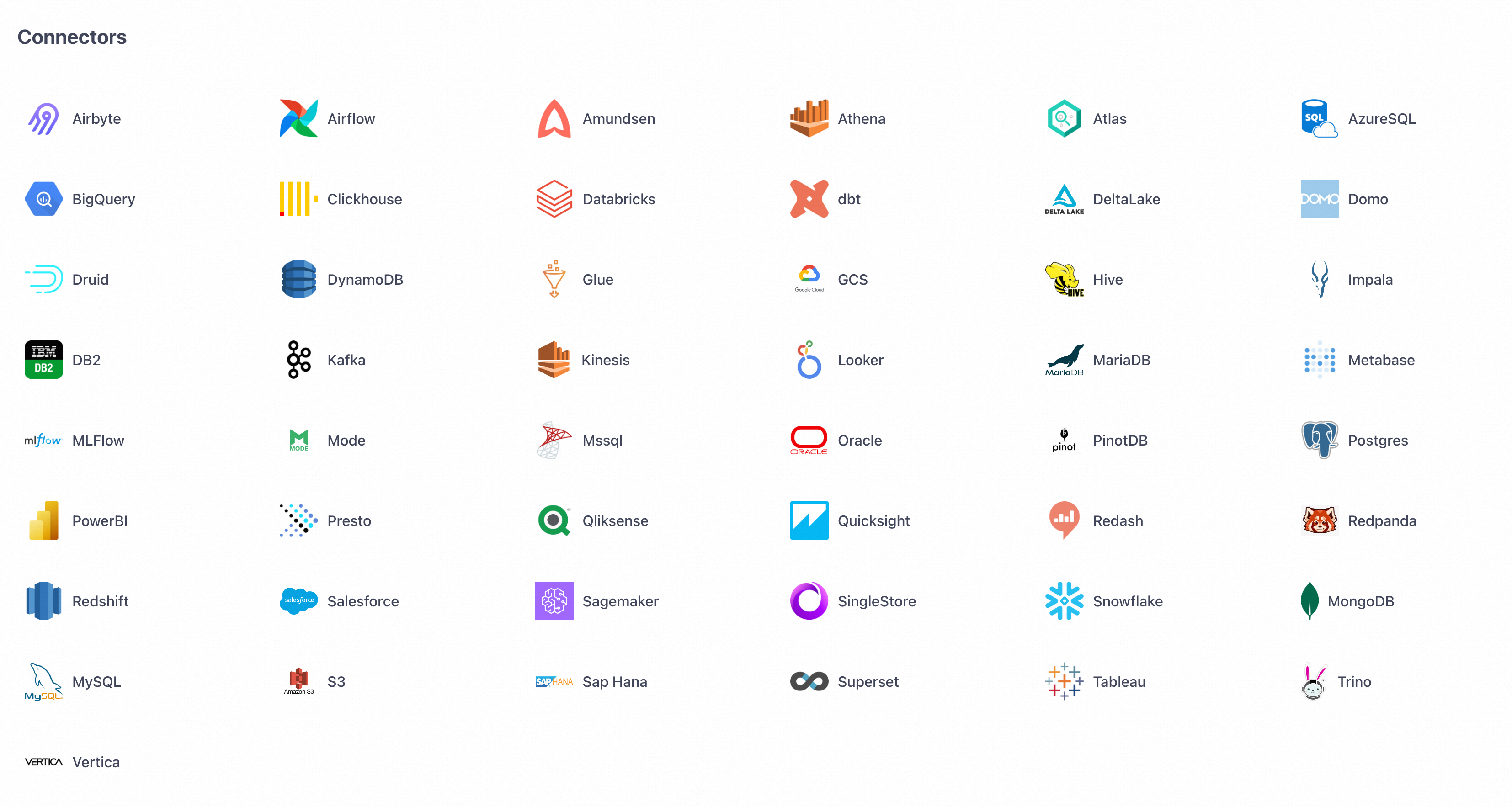

Openmetadata是一个非常优秀元数据采集框架，支持Mysql、Hive、Oracle、Postgres、Presto、Clickhouse等众多数据库，也支持kafka、Kinesis等消息队列、Superset、metabase等报表软件，但可惜的是1.2版本尚不支持Apache Doris，下面基于新增Doris数据源介绍如何在Openmetadata中新增一个数据源，代码本人已提交到https://github.com/open-metadata/OpenMetadata/pull/14087

代码开发

一、Json配置文件修改

定义Doris数据源

参考Mysql数据源定义增加openmetadata-spec/src/main/resources/json/schema/entity/services/connections/database/dorisConnection.json

{
  "$id": "https://open-metadata.org/schema/entity/services/connections/database/dorisConnection.json",
  "$schema": "http://json-schema.org/draft-07/schema#",
  "title": "DorisConnection",
  "description": "Doris Database Connection Config",
  "type": "object",
  "javaType": "org.openmetadata.schema.services.connections.database.DorisConnection",
  "definitions": {
    "dorisType": {
      "description": "Service type.",
      "type": "string",
      "enum": ["Doris"],
      "default": "Doris"
    },
    "dorisScheme": {
      "description": "SQLAlchemy driver scheme options.",
      "type": "string",
      "enum": ["doris"],
      "default": "doris"
    }
  },
  "properties": {
    "type": {
      "title": "Service Type",
      "description": "Service Type",
      "$ref": "#/definitions/dorisType",
      "default": "Doris"
    },
    "scheme": {
      "title": "Connection Scheme",
      "description": "SQLAlchemy driver scheme options.",
      "$ref": "#/definitions/dorisScheme",
      "default": "doris"
    },
    "username": {
      "title": "Username",
      "description": "Username to connect to Doris. This user should have privileges to read all the metadata in Doris.",
      "type": "string"
    },
    "password": {
      "title": "Password",
      "description": "Password to connect to Doris.",
      "type": "string",
      "format": "password"
    },
    "hostPort": {
      "title": "Host and Port",
      "description": "Host and port of the Doris service.",
      "type": "string"
    },
    "databaseName": {
      "title": "Database Name",
      "description": "Optional name to give to the database in OpenMetadata. If left blank, we will use default as the database name.",
      "type": "string"
    },
    "databaseSchema": {
      "title": "Database Schema",
      "description": "Database Schema of the data source. This is optional parameter, if you would like to restrict the metadata reading to a single schema. When left blank, OpenMetadata Ingestion attempts to scan all the schemas.",
      "type": "string"
    },
    "sslCA": {
      "title": "SSL CA",
      "description": "Provide the path to ssl ca file",
      "type": "string"
    },
    "sslCert": {
      "title": "SSL Client Certificate File",
      "description": "Provide the path to ssl client certificate file (ssl_cert)",
      "type": "string"
    },
    "sslKey": {
      "title": "SSL Client Key File",
      "description": "Provide the path to ssl client certificate file (ssl_key)",
      "type": "string"
    },
    "connectionOptions": {
      "title": "Connection Options",
      "$ref": "../connectionBasicType.json#/definitions/connectionOptions"
    },
    "connectionArguments": {
      "title": "Connection Arguments",
      "$ref": "../connectionBasicType.json#/definitions/connectionArguments"
    },
    "supportsMetadataExtraction": {
      "title": "Supports Metadata Extraction",
      "$ref": "../connectionBasicType.json#/definitions/supportsMetadataExtraction"
    },
    "supportsDBTExtraction": {
      "$ref": "../connectionBasicType.json#/definitions/supportsDBTExtraction"
    },
    "supportsProfiler": {
      "title": "Supports Profiler",
      "$ref": "../connectionBasicType.json#/definitions/supportsProfiler"
    },
    "supportsQueryComment": {
      "title": "Supports Query Comment",
      "$ref": "../connectionBasicType.json#/definitions/supportsQueryComment"
    }
  },
  "additionalProperties": false,
  "required": ["hostPort", "username"]
}

添加Doris独有的数据类型

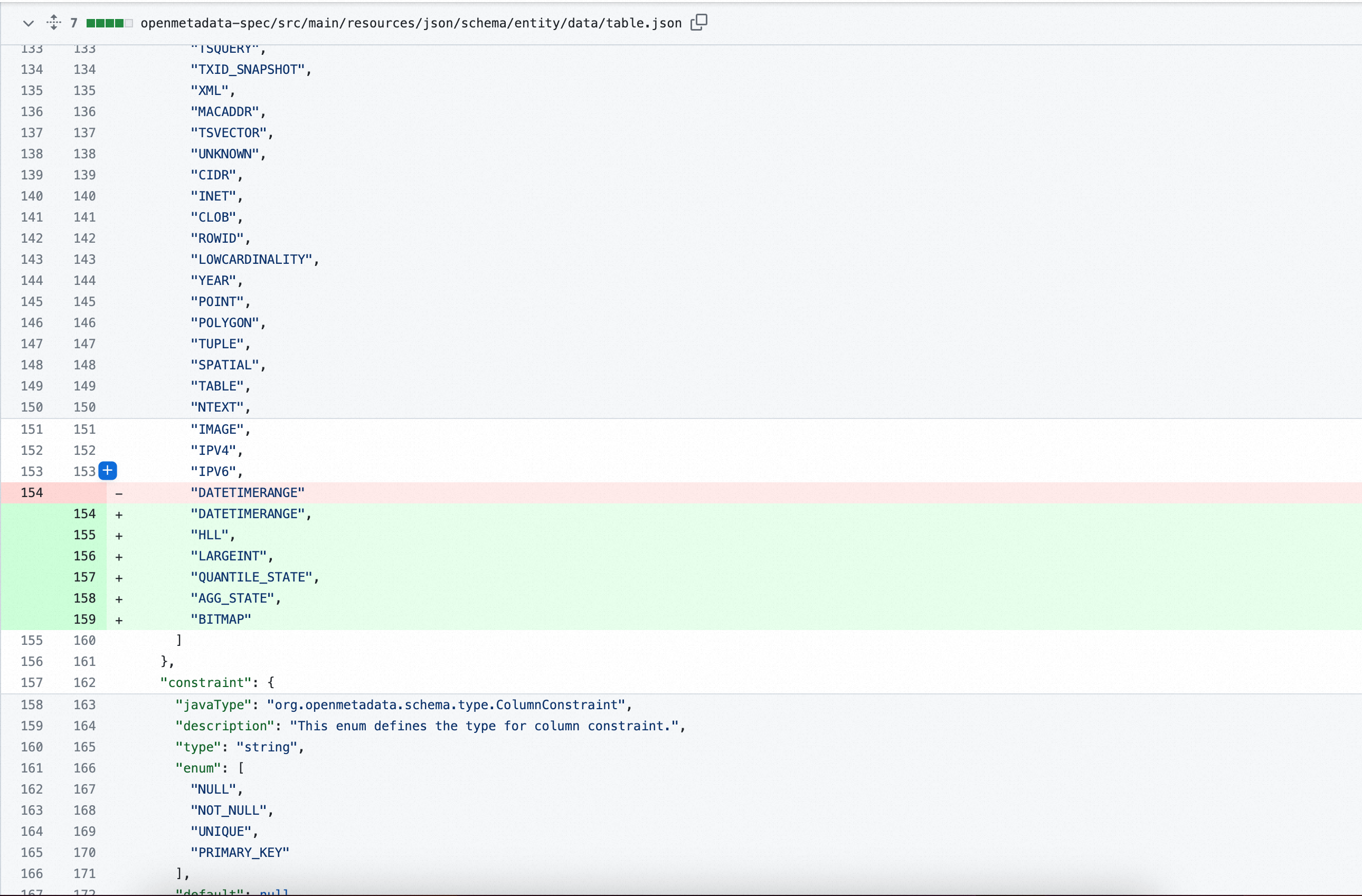

修改openmetadata-spec/src/main/resources/json/schema/entity/data/table.json
在definitions.dataType.enum中增加Doris的数据类型

      	"HLL",
        "LARGEINT",
        "QUANTILE_STATE",
        "AGG_STATE",
        "BITMAP"

databaseService.json中增加Doris数据源

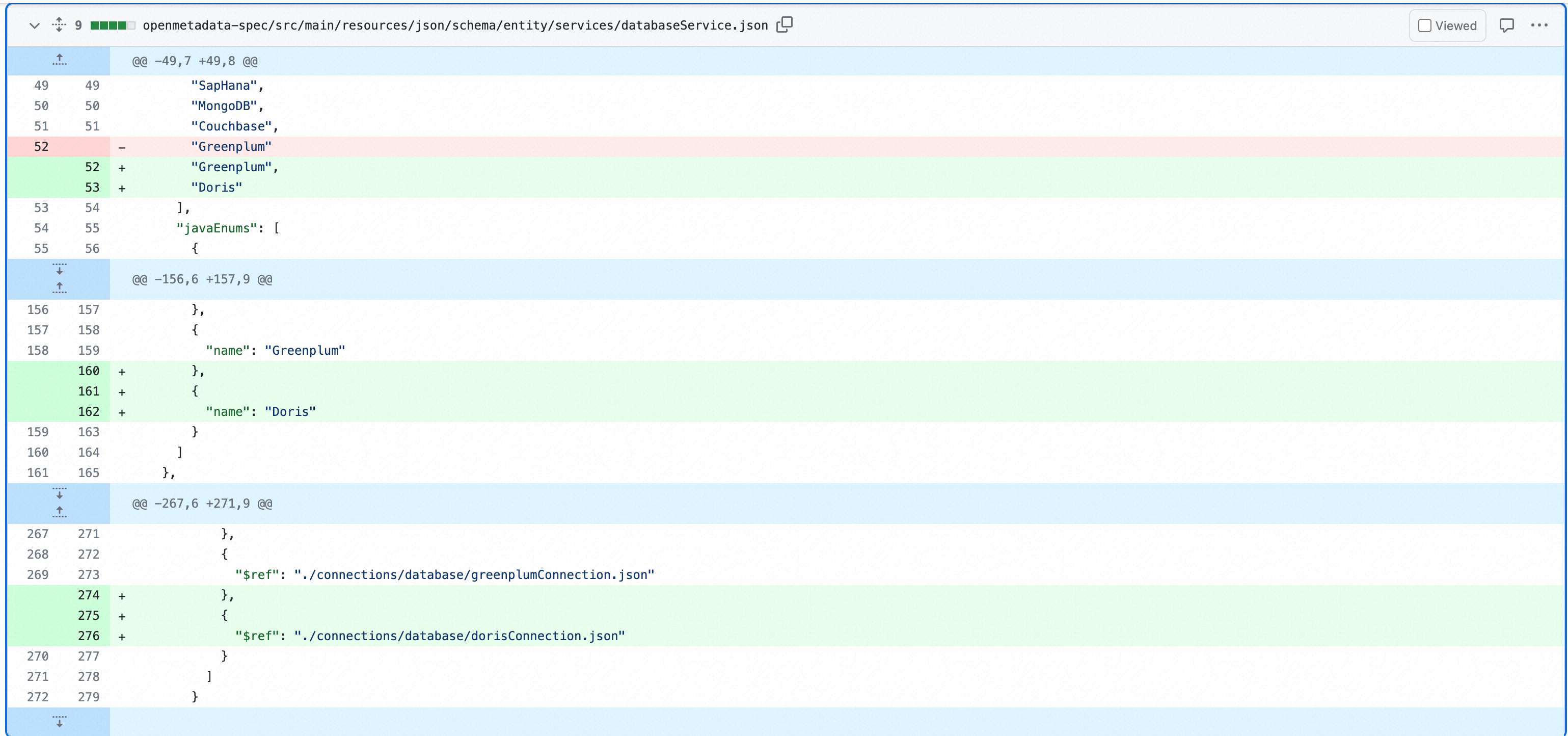

修改openmetadata-spec/src/main/resources/json/schema/entity/services/databaseService.json
definitions.enum中增加Doris，definitions.javaEnums中增加 “name”: “Doris”
databaseConnection.properties.config.oneOf增加 “$ref”: “./connections/database/dorisConnection.json”

testConnections增加doris

openmetadata-service/src/main/resources/json/data/testConnections/database/doris.json

修改完配置文件后Python、Java、Ui都需要重新编译

二、修改前端文件

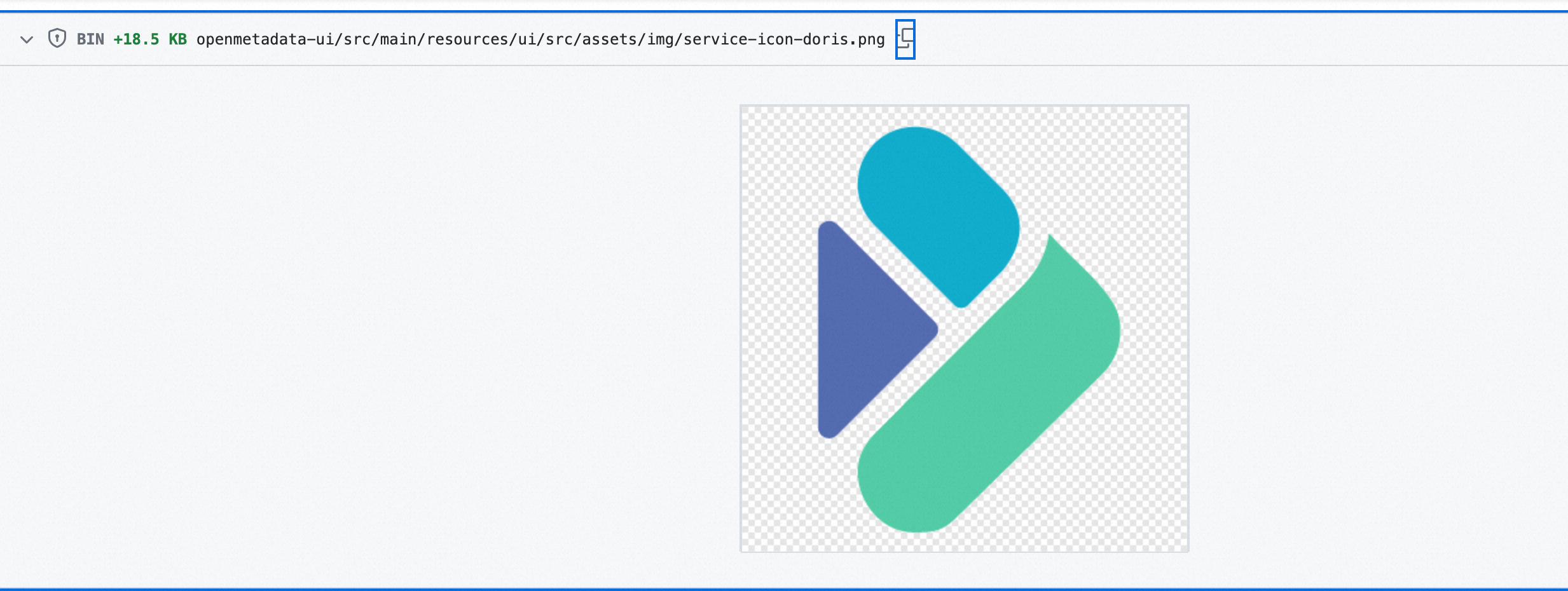

添加Doris logo

openmetadata-ui/src/main/resources/ui/src/assets/img/service-icon-doris.png

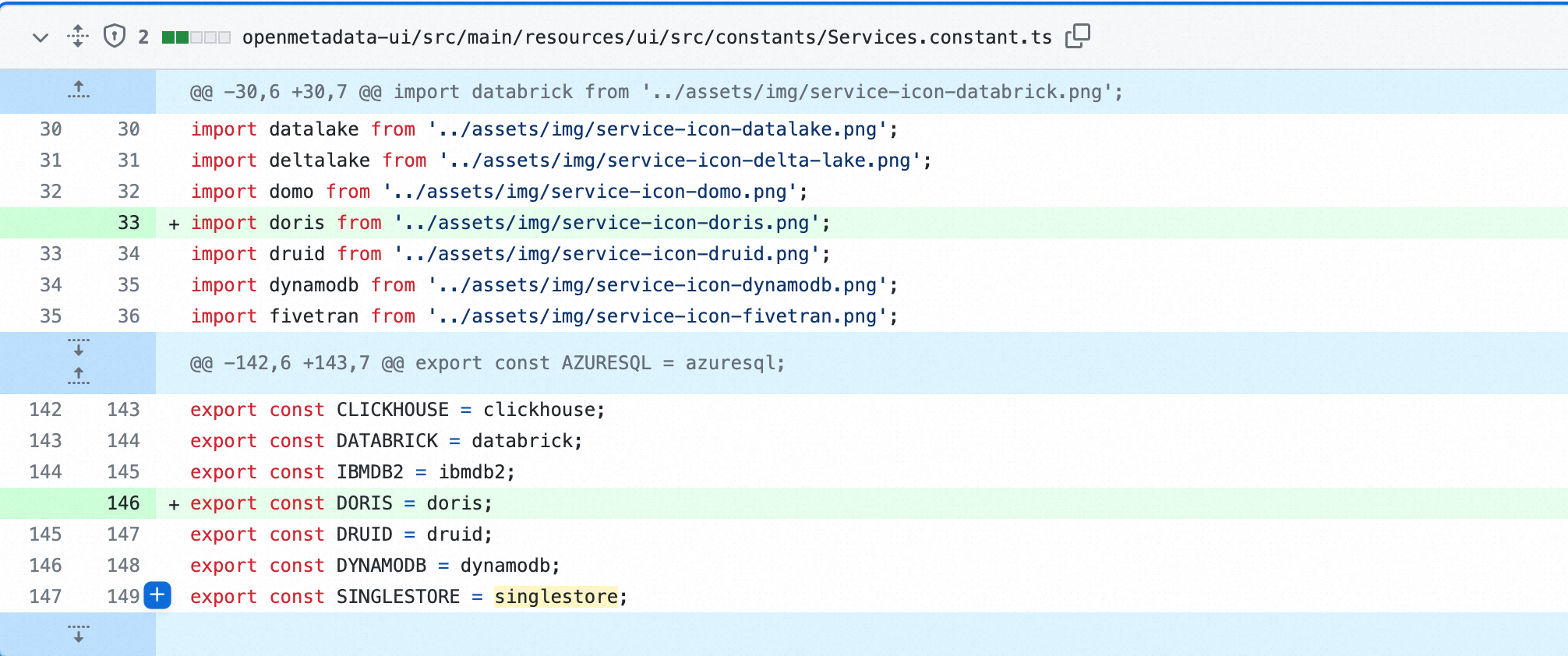

引用Doris logo

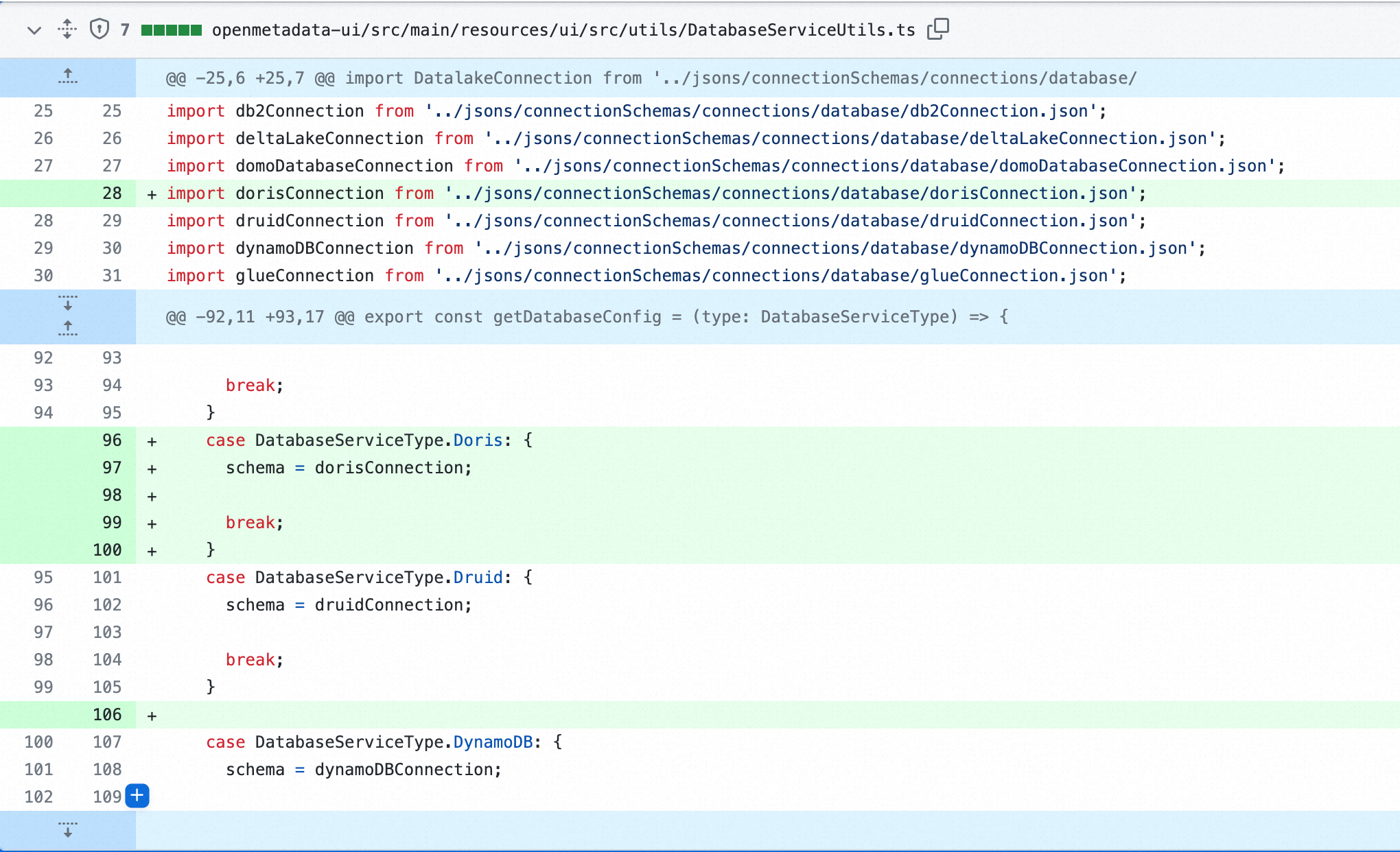

增加Doris数据源

指定dorisConnection.json文件

三、Python代码开发

增加pydoris依赖

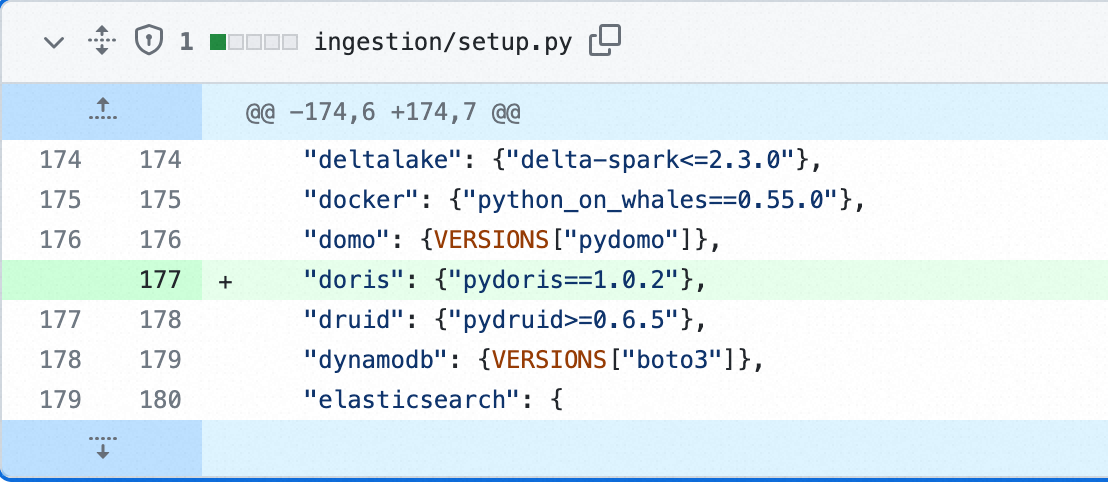

在ingestion/setup.py中增加pydoris依赖

开发Python获取Doris元数据核心代码

在ingestion/src/metadata/ingestion/source/database下创建doris文件夹
将以下文件放到doris文件夹下
init.pyconnection.pymetadata.pyqueries.pyutils.py

四、测试

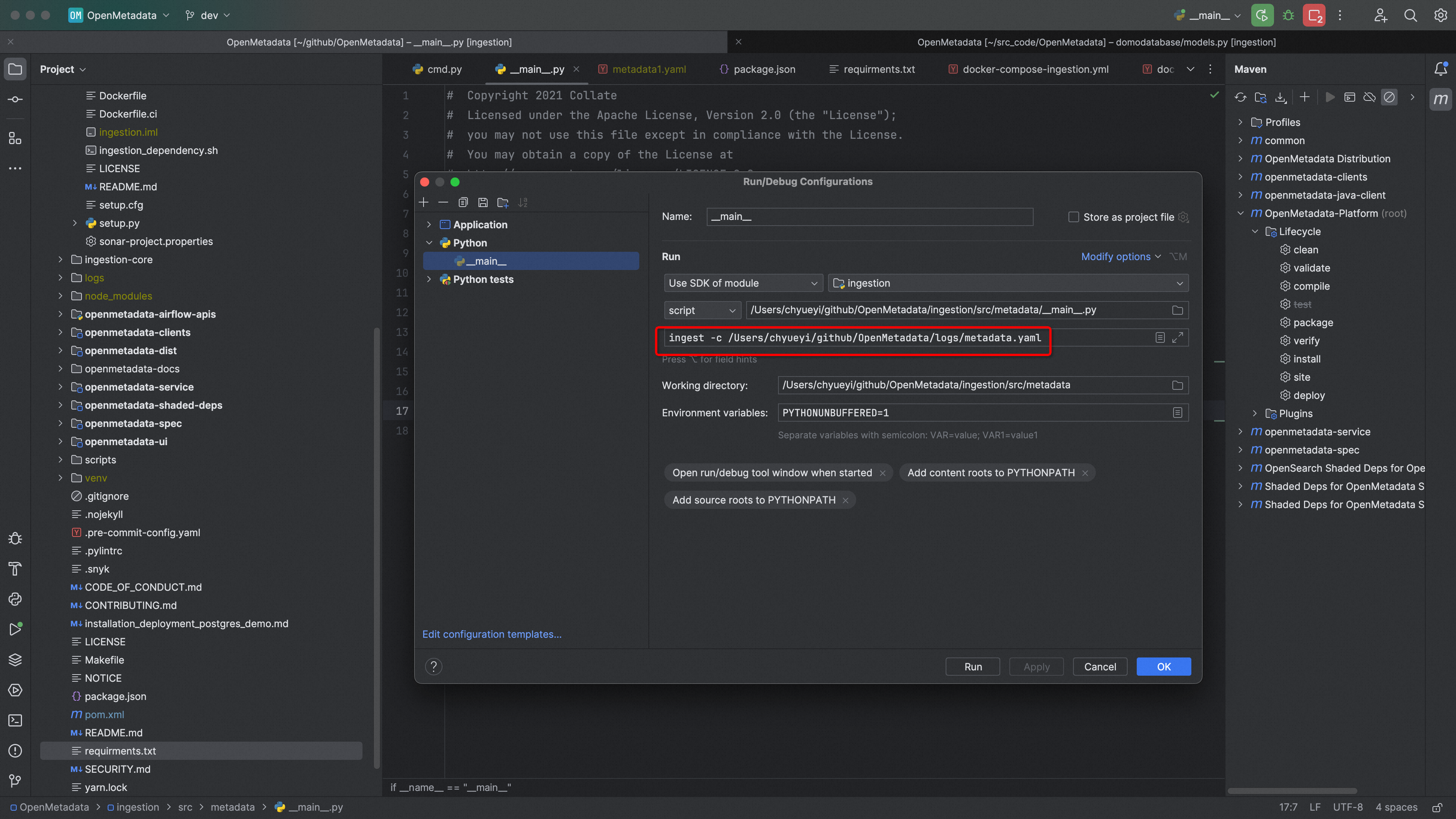

指定metadata文件地址，点击运行

metadata.yaml文件如下：

source:
  type: doris
  serviceName: dorisss
  serviceConnection:
    config:
      type: Doris
      username: root
      password: 123456
      hostPort: 192.168.***.***:9030
      databaseName: default
      databaseSchema: test
      connectionOptions:
        charset: utf8
      # connectionArguments:
      #   key: value
  sourceConfig:
    config:
      type: DatabaseMetadata
      markDeletedTables: true
      includeTables: true
      includeViews: true
      # includeTags: true
      databaseFilterPattern:
        includes:
          - test
      #     - database2
      #   excludes:
      #     - database3
      #     - database4
      schemaFilterPattern:
        includes:
          - test
      #   excludes:
      #     - schema3
      #     - schema4
      # tableFilterPattern:
      #   includes:
      #     - table1
      #     - table2
      #   excludes:
      #     - table3
      #     - table4
sink:
  type: metadata-rest
  config: {}
workflowConfig:
  loggerLevel: INFO  # DEBUG, INFO, WARNING or ERROR
  openMetadataServerConfig:
    hostPort: "http://127.0.0.1:8585/api"
    authProvider: openmetadata
    securityConfig:
      jwtToken: "eyJraWQiOiJHY***"
    ## If SSL, fill the following
    # verifySSL: validate  # or ignore
    # sslConfig:
    #   certificatePath: /local/path/to/certificate

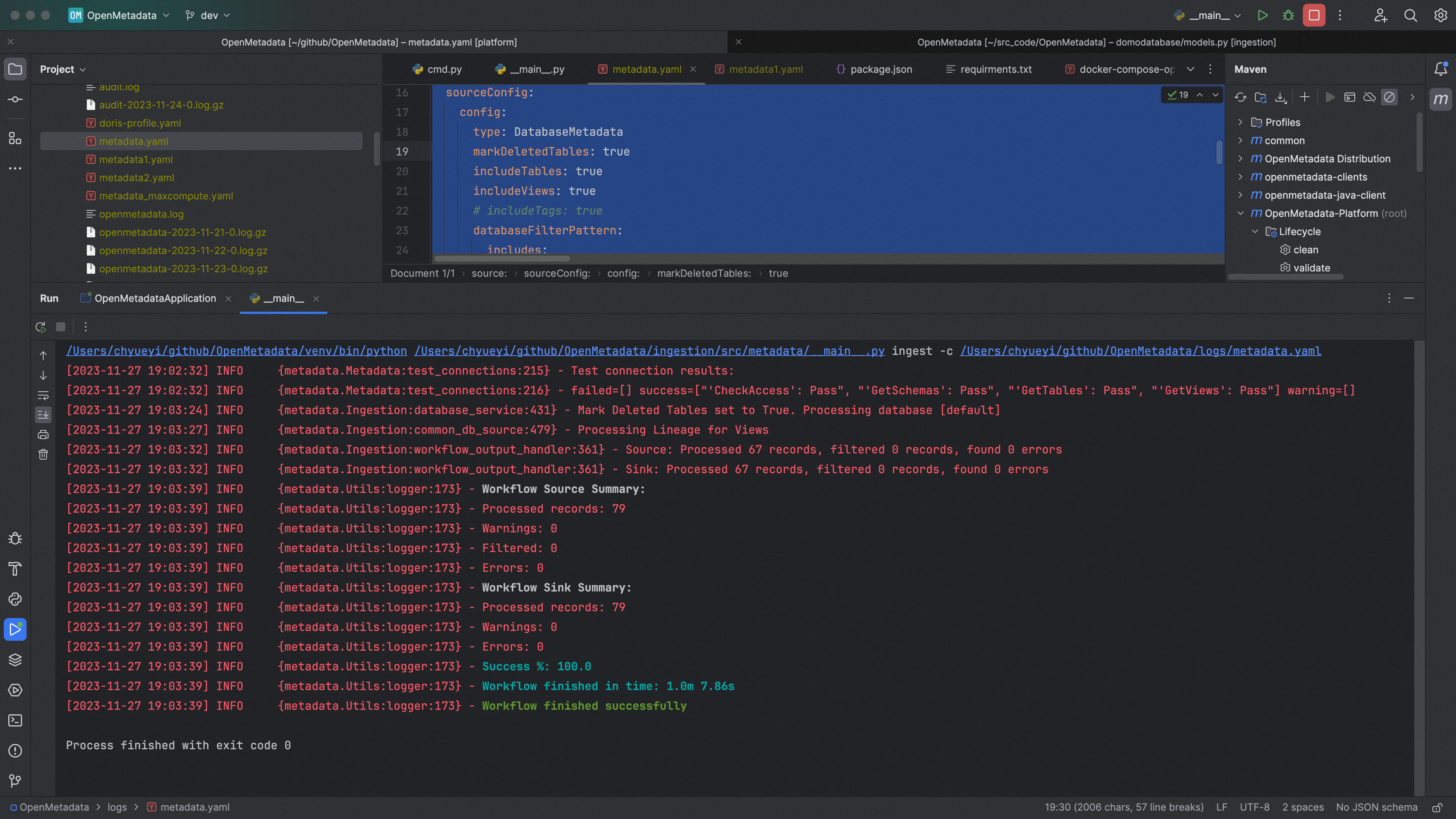

输出Workflow finished successfully时表明任务运行成功

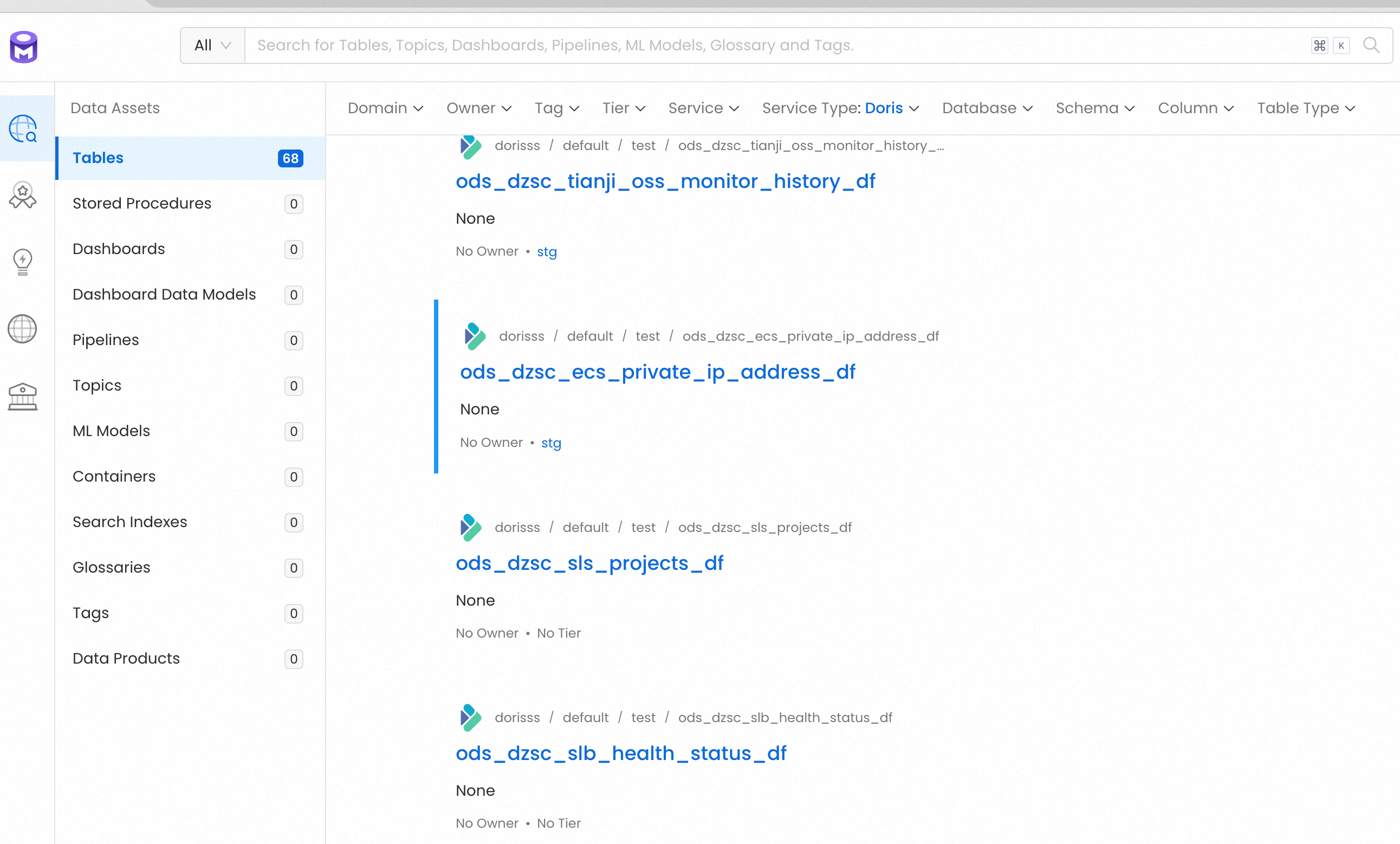

页面查看
