Java实现网络聊天程序的设计与实现(基于UDP协议)

本文深入探讨了TCP/IP协议的细节,包括其四层结构和UDP与TCP的区别,特别强调了TCP的流传输特性。同时,通过一个具体的Java Socket编程实例,展示了如何在Java中实现基于UDP和TCP的网络通信。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

目录



        TCP/IP协议介绍

        Java中socket编程

        测试结果

TCP/IP协议介绍

        TCP/IP协议包含的范围非常的广,它是一种四层协议,包含了各种硬件、软件需求的定义。TCP/IP协议确切的说法应该是TCP/UDP/IP协议。UDP协议(User Datagram Protocol 用户数据报协议),是一种保护消息边界的,不保障可靠数据的传输。TCP协议(Transmission Control Protocol 传输控制协议),是一种流传输的协议。他提供可靠的、有序的、双向的、面向连接的传输。

        保护消息边界,就是指传输协议把数据当作一条独立的消息在网上传输,接收端只能接收独立的消息。也就是说存在保护消息边界,接收端一次只能接收发送端发出的一个数据包。

        而面向流则是指无保护消息边界的,如果发送端连续发送数据,接收端有可能在一次接收动作中,会接收两个或者更多的数据包。

        举例来说,假如,我们连续发送三个数据包,大小分别是2k、4k、8k,这三个数据包都已经到达了接收端的网络堆栈中,如果使用UDP协议,不管我们使用多大的接收缓冲区去接收数据,我们必须有三次接收动作,才能够把所有的数据包接收完。而使用TCP协议,我们只要把接收的缓冲区大小设置在14k以上,我们就能够一次把所有的数据包接收下来,只需要有一次接收动作。

        这就是因为UDP协议的保护消息边界使得每一个消息都是独立的。而流传输,却把数据当作一串数据流,它不认为数据是一个一个的消息。所以有很多人在使用TCP协议通讯的时候,并不清楚TCP是基于流的传输,当连续发送数据的时候,他们时常会认为TCP会丢包。其实不然,因为当它们使用的缓冲区足够大时,它们有可能会一次接收到两个甚至更多的数据包,而很多人往往会忽视这一点,只解析检查了第一个数据包,而已经接收的其它据包却被忽略了。

Java中socket编程

import java.awt.*;
import java.awt.event.*;
import javax.swing.*;
import java.net.*;
import java.io.IOException;
import java.lang.String;

public class liaotian extends JFrame{
	private static final int DEFAULT_PORT=8899;
	private JLabel stateLB;
	private JTextArea centerTextArea;
	private JPanel southPanel;
	private JTextArea inputTextArea;
	private JPanel bottomPanel;
	private JTextField ipTextField;
	private JTextField remotePortTF;
	private JButton sendBT;
	private JButton clearBT;
	private DatagramSocket datagramSoket;
	private void setUpUI(){
		setTitle("GUI");
		setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
		setSize(400,400);
		setResizable(false);//窗口大小不可改变
		setLocationRelativeTo(null);//设置窗口相对于指定组件的位置
		stateLB=new JLabel("weijianting");
		stateLB.setHorizontalAlignment(JLabel.RIGHT);
		centerTextArea=new JTextArea();
		centerTextArea.setEditable(false);
		centerTextArea.setBackground(new Color(211,211,211));
		southPanel=new JPanel(new BorderLayout());
		inputTextArea=new JTextArea(5,20);
		bottomPanel=new JPanel(new FlowLayout(FlowLayout.CENTER,5,5));
		ipTextField=new JTextField("127.0.0.1",8);
		remotePortTF=new JTextField(String.valueOf(DEFAULT_PORT),3);
		sendBT=new JButton("发送");
		clearBT=new JButton("清屏");
		bottomPanel.add(ipTextField);
		bottomPanel.add(remotePortTF);
		bottomPanel.add(sendBT);
		bottomPanel.add(clearBT);
		southPanel.add(new JScrollPane(inputTextArea),BorderLayout.CENTER);
		southPanel.add(bottomPanel,BorderLayout.SOUTH);
		add(stateLB,BorderLayout.NORTH);
		add(new JScrollPane(centerTextArea),BorderLayout.CENTER);
		add(southPanel,BorderLayout.SOUTH);
		setVisible(true);
	}
private void setListener(){
	sendBT.addActionListener(new ActionListener(){
		public void actionPerformed(ActionEvent e){
			final String ipAddress=ipTextField.getText();
			final String remotePort=remotePortTF.getText();
			if(ipAddress==null||ipAddress.trim().equals("")||remotePort==null||remotePort.trim().equals("")){
				JOptionPane.showMessageDialog(liaotian.this,"请输入IP地址和端口号");
				return;
			}
			if(datagramSoket==null||datagramSoket.isClosed()){
				JOptionPane.showMessageDialog(liaotian.this,"监听未成功");
				return;
			}
			String sendContent=inputTextArea.getText();
			byte[] buf=sendContent.getBytes();
			try{
				centerTextArea.append("我对"+ipAddress+":"+remotePort+"说:\n"+inputTextArea.getText()+"\n\n");
				centerTextArea.setCaretPosition(centerTextArea.getText().length());
				datagramSoket.send(new DatagramPacket(buf,buf.length,InetAddress.getByName(ipAddress),Integer.parseInt(remotePort)));
				inputTextArea.setText("");
			}catch(IOException e1){
				JOptionPane.showMessageDialog(liaotian.this, "出错了,发送不成功");
				e1.printStackTrace();
			}
		};
	});
	clearBT.addActionListener(new ActionListener(){
		public void actionPerformed(ActionEvent e){
			centerTextArea.setText("");
		}
	});
}
private void initSocket(){
	int port=DEFAULT_PORT;
	while(true){
		try{
			if(datagramSoket!=null&&!datagramSoket.isConnected()){
				datagramSoket.close();
			}
			try{
				port=Integer.parseInt(JOptionPane.showInputDialog(this,"请输入端口号","端口号",JOptionPane.QUESTION_MESSAGE));
				if(port<1||port>65535){
					throw new RuntimeException("端口号超出范围");
				}
			}catch(Exception e){
				JOptionPane.showMessageDialog(null,"你输入的端口不正确,请输入1~65535之间的数");
				continue;
			}
			datagramSoket=new DatagramSocket(port);
			startListen();
			stateLB.setText("已在"+port+"端口监听");
			break;
		}catch(SocketException e){
			JOptionPane.showMessageDialog(this, "端口号被占用,请重新设置端口");
			stateLB.setText("当前未启动监听");
		}
	}
}
private void startListen(){
	new Thread(){
		private DatagramPacket p;
		public void run(){
			byte[] buf=new byte[1024];
			p=new DatagramPacket(buf,buf.length);
			while(!datagramSoket.isConnected()){
				try{
					datagramSoket.receive(p);
					centerTextArea.append(p.getAddress().getHostAddress()+":"+((InetSocketAddress)p.getSocketAddress()).getPort()+"对我说:\n"+new String(p.getData(),0,p.getLength())+"\n\n");
					centerTextArea.setCaretPosition(centerTextArea.getText().length());
				}catch(IOException e){
					e.printStackTrace();
				}
			}
		}
	}.start();
}
		public static void main(String[] args) {
			liaotian a=new liaotian();
            a.setUpUI();
			a.initSocket();
			a.setListener();
		}

}

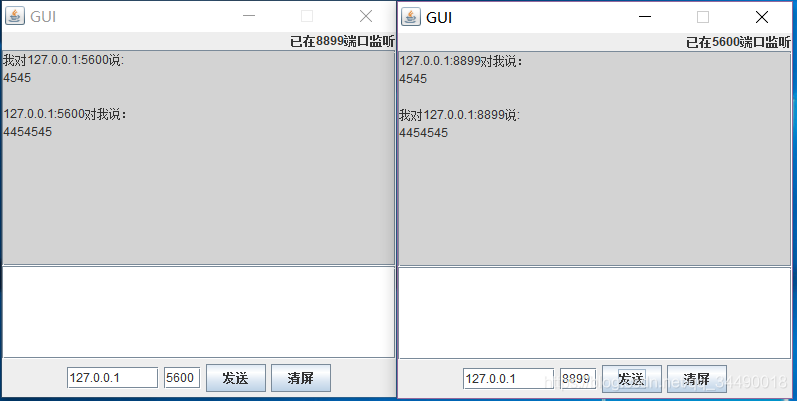

测试结果
