keras 循环神经网路 return_sequences和return_state

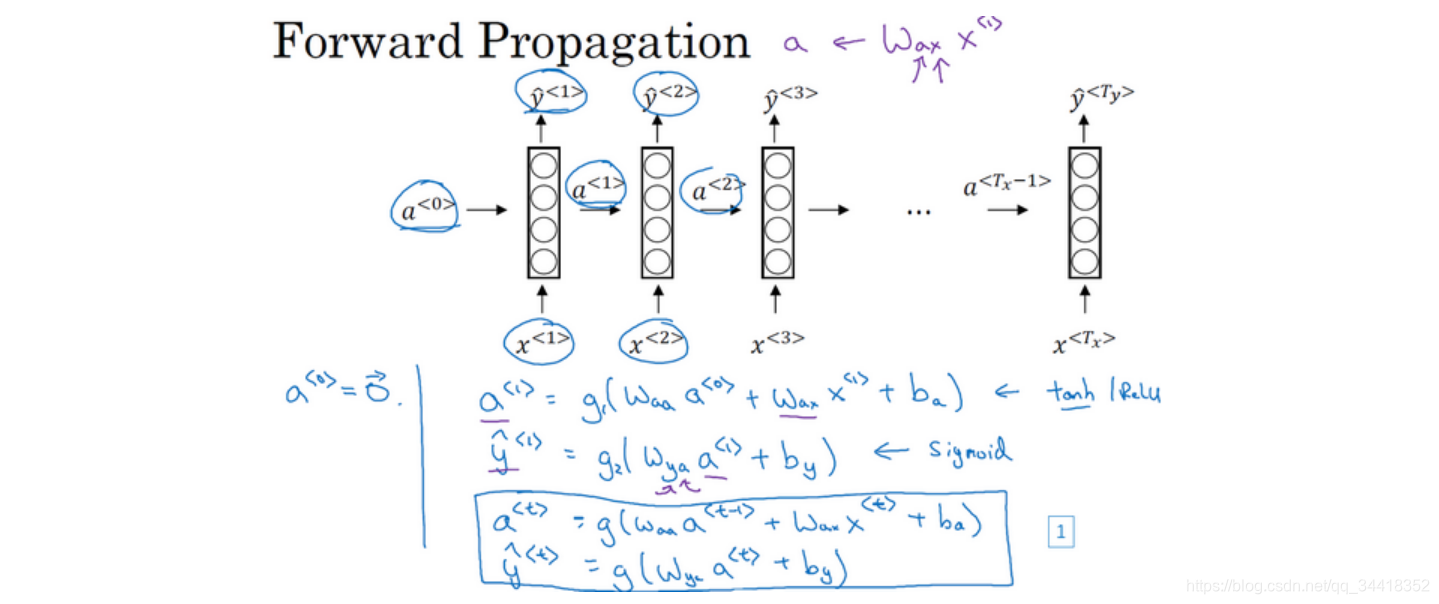

RNN

我一直以为循环神经网络的输出是上边的y，实际上输出的是a

keras 的SimpleRNN

keras.layers.SimpleRNN(units, activation='tanh', use_bias=True, kernel_initializer='glorot_uniform', recurrent_initializer='orthogonal', bias_initializer='zeros', kernel_regularizer=None, recurrent_regularizer=None, bias_regularizer=None, activity_regularizer=None, kernel_constraint=None, recurrent_constraint=None, bias_constraint=None, dropout=0.0, recurrent_dropout=0.0, return_sequences=False, return_state=False, go_backwards=False, stateful=False, unroll=False)

参数

units: 正整数，输出空间的维度。

return_sequences: 布尔值。是返回输出序列中的最后一个输出，还是全部序列。

return_state: 布尔值。除了输出之外是否返回最后一个状态。

对于SimpleRNN来说，如果return_sequences=False，return_state=True的话，将返回输出和最后的状态，而循环神经网络的输出是a,所以此时返回的两个东西实际上内容一样，代码验证：

import keras
import numpy as np
import keras.backend as K

a = np.random.randn(100, 20, 30)
a = K.constant(a)
ls = keras.layers.SimpleRNN(10, return_state=True)
o = ls(a)
print(len(o))  # 2
print(o[0].shape)  # (100, 10)
print(o[1].shape)  # (100, 10)
# # 发现一样的
print(K.eval(o[0][0]))
'''
[ 0.9602081  -0.99240303 -0.85192835  0.46388015 -0.3387786  -0.64301735
 -0.41622564 -0.69669306  0.72947526  0.22001031]
'''

print(K.eval(o[1][0]))
'''
[ 0.9602081  -0.99240303 -0.85192835  0.46388015 -0.3387786  -0.64301735
 -0.41622564 -0.69669306  0.72947526  0.22001031]
'''

对于SimpleRNN来说，如果return_sequences=True，return_state=True的话，将返回全部序列（即全部的a，实际上就是所有状态）和最后的状态，因此全部序列的最后一个应该和最终状态一样，代码验证：

import keras
import numpy as np
import keras.backend as K

a = np.random.randn(100, 20, 30)
a = K.constant(a)


ls = keras.layers.SimpleRNN(10, return_sequences=True, return_state=True)
o = ls(a)
print(len(o))  # 2
print(o[0].shape)  # (100, 20, 10)
print(o[1].shape)  # (100, 10)
# 发现一样的
print(K.eval(o[0][0][-1]))
'''
[-0.70218027 -0.64057803  0.99573636 -0.5584237  -0.9264632   0.6889967
  0.01906533 -0.668484   -0.13754909  0.45146388]
'''

print(K.eval(o[1][0]))
'''
[-0.70218027 -0.64057803  0.99573636 -0.5584237  -0.9264632   0.6889967
  0.01906533 -0.668484   -0.13754909  0.45146388]
'''

# LSTM返回两个状态
inp = keras.layers.Input((20, 30))
ls = keras.layers.LSTM(10, return_sequences=True, return_state=True)
o = ls(a)
print(len(o))  # 3
print(o[0].shape)  # (100, 20, 10)
print(o[1].shape)  # (100, 10)
print(o[2].shape)  # (100, 10)
print(K.eval(o[0][0][-1]))
'''
[-0.19201267  0.22842234 -0.03906217  0.04675736 -0.441967   -0.03653109
  0.01334425  0.19605611 -0.38279617  0.4425362 ]
'''
print(K.eval(o[1][0]))
'''
[-0.19201267  0.22842234 -0.03906217  0.04675736 -0.441967   -0.03653109
  0.01334425  0.19605611 -0.38279617  0.4425362 ]
'''
print(K.eval(o[2][0]))
'''
[-0.36619347  0.884866   -0.7736238   0.31789908 -0.733658   -0.07859978
  0.02072818  0.47486547 -0.48310652  0.52434754]
'''
