SSM到Spring Boot 从零开发校园商铺平台11-1到11-4 对关键配置信息进行DES加密以及 缓存技术理论的讲解与配置 代码的实现

一、对关键配置信息进行DES加密

 1.1使用PropertyPlaceholderConfigurer实现对称加密

  对jdbc中的jdbc.user和jdbc,password进行加密
  首先就要编写一个工具类可以把明文转换成密文的类，然后把加密后的信息给替换掉。
然后在spring-dao.xml中进行配置解密，所以涉及到加密和解密的过程。

 1.2使用DES进行加密以及代码实现

 1.2.1DESUtil.javad的代码

  其中有一个getinstance（）方法的原因及作用看这个超链接
  构造代码块，局部代码块和静态代码块的作用和区别
  toString()方法返回对象本身
  getBytes() 方法有两种形式：
    getBytes(String charsetName): 使用指定的字符集将字符串编码为 byte 序列，并将结果存储到一个新的 byte 数组中。
    getBytes(): 使用平台的默认字符集将字符串编码为 byte 序列，并将结果存储到一个新的 byte 数组中。

package com.imooc.o2o.util;

import java.security.Key;
import java.security.SecureRandom;

import javax.crypto.Cipher;
import javax.crypto.KeyGenerator;

import sun.misc.BASE64Decoder;
import sun.misc.BASE64Encoder;

/**
 * des 是一种对称的加密算法，所谓对称加密算法即
 * 加密和解密使用相同秘钥的算法
 * @author acer
 *
 */
public class DESUtil {
	private static Key key;
	// 设置密钥key
	private static String KEY_STR = "myKey";
	//编码规则
	private static String CHARSETNAME = "UTF-8";
	//算法
	private static String ALGORITHM = "DES";
	static {
		try {
			// 生成DES算法对象
			KeyGenerator generator = KeyGenerator.getInstance(ALGORITHM);
			// 运行SHA1安全策略
			SecureRandom secureRandom = SecureRandom.getInstance("SHA1PRNG");
			// 设置上密钥种子
			secureRandom.setSeed(KEY_STR.getBytes());
			// 初始化基于SHA1的算法对象
			generator.init(secureRandom);
			// 生成密钥对象
			key = generator.generateKey();
			generator = null;
		} catch (Exception e) {
			throw new RuntimeException(e);
		}
	}

	/**
	 * 获取加密后的信息
	 *
	 * @param str 待加密字符串
	 * @return
	 */
	public static String getEncryptString(String str) {
		// 基于BASE64编码，接收byte[]并转换为String
		BASE64Encoder base64encoder = new BASE64Encoder();
		try {
			// 按UTF-8编码
			byte[] bytes = str.getBytes(CHARSETNAME);
			// 获取加密对象
			Cipher cipher = Cipher.getInstance(ALGORITHM);
			// 初始化密码信息
			cipher.init(Cipher.ENCRYPT_MODE, key);
			// 加密
			byte[] doFinal = cipher.doFinal(bytes);
			// byte[] to encode好的String并返回
			return base64encoder.encode(doFinal);
		} catch (Exception e) {
			throw new RuntimeException(e);
		}
	}

	/**
	 * 获取解密之后的信息
	 *
	 * @param str 待解密字符串
	 * @return
	 */
	public static String getDecryptString(String str) {
		// 基于BASE64编码，接收byte[]并转换为String
		BASE64Decoder base64decoder = new BASE64Decoder();
		try {
			// 将字符串decode成byte[]
			byte[] bytes = base64decoder.decodeBuffer(str);
			// 获取解密对象
			Cipher cipher = Cipher.getInstance(ALGORITHM);
			// 初始化解密信息
			cipher.init(Cipher.DECRYPT_MODE, key);
			// 解密
			byte[] doFinal = cipher.doFinal(bytes);
			// 返回解密之后的信息
			return new String(doFinal, CHARSETNAME);
		} catch (Exception e) {
			throw new RuntimeException(e);
		}
	}

	// 测试
	public static void main(String[] args) {
		System.out.println(getEncryptString("123"));
		System.out.println(getDecryptString("WnplV/ietfQ="));
	}
}

 1.3DES的解密以及EncryptPropertyPlaceholderConfigurer的代码及讲解

  把加密后的数据写入到jdbc.property中只有进行解密后才能连接数据库，所以就要在spring-dao.xml进行改造，
以及编写一个类EncryptPropertyPlaceholderConfigurer以及部分的spring-dao.xml的代码

 1.3.1EncryptPropertyPlaceholderConfigure的代码

  这个类继承PropertyPlaceholderConfigurer，重写convertProperty，明确要加密的内容

package com.imooc.o2o.util;

import org.springframework.beans.factory.config.PropertyPlaceholderConfigurer;

/**
 * @Description: 继承PropertyPlaceholderConfigurer，重写convertProperty
 *
 *
 */
public class EncryptPropertyPlaceholderConfigurer extends PropertyPlaceholderConfigurer {
	// 需要加密的字段数组
	private String[] encryptPropNames = { "jdbc.user", "jdbc.password" };

	/**
	 * 对关键的属性进行转换
	 */
	@Override
	protected String convertProperty(String propertyName, String propertyValue) {
		// 判断是否加密
		if (isEncryptProp(propertyName)) {
			// 解密
			String decryptValue = DESUtil.getDecryptString(propertyValue);
			return decryptValue;
		} else {
			return propertyValue;
		}
	}

	/**
	 * 判断该属性是否加密
	 *
	 * @param propertyName
	 * @return
	 */
	private boolean isEncryptProp(String propertyName) {
		for (String encryptpropertyName : encryptPropNames) {
			if (encryptpropertyName.equals(propertyName))
				return true;
		}
		return false;
	}
}

 1.3.2spring-dao.xml的部分代码

<bean class="com.imooc.o2o.util.EncryptPropertyPlaceholderConfigurer">
		<property name="locations">
			<list>
				<value>classpath:jdbc.properties</value>
			</list>
		</property>
		<property name="fileEncoding" value="UTF-8"></property>
	</bean>

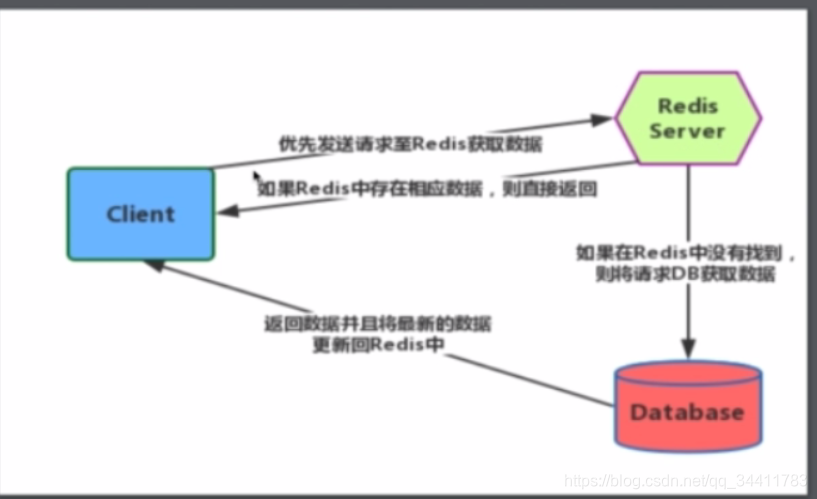

二、缓存技术之理论讲解

 2.1redis和jedis的用法以及区别

 2.2Redis配置（redis客户端 jedis，服务于java）

  2.2.1在pom.xml中引入redis客户端jedis

  <dependency>
  	<groupId>redis.clients</groupId>
	<artifactId>jedis</artifactId>
	<version>2.9.0</version>
  </dependency>

  2.2.2由于是基于ssm的框架，还要进行spring-redis.xml的配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans.xsd
    http://www.springframework.org/schema/context
    http://www.springframework.org/schema/context/spring-context.xsd">
	<!-- Redis连接池的设置 -->
	<bean id="jedisPoolConfig" class="redis.clients.jedis.JedisPoolConfig">
		<!-- 控制一个pool可分配多少个jedis实例 -->
		<property name="maxTotal" value="${redis.pool.maxActive}" />
		<!-- 连接池中最多可空闲maxIdle个连接 ，这里取值为20，表示即使没有数据库连接时依然可以保持20空闲的连接，而不被清除，随时处于待命状态。 -->
		<property name="maxIdle" value="${redis.pool.maxIdle}" />
		<!-- 最大等待时间:当没有可用连接时,连接池等待连接被归还的最大时间(以毫秒计数),超过时间则抛出异常 -->
		<property name="maxWaitMillis" value="${redis.pool.maxWait}" />
		<!-- 在获取连接的时候检查有效性 -->
		<property name="testOnBorrow" value="${redis.pool.testOnBorrow}" />
	</bean>

	<!-- 创建Redis连接池，并做相关配置 -->
	<bean id="jedisWritePool" class="com.imooc.o2o.cache.JedisPoolWriper"
		depends-on="jedisPoolConfig">
		<constructor-arg index="0" ref="jedisPoolConfig" />
		<constructor-arg index="1" value="${redis.hostname}" />
		<constructor-arg index="2" value="${redis.port}" type="int" />
	</bean>

	<!-- 创建Redis工具类，封装好Redis的连接以进行相关的操作 -->
	<bean id="jedisUtil" class="com.imooc.o2o.cache.JedisUtil" scope="singleton">
		<property name="jedisPool">
			<ref bean="jedisWritePool" />
		</property>
	</bean>
	<!-- Redis的key操作 -->
	<bean id="jedisKeys" class="com.imooc.o2o.cache.JedisUtil$Keys"
		scope="singleton">
		<!-- <constructor-arg ref="jedisUtil"></constructor-arg> -->
	</bean>
	<!-- Redis的Strings操作 -->
	<bean id="jedisStrings" class="com.imooc.o2o.cache.JedisUtil$Strings"
		scope="singleton">
		<!-- <constructor-arg ref="jedisUtil"></constructor-arg> -->
	</bean>
	<!-- Redis的Lists操作 -->
	<bean id="jedisLists" class="com.imooc.o2o.cache.JedisUtil$Lists"
		scope="singleton">
		<!-- <constructor-arg ref="jedisUtil"></constructor-arg> -->
	</bean>
	<!-- Redis的Sets操作 -->
	<bean id="jedisSets" class="com.imooc.o2o.cache.JedisUtil$Sets"
		scope="singleton">
		<!-- <constructor-arg ref="jedisUtil"></constructor-arg> -->
	</bean>
	<!-- Redis的HashMap操作 -->
	<bean id="jedisHash" class="com.imooc.o2o.cache.JedisUtil$Hash"
		scope="singleton">
		<!-- <constructor-arg ref="jedisUtil"></constructor-arg> -->
	</bean>
</beans>

  2.2.3redis的一些常用属性的配置redis.properties

#你买的云服务器的地址
redis.hostname=***********
#端口号
redis.port=6379
redis.database=0
redis.pool.maxActive=60
redis.pool.maxIdle=30
redis.pool.maxWait=3000
redis.pool.testOnBorrow=true

    在web.xml中的configlocation中能读到spring的数据，要想redis.properties的配置在spring-redis.xml中使用需要在spring.dao的中加入配置

<bean class="com.imooc.o2o.util.EncryptPropertyPlaceholderConfigurer">
		<property name="locations">
			<list>
				<value>classpath:jdbc.properties</value>//这里是配置数据库的时候加入的
				<value>classpath:redis.properties</value>
			</list>
		</property>
		<property name="fileEncoding" value="UTF-8"></property>
	</bean>

 2.3Jedis基本通用函数配置及使用

  2.3.1创建Redis连接池，并做相关配置

      JedisPoolWriper的代码编写，指定redis的jedisPool接口构造函数，这样才能在centos成功创建jedispool

package com.imooc.o2o.cache;

import redis.clients.jedis.JedisPool;
import redis.clients.jedis.JedisPoolConfig;


public class JedisPoolWriper {
	/*redis连接池对象*/
	private JedisPool jedisPool;
//里面的参数是spring-redis.xml中传入进来的
	public JedisPoolWriper(final JedisPoolConfig poolConfig, final String host, final int port) {
		try {
			jedisPool = new JedisPool(poolConfig, host, port);
		} catch (Exception e) {
			e.printStackTrace();
		}
	}

	public JedisPool getJedisPool() {
		return jedisPool;
	}

	public void setJedisPool(JedisPool jedisPool) {
		this.jedisPool = jedisPool;
	}
}

  2.3.2创建Redis工具类，封装好redis的连接以进行相关的操作&&&这里有一个JedisUtil的工具类来配合spring-redis.xm（代码很多了解就好）

三、缓存技术之编码实现

  由于区域信息，头条信息，店铺类别信息不经常使用，所以要把这三个service层的方法进行改造，让他加入redis缓存，也就是java的jedis缓存

  3.1区域信息的改造

  3.1.1区域信息service层改造

    AreaService的改造后的代码

package com.imooc.o2o.service;

import java.util.List;

import com.imooc.o2o.entity.Area;

public interface AreaService {
	public static final String AREALISTKEY="arealist";
	List<Area> getAreaList();
}

  3.1.1区域信息service层的实现改造

    AreaServiceImpl的改造后的代码

package com.imooc.o2o.service.impl;

import java.io.IOException;
import java.util.ArrayList;
import java.util.List;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

import com.fasterxml.jackson.core.JsonParseException;
import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.JavaType;
import com.fasterxml.jackson.databind.JsonMappingException;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.imooc.o2o.cache.JedisUtil;
import com.imooc.o2o.dao.AreaDao;
import com.imooc.o2o.entity.Area;
import com.imooc.o2o.exceptions.AreaOperationException;

@Service
public class AreaServiceImpl implements com.imooc.o2o.service.AreaService{
	@Autowired
	private AreaDao areaDao;
	@Autowired
	private JedisUtil.Keys jedisKeys;
	@Autowired
	private JedisUtil.Strings jedisStrings;

	private static Logger logger = LoggerFactory.getLogger(AreaServiceImpl.class);
	@Override
	@Transactional
	public List<Area> getAreaList() {
		// key
		String key = AREALISTKEY;
		List<Area> areaList = null;
		ObjectMapper mapper = new ObjectMapper();
		// 如果Redis中未存在key
		if (!jedisKeys.exists(key)) {
			// 数据库中获取区域列表
			areaList = areaDao.queryArea();
			String jsonString = null;
			// 将list转换为String
			try {
				jsonString = mapper.writeValueAsString(areaList);
			} catch (JsonProcessingException e) {
				e.printStackTrace();
				logger.error(e.getMessage());
				throw new AreaOperationException(e.getMessage());
			}
			jedisStrings.set(key, jsonString);
		}
		// Redis中存在key，则取出
		else {
			// 将String转换为List
			String jsonString = jedisStrings.get(key);
			JavaType javaType = mapper.getTypeFactory().constructParametricType(ArrayList.class, Area.class);
			try {
				areaList=mapper.readValue(jsonString, javaType);
			} catch (JsonParseException e) {
				e.printStackTrace();
				logger.error(e.getMessage());
				throw new AreaOperationException(e.getMessage());
			} catch (JsonMappingException e) {
				e.printStackTrace();
				logger.error(e.getMessage());
				throw new AreaOperationException(e.getMessage());
			} catch (IOException e) {
				e.printStackTrace();
				logger.error(e.getMessage());
				throw new AreaOperationException(e.getMessage());
			}
		}

		return areaList;
	}

}

  3.2头条信息的改造

  3.2.1头条信息service层改造

    HeadLineService改造后的代码

package com.imooc.o2o.service;

import java.io.IOException;
import java.util.List;

import com.imooc.o2o.entity.HeadLine;

public interface HeadLineService {

	public static final  String HLLISTKEY="headlinelist";
	/**
	 * 根据条件查询头条列表
	 *
	 * @param headLineCondition
	 * @return
	 * @throws IOException
	 */
	List<HeadLine> getHeadLineList(HeadLine headLineCondition) throws IOException;

}

  3.2.1头条信息service层的实现改造

    HeadLineServiceImpl改造后的代码

package com.imooc.o2o.service.impl;


import java.io.IOException;
import java.util.ArrayList;
import java.util.List;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.JavaType;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.imooc.o2o.cache.JedisUtil;
import com.imooc.o2o.dao.HeadLineDao;
import com.imooc.o2o.entity.HeadLine;
import com.imooc.o2o.exceptions.HeadLineOperationException;
import com.imooc.o2o.service.HeadLineService;
import com.imooc.o2o.util.ImageUtil;
import com.imooc.o2o.util.PathUtil;

/**
 * @Description: 首页头条业务接口实现
 *
 */
@Service
public class HeadLineServiceImpl implements HeadLineService {

	@Autowired
	private JedisUtil.Strings jedisStrings;
	@Autowired
	private JedisUtil.Keys jedisKeys;
	@Autowired
	private HeadLineDao headLineDao;
	private static Logger logger = LoggerFactory.getLogger(HeadLineServiceImpl.class);

	@Override
	@Transactional
	public List<HeadLine> getHeadLineList(HeadLine headLineCondition) {
		//定义接收对象
		List<HeadLine> headLineList = null;
		//定义Jackson数据转换操作类
		ObjectMapper mapper = new ObjectMapper();
		//定义redis的key前缀
		String key = HLLISTKEY;
		//拼接出redis的key
		if (headLineCondition != null && headLineCondition.getEnableStatus() != null) {
			key = key + "_" + headLineCondition.getEnableStatus();
		}
		// redis中不存在key，则设值
		if (!jedisKeys.exists(key)) {
			//若不存在，则从数据库里面取出相应数据
			headLineList = headLineDao.queryHeadLine(headLineCondition);
			// 将相关的实体类集合转换成string，存入redis里面对应的key中
			String jsonString;
			try {
				jsonString = mapper.writeValueAsString(headLineList);
				jedisStrings.set(key, jsonString);
			} catch (JsonProcessingException e) {
				e.printStackTrace();
				logger.error(e.getMessage());
				throw new HeadLineOperationException(e.getMessage());
			}
		} else {
			String jsonString = jedisStrings.get(key);
			// 将jsonString转为list
			JavaType javaType = mapper.getTypeFactory().constructParametricType(ArrayList.class, HeadLine.class);
			try {
				headLineList = mapper.readValue(jsonString, javaType);
			} catch (IOException e) {
				e.printStackTrace();
				logger.error(e.getMessage());
				throw new HeadLineOperationException(e.getMessage());
			}
		}
		return headLineList;
	}
}

  3.3店铺类别信息的改造

  3.3.1店铺类别信息service层改造

    ShopCategoryService改造后的代码

package com.imooc.o2o.service;

import java.util.List;

import com.imooc.o2o.entity.ShopCategory;

public interface ShopCategoryService {

	public static final String SCLISTKEY="shopcategorylist";
	/**
	 * 根据查询条件获取shopCategory列表
	 * @param shopCategoryCondition
	 * @return
	 */
	List<ShopCategory> getShopCategoryList(ShopCategory shopCategoryCondition);
}

  3.3.1店铺类别信息service层的实现改造

    ShopCategoryServiceImpl改造后的代码

package com.imooc.o2o.service.impl;

/*import java.util.List;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import com.imooc.o2o.dao.ShopCategoryDao;
import com.imooc.o2o.entity.ShopCategory;
import com.imooc.o2o.service.ShopCategoryService;

import java.util.ArrayList;
import java.util.List;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.fasterxml.jackson.databind.JavaType;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.imooc.o2o.cache.JedisUtil;
import com.imooc.o2o.dao.ShopCategoryDao;
import com.imooc.o2o.entity.ShopCategory;
import com.imooc.o2o.exceptions.ShopCategoryOperationException;
import com.imooc.o2o.service.ShopCategoryService;

/**
 * @Description: 店鋪类别业务接口实现类
 *
 */
@Service
public class ShopCategoryServiceImpl implements ShopCategoryService {

	@Autowired
	private ShopCategoryDao shopCategoryDao;
	@Autowired
	private JedisUtil.Strings jedisStrings;
	@Autowired
	private JedisUtil.Keys jedisKeys;
	private static Logger logger = LoggerFactory.getLogger(ShopCategoryServiceImpl.class);

	@Override
	public List<ShopCategory> getShopCategoryList(ShopCategory shopCategoryCondition) {
		// 定义Redis的key前缀
		String key = SCLISTKEY;
		// 定义接收对象
		List<ShopCategory> shopCategories = null;
		// 定义jackson数据转换操作类
		ObjectMapper mapper = new ObjectMapper();
		// 拼接出redis的key
		if (shopCategoryCondition == null) {
			// 若查询条件为空，则列出所有首页大类，即parentId为空的店铺类型
			key = key + "_allfirstlevel";
		} else if (shopCategoryCondition != null && shopCategoryCondition.getParent() != null
				&& shopCategoryCondition.getParent().getShopCategoryId() != null) {
			// 若parentId不为空，则列出该parentId下的所有子类别
			key = key + "_parent" + shopCategoryCondition.getParent().getShopCategoryId();
		} else if (shopCategoryCondition != null) {
			// 列出所有子类别，不管其属于哪个类都列出
			key = key + "_allsecondlevel";
		}

		// 判断key是否存在
		if (!jedisKeys.exists(key)) {
			// 若不存在，则从数据库中取出数据
			shopCategories = shopCategoryDao.queryShopCategory(shopCategoryCondition);
			// 将实体类集合转换为string，存入redis
			String jsonString = null;
			try {
				jsonString = mapper.writeValueAsString(shopCategories);
			} catch (Exception e) {
				e.printStackTrace();
				logger.error(e.getMessage());
				throw new ShopCategoryOperationException(e.getMessage());
			}
			jedisStrings.set(key, jsonString);
		} else {
			// 若存在，则直接从redis中取出数据
			String jsonString = jedisStrings.get(key);
			// 将String转换为集合类型
			JavaType javaType = mapper.getTypeFactory().constructParametricType(ArrayList.class, ShopCategory.class);
			try {
				shopCategories = mapper.readValue(jsonString, javaType);
			} catch (Exception e) {
				e.printStackTrace();
				logger.error(e.getMessage());
				throw new ShopCategoryOperationException(e.getMessage());
			}
		}

		return shopCategories;
	}
}

3.4根据key前缀匹配原则删除缓存数据

 $emsp;编写一个类删除redis里面的缓存的数据

3.4.1CacheService的代码

package com.imooc.o2o.service;

public interface CacheService {
	/**
	 * 依据key前缀匹配原则删除缓存数据
	 *
	 * @param keyPrefix
	 */
	void removeFromCache(String keyPrefix);
}

3.4.2CacheServiceImpl的代码

package com.imooc.o2o.service.impl;

import java.util.Set;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.imooc.o2o.cache.JedisUtil;
import com.imooc.o2o.service.CacheService;
@Service
public class CacheServiceImpl implements CacheService{
	@Autowired
	private JedisUtil.Keys jedisKeys;
	@Override
	public void removeFromCache(String keyPrefix) {
		Set<String> keySet = jedisKeys.keys(keyPrefix + "*");
		for (String key : keySet) {
			jedisKeys.del(key);
		}
	}

}
