目标检测：COCO格式的txt文件转VOC格式的xml文件

1. COCO格式 vs VOC格式看这里

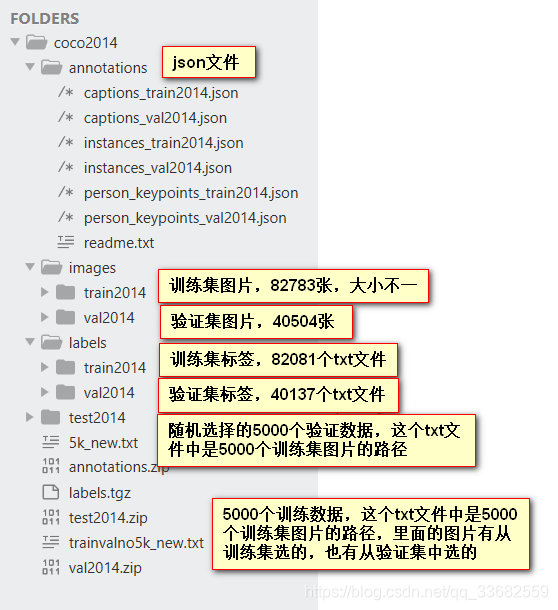

COCO2014据集：

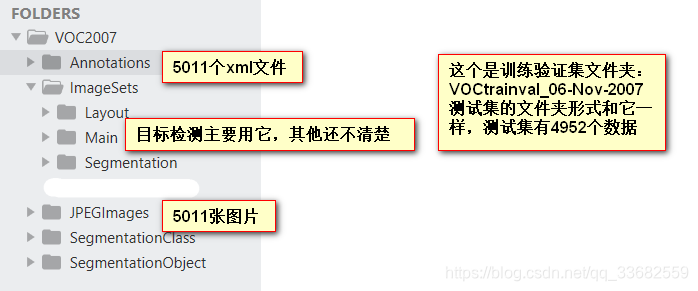

VOC2007数据集:

txt文件（中心点坐标+宽高，相对值）：

45 0.479492 0.688771 0.955609 0.595500
45 0.736516 0.247188 0.498875 0.476417
50 0.637063 0.732938 0.494125 0.510583
45 0.339438 0.418896 0.678875 0.781500
49 0.646836 0.132552 0.118047 0.096937
49 0.773148 0.129802 0.090734 0.097229
49 0.668297 0.226906 0.131281 0.146896
49 0.642859 0.079219 0.148063 0.148062

xml文件（左上角+右下角，真实值）：

<annotation>
	<folder>VOC2007</folder>
	<filename>000001.jpg</filename>
	<source>
		<database>The VOC2007 Database</database>
		<annotation>PASCAL VOC2007</annotation>
		<image>flickr</image>
		<flickrid>341012865</flickrid>
	</source>
	<owner>
		<flickrid>Fried Camels</flickrid>
		<name>Jinky the Fruit Bat</name>
	</owner>
	<size>
		<width>353</width>
		<height>500</height>
		<depth>3</depth>
	</size>
	<segmented>0</segmented>
	<object>
		<name>dog</name>
		<pose>Left</pose>
		<truncated>1</truncated>
		<difficult>0</difficult>
		<bndbox>
			<xmin>48</xmin>
			<ymin>240</ymin>
			<xmax>195</xmax>
			<ymax>371</ymax>
		</bndbox>
	</object>
	<object>
		<name>person</name>
		<pose>Left</pose>
		<truncated>1</truncated>
		<difficult>0</difficult>
		<bndbox>
			<xmin>8</xmin>
			<ymin>12</ymin>
			<xmax>352</xmax>
			<ymax>498</ymax>
		</bndbox>
	</object>
</annotation>

2. txt文件转为xml文件

import glob
import cv2

xml_head = '''<annotation>
    <folder>VOC2007</folder>
    <filename>{}</filename>.
    <source>
        <database>The VOC2007 Database</database>
        <annotation>PASCAL VOC2007</annotation>
        <image>flickr</image>
    </source>
    <size>
        <width>{}</width>
        <height>{}</height>
        <depth>{}</depth>
    </size>
    <segmented>0</segmented>
    '''
xml_obj = '''
    <object>
        <name>{}</name>
        <pose>Unspecified</pose>
        <truncated>0</truncated>
        <difficult>0</difficult>
        <bndbox>
            <xmin>{}</xmin>
            <ymin>{}</ymin>
            <xmax>{}</xmax>
            <ymax>{}</ymax>
        </bndbox>
    </object>
    '''
xml_end = '''
</annotation>'''

#--data
#----train 训练集图片
#----train_txt 对应的txt标签
#----train_xml 对应的xml标签

root='E:/pycharm_codes/data/'

txt_Lists = glob.glob(root +'train'+ '/*.jpg')
print(len(txt_Lists))
# print(txt_Lists)
cnt=0

for txt_path in txt_Lists:
    filename=txt_path.split('\\')
    filename=filename[-1]
    filename=filename.split('.')
    filename=filename[0]

    txt = root+'train_txt/'+filename+'.txt'
    jpg=root+'train/'+filename+'.jpg' #jpg path
    xml=root+'train_xml/'+filename+'.xml'

    print(txt)
    print(jpg)
    print(xml)

    obj = ''

    img = cv2.imread(jpg)
    img_h, img_w = img.shape[0], img.shape[1]

    print('h_factor:',img_h,'  w_factor:',img_w)
    # cv2.imshow("img", img)  #显示图片
    # cv2.waitKey(0)
    # cv2.destroyWindow("img")

    head = xml_head.format(str(filename), str(img_w), str(img_h), "3")

    with open(txt, 'r') as f:
        for line in f.readlines():
            yolo_datas = line.strip().split(' ')
            label = int(float(yolo_datas[0].strip()))
            center_x = round(float(str(yolo_datas[1]).strip()) * img_w)
            center_y = round(float(str(yolo_datas[2]).strip()) * img_h)
            bbox_width = round(float(str(yolo_datas[3]).strip()) * img_w)
            bbox_height = round(float(str(yolo_datas[4]).strip()) * img_h)

            xmin = str(int(center_x - bbox_width / 2))
            ymin = str(int(center_y - bbox_height / 2))
            xmax = str(int(center_x + bbox_width / 2))
            ymax = str(int(center_y + bbox_height / 2))

            obj += xml_obj.format(labels[label], xmin, ymin, xmax, ymax)

    with open(xml, 'w') as f_xml:
        f_xml.write(head + obj + xml_end)
    cnt += 1
    print(cnt)
