ErrorStatus clk_return_status;
CLK_Source_TypeDef clk_source;
u32 u32_clk_freq;
void CLK_Config(void)
{
  CLK_LSICmd(ENABLE);                                       // 使能或禁用低速内部（LSI）时钟

#ifdef HSE
  CLK_HSECmd(ENABLE);                                       // 使能或禁用高速外部（HSE）时钟
  while (SET != CLK_GetFlagStatus(CLK_FLAG_HSERDY));        // 等待HSE
  clk_return_status = CLK_ClockSwitchConfig(CLK_SWITCHMODE_AUTO, CLK_SOURCE_HSE, DISABLE, CLK_CURRENTCLOCKSTATE_DISABLE);
#else
  CLK_HSICmd(ENABLE);                                       // 使能或禁用高速内部（HSI）时钟
  CLK_HSIPrescalerConfig(CLK_PRESCALER_HSIDIV1);            // 配置高速内部时钟（HSI）的预分频器
  while (SET != CLK_GetFlagStatus(CLK_FLAG_HSIRDY));        // 等待HSI
#endif

clk_source = CLK_GetSYSCLKSource();
u32_clk_freq = CLK_GetClockFreq();
// printf("%u",u32_clk_freq);
  CLK_SYSCLKConfig(CLK_PRESCALER_CPUDIV1);                  // 配置系统时钟（SYSCLK）的预分频器
}

2.HSE需要修改的地方

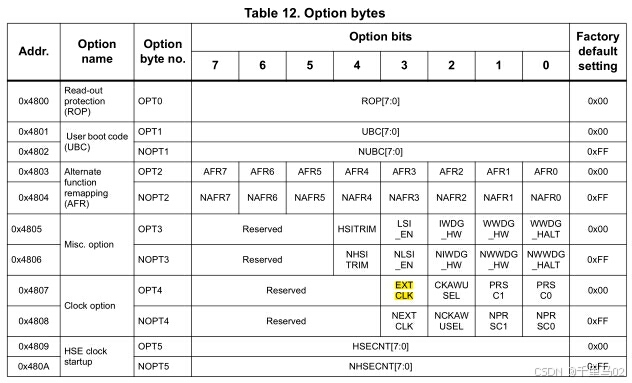

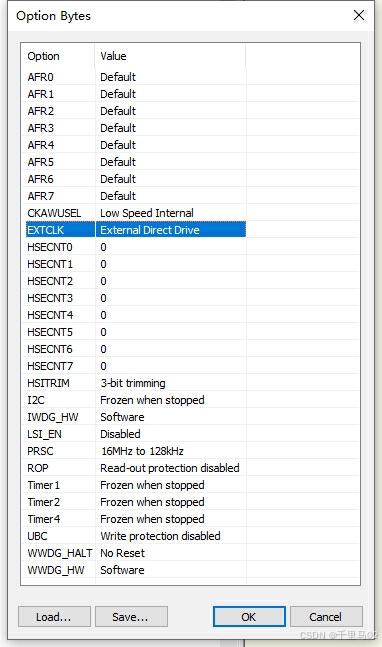

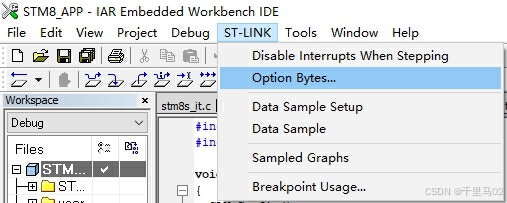

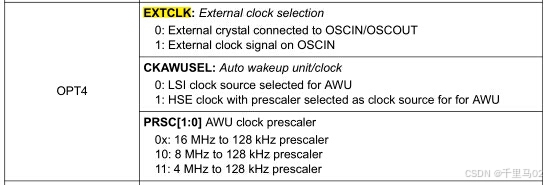

使用外部高速晶振时默认为无源晶振，有源晶振需要修改Option Bytes中的EXTCLK为1

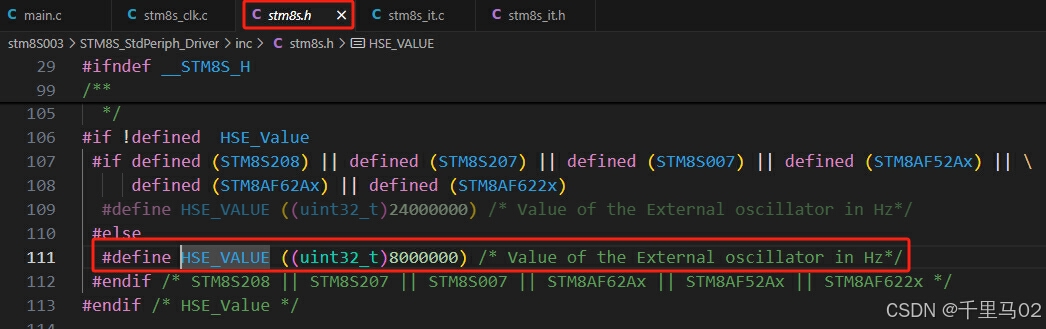

修改外部高速晶振的频率，默认为16MHz，CLK_GetClockFreq();函数中需要用到

测试时外部晶振使用时还存在问题

二、定时器

1.TIM1

#define flicker_frequency 200                       // ms

void TIM1_Config(void)
{
  TIM1_TimeBaseInit(((CLK_GetClockFreq()/1000)-1), TIM1_COUNTERMODE_UP, flicker_frequency+1, 0);// 16M/(16M/1000-1+1)/200=200ms
  TIM1_ClearFlag(TIM1_FLAG_UPDATE);                         // 清楚更新标志位
  TIM1_ITConfig(TIM1_IT_UPDATE, ENABLE);                    // 使能更新中断
  enableInterrupts();                                       // 开启中断
}

2.中断回调函数

/*main.h*/
typedef union
{
    uint8_t all;
    struct
    {
        uint8_t relay:2;
        uint8_t led_R:2;
        uint8_t led_G:2;
        uint8_t led_Y:2;
    }bits;

} slave_status_u;

/*stm8s_it.c*/
INTERRUPT_HANDLER(TIM1_UPD_OVF_TRG_BRK_IRQHandler, 11)
{
  if (TIM1_GetITStatus(TIM1_IT_UPDATE) != RESET)
  {
    TIM1_ClearITPendingBit(TIM1_IT_UPDATE);             // 清除中断标志
    // printf("Timer 1 interrupt triggered\r\n");

    if(status.bits.led_R == 3)
    {
      GPIO_WriteReverse(LED_GPIO_PORT,LED_GPIO_R);
    }

    if(status.bits.led_G == 3)
    {
      GPIO_WriteReverse(LED_GPIO_PORT,LED_GPIO_G);
    }

    if(status.bits.led_Y == 3)
    {
      GPIO_WriteReverse(LED_GPIO_PORT,LED_GPIO_Y);
    }
  }
}

3.TIM2


void TIM2_Config(void)
{
  // CLK_PeripheralClockConfig(CLK_PERIPHERAL_TIMER2, ENABLE); //使能或禁用特定外设的时钟
  TIM2_TimeBaseInit(TIM2_PRESCALER_1, (CLK_GetClockFreq()/1000)-1);              // 1ms
  TIM2_ClearFlag(TIM2_FLAG_UPDATE);                         // 清楚更新标志位
  // TIM2_ITConfig(TIM2_IT_UPDATE, ENABLE);                    // 使能更新中断
  enableInterrupts();                                       // 开启中断
}

4.Delay


void Delay (uint16_t Times)
{
  TIM2_Cmd(ENABLE);
  while(Times--)
  {
    while(RESET == TIM2_GetFlagStatus(TIM2_FLAG_UPDATE));
    TIM2_ClearFlag(TIM2_FLAG_UPDATE);
  }
  TIM2_Cmd(DISABLE);
}

三、串口

1.标准库


void UART_Config(void)
{
  /* Deinitializes the UART1 peripheral */
    UART1_DeInit();
    /* UART1 configuration -------------------------------------------------*/
    /* UART1 configured as follow:
          - BaudRate = 9600 baud            波特率
          - Word Length = 8 Bits            数据位长度：8位
          - One Stop Bit                    停止位：1位
          - No parity                       奇偶校验：无奇偶校验
          - Receive and transmit enabled    同步时钟：禁用
          - UART1 Clock disabled            通信模式：收发模式
     */
    /* Configure the UART1 */
    UART1_Init((uint32_t)Baudrate, UART1_WORDLENGTH_8D, UART1_STOPBITS_1, UART1_PARITY_NO,
                UART1_SYNCMODE_CLOCK_DISABLE, UART1_MODE_TXRX_ENABLE);

    /* Enable UART1 IDLE interrupt*/
    UART1_ITConfig(UART1_IT_RXNE_OR, ENABLE);//开启接收中断
    UART1_ITConfig(UART1_IT_IDLE, ENABLE);//开启空闲中断
    /* Enable general interrupts */
    enableInterrupts();
}

2.寄存器库


void LL_UART_Config(void)
{
    UART1->CR1=0x00;
    UART1->CR2=0x00;
    UART1->CR3=0x00;
    UART1->BRR2 = 0x0B;//0x05;//0x0B;     //8M、16MHz下115200波特率
    UART1->BRR1 = 0x08;//0x04;//0x08;     //8M、16MHz下115200波特率
    UART1->CR2 |= (uint8_t)UART1_CR2_TEN;//允许发送
    UART1->CR2 |= (uint8_t)UART1_CR2_REN;//允许接收

    /* Enable UART1 IDLE interrupt*/
    UART1->CR2 |= UART1_CR2_RIEN;
    UART1->CR2 |= UART1_CR2_ILIEN;
    /* Enable general interrupts */
    enableInterrupts();
}

3.中断回调函数

INTERRUPT_HANDLER(UART1_RX_IRQHandler, 18)
 {
  if(UART1->SR & UART1_SR_RXNE)
  {
    if(UART1data.rxnum < 40)
      UART1data.Data[UART1data.rxnum++] = UART1->DR;
    else
      UART1data.flag = 1;
  }

  else if(UART1->SR & UART1_SR_IDLE)
  {
    //清除空闲中断
    UART1->SR;
    UART1->DR;
    UART1data.flag = 1;
  }
 }

4.printf

//printf
/**
  * @brief Retargets the C library printf function to the UART.
  * @param c Character to send
  * @retval char Character sent
  */
PUTCHAR_PROTOTYPE
{
  /* Write a character to the UART1 */
  UART1_SendData8(c);
  /* Loop until the end of transmission */
  while (UART1_GetFlagStatus(UART1_FLAG_TXE) == RESET);

  return (c);
}

/**
  * @brief Retargets the C library scanf function to the USART.
  * @param None
  * @retval char Character to Read
  */
GETCHAR_PROTOTYPE
{
#ifdef _COSMIC_
  char c = 0;
#else
  int c = 0;
#endif
  /* Loop until the Read data register flag is SET */
  while (UART1_GetFlagStatus(UART1_FLAG_RXNE) == RESET);
    c = UART1_ReceiveData8();
  return (c);
}

5.普通发送函数

void UART1_SendString(const char *str)
{
  // 遍历字符串，直到遇到空字符 '\0'（字符串结束标志）
  while (*str != '\0')
  {
    UART1_SendData8((uint8_t)*str);
    while(!UART1_GetFlagStatus(UART1_FLAG_TC));
    str++;
  }
}

四、GPIO

1.初始化

标准库


void GPIO_Config(void)
{
  // GPIO_Init(GPIOB, GPIO_PIN_5, GPIO_MODE_OUT_PP_LOW_FAST);          // 板载灯，与IIC冲突
  // GPIO_Init(ARM_IO1_PORT, ARM_IO1_PINS, GPIO_MODE_IN_FL_NO_IT);     // 暂未使用
  // GPIO_Init(ARM_IO2_PORT, ARM_IO2_PINS, GPIO_MODE_IN_FL_NO_IT);     // 暂未使用
  // GPIO_Init(GPIOA, GPIO_PIN_2, GPIO_MODE_OUT_PP_LOW_FAST);          // 空闲引脚

  GPIO_Init(LED_GPIO_PORT, (GPIO_Pin_TypeDef)LED_GPIO_PINS, GPIO_MODE_OUT_PP_HIGH_FAST);
  GPIO_Init(RELAY_GPIO_PORT, (GPIO_Pin_TypeDef)RELAY_GPIO_PINS, GPIO_MODE_OUT_PP_LOW_FAST);
  GPIO_Init(REL_GPIO_PORT, REL_GPIO_2, GPIO_MODE_IN_PU_NO_IT);
}

寄存器库

void LL_GPIO_Config(void)
{
    GPIOC->DDR = 1<<4|1<<5|1<<6|0<<7;
    GPIOC->CR1 = 1<<4|1<<5|1<<6|1<<7;
    GPIOC->CR2 = 1<<4|1<<5|1<<6|0<<7;
    GPIOC->ODR = 0<<4|0<<5|0<<6|0<<7;

    GPIOD->DDR = 1<<2|1<<3|1<<4;
    GPIOD->CR1 = 1<<2|1<<3|1<<4;
    GPIOD->CR2 = 1<<2|1<<3|1<<4;
    GPIOD->ODR = 1<<2|1<<3|1<<4;
}

2. 中断

标准库

  GPIO_Init(ARM_IO1_PORT, ARM_IO1_PINS, GPIO_MODE_IN_FL_IT);
  EXTI_SetExtIntSensitivity(EXTI_PORT_GPIOA,EXTI_SENSITIVITY_RISE_FALL);
  enableInterrupts();

寄存器库

    GPIOA->DDR = 0<<3;
    GPIOA->CR1 = 0<<3;
    GPIOA->CR2 = 1<<3;
    GPIOA->ODR = 0<<3;

    EXTI->CR1 &= (uint8_t)(~EXTI_CR1_PAIS);
    EXTI->CR1 |= (uint8_t)(EXTI_SENSITIVITY_RISE_FALL);

中断回调函数

INTERRUPT_HANDLER(EXTI_PORTA_IRQHandler, 3)
{
  printf("EXTI");
  if ((GPIO_ReadInputData(ARM_IO1_PORT) & ARM_IO1_PINS) == ARM_IO1_PINS)
  {
    GPIO_WriteHigh(ARM_IO2_PORT,ARM_IO2_PINS);
    printf("high\r\n");
  }

  else if ((GPIO_ReadInputData(ARM_IO1_PORT) & ARM_IO1_PINS) == 0x00)
  {
    GPIO_WriteLow(ARM_IO2_PORT,ARM_IO2_PINS);
    printf("LOW\r\n");
  }
}

五、I2C

1.标准库

void IIC_Config(void)
{
  // CLK_PeripheralClockConfig(CLK_PERIPHERAL_I2C, ENABLE); //使能或禁用特定外设的时钟
  // I2C_DeInit();
  I2C_Init(SLAVE_CLOCK, SLAVE_ADDRESS, I2C_DUTYCYCLE_2, I2C_ACK_CURR, I2C_ADDMODE_7BIT, CLK_GetClockFreq()/1000000);
  I2C_ITConfig((I2C_IT_TypeDef)(I2C_IT_ERR | I2C_IT_EVT), ENABLE);
  enableInterrupts();
  // I2C_Cmd(ENABLE);
}

2.寄存器库

void LL_IIC_Config(void)
{
  //IIC
  /* Write new frequency bits */
  I2C->FREQR = 16;
  /* Write CCR with new calculated value */
  I2C->CCRL = (uint8_t)((16*1000000)/(SLAVE_CLOCK*3));
  I2C->CCRH = (uint8_t)((uint8_t)((uint8_t)(((16*1000000)/(SLAVE_CLOCK*3)) >> 8) & I2C_CCRH_CCR) | I2C_CCRH_FS);
  /* Enable I2C */
  I2C->CR1 |= 0x01;
  /* Enable the acknowledgement */
  I2C->CR2 |= I2C_CR2_ACK;
  /* Configure (N)ACK on current byte */
  I2C->CR2 &= (uint8_t)(~I2C_CR2_POS);
  /*--------------------------- I2C OAR Configuration ------------------------*/
  I2C->OARL = (uint8_t)(SLAVE_ADDRESS);
  I2C->OARH = (uint8_t)((uint8_t)(I2C_ADDMODE_7BIT | I2C_OARH_ADDCONF) | (uint8_t)((SLAVE_ADDRESS & (uint16_t)0x0300) >> (uint8_t)7));

  // 启用IIC中断
  I2C->ITR |= (uint8_t)(I2C_IT_ERR | I2C_IT_EVT | I2C_IT_BUF);
  enableInterrupts();
}

3.中断回调函数

/*stm8s_it.h*/
typedef struct {
    uint8_t Command;    // 命令
    uint8_t SubCmd;     // 子命令
    uint8_t SubData;    // 子命令数据
} MyBuffer;

typedef enum
{
  iic_start = 0,
  iic_sent,
  iic_received ,
  iic_addr,
  iic_stop,
  iic_sending,
  iic_af,
}iic_status_e;

extern MyBuffer protocol;

/*stm8s_it.c*/
#define Protocol_return 0x80

#define TXE_flag    (1 << 7)
#define RXNE_flag   (1 << 6)
#define ADDR_flag   (1 << 1)
#define AF_flag     (1 << 2)
#define STOPF_flag  (1 << 4)
#define TRA_mode    (1 << 2)

uint8_t Slave_Buffer_Rx[10];
uint8_t TransmitData[10];
uint8_t Tx_Idx = 0, Rx_Idx = 0;
MyBuffer protocol;
iic_status_e state = iic_start;

INTERRUPT_HANDLER(I2C_IRQHandler, 19)
{
  uint8_t temp=0;
  // printf("LastEvent=%d\r\n",I2C_GetLastEvent());
  // printf("ReceiveData=%d\r\n",I2C_ReceiveData());

  if(I2C->SR1 & TXE_flag)         // 发送完成
  {
    state = iic_sent;
  }
  else if(I2C-> SR1 & RXNE_flag)  // 接收非空
  {
    state = iic_received;
  }
  else if(I2C->SR1 & ADDR_flag)   // 地址匹配
  {
    if(I2C->SR3 & TRA_mode)       // 发送数据
    {
      state = iic_sending;
    }
    else                          // 接收数据
    {
      state = iic_addr;
      temp = I2C->SR3;
    }
  }

  else if(I2C->SR2 & AF_flag)     // 应答失败(发送完成)
  {
    I2C->SR2 &= ~AF_flag;
    state = iic_af;
  }

   if(I2C->SR1 &STOPF_flag)       // 检测到停止位
  {
    if(I2C-> SR1 & RXNE_flag)
    {
      state = iic_received;       // 接收最后一个数据时RXNE和STOPF同时出现
    }
    else
    {
      state = iic_stop;           // 接收完成
      temp = I2C->SR1;
      temp = I2C->CR2;
      I2C->CR2 = temp;
    }
  }

  switch(state)
  {
    case iic_received:
      Slave_Buffer_Rx[Rx_Idx++] = I2C_ReceiveData();
      break;
    case iic_stop:
      if(Rx_Idx != 3)
        break;

      // memcpy((uint8_t *)&protocol, Slave_Buffer_Rx, 3);
      protocol.Command = Slave_Buffer_Rx[0];
      protocol.SubCmd = Slave_Buffer_Rx[1];
      protocol.SubData = Slave_Buffer_Rx[2];
      if(DataHandle(&protocol) != HAL_OK)
      {
        protocol.SubData = 0xFF;
        #ifdef debug
          printf("IIC receive data error!\r\n");
        #endif
      }
      protocol.Command |=Protocol_return;
      Rx_Idx = 0;
      break;
    case iic_sending:
      Tx_Idx = 0;
      // memcpy(TransmitData, (uint8_t*)&protocol, 3);
      TransmitData[0] = protocol.Command;
      TransmitData[1] = protocol.SubCmd ;
      TransmitData[2] = protocol.SubData;
      I2C_SendData(TransmitData[Tx_Idx++]);
      break;
    case iic_sent:
      I2C_SendData(TransmitData[Tx_Idx++]);
      break;
    case iic_af:
      break;
  }
}

六、EEPROM

1.寄存器库

void LL_EEP_Init(void)
{
    FLASH->CR1 = 0x00;
    FLASH->CR2 = 0x00;
    FLASH->NCR2 = 0xff;
    FLASH->DUKR = MASS_KEY1;
    FLASH->DUKR = MASS_KEY2;
    while(!FLASH_IAPSR_DUL);        //等待写保护解锁
}

2.写函数

void eep_write(uint16_t addr,uint8_t dat)          //不同芯片，EEPROM容量不同-小容量640字节
{
    *((uint8_t*)(addr + EEP_BASE)) = dat;
    while(!FLASH_IAPSR_EOP);                       //等待写完成
}

七、IWDG

寄存器库

void LL_WDT_Init(void)
{
  IWDG->KR = 0xCC;       //启动看门狗
  IWDG->KR = 0x55;       //解除写保护
  IWDG->PR = 0x06;       //256分频，最高1.02秒
  IWDG->RLR = 125;       //500ms
  IWDG->KR = 0xAA;       //写保护
}
