Code Composer Studio 问题笔记

问题1：编译器定义不可用

报错

See details below...
    Import failed for project 'TMS320F28377D_App' because its compiler definition is not available. Please install the C2000v21.12 compiler before importing this project:
- See 'Help > Install New Software' and select 'Code Generation Tools Updates' to check if this compiler is available through a CCS update.
- Visit CCS App Center to get the latest compiler support.
- Or download and install the compiler [http://software-dl.ti.com/codegen/non-esd/downloads], then register it with CCS through 'Preferences > CCS > Build > Compilers'.

解决方法

下载

在www.ti.com.cn上搜索CGT，即可找到C2000-CGT:C2000代码生成工具-编译器

代码生成工具 - 编译器

建议安装在软件目录下例如：E:\ti\ccs920\ccs\tools\compiler\ti-cgt-c2000_21.12.0.STS

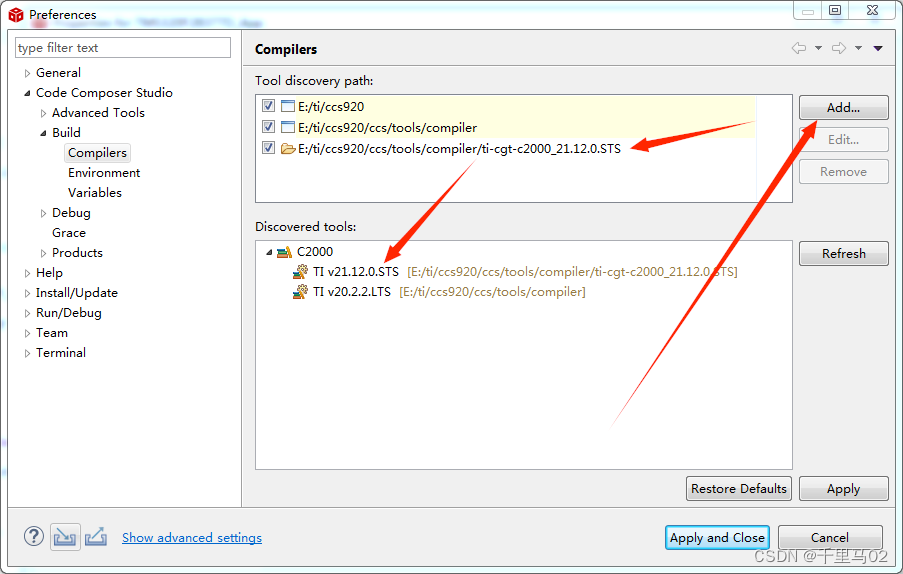

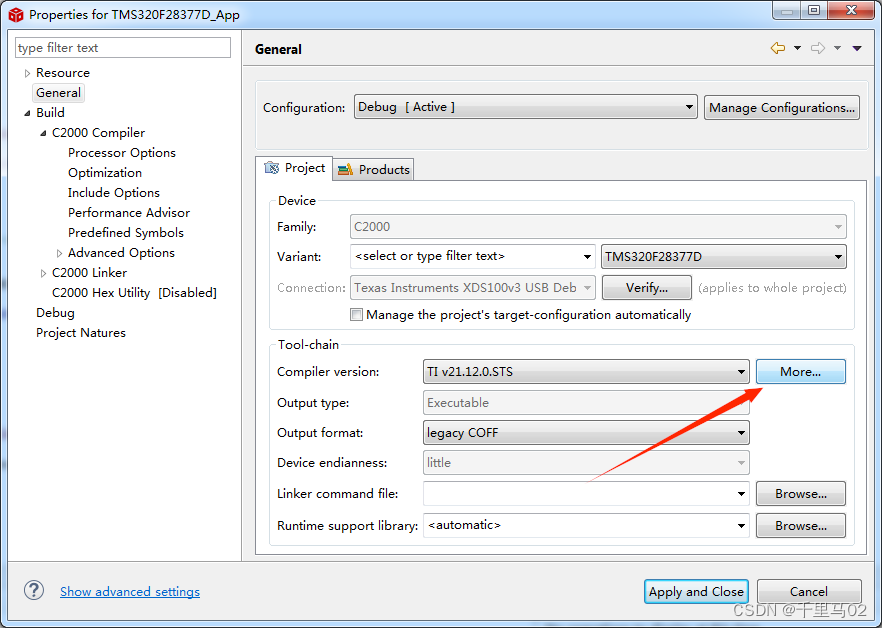

配置

问题2：修改字体大小

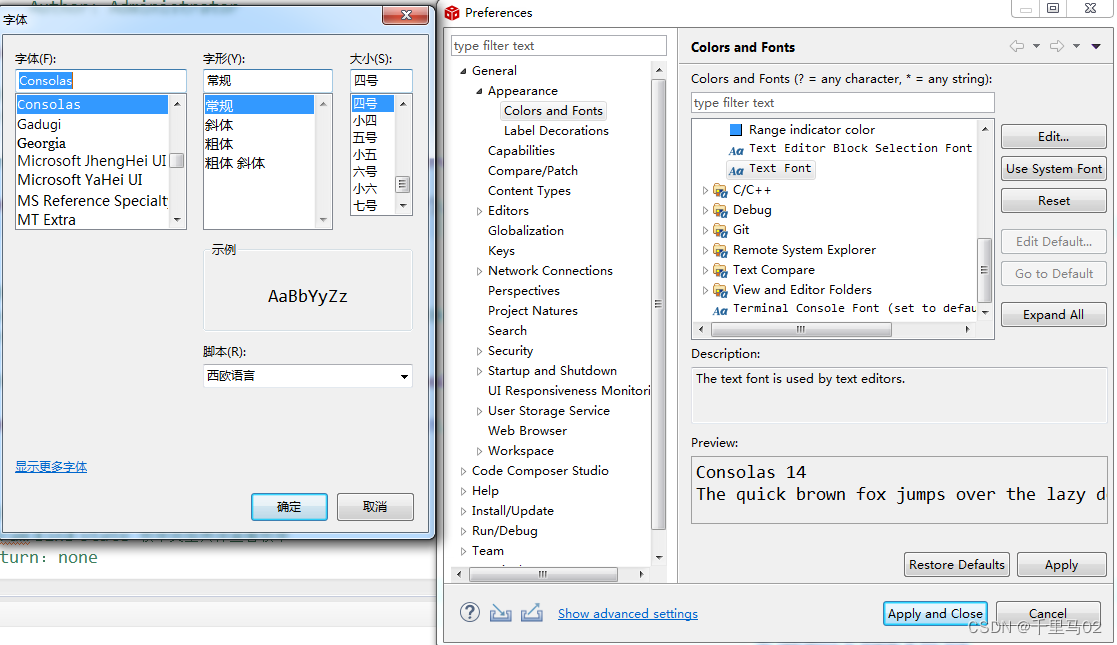

打开CCS，选择菜单栏中的window—preferences。选择“General” -> “Appearance” -> “Colors and Fonts” ,打开 “basic” ，双击 “Text Font”即可修改

问题3：TI官网Code Composer Studio、Controlsuit和C2000Ware下载

Code Composer Studio下载网址

Controlsuit下载网址

C2000Ware下载网址

问题4：SWPrioritizedDefaultIsr.c源文件

文件路径：\controlSUITE\device_support\F2837xS\v210\F2837xS_examples_Cpu1\sw_prioritized_interrupts\cpu01\SWPrioritizedDefaultIsr.c

---

不定时更新！
