ns-3学习手记15_ns3中使用Trace Sourse 和Trace Sink输出数据

1 举例说明

（1）其中注意点：

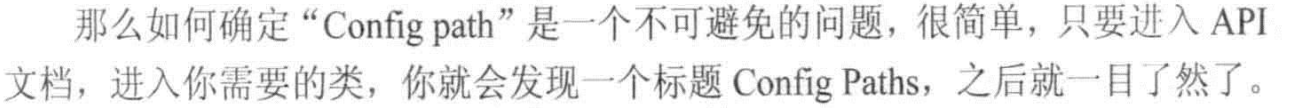

Config path要找对：

oss<<"/NodeList/"<<wifiStaNodes.Get(nWifi-1)->GetId()<<"/$ns3::MobilityModel/CourseChange";

（2）如何确定Trace Sources

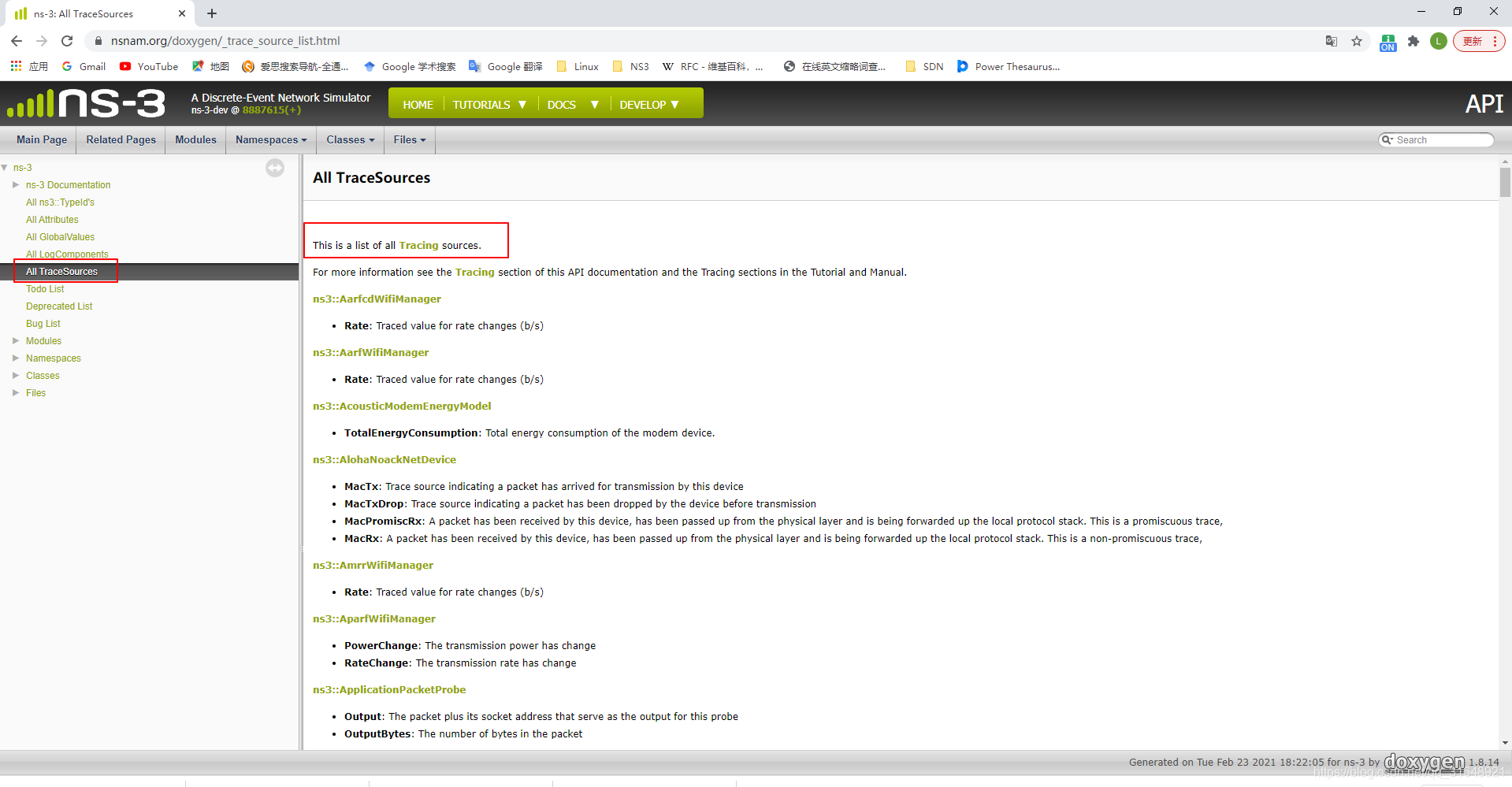

官网链接查看：https://www.nsnam.org/doxygen/_trace_source_list.html

（3）如何确定Trace Sink

• A，在已有程序中找参照的，进行修改，例如mythird中的，可以参考mixed-wired-wireless.cc

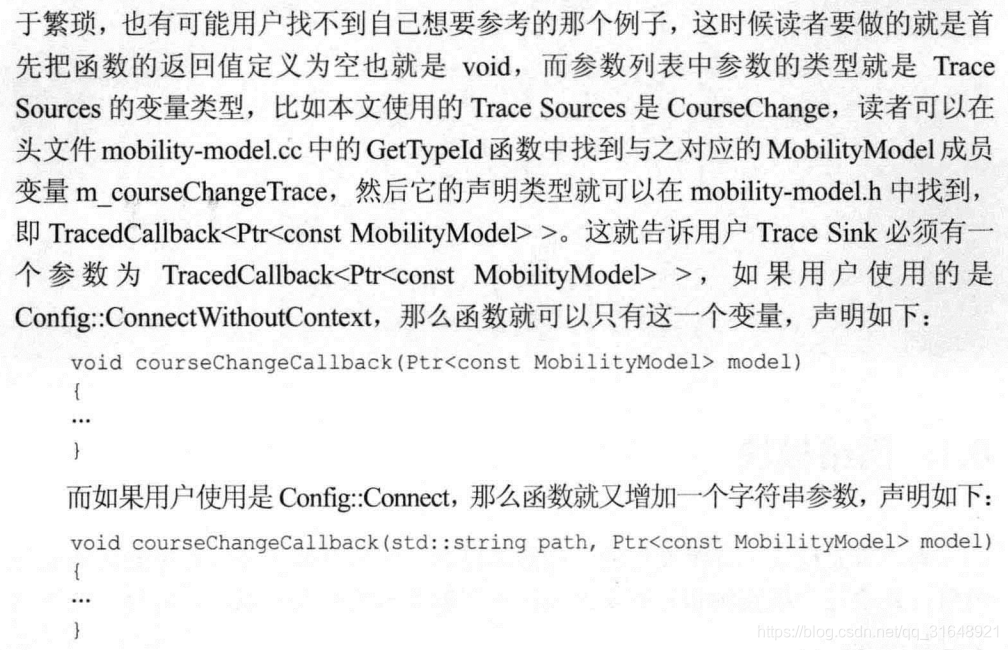

• B，其他方法：
  ① 先把返回值设为void
  ②参数列表类型就是Trace Sourse的变量类型，根据（2）中提供的方法，找到对应的Trace Sourse，查看其类型，即可。


/* -*- Mode:C++; c-file-style:"gnu"; indent-tabs-mode:nil; -*- */
/*
 * This program is free software; you can redistribute it and/or modify
 * it under the terms of the GNU General Public License version 2 as
 * published by the Free Software Foundation;
 *
 * This program is distributed in the hope that it will be useful,
 * but WITHOUT ANY WARRANTY; without even the implied warranty of
 * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
 * GNU General Public License for more details.
 *
 * You should have received a copy of the GNU General Public License
 * along with this program; if not, write to the Free Software
 * Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA  02111-1307  USA
 */

#include "ns3/core-module.h"
#include "ns3/point-to-point-module.h"
#include "ns3/network-module.h"
#include "ns3/applications-module.h"
#include "ns3/wifi-module.h"
#include "ns3/mobility-module.h"
#include "ns3/csma-module.h"
#include "ns3/internet-module.h"

// Default Network Topology
//
//   Wifi 10.1.3.0
//                 AP
//  *    *    *    *
//  |    |    |    |    10.1.1.0
// n5   n6   n7   n0 -------------- n1   n2   n3   n4
//                   point-to-point  |    |    |    |
//                                   ================
//                                     LAN 10.1.2.0

using namespace ns3;

using namespace std;

NS_LOG_COMPONENT_DEFINE ("ThirdScriptExample");

void CourseChange(string context, Ptr<const MobilityModel> model)
{
   Vector position = model->GetPosition();
   NS_LOG_UNCOND(context<<" x = "<<position.x<<" y = "<< position.y);

}



int
main (int argc, char *argv[])
{
  bool verbose = true;
  uint32_t nCsma = 3;
  uint32_t nWifi = 3;
  bool tracing = false;

  CommandLine cmd;
  cmd.AddValue ("nCsma", "Number of \"extra\" CSMA nodes/devices", nCsma);
  cmd.AddValue ("nWifi", "Number of wifi STA devices", nWifi);
  cmd.AddValue ("verbose", "Tell echo applications to log if true", verbose);
  cmd.AddValue ("tracing", "Enable pcap tracing", tracing);

  cmd.Parse (argc,argv);

  // The underlying restriction of 18 is due to the grid position
  // allocator's configuration; the grid layout will exceed the
  // bounding box if more than 18 nodes are provided.
  if (nWifi > 18)
    {
      std::cout << "nWifi should be 18 or less; otherwise grid layout exceeds the bounding box" << std::endl;
      return 1;
    }

  if (verbose)
    {
      LogComponentEnable ("UdpEchoClientApplication", LOG_LEVEL_INFO);
      LogComponentEnable ("UdpEchoServerApplication", LOG_LEVEL_INFO);
    }

  NodeContainer p2pNodes;
  p2pNodes.Create (2);

  PointToPointHelper pointToPoint;
  pointToPoint.SetDeviceAttribute ("DataRate", StringValue ("5Mbps"));
  pointToPoint.SetChannelAttribute ("Delay", StringValue ("2ms"));

  NetDeviceContainer p2pDevices;
  p2pDevices = pointToPoint.Install (p2pNodes);

  NodeContainer csmaNodes;
  csmaNodes.Add (p2pNodes.Get (1));
  csmaNodes.Create (nCsma);

  CsmaHelper csma;
  csma.SetChannelAttribute ("DataRate", StringValue ("100Mbps"));
  csma.SetChannelAttribute ("Delay", TimeValue (NanoSeconds (6560)));

  NetDeviceContainer csmaDevices;
  csmaDevices = csma.Install (csmaNodes);

  NodeContainer wifiStaNodes;
  wifiStaNodes.Create (nWifi);
  NodeContainer wifiApNode = p2pNodes.Get (0);

  YansWifiChannelHelper channel = YansWifiChannelHelper::Default ();
  YansWifiPhyHelper phy = YansWifiPhyHelper::Default ();
  phy.SetChannel (channel.Create ());

  WifiHelper wifi;
  wifi.SetRemoteStationManager ("ns3::AarfWifiManager");

  WifiMacHelper mac;
  Ssid ssid = Ssid ("ns-3-ssid");
  mac.SetType ("ns3::StaWifiMac",
               "Ssid", SsidValue (ssid),
               "ActiveProbing", BooleanValue (false));

  NetDeviceContainer staDevices;
  staDevices = wifi.Install (phy, mac, wifiStaNodes);

  mac.SetType ("ns3::ApWifiMac",
               "Ssid", SsidValue (ssid));

  NetDeviceContainer apDevices;
  apDevices = wifi.Install (phy, mac, wifiApNode);

  MobilityHelper mobility;

  mobility.SetPositionAllocator ("ns3::GridPositionAllocator",
                                 "MinX", DoubleValue (0.0),
                                 "MinY", DoubleValue (0.0),
                                 "DeltaX", DoubleValue (5.0),
                                 "DeltaY", DoubleValue (10.0),
                                 "GridWidth", UintegerValue (3),
                                 "LayoutType", StringValue ("RowFirst"));

  mobility.SetMobilityModel ("ns3::RandomWalk2dMobilityModel",
                             "Bounds", RectangleValue (Rectangle (-50, 50, -50, 50)));
  mobility.Install (wifiStaNodes);

  mobility.SetMobilityModel ("ns3::ConstantPositionMobilityModel");
  mobility.Install (wifiApNode);

  InternetStackHelper stack;
  stack.Install (csmaNodes);
  stack.Install (wifiApNode);
  stack.Install (wifiStaNodes);

  Ipv4AddressHelper address;

  address.SetBase ("10.1.1.0", "255.255.255.0");
  Ipv4InterfaceContainer p2pInterfaces;
  p2pInterfaces = address.Assign (p2pDevices);

  address.SetBase ("10.1.2.0", "255.255.255.0");
  Ipv4InterfaceContainer csmaInterfaces;
  csmaInterfaces = address.Assign (csmaDevices);

  address.SetBase ("10.1.3.0", "255.255.255.0");
  address.Assign (staDevices);
  address.Assign (apDevices);

  UdpEchoServerHelper echoServer (9);

  ApplicationContainer serverApps = echoServer.Install (csmaNodes.Get (nCsma));
  serverApps.Start (Seconds (1.0));
  serverApps.Stop (Seconds (10.0));

  UdpEchoClientHelper echoClient (csmaInterfaces.GetAddress (nCsma), 9);
  echoClient.SetAttribute ("MaxPackets", UintegerValue (1));
  echoClient.SetAttribute ("Interval", TimeValue (Seconds (1.0)));
  echoClient.SetAttribute ("PacketSize", UintegerValue (1024));

  ApplicationContainer clientApps =
    echoClient.Install (wifiStaNodes.Get (nWifi - 1));
  clientApps.Start (Seconds (2.0));
  clientApps.Stop (Seconds (10.0));

  Ipv4GlobalRoutingHelper::PopulateRoutingTables ();

  Simulator::Stop (Seconds (10.0));

  if (tracing == true)
    {
      pointToPoint.EnablePcapAll ("third");
      phy.EnablePcap ("third", apDevices.Get (0));
      csma.EnablePcap ("third", csmaDevices.Get (0), true);
    }

  ostringstream oss;
  oss<<"/NodeList/"<<wifiStaNodes.Get(nWifi-1)->GetId()<<"/$ns3::MobilityModel/CourseChange";
  NS_LOG_UNCOND(oss.str());
  Config::Connect(oss.str(),MakeCallback(&CourseChange));

  Simulator::Run ();
  Simulator::Destroy ();
  return 0;
}
