Kafka 实战 （3）：kafka安装部署·2

2019年8月18日

上文主要讲解kafka的文件架构，这节我们参考了《zookeeper部署安装》，完成之后，创建我们的kafka demo，探探消息队列的真相....

kafka测试demo之控制台自发自收数据

kafka配置文件

配置文件都放在/config下面了。

producer.properties

############################# Producer Basics #############################

# list of brokers used for bootstrapping knowledge about the rest of the cluster
# format: host1:port1,host2:port2 ...
bootstrap.servers=localhost:9092

# specify the compression codec for all data generated: none, gzip, snappy, lz4, zstd
compression.type=none

# name of the partitioner class for partitioning events; default partition spreads data randomly
#partitioner.class=

# the maximum amount of time the client will wait for the response of a request
#request.timeout.ms=

# how long `KafkaProducer.send` and `KafkaProducer.partitionsFor` will block for
#max.block.ms=

# the producer will wait for up to the given delay to allow other records to be sent so that the sends can be batched together
#linger.ms=

# the maximum size of a request in bytes
#max.request.size=

# the default batch size in bytes when batching multiple records sent to a partition
#batch.size=

# the total bytes of memory the producer can use to buffer records waiting to be sent to the server
#buffer.memory=

consumer.properties

# list of brokers used for bootstrapping knowledge about the rest of the cluster
# format: host1:port1,host2:port2 ...
bootstrap.servers=localhost:9092

# consumer group id
group.id=test-consumer-group

# What to do when there is no initial offset in Kafka or if the current
# offset does not exist any more on the server: latest, earliest, none
#auto.offset.reset=

zookeeper.properties

# the directory where the snapshot is stored.
dataDir=/tmp/zookeeper
# the port at which the clients will connect
clientPort=2181
# disable the per-ip limit on the number of connections since this is a non-production config
maxClientCnxns=0

server.properties

# see kafka.server.KafkaConfig for additional details and defaults

############################# Server Basics #############################

# The id of the broker. This must be set to a unique integer for each broker.
##### 每一个broker在集群中的唯一表示，要求是正数。当该服务器的IP地址发生改变时，broker.id没有变化，则不会影响consumers的消息情况/默认值=0 #########
broker.id=1

# Switch to enable topic deletion or not,default value is false;是否能删除topic
delete.topic.enable=true

############################# Socket Server Settings #############################

# The address the socket server listens on. It will get the value returned from
# java.net.InetAddress.getCanonicalHostName() if not configured.
#   FORMAT:
#     listeners = listener_name://host_name:port
#   EXAMPLE:
#     listeners = PLAINTEXT://your.host.name:9092
#listeners=PLAINTEXT://localhost:9092

# Hostname and port the broker will advertise to producers and consumers. If not set,
# it uses the value for "listeners" if configured.  Otherwise, it will use the value
# returned from java.net.InetAddress.getCanonicalHostName().
#advertised.listeners=PLAINTEXT://your.host.name:9092

# Maps listener names to security protocols, the default is for them to be the same. See the config documentation for more details
#listener.security.protocol.map=PLAINTEXT:PLAINTEXT,SSL:SSL,SASL_PLAINTEXT:SASL_PLAINTEXT,SASL_SSL:SASL_SSL

# The number of threads that the server uses for receiving requests from the network and sending responses to the network
########## broker处理消息的最大线程数，一般情况下数量为cpu核数 #####
num.network.threads=4

# The number of threads that the server uses for processing requests, which may include disk I/O
######### broker处理磁盘IO的线程数，数值为cpu核数2倍 #####
num.io.threads=8

# The send buffer (SO_SNDBUF) used by the socket server
######## socket的发送缓冲区，socket的调优参数SO_SNDBUFF #####
socket.send.buffer.bytes=102400

# The receive buffer (SO_RCVBUF) used by the socket server
####### socket的接受缓冲区，socket的调优参数SO_RCVBUFF #####
socket.receive.buffer.bytes=102400


# The maximum size of a request that the socket server will accept (protection against OOM)
####### socket请求的最大数值，防止serverOOM，message.max.bytes必然要小于socket.request.max.bytes，会被topic创建时的指定参数覆盖 ######
socket.request.max.bytes=104857600

############################# Log Basics #############################

# A comma separated list of directories under which to store log files
############ kafka数据的存放地址，多个地址的话用逗号分割,多个目录分布在不同磁盘上可以提高读写性能  /data/kafka-logs-1，/data/kafka-logs-2 ###########
log.dirs=/data/kafka-logs

# The default number of log partitions per topic. More partitions allow greater
# parallelism for consumption, but this will also result in more files across
# the brokers.
num.partitions=2

# The number of threads per data directory to be used for log recovery at startup and flushing at shutdown.
# This value is recommended to be increased for installations with data dirs located in RAID array.
num.recovery.threads.per.data.dir=1

############################# Internal Topic Settings  #############################
# The replication factor for the group metadata internal topics "__consumer_offsets" and "__transaction_state"
# For anything other than development testing, a value greater than 1 is recommended for to ensure availability such as 3.
offsets.topic.replication.factor=1
transaction.state.log.replication.factor=1
transaction.state.log.min.isr=1

############################# Log Flush Policy #############################

# Messages are immediately written to the filesystem but by default we only fsync() to sync
# the OS cache lazily. The following configurations control the flush of data to disk.
# There are a few important trade-offs here:
#    1. Durability: Unflushed data may be lost if you are not using replication.
#    2. Latency: Very large flush intervals may lead to latency spikes when the flush does occur as there will be a lot of data to flush.
#    3. Throughput: The flush is generally the most expensive operation, and a small flush interval may lead to excessive seeks.
# The settings below allow one to configure the flush policy to flush data after a period of time or
# every N messages (or both). This can be done globally and overridden on a per-topic basis.

# The number of messages to accept before forcing a flush of data to disk
#log.flush.interval.messages=10000

# The maximum amount of time a message can sit in a log before we force a flush
#log.flush.interval.ms=1000

############################# Log Retention Policy #############################

# The following configurations control the disposal of log segments. The policy can
# be set to delete segments after a period of time, or after a given size has accumulated.
# A segment will be deleted whenever *either* of these criteria are met. Deletion always happens
# from the end of the log.

# The minimum age of a log file to be eligible for deletion due to age
######## 数据文件保留多长时间， 存储的最大时间超过这个时间会根据log.cleanup.policy设置数据清除策略,log.retention.bytes和log.retention.minutes或log.retention.hours任意一个达到要求，都会执行删除 ######
log.retention.hours=168

# A size-based retention policy for logs. Segments are pruned from the log unless the remaining
# segments drop below log.retention.bytes. Functions independently of log.retention.hours.
#log.retention.bytes=1073741824

# The maximum size of a log segment file. When this size is reached a new log segment will be created.
######## topic的分区是以一堆segment文件存储的，这个控制每个segment的大小，会被topic创建时的指定参数覆盖 #####
log.segment.bytes=1073741824

# The interval at which log segments are checked to see if they can be deleted according
# to the retention policies
####### 文件大小检查的周期时间，是否处罚 log.cleanup.policy中设置的策略 #####
log.retention.check.interval.ms=300000

############################# Zookeeper #############################

# Zookeeper connection string (see zookeeper docs for details).
# This is a comma separated host:port pairs, each corresponding to a zk
# server. e.g. "127.0.0.1:3000,127.0.0.1:3001,127.0.0.1:3002".
# You can also append an optional chroot string to the urls to specify the
# root directory for all kafka znodes.
######### zookeeper集群的地址，可以是多个，多个之间用逗号分割 hostname1:port1,hostname2:port2,hostname3:port3  ######
zookeeper.connect=192.168.0.100:2181

# Timeout in ms for connecting to zookeeper
######## ZooKeeper的最大超时时间，就是心跳的间隔，若是没有反映，那么认为已经死了，不易过大 #####
zookeeper.connection.timeout.ms=6000


############################# Group Coordinator Settings #############################

# The following configuration specifies the time, in milliseconds, that the GroupCoordinator will delay the initial consumer rebalance.
# The rebalance will be further delayed by the value of group.initial.rebalance.delay.ms as new members join the group, up to a maximum of max.poll.interval.ms.
# The default value for this is 3 seconds.
# We override this to 0 here as it makes for a better out-of-the-box experience for development and testing.
# However, in production environments the default value of 3 seconds is more suitable as this will help to avoid unnecessary, and potentially expensive, rebalances during application startup.
group.initial.rebalance.delay.ms=0

启动zookeeper后，接着启动kafka-server。



创建topic

• sudo ./kafka-topics.sh --create --zookeeper 192.168.0.101:2181 --partitions 1 --replication-factor 1 --topic messageLogger

--create：说明是创建topic，

--zookeeper：连接哪个zk，

--partitions：创建分区，【分区机制】，定义分区数

--replication-factor：创建副本，【副本机制】，定义副本数

--topic：topic名字

查看所有topic

• sudo ./kafka-topics.sh --list --zookeeper 192.168.0.101:2181

--list：罗列

--zookeeper：哪个zk的相关信息

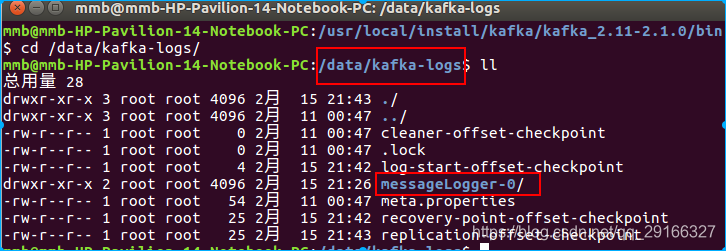

去kafka的数据log文件夹看看 (因为配置文件中：log.dirs=/data/kafka-logs)

蓝色文件夹是分区，副本在其他服务器(演示只有一个分区和一个副本)。当然还有其他的一些文件。



往topic写数据

• sudo ./kafka-console-producer.sh  --broker-list 192.168.0.101:9092 --topic messageLogger



从topic读数据

• sudo ./kafka-console-consumer.sh --bootstrap-server 192.168.0.101:2181 --from-beginning --topic messageLogger



查看topic详情

• sudo ./kafka-topics.sh --zookeeper 192.168.0.101:2181 --describe --topic messageLogger
