ShuffleManager

/**
 * In sort-based shuffle, incoming records are sorted according to their target partition ids, then
 * written to a single map output file. Reducers fetch contiguous regions of this file in order to
 * read their portion of the map output. In cases where the map output data is too large to fit in
 * memory, sorted subsets of the output can be spilled to disk and those on-disk files are merged
 * to produce the final output file.
 /

在基于排序的shuffle中，传入的记录根据其目标分区ID进行排序，然后
写入单个映射输出文件。Reducer获取此文件的连续区域，以便
读取输出的部分。在输出数据太大而无法容纳的情况下
内存中，排序后的输出子集可以溢出到磁盘，并合并磁盘文件上的输出子集
以生成最终输出文件。

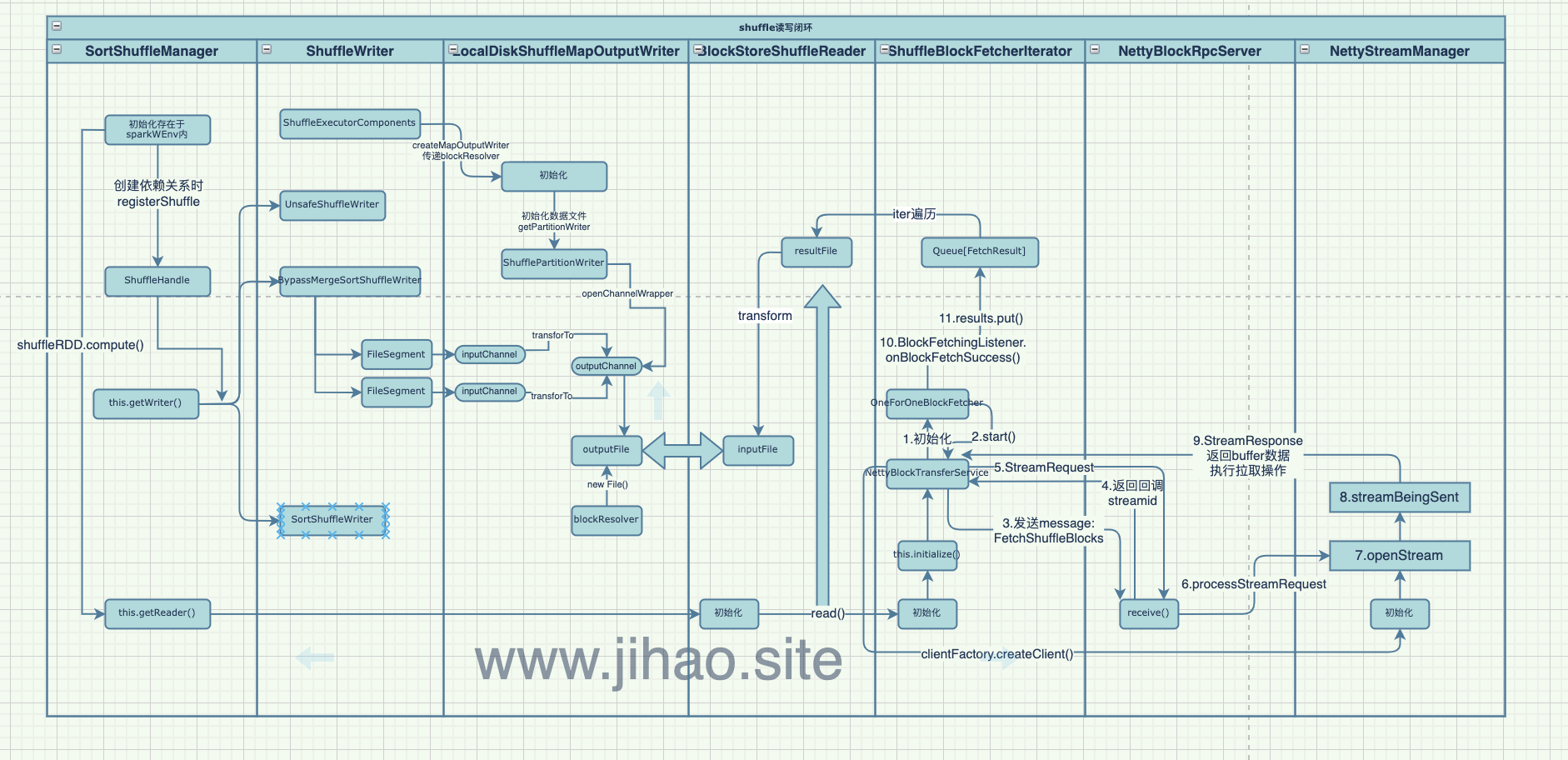

shuffle 流程

以上reader是拉去远程块的流程

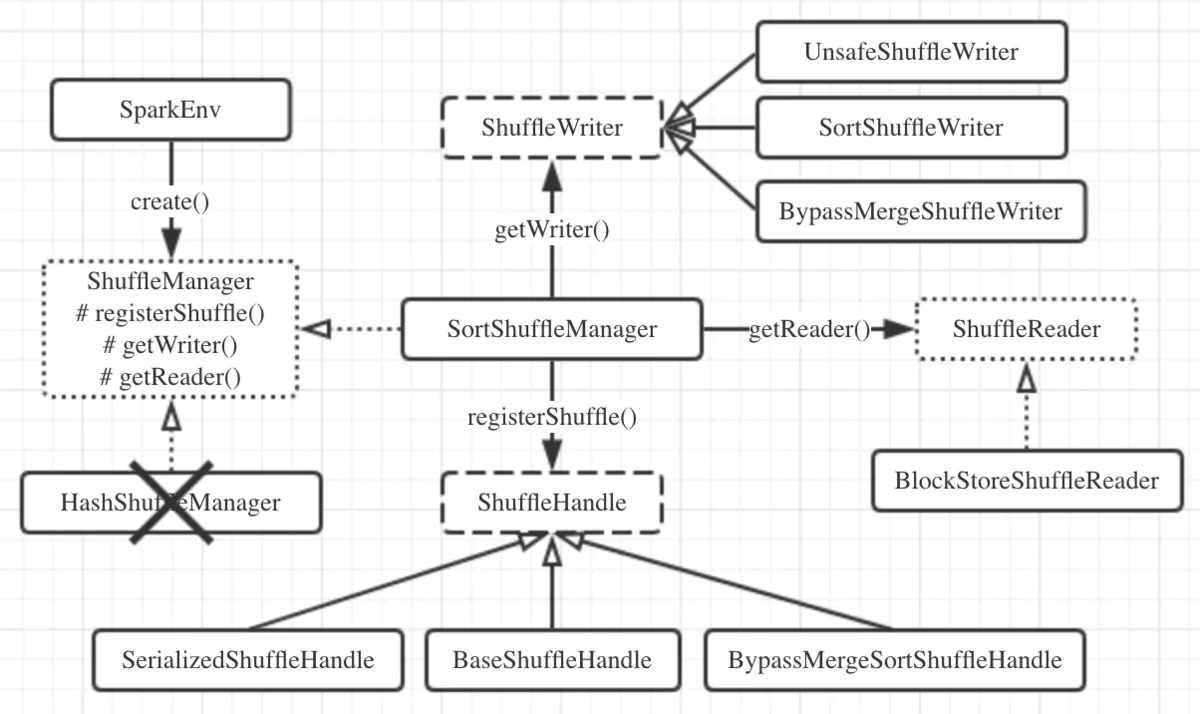

SortShuffleManager

SortShuffleManager的运行机制主要分成两种，一种是普通运行机制，另一种是bypass运行机制。

// bypass机制的是在创建ShuffleDependency时根据算子和参数确定的
// 1.shuffle算子没有map端的预聚合(mapSideCombine)
// 2. 分区数小于等于spark.shuffle.sort.bypassMergeThreshold的值，默认200
// bypass机制是针对shuffle.write侧的
private[spark] object SortShuffleWriter {
  def shouldBypassMergeSort(conf: SparkConf, dep: ShuffleDependency[_, _, _]): Boolean = {
    // We cannot bypass sorting if we need to do map-side aggregation.
    if (dep.mapSideCombine) {
      false
    } else {
      val bypassMergeThreshold: Int = conf.get(config.SHUFFLE_SORT_BYPASS_MERGE_THRESHOLD)
      dep.partitioner.numPartitions <= bypassMergeThreshold
    }
  }
}

Shuffle Write

manager.getWriter()是通过ShuffleHandle确定的创建对应的shuffleWriter

BypassMergeSortShuffleWriter
SortShuffleWriter
UnsafeShuffleWriter

BypassMergeSortShuffleWriter

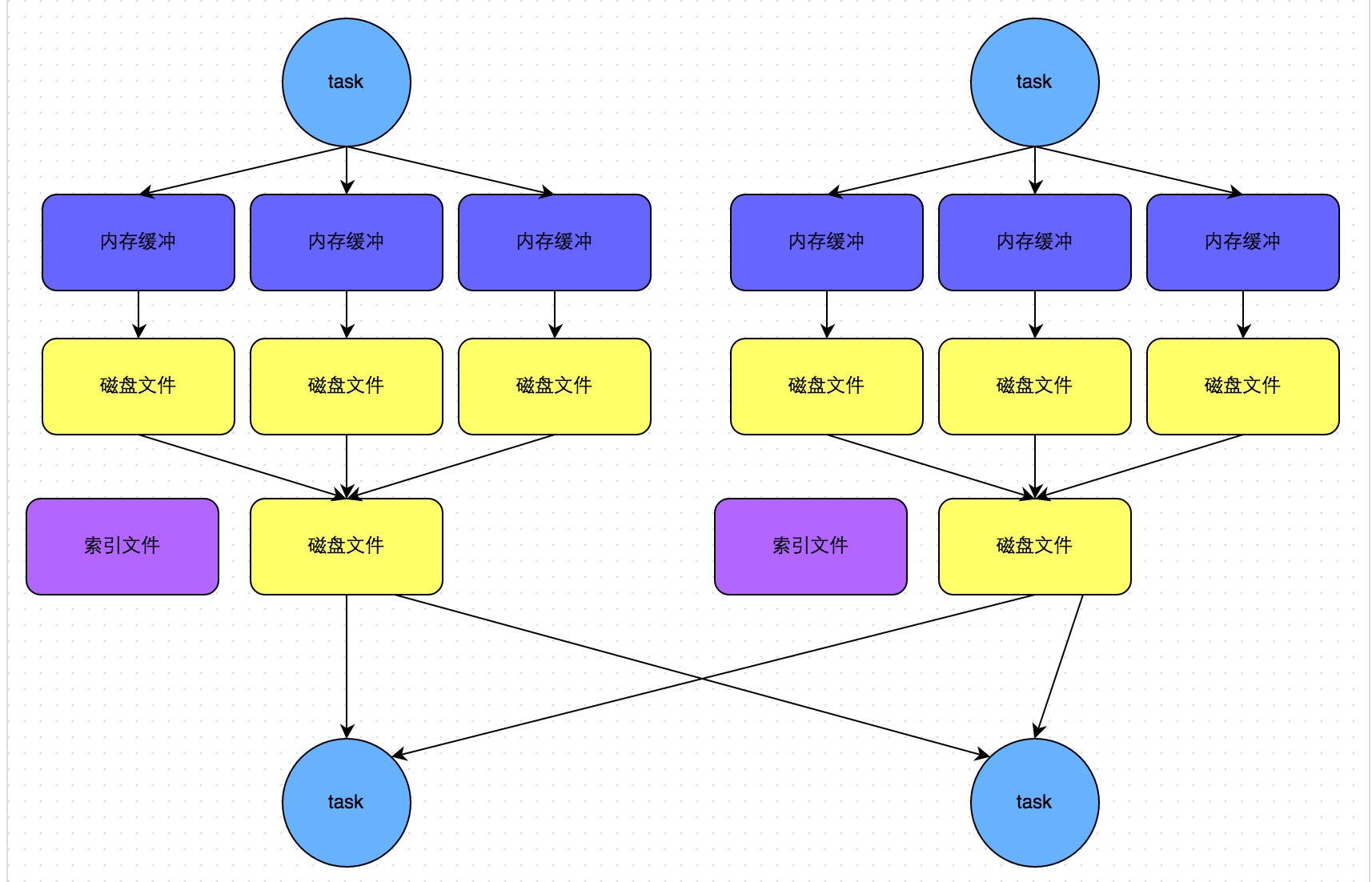

BypassMergeSortShuffleWriter 没有排序操作根据遍历判断key的分区直接写入对应的分区文件


@Override
  public void write(Iterator<Product2<K, V>> records) throws IOException {
    assert (partitionWriters == null);
    ShuffleMapOutputWriter mapOutputWriter = shuffleExecutorComponents
        .createMapOutputWriter(shuffleId, mapId, numPartitions);
    try {

      final SerializerInstance serInstance = serializer.newInstance();
      final long openStartTime = System.nanoTime();
      // 创建跟分区一样多的writer数组和file数组
      partitionWriters = new DiskBlockObjectWriter[numPartitions];
      partitionWriterSegments = new FileSegment[numPartitions];
      // 初始化数组过程
      for (int i = 0; i < numPartitions; i++) {
        final Tuple2<TempShuffleBlockId, File> tempShuffleBlockIdPlusFile =
            blockManager.diskBlockManager().createTempShuffleBlock();
        final File file = tempShuffleBlockIdPlusFile._2();
        final BlockId blockId = tempShuffleBlockIdPlusFile._1();
        DiskBlockObjectWriter writer =
          blockManager.getDiskWriter(blockId, file, serInstance, fileBufferSize, writeMetrics);
        if (partitionChecksums.length > 0) {
          writer.setChecksum(partitionChecksums[i]);
        }
        partitionWriters[i] = writer;
      }
      // 遍历写入对应分区
      while (records.hasNext()) {
        final Product2<K, V> record = records.next();
        final K key = record._1();
        partitionWriters[partitioner.getPartition(key)].write(key, record._2());
      }
      //commit flush一下
      for (int i = 0; i < numPartitions; i++) {
        try (DiskBlockObjectWriter writer = partitionWriters[i]) {
          partitionWriterSegments[i] = writer.commitAndGet();
        }
      }
      // 临时文件到最终文件拷贝
      partitionLengths = writePartitionedData(mapOutputWriter);
      mapStatus = MapStatus$.MODULE$.apply(
        blockManager.shuffleServerId(), partitionLengths, mapId);
    } catch (Exception e) {
      try {
        mapOutputWriter.abort(e);
      } catch (Exception e2) {
        logger.error("Failed to abort the writer after failing to write map output.", e2);
        e.addSuppressed(e2);
      }
      throw e;
    }
  }

具体的步骤见下

创建跟分区一样多的writer数组和file数组并初始化对应的block、file文件和DiskBlockObjectWriter
遍历数据通过对应分区的writer写入对应分区文件，提交并刷新
最后通过mapOutputWriter 零拷贝到对应的outputFile中

SortShuffleWriter

以下是SortShuffleWriter的写过程

根据是否有mapSideCombine 创建sorter
sorter 进行数据排序并写入数据缓冲区并溢写临时文件
临时文件到最终文件拷贝

  override def write(records: Iterator[Product2[K, V]]): Unit = {
    sorter = if (dep.mapSideCombine) {
      new ExternalSorter[K, V, C](
        context, dep.aggregator, Some(dep.partitioner), dep.keyOrdering, dep.serializer)
    } else {
      new ExternalSorter[K, V, V](
        context, aggregator = None, Some(dep.partitioner), ordering = None, dep.serializer)
    }
    //
    sorter.insertAll(records)
    // 临时文件到最终文件拷贝
    val mapOutputWriter = shuffleExecutorComponents.createMapOutputWriter(
      dep.shuffleId, mapId, dep.partitioner.numPartitions)
    sorter.writePartitionedMapOutput(dep.shuffleId, mapId, mapOutputWriter)
    partitionLengths = mapOutputWriter.commitAllPartitions(sorter.getChecksums).getPartitionLengths
    mapStatus = MapStatus(blockManager.shuffleServerId, partitionLengths, mapId)
  }

在该模式下，数据会先写入一个内存数据结构中，此时根据不同的 shuffle 算子，可能选用不同的数据结构。如果是 reduceByKey 这种mapCombine聚合算子的 shuffle 算子，那么会选用 Map数据结构，一边通过 Map 进行聚合，一边写入内存；如果是 join 这种普通的shuffle 算子，那么会选用 Array 数据结构，直接写入内存。接着，每写一条数据进入内存数据结构之后，就会判断一下，是否达到了某个临界阈值。如果达到临界阈值的话，那么就会尝试将内存数据结构中的数据溢写到磁盘，然后清空内存数据结构。

 def insertAll(records: Iterator[Product2[K, V]]): Unit = {
    val shouldCombine = aggregator.isDefined
    if (shouldCombine) {
      // Combine values in-memory first using our AppendOnlyMap
      val mergeValue = aggregator.get.mergeValue
      val createCombiner = aggregator.get.createCombiner
      var kv: Product2[K, V] = null
      val update = (hadValue: Boolean, oldValue: C) => {
        if (hadValue) mergeValue(oldValue, kv._2) else createCombiner(kv._2)
      }
      // 预聚合使用map结构(key,(1,1,1,1))
      while (records.hasNext) {
        addElementsRead()
        kv = records.next()
        map.changeValue((getPartition(kv._1), kv._1), update)
        maybeSpillCollection(usingMap = true)
      }
    } else {
    // 其他情况使用kv结构buffer(k1,v1,k2,v2)
      // Stick values into our buffer
      while (records.hasNext) {
        addElementsRead()
        val kv = records.next()
        buffer.insert(getPartition(kv._1), kv._1, kv._2.asInstanceOf[C])
        maybeSpillCollection(usingMap = false)
      }
    }
  }

在溢写到磁盘文件之前，会先根据 key 对内存数据结构中已有的数据进行排序。排序过后，会分批将数据写入磁盘文件。默认的 batch 数量是 10000 条，也就是说，排序好的数据，会以每批 1 万条数据的形式分批写入磁盘文件。写入磁盘文件是通过 Java 的 BufferedOutputStream 实现的。BufferedOutputStream 是 Java 的缓冲输出流，首先会将数据缓冲在内存中，当内存缓冲满溢之后再一次写入磁盘文件中，这样可以减少磁盘 IO 次数，提升性能。

def writePartitionedMapOutput(
      shuffleId: Int,
      mapId: Long,
      mapOutputWriter: ShuffleMapOutputWriter): Unit = {
    var nextPartitionId = 0
    if (spills.isEmpty) {
    //没有发生溢写
    } else {
      for ((id, elements) <- this.partitionedIterator) {
        val blockId = ShuffleBlockId(shuffleId, mapId, id)
        var partitionWriter: ShufflePartitionWriter = null
        var partitionPairsWriter: ShufflePartitionPairsWriter = null
        TryUtils.tryWithSafeFinally {
          partitionWriter = mapOutputWriter.getPartitionWriter(id)
          partitionPairsWriter = new ShufflePartitionPairsWriter(
            partitionWriter,
            serializerManager,
            serInstance,
            blockId,
            context.taskMetrics().shuffleWriteMetrics,
            if (partitionChecksums.nonEmpty) partitionChecksums(id) else null)
            // 合并写入成一个
          if (elements.hasNext) {
            for (elem <- elements) {
              partitionPairsWriter.write(elem._1, elem._2)
            }
          }
        } {
          if (partitionPairsWriter != null) {
            partitionPairsWriter.close()
          }
        }
        nextPartitionId = id + 1
      }
    }
  }

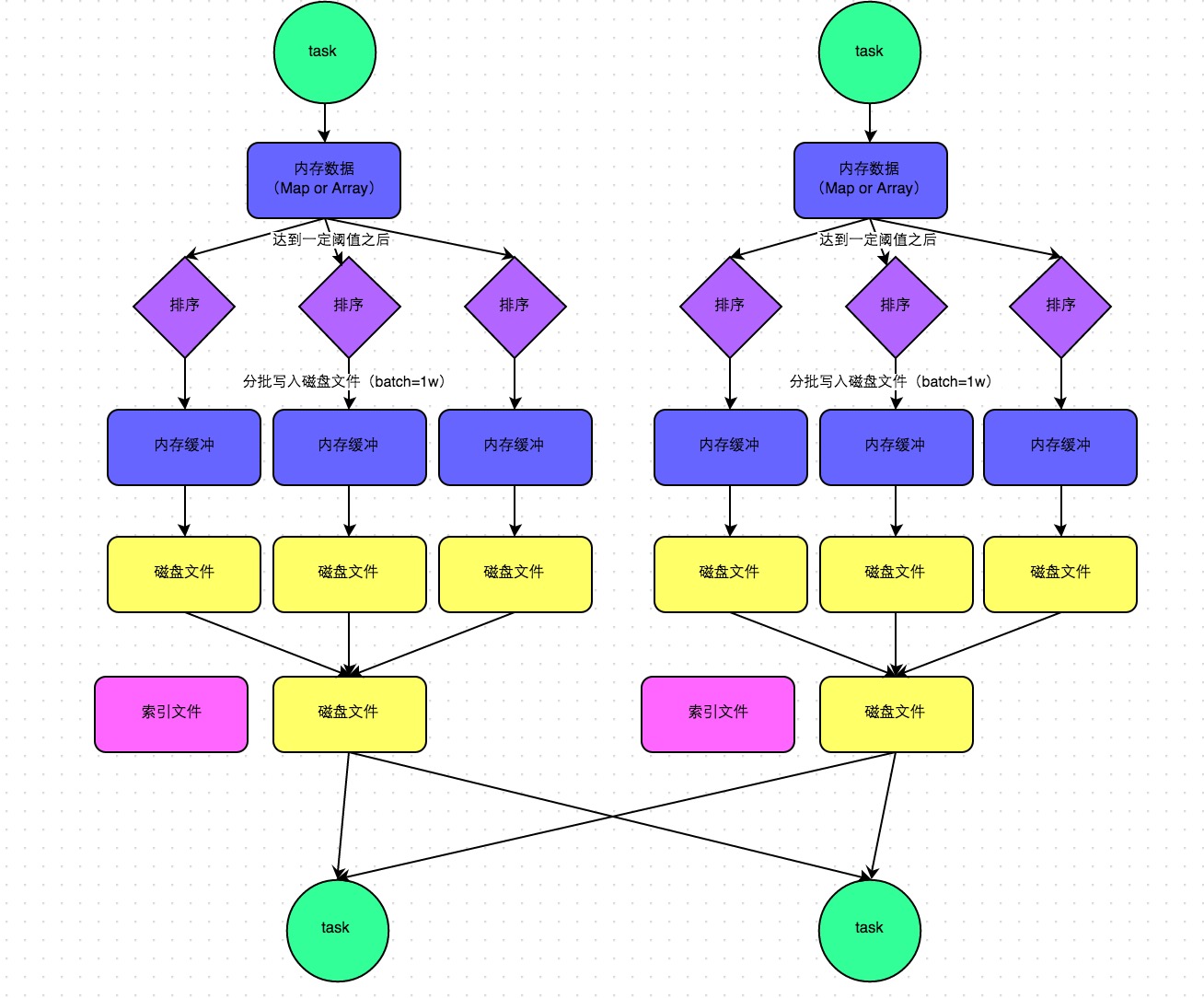

一个 task 将所有数据写入内存数据结构的过程中，会发生多次磁盘溢写操作，也就会产生多个临时文件。最后会将之前所有的临时磁盘文件都进行合并，这就是 merge 过程，此时会将之前所有临时磁盘文件中的数据读取出来，然后依次写入最终的磁盘文件之中。此外，由于一个 task 就只对应一个磁盘文件，也就意味着该 task 为下游stage的task准备的数据都在这一个文件中，因此还会单独写一份索引文件，其中标识了下游各个 task 的数据在文件中的start offset 与 end offset。

SortShuffleManager由于有一个磁盘文件merge的过程，因此大大减少了文件数量。

SortShuffleWriter

UnsafeShuffleWriter

Unsafe Shuffle的实现在一定程度上主要是Tungsten内存管理优化，以下是写入流程，也是跟SortShuffleWriter一样，通过特定的ShuffleExternalSorter 进行数据排序和落盘，只是不一样的是中间的数据结构是通过二进制存储的，极大的降低了内存的存储消耗并提高了垃圾回收的效率。

具体的数据结构，后面找一期单独详细记录一下

 @Override
  public void write(scala.collection.Iterator<Product2<K, V>> records) throws IOException {
    boolean success = false;
    try {
      while (records.hasNext()) {
        insertRecordIntoSorter(records.next());
      }
      closeAndWriteOutput();
      success = true;
    } finally {
      if (sorter != null) {
        try {
          sorter.cleanupResources();
        } catch (Exception e) {
          // Only throw this error if we won't be masking another
          // error.
          if (success) {
            throw e;
          } else {
            logger.error("In addition to a failure during writing, we failed during " +
                         "cleanup.", e);
          }
        }
      }
    }
  }

@VisibleForTesting
  void insertRecordIntoSorter(Product2<K, V> record) throws IOException {
    assert(sorter != null);
    final K key = record._1();
    final int partitionId = partitioner.getPartition(key);
    // 将record序列化为二进制，并写的字节数组输出流serBuffer中
    serBuffer.reset();
    serOutputStream.writeKey(key, OBJECT_CLASS_TAG);
    serOutputStream.writeValue(record._2(), OBJECT_CLASS_TAG);
    serOutputStream.flush();

    final int serializedRecordSize = serBuffer.size();
    assert (serializedRecordSize > 0);
    //将其插入到ShuffleExternalSorter中
    sorter.insertRecord(
      serBuffer.getBuf(), Platform.BYTE_ARRAY_OFFSET, serializedRecordSize, partitionId);
  }
