springBoot请求映射原理源码解析(二)

springBoot处理请求通过:DispatcherServlet   ->doService->doDispatch(request, response).->getHandler->hand.handler。通过方法：真正执行请求分发

protected void doDispatch(HttpServletRequest request, HttpServletResponse response)

doDispatch源码解析：

    protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
        //获取请求
        HttpServletRequest processedRequest = request;
        HandlerExecutionChain mappedHandler = null;
        boolean multipartRequestParsed = false;

        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

        try {
            ModelAndView mv = null;
            Exception dispatchException = null;

            try {
                //检查是否为文件上传请求
                processedRequest = checkMultipart(request);
                //将请求转换为文件上传请求
                multipartRequestParsed = (processedRequest != request);

                //获取处理当前请求的handler，也就是那个controller
                mappedHandler = getHandler(processedRequest);
                if (mappedHandler == null) {
                    noHandlerFound(processedRequest, response);
                    return;
                }

                //确定当前请求处理程序适配器
                HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

                // Process last-modified header, if supported by the handler.
                String method = request.getMethod();
                boolean isGet = HttpMethod.GET.matches(method);
                if (isGet || HttpMethod.HEAD.matches(method)) {
                    long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
                    if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
                        return;
                    }
                }
                //执行拦截器前置处理
                if (!mappedHandler.applyPreHandle(processedRequest, response)) {
                    return;
                }
                //执行请求处理
                mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
                if (asyncManager.isConcurrentHandlingStarted()) {
                    return;
                }

                applyDefaultViewName(processedRequest, mv);
                //执行拦截器后置处理
                mappedHandler.applyPostHandle(processedRequest, response, mv);
            }
            catch (Exception ex) {
                dispatchException = ex;
            }
            catch (Throwable err) {
                // As of 4.3, we're processing Errors thrown from handler methods as well,
                // making them available for @ExceptionHandler methods and other scenarios.
                dispatchException = new NestedServletException("Handler dispatch failed", err);
            }
            processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
        }
        catch (Exception ex) {
            triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
        }
        catch (Throwable err) {
            triggerAfterCompletion(processedRequest, response, mappedHandler,
                    new NestedServletException("Handler processing failed", err));
        }
        finally {
            if (asyncManager.isConcurrentHandlingStarted()) {
                // Instead of postHandle and afterCompletion
                if (mappedHandler != null) {
                    mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
                }
            }
            else {
                // Clean up any resources used by a multipart request.
                if (multipartRequestParsed) {
                    cleanupMultipart(processedRequest);
                }
            }
        }
    }

核心代码一：getHandler(processedRequest)  获取处理请求的handler。

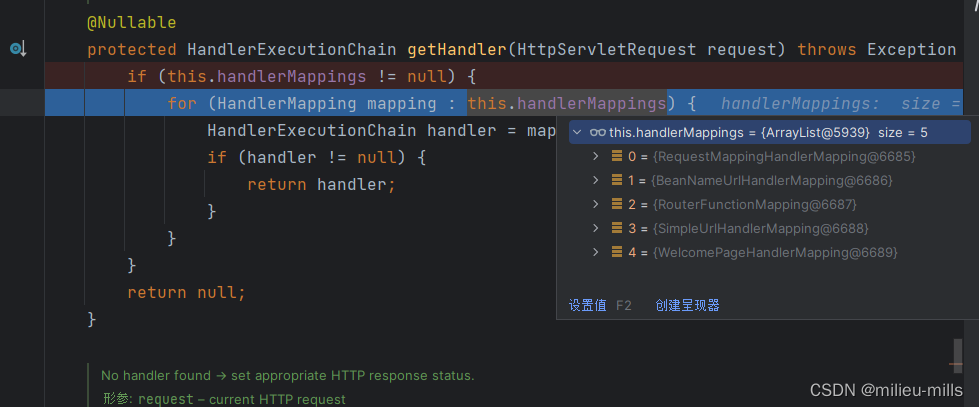

spring默认提供了五个handler处理器。根据请求for循环依次尝试 handler处理器，执行处理。

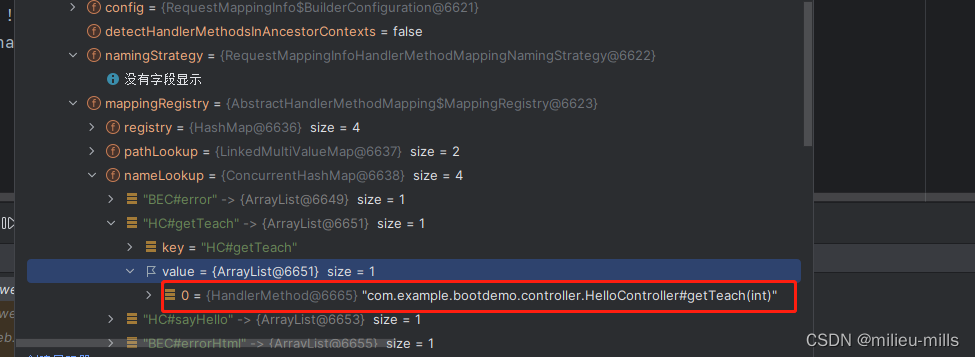

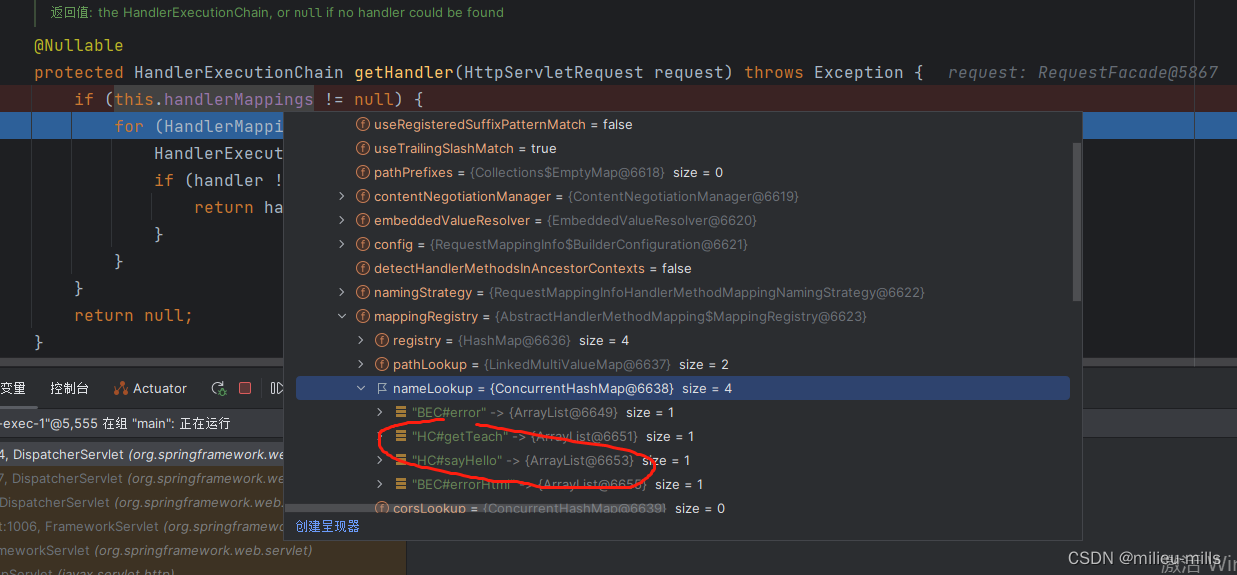

其中RequestMappingHandlerMapping



 保存了请求和对应的处理接口：

 备注：

springBoot默认配置了几个handlerMapping：

	@Bean
	@SuppressWarnings("deprecation")
	public RequestMappingHandlerMapping requestMappingHandlerMapping(
			@Qualifier("mvcContentNegotiationManager") ContentNegotiationManager contentNegotiationManager,
			@Qualifier("mvcConversionService") FormattingConversionService conversionService,
			@Qualifier("mvcResourceUrlProvider") ResourceUrlProvider resourceUrlProvider)

		@Bean
		public WelcomePageHandlerMapping welcomePageHandlerMapping(ApplicationContext applicationContext,
				FormattingConversionService mvcConversionService, ResourceUrlProvider mvcResourceUrlProvider) {
			WelcomePageHandlerMapping welcomePageHandlerMapping = new WelcomePageHandlerMapping(
					new TemplateAvailabilityProviders(applicationContext), applicationContext, getWelcomePage(),
					this.mvcProperties.getStaticPathPattern());
			welcomePageHandlerMapping.setInterceptors(getInterceptors(mvcConversionService, mvcResourceUrlProvider));
			welcomePageHandlerMapping.setCorsConfigurations(getCorsConfigurations());
			return welcomePageHandlerMapping;
		}
