MyBatis源码分析

Mybatis作为开发中最常用的数据持久层框架，深受广大程序员喜爱。下面我将通过debug分析mybatis加载资源和执行sql的流程：

一、配置mybatis-config.xml：以下配置为求简略，直接从官网搬运MyBatis官网

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "https://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <properties resource="jdbc.properties"/>
    <environments default="development">
        <environment id="development">
            <transactionManager type="JDBC"/>
            <dataSource type="POOLED">
                <property name="driver" value="${driver}"/>
                <property name="url" value="${url}"/>
                <property name="username" value="${username}"/>
                <property name="password" value="${password}"/>
            </dataSource>
        </environment>
    </environments>
    <mappers>
        <mapper resource="test.xml"/>
    </mappers>
</configuration>

加载mybatis配置文件，并创建sqlsessionFactory:

String resource = "mybatis-config.xml";
InputStream inputStream = Resources.getResourceAsStream(resource);
SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);

debug断点进入build方法：

public SqlSessionFactory build(InputStream inputStream, String environment, Properties properties) {
  try {
    //获取一个xml解析器
    XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, environment, properties);
       //解析xml
    return build(parser.parse());
  } catch (Exception e) {
    throw ExceptionFactory.wrapException("Error building SqlSession.", e);
  } finally {
    ErrorContext.instance().reset();
    try {
      if (inputStream != null) {
        inputStream.close();
      }
    } catch (IOException e) {
      // Intentionally ignore. Prefer previous error.
    }
  }
}

进入parse.parse()：可以看到是由Configuration 的parse方法加载并解析Mybatis-config.xml配置文件：

public Configuration parse() {
  if (parsed) {
    throw new BuilderException("Each XMLConfigBuilder can only be used once.");
  }
  parsed = true;
  //解析node、configuration
  parseConfiguration(parser.evalNode("/configuration"));
  return configuration;
}

通过断点获取结果：parser.evalNode("/configuration")

xnode:由此可见和我们再配置文件中的配置是一致的：

<configuration>
    <properties resource="jdbc.properties"/>
    <environments default="development">
        <environment id="development">
            <transactionManager type="JDBC"/>
            <dataSource type="POOLED">
                <property name="driver" value="${driver}"/>
                <property name="url" value="${url}"/>
                <property name="username" value="${username}"/>
                <property name="password" value="${password}"/>
            </dataSource>
        </environment>
    </environments>
    <mappers>
        <mapper resource="test.xml"/>
    </mappers>
</configuration>

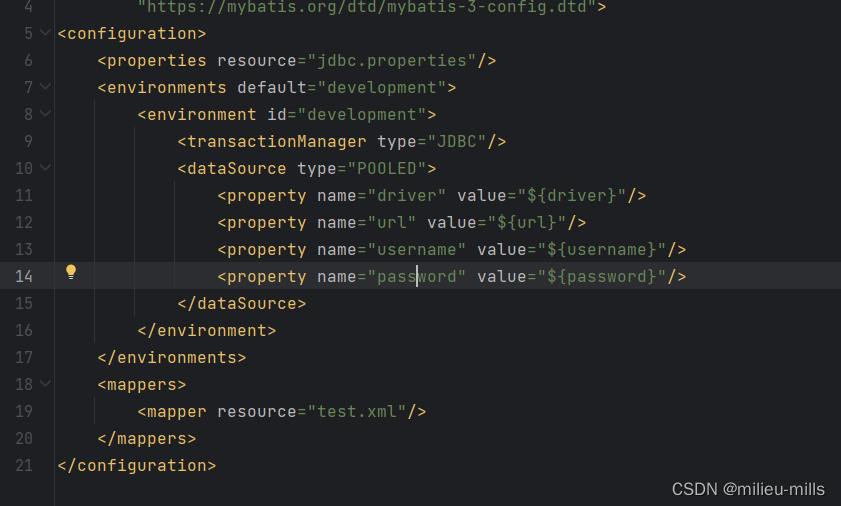

配置文件截图：

进一步进入：parseConfiguration：此段代码揭示了，mybatis解析配置文件的顺序：

private void parseConfiguration(XNode root) {
  try {
    // issue #117 read properties first
    propertiesElement(root.evalNode("properties"));
    Properties settings = settingsAsProperties(root.evalNode("settings"));
    loadCustomVfs(settings);
    loadCustomLogImpl(settings);
    typeAliasesElement(root.evalNode("typeAliases"));
    pluginElement(root.evalNode("plugins"));
    objectFactoryElement(root.evalNode("objectFactory"));
    objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
    reflectorFactoryElement(root.evalNode("reflectorFactory"));
    settingsElement(settings);
    // read it after objectFactory and objectWrapperFactory issue #631
    environmentsElement(root.evalNode("environments"));
    databaseIdProviderElement(root.evalNode("databaseIdProvider"));
    typeHandlerElement(root.evalNode("typeHandlers"));
    mapperElement(root.evalNode("mappers"));
  } catch (Exception e) {
    throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
  }
}

扩展：parseConfiguration 解释了mybatis解析配置文件的顺序，由此可见，我们再配置文件中的属性配置不能随便变更顺序。

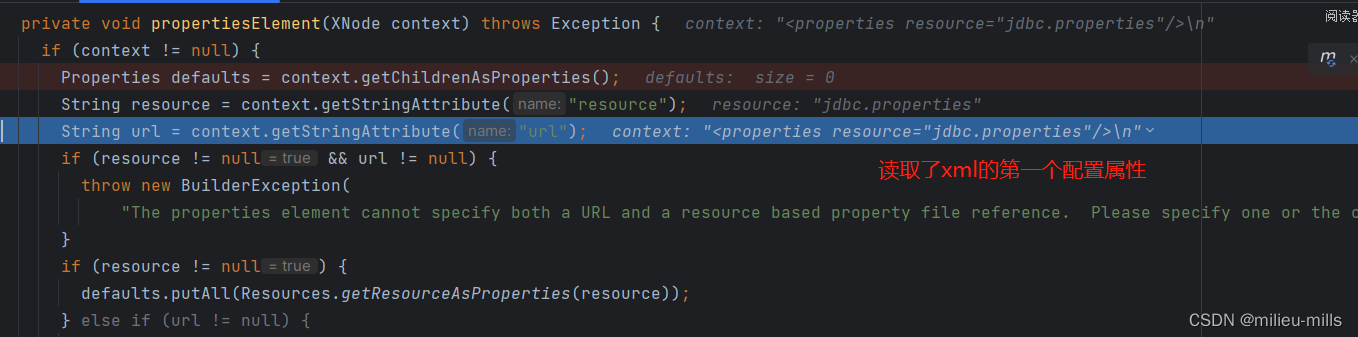

 第一段：解析properties文件：

propertiesElement(root.evalNode("properties"));

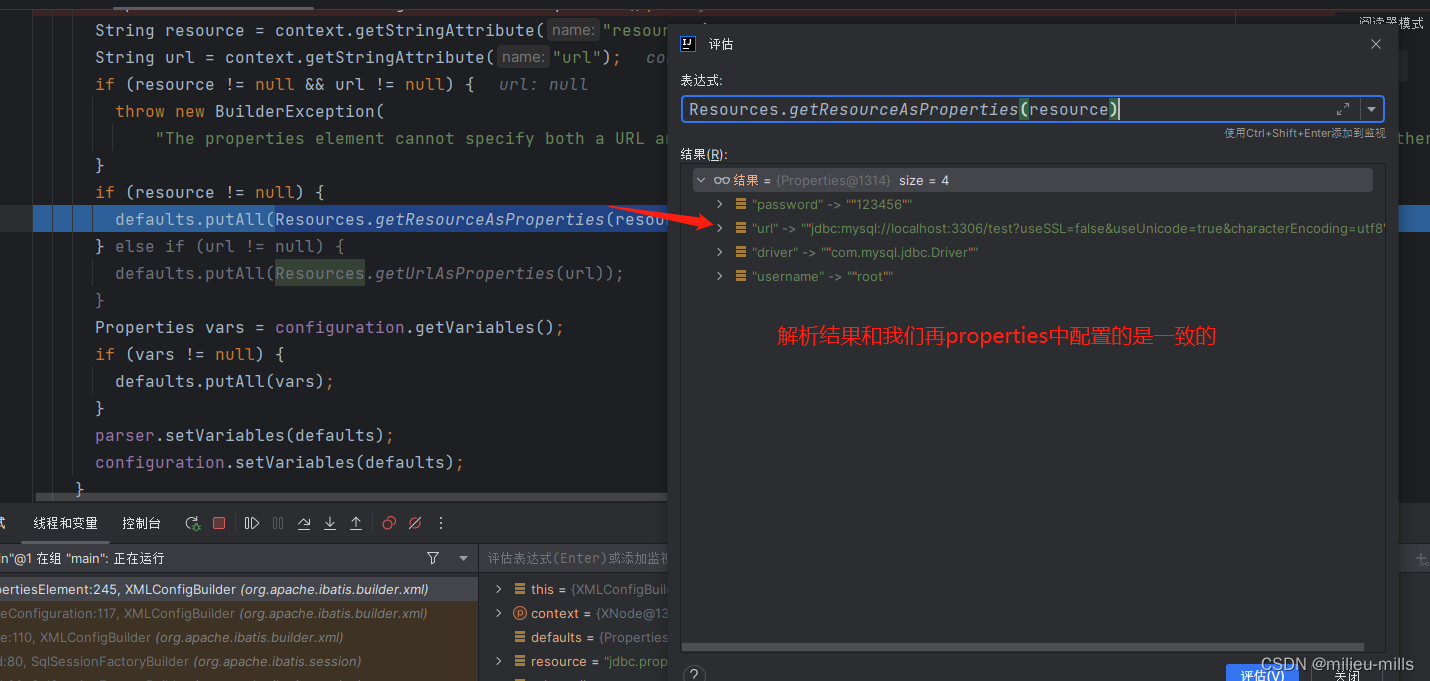

 将解析结果保存到：XPathParser

parser.setVariables(defaults); configuration.setVariables(defaults);

public class XPathParser {

  private final Document document;
  private boolean validation;
  private EntityResolver entityResolver;
  private Properties variables;
  private XPath xpath;
}

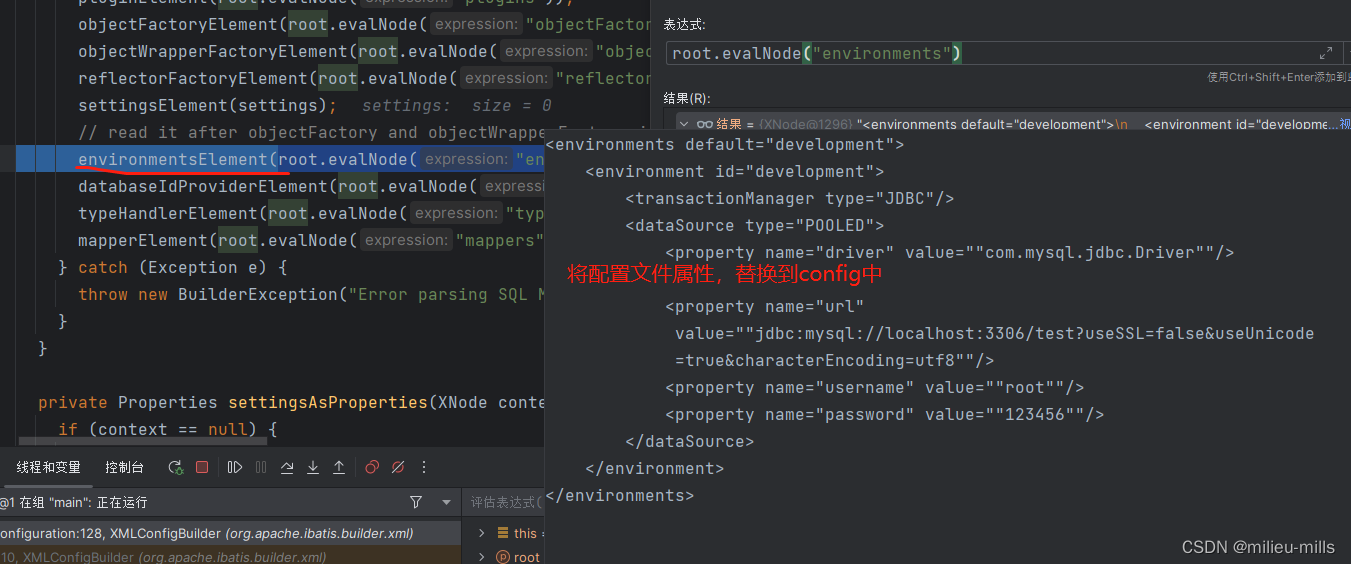

解析config中占位符，替换：

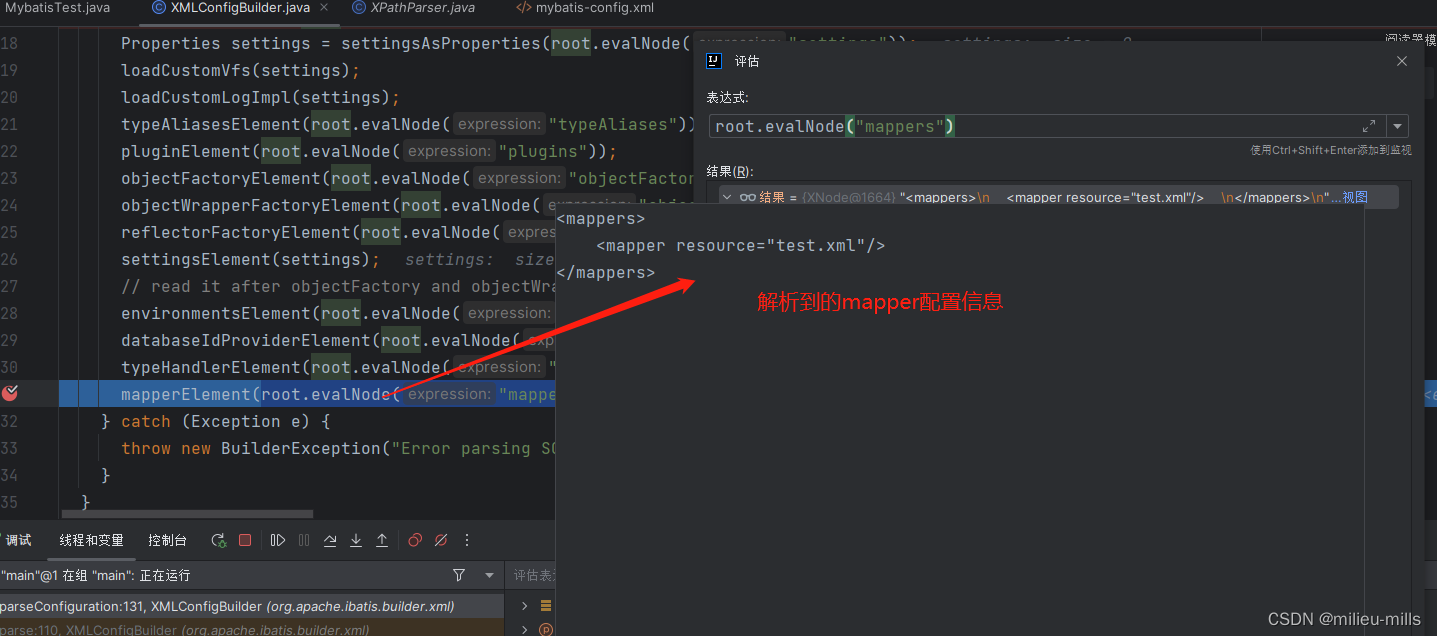

解析mapper：

mapperElement(root.evalNode("mappers"))

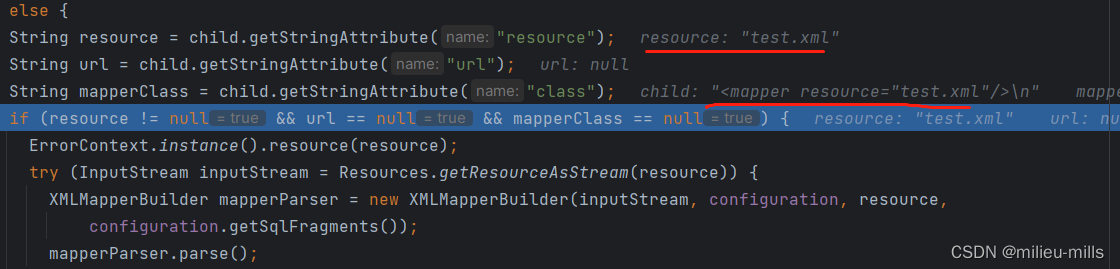

 解析mapper，由源码可见，mapper从，package->resource->url->class这个顺序解析

  private void mapperElement(XNode parent) throws Exception {
    if (parent != null) {
      for (XNode child : parent.getChildren()) {
        if ("package".equals(child.getName())) {
          String mapperPackage = child.getStringAttribute("name");
          configuration.addMappers(mapperPackage);
        } else {
          String resource = child.getStringAttribute("resource");
          String url = child.getStringAttribute("url");
          String mapperClass = child.getStringAttribute("class");
          if (resource != null && url == null && mapperClass == null) {
            ErrorContext.instance().resource(resource);
            try (InputStream inputStream = Resources.getResourceAsStream(resource)) {
              XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, resource,
                  configuration.getSqlFragments());
              mapperParser.parse();
            }
          } else if (resource == null && url != null && mapperClass == null) {
            ErrorContext.instance().resource(url);
            try (InputStream inputStream = Resources.getUrlAsStream(url)) {
              XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, url,
                  configuration.getSqlFragments());
              mapperParser.parse();
            }
          } else if (resource == null && url == null && mapperClass != null) {
            Class<?> mapperInterface = Resources.classForName(mapperClass);
            configuration.addMapper(mapperInterface);
          } else {
            throw new BuilderException(
                "A mapper element may only specify a url, resource or class, but not more than one.");
          }
        }
      }
    }
  }

 再次进入到

XMLMapperBuilder.parse()

public void parse() {
  //判断是否已加载过mapper
  if (!configuration.isResourceLoaded(resource)) {
        //解析mapper
    configurationElement(parser.evalNode("/mapper"));
    configuration.addLoadedResource(resource);
    bindMapperForNamespace();
  }

  parsePendingResultMaps();
  parsePendingCacheRefs();
  parsePendingStatements();
}

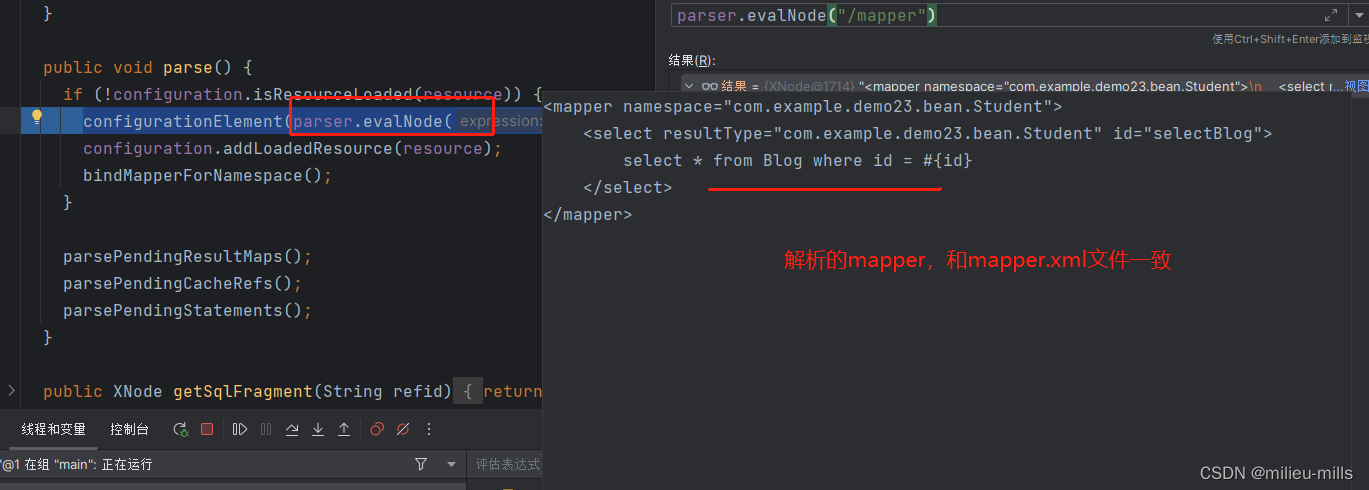

parser.evalNode("/mapper")：解析mapper

进入配置element

private void configurationElement(XNode context) {
  try {
  //获取namespace
    String namespace = context.getStringAttribute("namespace");
    if (namespace == null || namespace.isEmpty()) {
      throw new BuilderException("Mapper's namespace cannot be empty");
    }
    //获取各种mapper策略
    builderAssistant.setCurrentNamespace(namespace);
    cacheRefElement(context.evalNode("cache-ref"));
    cacheElement(context.evalNode("cache"));
    parameterMapElement(context.evalNodes("/mapper/parameterMap"));
    resultMapElements(context.evalNodes("/mapper/resultMap"));
    sqlElement(context.evalNodes("/mapper/sql"));

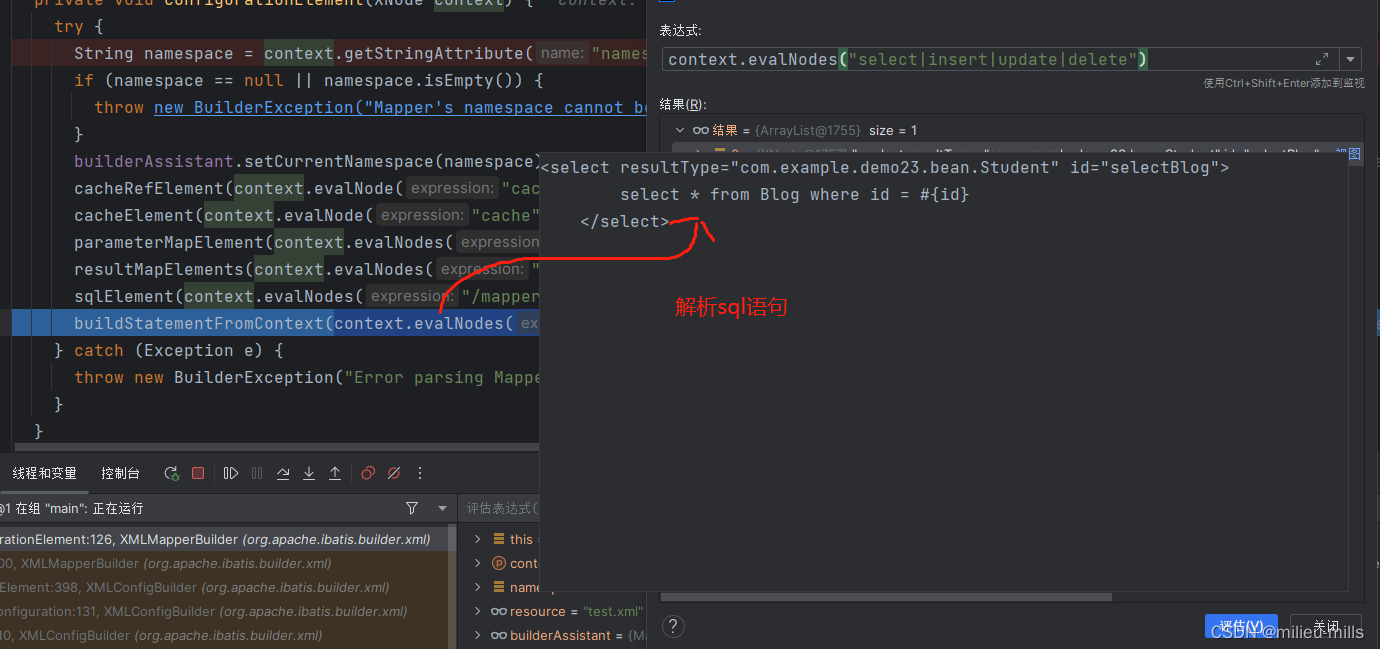

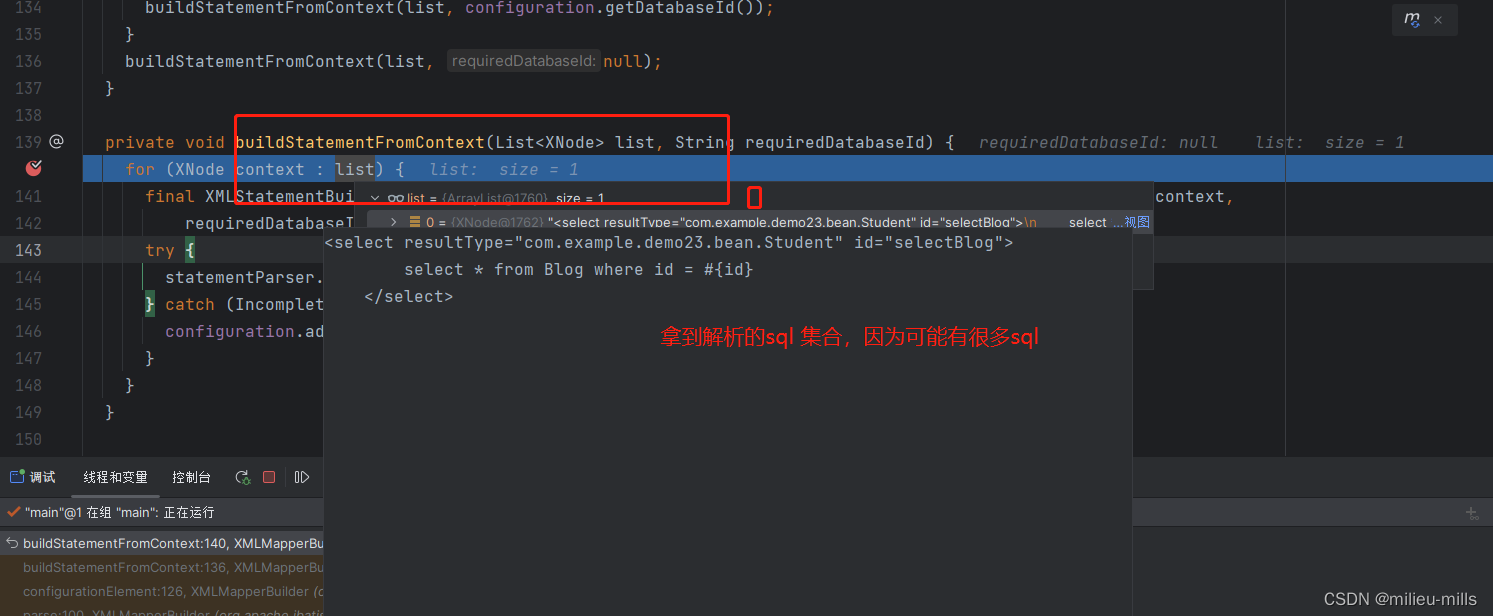

    //解析sql语句
    buildStatementFromContext(context.evalNodes("select|insert|update|delete"));
  } catch (Exception e) {
    throw new BuilderException("Error parsing Mapper XML. The XML location is '" + resource + "'. Cause: " + e, e);
  }
}





 加载完毕，加当前mapper加入已加载的rsource中，将将返回值类型方法mapper中，均操作的是：configuration

private void bindMapperForNamespace() {
  String namespace = builderAssistant.getCurrentNamespace();
  if (namespace != null) {
    Class<?> boundType = null;
    try {
      boundType = Resources.classForName(namespace);
    } catch (ClassNotFoundException e) {
      // ignore, bound type is not required
    }
    if (boundType != null && !configuration.hasMapper(boundType)) {
      // Spring may not know the real resource name so we set a flag
      // to prevent loading again this resource from the mapper interface
      // look at MapperAnnotationBuilder#loadXmlResource
      configuration.addLoadedResource("namespace:" + namespace);
      configuration.addMapper(boundType);
    }
  }
}

加入configuration.addMappedStatement(statement)

public MappedStatement addMappedStatement(String id, SqlSource sqlSource, StatementType statementType,
    SqlCommandType sqlCommandType, Integer fetchSize, Integer timeout, String parameterMap, Class<?> parameterType,
    String resultMap, Class<?> resultType, ResultSetType resultSetType, boolean flushCache, boolean useCache,
    boolean resultOrdered, KeyGenerator keyGenerator, String keyProperty, String keyColumn, String databaseId,
    LanguageDriver lang, String resultSets, boolean dirtySelect) {

  if (unresolvedCacheRef) {
    throw new IncompleteElementException("Cache-ref not yet resolved");
  }

  id = applyCurrentNamespace(id, false);

  MappedStatement.Builder statementBuilder = new MappedStatement.Builder(configuration, id, sqlSource, sqlCommandType)
      .resource(resource).fetchSize(fetchSize).timeout(timeout).statementType(statementType)
      .keyGenerator(keyGenerator).keyProperty(keyProperty).keyColumn(keyColumn).databaseId(databaseId).lang(lang)
      .resultOrdered(resultOrdered).resultSets(resultSets)
      .resultMaps(getStatementResultMaps(resultMap, resultType, id)).resultSetType(resultSetType)
      .flushCacheRequired(flushCache).useCache(useCache).cache(currentCache).dirtySelect(dirtySelect);

  ParameterMap statementParameterMap = getStatementParameterMap(parameterMap, parameterType, id);
  if (statementParameterMap != null) {
    statementBuilder.parameterMap(statementParameterMap);
  }

  MappedStatement statement = statementBuilder.build();
  configuration.addMappedStatement(statement);
  return statement;
}

扩展：

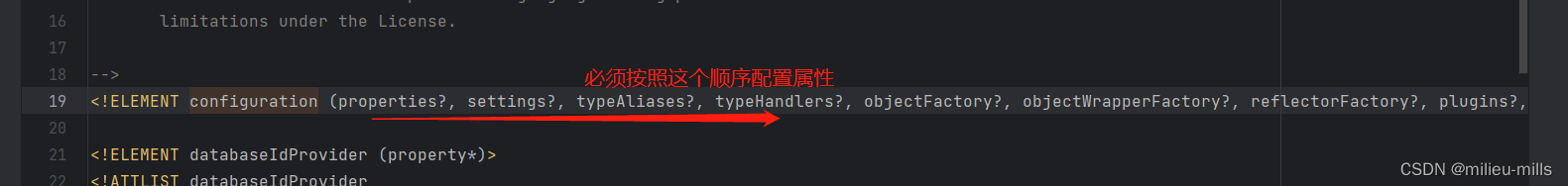

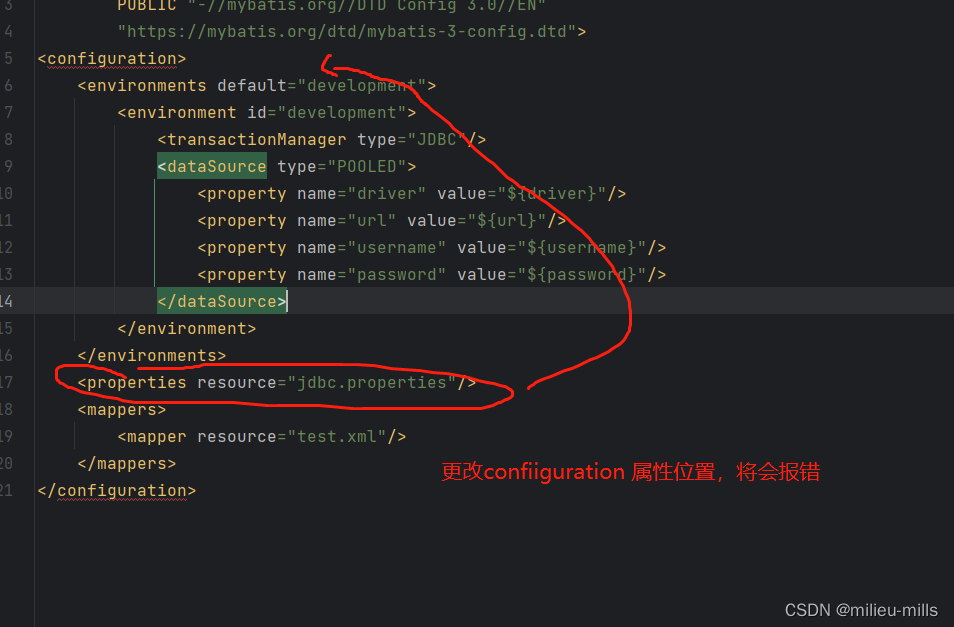

不可随意更改configuration配置属性位置：

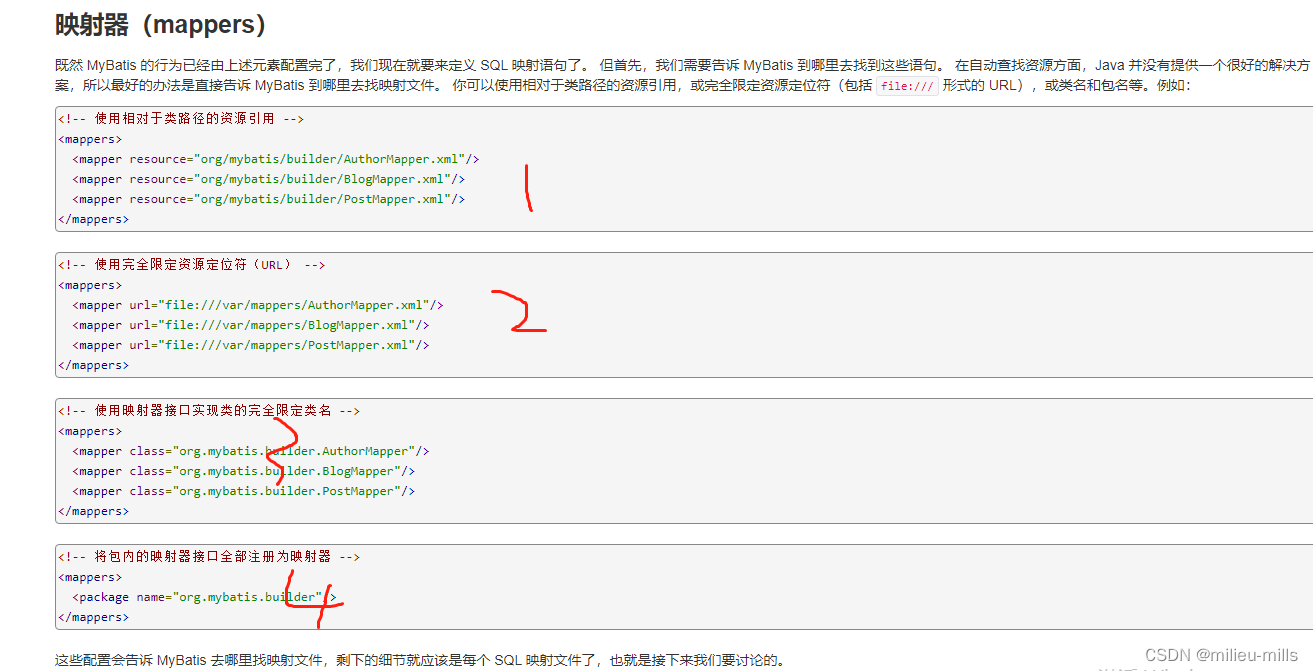

 扩展二：mybatis mapper的几种方式：resource  url   class  pacakge
