yolov8n-pose转rknn格式，实现海康移动监测+行为识别

板子最好先安装mini-anaconda，我自己安装的python3.9版本

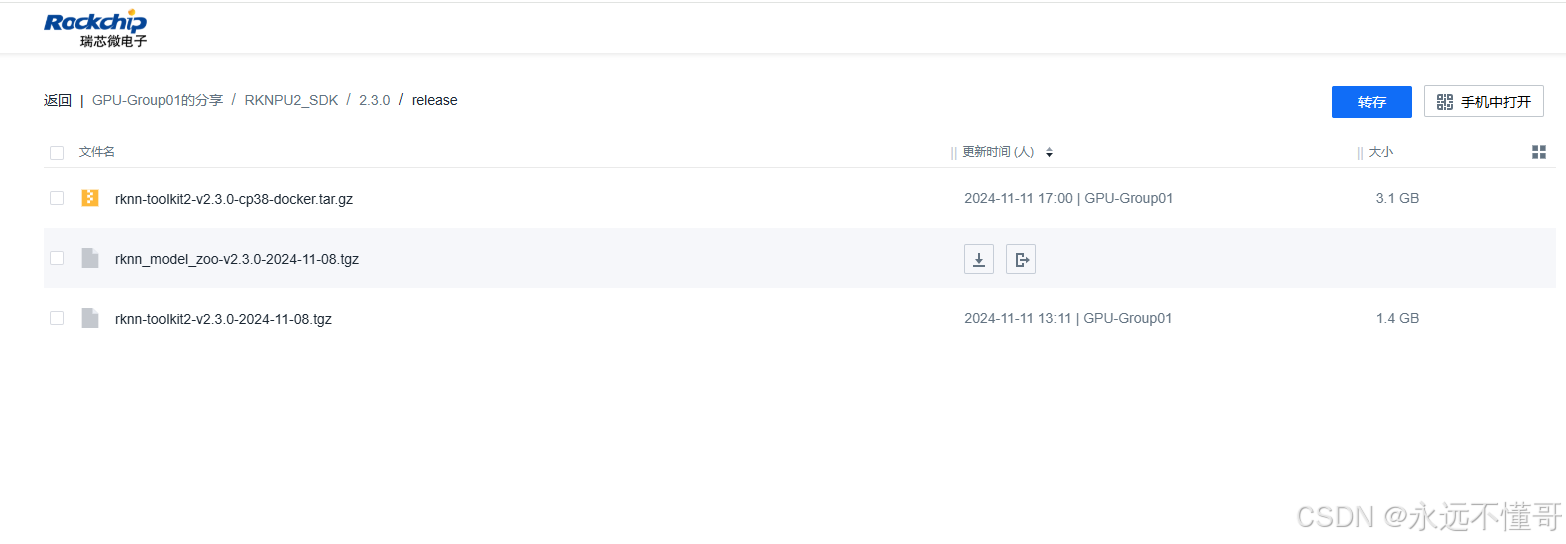

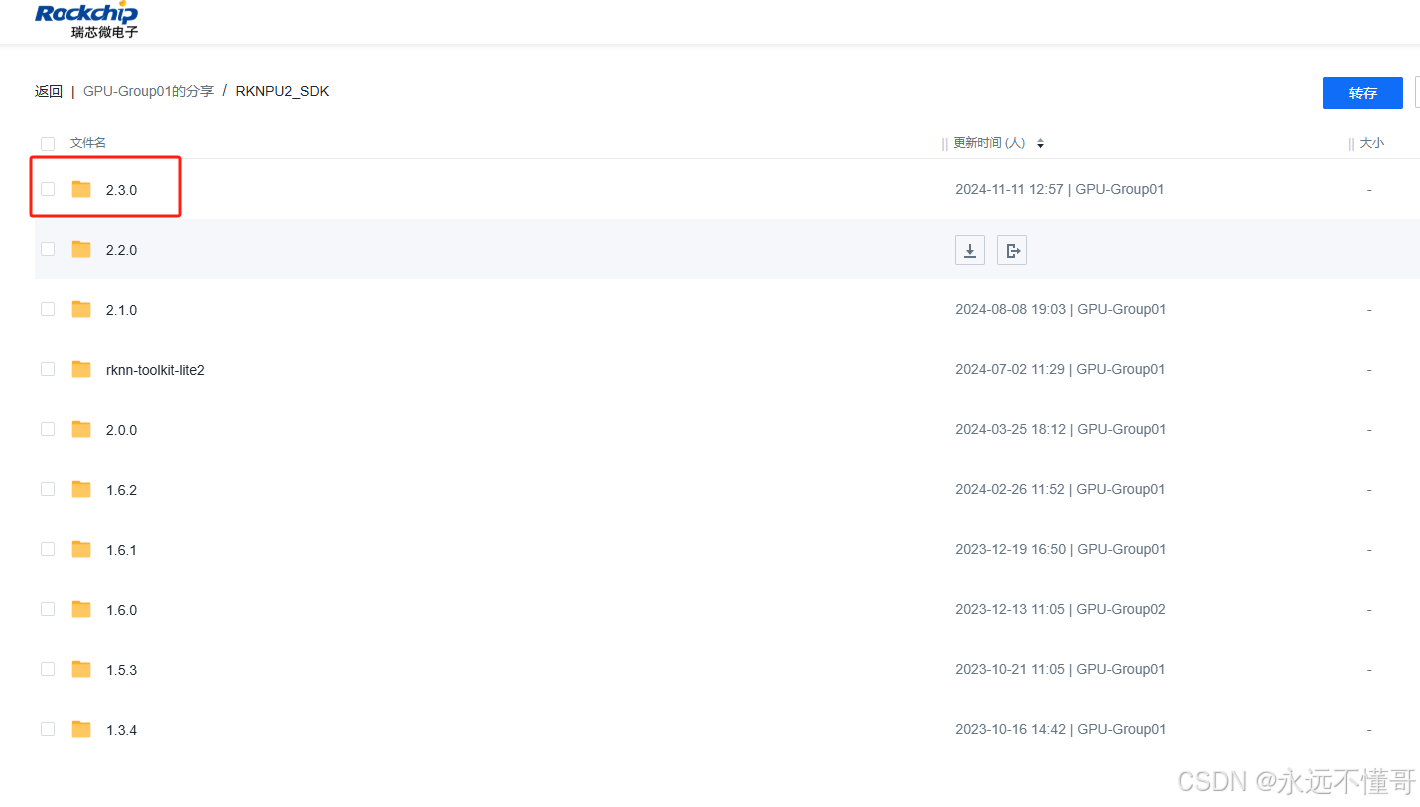

一、rknn官方sdk下载：
https://meta.zbox.filez.com/v/link/view/ef37a9687973439f94f5b06837f12527
提取码：rknn

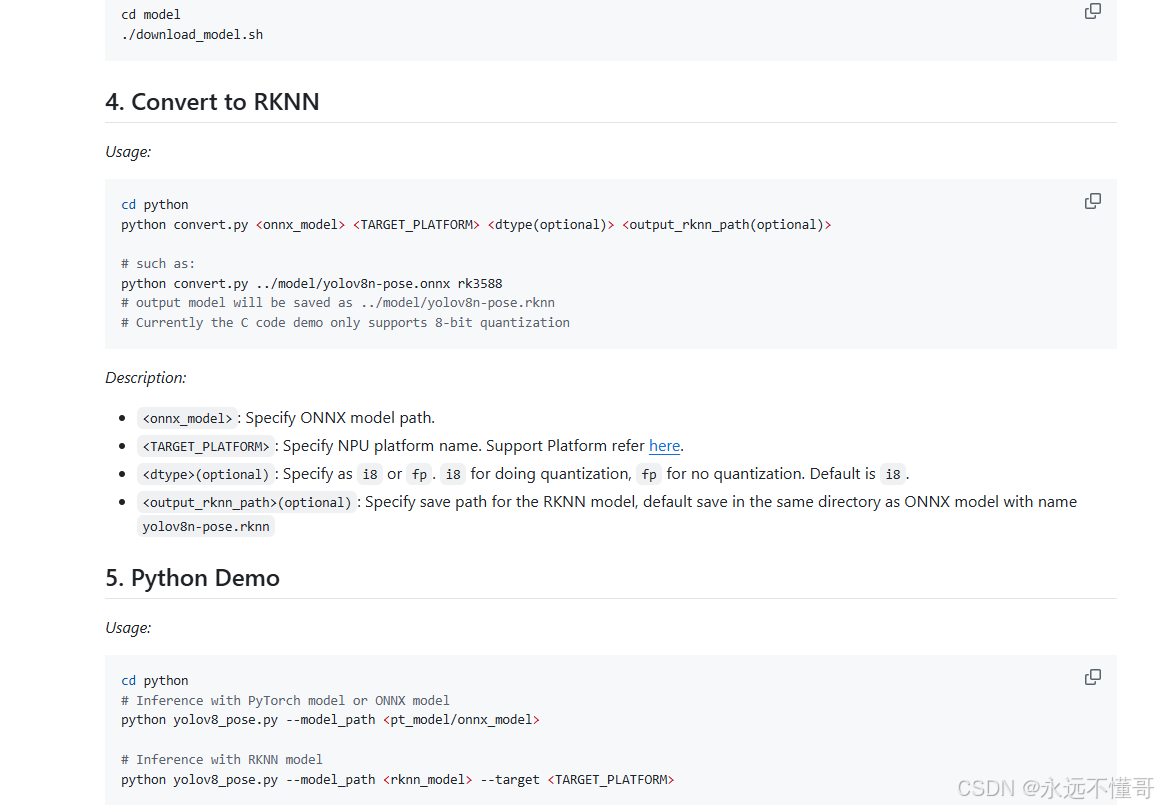

二、模型转换（安装依赖文件）
ubuntu环境上先执行onnx–>rknn

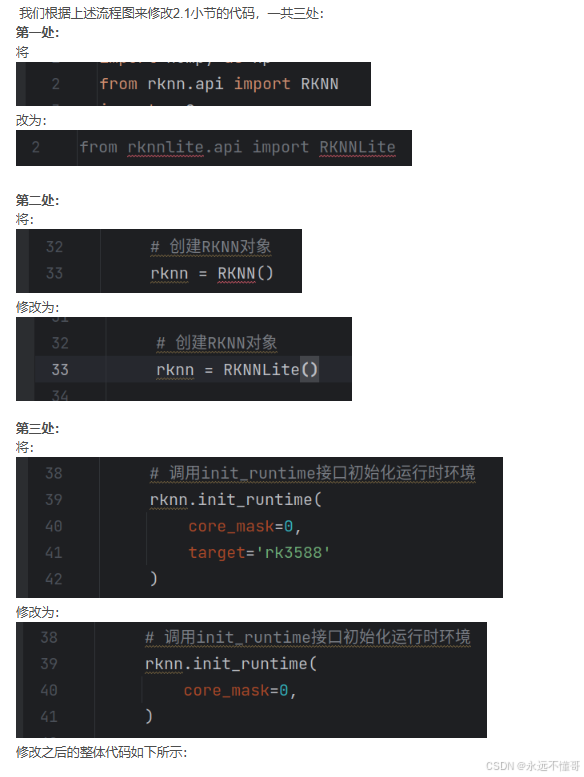

注意：rknn开发板上，不能使用RKNN，需要使用RKNNLite

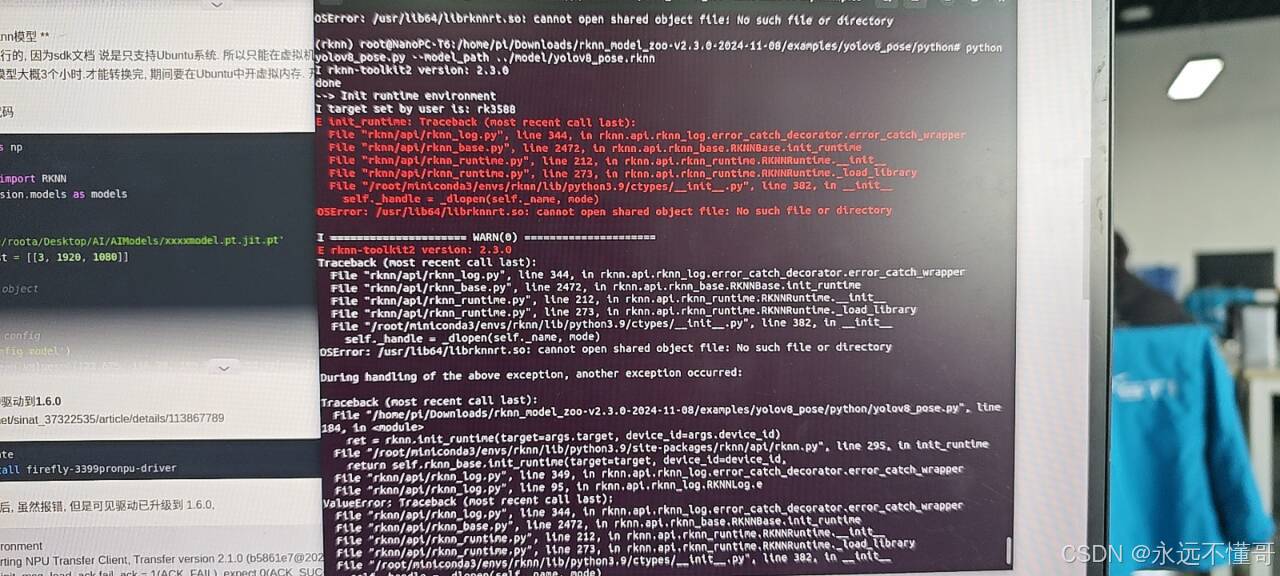

报错，缺少库文件
解决办法：wget https://github.com/airockchip/rknn-toolkit2/blob/v2.3.0/rknpu2/runtime/Linux/librknn_api/aarch64/librknnrt.so
然后移动到/usr/lib 下

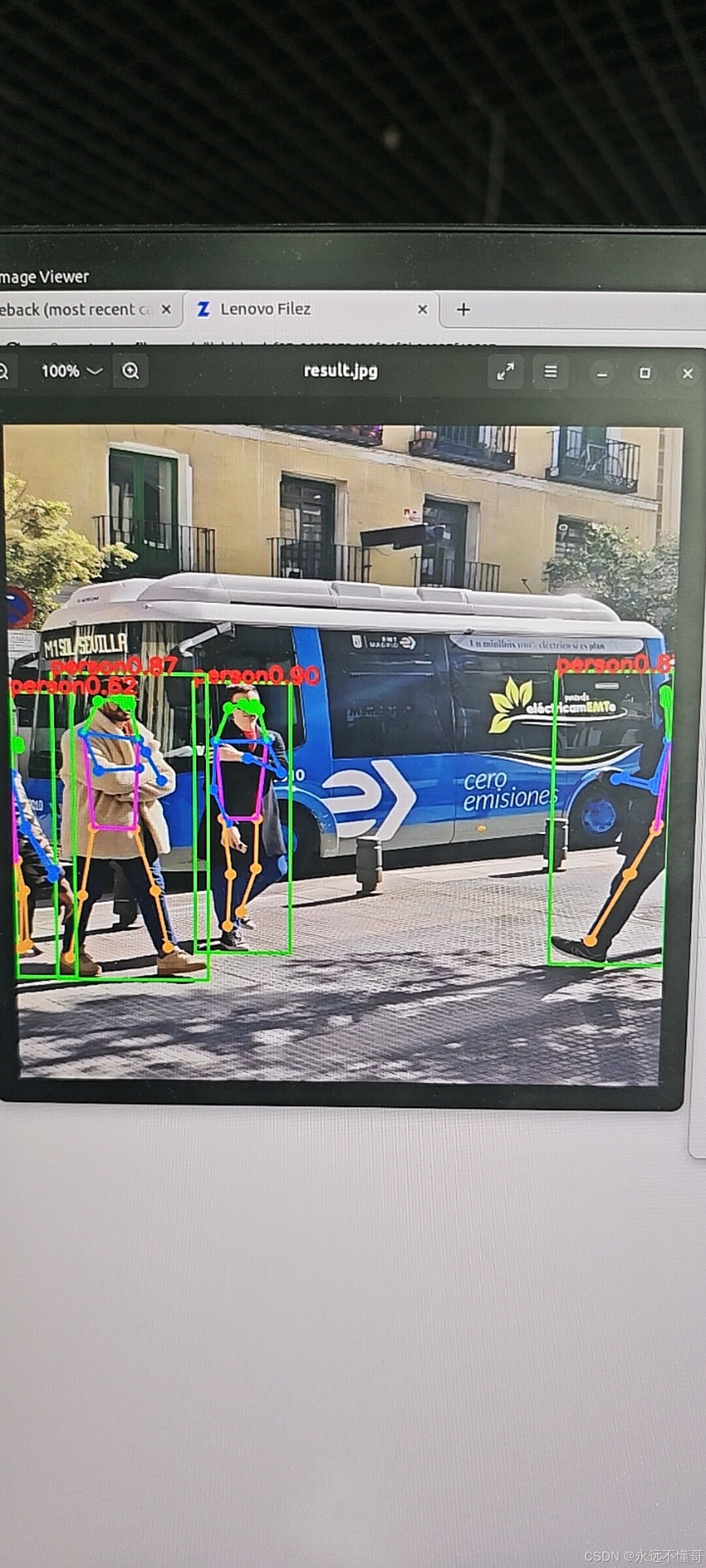

运行demo成功！！！

四、海康相机sdk

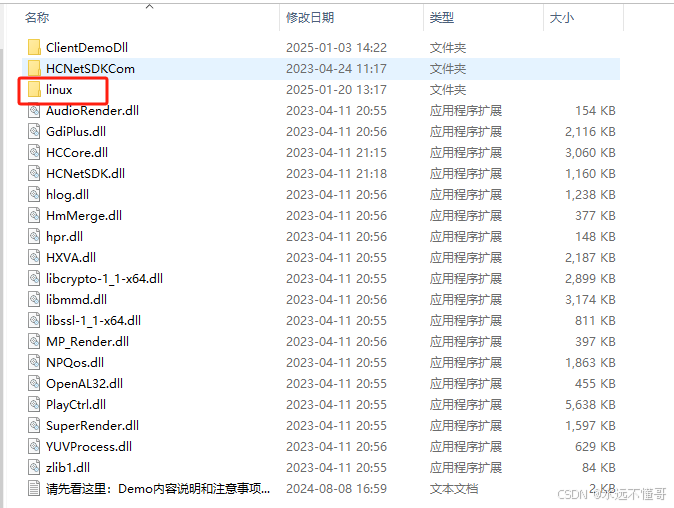

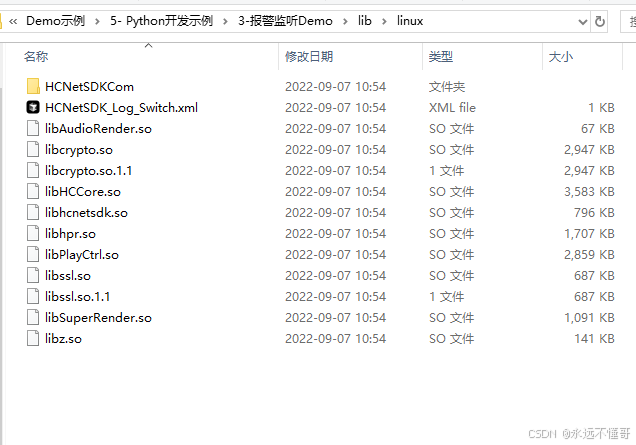

下载arm版本的sdk，添加所有的库文件

完整代码：移动监测+行为识别+数据推送

from ctypes import *
import sys
import os
import time
from datetime import datetime
# import mysql.connector
from ultralytics import YOLO
import cv2
import requests
# import paho.mqtt.client as mqtt
import json
import numpy as np

# 在文件开头添加一个全局计数器字典
ALARM_COUNTERS = {
    "移动侦测报警": 0,
    "硬盘满": 0,
    "硬盘出错": 0,
    "信号丢失": 0,
    "移动侦测报警触发": 0,
    "非法访问": 0,
    "输入/输出视频制式不匹配": 0,
    "视频信号异常": 0,
    "录像/抓图异常": 0,
    "IP地址冲突": 0,
}

# 在全局变量区域添加最后抓图时间记录
LAST_CAPTURE_TIME = 0
CAPTURE_INTERVAL = 2  # 抓图间隔时间（秒）

# 在文件开头的全局变量区域添加
LAST_ALARM_TIME = 0  # 记录上次报警时间
ALARM_INTERVAL = 2  # 报警间隔时间（秒）

# 在文件开头的全局变量区域添加
LAST_DETECT_TIME = 0  # 记录上次人体检测时间
DETECT_INTERVAL = 60  # 人体检测间隔时间（秒）

# 添加设备信息结构体定义
class NET_DVR_DEVICEINFO_V30(Structure):
    _fields_ = [
        ("sSerialNumber", c_byte * 48),   # 序列号
        ("byAlarmInPortNum", c_byte),     # 报警输入个数
        ("byAlarmOutPortNum", c_byte),    # 报警输出个数
        ("byDiskNum", c_byte),            # 硬盘个数
        ("byDVRType", c_byte),            # 设备类型
        ("byChanNum", c_byte),            # 设备模拟通道个数
        ("byStartChan", c_byte),          # 起始通道号
        ("byAudioChanNum", c_byte),       # 语音通道数
        ("byIPChanNum", c_byte),          # 最大数字通道个数
        ("byZeroChanNum", c_byte),        # 零通道编码个数
        ("byMainProto", c_byte),          # 主码流传输协议类型
        ("bySubProto", c_byte),           # 子码流传输协议类型
        ("bySupport", c_byte),            # 能力，位与结果为0表示不支持，1表示支持
        ("bySupport1", c_byte),           # 能力集扩充
        ("bySupport2", c_byte),           # 能力集扩充
        ("wDevType", c_uint16),           # 设备型号
        ("bySupport3", c_byte),           # 能力集扩充
        ("byMultiStreamProto", c_byte),   # 是否支持多码流
        ("byStartDChan", c_byte),         # 起始数字通道号
        ("byStartDTalkChan", c_byte),     # 起始数字对讲通道号
        ("byHighDChanNum", c_byte),       # 数字通道个数，高位
        ("bySupport4", c_byte),           # 能力集扩充
        ("byLanguageType", c_byte),       # 支持语种能力
        ("byVoiceInChanNum", c_byte),     # 音频输入通道数
        ("byStartVoiceInChanNo", c_byte), # 音频输入起始通道号
        ("bySupport5", c_byte),           # 能力集扩充
        ("bySupport6", c_byte),           # 能力集扩充
        ("byMirrorChanNum", c_byte),      # 镜像通道个数
        ("wStartMirrorChanNo", c_uint16), # 起始镜像通道号
        ("bySupport7", c_byte),           # 能力集扩充
        ("byRes2", c_byte * 2)            # 保留字节
    ]

# 添加布防参数结构体
class NET_DVR_SETUPALARM_PARAM(Structure):
    _fields_ = [
        ("dwSize", c_uint32),
        ("byLevel", c_byte),
        ("byAlarmInfoType", c_byte),
        ("byRetAlarmTypeV40", c_byte),
        ("byRetDevInfoVersion", c_byte),
        ("byRetVQDAlarmType", c_byte),
        ("byFaceAlarmDetection", c_byte),
        ("bySupport", c_byte),
        ("byBrokenNetHttp", c_byte),
        ("wTaskNo", c_uint16),
        ("byDeployType", c_byte),
        ("byRes1", c_byte * 3),
        ("byAlarmTypeURL", c_byte),
        ("byCustomCtrl", c_byte)
    ]

# 添加抓图结构体
class NET_DVR_JPEGPARA(Structure):
    _fields_ = [
        ("wPicSize", c_ushort),
        ("wPicQuality", c_ushort)
    ]

# 添加新的抓图结构体
class NET_DVR_JPEGPARA_NEW(Structure):
    _fields_ = [
        ("wPicSize", c_ushort),        # 图片尺寸
        ("wPicQuality", c_ushort),     # 图片质量
        ("dwPicSize", c_uint32),       # 图片大小
        ("byRes", c_byte * 224)        # 保留字节
    ]

# 加载海康威视的SDK动态库
def load_hk_sdk():
    if os.name == 'nt':  # Windows系统
        sdk_dir = os.path.join(os.path.dirname(os.path.abspath(__file__)), './lib')
        os.environ['PATH'] += ';' + sdk_dir
        return CDLL(os.path.join(sdk_dir, 'HCNetSDK.dll'))
    else:  # Linux系统
        sdk_dir = os.path.join(os.path.dirname(os.path.abspath(__file__)), 'lib/linux')
        return CDLL(os.path.join(sdk_dir, 'libhcnetsdk.so'))

# 修改报警回调函数
@CFUNCTYPE(None, c_int, POINTER(c_int), POINTER(c_int), c_int, c_void_p)
def alarm_callback(lCommand, pAlarmer, pAlarmInfo, dwBufLen, pUser):
    global LAST_CAPTURE_TIME, LAST_ALARM_TIME, LAST_DETECT_TIME, ALARM_COUNTERS

    try:
        current_time = time.time()
        # 检查报警时间间隔
        time_since_last_alarm = current_time - LAST_ALARM_TIME
        if time_since_last_alarm < ALARM_INTERVAL:
            # print(f"距离上次报警仅过去 {time_since_last_alarm:.1f} 秒，忽略本次报警")
            return

        # 更新报警时间
        LAST_ALARM_TIME = current_time

        if lCommand == 0x1100:  # 移动侦测报警
            ALARM_COUNTERS["移动侦测报警"] += 1
            # print(f"移动侦测报警触发 (总计: {ALARM_COUNTERS['移动侦测报警']}次)")
        elif lCommand == 0x4000:  # 异常报警
            alarm_info = cast(pAlarmInfo, POINTER(NET_DVR_ALARMINFO)).contents
            exception_type = alarm_info.dwAlarmType
            # print(f"异常类型: {exception_type}")

            exception_types = {
                0: "信号量报警",
                1: "硬盘满",
                2: "信号丢失",
                3: "移动侦测",
                4: "硬盘未格式化",
                5: "读写硬盘出错",
                6: "遮挡报警",
                7: "制式不匹配",
                8: "非法访问",
            }

            exception_msg = exception_types.get(exception_type, "未知异常类型")
            if exception_msg not in ALARM_COUNTERS:
                ALARM_COUNTERS[exception_msg] = 0
            ALARM_COUNTERS[exception_msg] += 1
            # print(f"异常类型: {exception_msg} (总计: {ALARM_COUNTERS[exception_msg]}次)")

            # 当检测到移动侦测时，先检查上次异常检测的时间间隔
            if exception_type == 3:
                time_since_last_detect = current_time - LAST_DETECT_TIME
                if time_since_last_detect < DETECT_INTERVAL:
                    # print(f"距离上次异常检测仅过去 {time_since_last_detect:.1f} 秒，跳过本次检测")
                    return

                try:
                    monitor = cast(pUser, py_object).value
                    if monitor.capture_picture():
                        print(f"抓图成功，报警时间: {datetime.fromtimestamp(current_time)}")
                except Exception as e:
                    print(f"抓图过程出错: {str(e)}")

    except Exception as e:
        print(f"报警回调函数出错: {str(e)}")

# 添加异常信息结构体
class NET_DVR_ALARMINFO(Structure):
    _fields_ = [
        ("dwAlarmType", c_uint32),        # 报警类型
        ("dwAlarmInputNumber", c_uint32),  # 报警输入端口
        ("dwAlarmOutputNumber", c_byte * 4),  # 报警输出端口
        ("dwAlarmRelateChannel", c_byte * 4),  # 报警触发的通道
        ("dwChannel", c_byte * 4),         # 现在报警的通道
        ("dwDiskNumber", c_byte * 4)       # 发生报警的硬盘
    ]

# 添加 MQTT 客户端类
class MQTTPublisher:
    def __init__(self):
        self.client = mqtt.Client()
        try:
            # 连接到 MQTT 服务器
            self.client.connect("127.0.0.1", 1883, 60)
            self.client.loop_start()
            print("MQTT 客户端连接成功")
        except Exception as e:
            print(f"MQTT 客户端连接失败: {str(e)}")

    def publish_alarm(self, device_id, alarm_type, detect_image_url, alarm_time):
        try:
            # 构建消息内容
            message = {
                "device_id": device_id,
                "alarm_type": alarm_type,
                "detect_image_url": detect_image_url,
                "alarm_time": alarm_time
            }
            # 发布消息
            self.client.publish("camera/alarm", json.dumps(message))
            print("MQTT 消息发送成功")
        except Exception as e:
            print(f"MQTT 消息发送失败: {str(e)}")

    def disconnect(self):
        self.client.loop_stop()
        self.client.disconnect()

# 添加数据库配置和操作类
class DatabaseManager:
    def __init__(self):
        # self.conn = mysql.connector.connect(
        #     host="localhost",
        #     user="root",
        #     password="",
        #     database="test"
        # )
        #self.cursor = self.conn.cursor()
        #self.mqtt_publisher = MQTTPublisher()
        self.access_token = None
        self.token_expire_time = 0

    def get_access_token(self):
        """获取访问令牌"""
        try:
            current_time = time.time()
            # 如果token未过期，直接返回
            if self.access_token and current_time < self.token_expire_time:
                return self.access_token

            # 请求新token
            data = {
                'client_id': 'video',
                'client_secret': 'isti123@',
                'grant_type': 'client_credentials'
            }
            headers = {
                'Content-Type': 'application/x-www-form-urlencoded'
            }

            response = requests.post(
                'http://192.168.30.9:9001/oauth/token',
                data=data,
                headers=headers
            )

            if response.status_code == 200:
                result = response.json()
                self.access_token = result['access_token']
                # 设置token过期时间（提前5分钟过期）
                self.token_expire_time = current_time + result['expires_in'] - 300
                print("获取token成功")
                return self.access_token
            else:
                print(f"获取token失败，状态码: {response.status_code}")
                print(f"响应内容: {response.text}")
                return None
        except Exception as e:
            print(f"获取token异常: {str(e)}")
            return None

    def push_to_api(self, device_id, alarm_type, detect_image_url):
        """推送数据到HTTP接口"""
        try:
            # 获取token
            token = self.get_access_token()
            if not token:
                print("无法获取token，取消推送")
                return

            # 从device_id中分离设备编号和通道号
            device_serial, channel_no = device_id.split('_')

            # 构建请求数据
            data = {
                "deviceSerial": device_serial,
                "channelNo": int(channel_no),
                "alarmType": str(alarm_type),
                "detectImageUrl": detect_image_url
            }

            # 构建请求头
            headers = {
                'Content-Type': 'application/json',
                'Authorization': f'Bearer {token}'
            }

            # 发送POST请求
            response = requests.post(
                'http://192.168.30.9:7887/video/detect/upload',
                json=data,
                headers=headers,
                timeout=5
            )

            print(f"推送数据: {data}")
            print(f"响应状态码: {response.status_code}")
            print(f"响应内容: {response.text}")

            if response.status_code == 200:
                print("数据推送成功")
            else:
                print(f"数据推送失败，状态码: {response.status_code}")
                print(f"响应内容: {response.text}")

        except Exception as e:
            print(f"数据推送异常: {str(e)}")

    def insert_alarm_record(self, device_id, alarm_type, detect_image_url=None):
        try:
            # 保存到数据库
            # sql = """INSERT INTO alarm_detect
            #         (device_id, alarm_type, alarm_time, detect_image_url)
            #         VALUES (%s, %s, %s, %s)"""
            # alarm_time = datetime.now().strftime('%Y-%m-%d %H:%M:%S')
            # values = (device_id, alarm_type, alarm_time, detect_image_url)
            # self.cursor.execute(sql, values)
            # self.conn.commit()
            # print("报警记录已插入数据库")

            # 发送 MQTT 消息
            # self.mqtt_publisher.publish_alarm(
            #     device_id=device_id,
            #     alarm_type=alarm_type,
            #     detect_image_url=detect_image_url,
            #     alarm_time=alarm_time
            # )

            # 推送数据到HTTP接口
            if detect_image_url:  # 只有在有图片URL时才推送
                self.push_to_api(device_id, alarm_type, detect_image_url)

        except Exception as e:
            print(f"推送数据失败: {str(e)}")

    def close(self):
        # self.cursor.close()
        # self.conn.close()
        # self.mqtt_publisher.disconnect()
        pass

    def upload_image(self, image_path):
        """上传图片到指定服务器"""
        try:
            # 获取token
            token = self.get_access_token()
            if not token:
                print("无法获取token，取消上传")
                return None

            with open(image_path, 'rb') as f:
                files = {'imageFile': f}
                headers = {
                    'Authorization': f'Bearer {token}'
                }
                print(f"开始上传图片: {image_path}")
                response = requests.post(
                    'http://192.168.30.9:7887/video/detect/image',
                    files=files,
                    headers=headers
                )
                print(f"上传响应状态码: {response.status_code}")
                print(f"上传响应内容: {response.text}")

                if response.status_code == 200:
                    result = response.json()
                    if 'data' in result:
                        print(f"获取到图片URL: {result['data']}")
                        return result['data']
                    else:
                        print("响应中没有data字段")
                else:
                    print(f"上传失败，状态码: {response.status_code}")
                return None
        except Exception as e:
            print(f"图片上传过程发生异常: {str(e)}")
            return None

class AlarmMonitor:
    def __init__(self, ip, port, username, password, device_no, channel):
        self.ip = ip
        self.port = port
        self.username = username
        self.password = password
        self.sdk = load_hk_sdk()
        self.device_handle = -1
        self.alarm_handle = -1

        # 使用设备编号+通道号作为设备ID
        self.device_id = f"{device_no}_{channel}"
        self.db = DatabaseManager()

        # 确保pic目录存在
        self.pic_dir = os.path.join(os.path.dirname(os.path.abspath(__file__)), 'pic')
        if not os.path.exists(self.pic_dir):
            os.makedirs(self.pic_dir)

        # 修改为使用 pose 检测模型
        self.model = YOLO("yolov8n-pose.pt")  # 初始化YOLO pose模型

    def init_device(self):
        # 初始化SDK
        init_result = self.sdk.NET_DVR_Init()
        if init_result == 0:
            print("SDK初始化失败")
            return False

        # 设置连接超时时间和重连时间
        self.sdk.NET_DVR_SetConnectTime(2000, 1)
        self.sdk.NET_DVR_SetReconnect(10000, True)

        # 注册设备
        device_info = NET_DVR_DEVICEINFO_V30()
        self.device_handle = self.sdk.NET_DVR_Login_V30(
            bytes(self.ip, 'utf-8'),
            self.port,
            bytes(self.username, 'utf-8'),
            bytes(self.password, 'utf-8'),
            byref(device_info)
        )

        if self.device_handle < 0:
            print("设备登录失败")
            self.get_last_error()
            return False

        print("设备登录成功")

        if self.device_handle >= 0:
            # 设置布防参数
            alarm_param = NET_DVR_SETUPALARM_PARAM()
            alarm_param.dwSize = sizeof(NET_DVR_SETUPALARM_PARAM)
            alarm_param.byLevel = 1  # 布防优先级
            alarm_param.byAlarmInfoType = 1  # 智能交通报警信息上传类型：0- 老报警信息（NET_DVR_PLATE_RESULT），1- 新报警信息(NET_ITS_PLATE_RESULT)

            # 布防
            self.alarm_handle = self.sdk.NET_DVR_SetupAlarmChan_V41(self.device_handle, byref(alarm_param))
            if self.alarm_handle < 0:
                print("布防失败")
                return False

            print("布防成功")
            return True
        return False

    def start_alarm_listen(self):
        if self.device_handle < 0:
            print("设备未登录")
            return False

        # 设置报警回调函数，传入self作为用户数据
        self.sdk.NET_DVR_SetDVRMessageCallBack_V31(alarm_callback, py_object(self))

        # 启动报警监听
        self.alarm_handle = self.sdk.NET_DVR_StartListen_V30(
            self.device_handle,
            bytes("0.0.0.0", 'utf-8'),
            8000,
            None,
            None
        )

        if self.alarm_handle < 0:
            print("启动报警监听失败")
            return False

        print("报警监听启动成功")
        return True

    def stop_alarm_listen(self):
        # 在停止监听前打印统计信息
        self.print_alarm_statistics()

        if self.alarm_handle >= 0:
            # 撤防
            self.sdk.NET_DVR_CloseAlarmChan_V30(self.alarm_handle)
            self.alarm_handle = -1

        if self.device_handle >= 0:
            self.sdk.NET_DVR_Logout(self.device_handle)
            self.device_handle = -1

        self.sdk.NET_DVR_Cleanup()
        self.db.close()  # 关闭数据库连接

    def get_last_error(self):
        error_code = self.sdk.NET_DVR_GetLastError()
        print(f"错误码: {error_code}")
        return error_code

    def print_alarm_statistics(self):
        print("\n报警统计信息:")
        print("-" * 40)
        for alarm_type, count in ALARM_COUNTERS.items():
            if count > 0:  # 只打印发生过的报警类型
                print(f"{alarm_type}: {count}次")
        print("-" * 40)

    def detect_person(self, image_path):
        """使用YOLO pose检测图片中是否有人体角度超过80度"""
        try:
            # 读取图片并旋转180度
            image = cv2.imread(image_path)
            image = cv2.rotate(image, cv2.ROTATE_180)

            # YOLO pose检测
            results = self.model.predict(
                image,
                save=False,
                project="results",
                name="my_results",
                exist_ok=True
            )

            has_angle_over_80 = False
            result_image_path = None

            # 检查是否检测到人并计算角度
            for result in results:
                keypoints = result.keypoints  # 获取关键点数据
                if len(keypoints) > 0:  # 如果检测到关键点
                    for i in range(len(keypoints)):
                        np_arr = keypoints[i].xy.cpu().numpy()

                        # 获取关键点坐标
                        left_hip = np_arr[0][11]    # 左髋
                        left_knee = np_arr[0][13]   # 左膝
                        right_hip = np_arr[0][12]   # 右髋
                        right_knee = np_arr[0][14]  # 右膝
                        left_shoulder = np_arr[0][5] # 左肩
                        left_wrist = np_arr[0][9]    # 左手腕
                        right_shoulder = np_arr[0][6]# 右肩
                        right_wrist = np_arr[0][10]  # 右手腕

                        # 检查所有关键点是否有效
                        key_points = [left_hip, left_knee, right_hip, right_knee,
                                    left_shoulder, left_wrist, right_shoulder, right_wrist]
                        if not all(all(point) for point in key_points):
                            print("存在无效关键点，跳过当前姿态分析")
                            continue

                        # 标记所有关键点
                        for j in range(len(np_arr[0])):
                            point = tuple(map(int, np_arr[0][j]))
                            cv2.circle(image, point, 10, (0, 255, 255), -1)  # 黄色，半径10，实心圆
                            cv2.circle(image, point, 10, (0, 0, 0), 2)  # 黑色边框

                        # 转换为整数坐标
                        left_hip = tuple(map(int, left_hip))
                        left_knee = tuple(map(int, left_knee))
                        right_hip = tuple(map(int, right_hip))
                        right_knee = tuple(map(int, right_knee))
                        left_shoulder = tuple(map(int, left_shoulder))
                        left_wrist = tuple(map(int, left_wrist))
                        right_shoulder = tuple(map(int, right_shoulder))
                        right_wrist = tuple(map(int, right_wrist))

                        # 绘制四肢线段，使用不同颜色
                        cv2.line(image, left_hip, left_knee, (0, 0, 255), 8)     # 左腿-红色
                        cv2.line(image, right_hip, right_knee, (255, 0, 0), 8)   # 右腿-蓝色
                        cv2.line(image, left_shoulder, left_wrist, (0, 255, 0), 8)  # 左臂-绿色
                        cv2.line(image, right_shoulder, right_wrist, (255, 255, 0), 8)  # 右臂-青色

                        # 计算所有腿与手臂的夹角组合
                        legs = [
                            (np.array(left_knee) - np.array(left_hip), "左腿"),
                            (np.array(right_knee) - np.array(right_hip), "右腿")
                        ]
                        arms = [
                            (np.array(left_wrist) - np.array(left_shoulder), "左臂"),
                            (np.array(right_wrist) - np.array(right_shoulder), "右臂")
                        ]

                        # 检查所有可能的组合
                        for leg, leg_name in legs:
                            for arm, arm_name in arms:
                                angle = np.degrees(np.arctan2(leg[1], leg[0]) -
                                                 np.arctan2(arm[1], arm[0]))
                                angle = angle + 360 if angle < 0 else angle
                                angle = angle if angle <= 180 else 360 - angle

                                print(f"{leg_name}与{arm_name}的夹角: {angle}°")

                                if angle > 80:
                                    has_angle_over_80 = True
                                    # 计算异常组合的中点位置
                                    if leg_name == "左腿":
                                        warning_x = int((left_hip[0] + left_knee[0]) / 2)
                                        warning_y = int((left_hip[1] + left_knee[1]) / 2)
                                    else:
                                        warning_x = int((right_hip[0] + right_knee[0]) / 2)
                                        warning_y = int((right_hip[1] + right_knee[1]) / 2)

                                    # 绘制警告标记
                                    warning_size = 50
                                    warning_color = (0, 0, 255)  # 红色

                                    # 绘制三角形警告标志
                                    triangle_pts = np.array([
                                        [warning_x, warning_y - warning_size],
                                        [warning_x - warning_size//2, warning_y + warning_size//2],
                                        [warning_x + warning_size//2, warning_y + warning_size//2]
                                    ], np.int32)
                                    cv2.polylines(image, [triangle_pts], True, warning_color, 3)

                                    # 在三角形中心绘制感叹号
                                    cv2.putText(image, "!",
                                              (warning_x - 5, warning_y + 10),
                                              cv2.FONT_HERSHEY_SIMPLEX,
                                              1, warning_color, 3)

            # 保存处理后的图片
            result_image_path = f"results/my_results/{os.path.basename(image_path)}"
            cv2.imwrite(result_image_path, image)

            if has_angle_over_80:
                print(f"检测到角度超过80°")
                return True, result_image_path
            else:
                print("未检测到异常姿态")
                # todo 删除抓拍的图片以及处理后的图片
                return False, None

        except Exception as e:
            print(f"人体姿态检测失败: {str(e)}")
            return False, None

    def capture_picture(self):
        """抓取图片并保存"""
        global LAST_CAPTURE_TIME

        # 在开始抓图前检查时间间隔
        current_time = time.time()
        time_since_last_capture = current_time - LAST_CAPTURE_TIME

        if time_since_last_capture < CAPTURE_INTERVAL:
            print(f"距离上次抓图仅过去 {time_since_last_capture:.1f} 秒，需要等待 {CAPTURE_INTERVAL-time_since_last_capture:.1f} 秒")
            return False

        if self.device_handle < 0:
            print("设备未登录，无法抓图")
            return False

        try:
            # 在实际抓图前更新时间戳，防止并发
            LAST_CAPTURE_TIME = current_time
            print(f"开始抓图，更新时间戳: {datetime.fromtimestamp(LAST_CAPTURE_TIME)}")

            jpeg_para = NET_DVR_JPEGPARA_NEW()
            jpeg_para.wPicSize = 0xff
            jpeg_para.wPicQuality = 0

            buffer_size = 1024 * 1024
            picture_buffer = create_string_buffer(buffer_size)
            bytes_returned = c_ulong(0)

            timestamp = datetime.now().strftime('%Y%m%d_%H%M%S')
            picture_file = os.path.join(self.pic_dir, f'capture_{timestamp}.jpg')

            if self.sdk.NET_DVR_CaptureJPEGPicture_NEW(
                self.device_handle,
                1,
                byref(jpeg_para),
                picture_buffer,
                buffer_size,
                byref(bytes_returned)
            ):
                with open(picture_file, 'wb') as f:
                    f.write(picture_buffer.raw[:bytes_returned.value])
                print(f"抓图成功：{picture_file}")

                # 进行人体检测
                has_person, result_image_path = self.detect_person(picture_file)

                if has_person and result_image_path:
                    print("检测到异常姿态")
                    # 只有在检测到异常姿态时才更新检测时间
                    global LAST_DETECT_TIME
                    LAST_DETECT_TIME = current_time
                    print(f"更新异常检测时间: {datetime.fromtimestamp(LAST_DETECT_TIME)}")

                    detect_image_url = self.db.upload_image(result_image_path)
                    if detect_image_url:
                        print(f"检测结果图片上传成功: {detect_image_url}")
                        self.db.insert_alarm_record(
                            device_id=self.device_id,
                            alarm_type='1',
                            detect_image_url=detect_image_url
                        )
                        return True
                else:
                    # 如果没有检测到异常姿态，删除图片
                    try:
                        os.remove(picture_file)
                        print(f"已删除抓拍图片: {picture_file}")
                        if result_image_path and os.path.exists(result_image_path):
                            os.remove(result_image_path)
                            print(f"已删除处理后的图片: {result_image_path}")
                    except Exception as e:
                        print(f"删除图片失败: {str(e)}")
                return False
            else:
                error_code = self.sdk.NET_DVR_GetLastError()
                print(f"抓图失败，错误码：{error_code}")
                # 如果抓图失败，重置时间戳
                LAST_CAPTURE_TIME = current_time - CAPTURE_INTERVAL
                return False
        except Exception as e:
            print(f"抓图过程发生异常: {str(e)}")
            # 发生异常时也重置时间戳
            LAST_CAPTURE_TIME = current_time - CAPTURE_INTERVAL
            return False

def main():
    # 设备列表
    devices = [
        {
            "ip": "192.168.200.166",
            "port": 8000,
            "username": "admin",
            "password": "isti1234",
            "device_no": "AA5336153",  # 设备编号
            "channel": "01"        # 通道号
        },
        {
            "ip": "192.168.200.167",
            "port": 8000,
            "username": "admin",
            "password": "password2",
            "device_no": "HK002",  # 设备编号
            "channel": "01"        # 通道号
        },
    ]

    monitors = []
    try:
        # 初始化所有设备的监控
        for device in devices:
            monitor = AlarmMonitor(
                device["ip"],
                device["port"],
                device["username"],
                device["password"],
                device["device_no"],    # 添加设备编号
                device["channel"]       # 添加通道号
            )
            if monitor.init_device():
                if monitor.start_alarm_listen():
                    print(f"设备 {device['device_no']}_{device['channel']} 开始监听报警...")
                    monitors.append(monitor)
                else:
                    print(f"设备 {device['device_no']}_{device['channel']} 启动报警监听失败")
            else:
                print(f"设备 {device['device_no']}_{device['channel']} 初始化失败")

        if monitors:
            print(f"成功启动 {len(monitors)} 个设备的监控")
            # 保持程序运行
            while True:
                time.sleep(1)
        else:
            print("没有成功启动的设备监控")

    except KeyboardInterrupt:
        print("\n程序退出...")
    finally:
        # 停止所有设备的监控
        for monitor in monitors:
            monitor.stop_alarm_listen()

if __name__ == "__main__":
    main()
