Cesium面积测量之思路解析加源码

如果你看过我的距离量测文章，那么我相信，面积也是你需要测量的吧，那就看看吧。

一、实现思路

首先我们需要用到的鼠标移动事件、单击事件和双击事件，具体功能如下：

1，鼠标移动事件：判断是否开始进行测量操作（单击为开始标志），如果没有，则什么也不做，如何开始则需要把单击的坐标作为起点，鼠标当前位置作为终点画面，随着鼠标的移动需要不停的刷新面。

2，单击事件：将测面状态更新为真，当点击次数大于俩次，开始绘制面，这里有面积计算和更新面俩个函数比较重要，后续你会看到

3，双击事件：将之前注册的事件取消，并清空临时对象。是不是很简单呢?

二、源码实现

    <!--测量空间面积-->
    <script type="text/javascript">

        //测量面积
        var measureArea = function (viewer) {
            var tooltip = document.getElementById("ToolTip");
            var isDraw = false;
            var polygonPath = [];
            var polygon = null;
            var handler = viewer.screenSpaceEventHandler;
            handler.setInputAction(function (movement) {

                //新增部分
                var position1;
                var cartographic;
                var ray = viewer.scene.camera.getPickRay(movement.endPosition);
                if (ray)
                    position1 = viewer.scene.globe.pick(ray, viewer.scene);
                if (position1)
                    cartographic = Cesium.Ellipsoid.WGS84.cartesianToCartographic(position1);
                if (cartographic) {
                    //海拔
                    var height = viewer.scene.globe.getHeight(cartographic);
                    var point = Cesium.Cartesian3.fromDegrees(cartographic.longitude / Math.PI * 180, cartographic.latitude / Math.PI * 180, height);
                    if (isDraw) {
                        tooltip.style.left = movement.endPosition.x + 10 + "px";
                        tooltip.style.top = movement.endPosition.y + 20 + "px";
                        tooltip.style.display = "block";

                        if (polygonPath.length < 2) {
                            return;
                        }
                        if (!Cesium.defined(polygon)) {
                            polygonPath.push(point);
                            polygon = new CreatePolygon(polygonPath, Cesium);
                            AllEnities.push(polygon);
                        } else {
                            polygon.path.pop();
                            polygon.path.push(point);
                            AllEnities.push(polygon);
                        }
                        if (polygonPath.length >= 2) {
                            tooltip.innerHTML = '<p>双击确定终点</p>';
                        }
                    }
                }

            }, Cesium.ScreenSpaceEventType.MOUSE_MOVE);
            handler.setInputAction(function (movement) {
                isDraw = true;
                //新增部分
                var position1;
                var cartographic;
                var ray = viewer.scene.camera.getPickRay(movement.position);
                if (ray)
                    position1 = viewer.scene.globe.pick(ray, viewer.scene);
                if (position1)
                    cartographic = Cesium.Ellipsoid.WGS84.cartesianToCartographic(position1);
                if (cartographic) {
                    //海拔
                    var height = viewer.scene.globe.getHeight(cartographic);
                    var point = Cesium.Cartesian3.fromDegrees(cartographic.longitude / Math.PI * 180, cartographic.latitude / Math.PI * 180, height);
                    if (isDraw) {
                        polygonPath.push(point);
                        var tmep = viewer.entities.add({
                            position: point,
                            point: {
                                show: true,
                                color: Cesium.Color.SKYBLUE,
                                pixelSize: 3,
                                outlineColor: Cesium.Color.YELLOW,
                                outlineWidth: 1
                            },
                        });

                        AllEnities.push(tmep);
                    }
                }


            }, Cesium.ScreenSpaceEventType.LEFT_CLICK);
            handler.setInputAction(function () {
                handler.removeInputAction(Cesium.ScreenSpaceEventType.LEFT_CLICK);
                handler.removeInputAction(Cesium.ScreenSpaceEventType.LEFT_DOUBLE_CLICK);

                if (polygonPath.length >= 2) {
                    var label = String(countAreaInCartesian3(polygon.path));
                    label = label.substr(0, label.indexOf(".", 0));
                    var text;
                    if (label.length < 6)
                        text = label + "平方米";
                    else {
                        label = String(label / 1000000);
                        label = label.substr(0, label.indexOf(".", 0) + 3);
                        text = label + "平方公里"
                    }

                    var textArea = text;
                    var lastpoint = viewer.entities.add({
                        name: '多边形面积',
                        position: polygon.path[polygon.path.length - 1],
                        point: {
                            pixelSize: 5,
                            color: Cesium.Color.RED,
                            outlineColor: Cesium.Color.WHITE,
                            outlineWidth: 2,
                            heightReference: Cesium.HeightReference.CLAMP_TO_GROUND
                        },
                        label: {
                            text: textArea,
                            font: '18px sans-serif',
                            fillColor: Cesium.Color.GOLD,
                            style: Cesium.LabelStyle.FILL_AND_OUTLINE,
                            outlineWidth: 2,
                            verticalOrigin: Cesium.VerticalOrigin.BOTTOM,
                            pixelOffset: new Cesium.Cartesian2(20, -40)
                        }
                    });

                    AllEnities.push(lastpoint);

                }

                viewer.trackedEntity = undefined;
                isDraw = false;
                tooltip.style.display = 'none';

            }, Cesium.ScreenSpaceEventType.LEFT_DOUBLE_CLICK);

            var CreatePolygon = (function () {
                function _(positions, cesium) {
                    if (!Cesium.defined(positions)) {
                        throw new Cesium.DeveloperError('positions is required!');
                    }
                    if (positions.length < 3) {
                        throw new Cesium.DeveloperError('positions 的长度必须大于等于3');
                    }

                    this.options = {
                        polygon: {
                            show: true,
                            hierarchy: undefined,
                            outline: true,
                            outlineColor: Cesium.Color.WHITE,
                            outlineWidth: 2,
                            material: Cesium.Color.YELLOW.withAlpha(0.4)
                        }
                    };
                    this.path = positions;
                    this.hierarchy = positions;
                    this._init();
                }

                _.prototype._init = function () {
                    var _self = this;
                    var _update = function () {
                        return _self.hierarchy;
                    };
                    //实时更新polygon.hierarchy
                    this.options.polygon.hierarchy = new Cesium.CallbackProperty(_update, false);
                    var oo = viewer.entities.add(this.options);
                    AllEnities.push(oo);
                };

                return _;
            })();

            //微元法求面积
            var countAreaInCartesian3 = function (ps) {
                var s = 0;
                for (var i = 0; i < ps.length; i++) {
                    var p1 = ps[i];
                    var p2;
                    if (i < ps.length - 1)
                        p2 = ps[i + 1];
                    else
                        p2 = ps[0];
                    s += p1.x * p2.y - p2.x * p1.y;
                }
                return Math.abs(s / 2);
            }
        }
    </script>
    <!--测量空间面积-->

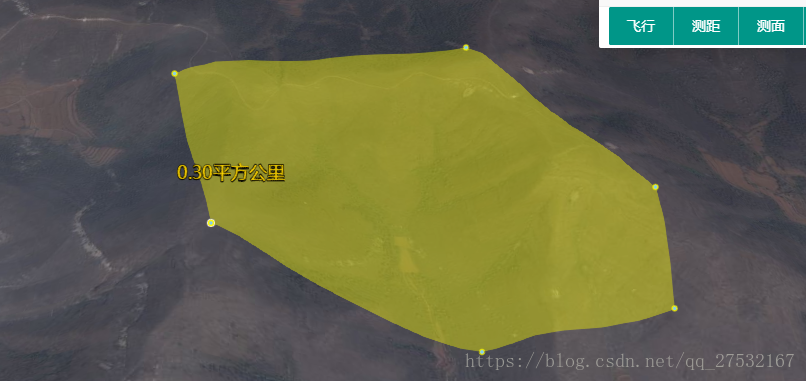

三、效果图

面积测量效果

四、更多
