1、简介

在利用CANOE 进行测试时，需要用到dll库用于生成27服务需要的Key。因此本文主要介绍如何识别Vector 默认的dll接口，并根据自己需要生成dll

2、找到CANOE提供的Demo工程

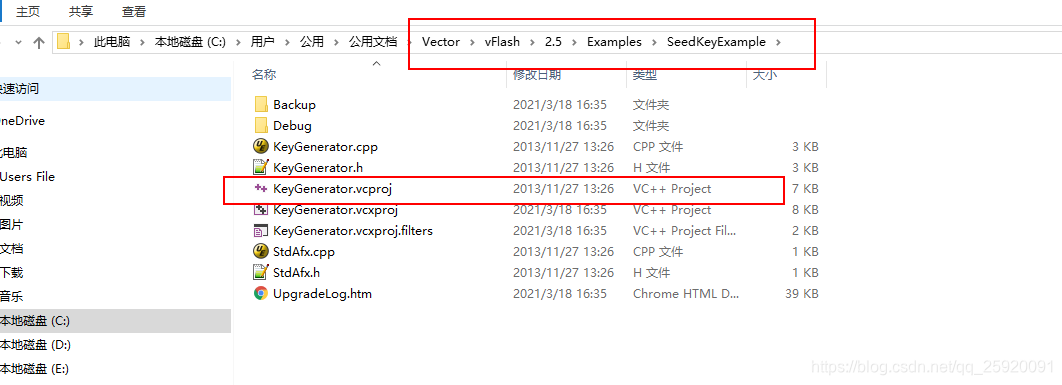

安装CANOD时，会提供生成符合CANOE接口的Demo工程，路径如下
在这里插入图片描述

3、打开VS工程，修改代码

示例代码如下

//
///Example for a SeedKey.Dll used in CANoe.DiVa
///See also CANoe.DiVa help==>Proceedings/Entry masks/"General" entry mask
//


#include <windows.h>
#include "GenerateKeyEx.h"


// KeyGeneration.cpp : Defines the entry point for the DLL application.
BOOL APIENTRY DllMain( HANDLE hModule,
                       DWORD  ul_reason_for_call,
                       LPVOID lpReserved
					 )
{
    return TRUE;
}



const unsigned char APP_MASK[4] = { 0xD6, 0xD7, 0x98, 0xFA };


KEYGENALGO_API VKeyGenResultEx GenerateKeyEx(
  const unsigned char* ipSeedArray,          /* Array for the seed [in] */
  unsigned int iSeedArraySize,               /* Length of the array for the seed [in] */
  const unsigned int iSecurityLevel,         /* Security level [in] */
  const char* ipVariant,                     /* Name of the active variant [in] */
  unsigned char* iopKeyArray,                /* Array for the key [in, out] */
  unsigned int iMaxKeyArraySize,             /* Maximum length of the array for the key [in] */
  unsigned int& oActualKeyArraySize)         /* Length of the key [out] */
{
  //Copy seed from parameter to a integer
  //Note: The byte order in the seed array is equal to the byte order in the bus message

  //begin calculate key from seed------------------------------------------------------------
  //for security access with Services 0x27 01 ->0x27 02
  unsigned char tmpKey[4];

  for (int i = 0; i<4; i++)
  {
	  tmpKey[i] = ipSeedArray[i] ^ APP_MASK[i];
  }

  //end calculate key from seed------------------------------------------------------------

  //Copy key to the output buffer
  //Note: The first byte of the key array will be the first key byte of the bus message
  iopKeyArray[0] = ((tmpKey[0] & 0x0F) << 4) | (tmpKey[1] & 0xF0);
  iopKeyArray[1] = ((tmpKey[1] & 0x0F) << 4) | ((tmpKey[2] & 0xF0) >> 4);
  iopKeyArray[2] = (tmpKey[2] & 0xF0) | ((tmpKey[3] & 0xF0) >> 4);
  iopKeyArray[3] = ((tmpKey[3] & 0x0F) << 4) | (tmpKey[0] & 0xF0);
  //setting length of key
  oActualKeyArraySize = 4;
  return KGRE_Ok;
}

4、支持多个Level

为了便于在一个dll 中支持多个level, 可以使用接口参数 iSecurityLevel，如下代码

if (iSecurityLevel == 0x1)
{
	/* calc seed key */
}
else if (iSecurityLevel  == 0x09)
{
	/*  calc seed key*/
}
